Hitachi RAS-25YHA User manual

MODEL
RAS-25YHA / RAC-25YHA
RAS-35YHA / RAC-35YHA
INDOOR UNIT
Instruction manual
To obtain the best performance and ensure years of
trouble free use, please read this instruction manual
completely.
OUTDOOR UNIT
INDOOR UNIT/OUTDOOR UNIT
RAS-25YHA
RAS-35YHA
RAC-25YHA
RAC-35YHA
SPLIT TYPE AIR CONDITIONER

– 2 –
WARNING
SAFETY PRECAUTION
• Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
• Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which,
if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may
result in serious consequences if not observed properly. Please observe all instructions strictly to ensure
safety.
• The signs indicate the following meanings. (The following are examples of signs.)
• Please keep this manual after reading.
• Do not reconstruct the unit.
Water leakage, fault, short circuit or fire may occur if you reconstruct the unit by
yourself.
• Please ask your sales agent or qualified technician for the installation of your unit.
Water leakage, short circuit or fire may occur if you install the unit by yourself.
• Please use earth line.
Do not place the earth line near water or gas pipes, lightning-conductor, or the
earth line of telephone. Improper installation of earth line may cause electric
shock.
• Be sure to use the specified piping set for R410A. Otherwise, this may result in
broken copper pipes or faults.
• A circuit breaker should be installed depending on the mounting site of the unit.
Without a circuit breaker, the danger of electric shock exists.
• Do not install the unit near a location where there is flammable gas.
The outdoor unit may catch fire if flammable gas leaks around it. Piping shall be
suitable supported with a maximum spacing of 1m between the supports.
• Please ensure smooth flow of water when installing the drain hose. If any failure
is found in the drain path, water drops from the indoor and outdoor units, causing
wet household effects.
• Make sure that a single phase 230V power source is used.
The use of other power sources may cause electrical components to overheat
and lead to fire.
PROHIBITION
CONNECT EARTH LINE
PROHIBITION
PROHIBITION
WARNING
CAUTION
• Avoid an extended period of direct air flow for your health.
• Should abnormal situation arise (like burning smell), please stop operating the
unit and remove plug from the socket or turn off the circuit breaker. Contact your
agent. Fault, short circuit or fire may occur if you continue to operate the unit
under abnormal situation.
• Please contact your agent for maintenance.
Improper self maintenance may cause electric shock and fire.
• Please contact your agent if you need to remove and reinstall the unit.
Electric shock or fire may occur if you remove and reinstall the unit yourself improperly.
PROHIBITION
“OFF”
PRECAUTIONS DURING INSTALLATION
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
• Do not connect the power calbe with an extension cable or do not plug too many
leads of the other electric appliance into the socket where this cable is plugged.
In addition, wire the cable with some allowances to prevent the cable from stretching.
Not doing so will cause an electrical shock, heat generation or fire.
This sign in the figure indicates prohibition. Indicates the instructions that must be followed.
• Do not bundle the power cable, pull it, put something on it, heat it, process it, or
put it between things. Breakage of the power cable may result.
Use of a damaged cable may cause an electrical shock or a fire.
• Do not put objects like thin rods into the panel of blower and suction side
because the high-speed fan inside may cause danger.
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION

– 3 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ
PRECAUTIONS DURING OPERATION
CAUTION
• Indoor unit cleaning must be performed by authorized personnel only. Consult your
sales agent.
Using a commercially available detergent or similar can damage the plastic parts
or clog the drain pipe, causing water to drip with potential electric shock hazard.
• Do not touch the air outlet, bottom surface and aluminum fin of the outdoor
unit.
You may get hurt.
• Do not touch the refrigerant pipe and connecting valve.
Burns may result.
PROHIBITION
PROHIBITION
PROHIBITION
DON’T TOUCH
PROHIBITION
PROHIBITION
PROHIBITION
PROHIBITION
DON’T TOUCH
“OFF”
STRICTLY OBSERVE
PRECAUTIONS
• Do not use any conductor as fuse wire, this could cause fatal accident.
• During thunder storm, disconnect the plug top or turn off the circuit breaker.
• The product shall be operated under the manufacturer specification and not for
any other intended use.
• Spray cans and other combustibles should not be located within a meter of the air
outlets of both indoor and outdoor units.
As a spray can’s internal pressure can be increased by hot air, a rupture may result.
PROHIBITION
• Do not attempt to operate the unit with wet hands, this could cause fatal accident.
DON’T WET
• When operating the unit with burning equipments, regularly ventilate
the room to avoid oxygen insufficiency.
• Do not direct the cool air coming out from the air-conditioner panel to
face household heating apparatus as this may affect the working of
apparatus such as the electric kettle, oven etc.
PROHIBITION
• Please ensure that outdoor mounting frame is always stable, firm and
without defect. If not, the outdoor unit may collapse and cause danger.
• Do not wash the unit with water or place a water container such as a
vase on the indoor unit.
Electrical leakage could be present and cause electric shock.
• Do not place plants or animals directly under the air flow as it is bad for the plants or
animals.
PROHIBITION
• Do not climb on the outdoor unit or put objects on it.
• When operating the unit with the door and windows opened, (the room humidity
is always above 80%) and with the air deflector facing down or moving automati-
cally for a long period of time, water will condense on the air deflector and drips
down occasionally. This will wet your furniture. Therefore, do not operate under
such condition for a long time.
• If the amount of heat in the room is above the cooling or heating capability of the
unit (for example: more people entering the room, using heating equipments and
etc.), the preset room temperature cannot be achieved.

– 4 –

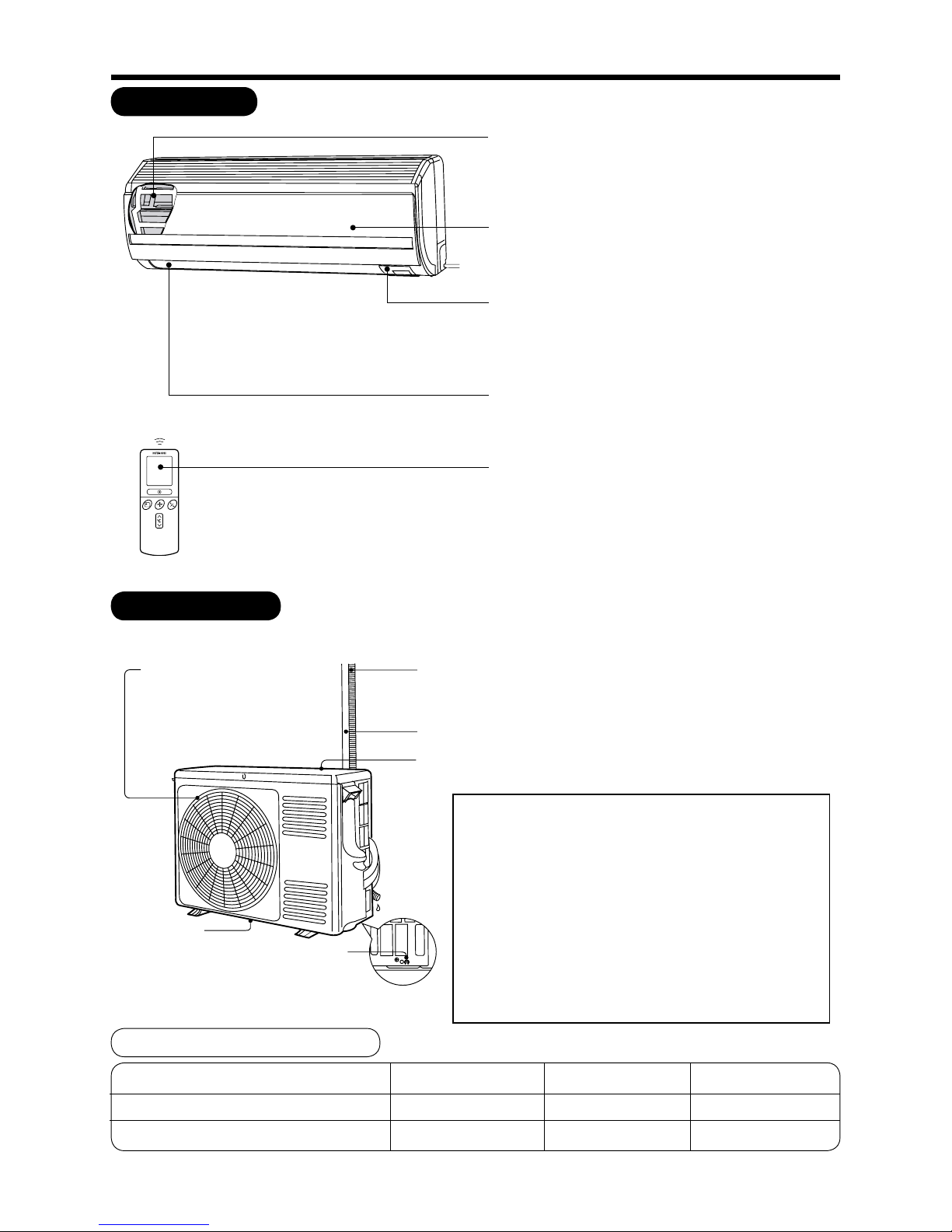

NAMES AND FUNCTIONS OF EACH PART
INDOOR UNIT
MODEL NAME AND DIMENSIONS
MODEL WIDTH (mm) HEIGHT (mm) DEPTH (mm)
RAS-25YHA, RAS-35YHA 780 280 215
RAC-25YHA, RAC-35YHA 750 548 288
Air filter
To prevent dust from coming into the indoor unit.
(Refer page 16)
Front panel
Indoor unit indicators
Light indicator showing the operating condition.
(Refer page 5)
Horizontal deflector Vertical deflector
(Air Outlet)
(Refer page 15)
Remote controller
Send out operation signal to the indoor unit. So as
to operate the whole unit.
(Refer page 6)
OUTDOOR UNIT
Drain hose
Drains the dehumidified water from the indoor unit to the
outdoor during “cooling” or “dehumidifying” operation.
Piping and Wiring
Air inlets (Rear and left sides)
Air outlet
When “heating” operation is
performed, cool air blows
and when “coolin g” or
“dehumidifying” operation is
performed, warm air blows.
Drain port
(Bottom) Earth terminal
(Lower section of the side)
About the outdoor unit:
• When “Stop” is selected during operation of the
indoor unit, the fan of the outdoor unit continues
turning for 10 to 60 seconds to cool the electric parts
down.
• In heating operation, condensate or water due to
defrosting will flow. Do not cover the drain port of the
outdoor unit because such water may freeze in the
chilly area.
• When the outdoor unit is hung on the ceiling, instal
the bush and drain pipe on the drain port and drain-
water.

– 5 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ
NAMES AND FUNCTIONS OF EACH PART
INDOOR UNIT INDICATORS
CAUTION
FILTER LAMP (Green)
When the device is operated for a total of about 200
hours, the FILTER lamp lights indicates that it is
time to clean the filter.The lamp goes out when the
“ (AUTO SWING)” button is pressed while the
operation is stopped.
OPERATION LAMP (Yellow)
This lamp lights during operation.
The OPERATION LAMP flashes in the following cases
during heating.
(1) DURING PREHEATING
For about 2-3 minutes after starting up.
(2) DURING DEFROSTING
Defrosting will be performed about once an hour when
frost forms on the heat exchanger of the outdoor unit,
for 5-10 minutes each time.
TEMPORARY SWITCH
Use this switch to start and stop when the remote controller does not work.
This temporary operation will be at the most recent setting made. (The unit
will immediately go into automatic operation once power is switched on.
Turn off the circuit breaker or pull out the power plug if the
unit is not be operated for a long period.
If the power stays on and the unit is not operated, power is slightly consumed in the control circuit.
The power is saved by turning off the power switch (or the circuit breaker when the power is supplied from
the outdoor unit).
Attaching the air cleansing and deodorizing filters (Accessories) to the filter frame.
• Attach the air cleansing and deodorizing filters to the frame
by gently compress its both sides and release after insertion
into filter frame.
• The cooling capacity is slightly weakened and the cooling speed
becomes slower when the air cleansing and deodorizing filters
are used.
• Air cleansing and deodorizing filters can be used for about 1 year.
When you want to renew it, please ask your sales agent.
Attaching the negative ion stick to the filter frame
• Put the negative ion stick to the loer hooks and install it so as
to push up the upper hooks.
Frame
Upper hook
Negative
ion stick
Lower hook
TIMER LAMP (Orange)
This lamp lights when the timer is working.

– 6 –
AUTO
HEAT
DEHUMIDIFY
COOL
FAN
FAN SPEED
LOW
MED
HI
SLEEPING
STOP (CANCEL)
START (RESERVE)
START/STOP
TIME
TIMER SET
TIMER SELECTOR
ON TIMER
OFF TIMER
AUTO SWING
NAMES AND FUNCTIONS OF EACH PART
REMOTE CONTROLLER
• This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is controlled
electronically, the range of control may be shorter.
This unit can be fixed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can be con-
trolled from the remote controller.
• Handle the remote controller with care. Dropping it or getting it wet may compromise its signal transmission ca-
pability.
• After new batteries are inserted into the remote controller, the unit will initially require approximately 10 seconds
to respond to commands and operate.
Signal emitting window/transmission sign
Point this window toward the indoor unit when controlling it.
The transmission sign blinks when a signal is sent.
Display
This indicates the room temperature selected, current time, timer status, function
and intensity of circulation selected.
START/STOP button
Press this button to start operation. Press it again to stop operation.
AUTO SWING button
Controls the angle of the horizontal air deflector.
FAN SPEED selector
This determines the fan speed. Every time you press this button, the intensity
of circulation will change from (AUTO) to (HI) to (MED) to (LOW).
(This button allows selecting the optimal or preferred fan speed for each opera-
tion mode.)
SLEEP button
Use this button to set the sleep timer.
TEMPERATURE buttons
Use these buttons to raise or lower the temperature setting. (Keep pressed,
and the value will change more quickly.)
TIME button
Use this button to set and check the time and date.
RESET buttons
Press this button after the batteries are replaced or when some irregularopera-
tion is found.
FUNCTION selector
Use this button to select the operating mode. Every time you press it, the mode
will change from (AUTO) to (HEAT) to (DEHUMIDIFY) to (COOL)
and to (FAN) cyclically.
FAN SPEED selector
AUTO SWING button
TIMER control
Use these buttons to set the timer.
OFF-TIMER button Select the turn OFF time.
ON-TIMER button Select the turn ON time.
RESERVE button Time setting reservation.
CANCEL button Cancel time reservation.
Precautions for Use
• Do not put the remote controller in the following places.
• In direct sunlight
• In the vicinity of a heater.
• Handle the remote controller carefully. Do not drop it on the floor, and protect it
from water.
• Once the outdoor unit stops, it will not restart for about 3 minutes (unless you turn
the power switch off and on or unplug the power cord and plug it in again).
This is to protect the device and does not indicate a failure.
• If you press the FUNCTION selector button during operation, the device may
stop for about 3 minutes for protection.

– 7 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ
VARIOUS FUNCTIONS
Auto Restart Control
AUTOMATIC OPERATION
The device will automatically determine the mode of operation, HEAT or COOL depending on the initial room temperature.
The selected mode of operation will change when the room temperaturevaries varies.
Press the (FAN SPEED) button, AUTO and LOW is available.
Press the (START/STOP) button.
Operation starts with a beep.
Press the button again to stop operation.
As the settings are stored in memory in the remote controller, you only have
to press the (START/STOP) button next time.
You can raise or lower the temperature setting as necessary by maximum
of 3°C.
Press the temperature button and the temperature
setting will change by 1°C each time.
• The preset temperature and the actual room temperature may vary
somewhat depending on conditions.
1
START
STOP
Press the FUNCTION selector so that the display indicates the
(AUTO) mode of operation.
• When AUTO has been selected, the device will automaticallydetermine
the mode of operation, HEAT or COOL dependingon the current
room temperature.
• When AUTO is first selected, the device will determine thecurrent
room temperature and select the proper operationmode
accordingly.
• When the air conditioner has adjusted the room’s temperatureto
the near preset temperature, it will begin to monitoroperation. If the
room temperature subsequently changes,the air conditioner will
once again select the appropriateoperation (heating or cooling) to
adjust the temperature tothe preset temperature. The monitoring
operation range is+ 3°C relative to the preset temperature.
• If the mode automatically selected by the unit is notsatisfactory,
manually change the mode setting (heat,dehumidify, cool or fan).
• If there is a power failure, operation will be automatically restarted when the power is resumed with previous
operation mode and airflow direction.
(As the operation is not stopped by remote controller.)
• If you intend not to continue the operation when the power is resumed, switch off the power supply.
When you switch on the circuit breaker, the operation will be automatically restarted with previous operation mode
and airflow direction.
Note: 1. If you do not require Auto Restart Control, please consult your sales agent.
2. Auto Restart Control is not available when Timer or Sleep Timer mode is set.

– 8 –
Set the desired FAN SPEED with the (FAN SPEED) button (the
display indicates the setting).
(AUTO) : The fan speed changes automatically according
to the temperature of the air which blows out.
(HI) : Economical as the room will become warm
quickly.
But you may feel a chill at the beginning.
(MED) : Quiet.
(LOW) : More quiet.
HEATING OPERATION
• Use the device for heating when the outdoor temperature is under 21°C.
When it is too warm (over 21°C), the heating function may not work in order to protect the device.
• In order to keep reliability of the device, please use this device above -10°C of the outdoor
temperature.
Press the FUNCTION selector so that the display indicates
(HEAT).
As the settings are stored in memory in the remote controller, you only have
to press the (START/STOP) button next time.
Set the desired room temperature with the TEMPERATURE buttons
(the display indicates the setting).
The temperature setting and the actual room temperature may vary
somewhat depending on conditions.
Press the (START/STOP) button. Heating operation starts with
a beep. Press the button again to stop operation.
1
3
2
START
STOP
Defrosting
Defrosting will be performed about once an hour when frost forms on the heat exchange of the outdoor unit,
for 5~10 minutes each time.
During defrosting operation, the operation lamp blinks in cycle of 3 seconds on and 0.5 second off.
The maximum time for defrosting is 20 minutes.
(If the piping length used is longer than usual, frost will likely to form.)

– 9 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ
DEHUMIDIFYING OPERATION
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
When you want to change the operation mode, please use the FUNCTION
selector.
Set the desired temperature is available.
You also can use the FUNCTION selector to select this operation.
Press the FUNCTION selector so that the display indicates
(DEHUMIDIFY).
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
Press the (START/STOP) button.
1
Dehumidifying Function
START
STOP
• Dehumidifying takes place with a target temperature which is slightly lower than the room temperature setting.
(However, target temperature is 16°C for a temperature setting of 16°C.)
If the room temperature becomes lower than the target value, operation stops. If the room temperature be-
comes higher than the target value, operation restarts.
• The preset room temperature may not be reached depending on the number of people present in the room
or other room conditions.

– 10 –
Set the desired FAN SPEED with the (FAN SPEED) button (the
display indicates the setting).
(AUTO) : The FAN SPEED is HI at first and varies to MED
automatically when the preset temperature has
been reached.
(HI) : Economical as the room will become cool
quickly.
(MED) : Quiet.
(LOW) : More quiet.
Press the FUNCTION selector so that the display indicates
(COOL).
As the settings are stored in memory in the remote controller, you only have
to press the (START/STOP) button next time.
Set the desired room temperature with the TEMPERATURE buttons
(the display indicates the setting).
The temperature setting and the actual room temperature may vary
somewhat depending on conditions.
Press the (START/STOP) button. Cooling operation starts with a
beep. Press the button again to stop operation. The cooling function
does not start if the temperature setting is higher than the current
room temperature (even though the (OPERATION) lamp lights).
The cooling function will start as soon as you set the temperature
below the current room temperature.
COOLING OPERATION
Use the device for cooling when the outdoor temperature is 22-42°C.
If humidity is very high (over 80%) indoors, some dew may form on the air outlet grille of the indoor unit.
1
2
3
START
STOP

– 11 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ
FAN OPERATION
You can use the device simply as an air circulator. Use this function to dry the interior of the indoor unit
at the end of summer.
FAN SPEED (AUTO) … When the AUTO fan speed mode is set in the cooling/heating operation:
For the cooling operation
For the heating operation
• The fan speed will automatically change according to the temperature of
discharged air.
• As room temperature reaches the preset temperature, a very light breeze
will blow.
• Operation starts in the “HI” mode to reach the preset temperature.
• As room temperature approaches the preset temperature, fan speed au-
tomatically switches to “LOW”.
Press the (START/STOP) button. Fan operation starts with a
beep.
Press the button again to stop operation.
Press the (FAN SPEED) button.
(HI) : The strongest air blow.
(MED) : Quiet.
(LOW) : More quiet.
Press the FUNCTION selector so that the display indicates
(FAN).
1
2
START
STOP

– 12 –
Stop
Start
HOW TO SET THE TIMER
TIME, DAY,
MONTH (current
time, day, month)
OFF TIMER
ON TIMER
RESERVE
CANCEL
1 Set the current month and day
with the TIMER control button.
1 Press the (OFF-TIMER) but-
ton. The (OFF) mark blinks on
the display.
After you change the
batteries;
You can set the device to turn off at
the present time.
1 Press the (ON-TIMER) but-
ton. The (ON) mark blinks on the
display.
The device will turn on at the
designated times.
1 Press the (ON-
OFF) button so that
the (OFF) mark
blinks.
2 Set the turn-off time
with the TIMER control
button.
Press the (RESERVE)
button.
3 Press the (ON-TIM-
ER) button so that the
(OFF) mark lights and the
(ON) mark blinks.
• The device will turn on (off) and
off (on) at the designated times.
• The switching occurs first at the
preset time that comes earlier.
• The arrow mark appearing on the
display indicates the sequence of
switching operations.
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL)
button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor
unit.
NOTE
You can set only one of the OFF-timer,
ON-timer and ON/OFF-timer.
StopStart
Start
Stop
Time, Day, Month
OFF-Timer
ON-Timer
ON/OFF-Timer
DM
M D
AM
AM
PM
PM
AM
PM

– 13 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ
3 Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (ON) mark starts lighting instead of flashing and the (RESERVED)
sign lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
2 Set the turn-on time with the
TIMER control button.
Example:
The device will turn on at 7:00 a.m.
The setting of the turn-on time is now complete.
4 Set the turn-on time with the
TIMER control button.
Example:
The device will turn off at 10:30p.m. and it will be
turned on at 7:00 a.m.
The settings of the turn-on/off time are now com-
plete.
5 Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (ON) mark starts lighting instead of flashing and the (RESERVED) sign
lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
• The timer may be used in three ways: off-timer, on-timer and ON/OFF (OFF/ON)-timer. Set the current time
at first because it serves as a reference.
• As the time settings are stored in memory in the remote controller, you only have to press the (RESERVE)
button is order to use the same settings next time.
2 Set the
(TIME) button.
Example: The current time is 1:30p.m.
• The time indication will dis-
appear automatically in 10
seconds.
• To check the current time
setting, press the (TIME)
button twice.
The setting of the current time
is now complete.
3 Set the current time with
the TIMER control button.
4 Press the (TIME) button
again. The time indication starts
lighting instead of flashing.
2 Set the turn-off time with the
TIMER control button.
3 Point the signal window of the remote controller toward the indoor unit, and
press the (RESERVE) button.
The (OFF) mark starts lighting instead of flashing and the (RESERVED)
sign lights. A beep occurs and the (TIMER) lamp lights on the indoor unit.
Example: The device will turn off at 11:00p.m.
The setting of turn-off time is now complete.
AM
PM
PM
PM
PM
PM
AM
AM
PM
AM
PM
AM

– 14 –

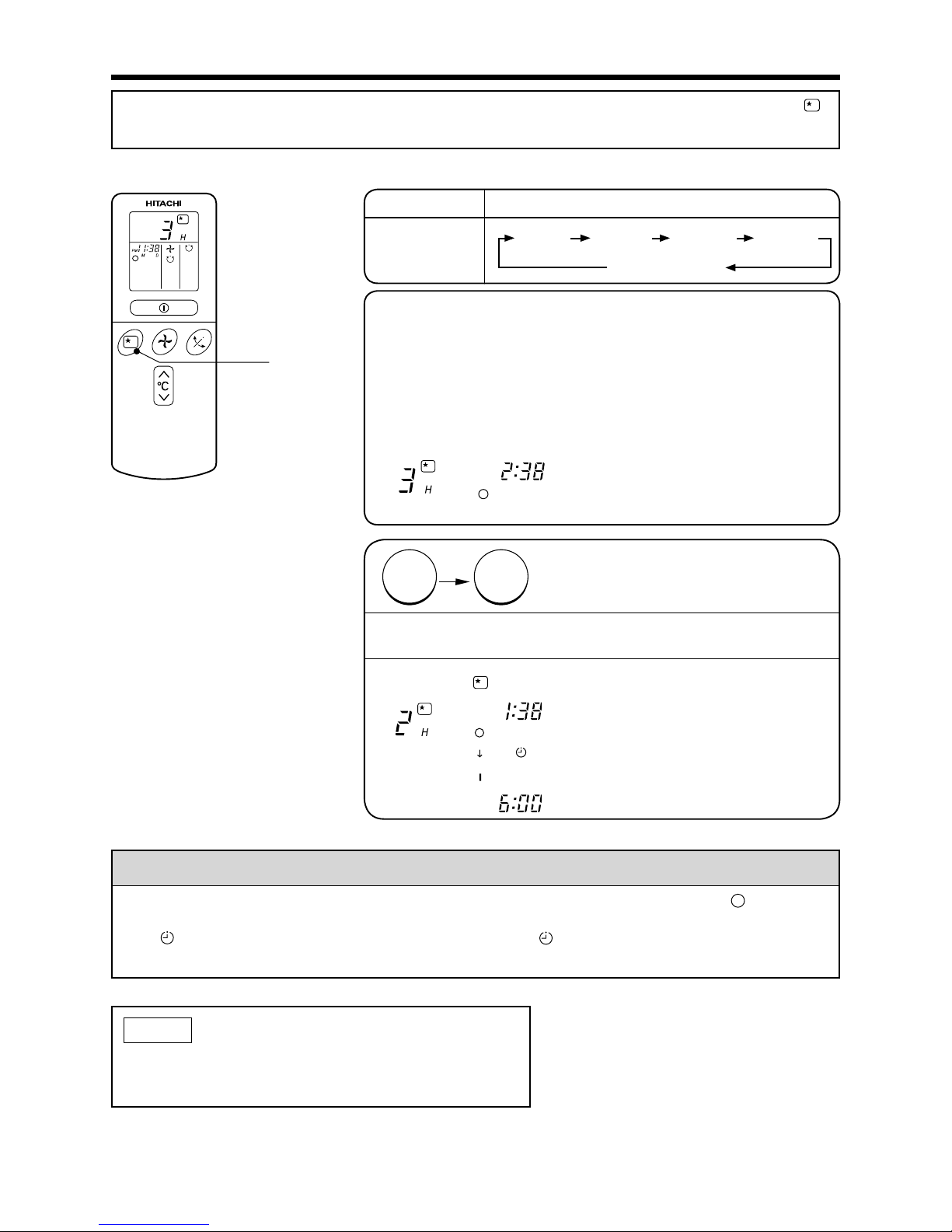

HOW TO SET THE SLEEP TIMER
SLEEP
How to Cancel Reservation
Point the signal window of the remote controller toward the indoor unit, and press the (CANCEL)
button.
The (RESERVED) sign goes out with a beep and the (TIMER) lamp turns off on the indoor
unit.
Sleep Timer: The device will continue working for the desired number
of hours and then turn off.
Point the signal window of the remote controller toward the indoor unit,
and press the SLEEP button.
The timer information will be displayed on the remote controller. The
TIMER lamp lights with a beep from the indoor unit. When the sleep
timer has been set, the display indicates the turn-off time.
Example: If you set 3 hours sleep
time at 11:38 p.m., the turn-off time
is 2:38 a.m.
Start
Sleep
timer
The device will be turned off by the sleep timer
and turned on by on-timer.
1 Set the ON-timer.
2 Press the (SLEEP) button and set the sleep timer.
For heating:
In this case, the device will turn off in 2
hours (at 1:38 a.m.) and turn on earlyso
that the preset temperature will be
almost reached at 6:00 next morning.
1 hour 2 hours 3 hours 7 hours
Sleep timer off
Set the current time at first if it is not set before (see the pages for setting the current time). Press the
(SLEEP) button and the display changes as shown below.
Mode Indication
Sleep Timer
AM
AM
AM
If you set the sleep timer when the off-time or on/off-timer has
been set earlier, the sleep timer becomes effective instead
of the off - or on/off-timer set earlier.
NOTE

– 15 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ

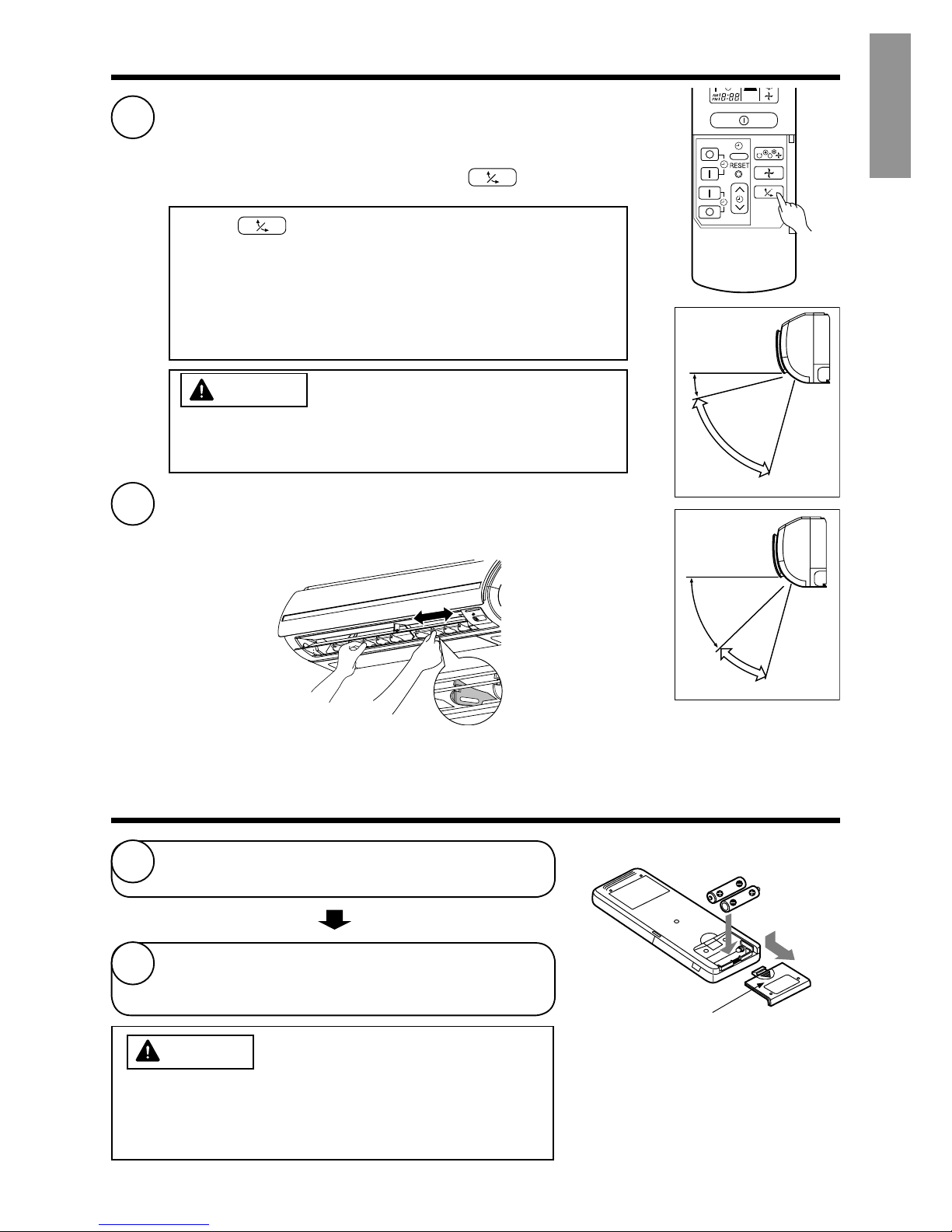

ADJUSTING THE AIR DEFLECTORS
Adjustment of the conditioned air in the upward and downward
directions.
The horizontal air deflector is automatically set to the proper angle suitable
for each operation. The deflector can be swung up and down continuously
and also set to the desired angle using the “ (AUTO SWING)”
button.
1
Remove the cover as shown in the figure and take out
the old batteries.
2
CAUTION
1
Install the new batteries.
The direction of the batteries should match the marks in
the case.
1.Do not use new and old batteries, or different kinds of batteries
together.
2.Take out the batteries when you do not use the remote controller
for 2 or 3 months.
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
Push and pull to the
direction of arrow.
2
• If the “ (AUTO SWING)” button is pressed once, the horizon-
tal air deflector swings up and down. If the button is pressed again,
the deflector stops in its current position. Several seconds (about 6
seconds) may be required before the deflector starts to move.
• Use the horizontal air deflector within the adjusting rangeshown in
the right.
• When the operation is stopped, the horizontal air deflector moves
and stops at the position where the air outlet closes.
CAUTION
• In “Cooling” operation, do not keep the horizontal air deflector
swinging for a long time. Some dew may form on the horizontal air
deflector and dew may drop.
Adjustment of the conditioned air to the left and right.
Hold the vertical air deflector as shown in the figure and adjust the
conditioned air to the left and right.
Left side: Hold the
third blade from the
left endof the air
deflector to adjust the
direction. The pull for
the blade is marked.
Right side: Hold the
third blade from the
right endof the air
deflector to adjust the
direction. The pull for
the blade is marked.
Vertical
Vertical
about 15°
about 60°
about 45°
about 30°
When cooling,
dehumidifying
When heating

– 16 –
MAINTENANCE
2
1
CAUTION
PROCEDURE
1. AIR FILTER
Cleaning and maintenance must be carried out only by qualified service personal. Before cleaning, stop
operation and switch off the power supply.
When the filter indicator lamp comes on, be sure to clean the filter. By doing so, the power rates aresaved.
In case the air filter is full of dust, the air flow will decrease and the cooling capacity will bereduced. Further,
noise may occur. Be sure to clean the filter following the procedure below.
Open the front panel carefully and remove the filter.
Vacuum dust from the air filter using vacuum cleaner. If
there is too much dust, wash the filter with a detergent
and rinse it thoroughly. After that, dry it in the shade.
3• Set the filter with “FRONT” mark facing front, and slot
them into the original state.
• After attaching the filters, push the front panel at three
arrow portions as shown in figure and close it.
CAUTION
• Do not wash with hot water at more than 40°C. The filter may shrink.
• When washing it, shake off moisture completely and dry it in the shade; do not expose it directly to the sun.
The filter may shrink.
• Don’t operate the unit without filter. Fault may occur if you continue.

– 17 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ

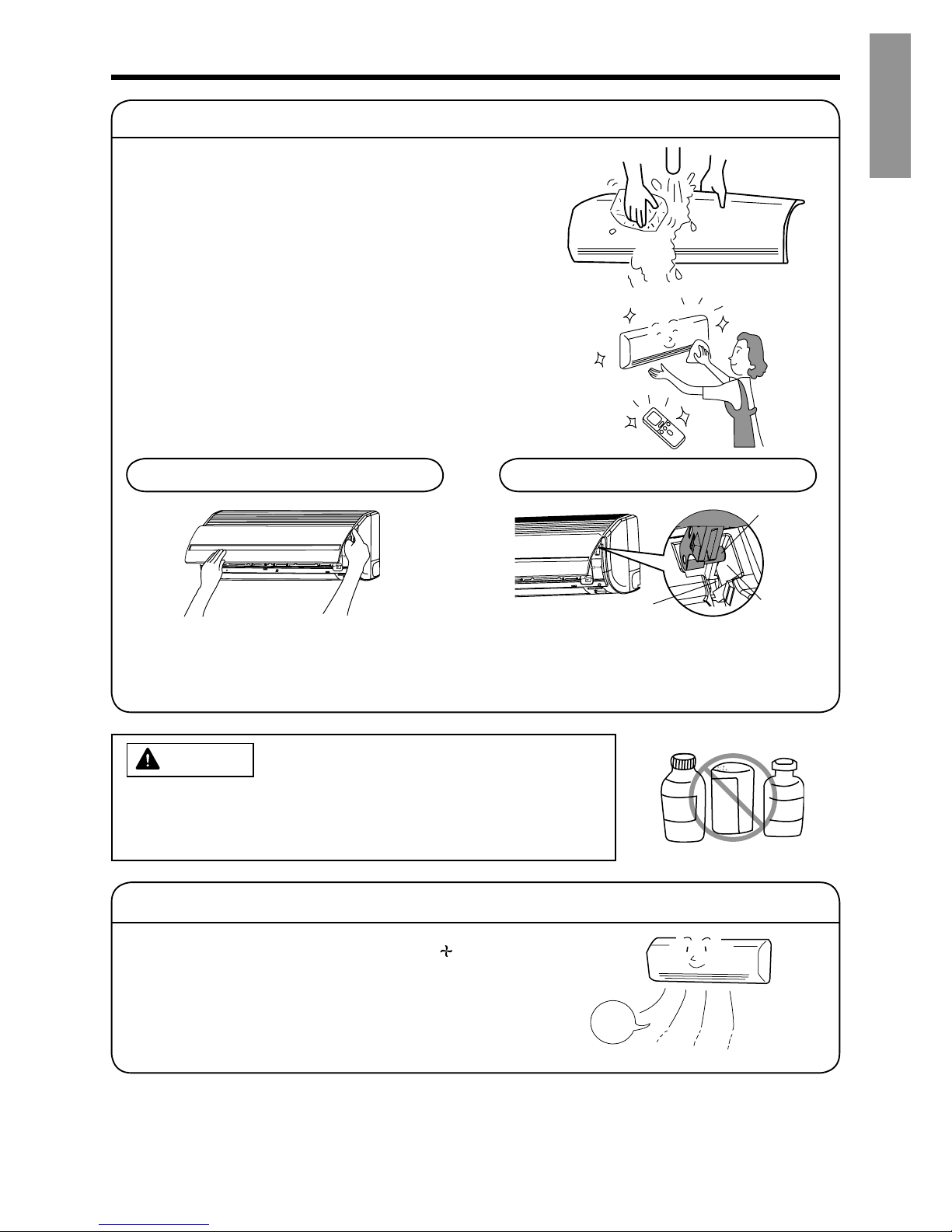

2. CLEANING OF FRONT PANEL
CAUTION
• Do not splash or direct water to the body of the unit when cleaning it as
this may cause short circuit.
• Never use hot water (above 40°C), benzine, gasoline, acid, thinner or a
brush, because they will damage the plastic surface and the coating.
• Remove the front panel and wash with clean water. Wash
it with a soft sponge. After using neutral detergent, wash
thoroughly with clean water.
• When front panel is not removed, wipe it with a soft dry
cloth. Wipe the remote controller thoroughly with a soft dry
cloth.
• Wipe the water thoroughly.
If water remains at indicators or signal receiver of indoor
unit, it causes trouble.
Method of removing the front panel.
Be sure to hold the front panel with both hands to
detach and attach it.
Removing the Front Panel Removing the Front Panel
• When the front panel is fully opened with both
hands, push the right arm to the inside to release
it, and while closing the front panel slightly, put
it out forward.
• When the front panel is fully opened with both
hands, push the right arm to the inside to release
it, and while closing the front panel slightly, put
it out forward.
Shaft
Step
Hole
B
E
N
Z
I
N
E
T
H
I
N
N
E
R
A
C
I
D
Air
Blow
• Run the unit by setting the operation mode to (FAN) and the
fan speed to HI for about half a day on a fine day, and dry the
whole of the unit.
• Switch off the power plug or turn off the circuit breaker.
3. MAINTENANCE AT BEGINNING OF LONG OFF PERIOD

– 18 –
Heating Capability
• This room air conditioner utilizes a heat pump system that absorbs
exterior heat and brings it into a room to be heated. As the ambient
temperature gets lower, heating capability will also lower. In such
a situation, the inverter work to increase compressor rpm to keep
the unit’s heating capability from decreasing. If the unit’s heating
performance is still unsatisfactory, other heating appliances should
be used to augment this unit’s performance.
• The air conditioner is designed to heat an entire room so that it may take some time before you feel warm.
Timer operation is recommended for effective preheating ahead of the desired time.
Cooling and Dehumidifying Capabilities
• If the heat present in a room exceeds the unit’s cooling capacity (for example, if there are many people in the
room or other heating appliances are used), the preset room temperature may not be reached.
INFORMATION
• When fan speed, room temperature are set with the remote controller before starting manual operation and
the buttons are released, the indication of settings will go off in 10 seconds and only the operation mode will
be displayed.
• Pressing the button while the unit is in operation will let the protective circuit work so that the unit will
not operate for approximately 3 minutes.
• During heating operation, the indoor unit’s color indicator lamp may flash with no air emitted for a while.
• If you feel cold wind during warming operation with the (HI) fan speed or want to make the unit operation
quieter after the room is heated, use of (AUTO) setting is recommended.
• With the (LOW) setting, the unit’s cooling capability will lower slightly.
• With the (LOW) setting, the unit’s heating capability will vary with the operating conditions.
• When the timer has been programmed, the unit will not operate even if the set time is reached unless the
unit receives a signal from the remote controller. Confirm that timer programming is complete (beep) and the
TIMER lamp of the indoor unit lights.
• If the (SLEEP) button is pressed while the ON/OFF timer is programmed, the sleep timer takes priority.
• During sleep timer operation, the fan speed sets to (LOW) regardless of the preset speed. The remote
controller display indication will remain unchanged even with the (LOW) setting.
CAPABILITIES
VARIOUS FUNCTIONS
TIMER PROGRAMMING/SLEEP TIMER OPERATION
CAUTION
Do not use a stove
or any other high-
temperature devices
in proximity to the
indoor unit.
PROHIBITION

– 19 –
ENGLISH
DEUTSCHFRANÇAISITALIANOSPANISHPORTUGUÊS
∂ÏÏËÓÈο
РУССКИЙ
REGULAR INSPECTION
PLEASE CHECK THE FOLLOWING POINTS EVERY EITHER HALF YEARLY OR YEARLY. CONTACT YOUR
SALES AGENT SHOULD YOU NEED ANY HELP.
1
2
3
Check to see if the unit’s earth line has been connected
correctly.
If the earth line is disconnected or faulty, unit failure or electric
shock hazard may result.
Check to see if the mounting frame has rusted excessively
or if the outdoor unit has tilted or become unstable.
It could collapse or fall, causing injury.
CONDITION CHECK THE FOLLOWING POINTS
• Do the batteries need replacement?
• Is the polarity of the inserted batteries correct?
• Is the air filter blocked with dust?
• Is the set temperature suitable?
• Have the top and bottom air deflectors been adjusted to their correct
positions according to the operation mode selected?
• Are the air inlets or air outlets of indoor and outdoor units blocked?
• Is the fan speed “LOW”?
WARNING
WARNING
AFTER SALES SERVICE AND WARRANTY
• Is the fuse all right?
• Is the voltage extremely high or low?
• Is the circuit breaker “ON”?
• Is the power plug inserted?
• Do you have any power cut?
When it does not operate.
When it does not cool well.
When it does not heat well.
The following phenomena do not indicate unit failure.
<Operation start>
The unit is preparing to blow warm air. Please wait.
<In operation>
The outdoor unit is defrosting. Please wait.
Hissing or fizzy sounds Refrigerant flow noise in the pipe or valve sound generated when flow rate is
adjusted.
Squeaking noise Noise generated when the unit expands or contracts due to temperature
changes.
Rustling noise Noise generated with the indoor unit fan’s rpm changing such as operation start
times.
Clicking noise Noise of the motorized valve when the unit is switched on.
During heating, the operation indicator
blinks and air blow stops
If the remote controller is not
transmitting a signal.
(Remote controller display is
dim or blank.)
WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS.
WARNING
Check to see if the power plug is securely inserted
into the wall socket.
If the power plug is not inserted into the wall socket securely,
it will become hot and an electric shock or fire may occured. If
dust or dirt is found on the power plug, clean the plug and insert
it into the wall socket.

– 20 –
Perking noise Noise of the ventilation fan sucking in air present in the drain hose and blowing out
dehumidifying water that had accumulated in the condensed water collector. For
details, consult your sales agent.
Changing operation noise Operation noise changes due to power variations according to room temperature
changes.
Mist emission Mist is generated as the air within the room is suddenly cooled by conditioned air.
Steam emitted from the outdoor unit Water generated during defrosting operation evaporates and steam is emitted.
Odors Caused as the smells and particles of smoke, food, cosmetics, etc. present in room
air become attached the unit and blown off into the room again.
Defrosting is underway (as the heating operation is stopped, the microcomputer
checks frost accumulated in the indoor unit and instructs the unit to perform automatic
defrosting if necessary).
Shows preheating or defrosting operation is underway.
As the protective circuit or preheat sensor operates when unit operation is stopped
during preheating and then restarted, or when operation mode is switched from
cooling to heating, the lamp continues to blink.
Actual room temperature may deviate slightly from the remote controller’s
temperature setting depending on the number of people in the room, indoor or
outdoor conditions.
• If the unit still fails to operate
normally after performing
the above inspections, turn
the circuit breaker off and
contact your sales agent im-
mediately.
• Please contact your sales agent immediately if the air conditioner still fails to operate normally after the above
inspections. Inform your agent of the model of your unit, production number, date of installation. Please
also inform him regarding the fault.
Please note:
On switching on the equipment, particularly when the room light is dimmed, a slight brightness fluctuation
may occur. This is of no consequence.
The conditions of the local Power Supply Companies are to be observed.
Notes
• In quiet operation or stopping the running, the following phenomena may
occasionally occur, but they are not abnormal for the operation.
(1) Slight flowing noise of refrigerant in the refrigerating cycle.
(2) Slight rubbing noise from the fan casing which is cooled and then gradually
warmed as operation stops.
• The odor will possibly be emitted from the room air conditioner because the
various odor, emitted by smoke, foodstuffs, cosmetics and so on, sticks to it.
So please clean the air filter and the evaporator regularly to reduce the odor.
The outdoor unit continues to operate
even if operation is stopped.
Does not reach the temperature
setting.
( )
The OPERATION lamp is blinking.
Contact your sales agent immediately if the fol-
lowing phenomena should occur:
• The circuit breaker switches off or the fuse blows
frequently.
• The switch operation is not stable.
• Foreign matter or water accidentally enters the unit interior.
• The power cord gets excessively hot or its insulation is torn or
stripped.
• TIMER lamp on the indoor unit display blinks.
As the nature of the failure can be identified by the blinking cycle,
check the blinking cycle before turning off the circuit breaker.
