HYDRAULIC CRAWLER CRANE 6000SLX
Specifications

Engine
Model : Isuzu 6WG1
Type : 4-cycle, water-cooled, direct injection,
turbo-charged, diesel engine
Displacement : 15 681 cc
Rated Output : 397 kW / 1 800 min-1
(530 ps / 1 800 rpm)
Fuel Tank : 800 liters
Electrical System : 24 V D.C., 2 batteries
Notes:
1 Engine meets Stage / Tier 3 of current smoke emission
regulations in Europe, United States and Japan.
2 The 397 kW engine horsepower shown above is based
on an international engine horsepower rating formula
that includes the horsepower necessary for engine
alternator drive but excludes engine fan drive.
Control
Control System : Control levers operate remote-
controlled hydraulic servos that direct
oil through six sets of tandem valves
to provide comprehensive motion
control.
■Control Levers : Ergonomic lever layout enables
efficient operation. Joystick lever on
left side controls slewing and boom
hoist. Arm-chair levers on right side
control hoist 1 & 2, luffing, jib hoist,
travel and long-mast hoist. Main winch
levers are equipped with drum rotation
sensors.
Slewing Brake
Pedal:
Designed to be maintenance free
while resisting overheating. Unique
brake design of hydraulic oil control
system makes it possible to smoothly
initial slewing motion, even against the
wind.
Display Panel
Design :
Graphics on the display panel makes it
easy to input the necessary operating
conditions and data according to
actual lifting and working conditions.
Hydraulic System
Three variable-displacement axial piston pumps and one
fixed-displacement tandem gear pump provide power for
independent and combined operations for all functions.
Hydraulic Reservoir Capacity : 800 liters
Load Hoist Drums (W1, W2)
Independent bi-directional hydraulic motors provide power
through a two-stage planetary reduction gear unit to drive
the two main hoisting drums for hoisting and lowering
operations.
Cables : 28mm dia. / 800 m long.
Boom Hoist Drum (W3)
A single bi-directional axial piston hydraulic motor powers
a 3-stage planetary reduction gear unit that drives the rope
drum to either hoist or lower the boom.
Cables : 28 mm dia.
Luffing Jib Hoist Drum (W4)
A single bi-directional axial piston hydraulic motor powers
a 3-stage planetary reduction gear unit that drives the rope
drum to either hoist or lower the luffing jib.
Cables : 28 mm dia.

Symbols
Specifications
HYDRAULIC CRAWLER CRANE 6000SLX

Capacity Long Range Boom
Sideframes Luffing Jib
Counter Weight Heavy Duty Tip Extension
Lower Weight Working Radius
Heavy Duty Boom
Slewing System
Slewing system is designed so that the three slewing pinions
mesh with the external slewing ring gear. With this design,
the external slewing gears bears the majority of the slewing
torque. The system is designed to be easy to lubricate.
Counterweight
Standard 160 ton counterweight consists of a 20-ton base
weight and 14 cast iron block pieces that all have the same
dimensions.
Optional 180-ton weight uses two additional weights in
addition to standard counterweight.
Lower Weight
50-ton weight is standard
62-ton weight is optional
Side Frames
All welded structures are manufactured from high-strength
steel. Each component is equipped with two steel plate
hooks to make assembling on lower frame lower. Side
frame is secured by removable joint pins provided on the
lower frame.
Shoe width : 1 220 mm wide is standard.
1 524 mm wide is optional.
Drive unit : 2-track drive unit per side
frame.
Safety Device
Load Moment
Indicator (LMI) :
The computerized system helps
prevent overloads and provide safe
and efficient control. Meets both EN
and BS standards.
Front-end
Attachment.
Erection Mode :
This is an internal function of the
Load Moment Indicator (LMI). It
gives a warning on the LMI panel
that the crane has extended beyond
its intended working area. Once the
work outside the intended working
area is completed, the system returns
automatically to resume work in the
intended working range.
Hydraulic Boom
Backstops :
These stops operate in conjunction
with LMI to help prevent backward
reaction, especially when operating
with short boom lengths or against
winds.
Boom Over-hoist
and Over-lowering
Limiting Device :
This is a combination of two systems
designed to enhance operating
efficiency. One system is a limit
switch that is incorporated into the
boom foot to prevent over hoisting.
The other is a part of the LMI that
prevents over-hoisting or over-
lowering the boom. It includes
automatic drum braking, hydraulic
locks and alarm warnings.
Drum Locks : Electrically operated pawl locks are
provided as standard on all drums.

Liftcrane Luffing Tower
W2
( )
W1 ＋W2
W1
W2
W1
W2
BH;W3
W1
( )
W1
BH;W3
W2
＋W2
JH
W1
W4;JH
Outline / 6000SLX
Hook Blocks
Hook blocks Mass (kg)
550 t 280 t hook block plus a ten sheaves egualizer block 12 500
280 t Ten sheaves 7 000
320 t 160 t hook block plus an eight sheaves equalizer block 7 800
160 t Five sheaves 4 000
65 t Two sheaves * 3 000 / 2 000
15 t Ball hook 950
Winch Assingment
* : with auxiliary weight / without auxiliary weight


Outline 6000SLX
Main Spec. : Liftcrane
* : Including heavy duty basic boom, 550 t hook block, counterweight(160 t) and optional 1 524 mm wide shoes.
Front-end Attachment Description Spec.
Liftcrane
Heavy Duty Boom
Max. lifting capacity t X m 500 X 6.0
Basic Boom Length m 24
Max. Boom Length m 96
Long Range Boom
Max. lifting capacity t X m 250 X 10.0
Basic Boom Length m 42
Max. Boom Length m 108
Line Speed Load Hoist Drum : W1,W2 m / min 110
Boom Hoist Drum : W3 m / min 42
Slewing Speed min-1(rpm) 1.0 (1.0)
Travel Speed km / hr 1.5 / 1.3 / 0.6
Ground Pressure* kPa(kgf / cm²) 126 (1.28)
Working Mass* t 396

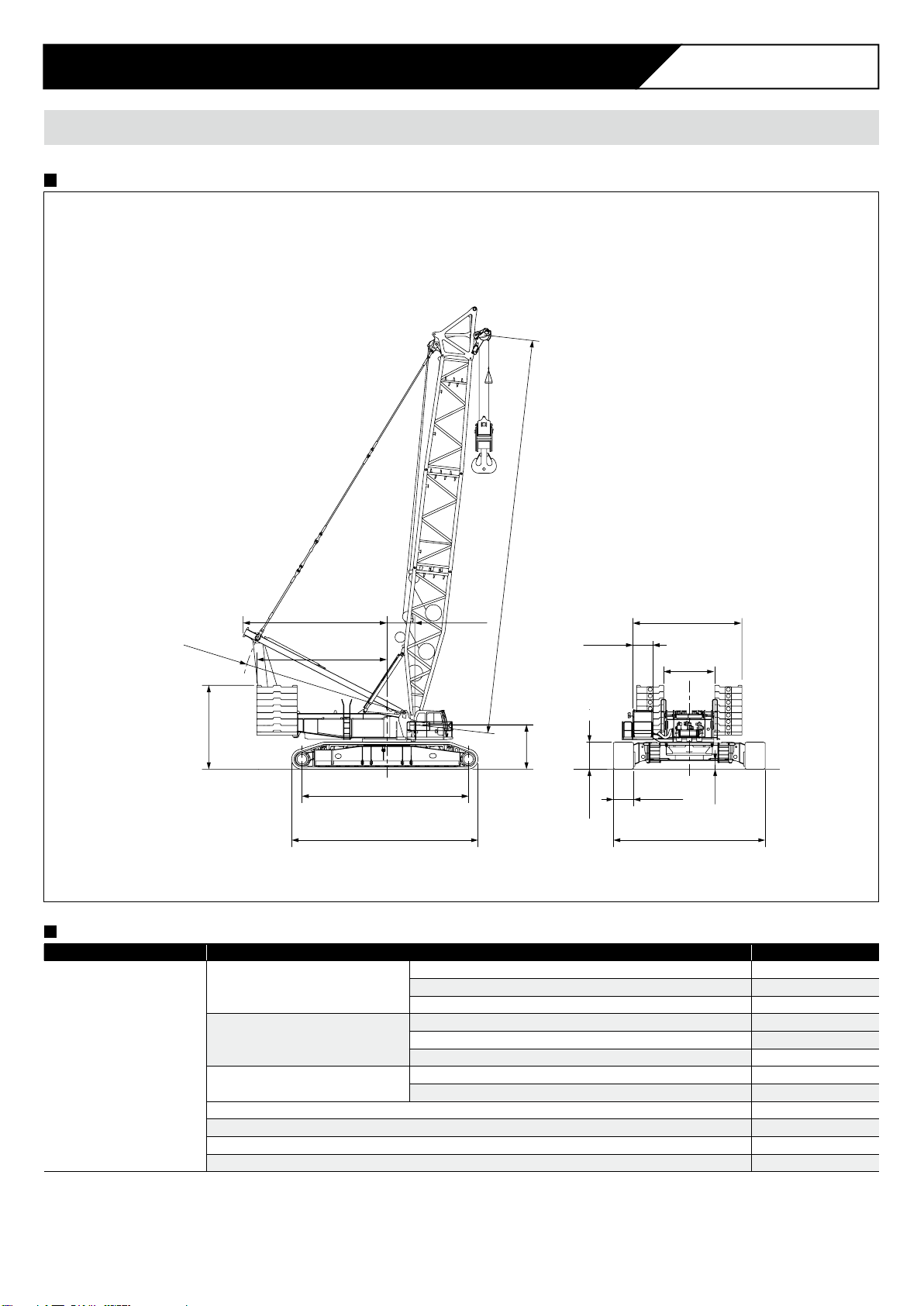

Dimensions : Liftcrane
R9 400
(Max. in operation)
24 000
11 300
5 100 (160 t)
5 490 (180 t)
6 400
1 200
2 710
1 690
530
9 220 (9 524)
1 220
(1 524)
R8 360
2 990
10 100
( ) : Optional 1 2 mm wide shoes.
Dimensions & Main Specifications : Liftcrane


Outline / 6000SLX

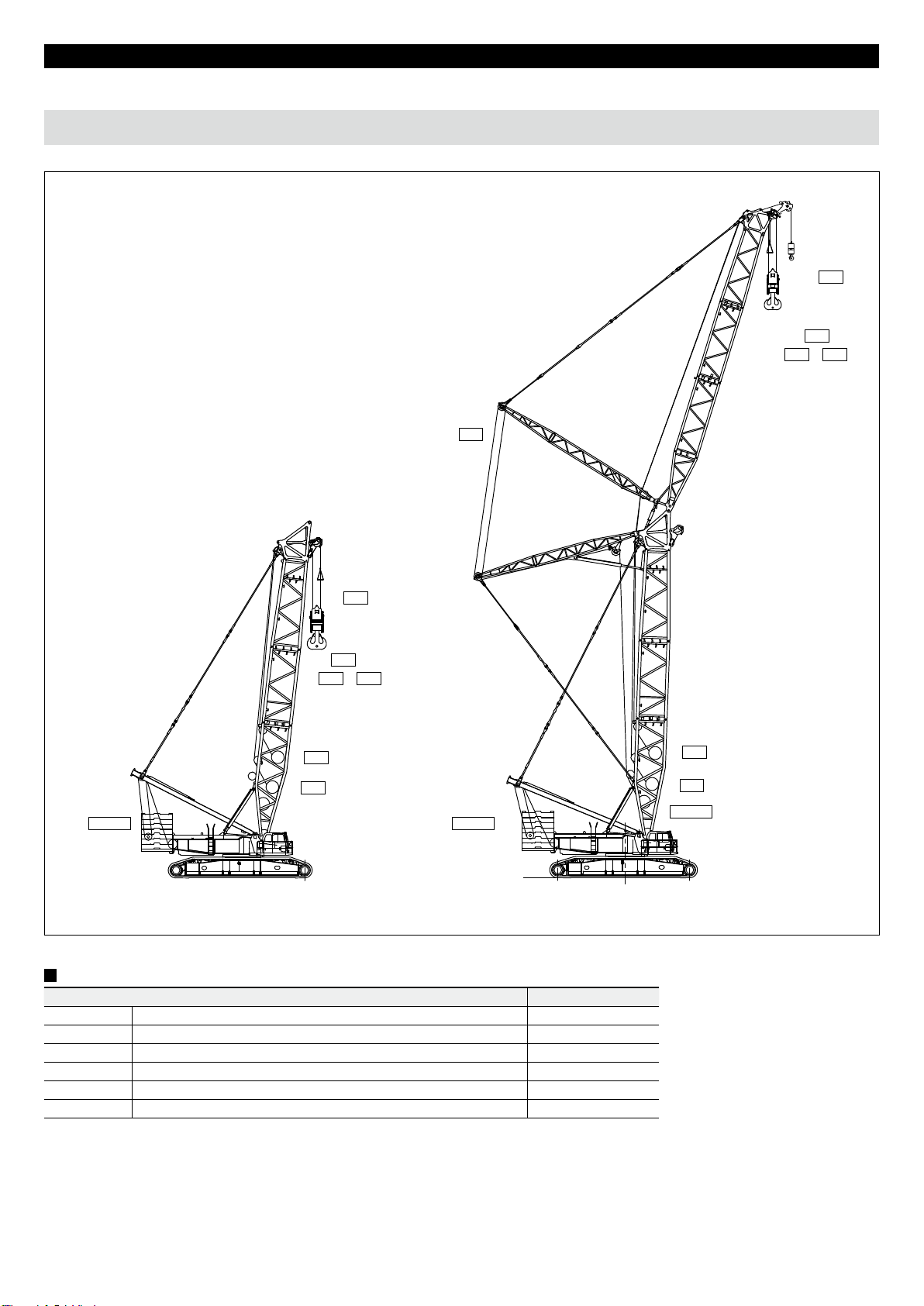

Main Spec. : Luffing Tower
* : Including 72 m Tower + 72 m Luffing Jib, counterweight(160 t) and optional 1 524 mm wide shoes.
Dimensions : Luffing Tower
Front-end Attachment Description Spec.
Luffing Tower
Max. lifting capacity t X m 210 X 13.0
Basic Tower Length m 24
Max. Tower Length m 72
Basic Luffing Jib Length m 24
Max. Luffing Jib Length m 72
Max. Tower + Luffing Jib Length m 72+72
Line Speed
Load Hoist Drums : W1,W2 m / min 110
Tower Hoist Drum : W3 m / min 42
Luffing Jib Hoist Drum : W4 m / min 49
Slewing Speed min-1(rpm) 1.0 (1.0)
Travel Speed km / hr 1.5 / 1.3 / 0.6
Ground Pressure* kPa(kgf / cm²) 142 (1.45)
Working Mass* t 446
( ) : Optional 1 2 mm wide shoes.
1 500
11 300
2 710
9 220 (9 524)
1 220
(1 524)
24 000
24 000
R11 300
(Max. in operation)
10 100
Dimensions & Main Specifications : Luffing Tower


Boom Combinations
24 m
30 m
36 m
42 m
48 m
54 m
60 m
66 m
72 m
78 m
84 m
90 m
96 m
H6A
HB9.5
H12A
HB9.5
H12AH6A
HB9.5
H12BH12A
HB9.5
H12BH6A H12A
HB9.5
H12CH12A H12B
HB9.5
H12CH12AH6A H12BHB9.5
HL12BH12BH12A H12C
HB9.5
HL12BH12BH12AH6A H12C
HB9.5
HL12BH12CH12BH12A HL12B
HB9.5
HL12BH12CH12BH12AH6A HL12BHB9.5
HL12BH12CH12BH12A HL12B HL12B
HB9.5
HL12BH12CH12BH12AH6A HL12B HL12B
HB9.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
HR7 HT1.5
Liftcrane : Heavy Duty Boom 6000SLX

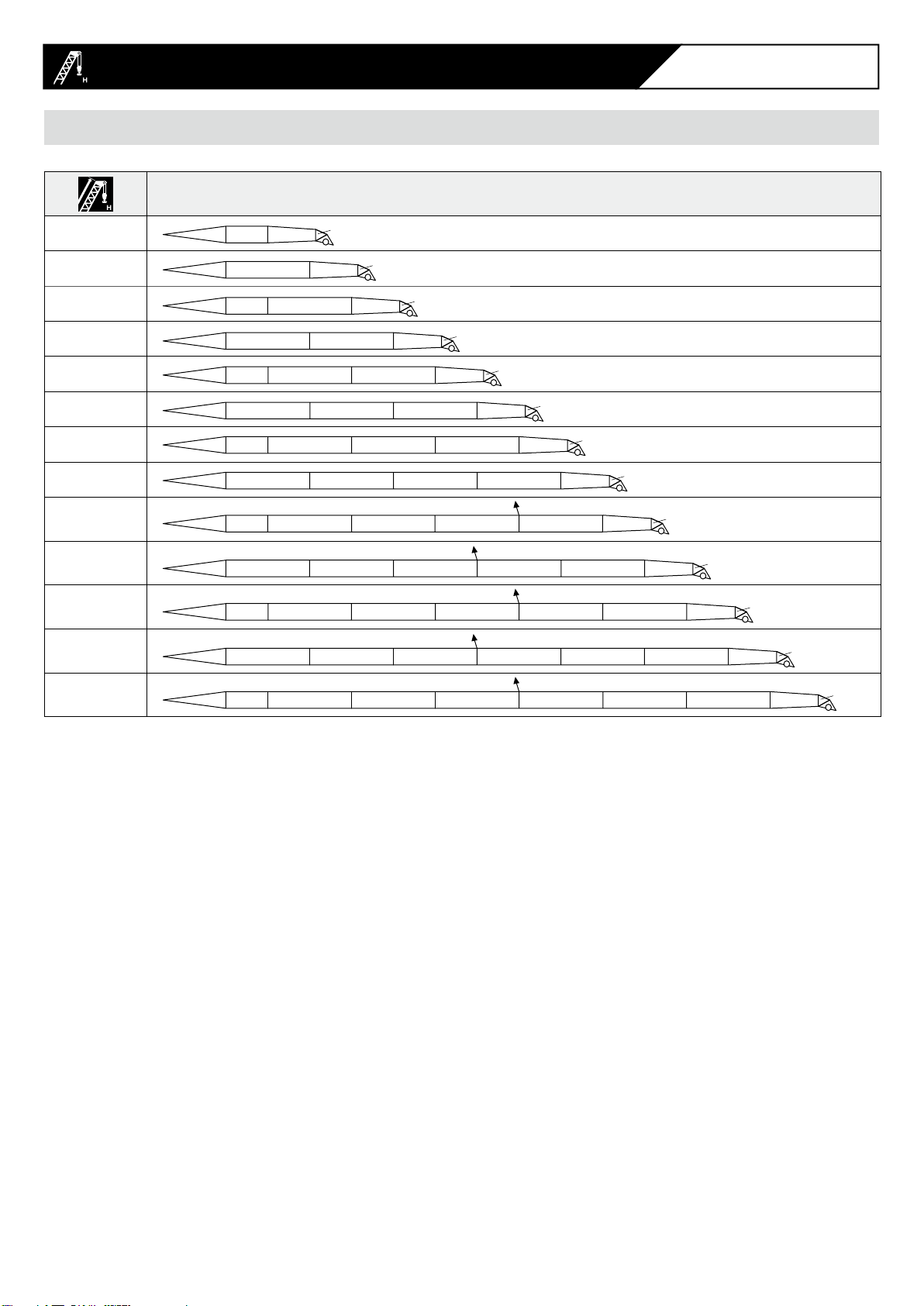

Boom Combinations


8
12
16
20
24
28
32
36
40
44
48
52
56
60
64
68
72
76
80
4 8 12 16 20 24 3228 36 40 44 48 52 56 60
84
88
92
96
100
64 68 72
24 m
30 m
36 m
42 m
48 m
54 m
60 m
66 m
72 m
78 m
84 m
90 m
0
104
108
83.5°
Aux. sheave
70° 60°
40°
30°
96 m
5.5m
550 / 280 t 320 / 160 t 65 t 15 t
5.3m
4.0m
1.7 m
2.71 m
4.5m
50°
Hight above ground (m)
Working radius (m)
Liftcrane : Heavy Duty Boom / 6000SLX

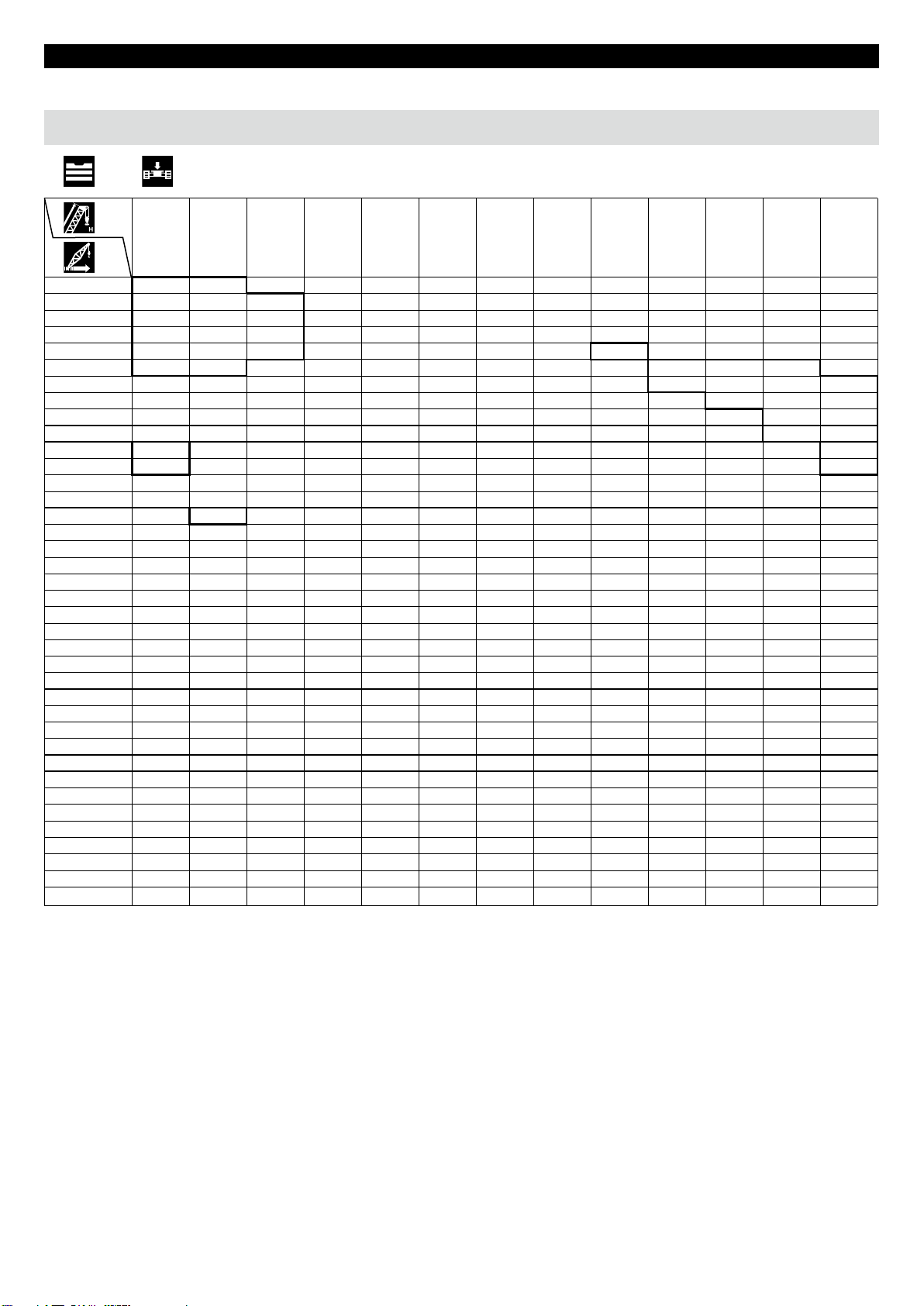

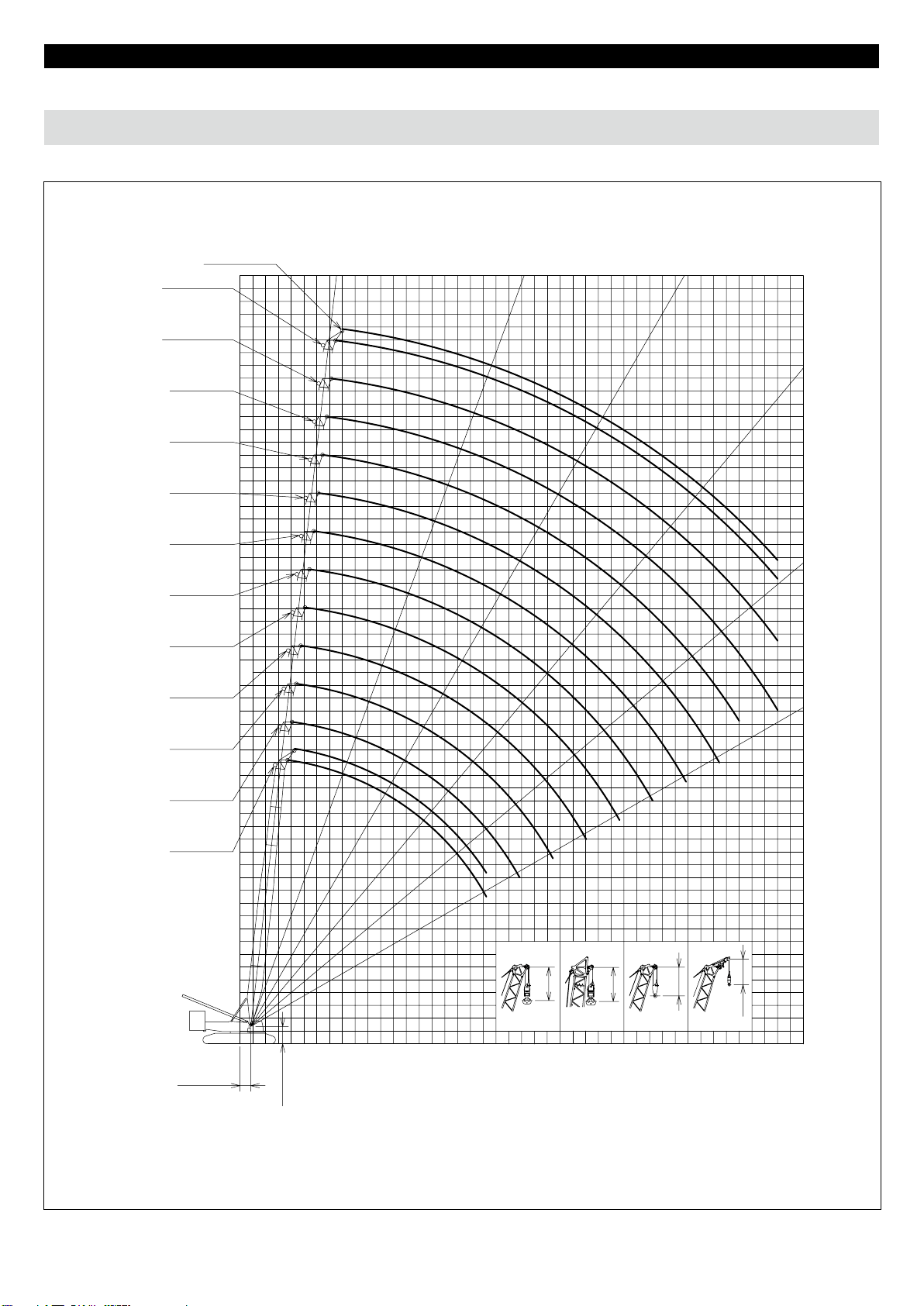

Working Range Diagram


Liftcrane : Heavy Duty Boom 6000SLX
10
(ton)
160 t 50 t
(m)
24 30 36 42 48 54 60 66 72 78 84 90 96
(m)
6.0 500.0
462.8 / 6.6
7.0 435.4 435.6 416.2 / 7.3
8.0 376.3 376.5 374.2 350.2 298.4 / 8.7
9.0 331.4 331.5 322.0 303.6 286.9 258.9 / 9.4
10.0 296.0 296.2 282.0 267.5 254.1 241.7 230.2 204.8 / 10.7 182.1 / 11.4
12.0 237.3 235.7 225.0 215.1 205.7 196.9 188.7 181.2 172.5 162.4 / 12.1 134.9 / 12.7 109.3 / 13.4
14.0 185.0 185.0 184.7 178.9 171.8 165.2 158.8 153.1 146.1 141.5 132.1 108.3 91.3 / 14.1
16.0 150.5 150.4 149.9 149.6 146.8 141.5 136.3 131.8 126.0 122.2 117.6 104.9 88.5
18.0 126.0 125.8 125.3 124.9 124.4 123.1 118.8 115.0 110.0 106.9 103.0 100.0 85.6
20.0 107.7 107.5 106.9 106.4 105.8 105.1 104.7 101.5 97.1 94.5 91.0 88.4 82.9
22.0 93.6 93.3 92.6 92.1 91.4 90.7 90.2 89.9 86.5 84.1 81.0 78.7 75.7
24.0
86.5 / 23.2 82.0 81.3 80.7 80.0 79.2 78.7 78.3 76.8 75.4 72.6 70.5 67.7
26.0 72.9 72.0 71.4 70.6 69.8 69.2 68.9 67.4 67.4 65.3 63.4 60.9
28.0 65.3 64.4 63.7 62.9 62.0 61.4 61.0 59.5 59.5 58.8 57.3 54.9
30.0
63.9 / 28.4 57.9 57.2 56.3 55.4 54.8 54.3 52.9 52.8 52.1 52.0 49.7
32.0 52.5 51.6 50.7 49.8 49.1 48.7 47.2 47.1 46.4 46.6 45.1
34.0
48.7 / 33.6 46.9 45.9 45.0 44.2 43.7 42.3 42.2 41.4 41.6 40.4
36.0 42.7 41.7 40.7 40.0 39.5 38.0 37.8 37.0 37.2 36.0
38.0 39.1 38.0 37.0 36.2 35.7 34.3 34.0 33.2 33.3 32.1
40.0
37.8 / 38.8 34.8 33.7 32.9 32.3 30.9 30.7 29.8 29.9 28.7
42.0 31.9 30.8 29.9 29.4 27.9 27.7 26.8 26.8 25.6
44.0 29.4 28.2 27.3 26.7 25.3 24.9 24.1 24.1 22.9
46.0 25.9 24.9 24.3 22.9 22.5 21.6 21.6 20.4
48.0 23.8 22.7 22.1 20.7 20.3 19.4 19.3 18.1
50.0
22.7 / 49.2 20.8 20.1 18.7 18.3 17.3 17.3 16.0
52.0 19.0 18.3 16.9 16.4 15.5 15.4 14.1
54.0 17.4 16.7 15.2 14.7 13.8 13.7 12.4
56.0
17.1 / 54.4 15.2 13.7 13.2 12.2 12.1 10.8
58.0 13.8 12.3 11.7 10.8 10.6 9.3
60.0
12.8 / 59.6 11.0 10.4 9.4 9.2 7.9
62.0 9.8 9.2 8.2 7.9 6.7
64.0 8.7 8.1 7.0 6.8 5.5
66.0 8.3 / 64.8 7.0 5.9 5.6 5.0 / 64.9
68.0 6.1 5.0 / 67.8 5.0 / 67.2
69.9 5.2
Capacities

11
Liftcrane : Heavy Duty Boom / 6000SLX
(ton)
(m)
24 30 36 42 48 54 60 66 72 78 84 90 96
(m)
6.0 500.0
480.0 / 6.6
7.0 452.4 452.6 433.7 / 7.3
8.0 392.1 392.3 392.6 388.0 333.2 / 8.7
9.0 345.3 345.5 345.7 339.0 320.5 289.5 / 9.4
10.0 308.5 308.6 308.8 299.0 284.1 270.4 257.7 229.6 / 10.7 202.1 / 11.4
12.0 254.2 254.3 251.8 240.8 230.5 220.8 211.7 203.4 194.0 162.4 / 12.1 134.9 / 12.7 109.3 / 13.4
14.0 207.4 207.3 207.0 200.7 192.9 185.6 178.6 172.3 164.8 158.0 132.1 108.3 91.3 / 14.1
16.0 169.1 168.9 168.5 168.2 165.1 159.3 153.7 148.7 142.4 138.3 128.3 104.9 88.5
18.0 141.9 141.7 141.1 140.7 140.2 139.0 134.3 130.1 124.8 121.4 117.1 101.8 85.6
20.0 121.6 121.3 120.7 120.2 119.7 119.0 118.6 115.2 110.5 107.6 103.8 98.8 82.9
22.0 101.9 105.6 104.9 104.4 103.7 103.0 102.5 102.2 98.7 96.1 92.8 90.3 80.4
24.0
86.5 / 23.2 93.1 92.3 91.7 91.0 90.2 89.7 89.4 87.9 86.5 83.4 81.2 78.0
26.0 82.9 82.1 81.4 80.7 79.8 79.3 78.9 77.4 77.5 75.4 73.4 70.7
28.0 74.5 73.6 72.9 72.1 71.2 70.6 70.2 68.7 68.7 68.0 66.6 64.1
30.0
72.6 / 28.4 66.4 65.7 64.8 63.9 63.3 62.8 61.4 61.3 60.6 60.7 58.3
32.0 60.3 59.5 58.6 57.7 57.0 56.5 55.1 55.0 54.2 54.5 53.2
34.0
56.1 / 33.6 54.2 53.3 52.3 51.6 51.1 49.7 49.5 48.7 48.9 47.7
36.0 49.6 48.6 47.6 46.8 46.3 44.9 44.7 43.9 44.1 42.9
38.0 45.6 44.5 43.5 42.7 42.2 40.8 40.5 39.7 39.8 38.6
40.0
44.2 / 38.8 40.9 39.8 39.0 38.5 37.0 36.8 35.9 36.0 34.8
42.0 37.7 36.6 35.7 35.1 33.7 33.4 32.6 32.6 31.4
44.0 34.9 33.7 32.8 32.2 30.8 30.4 29.6 29.6 28.4
46.0 31.1 30.1 29.5 28.1 27.7 26.8 26.8 25.6
48.0 28.8 27.7 27.1 25.7 25.3 24.4 24.3 23.1
50.0
27.5 / 49.2 25.6 24.9 23.5 23.0 22.1 22.1 20.8
52.0 23.6 22.9 21.4 21.0 20.1 20.0 18.7
54.0 21.8 21.1 19.6 19.1 18.2 18.1 16.8
56.0
21.5 / 54.4 19.4 17.9 17.4 16.4 16.3 15.0
58.0 17.9 16.4 15.8 14.8 14.6 13.4
60.0
16.7 / 59.6 14.9 14.3 13.3 13.1 11.9
62.0 13.6 13.0 12.0 11.7 10.5
64.0 12.4 11.7 10.7 10.4 9.1
66.0
11.9 / 64.8 10.6 9.5 9.2 7.9
68.0 9.5 8.4 8.0 6.8
70.0 8.5 / 69.9 7.3 7.0 5.7
72.0 6.4 6.0 5.0 / 71.4
74.0 5.5 5.0
75.1 5.0
Capacities
180 t 62 t (OPT.)

12
1. Capacities included in these charts are the maximum allowable, and are based on machine standing level on firm supporting surface
under ideal job conditions.
2. Capacities are in metric tons, and are rated in accordance with European EN13 000 Standards in terms of machine stability and
structural strength limitations. ; the figures surrounded by bold lines are based on factors other than those which would cause a
tipping condition.
3. Capacities are based on freely suspended loads and make no allowance for such factors as the effect of wind, sudden stopping
of loads, supporting surface conditions, and operating speeds. Operator must reduce load ratings to take such conditions into
account. Deduction from rated capacities must be made for weight of hook block, weighted ball/hook, sling, spreader bar, or other
suspended gear.
4. The maximum rated load of the auxiliary sheave is the value remaining after the 2.0 ton mass of the auxiliary sheave and the mass of
the “main hook” attached to the “boom” are deducted from the maximum rated load of the “Heavy Duty Boom Capacities.”
However, the maximum rated load of the auxiliary sheave is limited to 60 tons. The operating range of the auxiliary sheave is the
range that has the maximum rated load of the main hook.
5. If the auxiliary sheave is attached, the maximum rated load of the “main hook” is the value remaining after the 2.0 ton mass of the
auxiliary sheave and the mass of the auxiliary hook attached to the auxiliary sheave are deducted from the maximum rated load of
the “Heavy Duty Boom Capacities.”
6. The "working radius" is the horizontal distance from the slewing center to the center of gravity of a lifted load.
7. The boom tilt angle range is according to the working range diagram.
8. The chart below shows the number of reeled lines and the maximum rated loads. (When the wire rope length is 800 m. )
Notes
Hook
Capacity (ton)
Hook
Weight
(ton)
Maximum Rated Load ( ton )
20 X
2Falls
19 X
2Falls
18 X
2Falls
17 X
2Falls
16 X
2Falls
15 X
2Falls
14 X
2Falls
13 X
2Falls
12 X
2Falls
11 X
2Falls
10 X
2Falls
9 X
2Falls
8 X
2Falls
7 X
2Falls
6 X
2Falls
5 X
2Falls
550
Double-
Reeling
12.5 - 500 480 458 435 412 388 364 339 314 288 262 235 208 180 - - - - -
320
Double-
Reeling
7.9 - - - - - - - - 320 314 288 262 235 208 180 151 - - - -
20
Falls
19
Falls
18
Falls
17
Falls
16
Falls
15
Falls
14
Falls
13
Falls
12
Falls
11
Falls
10
Falls
9
Falls
8
Falls
7
Falls
6
Falls
5
Falls
4
Falls
3
Falls
2
Falls 1 Fall
280
Single-
Reeling
7.0 262 251 240 229 217 206 194 182 170 157 144 131 118 104 - - - - - -
160
Single-
Reeling
3.9 - - - - - - - - - 157 144 131 118 104 90 76 - - - -
65
Single-
Reeling
3.0 ---------------65614631-
15
Single-
Reeling
1.0 --------------------
Hook Capacity (ton)/Boom Length (m) 24 30 36 42 48 54 60 66 72 78 84 90 96
550 Double-Reeling Max. 19 x 2 18 x 2 16 x 2 14 x 2 12 x 2 11 x 2 9 x 2 8 x 2 7 x 2 6 x 2 - - -
Min. 12 x 2 6 x 2 6 x 2 6 x 2 6 x 2 6 x 2 6 x 2 6 x 2 6 x 2 6 x 2
320 Double-Reeling Max. 12 x 2 12 x 2 12 x 2 12 x 2 12 x 2 11 x 2 9 x 2 8 x 2 7 x 2 6 x 2 5 x 2 5 x 2 -
Min. 12 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 -
280 Single-Reeling Max. - 20 19 17 14 13 11 10 9 8 8 7 7
Min.-777777777777
160 Single-Reeling Max. - 11 11 11 11 11 11 10 9 8 8 7 7
Min.-555555555555
65 Single-Reeling Max.-555555555555
Min.-222222222222
15 Single-Reeling - - - - - - - - - - - - -
9. The chart below shows the operable windings based on the length of each boom.
Liftcrane : Heavy Duty Boom 6000SLX

1
Liftcrane : Heavy Duty Boom / 6000SLX
Notes
10. If the total mass of the hook mass and the mass of all rigging components is lighter than the mass indicated on this chart, the hook
may not lower even when a lowering operation is performed. Please select a hook that can be lowered based on the boom length
and number of windings.
Boom Length
/ Number of
reeled lines
1
Fall
2
Falls
3
Falls
4
Falls
5
Falls
6
Falls
7
Falls
8
Falls
9
Falls
10
Falls
11
Falls
12
Falls
13
Falls
14
Falls
15
Falls
16
Falls
17
Falls
18
Falls
19
Falls
20
Falls
24m --------------------
30 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 3.9 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0
36 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 3.9 7.0 7.0 7.0 7.0 7.0 7.0 7.0 7.0 -
42 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 3.9 7.0 7.0 7.0 7.0 7.0 7.0 - - -
48 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 3.9 7.0 7.0 7.0 - - - - - -
54 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 3.9 7.0 7.0 - - - - - - -
60 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 4.1 - - - - - - - - -
66 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 4.0 - - - - - - - - - -
72 m - 2.0 2.0 2.0 2.1 3.9 3.9 3.9 3.9 - - - - - - - - - - -
78 m - 2.0 2.0 2.0 2.3 3.9 3.9 3.9 - - - - - - - - - - - -
84 m - 2.0 2.0 2.0 2.4 3.9 3.9 4.0 - - - - - - - - - - - -
90 m - 2.0 2.0 2.1 2.6 3.9 3.9 - - - - - - - - - - - - -
96 m - 2.0 2.0 2.2 2.8 3.9 4.0 - - - - - - - - - - - - -
11. The rated total load when the operation being performed with the rear post support pendant attached is the value remaining when
the value in chart below is deducted from the rated total load chart.
Boom Length (m) 24 30 36 42 48 54 60 66 72 78 84 90 96
Equivalent Mass (ton) 0.5 0.7 1.0 1.2 1.5 1.7 2.0 2.2 2.5 2.7 3.0 3.2 3.5

Boom Combinations
42 m
48 m
54 m
60 m
66 m
72 m
78 m
84 m
90 m
96 m
102 m
108 m

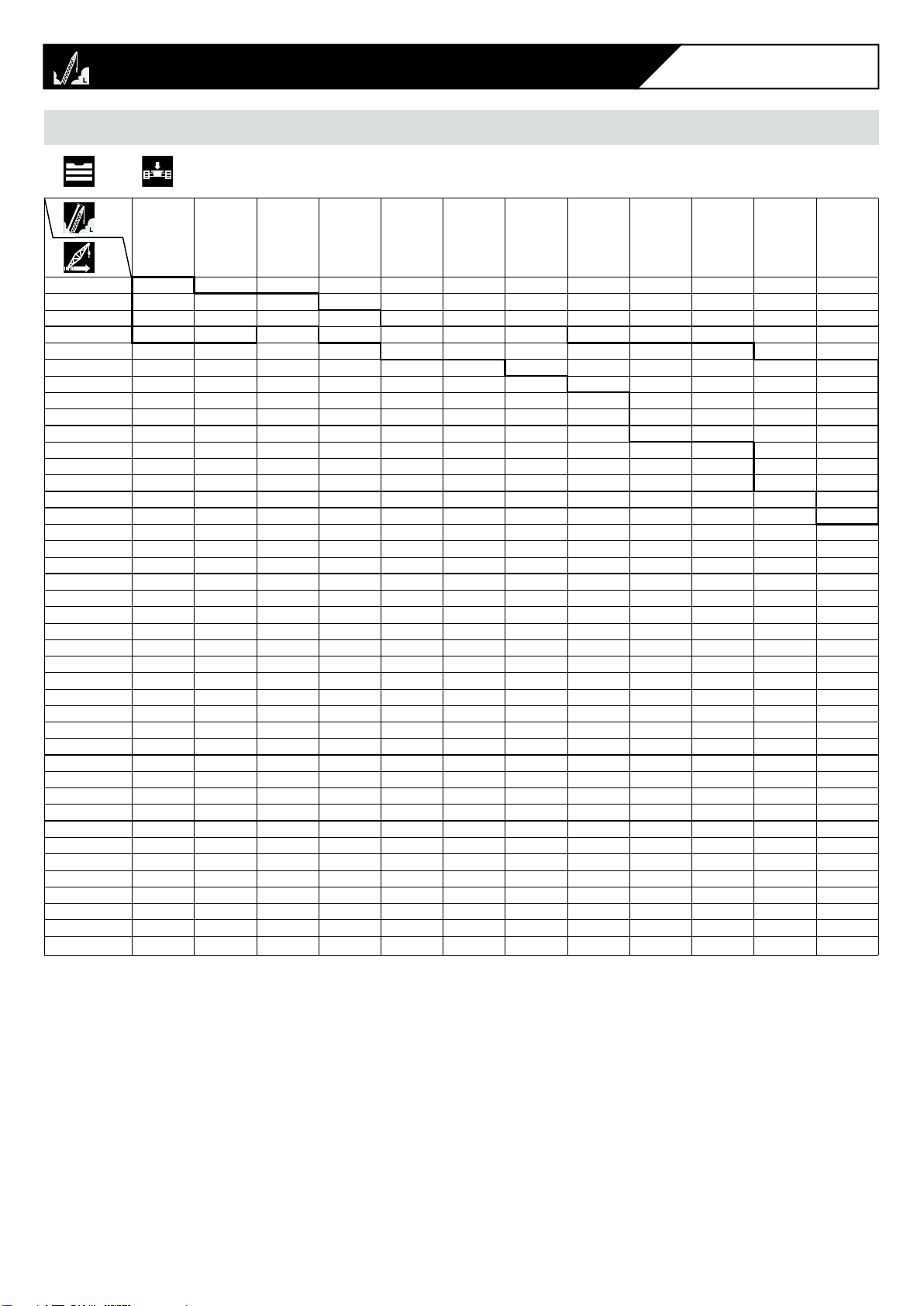

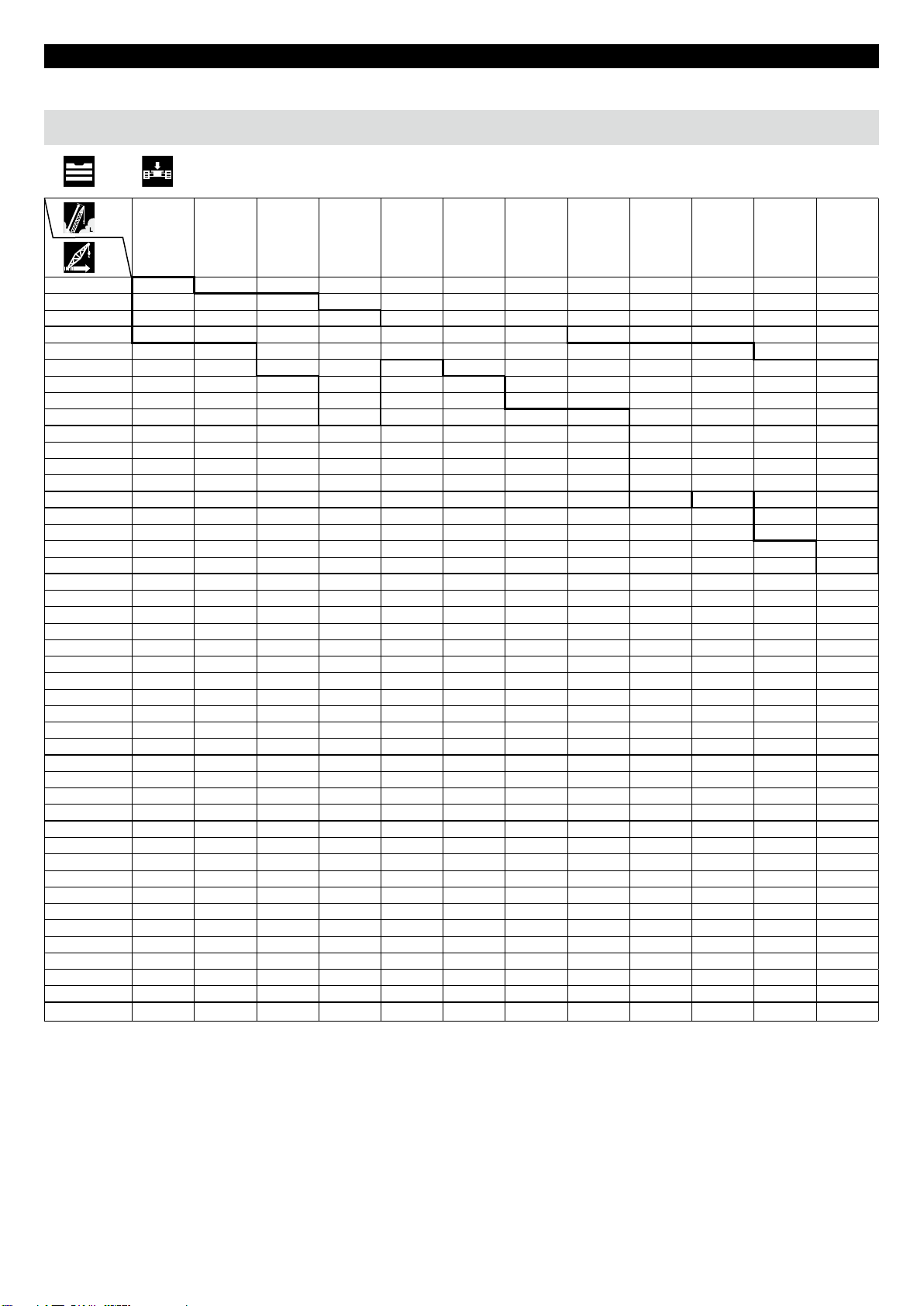

HB9.5 H12A HR7 L6A LT7.5
HR7 L6A LT7.5
HR7 L6A LT7.5
HR7 L12A LT7.5
HR7 L12A
L12A
LT7.5
HB9.5 H12AH6A
HB9.5 H12AH6A
HB9.5 H12A HL12B
HB9.5 H12A HL12B
HB9.5 H12AH6A HL12B HR7 LT7.5L6A L12A
HB9.5 H12AH6A HL12B HR7 LT7.5L12A L12B
HB9.5 HL12BH12A HL12B HR7 LT7.5L12A L12B
HB9.5 HL12BH12A HL12B HR7 LT7.5L12AL6A LL12A
HB9.5 HL12B
H12A
H6A
HL12B HR7 LT7.5L12AL6A LL12A
HB9.5 HL12B
H12A
H6A
HL12B HR7 L12BL12A LL12A
HB9.5 HL12B
H12B
H12A
HL12B HR7 LT7.5L12BL12A LL12A
LT7.5
Liftcrane : Long Range Boom 6000SLX
Boom Combinations
1

Hight above ground (m)
Working radius (m)
8
12
16
20
24
28
32
36
40
44
48
52
56
60
64
68
72
76
80
4 8 12 16 20 24 3228 36 40 44 48 52 56 60
84
88
92
96
100
64 68 72 76 80 840
104
108
40°
30°
83.5°
42 m
48 m
54 m
60 m
66 m
72 m
78 m
84 m
90 m
96 m
70° 60°
112
116
120
102 m
108 m
4.0m
5.3m
320 / 160 t 65 t 15 t
2.71 m
1.7 m
4.5m
50°
88
5.5m
280 t
Aux. sheave
Working Range Diagram
Liftcrane : Long Range Boom / 6000SLX
1

1
(ton)
(m)
42 48 54 60 66 72 78 84 90 96 102 108
(m)
7.5 250.0
8 250.0 250.0 / 8.2 250.0 / 8.9
9 250.0 250.0 250.0 235.0 / 9.5
10 250.0 250.0 247.9 227.9
190.6 / 10.2 171.4 / 10.9 150.0 / 11.6
12 220.7 211.3 203.3 195.3 186.6 168.3 149.3 118.0 / 12.3 104.0 / 12.9 93.5 / 13.6
14 184.7 177.6 171.7 165.6 159.4 153.3 143.5 118.0 104.0 92.8 76.8 / 14.3 68.2 / 15.0
16 155.9 152.6 148.1 143.2 138.2 133.2 129.6 118.0 102.5 89.2 74.1 66.6
18 131.2 130.3 129.8 125.8 121.6 117.3 114.3 110.5 97.5 85.8 71.0 63.7
20 112.7 111.8 111.5 111.1 108.2 104.5 102.0 98.6 91.7 82.7 68.2 60.9
22 98.4 97.4 97.2 96.7 96.0 93.9 91.7 88.7 86.1 79.8 65.3 58.4
24 87.0 86.0 85.7 85.2 84.5 83.7 83.1 80.4 78.5 75.6 63.1 55.9
26 77.7 76.7 76.3 75.8 75.1 74.3 74.5 73.2 71.5 68.9 60.8 53.7
28 70.0 68.9 68.6 68.0 67.3 66.5 66.6 65.8 65.5 63.0 58.6 51.6
30 63.5 62.4 62.0 61.4 60.8 59.9 60.0 59.2 59.1 57.8 56.4 49.8
32 57.9 56.8 56.4 55.8 55.1 54.2 54.3 53.5 53.4 52.4 51.9 48.0
34 53.1 52.0 51.6 50.9 50.2 49.3 49.4 48.6 48.4 47.5 47.3 45.9
36 48.9 47.7 47.3 46.7 46.0 45.1 45.1 44.3 44.1 43.1 43.0 42.2
38 45.2 44.0 43.6 42.9 42.2 41.3 41.3 40.5 40.3 39.3 39.2 38.3
40 44.4 / 38.5 40.8 40.3 39.6 38.9 38.0 37.9 37.1 36.9 35.9 35.8 34.9
42 37.9 37.4 36.7 36.0 35.0 34.9 34.1 33.9 32.9 32.7 31.9
44 35.7 / 43.7 34.8 34.0 33.3 32.3 32.3 31.4 31.2 30.2 30.0 29.1
46 32.5 31.7 30.9 29.9 29.8 29.0 28.7 27.7 27.5 26.7
48 30.3 29.5 28.8 27.7 27.6 26.8 26.5 25.5 25.3 24.4
50 29.5 / 48.9 27.6 26.8 25.7 25.6 24.7 24.5 23.5 23.2 22.4
52 25.8 25.0 23.9 23.8 22.9 22.6 21.6 21.3 20.5
54 24.2 23.4 22.3 22.1 21.2 20.9 19.9 19.6 18.8
56 24.1 / 54.1 21.9 20.7 20.5 19.6 19.3 18.3 18.0 17.2
58 20.5 19.3 19.1 18.2 17.9 16.9 16.6 15.7
60 19.7 / 59.3 18.0 17.8 16.9 16.6 15.5 15.2 14.3
62 16.8 16.6 15.6 15.3 14.2 13.9 13.1
64 15.8 15.4 14.5 14.1 13.1 12.8 11.9
66 15.5 / 64.5 14.4 13.4 13.1 12.0 11.7 10.8
68 13.4 12.4 12.1 11.0 10.6 9.7
70 12.6 / 69.7 11.5 11.1 10.0 9.7 8.8
72 10.6 10.2 9.1 8.8 7.8
74 9.8 9.4 8.3 7.9 7.0
76 9.5 / 74.9 8.6 7.5 7.1 6.2
78 7.9 6.8 6.4 5.4
80 7.2 6.1 5.7 5.0 / 79.1
82 7.2 / 80.1 5.4 5.0
83.3 5.0
Capacities
Liftcrane : Long Range Boom 6000SLX
160 t 50 t

Liftcrane : Long Range Boom / 6000SLX
1
(ton)
(m)
42 48 54 60 66 72 78 84 90 96 102 108
(m)
7.5 250.0
8.0 250.0
250.0 / 8.2 250.0 / 8.9
9.0 250.0 250.0 250.0 235.0 / 9.5
10.0 250.0 250.0 250.0 227.9
190.6 / 10.2 171.4 / 10.9 150.0 / 11.6
12.0 246.5 236.1 216.9 198.1 186.6 168.3 149.3 118.0 / 12.3 104.0 / 12.9 93.5 / 13.6
14.0 206.5 198.6 188.7 173.3 178.6 163.8 143.5 118.0 104.0 92.8 76.8 / 14.3 68.2 / 15.0
16.0 174.5 171.0 165.9 152.8 155.1 149.7 135.4 118.0 102.5 89.2 74.1 66.6
18.0 147.1 146.2 145.6 135.9 136.7 132.1 128.0 118.0 97.5 85.8 71.0 63.7
20.0 126.6 125.6 125.4 121.8 121.9 117.9 115.1 111.5 91.7 82.7 68.2 60.9
22.0 110.7 109.7 109.5 109.0 108.3 106.1 103.7 100.5 86.1 79.8 65.3 58.4
24.0 98.1 97.1 96.8 96.2 95.6 94.8 94.1 91.2 80.8 76.9 63.1 55.9
26.0 87.8 86.7 86.4 85.9 85.2 84.4 84.5 83.3 75.8 74.3 60.8 53.7
28.0 79.2 78.1 77.8 77.2 76.5 75.7 75.8 75.0 71.1 71.9 58.6 51.6
30.0 72.0 70.9 70.5 69.9 69.2 68.4 68.5 67.7 66.9 66.4 56.9 49.8
32.0 65.8 64.7 64.3 63.7 63.0 62.1 62.2 61.4 61.3 60.3 54.8 48.0
34.0 60.5 59.3 58.9 58.3 57.6 56.7 56.7 55.9 55.8 54.8 53.1 46.3
36.0 55.8 54.6 54.2 53.6 52.9 51.9 52.0 51.2 51.0 50.0 49.9 44.7
38.0 51.7 50.5 50.1 49.4 48.7 47.8 47.8 47.0 46.8 45.8 45.6 43.4
40.0 50.8 / 38.5 46.9 46.5 45.8 45.0 44.1 44.1 43.2 43.0 42.1 41.9 41.0
42.0 43.7 43.2 42.5 41.8 40.8 40.7 39.9 39.7 38.7 38.5 37.7
44.0 41.2 / 43.7 40.3 39.5 38.8 37.8 37.8 36.9 36.7 35.7 35.5 34.6
46.0 37.7 36.9 36.2 35.1 35.1 34.2 34.0 33.0 32.7 31.9
48.0 35.3 34.5 33.8 32.7 32.6 31.8 31.5 30.5 30.3 29.4
50.0 34.4 / 48.9 32.4 31.6 30.5 30.4 29.5 29.3 28.2 28.0 27.1
52.0 30.4 29.6 28.5 28.3 27.5 27.2 26.2 25.9 25.1
54.0 28.6 27.8 26.7 26.5 25.6 25.3 24.3 24.0 23.1
56.0 28.5 / 54.1 26.1 25.0 24.8 23.9 23.6 22.5 22.3 21.4
58.0 24.6 23.4 23.2 22.3 22.0 20.9 20.6 19.8
60.0 23.6 / 59.3 22.0 21.7 20.8 20.5 19.4 19.1 18.2
62.0 20.6 20.3 19.4 19.1 18.0 17.7 16.8
64.0 19.4 19.1 18.2 17.8 16.7 16.4 15.5
66.0 19.1 / 64.5 17.9 17.0 16.6 15.5 15.2 14.3
68.0 16.8 15.9 15.5 14.4 14.1 13.2
70.0 16.0 / 69.7 14.8 14.4 13.3 13.0 12.1
72.0 13.9 13.5 12.4 12.0 11.1
74.0 13.0 12.5 11.4 11.1 10.1
76.0 12.6 / 74.9 11.7 10.5 10.2 9.2
78.0 10.9 9.7 9.3 8.4
80.0 10.1 8.9 8.5 7.6
82.0 10.1 / 80.1 8.2 7.8 6.8
84.0 7.5 7.1 6.1
86.0 7.1 / 85.3 6.4 5.4
88.0 5.8 5.0 / 87.3
90.0 5.2
90.5 5.0
Capacities
180 t 62 t (OPT.)

Notes
Liftcrane : Long Range Boom 6000SLX
1
1. Capacities included in these charts are the maximum allowable, and are based on machine standing level on firm supporting surface
under ideal job conditions.
2. Capacities are in metric tons, and are rated in accordance with European EN13 000 Standards in terms of machine stability and
structural strength limitations. ; the figures surrounded by bold lines are based on factors other than those which would cause a
tipping condition.
3. Capacities are based on freely suspended loads and make no allowance for such factors as the effect of wind, sudden stopping
of loads, supporting surface conditions, and operating speeds. Operator must reduce load ratings to take such conditions into
account. Deduction from rated capacities must be made for weight of hook block, weighted ball/hook, sling, spreader bar, or other
suspended gear.
4. The maximum rated load of the auxiliary sheave is the value remaining after the 1.3 ton mass of the auxiliary sheave and the mass of
the “main hook” attached to the “boom” are deducted from the maximum rated load of the “Long Range Boom Capacities.”
However, the maximum rated load of the auxiliary sheave is limited to 30 tons. The operating range of the auxiliary sheave is the
range that has the maximum rated load of the main hook.
5. If the auxiliary sheave is attached, the maximum rated load of the “main hook” is the value remaining after the 1.3 ton mass of the
auxiliary sheave and the mass of the auxiliary hook attached to the auxiliary sheave are deducted from the maximum rated load of
the “Long Range Boom Capacities.”
6. The "working radius" is the horizontal distance from the slewing center to the center of gravity of a lifted load.
7. The boom tilt angle range is according to the working range diagram.
8. The chart below shows the number of reeled lines and the maximum rated loads. (When the wire rope length is 800 m. )
9. The chart below shows the operable windings based on the length of each boom.
Hook Capacity (ton) Hook Weight
(ton)
Maximum Rated Load ( ton )
11 X
2Falls
10 X
2Falls
9 X
2Falls
8 X
2Falls
7 X
2Falls
6 X
2Falls
5 X
2Falls
320 Double-Reeling 7.9 - - 250 235 208 180 151 - - - -
11 Falls 10 Falls 9 Falls 8 Falls 7 Falls 6 Falls 5 Falls 4 Falls 3 Falls 2 Falls 1 Fall
280 Single-Reeling 7.0 157 144 131 118 104 90 - - - - -
160 Single-Reeling 3.9 157 144 131 118 104 90 76 - - - -
65 Single-Reeling 3.0 - - - - - - 65 61 46 31 -
15 Single-Reeling 1.0 - - - - - - - - - - -
Hook Capacity (ton)/Boom Length (m) 42 48 54 60 66 72 78 84 90 96 102 108
320 Double-Reeling Max. 9 x 2 9 x 2 9 x 2 8 x 2 7 x 2 6 x 2 5 x 2 - - - - -
Min. 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2 5 x 2
280 Single-Reeling Max. 11 11 11 11 10 9 8 8 7 7 6 -
Min.66666666666
160 Single-Reeling Max. 11 11 11 11 10 9 8 8 7 7 6 5
Min.555555555555
65 Single-Reeling Max.555555555555
Min.222222222222
15 Single-Reeling - - - - - - - - - - - -

Liftcrane : Long Range Boom / 6000SLX
1
Notes
10. If the total mass of the hook mass and the mass of all rigging components is lighter than the mass indicated on this chart, the hook
may not lower even when a lowering operation is performed.
Please select a hook that can be lowered based on the boom length and number of windings.
11. The rated total load when the operation being performed with the rear post support pendant attached is the value remaining when
the value in chart below is deducted from the rated total load chart.
Boom Length /
Number of reeled lines 1 Fall 2 Falls 3 Falls 4 Falls 5 Falls 6 Falls 7 Falls 8 Falls 9 Falls 10 Falls 11 Falls 12 Falls 13 Falls
42 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 3.9 7.0 7.0
48 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 3.9 7.0 7.0
54 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 3.9 7.0 7.0
60 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 3.9 4.1 7.0 7.0
66 m - 2.0 2.0 2.0 2.0 3.9 3.9 3.9 3.9 4.0 4.5 7.0 -
72 m - 2.0 2.0 2.0 2.1 3.9 3.9 3.9 3.9 4.4 4.9 - -
78 m - 2.0 2.0 2.0 2.3 3.9 3.9 3.9 4.2 - - - -
84 m - 2.0 2.0 2.0 2.4 3.9 3.9 4.0 - - - - -
90 m - 2.0 2.0 2.1 2.6 3.9 3.9 - - - - - -
96 m - 2.0 2.0 2.2 2.8 3.9 - - - - - - -
102 m - 2.0 2.0 2.3 3.0 - - - - - - - -
108 m - 2.0 2.0 2.5 - - - - - - - - -
Boom Length (m) 42 48 54 60 66 72 78 84 90 96 102 108
Equivalent Mass (ton) 0.5 0.8 0.7 0.9 0.8 1.0 0.9 1.1 1.1 1.3 1.2 1.4

20
Boom Combinations
66 m
72 m
78 m
84 m
90 m
96 m
Heavy Duty Tip Extension
6000SLX
HL12BH12BH12A H12C
HB9.5 HR7
HT1.5
HL12BH12BH12AH6A H12C
HB9.5
Heavy Duty Tip 7.62
Heavy Duty Tip 7.62
Heavy Duty Tip 7.62
Heavy Duty Tip 7.62
Heavy Duty Tip 7.62
Heavy Duty Tip 7.62
HR7
HT1.5
HR7
HT1.5
HR7
HT1.5
HR7
HT1.5
HR7
HT1.5
HL12BH12BH12A H12C HL12B
HB9.5
HL12BH12BH12AH6A H12C HL12B
HB9.5
HL12BH12BH12A H12C HL12B HL12B
HB9.5
HL12BH12BH12AH6A H12C HL12B HL12B
HB9.5
Boom Combinations
