Hitachi S31 User manual

S31 Probe
INSTRUCTION MANUAL
Tokyo , Japan
Q1E-EP1376-5
© Hitachi, Ltd. 2013,2017. All rights reserved.
Notes for operators and responsible maintenance personnel
★ Please read through this Instruction Manual carefully prior to use.
★ Keep this Instruction Manual together with the system with care to
make it available anytime.
0123

( 1 ) Q1E-EP1376
Manufacturer: Hitachi, Ltd.
2-16-1, Higashi-Ueno, Taito-ku, Tokyo,110-0015,
Japan
[phone]
http://www.hitachi.com/businesses/healthcare/
index.html
European
Representative: Hitachi Medical Systems GmbH
Otto-von-Guericke-Ring 3 D-65205 Wiesbaden,
Germany
EU Importer: Hitachi Medical Systems Europe Holding AG
Address: Sumpfstrasse 13 CH-6300 Zug, Switzerland
Local Distributor:

( 2 ) Q1E-EP1376
About this manual
This instruction manual shall provide instructions for using, cleaning,
disinfecting and/or sterilizing the HITACHI ultrasound probes. It also
describes safety considerations, maintenance.
For instructions for operating the main unit, refer to the operation manual
for it.
Before using the probe, thoroughly read this manual and keep this book
for future reference.
If you have any questions concerning the manual, please contact a service
support.
The following conventions are used throughout the manual to denote
information of special emphasis.
WARNING: “Warning” is used to indicate the presence of a hazard which
can cause severe personal injury, death, or substantial
property damage if the warning is ignored.
CAUTION: “Caution” is used to indicate the presence of a hazard which
will or can cause minor personal injury or property damage
if the caution is ignored.
NOTICE: “Notice” is used to notify people of installation, operation,
or maintenance information which is important, but not hazard
related.

( 3 ) Q1E-EP1376

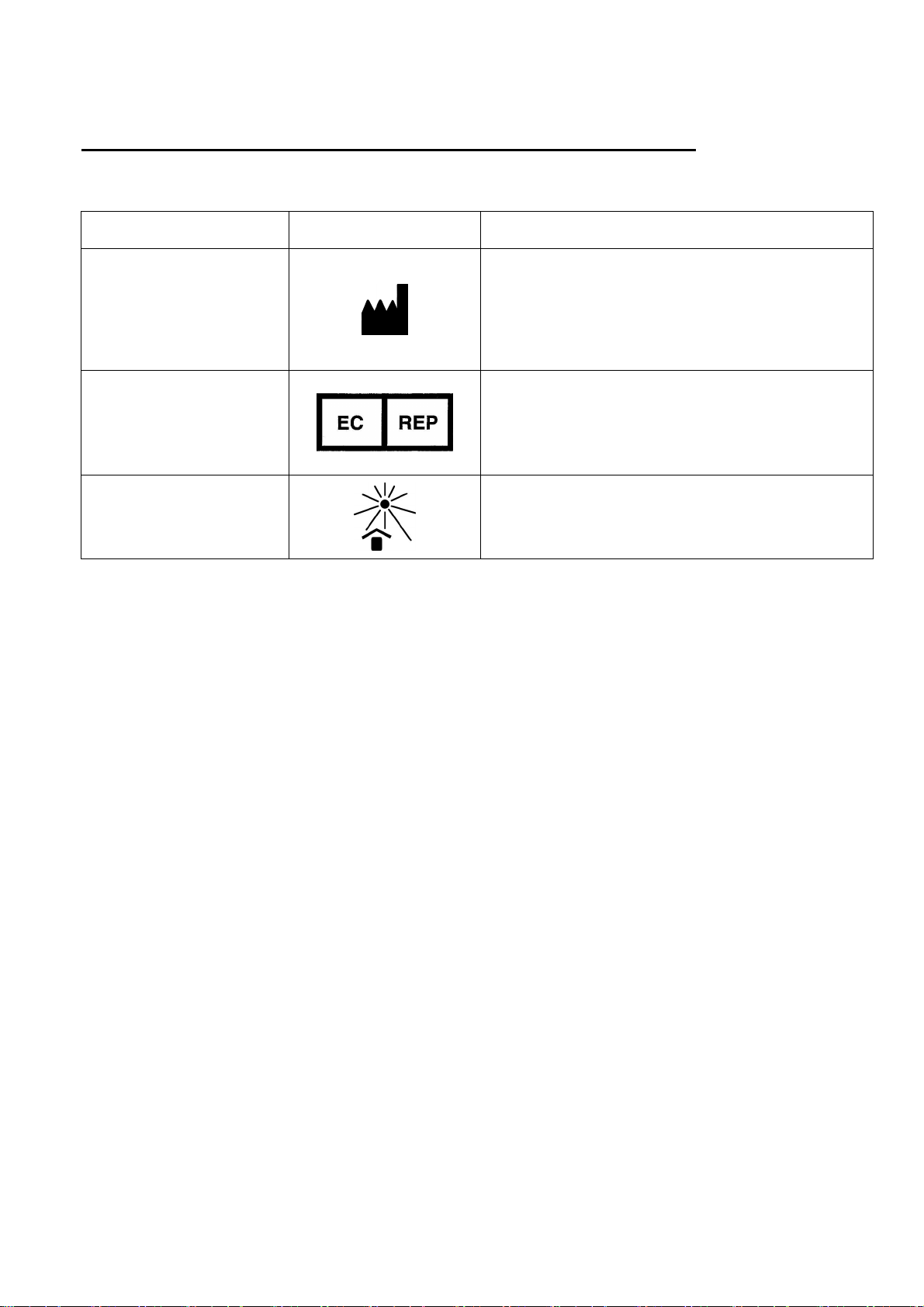

Graphical Symbols for Use in Labeling of Hitachi Ultrasound Probes
Some graphical symbols that are used in labeling of Hitachi Ultrasound Probes are compliant
with EN980:2008 standard. Refer to the following table about the meanings of them.
Explanation of Symbol Symbol Descriptive Content
Manufacturer Company
Name and Address
Hitachi, Ltd.
2-16-1, Higashi-Ueno, Taito-ku,
Tokyo, 110-0015, Japan
[phone]
http://www.hitachi.com/businesses
/healthcare/index.html
Authorized
Representative
in The European
Community
Hitachi Medical Systems GmbH
Otto-von-Guericke-Ring 3 D-65205
Wiesbaden, Germany
Keep away
from Sunlight
Store the probe in a cool, dustproof, dark
and dry place and keep away from high
temperature, high humidity and direct
sunlight.

( 4 ) Q1E-EP1376

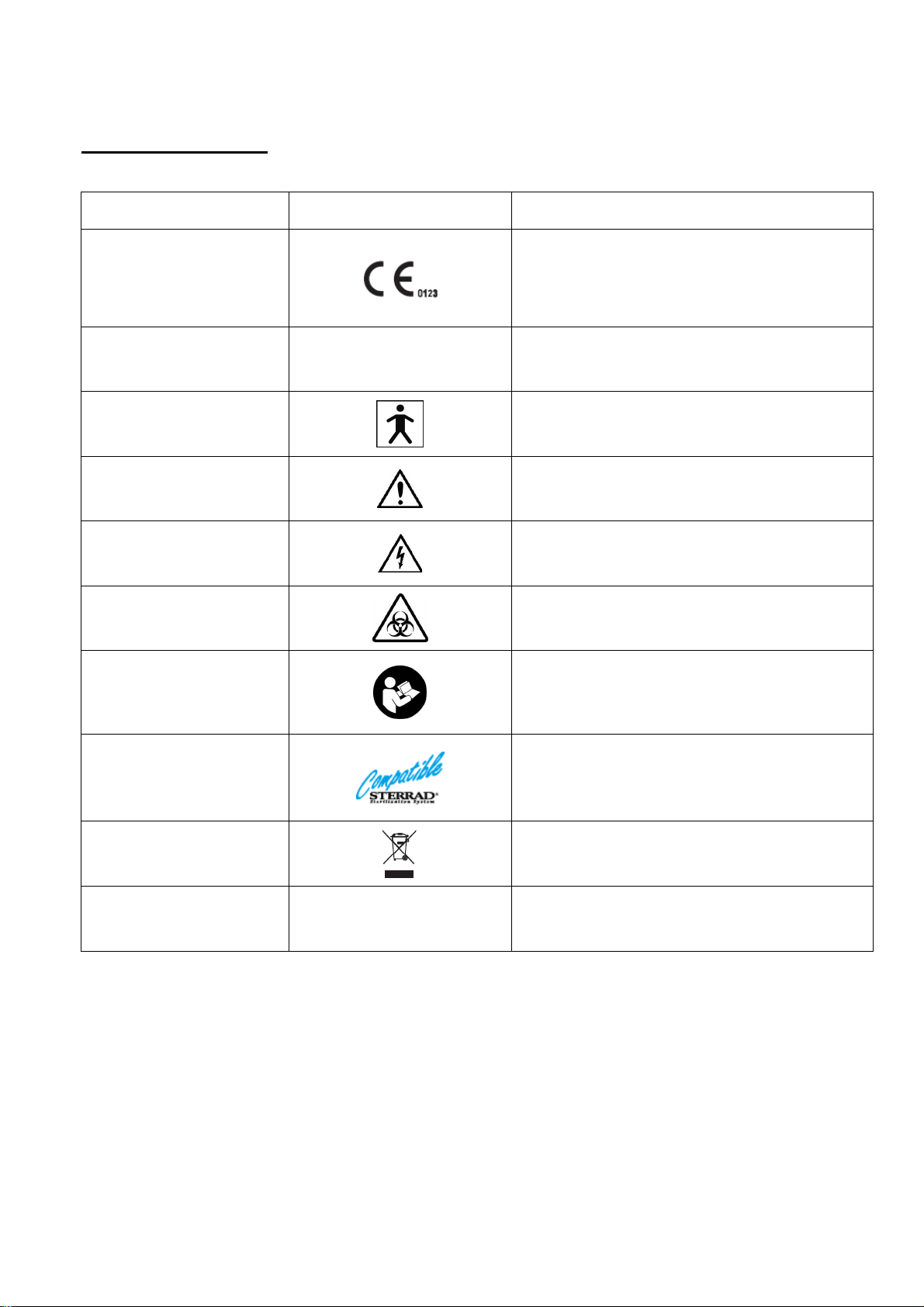

Definition of symbol
The following symbol is also used for HITACHI Ultrasound Probes.
Location Symbol Definition
Probe connector
This instrument complies with
Directive 93/42/EEC relating to
Medical Device and Directive
2011/65/EU relating to RoHS
Probe connector IPX7 IPX7 mark
See section 1.5
Probe connector Type BF APPLIED PART
Probe connector General warning sign
Probe connector Warning; dangerous voltage
Probe connector Caution; Biohazard
Probe connector
Follow the instruction manual to
operate this instrument. If not
avoided, may result in injury, property
damage, or the equipment trouble.
Probe connector
STERRAD sterilization compatibility
mark
Probe connector Do not waste the instrument as general
waste. Comply with a local regulation.
Probe connector Rx Only
By prescription only. U.S. Federal Law
restricts this device to sale on order
of a physician only.

( 5 ) Q1E-EP1376
CONTENTS
Page
1.Introduction ........................................1
1.1Features................................................. 1
1.2Principles of operation.................................. 1
1.3Intended Use............................................. 2
1.4Composition.............................................. 2
1.5External View............................................ 3
2.Inspection before Use ............................... 4
2.1Inspection for Appropriate Connection.................... 4
2.2Inspection for Material Surface.......................... 4
3.Operation Procedure .................................5
4.Cleaning, Disinfection and Sterilization ............ 6
4.1Point of use (Pre-cleaning).............................. 9
4.2Containment and transportation........................... 9
4.3Manual Cleaning and disinfection......................... 9
4.4Drying.................................................. 12
4.5Inspection.............................................. 12
4.6Packaging............................................... 12
4.7Sterilization........................................... 13
4.8Storage................................................. 15
5.Maintenance and Safety Inspection .................. 15
6.Safety Precautions .................................16
7.Specifications .....................................17
7.1Probe................................................... 17
7.2Suppliers List.......................................... 18
8.Disposal of the probe .............................. 19

- 1 - Q1E-EP1376
1. Introduction
1.1 Features
S31 probe is a phased array sector scanning type probe.
The acoustic output of this probe when connected to ultrasound
scanner was measured according to the IEC60601-2-37 standard.
The table of measured acoustic output data is contained in the
operation manual of each ultrasound scanner.
This probe is categorized in class IIa according to Directive
93/42/EEC.
According to IEC60601-1 the probe is classified as type BF.
1.2 Principles of operation
This probe and the ultrasound diagnostic scanner enable image
diagnosis using ultrasonic waves. This system operates under the
principles described below.
1) When an electric pulse signal is applied from the transmitter
to the transducer of the probe, the transducer converts electric
signals into mechanical vibration energy for emitting
pulse-shaped ultrasonic waves into the body part, liquid or other
medium contacting the transducer.
2) The emitted ultrasonic waves are reflected by boundaries with
different acoustic characteristics (acoustic impedance) within
the body.
3) The transducer is also used to receive reflected ultrasonic waves.
The transducer vibrates mechanically due to the received
ultrasonic waves and converts mechanical vibrations into
electric energy. Electric signals are converted to shades of
brightness by brightness modulation to obtain an image.

- 2 - Q1E-EP1376
1.3 Intended Use
S31 Probe is designed for observation and diagnosis mainly of the
following regions by connecting with the HITACHI ultrasound scanner.
Pediatric
Never use the probe for following applications.
1) Direct contact to the heart.
2) Biopsy to the heart.
3) Direct contact to the eye
1.4 Composition
The probe components of S31 Probe are as follows:
1) Probe ········································ 1 piece
2) Instruction Manual ··························· 1 copy
Sterilization has not been made to the probe shipped from the
factory.
Prior to use of it, be sure to clean, disinfect and sterilize
it.
WARNING
CAUTION

- 3 - Q1E-EP1376
1.5 External View
The external view of S31 Probe is shown in Fig. 1.
Ｈｅａｄ
Un-immersible part
Immersible part: This part can be immersed in disinfectant
solution and also can be cleaned by water.
Un-immersible part: This part should not be immersed in
disinfectant solution and also can not be
cleaned by water.
F
i
g
.
1
E
xternal View
Immersible part (IPX7)
Applied part
Cable Connector

- 4 - Q1E-EP1376
2. Inspection before Use
Prior to use, the probe must be carefully inspected that it is
appropriate for use. If not, do not use the probe and immediately
contact a service support.
2.1 Inspection for appropriate connection
1) Confirm that the system is correctly operating. Refer to the
instruction manual for the ultrasound diagnostic scanner.
2) Do not attach or connect unauthorized devices nor instruments
on the probe, such as unauthorized biopsy attachments.
2.2 Inspection of material surface
Visually check the surface of the probe head, housing and cable for
any crack, scratch or denaturalization.

- 5 - Q1E-EP1376
3. Operation Procedure
1) Confirm that the probe is cleaned and disinfected or sterilized.
2) Connect the probe to the ultrasound diagnostic scanner, operate
the scanner, and adjust the image, all according to the
instructions given in the operation manual for the ultrasound
diagnostic scanner with which the probe is used as connected.

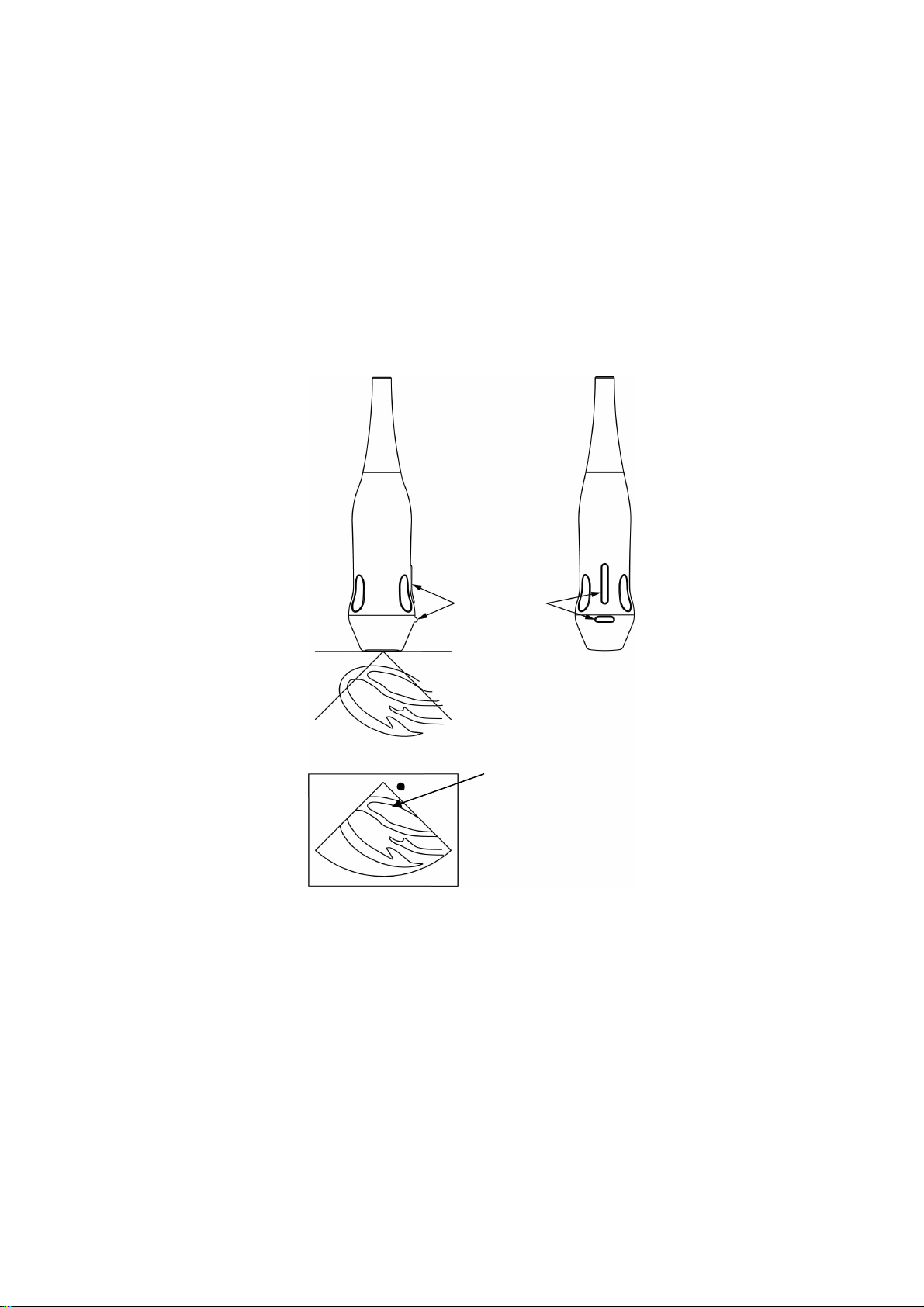

3) Relationship between direction of the probe and the image is shown
in Fig. 2. The right-left orientation mark on the image indicates
the index mark on the probe.
4) Use under sterile condition, protecting the probe by use of the
covers is recommended. Some Latex material may create allergic
reaction. Please use allergy free material covers.
5) After the use of the probe, it should be cleaned and disinfected
or sterilized, then store it in an adequate place.
6) Store the probe in the environment indicated in “5 Maintenance and
Safety Inspection”.
R
ight
-
l
eft orientation mark
Index mark
Fig. 2 Relationship between direction of the probe and
Right-left orientation Mark

- 6 - Q1E-EP1376
4. Cleaning, Disinfection and Sterilization
The probe must be reprocessed after each use. Refer to the
reprocessing instruction in this chapter.
WARNINGS
‐The probe is delivered unsterile. Prior to the first
use, reprocess the probe.
‐Temperature should not exceed 60°C during
reprocessing
‐Probe connector is not water resistant.
Limitations on
reprocessing
T
he probe is not completely submersible. The immersible
part is shown in Fig.1. The un-
i
mmersible part should
be disinfected by wipe disinfection.

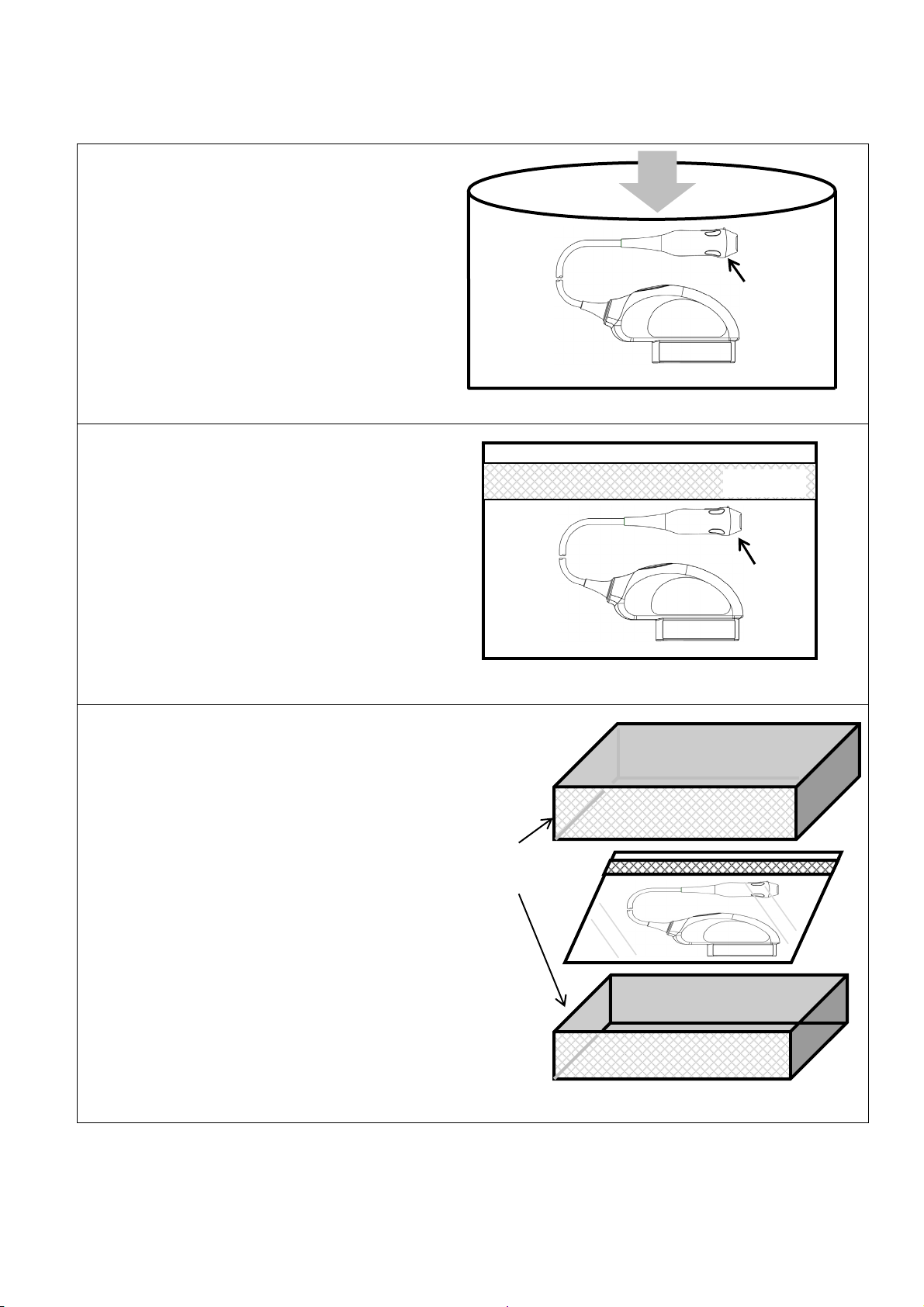

Transportation
before using
T
he probe should be packed in a sterile pouch or container
t
o transport from Central Sterile Supply Department
(
CSSD) to an operating room. Be careful not to damage
the sterile pouch or container during transportation.

- 7 - Q1E-EP1376
Levels of reprocessing requirements:
Depending on the application of the product and with regard to risk
evaluation, the user has to classify the medical device according to the
current Medical Device Directive for processing of medical devices as
uncritical, semi-critical or critical. Supporting information concerning
this topic is listed in the table below. The user is responsible for correct
classification of the medical device.
Classification Definition Processing
uncritical
Application part only
contacts intact and uninjured
skin
Cleaning
Disinfection
semicritical
Application part contacts
mucosa (intracavitary
application)
Cleaning
Disinfection (Disinfectant
with virucidal effect)
critical
Application part contacts
intracorporeal tissue
directly
(operative application)
Cleaning
Disinfection (Disinfectant
with virucidal effect -
minimum)
Sterilization
According to the intended use, S31 probe is classified as uncritical.

- 8 - Q1E-EP1376
The flowchart of the reprocessing process of this probe is as follows.
Point of use
(Pre-cleaning)
Manual Cleaning
Rinsing after manual
cleaning
Manual Disinfection
D
rying
Manual cleaning and
disinfection
Rinsing after manual
disinfection
Packing
Sterilization
Containment and
transportation

- 9 - Q1E-EP1376
4.1 Point of use (Pre-cleaning)
Pre-cleaning should be done immediately
after each use. The procedure is as follows:
1) Remove the probe cover.
2) Clean the probe of all patient’s blood or fluid with running tap
water until the surface of the probe looks visually clean.
3) Wipe the whole surface of the probe with gauze pad and remove
superficial visible impurities.
4.2 Containment and transportation
Putting the contaminated equipment into
exclusive shock and damage proof container for transportation is
recommended. It is recommended that instruments are reprocessed
as soon as possible and not later than 4 hours after usage.
4.3 Manual Cleaning and disinfection
Prepare following items before manual
cleaning and disinfection:
a) Detergent: Cidezyme® (Johnson &
Johnson, #2258) or another
cleaning agent with approved
material compatibility for this
medical device
b) Disinfectant: Cidex® OPA (Johnson
& Johnson, # 20391) or another
disinfectant with approved
material compatibility for this
medical device
c) Two tanks, one for cleaning and one
for disinfection - optional:
1 additional tank for rinsing with deionized/tap water
(sufficient size for immersion of the immersible part of the
probe at full length)
d) Soft, fluff free cloth or single use towel
Point of use
(Pre-cleaning)
C
ontainment and
transportation
Manual Cleaning
R
insing after manual
cleaning
Manual Disinfection
R
insing after manual
disinfection
M
anual cleaning and
disinfection

- 10 - Q1E-EP1376
e) Personal protective equipment (gloves, water repellent
protective skirt, face protection mask or protective glasses,
see also instructions of the manufacturer for the detergent and
the disinfectant)
Manual Cleaning:
Prepare the detergent solution in a tank with cold water (please follow
the instructions of the detergent manufacturer regarding application,
dilution and contact time).
1) The temperature of the detergent solution should be between 15-30°C,
concentration is 1.6%. Please note the minimum contact time of the
detergent in the manufacturer’s instruction. If a differing detergent
is used, please also note the approved material compatibility for the
medical device.
2) Immerse the immersible part of the probe without connector into the
diluted detergent solution (see Fig. 3). Wipe the immersible part of
the probe under the surface of the detergent solution with a soft cloth
to remove all visible soil. Be sure that all grooves of the probe are
implemented during the cleaning process.
3) The immersible part of the probe should be left in the detergent
solution according to the specified contact time of the detergent
manufacturer.
4) Wipe the un-immersible parts of the probe with a soft cloth dipped
with the detergent solution.
5) Rinse the probe with running tap water for 1 minute. (alternatively:
immerse the immersible part of the probe in a tray filled with deionized
water/tap water (see Fig. 3) for 5 min.)
6) Visually check the outer surface of the probe for cleanness. If
necessary, use magnifying glass for visually check. If there is still
soil visible, repeat all above steps.

- 11 - Q1E-EP1376
Manual disinfection:
1) Prepare the disinfectant solution in a tank with cold water (please
follow the instructions of the disinfectant manufacturer regarding
application, concentration, microbiological efficiency, service
life and contact time).
2) Confirm the concentration of the disinfectant before immersing the
probe. Although Cidex® OPA does not need to be diluted, it is
recommended to use test strips to verify the concentration. The test
strips can indicate whether or not the concentration is above the
Minimum Effective Concentration (MEC). Please also note the
expiration date of the test stripes. Temperature of disinfectant
solution should be minimum 20°C. The minimum contact time is 5 minutes.
If a different disinfectant is used, follow the manufacturer’s
instructions. Please also consider the material compatibility for the
medical device.
3) Immerse the immersible part of the probe into the disinfectant (see
Fig. 3). Set a clock to insure the recommended contact time which is
5 minutes.
4) Rinse the immersible part of the probe with deionized water for 1 minute.
(alternatively: immerse the immersible part of the probe in a tray
filled with deionized water (see Fig. 3) for 5 min.)
5) Visually check the outer surface of the probe for leavings of the
disinfectant. If necessary, repeat the rinsing.
Water
Detergent
Disinfectant
Fig. 3 Immersion of the probe

- 12 - Q1E-EP1376
4.4 Drying
1) Wipe the probe with a single-use, fluff-free wipe or towel to
remove moisture from the surface of the probe.
2) Dry the probe naturally in an ambient temperature between
15-30°C for a minimum of 4 hours. Alternatively the equipment
can be dried using a drying heater at a temperature of less than
60°C.
4.5 Inspection
Inspect the equipment for any damage such as crack, scratch or
deformation. Do not use it if any damage is found.
4.6 Packaging
Pack the probe in a sterile barrier such as Polypropylene fleece
or transparent package made from Polyethylene film and Tyvek®, and
then place it into a tray. The tray should be also covered with
a sterile barrier.
Additionally the probe can be placed on plastic mesh wires supplied
for plasma sterilization and then packed as mentioned above.
The probe can be packed in a simple or double packing.
Please note that the size of a sterile barrier should be large enough
to be able to pack the equipment leaving sufficient space to seal
it completely.
A sterile barrier should be sealed by an appropriate sealing machine
and it is important to confirm that the package is sealed completely.
If the sealing is not complete, pack and reseal again.
Drying
Packaging

- 13 - Q1E-EP1376
WARNING
4.7 Sterilization
The probe can be sterilized using either ethylen oxide gas (EtO)
sterilization or plasma sterilization (see table below).
Follow the manufacturer's instructions of the sterilizer regarding
usage, temperature and sterilization-time.
The sterilization method and operating conditions are as follows.
Sterilization Method Condition
Plasma Sterilization:
STERRAD® 50, 100S or 200 (*) Short Cycle
Plasma Sterilization:
Sterrad® NX or 100NX (*) Standard cycle
ETO Sterilization
Gas Type: 10% EO/ 90% HCFC
Temperature: 50-55°C
Exposure Time: More than 120 minutes
Pressurization: 162-200kPa
Depressurization: 13-8kPa
Relative humidity: 40-90%
Aeration is minimum 12 hours
* STERRAD® systems are manufactured by "Johnson & Johnson"
1) Before performing sterilization, check that the operation data of
sterilizer are in conjunction with min. and max. data applicable
for the probe.
2) Do not sterilize the probe by Steam Autoclaving. If you autoclave
it, it suffers serious damage and will be not functional.

- 14 - Q1E-EP1376
The packaging before sterilization is as follows.
1) Put the probe into TYVEK
pouch.
2) Seal the TYVEK Pouch using a
heat sealer. Ensure that the
seal is complete.
3) Put the sealed pouch into a
tray or plastic mesh wire for
sterilization.
TYVEK Pouch
Fig. 4 Packaging in the pouch
Probe
Sealed
Fig. 5 Sealing
Probe
TYVEK Pouch
Fig. 6 Packaging in a tray
Probe in
the Pouch
Tray for
s
terilization
