Hitachi CP-X950 User manual

Printed in Japan(H) HT-E396
0398

Printed in Japan(H) HT-E396 0398
Model name CP-X950
Liquid crystal
panel structure
1.3 polysilicon active-matrix IFT x 3
Number of
pixels
786,432 pixels (V768xH1 024)
Input signals VGA, S-VGA, XGA, S-XGA, MAC13”, MAC16”, MAC19”,°
NTSC, NTSC4.43, PAL, M-PAL, SECAM, S-Video
Resolution 1,024 x 768 color pixels
Lens Power zoom (Fm2.3-3.0 f=48.1 -72.1 mm) 1:1.5 power focus
Lamp Metal halide lamp 260W (DC)
Brightness 550 ANSI lumens
Contrast ratio 200:1
Speakers 2W + 2W (stereo)
Power supply AC100-120V, 5WAC220-240V, 2.2A
Power
consumption 370W
Operating
temperature 32-95° F
Dimensions
(WxHxD)
15.9 x 6.4 x12.3”
Weight 20.0 lbs.
Input/output
terminals Video signal S-VIDEO: Mini DIN4-pin terminal x 2
input terminals VIDEO: RCA jack terminal x 2
AUDIO: RCA jack terminal x 2 (L/R)
RGB input RGB: signal: D-sub 15-pin shrink terminal x 2
signal terminals AUDIO: Stereo mini jack x 2
RGB output RGB: signal: 0-sub 15-pin shrink terminal x 1
signal terminals AUDIO: Stereo mini jack x 1
Control terminals D-sub 15-pin shrink terminal x 1
Accessories Remote control
Power cord
MAC adaptor cable
RGB cable cable
ADB mouse cable
Optional rolling travel case
Batteries LR6
Video/audio cable
RS-232C
PS/2 mouse
( J3000SC)
*Note: Image size needs to be adjusted via the on screen menu.
•AII specifications are subject to change without notice.
•AII product names and company names are registered trademarks of their respective owners.

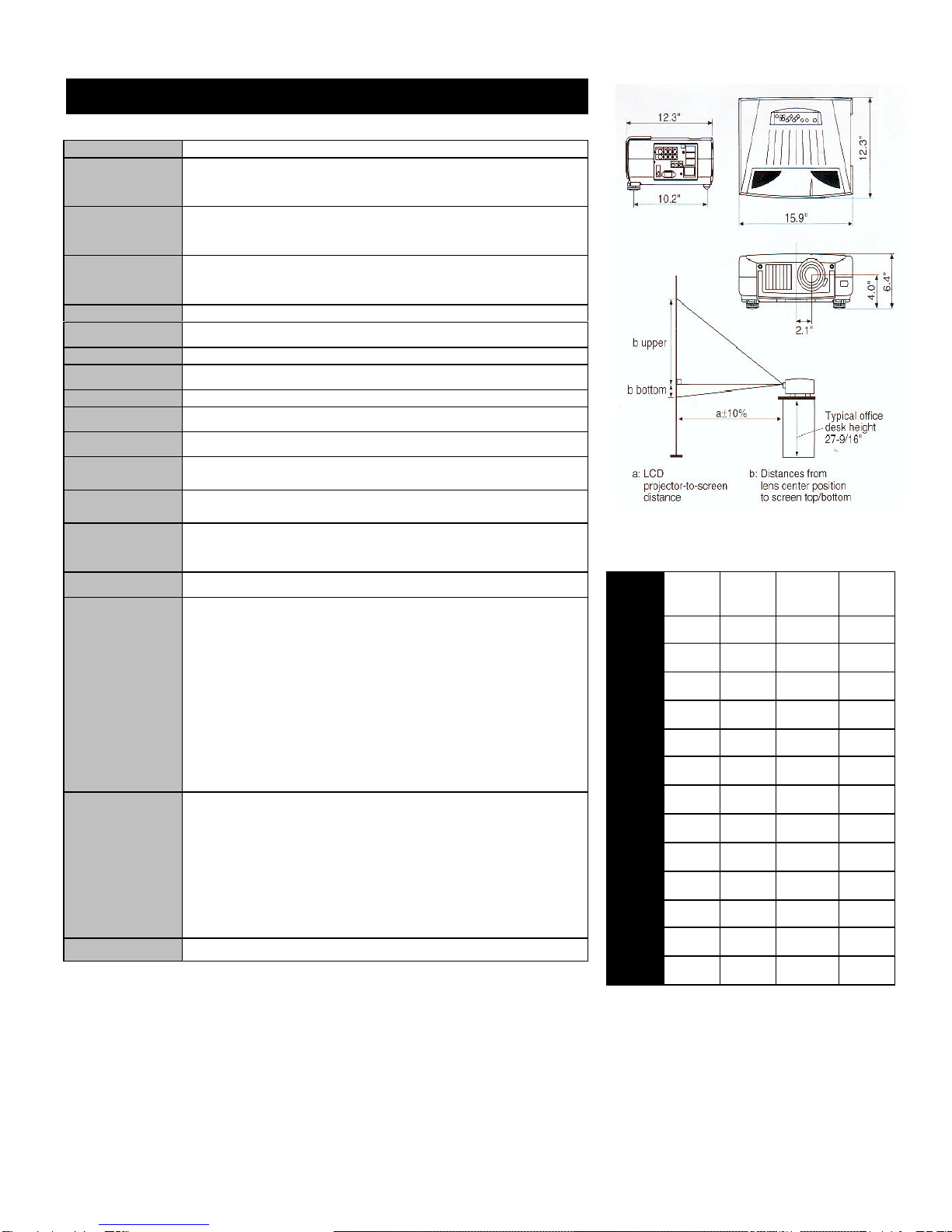

Specifications
Screen
Size
(inch)
a
Min
(inch)
a
Max
(inch)
b
Bottom
(inch)
b
Upper
(inch)
20 28.3 43.7 1.7 10.3
30 43.7 66.5 2.6 15.4
40 58.7 89.4 3.4 20.6
50 74.0 111.8 4.3 25.7
60 89.0 134.6 5.1 30.9
70 104.3 157.5 6.0 36.0
80 119.3 180.3 6.9 41.1
100 149.6 225.6 8.6 51.4
110 164.6 248.4 9.4 56.6
120 179.9 270.9 10.3 61.7
150 225.2 339.4 12.9 77.1*
200 300.8 453.1 17.1 102.9
300 452.0 680.3 25.7 154.3
