HMS IXXAT iPC-I 320/PCI II User manual

iPC-I 320/PCI II
Intelligent PC/CAN Interface
HARDWARE MANUAL
ENGLISH

HMS Technology Center Ravensburg GmbH
Helmut-Vetter-Straße 2
88213 Ravensburg
Germany
Tel.: [phone]
Fax: [phone]
Internet: www.hms-networks.de
E-Mail: [e-mail]
Support
For problems or support with this product or other HMS products please
request support at www.ixxat.com/support.
Further international support contacts can be found on our webpage
www.ixxat.com
Copyright
Duplication (copying, printing, microfilm or other forms) and the electronic
distribution of this document is only allowed with explicit permission of HMS
Technology Center Ravensburg GmbH. HMS Technology Center
Ravensburg GmbH reserves the right to change technical data without
prior announcement. The general business conditions and the regulations
of the license agreement do apply. All rights are reserved.
Registered trademarks
All trademarks mentioned in this document and where applicable third
party registered are absolutely subject to the conditions of each valid label
right and the rights
of particular registered proprietor. The absence of
identification of a trademark does not automatically mean that it is not
protected by trademark law.
Document number: 4.01.0039.20000
Version: 1.2

Content
3
iPC-I 320/PCI II Manual, Version 1.2
1 Introduction........................................................................................5
1.1 Overview..................................................................................5
1.2 Features...................................................................................5
1.3 Support....................................................................................6
1.4 Returning hardware................................................................6
1.5 Block diagram.........................................................................7
2Installation......................................................................................8
2.1 Software installation...............................................................8
2.2 Hardware installation..............................................................8
3Configuration .................................................................................9
3.1 Settings on the interface........................................................9
3.1.1 CAN bus connection ................................................................9
3.1.2 PCI bus connection................................................................11
3.1.3 Switching between loader and application mode (S401,
SW1).......................................................................................11
3.1.4 EPLD update (S401, SW2)....................................................11
3.2 CAN bus terminal..................................................................11
4Appendix ......................................................................................12
4.1 Technical Data.......................................................................12
4.2 Accessories ..........................................................................13
4.2.1 CAN bus terminal resistor......................................................13
4.3 FCC Compliance...................................................................13
4.4 EC Declaration of Conformity..............................................14

Introduction
5
iPC-I 320/PCI II Manual, Version 1.2
1 Introduction
1.1 Overview
With the IXXAT PC/CAN interface iPC-I 320/PCI II you have purchased a high-
quality electronic component which has been developed and manufactured
according to the latest technological standards.
The aim of this manual is to help you familiarize yourself with your interface,
also referred to in the following as iPC-I 320/PCI II. Please read this manual
before beginning with the installation.
1.2 Features
The most important technical features are as follows:
•5 V PCI connection in accordance with PCI specification 2.1, 32 bit,
33 MHz
•32 bit memory mapped access (needs 8 kBytes memory and 128 Byte I/O
address space)
•Micro controller DALLAS 80C320 clocked with 22,1184 MHz (code
compatible with INTEL 8032)
•4 kBytes Dual-Port-RAM, 8 semaphore registers
•2 x 63.75 kBytes flash memory
•Up to 63.25 kBytes code can be downloaded
•Up to 2 x 56 kBytes XDATA-RAM addressable
•One or two CAN circuits with Philips SJA1000 CAN controller
clocked with 16 MHz
•CAN bus interface according to ISO/IS 11898-2 on board (high speed);
optional galvanic decoupled

Introduction
6
iPC-I 320/PCI II Manual, Version 1.2
1.3 Support
For more information on our products, FAQ lists and installation tips, please
refer to the support section of our website (http://www.ixxat.de), which also
contains information on current product versions and available updates.
If you have any further questions after studying the information on our website
and the manuals, please contact our support department. The support section
on our website contains the relevant forms for your support request. In order to
facilitate our support work and enable a fast response, please provide precise
information on the individual points and describe your question or problem in
detail.
If you would prefer to contact our support department by phone, please also
send a support request via our website first, so that our support department has
the relevant information available.
1.4 Returning hardware
To enable fast, correct processing of returns, please apply for an RMA number
before returning hardware using our on-line RMA form, which you will find in the
Support section on our website.
After applying for the RMA number, you will receive a return delivery note from
us, which you should enclose with the return delivery. If returns are made
without an RMA number or a return delivery note, we reserve the right to
return the delivery at your expense. A detailed description of the RMA
procedure can be found in the Support section on our website.

Introduction
7
iPC-I 320/PCI II Manual, Version 1.2
1.5 Block diagram
FLASH
CAN Bus
A 0..15
PC
iPC-I320/PCI
AD 0..7
A 0..15
SRAM Address
Decoder
2. CAN
Controller
SJA1000
CAN Bus-
Ankopplung
Address
Latch
RESET
RS232 /
SPI
TxD RxD
CAN High
CAN Low
1. CAN
Controller
SJA1000
CAN Bus-
Ankopplung
PCI-Bus
DPRAM and Flags
Microcontroller
DS80C320
PCI-Target Controller
A 0..15AD 0..7
IRQ
Fig. 1-1: Block diagram iPC-I 320/PCI II

Installation
8
iPC-I 320/PCI II Manual, Version 1.2
2 Installation
2.1 Software installation
A PC driver is required to operate the interface. This driver is an integral part
of the VCI (Virtual CAN Interface), which can be downloaded free of charge
from the Internet at http://www.ixxat.de.
For installation of the VCI driver under Windows, please refer to the VCI
installation manual.
2.2 Hardware installation
Before inserting the iPC-I 320/PCI II in the PCI slot, you should install the
software driver (see previous section).
For all work on the PC and interface, you must be statically discharged. Work
must be carried out on an earthed, anti-static work mat.
Take the following steps in sequence:
(1) Switch the PC off and remove the mains plug.
(2) Open the PC according to the instructions of the PC manufacturer and find
a suitable slot.
The interface is designed according to the PC standard and can easily be
installed the computer. Do not use force when plugging in.
(3) Make sure the interface sits tightly in the PC.
(4) If your interface is assembled with 2 isolated CAN-circuits, you must fix the
additional slot plate and plug in the header on the interface (see section
3.1.1).
(5) Close the PC; the hardware installation is now complete.

Configuration
9
iPC-I 320/PCI II Manual, Version 1.2
3 Configuration
3.1 Settings on the interface

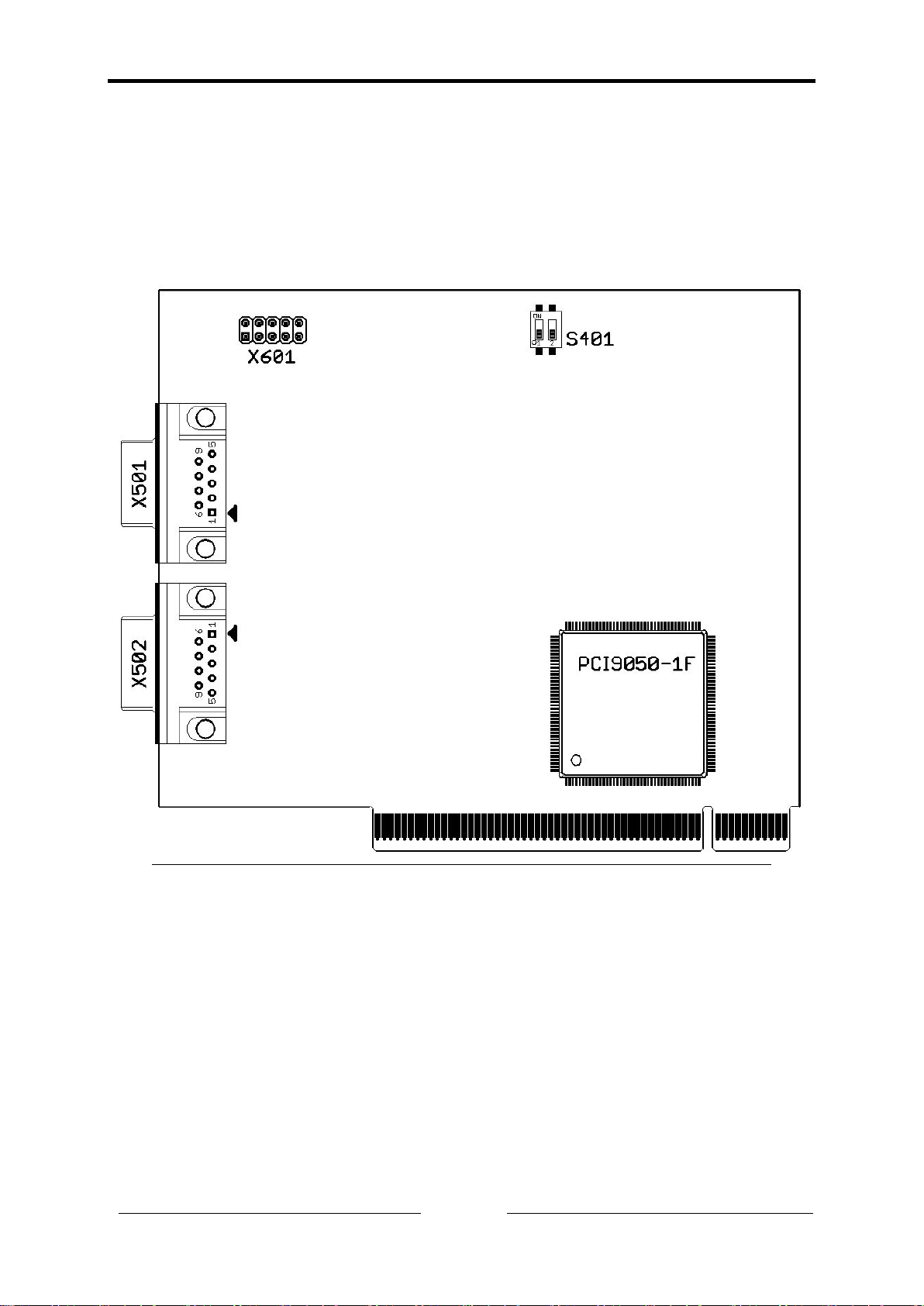

The diagram Fig. 3-1 shows the positions of the plugs and the dip-switches on
the interface.
Fig. 3-1: iPC-I 320/PCI II interface
3.1.1 CAN bus connection
One (common) or two high-speed bus transceivers according to
ISO/IS 11898-2 may be present on the iPC-I 320/PCI II interface. The signals of
the first bus transceiver connect with the 9-pin sub-D pin/bush X501/X502. If two
isolated bus transceivers are assembled, the signals for the CAN bus of the
second bus transceiver connect with the header X601. As an option, the bus
connection can be galvanically isolated from the CAN bus.

Configuration
10
iPC-I 320/PCI II Manual, Version 1.2
The shield of the CAN socket is connected via a 1 MΩresistor and a 10 nF
capacitor to the ground of the CAN connection. In the case of a non-galvanically
isolated device version, CAN ground and PC ground have to the same potential.
Maximum interference immunity is achieved when the shield of the CAN cable
is earthed.
The assignment of the Sub-D connectors is shown in Table 3-1.
Pin no. X501/X502
Signal
1
Not connected
2
CAN-Low_1
3
GND/GND_1
4
Not connected
5
Not connected
6
Not connected
7
CAN-High_1
8
Not connected
9
Not connected
Table 3-1: Pin assignment of X501 und X502
The pin assignment of the 10 pin plug X601 for the connection of the second
CAN line is showed in the following table:
Pin no. X601
Signal
1
Not connected
2
Not connected
3
CAN-Low_1
4
CAN-High_1
5
GND/GND_2
6
Not connected
7
Not connected
8
Not connected
9
Not connected
10
Not connected
Table 3-2: Pin assignment of X601

Configuration
11
iPC-I 320/PCI II Manual, Version 1.2
3.1.2 PCI bus connection
The assignment of the PCI connector is designed in accordance with the PCI
specification 2.2. The iPC-I 320/PCI II can be operated in a 5 V PCI signal
environment. The maximum PCI bus frequency with which the interface can be
operated is 33 MHz.
3.1.3 Switching between loader and application mode (S401, SW1)
By using dip switch S401 (SW1), it can be achieved that the board executes a
user defined application after reset, which has to be in flash bank 0. As default,
the IXXAT boot loader, which is in flash bank 1, is executed.
Mode
S401, (SW1)
Loader mode (default)
OFF
Application mode
ON
3.1.4 EPLD update (S401, SW2)
Using dip switch S401 (SW2), allows to perform an EPLD update while the
board is installed in the PC.
Mode
S401, (SW2)
Programming disabled (default)
OFF
Programming enabled
ON
3.2 CAN bus terminal
There is no bus termination resistor for the CAN bus assembled on the iPC-I
320/PCI II board. A bus terminal resistor in the form of a feed-through connector
is available as an accessory from IXXAT (order number 1.04.0075.03000).

Appendix
12
iPC-I 320/PCI II Manual, Version 1.2
4 Appendix
4.1 Technical Data
The following data refer to the iPC-I320/PCI II interface version with two Philips
SJA1000 CAN controllers and two galvanically isolated bus transceivers
according to ISO/IS 11898-2.
PCI interface: 32 Bit / 33 MHz, PCI Specification 2.1
Microcontroller: Dallas DS80C320-ECG, 22,1184 MHz
RAM/Flash: 128 kByte / 128 kByte
CAN controller: Philips SJA1000T, 16 MHz
CAN transceiver (high-speed): Texas Instruments SN65HVD251 or
Philips PCA 82C251
Max. number of CAN bus nodes: 120
CAN bus terminal resistor: none
CAN run trip delay: with galv. isolation typically 50 ns, max. 75 ns
CAN baud rates: 5 kBaud - 1 MBaud
Max. CAN throughput per channel:
9500 messages/s (Reception with VCI V3)
2000 messages/s (Transmission with VCI V3)
Galvanic isolation: 500 V AC for one minute between CAN bus
and internal logic
Power supply: 5 V DC ±5 % via PCI slot
Power consumption: typically 320 mA
max. 380 mA
Dimensions: 124 mm x 97.5 mm (without CAN Sub-D9
connectors)
Weight: without additional slot plate for second CAN
approx. 91 g
with additional slot plate for second CAN
approx. 128 g
Working temperature range: 0 to 70 °C
Storage temperature range: -40 °C to +85 °C
Relative humidity: 10 - 95 %, non-condensing

Appendix
13
iPC-I 320/PCI II Manual, Version 1.2
4.2 Accessories
4.2.1 CAN bus terminal resistor
To terminate the CAN bus, a Sub-D9 feed-through connector with integrated
120 Ohm bus terminal resistor is available.
Order number: 1.04.0075.03000
Fig. 4-1: CAN bus terminal resistor and internal wiring
4.3 FCC Compliance
Declaration of conformity
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
•this device may not cause harmful interference, and
•this device must accept any interference received, including interference
that may cause undesired operation.
Class A digital device instructions:
Note: This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.

Appendix
14
iPC-I 320/PCI II Manual, Version 1.2
4.4 EC Declaration of Conformity
IXXAT Automation hereby declares
that the product: iPC-I 320/PCI II
with the article numbers: 1.01.0039.10100
1.01.0039.10200
1.01.0039.11110
1.01.0039.11220
1.01.0039.90001
1.01.0039.90002
1.01.0039.90003
1.01.0039.90004
1.01.0039.90006
do comply with the EC directives 2004/108/EC.
Applied harmonized standards in particular:
EN 55022:2006 + A1:2007
EN 61000-6-2:2005
2011.08.22
Dipl.-Ing. Christian Schlegel
Managing Director of IXXAT Automation GmbH
