HNC Electric HV610C Series User manual

HV610C Series Frequency Inverter
User Manual
HNC Electric Limited

Foreword
Thank you for using the HV610C series of high-performance vector inverter.
New HV610C series is a general current vector control inverter integrated with
the performance and features in a high degree.
HV610C with industry-leading drive performance and functionality control, using
unique current vector control algorithm can efficiently drive induction motor to
achieve high accuracy, high torque and high-performance control.
Customer success, Market Service ！HV610C in terms of performance and
control are worthy of trust!
This guide explains how to properly use HV610C series inverter. Before using
(installation, operation, maintenance, inspection, etc.), be sure to carefully read the
instructions. Understanding of product safety precautions before using this product.
General notes
This manual due to product improvement, specifications change, as well as to
the instructions of their ease of use will be appropriate changes. We will update
the information number of instructions, issued a revised edition.
Due to damage to or loss need to order the manual, please contact HNC or
HNC agents to order it as per the information number on the cover.
This icon in the instructions with the products you ordered may be different,
please refer to the specific documentation for products supplied.

Definition of security
In this manual, safety issues the following two categories：
Warning：Due to the dangers posed against the required operation, may
result in serious injury and even death;
Caution：Due to the dangers posed against the required operation, may
lead to moderate harm or minor injuries, and damage to the equipment;
Installation, commissioning and maintenance of the system, please carefully
read this chapter (safety precautions), follow the required safety precautions to
operate. HNC is not responsible in case of any injuries and losses caused as a
result of improper operations.

Safety precautions
Before Installation
Warning
Do not install inverter finding the control system with water in, or inverter with missing parts or
damaged parts.
Please do not install inverter when the packing list is not consistent with the physical name.
Warning
Carefully handled when loading, otherwise it may damage the inverter.
Please don’t use the damaged driver or missing parts inverter, there may be risk of injury.
Don’t touch components of the control system, otherwise it will cause danger of static electricity.
During Installation
Warning
Mount the inverter on incombustible surface like metal, and keep away from flammable
substances. Otherwise it may cause fire.
Do not twist the mounting bolt of the equipment, especially the screw bolt marked in RED.
Prohibit the use in the dangerous environment where inflammable or combustible or explosive
gas, liquid or solid exists. Or it may cause electric shock or fire.
Caution
Do not drop the conducting wire stub or screw into the inverter. Otherwise ,it may cause
damage to the inverter.
Please install the inverter at the place of less direct sunlight and vibration.
Please mind the location of its installation when more than two inverters are installed in one
cabinet, so that radiation effect is promised.
During Wiring
Warning
Operation shall be performed by the professional engineering technician. Otherwise there will
be unexpected danger.
There shall be circuit breaker between the inverter and power supply. Otherwise, there may be
fire.
Make sure the power is disconnected prior to the connection. Otherwise there will be danger of
electric shock.
The earth terminal shall be earthed reliably. Otherwise there may be danger of electric shock.

Warning
Please don't put the power line and the signal line from the same pipeline，when operating
wiring, please make power line and signal line apart above 30cm.
The encoder must use shielded cable, and the shield must ensure that a single side of a
reliable ground!
Do not connect the input power cable to the output terminals(U 、V、W).Attention to the
terminals of the mark and do not make wrong connection. Otherwise it may damage the
inverter.
The brake resistor must be connected between the terminals (+)、(B). and never connect
to DC bus terminals (+)、(-) , otherwise it may cause fire.
Ensure the wiring meet the EMC requirements and the local safety standard.
The wire size shall be determined according to the manual. Otherwise, accident may be
caused!
Before Power-on：
Caution
Any part of the inverter need not to carry on pressure test,which has been done before
leaving factory.Or accident may be caused.
Please confirm whether the power voltage class is consistent with the rated voltage of the
inverter and the Input terminal (R、S、T) and Output terminal(U、V、W)cable connecting
positions are correct, and check whether the external circuit is short circuited and whether
the connecting line is firm,otherwise it may damage the inverter.
Do not frequently turn ON/OFF power .If continuously ON/OFF power is needed, please
make sure the time interval more than 1 minute.
Caution
The cover must be well closed prior to the inverter power-on. Otherwise electric shock may
be caused!
All the external fittings must be connected correctly in accordance with the circuit provided in
this manual.Or accident may occur.
Upon Power-on

Warning
Do not open the cover of the inverter upon power-on.Otherwise there will be danger of
electric shock!
Do not touch the inverter and its surrounding circuit with wet hand. Otherwise there will be
danger of electric shock.
Do not touch the inverter terminals (including control terminal). Otherwise there will be
danger of electric shock.
At power-on, the inverter will perform the security check of the external stong-current circuit
automatically. Thus, at this time please do not touch the terminals U、V、W, or the terminals
of motor, otherwise there will be danger of electric shock.
If the parameter identification is required, pay attention to the danger of injury arising from
the rotating motor. Otherwise accident may occur.
Do not change the factory settings at will. Otherwise it may damage the equipment.
During the Operation
Warning
Do not touch the fan, heat sink or discharge resistor to sense the temperature. Otherwise,
you may get burnt.
Detection of signals during the operation shall only be conducted by qualified technician.
Otherwise, personal injury or equipment damage may be caused.
Cautions
Do not control run/stop by using contactor.Or equipment damage may be caused!
Avoid anything falling into the equipment when inverter is running.Or damage may be
caused.
Maintenance
Warning
Do not carry out repairs and maintenance of equipment with power on. Otherwise, there is a
risk of electric shock!
No specially trained personnel can not make inverter implementation of repairs and
maintenance. Otherwise, personal injury or equipment damage may be caused!
Make sure the inverter when the inverter voltage is lower than AC36V implementation of the
maintenance and repair, five minutes after power prevail. Otherwise, the residual charge on
the capacitor will cause damage!
Make the inverter parameter settings, only with all pluggable plug in and out in the case of
power outages!

Precautions
●Motor Insulation Inspection
Motor in use for the first time, placed a long time before re-use and periodic
inspection should be done, the motor insulation should be checked, to prevent the
motor winding insulation failure and damage to the inverter. To motor insulation check
connection separate from the inverter, 500V megger is recommended, should ensure
that the measured insulation resistance of not less than 5MΩ.
●Motor Thermal Protection
If the rated capacity of the motor Yes not match those of the inverter, especially
when the rated power of the inverter is higher than the rated power of the motor, be
sure to adjust the inverter motor protection parameter values , or thermal relay shall be
mounted for motor protection.
●Running with Frequency higher than Power Frequency
This inverter can provide output frequency from 0Hz to 3200Hz. If the customer is
required to run 50Hz above, consider the mechanical endurance of the device.
●Vibration of Mechanical Device
The inverter may encounter the mechanical resonance point at certain output
frequencies, which can be avoided by setting the skip frequency parameters in the
inverter.
●Motor Heat and Noise
Since the output voltage of inverter is PWM wave and contains certain harmonics,
the temperature rise, noise and vibration of the motor comparing with the power
frequency will be increased slightly.
●Use with the voltage different with the rated voltage
If the HV610C series inverter is used outside the allowable working voltage range
as specified in this manual, it is easily lead to the inverter devices damage. If needed,
use the corresponding boost or lower voltage transformer processing.
●The output side with the pressure-sensitive devices or to improve the power factor
capacitor
Since the inverter output is PWM wave, the output side if installed with capacitors
to improve the power factor or lightning varistors. Easily lead to the inverter
instantaneous overcurrent or even damage the drive, do not use.
●Switching Devices like Contactors Used at the Input and Output terminal
If a contactor is installed between the power supply and the input terminal of the
inverter, it is not allowed to use the contactor to control the startup/stop of the inverter.
Necessarily need to use the contactor control inverter start and stop of not less than an
hour. Frequent charge and discharge will reduce the service life of the capacitor inside
the inverter. If switching devices like contactor are installed between the output terminal
and the motor, should ensure that the inverter output off operation, otherwise easily lead
to the inverter module damage.

●Change Three-phase Input to Two-phase Input
It is not allowed to change the HV610C series three-phase inverter into two-phase.
Otherwise, it may cause fault or damage to the inverter. This operation must be handed
under HNC technical guidance.
●Lightning Surge Protection
The series inverter has lightning over current protection device, and has certain
self-protection ability against the lightning. In applications where lightning occurs
frequently, the user shall install additional protection devices in front of the inverter.
●Altitude and Derating Use
Altitude of over 1000m of the region, the heat sink’s cooling effect of the inverter
may turn poorer due to the thin air. Therefore, it needs to derate the inverter for use.
This case please contact our technical advice.
●Some Special Use
If the user needs to use the inverter with the methods other than the recommended
wiring diagram in this manual, such as DC bus, please consult our company.
●Cautions of Inverter scrapped
The electrolytic capacitors on the main circuit and the PCB may explode when they
are burnt. Emission of toxic gas may be generated when the plastic parts are burnt.
Processed as industrial waste.
●Adaptable Motor
1) The standard adaptable motor is four-pole squirrel-cage asynchronous induction
motor or permanent magnetic synchronous motor. If such motor is not available, be
sure to select adaptable motors in according to the rated current of the motor.
2) The cooling fan and the rotor shaft of the non-frequency-conversion motor adopt
coaxial connection. When the rotating speed is reduced, the heat sink cooling effect will
be reduced. Therefore, overheating occasions should be retrofitted with a strong
exhaust fan or replace the variable frequency motor.
3) Since the inverter has built-in standard parameters of the adaptable motors, it is
necessary to perform motor parameter identification or modify the default values so as
to comply with the actual values as much as possible, or it may affect the performance
and protective properties.
4)Since short circuit cable or internal circuit of motor may cause alarm,or even machine
explosion,please do insulation and short circuit test before the initial use as well as daily
maintenance.Note ：be sure to do this test, inverter and tested parts must be all
separated!

EMC Guidance
According to the national standard of GB/T12668.3, HV610C comply with the
requirements for electromagnetic interference and anti-electromagnetic interference.
HV610C series inverter meet international standard as below,the products have
passed CE certification.
IEC/EN 61800-5-1 ： 2003 Safety Regulations Commission-able Electric Drive
System
IEC/EN 61800-3 ： 2004 Commission-able Electric Drive System
To obtain good electromagnetic compatibility in general industrial environment,
please refer to the following instruction：
Installation of EMC guidance：
1) Ground wire of inverter and other electrical products should be well grounded.
2) Try not set parallel arrangement for inverter input/output power line and weak
electric signal lines, set vertical arrangement if possible.
3) The inverter output power line is recommended to use shielded cable, or steel
shielded power line, and shielding layer should be reliable grounded. Twisted
pair shielded control cable is recommended for wiring of interference device.
4) If the distance between the inverter and the motor exceeds 100 meters,
output filter or reactor shall be installed.
Input filter installation EMC guidance：
1) Note ：The filters should strictly be used according to the rated value. As filter
belongs to class I appliances, filter metal shell ground shold be large area well
connected to installation cabinet metal ground, and good conductive continuity
is required. Otherwise there will be risk of electric shock and serious impact on
the EMC effect.
2) EMC test proves, filter and PE end must be connected to the same public
ground, otherwise it will seriously affect the EMC effect.
3) Filter should be installed as close as possible to the inverter power supply input.

Content
Section I. Product Information............................................................................................... 1
1.1 Nameplate specification...................................................................................................1
1.2 Model specification..........................................................................................................1
1.3 Product series....................................................................................................................2
1.4 Product shape....................................................................................................................3
1.4.1 Product Component Name............................................................................................3
1.4.2 Product Outline, Mounting Dimension, and Weight.................................................. 4
1.5 Standard specification......................................................................................................7
Section II. Installation &Wiring...............................................................................................9
2.1 Use of the environment....................................................................................................9
2.2 Handling and installation.................................................................................................9
2.3 Wiring............................................................................................................................. 11
2.3.1 HV610C diagram........................................................................................................ 11
2.3.2 Typical wiring of HV610C in Crane applications.................................................... 12
2.4 Main circuit terminals....................................................................................................13
2.4.1 HV610C main circuit terminals................................................................................. 13
2.5 Control circuit terminals................................................................................................ 14
2.5.1 Control circuit terminals description......................................................................... 14
2.5.2 Description of wiring of control terminals................................................................ 17
2.6 Standby circuit................................................................................................................19
Section IV. Keyboard Operation.......................................................................................... 20
4.1 Keyboard size................................................................................................................. 20
4.1.1 HV610C keyboard specification................................................................................20
4.1.2 Keyboard warehouse dimension................................................................................ 20

4.2 Display Interface............................................................................................................ 21
4.2.1 Indicator light indicates run........................................................................................21
4.3 Examples for parameter setting.....................................................................................22
4.3.1 Methods of checking and modifying function codes................................................22
4.3.2 Two quick search modes for function code parameters there..................................23
4.3.3 Commissioning............................................................................................................23
4.3.4 Motor characteristic parameter setting and self - learning....................................... 23
4.3.5 Motor parameter automatic tuning.............................................................................26
4.4 Test running....................................................................................................................27
Section V. Parameter Function Table.................................................................................28
5.1 Monitor function group：U0.00-U0.61........................................................................28
5.2 Basic function group：F0.00-F0.28............................................................................. 33
5.3 Parameters for motor 1：F1.00-F1.37..........................................................................42
5.4 Vector control function group：F2.00-F2.22.............................................................. 44
5.5 V/F control group：F3.00-F3.15.................................................................................. 46
5.6 Input terminal：F4.00-F4.40.........................................................................................50
5.7 Output terminal：F5.00-F5.22......................................................................................61
5.8 Start/stop control：F6.00-F6.15................................................................................... 66
5.9 Keyboard and display：F7.00-F7.14............................................................................69
5.10 Auxiliary function：F8.00-F8.53............................................................................... 72
5.11 Overload and protection：F9.00-F9.70......................................................................80
5.12 PID function group：FA.00-FA.28............................................................................89
5.13 Swing frequency, fixed length and counting：Fb.00-Fb.09..................................... 93
5.14 MS speed function&simple PLC function：FC.00-FC.51....................................... 96

5.15 Communication function group：Fd.00-Fd.06..........................................................99
5.16 User customization function code：FE.00-FE.29................................................... 100
5.17 Function code management：FP.00-FP.04..............................................................101
5.18 Torque control group：A0.00-A0.08.....................................................................103
5.19 Virtual IO：A1.00-A1.21....................................................................................... 104
5.20 The second motor control：A2.00-A2.65................................................................108
5.21 The third motor control：A5.00-A5.09................................................................. 111
5.22 AI curve setup：A6.00-A6.29................................................................................ 112
5.23 User programmable card parameters：A7.00-A7.09 Reserved........................... 114
5.24 Point to point communication：A8.00-8.11............................................................ 114
Section VI. Fault Diagnosis & Solutions........................................................................ 115
6.1 Fault alarm and solutions..........................................................................................115
Section VII. Inspection & Maintenance...........................................................................123
7.1 Inspection and Maintenance........................................................................................123
7.2 Regular replacement of the device..............................................................................124
7.3 Storage.......................................................................................................................... 124
7.4 Measuring and Judgment.............................................................................................124
7.5 Safety Precaution......................................................................................................... 124
Appendix I H5RS485 Card & RS485Communication Protocol............................... 125
I.1 Communication protocol..............................................................................................125
I.1.1 Protocol content......................................................................................................... 125
I.2 Protocol Description..................................................................................................... 125
I.3 Cyclical Redundancy Check........................................................................................ 128
Appendix II Parameter Settings List...................................................................................134
Appendix IV HV610C in Crane Applications.................................................................... 155

1. Overview.........................................................................................................................155
2. Examples of the typical wiring of HV610C in Crane applications.............................155
3. Introduction to lifting sequence.....................................................................................156
4. Motor parameters self-tuning........................................................................................ 156
5. Debugging steps............................................................................................................. 157
6. Special function code of braking timing.......................................................................157
7. Use of application Macros.............................................................................................159
Product Feedback.....................................................................................................................160
Warranty Agreement................................................................................................................ 161

1
Section I. Product Information
HNC frequency inverters have been tested and inspected before leaving the manufacturer.
Before unpacking the product, please check product packaging for shipping damage caused by
careless transportation and whether the specifications and type of the product complies with the
order. If any questions, please contact the supplier of HNC products, or directly contact the
company.
※Inspect that the contents are complete (one unit of HV610C frequency inverter, one
operation manual).
※Check the nameplate on the side of the frequency inverter to ensure that the product you
have received is right the one you ordered.
1.1 Nameplate specification
1.2 Model specification
HV610C – R75 G 3
Inverter Series
No.
Voltage
1
Single-phase AC220V
No.
Adaptation
2
Three-phase AC220V
R75
0.75kW
3
Three-phase AC380V
1R5
1.5kW
4
Three-phase AC480V
011
11kW
018
18.5kW
No.
Inverter Type
110
110kW
G
General type
400
400kW
P
Fan pump type

Section I. Product Information
2
1.3 Product series
Inverter model
Motor adapter
Rated input A
Rated output A
kW
HP
3-phase input：AC 380V，50/60Hz
HV610C-R75G3
0.75
1
3.4
2.1
HV610C-1R5G3
1.5
2
5.0
3.8
HV610C-2R2G3
2.2
3
5.8
5.1
HV610C-004G3
4.0
5
10.5
9.0
HV610C-5R5G3
5.5
7.5
14.6
13.0
HV610C-7R5G3
7.5
10
20.5
17.0
HV610C-011G3
11.0
15
26.0
25.0
HV610C-015G3
15.0
20
35.0
32.0
HV610C-018G3
18.5
25
42
37
HV610C-022G3
22
30
50
45
HV610C-030G3
30
40
68
60
HV610C-037G3
37
50
83
75
HV610C-045G3
45
60
102
91
HV610C-055G3
55
75
124
112
HV610C-075G3
75
100
169
150
HV610C-093G3
90
125
203
176
HV610C-110G3
110
150
248
210
HV610C-132G3
132
175
256
253
HV610C-160G3
160
220
307
304
HV610C-187G3
185
245
350
340
HV610C-200G3
200
270
385
377
HV610C-220G3
220
300
430
426
HV610C-250G3
250
340
468
465
HV610C-280G3
280
380
525
520
HV610C-315G3
315
430
590
585
HV610C-355G3
355
420
665
650
HV610C-400G3
400
530
785
725
HV610C-450G3
450
600
883
820
HV610C-500G3
500
670
954
920
HV610C-560G3
560
750
1085
1030
Table 1-3

Section I. Product Information
3
Upper panel
Expansion card
Lower panel
Lower panel fixing screw
Protective coil
Main circuit connection terminal
Nameplate position of frequency inverter
Fan
Operating keyborad
Keyboard tray
Control board terminal
1.4 Product shape
1.4.1 Product Component Name
Take HV610-022G3 as an example
Company logo label

Section I. Product Information
4

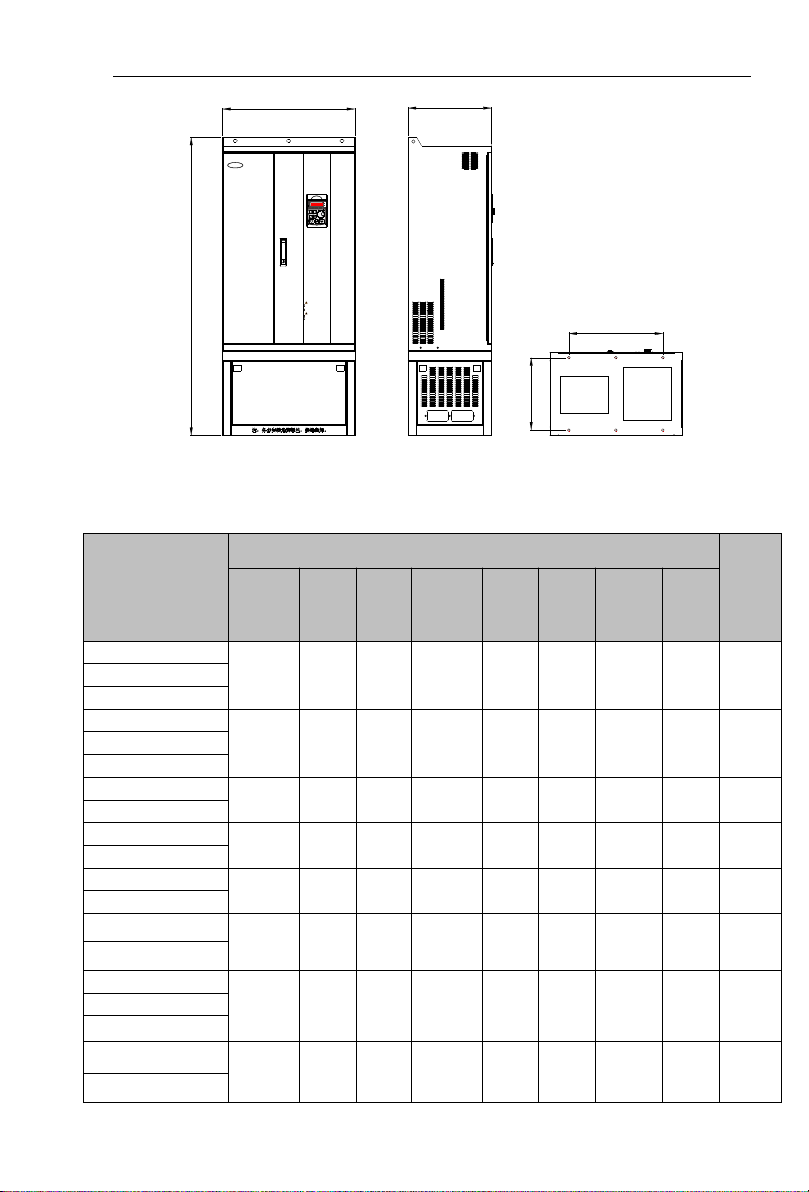

1.4.2 Product Outline, Mounting Dimension, and Weight
H=186mm
D2=113mm
D1=170mm
D=160mm
W=125mm
W1=113mm
H1=174mm
WARN ING
Ri sk of e lectr ic shock
Wait 1 0 mi ns mins power down bef ore
removing cover
Read t he manual a nd t he safety installations
i nstallati ons b efore use
RUN L O CAL/ REM O T F WD/ REV T UNE /TC
V
AR PM
%
Hz
QUI CKPRG
ENTE R
RU N JOG
K
ST O P
RE S E T
EN T ER
HV610C−R75G3~HV610C-2R2G3
H1=236mm H=248mm
D1=193mm
D=183mm
D2=128mm
W=160mm
W1=148mm
WAR NING
Ri sk of e lect ri c shock
Wait 1 0 mins m ins pow er down bef ore
removing c over
Read t he manual a nd the s afet y inst all ations
i nstallati ons befor e use
RU N LOCAL /REMOT F WD /REV T UNE /TC
V
ARPM
%
Hz
QUI CKP RG
E NTER
R UN J O G
K
ST O P
RESET
EN T ER
HV610C-004G3~HV610C-7R5G3
W1
H2
D1
D
H1
W
H
D2
WAR NING
Ris k of ele ctr ic s h ock
Read t h e ma nu al an d t he s af ety i n st all at ions
b ef ore u se
Check t h e wi ring ca re ful ly be fo re t ur ni ng on t h e p o w er
Wa it 10 mi ns m in s powe r d own be fore r e mo vi ng c o ver
警告
触电危险
使用前请阅读用户手册和遵守安全操作指南
通电前请仔细检查接线
断电 分钟后方可开盖操作1 0
RU N L OCAL/ REMO T F WD /RE V TUN E/ TC
V
A RP M
%
Hz
QU I CK
PR G
EN T E R
RUN
J OG
K
STOP
RESET
EN TE R
HV610C-011G3~HV610C-160G3

Section I. Product Information
5
W D
H
D3
H3
WA RN I N G
Risk of electric s h ock
Read the manual and t he sa fety i nstall atio ns
b efore u se
Check t he wiring c are full y be for e turni ng o n the power
Wait 10 mins mins p o wer down b efo re r emovi ng cover
警 告
触电危险
使用前请阅读用户手册和遵守安全操作指南
通电前请仔细检查接线
断电分钟后方可开盖操作10
RUN LOCAL/REMOT FWD/REVTUNE/TC V
ARPM
%
Hz
QU ICKPRG
EN TER
RU N J OG
K
STOP
RESET
EN TER
HV610C-185G3~HV610C-560G3
Fig.1−4 Product outline and mounting dimension
Shape DIM
Shape dimension and installation dimension（mm）
Net
Weigh
（kg）
W
H
D
W1
H1
D1
H2
Asse
mbly
apert
ure
HV610C−R75G3
125
186
160
113
174
170
/
5
1.6
HV610C-1R5G3
HV610C-2R2G3
HV610C-004G3
160
248
183
148
236
193
/
5
3.5
HV610C-5R5G3
HV610C-7R5G3
HV610C-011G3
195
330
185
150
315
197
284
6
8.5
HV610C-015G3
HV610C-018G3
227
388
196
150
375
206
341
7
10
HV610C-022G3
HV610C-030G3
255
435
202
150
425
213
400
7
14
HV610C−037G3
HV610C−045G3
307
557
266
230
537
278
501
9
24
HV610C−055G3
HV610C−075G3
377
628
280
240
600
292
568
9
35
HV610C−090G3
HV610C−110G3
HV610C−132G3
500
788
350
270
762
357
728
13
66
HV610C−160G3

Section I. Product Information
6
Wall mounting
540
900
348
320
867
358
828
13
77
HV610C−185G3
HV610C−200G3
HV610C−220G3
Cabinet installation
540
1268
358
/
/
/
/
/
84
HV610C−185G3
HV610C−200G3
HV610C−220G3
Wall mounting
620
1035
390
500
1005
400
960
13
125
HV610C−250G3
HV610C−280G3
Cabinet installation
780
1650
410
/
/
/
/
/
135
HV610C−250G3
HV610C−280G3
Wall mounting
780
1290
400
600
1257
410
1203
13
185
HV610C−315G3
HV610C−355G3
HV610C−400G3
Cabinet installation
780
1650
410
/
/
/
/
/
195
HV610C−315G3
HV610C−355G3
HV610C−400G3
HV610C−450G3
950
1750
460
/
/
/
/
/
/
HV610C−500G3
HV610C−560G3

Section I. Product Information
7
1.5 Standard specification
Item
Specifications
Basic function
Control system
High performance of current vector control technology to realize
asynchronous motor and synchronous motor control
Drive performance
High efficiency driving for induction motor and synchronous motor
Maximum frequency
Vector control：0~500HzV/F，control：0~3200Hz
Carrier frequency
0.5kHz~16kHz;the carrier frequency will be automatically adjusted
according to the load characteristics
Input frequency resolution
Digital setting：0.01Hz
Analog setting：maximum frequency ×0.025%
Control mode
Open loop vector control(SVC)
Closed loop vector control(FVC)
V/F control
Startup torque
Type G：0.5Hz/150%(SVC)；0Hz/180%(FVC)
Speed range
1：100(SVC)
Speed stabilizing precision
±0.5%(SVC)
Torque control precision
±5%(FVC)
Over load capability
G type：
rated current 150% -1 minute；rated current 180% -3 seconds;
Torque boost
Auto torque boost function；Manual torque boost 0.1%~30.0%
V/F curve
Linear V/F,Multi-point V/F and Square V/F curve (power of 1.2, 1.4,
1.6, 1.8, 2)
V/F separation
In 2 ways：separation ,semi separation
Acc. /dec curve
Straight line or S curve acceleration and deceleration mode.
Four kinds of acceleration and deceleration time. Acceleration and
deceleration time range between 0.0s to 6500.0s
DC brake
DC brake frequency ：0.00Hz to maximum frequency,brake time ：
0.0s to 36.0s, and brake current value：0.0% to 100.0%.
Jog control
Jog frequency range：0.00Hz~50.00Hz. Jog acceleration/deceleration
time 0.0s~6500.0s.
Simple PLC and MS speed
running
It can realize at maximum of 16 segments speed running via the built-
in PLC or control terminal.
Built-in PID
It is easy to realize process-controlled close loop control system
Auto voltage regulation
(AVR)
It can keep constant output voltage automatically in case of change of
network voltage.
Over-voltage/current stall
control
It can limit the running voltage/current automatically and prevent
frequent over-voltage/current tripping during the running process
Quick current limit
Minimize the over-current fault,protect normal operation of the inverter
Torque limit & control
"Excavators" characteristics,automatically limit torque during
operation,prevent frequent over-current trip;
Closed loop vector mode can realize the torque control.
Personalized
Instantaneous stop
non-stop
When instantaneous power off,voltage reduction is compensated
through load feedback energy,which could make inverter keep running
in a short period of time.
Rapid current limit
To avoid inverter frequent over-current fault.
Virtual IO
5 groups of virtual X,DO to realize simple logic control
