Hobart Welders H100L4-10 User manual

H100L4−10 Gun
Processes
Description
MIG (GMAW) Welding
Semi-Automatic Air-Cooled MIG
(GTAW) Welding Gun
OM-243 862-A 2009−04
Flux Cored (FCAW) Welding
File: MIG (GMAW)

Hobart Welders manufactures a full line
of welders and welding related equipment.
For information on other quality Hobart products, contact your local Hobart
distributor to receive the latest full line catalog or individual specification sheets.
To locate your nearest distributor or service agency call 1-877-Hobart1 or
visit our website at www.HobartWelders.com.
For Technical Help call 1-800-332-3281.
Thank you and congratulations on choosing Hobart. Now you can get the
job done and get it done right. We know you don’t have time to do it any
other way.
This Owner’s Manual is designed to help you get the most out of your
Hobart products. Please take time to read the Safety precautions. They
will help you protect yourself against potential hazards on the worksite.
We’ve made installation and operation quick
and easy. With Hobart you can count on years
of reliable service with proper maintenance.
And if for some reason the unit needs repair,
there’s a Troubleshooting section that will help
you figure out what the problem is. The parts
list will then help you to decide the exact part
you may need to fix the problem. Warranty and
service information for your particular model
are also provided.
Hobart is registered to the
ISO 9001:2000 Quality
System Standard.
Working as hard as you
do −every power source
from Hobart is backed by
the best warranty in the
business.
From Hobart to You
Hob_Thank 2005−06
Register your product at:
HobartWelders.com
Protect Your Investment!

TABLE OF CONTENTS
SECTION 1 −SAFETY PRECAUTIONS FOR GMAW WELDING GUNS −READ BEFORE USING 1. . . . . .
1-1. Symbol Usage 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2. Arc Welding Hazards 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-3. EMF Information 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 2 −INSTALLATION 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1. Specifications 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2. Duty Cycle And Overheating 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-3. Installing Gun 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 3 −OPERATION 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1. Operating The Gun 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 4 −MAINTENANCE & TROUBLESHOOTING 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1. Removing Nozzle, Contact Tip, And Adapter, Changing Liner, And Cleaning Gun Casing 5. . . . . . . .
4-2. Replacing Switch And/Or Head Tube 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-3. Routine Maintenance 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-4. Troubleshooting 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 5 −PARTS LIST 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY

OM-243 862 Page 1
SECTION 1 −SAFETY PRECAUTIONS FOR GMAW
WELDING GUNS −READ BEFORE USING
SR7_2007−04
Protect yourself and others from injury — read and follow these precautions.
1-1. Symbol Usage
DANGER! −Indicates a hazardous situation which, if
not avoided, will result in death or serious injury. The
possible hazards are shown in the adjoining symbols
or explained in the text.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury. The possible
hazards are shown in the adjoining symbols or ex-
plained in the text.
NOTICE −Indicates statements not related to personal injury.
.Indicates special instructions.
This group of symbols means Warning! Watch Out! ELECTRIC
SHOCK, MOVING PARTS, and HOT PARTS hazards. Consult sym-
bols and related instructions below for necessary actions to avoid the
hazards.
1-2. Arc Welding Hazards
The symbols shown below are used throughout this manual
to call attention to and identify possible hazards. When you
see the symbol, watch out, and follow the related instructions
to avoid the hazard. The safety information given below is
only a summary of the more complete safety information
found in the welding power source Owner’s Manual. Read
and follow all Safety Standards.
Only qualified persons should install, operate, maintain, and
repair this unit.
During operation, keep everybody, especially children, away.
ELECTRIC SHOCK can kill.
DAlways wear dry insulating gloves.
DInsulate yourself from work and ground.
DDo not touch live electrode or electrical parts.
DRepair or replace worn, damaged, or cracked gun or cable insula-
tion.
DTurn off welding power source before changing contact tip or gun
parts.
DKeep all covers and handle securely in place.
DKeep your head out of the fumes.
DVentilate area, or use breathing device.
DRead Material Safety Data Sheets (MSDSs)
and manufacturer’s instructions for material
used.
FUMES AND GASES can be hazardous.
DDo not weld near flammable material.
DDo not weld on closed containers.
DWatch for fire; keep extinguisher nearby.
WELDING can cause fire or explosion.
BUILDUP OF GAS can injure or kill.
DShut off shielding gas supply when not in use.
DAlways ventilate confined spaces or use ap-
proved air-supplied respirator.
DWear welding helmet with correct shade of fil-
ter.
DWear correct eye and body protection.
DCover exposed skin with spatter-resistant
clothing.
ARC RAYS can burn eyes and skin.
HOT PARTS can cause severe burns.
DAllow gun to cool before touching.
DDo not touch hot metal.
DProtect hot metal from contact by others.
NOISE can damage hearing.
Noise from some processes or equipment can
damage hearing.
DCheck for noise level limits exceeding those
specified by OSHA.
DUse approved ear plugs or ear muffs if noise level is high.
DWarn others nearby about noise hazard.
WELDING WIRE can cause injury.
DKeep hands and body away from gun tip when
trigger is pressed.

OM-243 862 Page 2
1-3. EMF Information
Considerations About Welding And The Effects Of Low Frequency
Electric And Magnetic Fields
Welding current, as it flows through welding cables, will cause electro-
magnetic fields. There has been and still is some concern about such
fields. However, after examining more than 500 studies spanning 17
years of research, a special blue ribbon committee of the National
Research Council concluded that: “The body of evidence, in the
committee’s judgment, has not demonstrated that exposure to power-
frequency electric and magnetic fields is a human-health hazard.”
However, studies are still going forth and evidence continues to be
examined. Until the final conclusions of the research are reached, you
may wish to minimize your exposure to electromagnetic fields when
welding or cutting.
To reduce magnetic fields in the workplace, use the following
procedures:
1. Keep cables close together by twisting or taping them, or using a
cable cover.
2. Arrange cables to one side and away from the operator.
3. Do not coil or drape cables around your body.
4. Keep welding power source and cables as far away from
operator as practical.
5. Connect work clamp to workpiece as close to the weld as
possible.
About Implanted Medical Devices:
ImplantedMedical Device wearers should consult their doctor and the
device manufacturer before performing or going near arc welding, spot
welding, gouging, plasma arc cutting, or induction heating operations.
If cleared by your doctor, then following the above procedures is recom-
mended.

OM-243 862 Page 3
SECTION 2 −INSTALLATION

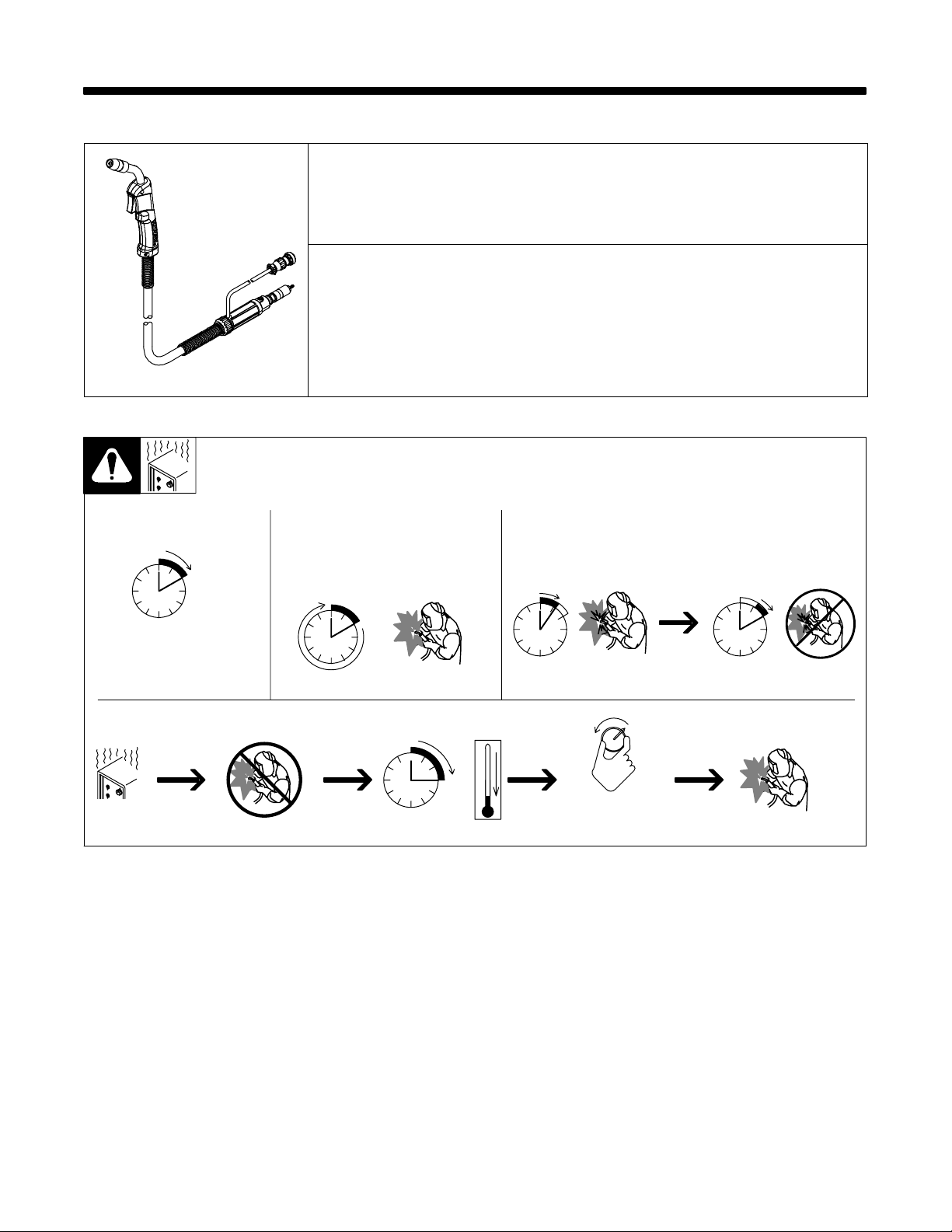

2-1. Specifications
Ref. 243 838-A
Air-Cooled Welding Gun For GMAW And FCAW Welding
Note: Using gasless flux cored wire reduces gun duty cycle.
H100L4-10 Feeds .023 To .045 in (0.6 To 1.1 mm) Hard Or Flux Cored Wires
Duty Cycle Rating:
100%: 100 A With CO2Shielding Gas
60%: 100 A With Mixed Gases
Weight With 10 ft (3 m) Power Cable: 3.5 lb (1.6 kg)
NOTICE −Exceeding duty cycle
can damage unit and void warranty.
Overheating
0
15
A or V
OR
Reduce Duty Cycle
Minutes sduty1 5/95
2-2. Duty Cycle And Overheating
Duty Cycle is percentage of 10
minutes that gun can weld at
rated load without overheating.
0
10
Minutes
Definition
Continuous Welding
.023 To .045 in (0.6 To 1.1 mm)
Hard Or Flux Cored Wires
100% Duty Cycle At 100 Amperes
Using CO2
.023 To .045 in (0.6 To 1.1 mm) Hard Or Flux Cored Wires
60% Duty Cycle At 100 Amperes
Using Mixed Gases
6 Minutes Welding 4 Minutes Resting
.See Section 2-1. Specifications for amperage rating and duty cycle.

OM-243 862 Page 4
2-3. Installing Gun
243 861-A
1 Gun Securing Knob
2 Gun End
Loosen knob. Insert gun end until it
bottoms against drive assembly.
Tighten knob.
3 Gun Trigger Plug
Insert into receptacle, and tighten
threaded collar.
4 Friction Terminals
Some applications will require
cutting off trigger plug and installing
0.250 female friction terminals onto
end of leads.
See power source manual for
threading procedure.
13
2
4
SECTION 3 −OPERATION
3-1. Operating The Gun
Ref. 243 838-A
1 Trigger Switch
When pressed, energized wire
feeds and shielding gas flows.
1

OM-243 862 Page 5
SECTION 4 −MAINTENANCE & TROUBLESHOOTING
4-1. Removing Nozzle, Contact Tip, And Adapter, Changing Liner, And Cleaning Gun
Casing
243 839-A
!Turn off welding power
source/wire feeder.
1 Nozzle
2 Contact Tip
3 Tip Adapter
.Wire size stamped on tip −check
and match wire size.
Tools Needed:
8 mm, 10 mm
Lay gun cable out
straight before
installing new liner.
Remove nozzle,
contact tip, and
adapter.
Unscrew and
remove liner.
Blow out
gun casing.
Cut off wire and
disconnect gun
from feeder.
5/8 in
(16 mm)
Liner
Stickout
Install
Liner
.Thread wire according to
welding power source/wire
feeder manual.
Reassemble gun in
reverse order from
taking it apart.
10 mm
Head
Tube
8 mm
1
3
2

OM-243 862 Page 6

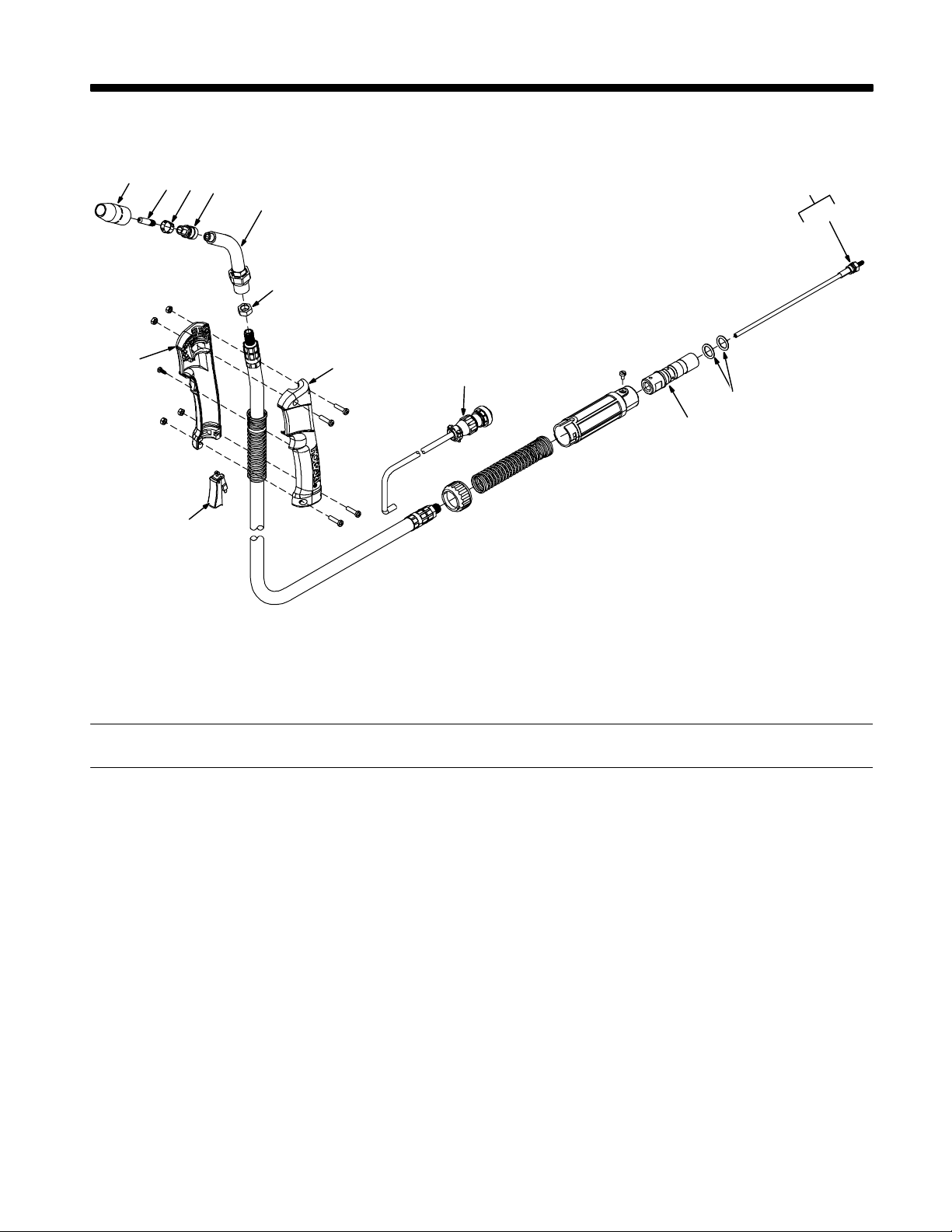

4-2. Replacing Switch And/Or Head Tube
243 840-A
Tools Needed:
15 mm
Remove screws (5)
and nuts (4). Remove handle halves.
Hand-tighten head tube into cable connector. Place head tube in vice and tighten until
nuts are tight.
Remove from vice. Reposition handle halves, and
install switch housing.
!Turn Off welding power source
/wire feeder and disconnect gun.
Remove switch housing. Install new
switch and connect leads (polarity is
not important). Reassemble in
reverse order. If replacing head tube,
continue to end of figure.
12
3
8
67
Remove screw on
opposite side.
Secure head
tube in vice.
Loosen jam nut.
Remove from vice
and turn head tube
out by hand.
4
5
phillips
Reinstall screws
and nuts.
9
Reinstall screw on
opposite side.

OM-243 862 Page 7
4-3. Routine Maintenance
!Turn Off welding power source and disconnect gun before maintaining.
Each Spool Of Wire
Blow Out
Gun
Casing
Clean
Nozzle
And Check
Contact Tip
3 Months
Control
Cord Gas Hose
Replace
Cracked
Parts
4-4. Troubleshooting
Trouble Remedy
Wire does not feed; wire is not ener-
gized; wire feeds unevenly. Check contact tip. Check for kinks in gun cable and liner.
Check gun trigger plug connection at welding power source/wire feeder.
Check, and if necessary, replace gun trigger switch (see Section 4-2).
Check contact tip. Check for kinks in gun cable. Blow out liner and gun casing (see Section 4-1).
Weld porosity. Remove weld spatter buildup in nozzle.
Check O-rings on gun connector and replace if damaged.
Make sure inner head tube is tight in cable connector.
Check gun connector to be sure it is fully inserted into drive assembly.
Check shielding gas flow/supply.
Wire feeding stops or does not feed
properly during welding. Straighten gun cable and/or replace damaged parts (see Section 4-1).
Adjust drive roll pressure (see wire feeder manual).
Change to proper drive roll groove (see wire feeder manual).
Readjust hub tension (see wire feeder manual).
Clean or replace liner if dirty or plugged (see Section 4-1).
Replace drive roll or pressure bearing if worn or slipping (see wire feeder manual).

OM-243 862 Page 8
SECTION 5 −PARTS LIST
243 842-A
1234
5
6
7
8
7
11
9
12
13
10
Figure 5-1. H100L4-10 Gun
Description
Part
No.
Dia.
Mkgs.
243 864
Item
No.
Figure 5-1. H100L4-10 Gun
Quantity
1 169 715 NOZZLE, slip type .500 orf flush 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 +226 190 NOZZLE, flux cored slip type 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 +087 299 TIP, contact scr .023 wire x 1.125 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 +000 067 TIP, contact scr .030 wire x 1.125 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 +000 068 TIP, contact scr .035 wire x 1.125 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 +000 069 TIP, contact scr .045 wire x 1.125 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 170 470 RING, retaining 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 169 716 ADAPTER, contact tip 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 242 831 TUBE, head 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 243 865 NUT, jam 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 242 832 HANDLE 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8 225 410 SWITCH, trigger 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 079 878 HOUSING PLUG & PINS 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10 242 833 CONNECTOR, feeder 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 079 974 O-RING, .500 ID x .103CS rbr 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 +194 010 LINER, monocoil .023/.025 wire x 15ft (consisting of) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 +194 011 LINER, monocoil .030/.035 wire x 15ft (consisting of) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12 +194 012 LINER, monocoil .035/.045 wire x 15ft (consisting of) 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 079 975 O-RING, .187 ID x .103CS rbr 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
+OPTIONAL
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model is required when ordering parts from your local distributor.

−9 −

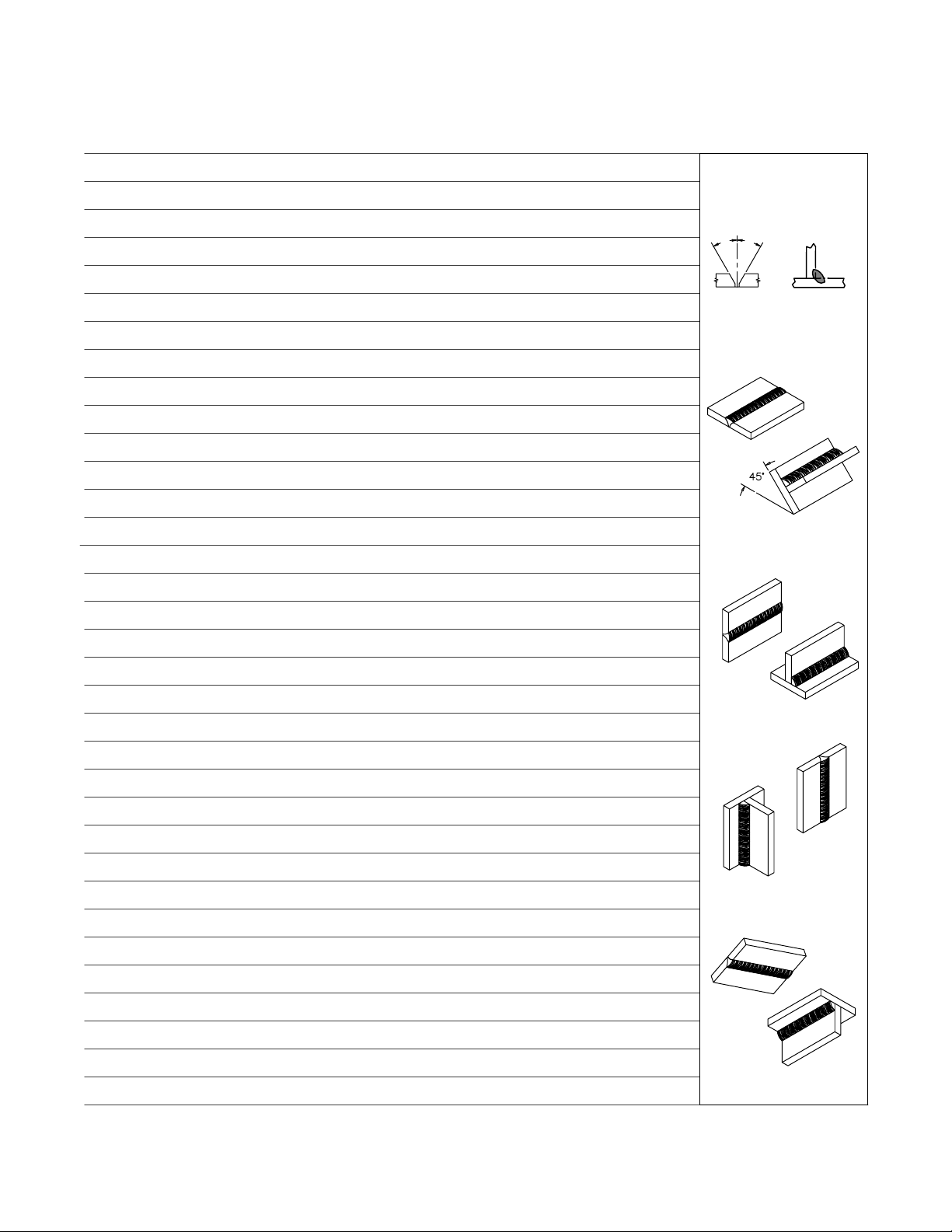

Notes
FILLETGROOVE
WELD JOINT
TYPES
BUTT
BUTT
BUTT
BUTT
T−JOINT
T−JOINT
T−JOINT
T−JOINT
FLAT
VERTICAL
HORIZONTAL
OVERHEAD
WELD POSITION:
Ref. AWS/ANSI D1.1
1G
1F
2G
2F
3G
3F
4G
4F
Ref. 804 248-A

Notes

Warranty Questions?
Call
1-800-332-3281
7 AM −6 PM EST
hobart_warr 2009−01
Service
You always get the fast,
reliable response you
need. Most replacement
parts can be in your
hands in 24 hours.
Support
Need fast answers to the
tough welding questions?
Contact your distributor or
call 1-800-332-3281. The
expertise of the distributor
and Hobart is there to
help you, every step of
the way.
Assistance
Visit the Hobart website:
www.HobartWelders.com
Effective January 1, 2009
5/3/1 WARRANTY applies to all Hobart welding equipment, plasma cutters and spot welders with a
serial number preface of LK or newer.
This limited warranty supersedes all previous Hobart warranties and is exclusive with
no other guarantees or warranties expressed or implied.
Hobart products are serviced by Hobart or Miller Authorized Service Agencies.
LIMITED WARRANTY −Subject to the terms and conditions
below, Hobart/Miller Electric Mfg. Co., Appleton, Wisconsin,
warrants to its original retail purchaser that new Hobart
equipment sold after the effective date of this limited warranty is
free of defects in material and workmanship at the time it is
shipped by Hobart. THIS WARRANTY IS EXPRESSLY IN LIEU
OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS.
Within the warranty periods listed below, Hobart/Miller will repair
or replace any warranted parts or components that fail due to
such defects in material or workmanship. Hobart/Miller must be
notified in writing within thirty (30) days of such defect or failure, at
which time Hobart/Miller will provide instructions on the warranty
claim procedures to be followed.
Hobart/Miller shall honor warranty claims on warranted
equipment listed below in the event of such a failure within the
warranty time periods. All warranty time periods start on the
delivery date of the equipment to the original retail purchaser, and
not to exceed one year after the equipment is shipped to a North
American distributor or eighteen months after the equipment is
shipped to an International distributor.
1. 5 Years — Parts and Labor
* Original Main Power Rectifiers only to include SCRs,
diodes, and discrete rectifier modules
* Transformers
* Stabilizers
* Reactors
2. 3 Years — Parts and Labor
* Drive Systems
* PC Boards
* Rotors, Stators and Brushes
* Idle Module
* Solenoid Valves
* Switches and Controls
* Spot Welder Transformer
3. 1 Year — Parts and Labor Unless Specified
(90 days for industrial use)
* Motor-Driven Guns
* MIG Guns/TIG Torches
* Relays
* Contactors
* Regulators
* Water Coolant Systems
* Flowgauge and Flowmeter Regulators (No Labor)
* HF Units
* Running Gear/Trailers
* Plasma Cutting Torches
* Remote Controls
* Replacement Parts (No labor) −90 days
* Accessories
* Field Options
(NOTE: Field options are covered for the remaining
warranty period of the product they are installed in, or
for a minimum of one year — whichever is greater.)
4. Engines, batteries and tires are warranted separately by
the manufacturer.
Hobart’s 5/3/1 Limited Warranty shall not apply to:
1. Consumable components such as contact tips,
cutting nozzles, slip rings, drive rolls, gas diffusers,
plasma torch tips and electrodes, weld cables, and
tongs and tips, or parts that fail due to normal wear.
(Exception: brushes, slip rings, and relays are covered
on Hobart Engine-Driven models.)
2. Items furnished by Hobart/Miller, but manufactured by
others, such as engines or trade accessories. These
items are covered by the manufacturer’s warranty, if
any.
3. Equipment that has been modified by any party other
than Hobart/Miller, or equipment that has been
improperly installed, improperly operated or misused
based upon industry standards, or equipment which has
not had reasonable and necessary maintenance, or
equipment which has been used for operation outside of
the specifications for the equipment.
HOBART PRODUCTS ARE INTENDED FOR PURCHASE AND
USE BY COMMERCIAL/INDUSTRIAL USERS AND PERSONS
TRAINED AND EXPERIENCED IN THE USE AND
MAINTENANCE OF WELDING EQUIPMENT.
In the event of a warranty claim covered by this warranty, the
exclusive remedies shall be, at Hobart’s/Miller’s option: (1) repair;
or (2) replacement; or, where authorized in writing by
Hobart/Miller in appropriate cases, (3) the reasonable cost of
repair or replacement at an authorized Hobart/Miller service
station; or (4) payment of or credit for the purchase price (less
reasonable depreciation based upon actual use) upon return of
the goods at customer’s risk and expense. Hobart’s/Miller’s
option of repair or replacement will be F.O.B., Factory at
Appleton, Wisconsin, or F.O.B. at a Hobart/Miller authorized
service facility as determined by Hobart/Miller. Therefore no
compensation or reimbursement for transportation costs of any
kind will be allowed.
TO THE EXTENT PERMITTED BY LAW, THE REMEDIES
PROVIDED HEREIN ARE THE SOLE AND EXCLUSIVE
REMEDIES. IN NO EVENT SHALL HOBART/MILLER BE
LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES (INCLUDING LOSS OF
PROFIT), WHETHER BASED ON CONTRACT, TORT OR ANY
OTHER LEGAL THEORY.
ANY EXPRESS WARRANTY NOT PROVIDED HEREIN AND
ANY IMPLIED WARRANTY, GUARANTY OR
REPRESENTATION AS TO PERFORMANCE, AND ANY
REMEDY FOR BREACH OF CONTRACT TORT OR ANY
OTHER LEGAL THEORY WHICH, BUT FOR THIS PROVISION,
MIGHT ARISE BY IMPLICATION, OPERATION OF LAW,
CUSTOM OF TRADE OR COURSE OF DEALING, INCLUDING
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR PARTICULAR PURPOSE, WITH RESPECT TO
ANY AND ALL EQUIPMENT FURNISHED BY
HOBART/MILLER IS EXCLUDED AND DISCLAIMED BY
Hobart/Miller.
Some states in the U.S.A. do not allow limitations of how long an
implied warranty lasts, or the exclusion of incidental, indirect,
special or consequential damages, so the above limitation or
exclusion may not apply to you. This warranty provides specific
legal rights, and other rights may be available, but may vary from
state to state.
In Canada, legislation in some provinces provides for certain
additional warranties or remedies other than as stated herein,
and to the extent that they may not be waived, the limitations and
exclusions set out above may not apply. This Limited Warranty
provides specific legal rights, and other rights may be available,
but may vary from province to province.

ORIGINAL INSTRUCTIONS −PRINTED IN USA ©2009 Hobart Welding Products. 2009−01
Hobart Welding Products
An Illinois Tool Works Company
600 West Main Street
Troy, OH 45373 USA
For Technical Assistance:
Call1-800-332-3281
For Literature Or Nearest Dealer:
Call 1-877-Hobart1
Model Name Serial/Style Number
Purchase Date (Date which equipment was delivered to original customer.)
Distributor
Address
City
State Zip
Please complete and retain with your personal records.
Always provide Model Name and Serial/Style Number.
To locate a Distributor,
retail or service location:
Call 1-877-Hobart1 or visit our website at
www.HobartWelders.com
Contact your Distributor for:
Welding Supplies and Consumables
Options and Accessories
Personal Safety Equipment
Service and Repair
Replacement Parts
Training (Schools, Videos, Books)
Technical Manuals (Servicing Information
and Parts)
Circuit Diagrams
Welding Process Handbooks
Contact the Delivering Carrier to:
Resources Available
Owner’s Record
File a claim for loss or damage during
shipment.
For assistance in filing or settling claims, contact
your distributor and/or equipment manufacturer’s
Transportation Department.
For technical assistance:
Call 1-800-332-3281
Register your product at:
HobartWelders.com
Protect Your Investment!
