Hohem iSTEADY V2 User manual

Gimbal
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
The product user guide contains product features, how to use, and the operating
procedure. Read the user manual carefully to get the best experience and avoid
unnecessary damage. Keep this manual for future reference. If you have any questions
or comments about the device, please contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

3
Disclaimer and Warning
Thank you for purchasing the Alza.cz product. By using this product, you hereby signify
that you have read this disclaimer and warning carefully and that you understand and
agree to abide by the terms and conditions herein. You agree that you are solely
responsible for your own conduct while using this product, and for any consequences
thereof. You agree to use this product only for purposes that are proper and in
accordance with all applicable laws, rules, and regulations, and all terms, precautions,
practices, policies and guidelines Alza.cz has made and may make available. Alza.cz
accepts no liability for damage, injury or any legal responsibility incurred directly or
indirectly from the use of this product. The user shall observe safe and lawful practices
including, but not limited to, those set forth in this document.
Important Notes
•When powering on iSteady V2 at first use, activation is required through Hohem Pro
app.
•iSteady V2 works after the activation.
•Mount your mobile phone before powering on iSteady V2.
•If no mobile phone is detected or the motor is overloaded due to phone is not level,
the gimbal will shut down after a warning beeping.
Download the Hohem Pro App, Register and Login
Scan the QR code to enter the download page
Search " Hohem Pro " in the App Store or Google Play
*Hohem Pro app requires iOS 10.0 or above, Android 6.0 or above
*More product tutorials can be found on the app homepage

4

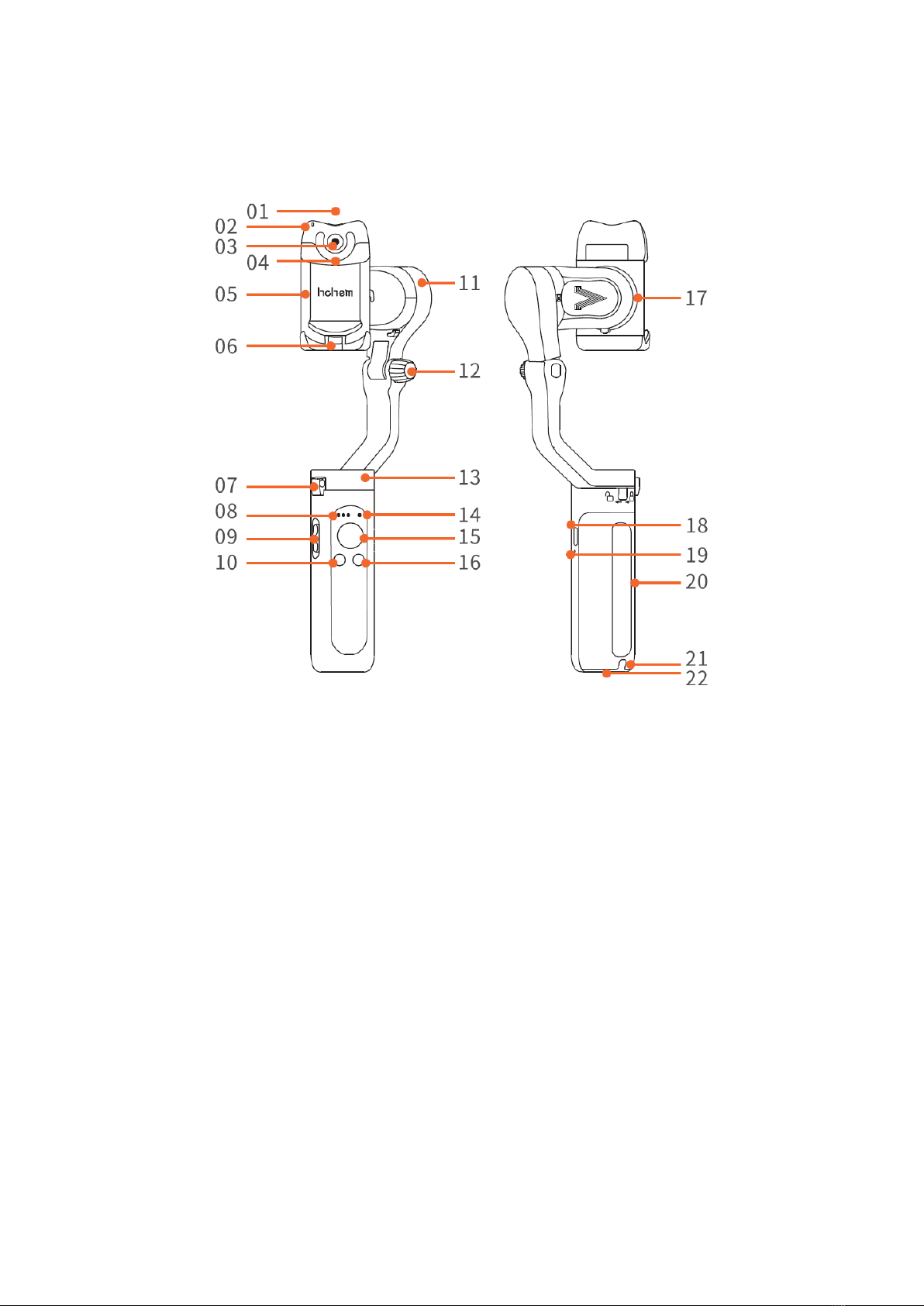

iSteady V2 Overview
01. Al Vision Sensor & LED Video Light
Power Button
12. Knob
02. Al Vision Indicator
13. Pan Motor
03. Al Vision Sensor
14. Bluetooth Light
04. LED Video Light
15. Joystick
05. Phone Clamp 16. Power (ON/OFF) / Function Button
06. Folding Lock A 17. Roll Motor
07. Folding Lock B
18. Bidirectional charging port (Type C)
08. Battery Indicator
19. Reset
09. Zoom Slider
20. Handle (Battery built-in)
10. Shutter Button
21. Lanyard Hole
11. Tilt Motor
22. 1/4-inch Screw Port

5
How to mount and balance mobile phone on the gimbal?
The gimbal would work improperly if not screw the knob up.
Clench the phone clamp, ensuring that your phone is cling to the rubber mat,
otherwise the gimbal would vibrate or turn off automatically.
Unfold the
gimbal
Screw up the
knob
Turn the
„hohem“
logo upward
Put your phone
stuck in the
bottom of
phone clamp
and pull the
head of phone
clamp to mount
your phone
Slide the phone
and make sure it
is clamped in
the middle,
power on the
gimbal after
balancing the
phone clamp

6

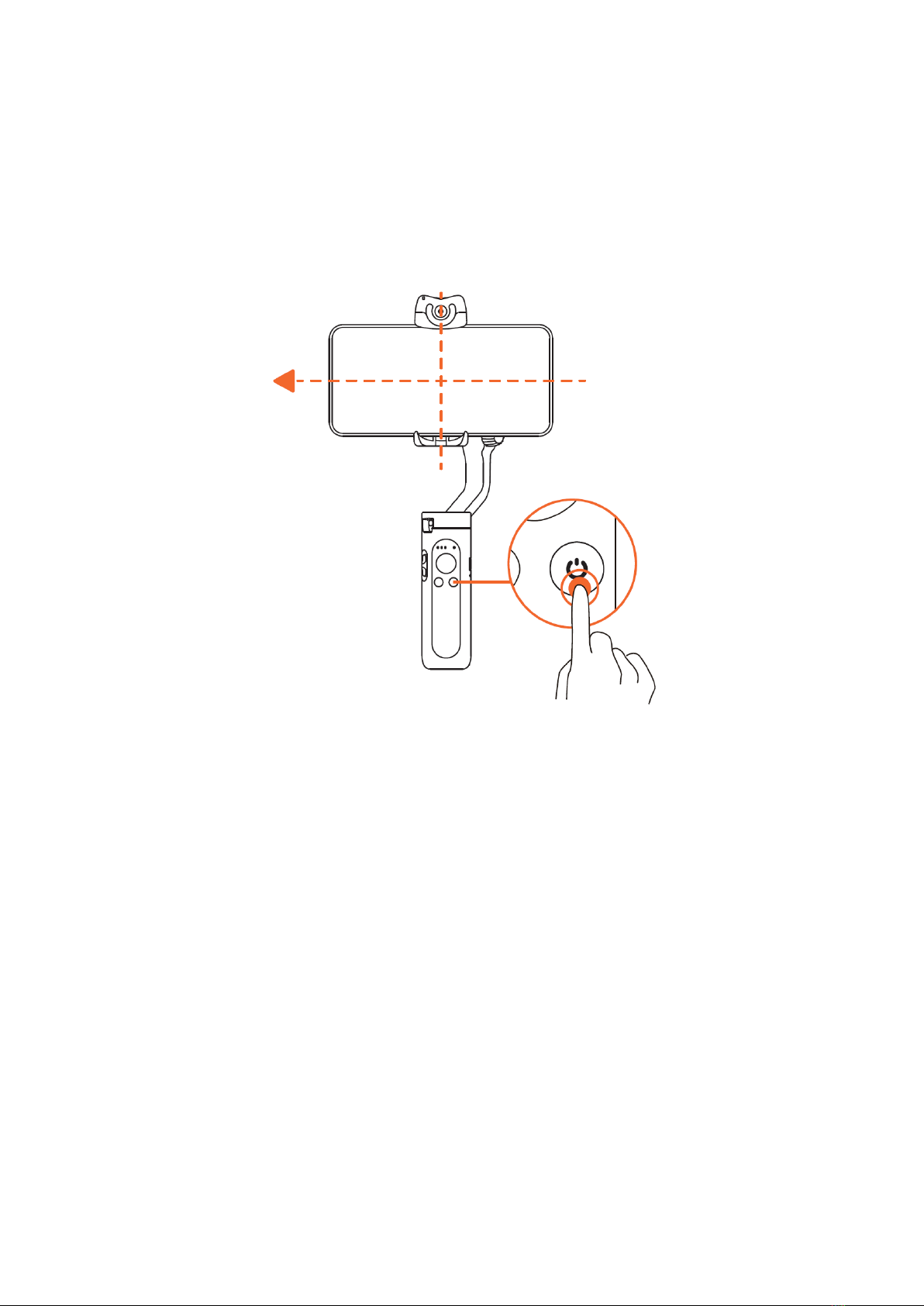

Booting up iSteady V2 at first use
Activation & Bluetooth Connection
For the first time, please turn on the gimbal. Log into the Hohem Pro app to activate the
gimbal. Gimbal will work improperly if not been activated.
Startup
Long press the function button. At the first start, it will enter a to-be-activated state and
the Bluetooth indicator will flash alternately in red and green.
Bluetooth connection through the APP
Turn on the bluetooth of phone. Log into the app Hohem Pro.
Following the notice at the top for connection.
Activate iSteady V2
After the Bluetooth is connected, an activation prompt box will pop up. Click "Confirm"
to complete the activation. Three beeps for noticing you the activation has done, and
you can use the gimbal now.

7
Al Visual Tracking & LED Video Light
To enable this function, please press Al vision sensor & LED video light power button, Al
vision indicator will turn red and the LED video light will show double flash.
*Please ensure that the gimbal has turned on before enabling this function. For closing
this function, please long press Al vision sensor & LED video light power button.
①Al Visual Tracking
Switch between landscape and portrait mode: Two
hands facing towards the Al vision sensor.
Landscape mode: Thumbs-up
Portrait mode: Thumbs-right
Start smart tracking: take a OK gesture
towards the Al vision sensor, Al vision
indicator will turn green
Turn off smart tracking: show a palm
gesture towards the Al vision sensor and
Al vision indicator will turn red
*Please ensure that only both the face and gesture
appear together in front of the sensor, the smart
tracking will be activated.
②LED Video Light
Press Al vision sensor & LED video light power button to adjust the light intensity, LED
turns according to low-medium-high-close modes.

8
Button Function
1. Power (ON/OFF) / Function Button
Long Press: Power On/Off
Single Press: Switch the landscape and
portrait modes
Double Press: Recenter the gimbal
Triple Press: Inception (Auto rotation)
Press Five Times: Auto calibration
Press Seven Times: Remote control
pairing
The bluetooth light will flash alternately
in yellow and green.
(The remote control is an optional accessory)
a. If the remote control is not paired within 30 seconds, the pairing will be cancelled;
b. Click the function button to cancel pairing;
c. Double-click the function button to clear the paired remote control and cancel pairing;
(And the paired remote control will be unavailable and need to be re-paired)
2. Joystick
Up/Down: Tilt Control
Left/Right: Pan Control
(It is able to control the roll motor through Left/Right Joystick Settings in Hohem Pro app)
3. Zoom Slider
(Only available in the app)
Push Up: Zoom in
Push Down: Zoom out
4. Shutter Button (Ensure the Bluetooth is connected)
Single Press: Take photo, Start/End video
Double Press: Switch photo/video modes
Triple Press: Switch front/rear cameras (Only available in the app)
How to switch working modes by button?
Combination operation: Press and hold shutter button and tap power button
Single Tap: Pan&Tilt Follow (Default)
Double Tap: Pan Follow
Triple Tap: All Lock
Quartic Tap: POV (All Follow)
*Tips: To ensure proper operation, please release the shutter button after the power
button.

9
Working Mode & Follow Speed
For changing working mode or follow speed, please open Hohem Pro app - Start
Recording – Gimbal Parameter Settings
Ensure the Bluetooth is connected and change the settings
Working Mode
Pan&Tilt Follow
This is the default working mode. When you rotate the handle left/right/tilt up/tilt down,
the camera will follow the handle movements, and the roll motor is locked without
following the movement.
Pan Follow
When you rotate the handle left/right, the camera will follow the handle movements.
The tilt motor does not follow within the angle range of -30°~+30 movement, if exceed
this range, the gimbal will follow the tilt movement, and the roll motor is locked without
following the movement.
All Lock
The roll and pan motors are locked without following the movement. The tilt motor does
not follow within the angle range of -30°~+30 movement, if exceed this range, the
gimbal will follow the tilt movement.
POV (All Follow)
First person point of view
Gives you 360° complete movement, you can pan, tilt and roll with it.
Follow Speed
General
Shooting with general follow speed
Slow
Shooting with slow follow speed
Medium
Shooting to follow the fast movement
Fast
Fast follow speed for video transition

10

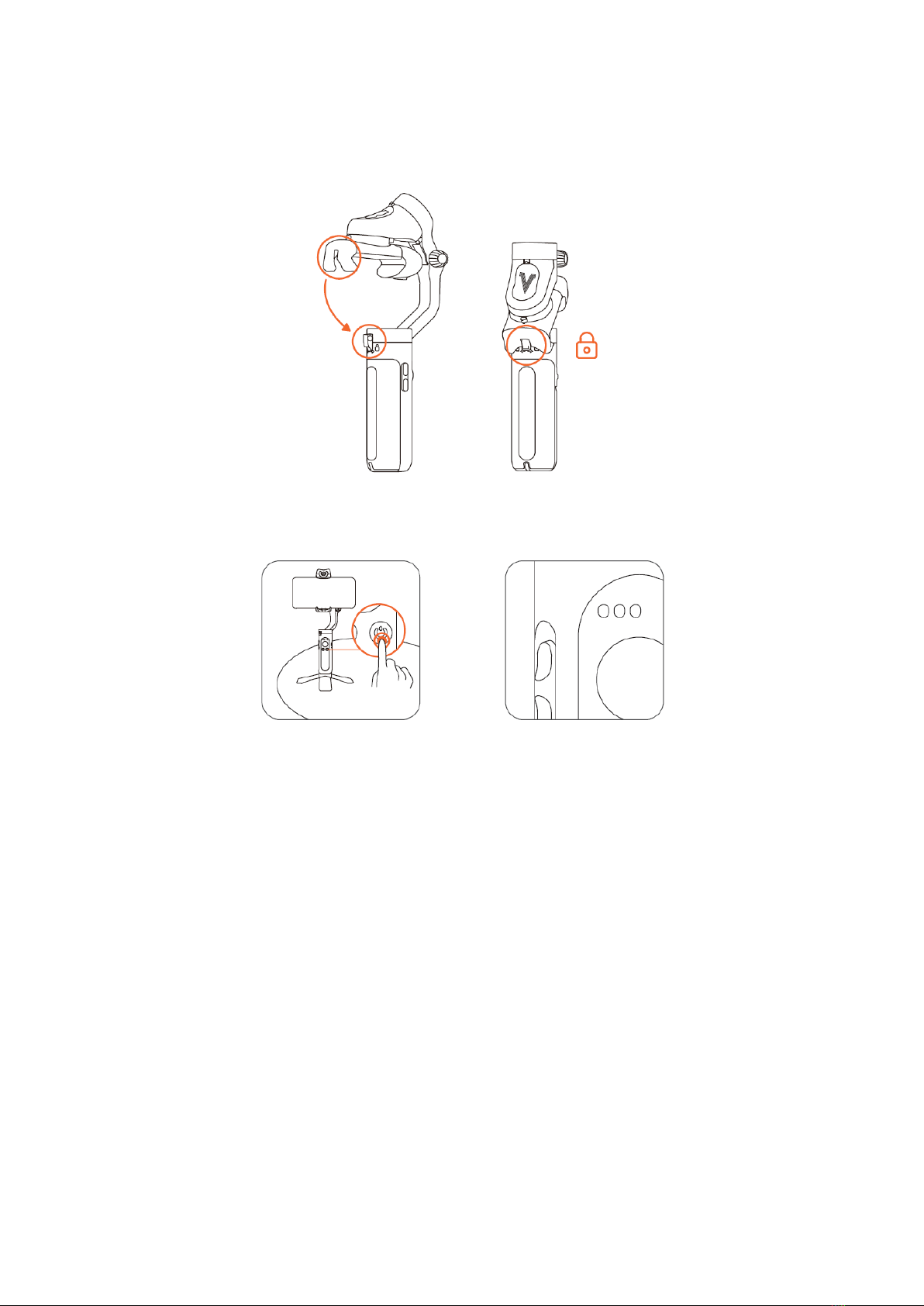

How to fold Gimbal?
What to do if the gimbal is not level after powering on?
If the gimbal is not level after turned on, or pan axis is slight drift when the gimbal is still,
please calibrate the gimbal on a stationary and horizontal surface.
1. Turn on the gimbal, press function button 5 times
2. Start calibration after a beep sound
3. The battery indicator light keep flashing
4. The calibration is done after two beeps sound (the calibration takes about 40
seconds)
Use as emergency power bank
The gimbal can be used as emergency charging for your mobile phone and other
electronic devices.

11
Power indicator and Bluetooth indicator function
Power Indicator Lights
Stay on: Fully charged or charging complete
Single flashing: Charging
Continuous Flashing: Calibrating
Bluetooth Indicator Light
1.1. Blinks red and green alternatively:
To be activated (at first use)
1.2. Blinks yellow and green alternatively:
The remote control is pairing (The remote control is an optional accessory)
2. Color indicates the status of gimbal
Green: Bluetooth is connected
Yellow: Bluetooth is not connected
Red: Warning of abnormal loads on the stabilizer or failed firmware upgrade
3. Blinking indicators of working modes
Solid Light: Pan & Tilt Follow
Flash twice: Pan Follow
Flash triple: All Lock
Flash four times: POV (All Follow)
Pulse: Standby mode

12
Specifications
Model
iSteady V2
Weight
263g
Folded Dimensions
179 X 79 X 39mm
Battery
18650li-ion
2800mAh
Operating Time
9 hours
4 hours (with Al vision sensor)
2 hours {with Al vision sensor & LED video light)
Bldirectlonal charging port (Type C) supports gimbal works while charging.
Mechanical Range * Pan: 320°
* Roll: 320°
* Tilt: 320°
Controllable Range
* Pan: 320°
* Tilt: -30°~+30°
Compatible Phones
Weight: <280g
Thickness: <11 mm
Width: 55mm~90mm
The motor would be shown in the screen due to some of mobile cameras are designed
at the middle of phone, such as Xiaomil0, Xiaomi10 Pro, Xiaomi CC9 PRO.

13
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
•Using the product for any purpose other than that for which the product is intended
or failing to follow the instructions for maintenance, operation and service of the
product.
•Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g. during transport, cleaning
by inappropriate means, etc.).
•Natural wear and aging of consumables or components during use (such as
batteries, etc.).
•Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage,
electrostatic discharge voltage (including lightning), faulty supply or input voltage and
inappropriate polarity of this voltage, chemical processes such as used power
supplies, etc.
•If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

14
EU Declaration of Conformity
Identification data of the manufacturer's / importer's authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
IČO: 27082440
Subject of the declaration:
Title: iSteady V2 AI Smartphone Gimbal
Model / Type: iSteady V2
The above product has been tested in accordance with the standard(s) used to
demonstrate compliance with the essential requirements laid down in the
Directive(s):
Directive No. (EU) 2014/53/EU
Directive No. (EU) 2011/65/EU as amended 2015/863/EU
Prague, 28.06.2021

15
WEEE
This product must not be disposed of as normal household waste in accordance with
the EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU).
Instead, it shall be returned to the place of purchase or handed over to a public
collection point for the recyclable waste. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of
this product. Contact your local authority or the nearest collection point for further
details. Improper disposal of this type of waste may result in fines in accordance with
national regulations.

16
Vážený zákazníku,
Uživatelská příručka k produktu obsahuje funkce produktu, způsob použití a provozní
postup. Přečtěte si pozorně uživatelskou příručku, abyste získali co nejlepší zážitek a
vyhnuli se zbytečnému poškození. Uschovejte tuto příručku pro budoucí použití. Pokud
máte jakékoliv dotazy nebo připomínky k zařízení, kontaktujte zákaznickou linku.
✉www.alza.cz/kontakt
✆[phone]
Dovozce: Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

17
Zřeknutí se odpovědnosti a varování
Děkujeme, že jste si zakoupili produkt na Alza.cz. Používáním tohoto produktu dáváte
najevo, že jste si pečlivě přečetli toto prohlášení o vyloučení odpovědnosti a upozornění
a že rozumíte a souhlasíte s dodržováním podmínek v něm uvedených. Souhlasíte s tím,
že nesete výhradní odpovědnost za své chování při používání tohoto produktu a za
případné následky. Souhlasíte s tím, že budete tento produkt používat pouze pro účely,
které jsou správné a v souladu se všemi platnými zákony, pravidly a předpisy a se všemi
podmínkami, opatřeními, postupy, zásadami a pokyny, které Alza.cz zpřístupnila a může
zpřístupnit. Alza.cz nepřebírá žádnou odpovědnost za škody, zranění nebo jakoukoli
právní odpovědnost vzniklou přímo či nepřímo v důsledku používání tohoto produktu.
Uživatel je povinen dodržovat bezpečné a zákonné postupy, mimo jiné včetně postupů
uvedených v tomto dokumentu.
Důležité poznámky
•Při prvním zapnutí iSteady V2 je nutná aktivace prostřednictvím aplikace Hohem Pro.
•Systém iSteady V2 bude fungovat po aktivaci.
•Před zapnutím zařízení iSteady V2 nasaďte mobilní telefon.
•Pokud není detekován žádný mobilní telefon nebo je motor přetížen, protože telefon
není v rovině, gimbal se po varovném pípnutí vypne.
Stáhněte si aplikaci Hohem Pro, registrujte se a
přihlaste se
Naskenováním QR kódu vstoupíte na stránku pro stahování
Vyhledejte " Hohem Pro " v App Store nebo Google Play
*Aplikace Hohem Pro vyžaduje iOS 10.0 nebo vyšší, Android 6.0 nebo vyšší.
*Další návody k produktům naleznete na domovské stránce aplikace

18
Přehled iSteady V2
01. Tlačítko napájení, Senzor Al Vision a LED
video světlo
12. Knoflík
02. Indikátor Al Vision
13. Otáčecí motor (Pan)
03. Senzor Al Vision
14. Světlo Bluetooth
04. LED video světlo
15. Joystick
05. Svorka na telefon 16. Tlačítko napájení (ZAP/VYP) /
Funkční tlačítko
06. Zámek A 17. Rolovací motor (Roll)
07. Zámek B 18. Obousměrný nabíjecí port (typ C)
08. Indikátor baterie
19. Reset
09. Zoom posuvník
20. Rukojeť (vestavěná baterie)
10. Tlačítko spouště
21. Otvor pro šňůrku
11. Naklápěcí motor (Tilt)
22. 1/4palcový šroubový port

19
Jak upevnit a vyvážit mobilní telefon na gimbal?
Gimbal by nefungoval správně, kdyby se knoflík nezašrouboval.
Sevřete svorku telefonu a ujistěte se, že telefon přiléhá ke gumové podložce, jinak
by gimbal vibroval nebo se automaticky vypnul.
Rozložení
gimbalu
Vyšroubujte
knoflík
Otočte logo
"hohem"
směrem
nahoru
Vložte telefon
do spodní části
svorky telefonu
a zatáhněte za
hlavici svorky,
abyste telefon
připevnili.
Posuňte telefon
a ujistěte se, že
je uprostřed, po
vyvážení svorky
telefonu
zapněte gimabl.

20
První spuštění systému iSteady V2
Aktivace a připojení Bluetooth
Zapněte gimbal. Přihlaste se do aplikace Hohem Pro a gimbal aktivujte. Gimbal nebude
pracovat správně, pokud nebyl aktivován.
Startup
Dlouze stiskněte funkční tlačítko. Při prvním spuštění přejde do stavu připraveného k
aktivaci a indikátor Bluetooth bude blikat střídavě červeně a zeleně.
Připojení Bluetooth prostřednictvím aplikace APP
Zapněte Bluetooth telefonu. Přihlaste se do aplikace Hohem Pro.
Postupujte podle oznámení pro připojení v horní části.
Aktivace systému iSteady V2
Po připojení Bluetooth se zobrazí okno s výzvou k aktivaci. Klepnutím na "Confirm"
(Potvrdit) aktivaci dokončíte. Tři pípnutí vás upozorní, že aktivace byla provedena, a vy
nyní můžete gimbal používat.
