Hollywood G2 Gordo User manual

When using the Hollywood Gordo rack, please follow these important recommendations:
Install the Gordo rack on structurally sound trunks and rear decks only. If you own a Mini Van or Sport Utility
Vehicle (SUV), be sure to read the special notes below.
Never attach hooks to aluminum, plastic, glass, fiberglass or carbon fiber.
Clean the surface of the trunk, rear door or deck lid before installation of the rack.
Tighten all six straps both before and after mounting bikes on the rack.
Never place more than 100 lbs. (45 KG) on the Gordo rack.
Always use the gray tie down straps after loading all of the bicycles onto the rack. These final safely
Strap should be threaded through all of the bikes, and the frame of the Gordo rack itself.
Keep the bicycle tires at least one foot (1’=30 cm approx.) away from the exhaust pipe(s). Check the rack, bikes
and straps regularly during use.
Drive slowly when used on bumpy or rock/dirt surface roads.
Installation Instructions for Hollywood
Model G2 “Gordo” bicycle rack
1

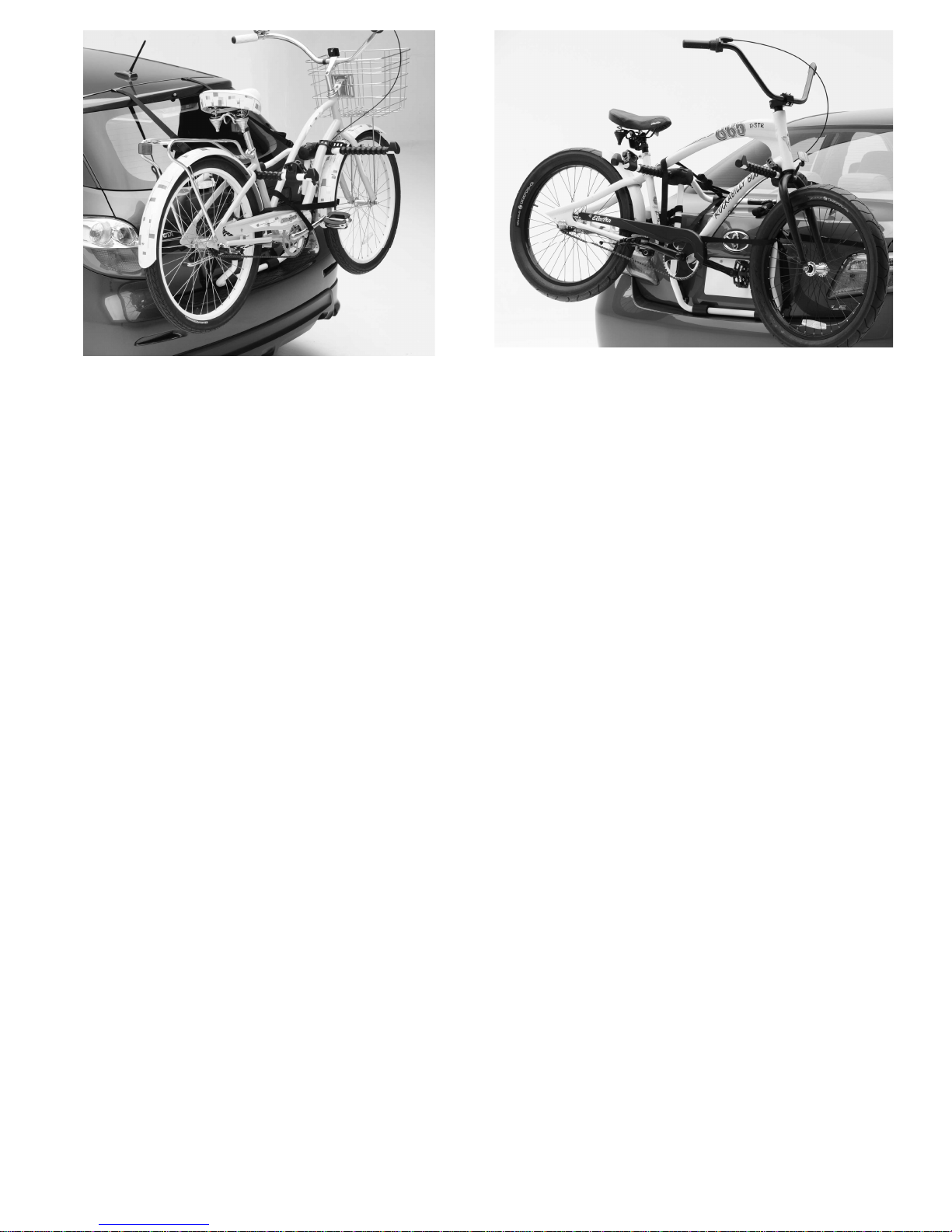

Fig. 2 –Mounted to square back
Fig. 3–Mounted to sedan
Important note about the Gordo Rack:
This product is intended for use with long frame bicycles such as
beach
cruisers, Townies®, choppers, and short wheel base recumbents. The width of the arms (22”’) may prevent use with
other bicycles. It is the user’s responsibility to mount the bikes safely and securely. The bike’s wheels should not
extend outward beyond the vehicle’s side view mirrors.
The Gordo Rack includes two built nylon in tie down straps, two rubber cradle straps and two
additional tie downs. The rack also includes 4 “protective pads” to be placed between the
bikes or where necessary.
Mounting the Gordo Rack on Your Vehicle:Your new rack comes to you fully
assembled in the box, so there is no assembly to do on the rack itself. There will be some
adjustment and set-up required so that the Gordo will fit on your vehicle correctly. Please read
and adhere to all instructions as follows:
Townie is a Trademark of Electra Bicycles

1. After removing your rack from the box, loosen the black hubs by flipping the hub lever outward
(away from the rack). This will allow the two sections of the rack frame to move relative to one
another for correct rack placement on your vehicle. Note how the teeth on the hubs interlock into
place. See Fig. 4a & 4b. showing the hub and lever in the open and closed positions.
2. Adjusting the rack frame:Position the rack on the vehicle such that the bicycle support arms
are parallel to the ground, or angled slightly upward at the back of the rack. The main frame should
rest on a steel trunk lid, or rear door. See Fig. 2 & 3. If necessary (particularly on vans, station
wagons and SUV’s) the upper pads may rest on glass. This is because the weight of the rack and
bicycles is support by the upper straps, and the lower pads. Be careful not to interfere with rear
mounted wiper blade if the vehicle is so equipped.
3. Once the proper rack position has been determined by adjusting the rack’s support arms and
main frame, tighten the hubs by flipping black levers in and locking them in place against the rack;
then rotate the lever and/or cup until the hubs are snug and secure. See Fig. 4b.
Be sure that the teeth of the black hubs are interlocked evenly, so that the support arms are parallel.
4. Attaching the straps: Begin attaching straps with the upper (farthest forward) pair, placing the
hooks in the most forward trunk lid opening, and then pulling on the end of the strap until the proper
length is reached. Once the upper straps have been attached, the side and bottom straps can be
attached in any order. If your vehicle has a “soft” plastic bumper, the lower straps may be attached
to the lower edge of the trunk lid, or rear door opening instead of the bumper.
5. When all six straps are attached, pull on each strap to make sure that the hooks are properly
seated, and that all straps are tight. After mounting the bikes, recheck and retighten all straps
since the weight of the bike(s) often adds tension to the upper straps, and removes and equal
amount of tension from the lower straps.
Mounting bike(s) to the Gordo rack:
Fig. 4a & 4b
h
ub
l
ever
cup
2
7.
Place the
heaviest bike onto the rack
first (closest to the vehicle), handle bars on
the passenger side. For a men’s frame
(Fig. 5) and depending on the style of bike,
either mount the bike’s top tube or down
tube (Fig b) into the bike cradle. The other
mounting point should be under the top
tube (Fig. 5a) or between seat tube and
rear stays (Fig. 6c). Please note Fig. 7a.7b
& 7c for correct attachment of rubber strap
and mounting in cradle.
It is important that the bike is balanced and
well secured.
Fig. 5a
Fig. 5b
Fig. 5

3
For a ladies frame (fig. 6), mount
the bike as shown in Fig. 6a and
6b, again maintaining balance
and using the best tie down
points.
Be sure to note the location of
the pedal, as you may have to
rotate the crank in order to keep
the pedal from hitting the vehicle
There are two gray colored tie-
down straps attached to the rack
as shown in Fig. 1. Be sure to
use both of these straps.
Place the bike protective pads
between bikes and bike rack
frame to help protect you vehicle
and bike’s finish. The extra, non-
attached straps can be used for
extra bike tie down security.
Fig. 6
Fig. 6a
Fig.
6
b
Fig. 7b: Do not pull strap over cables
Fig. 7c: Route strap under cables
Fig. 7a
Rubber bike cradles: Refer to
fig. 7a: Attach the rubber strap
to the back (right side) of the
cradles as shown in Fig. 7a.
After mounting the bike in the
cradle, pull the strap gently over
the bike frame and attach the
other end of the strap to the
cradle. Straps should be snug,
but do not over-tighten. Route
straps under cables per 7b & 7c.
Carrying two bikes: Mount the first bike per above
instructions, using the extra tie-downs to secure the
bike to the rack. Mount the second bike with the
handlebars on the driver’s side of the vehicle. Be sure
to rotate pedals to avoid bike to bike interference, and
use the protective pads between the bikes. Use both
the upper gray tie-down strap and the side mounted
gray tie-down strap to secure bikes to rack.
Remember to re-check all straps after the bicycles have
been mounted. Re-tighten straps as necessary.
Fig. 8a
Fig. 8b

CAUTION!
This bicycle carrier has been designed to attach securely to most vehicles. It is the user’s responsibility to insure the safe
and proper installation of this product. Improper attachment or installation of this product may result in damages to your
bicycles, vehicle, or vehicles following behind you. If the pads of this rack (or any rack) are resting against glass or a
structurally soft panel, be aware that this may cause damage to your vehicle. The manufacturer of this product will not
extend the warranty to any damages not attributable to a defect in materials and workmanship. The fit guide printed in this
manual is intended as a general reference only. Ongoing changes in vehicle design, materials and finishes used on motor
vehicles make it the user’s responsibility to determine the use of this product. Do not attach hooks to aluminum, glass,
fiberglass, moldings, spoilers or carbon fiber parts. Please check the Fit Guide on the back page prior to installation!
If the make and model of your cars is listed as a “No Fit,” check with your dealer about installation assistance, exchange for
another model that will fit, or refund. This guide is not complete due to continuous changes in automotive design. For
answers to questions, call our customer service department at: 800-747-4085 Mon.-Fri. from 7:00AM–3:00PM Pacific time
OR Email us anytime at [email protected]
Limited Lifetime Warranty (effective January 1, 2008):
Hollywood Racks will warranty its car racks and accessories during the time that an original retail purchaser owns the product subject
to the exclusions and limitations of this warranty. Hollywood Racks will remedy defects in materials and workmanship by repairing or
replacing (at its option) the complete rack or a defective part without charge for labor or parts. Hollywood Racks may elect (at its option)
to issue a refund equal to the purchase price paid for the product.
This warranty does not cover problems caused by normal wear and tear including (but not limited to) weather, scratches, dents, rust,
accidents, unlawful vehicle operation, misuse, abuse, neglect, theft, unauthorized modifications, or unauthorized repair. No warranty is
given for defects resulting in incorrect assembly, incorrect installation onto the vehicle, installation on a “no fit” vehicle, incorrect
attachment of bicycles onto the rack, or overloading of the rack’s weight restrictions. This warranty terminates if the original retail
purchaser transfers the product to any other person.
If a product is believed to be defective, the original retail purchaser should contact either the original retailer or Hollywood Racks directly
at 800-747-4085 or at [email protected]
Disclaimer of Liability: Repair or replacement of a defective product or the issuance of a refund or credit (as determined by Hollywood
Racks) is a purchaser’s exclusive remedy under this warranty. Damage to a purchaser’s vehicle, cargo, bicycles and or to any other
person is excluded. This warranty is expressly made in lieu of any and all other express warranties, whether oral or written.
Hollywood Racks shall not be liable for any direct, indirect, consequential, incidental, special, punitive or
any other damages in connection with the purchase, use or handling of this product.
Some states do not allow the exclusion or limitation of consequential or incidental damages and the above limitation may not apply to
you. This warranty gives you specific legal rights and you have other rights, which vary from state to state.
