HOMCOM 800-170V70 User manual

IN230800065V01_UK_DE
800-170V70_800-170V90
EN_IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
DE_WICHTIG! SORGFÄLTIG LESEN UND FÜR SPÄTER NACHSCHLAGEN AUFBEWAHREN.
AC220-240V 50Hz 1400W

IMPORTANT SAFEGUARDS
1. Read all instructions.
2. When not in use and before cleaning, unplug the appliance and wait for it to cool
down.
3. Do not touch hot surfaces - use handles or knobs.
4.To prevent electric shock, do not submerge the appliance, its cord or plug into water
or other liquid.
5. Small children must not use this appliance.
6. If the appliance, its cord or plug is damaged or the appliance malfunctions in any
way, do not use it. Return the appliance to the place of purchase for examination,
repair or adjustment.
7. Accessories, which are not manufacturer-recommended, can cause damage or
injury.
8. Do not use outdoors.
9. Do not allow the cord to hang over the edges of tables or countertops, where it
could be tripped on. Keep the cord away from hot surfaces to avoid damage.
10. Keep this appliance away from hot gas, electric burners, heated ovens and other
heated sources.
11. Do not use the appliance for anything other than its intended purpose.
12. If using containers that are NOT made from metal or glass, extreme caution must
be taken.
13. To prevent burns, be cautious when removing items from the appliance and
disposing of hot grease.
14. When not in use, always unplug the appliance. Materials, which are not
manufacturerrecommended accessories, must not be stored in the appliance.
15. Do not place any of the following materials in the appliance: paper, cardboard,
plastic or anything similar.
16. Do not cover the appliance, crumb tray or any other part with metal foil. This will
cause the oven to overheat.
17. To prevent the risk of fire or electric shock, do not place oversized food, metal foil
packages and utensils inside this appliance.
18. Keep the appliance away from curtains, draperies, walls and other flammable
materials. Do not store any items on top of the appliance. Do not operate under
wall cabinets.
19. Do not clean this appliance with metal scouring pads. Pieces can break off and
touch electrical parts, increasing the risk of an electrical shock.
20. Whilst plugged in, do not attempt to remove food from the appliance.
21. Whilst in use, never leave the appliance unattended.
22. Keep the appliance away from walls and other appliances. Ensure there are at
least four inches of space on the back, sides and above the appliance, allowing air
to circulate properly.
23. Never place utensils, baking trays or any other items on the glass door.
24. To disconnect, turn all controls to the 'OFF' position, then remove the plug from
the wall outlet.
25. When in use, keep the appliance out of the reach of children.
26. This symbol means: Caution, hot surface!

PRODUCT STRUCTURE:
A. Housing
B. Front panel
C. Indicator light
D. Door handle
E. Door frame
F. Door glass
G. Oven foot
H. Temperature knob
!. Function knob
J. Timer knob
K. Cooling holes
L. Bake rack
M. Frying basket
N. Baketray
O. Crumb tray
P. Tray handle
Q. Crumb tray
FUNCTION INSTRUCTION:
BroIl or Convection Broll: Turn the 'Function' knob to either 'Broil or 'Convention
Broil'.
Turn the temperature knob to 230°C or less. Turn the 'Oven Timer' knob to the desired
cooking time - the appliance will begin broiling and the power light will be on. Once
the cycle is complete, the timer will ring and the appliance will turn off automatically.
To stop broiling, turn the 'Oven Timer' knob to the 'OFF' position.
Toast: Turn the 'Function' knob to toast. Turn the temperature knob to 230°C or less.
Turn the 'Oven Timer' knob to the desired toasting time - the appliance will begin
toasting and the power light will be on. Once the cycle is complete, the timer will ring
and the appliance will turn off automatically. To stop toasting, turn the 'Oven Timer' to
the 'OFF' position.
Bake or Convection Bake: Turn the 'Function' knob to either 'Bake' or 'Convention
Bake'. Set the temperature to 230°C or less. Turn the 'Timer' knob to the desired
cooking time - the oven will begin baking. Before cooking cakes, muffins and other
delicate ingredients, it is recommended to preheat the oven for five minutes. The
power light will be on. Once the cycle is complete,
Warm: Turn the 'Function' knob and temperature
knob to 'Warm'. Turn the 'Oven Timer' knob to the
desired warming time - the appliance will begin
warming and the power light will be on.
Once the cycle is complete, the timer will ring and
the appliance will turn off automatically. To stop
warming, turn the 'Oven Timer' knob to the 'OFF'
position.

Air Fry: Turn the 'Function' knob to 'Air Fry'. Turn the 'Air Fry Temperature' knob to
230°C or less. Turn the 'Oven Timer' to the desired cooking time - the appliance will
begin air frying and the light will turn on. Once the cycle is complete, the timer will ring
and the appliance will turn off automatically. To stop air frying, turn the 'Oven Timer' to
the 'OFF' position.
OPERATING INSTRUCTIONS
TEMPERATURE SETTING
Turn the Temperature knob clockwise to the desired temperature setting. The
Temperature can be set from OFF to 230°C To set the temperature (OFF-230°C), turn
the 'Temperature' knob clockwise.
TIME SETTING
Set the timer for up to 60 minutes. The oven requires
the timer to be set for operation. To set the time, turn
the 'Timer' knob clockwise to your desired duration.
The indicator light will be on when the time has been
set. When the timer reaches the 'OFF' position, you
will hear a bell sound - the appliance will turn off
automatically.
ADJUSTING TIME
The timer can be changed during the cooking cycle.
Just turn the 'Timer' knob to the desired time and
continue cooking.
Note: To select the cooking time, first rotate the
'Timer' knob past the 10-minute mark, then switch it
back to the time you require.
OPERATION:
BEFORE USING FOR THE FIRST TIME
(1) Remove all packaging labels and stickers from the oven.
(2) Clean all accessories with water and washing-up liquid, using a non-abrasive
sponge. Ensure all accessories are dry before use.
(3) Place the crumb tray at the bottom of the appliance. Do not place anything on top
of this appliance.
(4) Place the appliance on a flat surface. Before using, ensure there are at least four
inches of space between all sides of the appliance and other objects. Do not use
on heat-sensitive surfaces.
(5) There may be excess water on the countertop, as water will release from food
during cooking.
(6) During first-time use, the oven may emit smoke. This is normal and will disappear
after five minutes.

CLEANING AND MAINTENANCE:
Warning: Never immerse the appliance, its cord or plug in water or other liquid.
Never touch, operate or plug in the appliance with wet hands.
(1) For optimal performance, clean the appliance after each use. Removing the
grease will keep your appliance consistent.
(2) Before cleaning, unplug the appliance and wait for it to cool down.
(3) When cleaning this appliance, never use abrasive cleaners or corrosive products.
This will damage the oven surface and cause rust.
(4) Clean the outside of the appliance with a soapy sponge, towel or cloth. Do not
apply a cleaning agent directly onto the oven.
(5) To clean the inside of the appliance, use a damp cloth and a mild liquid soap or
spray solution on a sponge/towel. Remove all residue after each use. Never use
steel wool pads or harsh abrasives and corrosive products.
(6) Hand-wash accessories in warm water. You can also use a nylon scouring pad or
nylon brush. Accessories are not suitable for dishwashers.

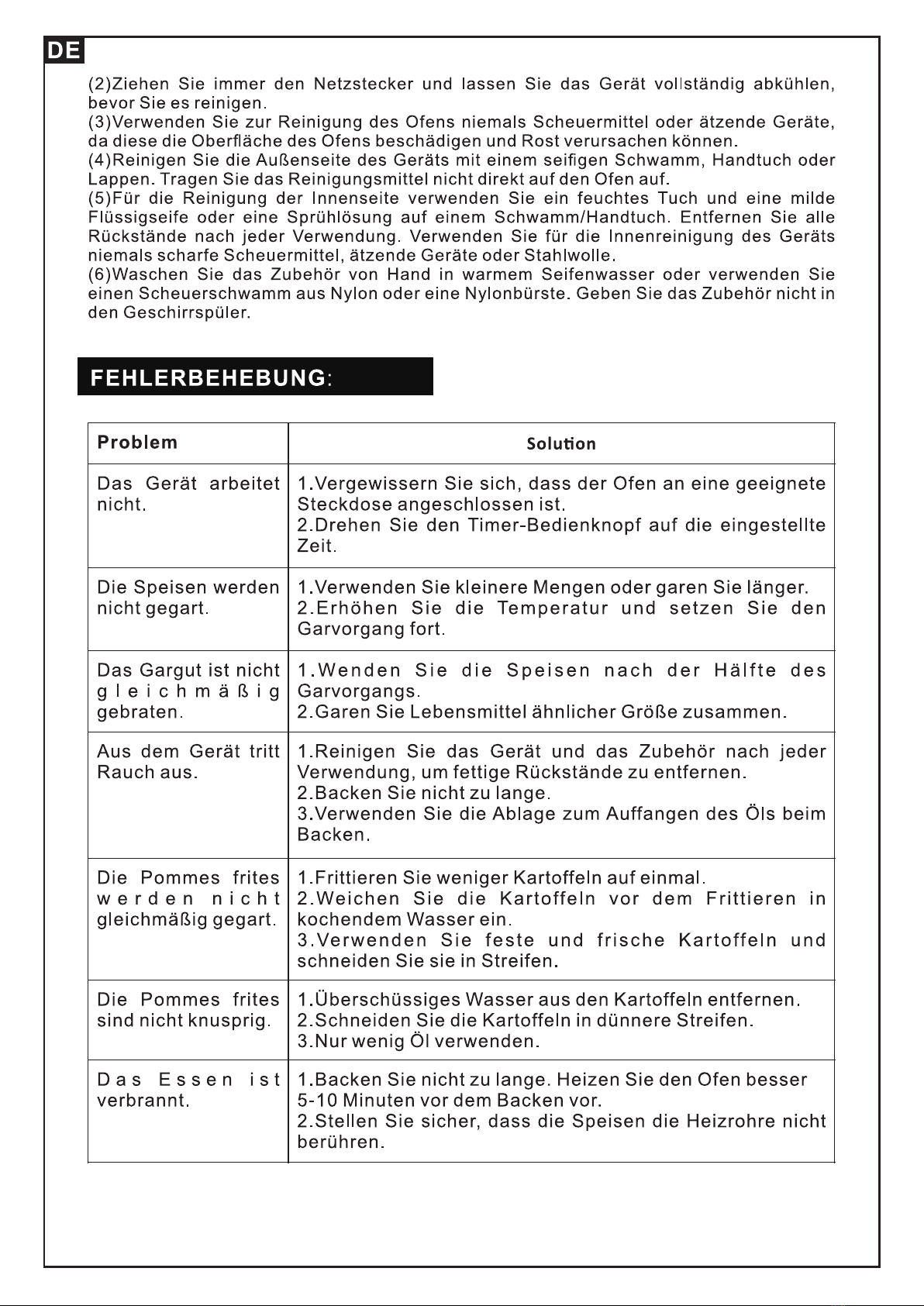

TROUBLESHOOTING
Problem Solution
1. Ensure the oven is plugged into a dedicated
power outlet.
2. Turn the ‘TIMER’ knob to a set time.
The appliance does not work.
1. Use smaller batches for more even cooking.
2. Raise the temperature and continue cooking.
Food is not cooked.
1. Turn over food halfway through the cooking
process.
2. Cook similar-sized foods together.
Food is not fried evenly.
1. Clean the appliance and its accessories after
every use, removing any greasy residue.
2. Do not bake for too long.
3. Use the baking tray to catch cooked oil during
cooking.
White smoke is coming out of
the appliance.
1. Fry fewer potatoes at a time.
2. Blanch potatoes with boiling water before
frying.
3. Use firm and fresh potatoes and cut them into
sticks.
French fries are not cooked
evenly.
1. Remove excess water from potatoes.
2. Cut potatoes into more narrow strips.
3. Mix with a little oil.
Fries are not crispy.
1. Do not bake for too long. It is recommended to
preheat the appliance for 5-10 minutes.
2. Make sure the food does not touch the heating
tubes.
Food is burnt
