home casual PALAMOS User manual

Parts List
A
A
B
D
C
CHAIR ARM
(LEFT WHEN
SITTING)
CHAIR ARM
CHAIR BACK
CHAIR SEAT
BOLT (M6x15)
METAL WASHER
PLASTIC BOLT
CAP
HEX WRENCH
B
C
D
E
2
2
2
21
20
20
20
F
G
H
(RIGHT WHEN
SITTING)
PALAMOS DEEP SEATING CHAIR
IMPORTANT: PLEASE READ COMPLETE INSTRUCTION SHEET PRIOR TO ASSEMBLY!
Identify all parts packed in carton against the parts list. Remove all protective
materials, place parts on a nonabrasive surface to avoid scratching. If any parts
are missing or damaged, DO NOT attempt to assemble. Please contact our
customer service center (Monday-Friday 9:00 a.m.-5:00 p.m.CST) at
1-866-538-7735 (fax:[phone]), e-mail: [email protected] or
visit our website at www.homecasual.net.
STEP 1
Place chair back (C) on a flat, soft surface.
Attach chair arm (left) (A) to chair back (C) by using bolts (E) with metal washers (F)
through each hole of the chair arm and into the chair back (C). Repeat this step for
chair arm (right) (B). (DO NOT TIGHTEN COMPLETELY !)
Attach chair seat (D) to the chair arm by using bolts (E) with metal washers (F)
through each hole of the chair arm and into the chair seat (D).
(DO NOT TIGHTEN COMPLETELY !)
STEP 2
Attach chair seat (D) to the chair back (C) by using bolts (E) with metal washers (F)
through each hole of the chair seat and into the chair back.
STEP 3
Tighten all bolts with the Hex wrench. Cover all bolts with plastic bolt caps.
Place the cushion on the chair seat.
Your chair is now ready for use.
STEP 4
Thank you for choosing a Home Casual product!
(detail photo)
Step 1
Step 3
Step 2
DC
A
B

Parts List
A
A
Step 1
Step 2
Step 3
B
E
E
H
H
G
G
C
D
CHAIR ARM
(LEFT WHEN
SITTING)
CHAIR ARM
(RIGHT WHEN
SITTING)
CHAIR BACK
CHAIR SEAT
BOLT (M6x40)
BOLT (M6x15)
METAL WASHER
PLASTIC BOLT
CAP
HEX WRENCH
B
C
D
E
1
1
1
1
8
1
3
11
11
F
G
H
I
PALAMOS DEEP SEATING LOVESEAT
STEP 1
Place chair back (C) on a flat, soft surface.
Attach chair arm (left) (A) to chair back (C) by using bolts (E) with metal washers (G)
through each hole of the chair arm and into the chair back (C). Repeat this step for
chair arm (right) (B). (DO NOT TIGHTEN COMPLETELY !)
Attach chair seat (D) to the chair arms by using bolts (E) with metal washers (G)
through each hole of the chair arm and into the chair seat (D). (See illustration)
(DO NOT TIGHTEN COMPLETELY !)
STEP 2
Attach chair seat (D) to chair back (C) by using bolts (F) with metal washers (G)
through each hole of the chair back and into the chair seat (D).
STEP 3
Tighten all bolts with Hex wrench provided.
Cover all bolts with plastic bolt caps provided. Place the cushion on the chair seat.
Your loveseat is now ready for use.
STEP 4
Thank you for choosing a Home Casual product!
IMPORTANT: PLEASE READ COMPLETE INSTRUCTION SHEET PRIOR TO ASSEMBLY!
Identify all parts packed in carton against the parts list. Remove all protective
materials, place parts on a nonabrasive surface to avoid scratching. If any parts
are missing or damaged, DO NOT attempt to assemble. Please contact our
customer service center (Monday-Friday 9:00 a.m.-5:00 p.m.CST) at
1-866-538-7735 (fax:[phone]), e-mail: [email protected] or
visit our website at www.homecasual.net.
D
F
H
G
C

Parts List
A
A
B
C
116
16
11
8
8
4
B
C
D
D
E
E
F
F
F
G
G
G
H
I
TABLE TOP
TABLE LEG
METAL
WASHER
PLASTIC BOLT
CAP
ALLEN
WRENCH
LEG
CONNECTOR
BRACKET
BOLT (M6x15)
BOLT (M6x20)
1
TOUCH-UP
PAINT

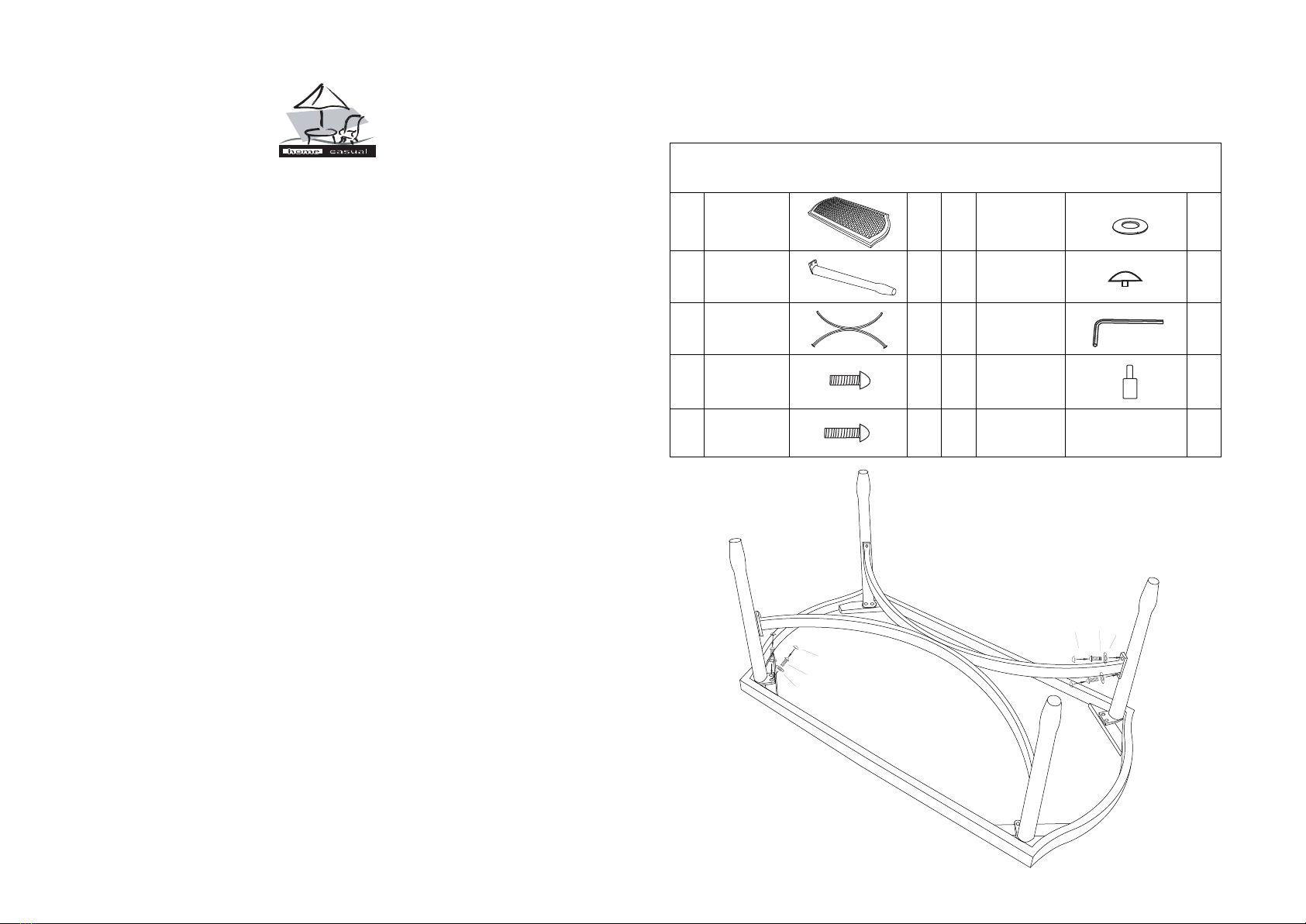

PALAMOS 40″x 20″ COFFEE TABLE
STEP 1
Turn the table top (A) upside down. Attach 4 table legs (B) to the table top (A) by inserting
the bolts (D) with metal washers (F) through the pre-drilled holes in the table top and legs.
Do not tighten the bolts.
STEP 2
STEP 2
STEP 1
Attach the leg connector bracket (C) to the table legs (B) by inserting the bolts (E) with metal
washers (F) through the pre-drilled holes in the leg connector bracket and legs.
Tighten all bolts completely and cover them with plastic bolt caps (G).
Important note:Each bolt should be tightened a few revolutions at a time,
alternating between bolts in a cross corner (X) pattern. This will ensure your table is
level by placing equal pressure on all bolt joints. Do not over tighten.
STEP 3
Turn the table in the upright position. Keep touch-up paint (I) for future use for both
your table and chairs. Your table is now ready for use.
Thank you for choosing a Home Casual product!
IMPORTANT:
To avoid damage to your table:
- In storing patio furniture, do not stack anything on glass, stone, or marble tabletops.
- Before storing, drain all water that may have accumulated in or around patio furniture frames. If not drained properly,
water can cause freeze damage.
- Cover furniture with outdoor furniture covers when not in use.
- For safety reasons, do not sit or stand on the table.
IMPORTANT: PLEASE READ COMPLETE INSTRUCTION SHEET PRIOR TO ASSEMBLY!
Identify all parts packed in carton against the parts list. Remove all protective
materials, place parts on a nonabrasive surface to avoid scratching. If any parts
are missing or damaged, DO NOT attempt to assemble. Please contact our
customer service center (Monday-Friday 9:00 a.m.-5:00 p.m.CST) at
1-866-538-7735 (fax:[phone]), e-mail: [email protected] or
visit our website at www.homecasual.net.
