Home Decorators Collection Bentley II 129828 User manual

Bentley II
18 in Ceiling Fan
Owner’s Manual
Bentley II
Ventilador de Techo de 45.7 cm
Manual del Propietario
AL14-BN
120 V~ 60 Hz 44 W
Read and follow all the instructions
before using this product.
Model: 129 828

Bentley II by Home Decorators Collection
ongratulations on your
purchase of a Home
Decorators Collection
ceiling fan, Your new fan will be a
beautiful addition to your home,
and will keep you comfortable
throughout the year.
The Home Decorators Collection
Fan Company offers a wide variety
of ceiling fans. We offer
combinations of wood and brass
finishes, solid designer colors, and
our unique glass and crystal
designs.
A large selection of light fixtures
and light kits is also available. Ask
your dealer about other
accessories that will allow you to
further customize your fan.
We’re certain that your Home
Decorators Collection fan will
provide you with many years of
comfort, energy savings and
satisfaction. To ensure your
personal safety and to maximize
the performance of your fan,
please read this manual
thoroughly.

VENTILADOR DE TECHO/CEILING FAN
Marca/Brand: Home Decorators Collection
Modelo/Model: 129828
120 V~ 60 Hz 44 W
Consumo de energía por unidad de tiempo en operación (Energy
Consumption): 48,145 Wh
Importador/Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García, Nuevo León, C.P.
66267 Tel./Phone: [phone]
Lea y siga todas las instrucciones de seguridad y operación antes de usar este
aparato/ Read and follow all the instructions of security and operation before using
this product
CONT. 1 Ventilador/Fan Hecho en/Made in: China
Requiere ensamblaje/Assembly Required

Date Purchased
Store Purchased
Model No.
Serial No.
Vendor No.
UPC
Thank you for purchasing our ceiling fan. This product has been
manufactured with the highest standards of safety and quality.
Table of Contents
Safety Rules . . . . . . . . . . . . . . . . . . . . 1
Unpacking Your Fan . . . . . . . . . . . . . . 2
Installing Your Fan . . . . . . . . . . . . . . . 3
Operating Your Fan . . . . . . . . . 9
Care of Your Fan . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . 10
Specifications . . . . . . . . . . . . . . . . . . 11
129 828
548810
792145370864
18” Bentley II
Ceiling Fan by HDC

1
Safety Rules - Read and Save These Instructions
To reduce the risk of electric shock, insure electricity has been turned off
at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70-1999” and local electrical codes. Electrical installation
should be performed by a qualified licensed electrician.
A all-pole disconnection that provide full disconnection under
overvoltage category III from the supply mains incorporated in the fixed
wiring is to be provided during installed.
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
After installed, need a set of supply leads accommodated in a suitable
compartment.
WARNING: To reduce the risk of electrical shock or fire, do not use this
fan with any solid-state fan speed control device. It will permanently
damage the electronic circuitry.
CAUTION: To reduce the risk of personal injury, use only the screws
provided with the outlet box.
The outlet box and support structure must be securely mounted and
capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less. Use
only UL-listed outlet boxes marked “FOR FAN SUPPORT”.
The fan must be mounted with a minimum of 10 ft (3.05m) clearance
from the trailing edge of the blades to the floor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items, be
cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan blades. A dry
dust cloth or lightly dampened cloth will be suitable for most cleaning.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
TO REDUCE THE RISK OF PERSONALL INJURY, DO NOT BEND THE BLADE
ARMS (ALSO REFERRED TO AS FLANGES), WHEN INSTALLING THE
BRACKETS, BALANCING THE BLADES OR CLEANING THE FAN. DO NOT
INSERT FOREIGN OBJECTS IN – BETWEEN ROTATING FAN BLADES.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT
WITH THE SCREWS PROVIDED WITH THE OUTLET BOX.
WARNING
After making electrical connections, spliced conductors should be turned
upward and pushed carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the equipment-grounding
conductor on one side of the outlet box and ungrounded conductor on the
other side of the outlet box.
All set screws must be checked and retightened where necessary before
installation.
The appliance is not to be used by persons (including children) with reduced
physical, sensory or metal capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
This device complies with part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Instructions for the use of the apparatus according with NOM-024-SCFI, are
provided with the apparatus.

2
Unpacking Your Fan Unpack your fan and check the contents. You should have the following items:
4
2
3
Canopy assembly
Ball/downrod assembly
Coupling cover
Fan motor assembly
1.
2.
3.
4.
Receiver+6 wire nuts
Transmitter+holder+2 mounting screws
9 Volt battery
5.
6.
7.
WARNING
DO NOT INSTALL OR USE FAN IF ANY
PART IS DAMAGED OR MISSING.
CALL TOLL FREE 01-800-004-6633.
B
5
6
7
A
A.
B.
Electrical Hardware
(3 Plastic Wire Nuts)
Allen wrench
1

3
Installing Your Fan
Figures 1~2 are examples of different ways to
mount the outlet box.
If there isn't an existing NOM listed mounting box,
then read the following instructions. Disconnect
the power by removing fuses or turning off circuit
breakers.
Secure the outlet box directly to the building
structure. Use appropriate fasteners and building
materials. The outlet box and its support must be
able to fully support the moving weight of the fan
(at least 35 lbs). Do not use plastic outlet boxes.
Tools Required
Mounting Options
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR PERSONAL INJURY, MOUNT FAN
ONLY TO AN OULET BOX MARKED ACCEPT-
ABLE FOR FAN SUPPORT AND USE THE
MOUNTING SCREWS PROVIDED WITH THE
OULET BOX. OUTLET BOX COMMONLY USED
FOR THE SUPPORT OF LIGHTING FIXTURE
MAY NOT BE ACCEPTABLE FOR FAN SUPPORT
AND MAY NEED TO BE REPLACED. CONSULT A
QUALIFIED ELECTRICIAN IF IN DOUBT.
Outlet Box
Outlet Box
Outlet Box
Figure 2
Figure 1
To hang your fan where there is an existing fixture
but no ceiling joist, you may need an installation
hanger bar as shown in Figure 4 (available at any
Home Depot store).
Figure 3
Phillips screwdriver, straight slot screwdriver, step
ladder and wire cutters.

4
REMEMBER to turn off the power. Follow the
steps below to hang your fan properly.
Hanging the Fan
Remove the decorative canopy bottom cover
from the canopy by turning the cover counter
clockwise. (Figure 4)
Remove the mounting bracket from the canopy
by removing the 1 of 2 screws from the bottom
of the mounting bracket and loosening the
other one a half turn from the screw head.
Next, turn the canopy counter clockwise to
removing the mounting bracket from the
canopy. (Figure 4)
Remove the clevis pin, cotter pin and set
screws from the top of the motor assembly.
(Figure 5)
NOTE: If a longer downrod is needed, take out
the screw located in the hanger ball (you need
to use the allen wrench to loosen your set
screw), lower the hanger ball and remove the
pin, remove all 3 pieces from the downrod and
assemble them onto the new longer downrod
before proceeding step 4. (The longer downrod
is available at any Home Depot store)
Route wires and safety cable exiting from the
top of the fan motor through the coupling
cover, canopy cover, canopy and then through
the ball/ downrod. (Figure 5)
1.
2.
3.
4.
WARNING
FAILURE TO PROPERLY INSTALL COTTER PIN
AS NOTED IN STEP 5 COULD RESULT IN FAN
LOOSENING AND POSSIBLY FALLING.
WARNING
THE FAN MOTOR ASSEMBLY IS SHIPPED WITH
A STOPPER TO PREVENT MOVEMENT DURING
TRANSPORTATION. DO NOT REMOVE THIS
STOPPER UNTIL INSTRUCTED TO DO SO IN
THIS MANUAL. (FIG. 5)
Tighten two set screws at top of the fan motor
collar. (Fig. 5)
6.
Align the holes at the bottom of the downrod
with the holes in the coupling on top of the
motor housing (Figure 5). Carefully insert the
clevis pin through the holes in the collar and
downrod. Be careful not to jam the clevis pin
against the wiring inside the downrod. Insert
the cotter pin through the hole near the end of
the clevis pin until it snaps into its locked
position, as noted in the circle inset of Fig. 5.
5.
Figure 4
Ceiling
Mounting
Bracket
Ceiling Canopy
Canopy Bottom
Cover
Figure 5
Motor Wires
Safety Cable
Ball/Downrod
Assembly
Ceiling Canopy
Stopper
Canopy Bottom
Cover
Coupling Cover
Clevis Pin
Cotter Pin
Set Screw
Pin in Locked
Positioon

5
Installing Fan to
the Electrical Box
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK OR OTHER PERSONAL INJURY.
MOUNT FAN ONLY TO AN OUTLET BOX OR
SUPPORTING SYSTEM MARKED ACCEPTABLE
FOR FAN SUPPORT AND USE THE MOUNTING
SCREWS PROVIDED WITH THE OUTLET BOX.
Figure 6
UL Listed Outlet Box
Ceiling Mounting
Bracket
120V
Wires
Mounting
Screws (Supplied
with Electrical Box)
Figure 8
Safety Cable
Ceiling
Mounting
Bracket
Pass the 120-volt supply wires through the
center hole in the ceiling mounting bracket as
shown in Figure 6.
Install the ceiling mounting bracket on the
outlet box with the screws and washers
provided with your outlet box. (Figure 6)
Security tighten the two mounting screws.
Hanging the assembled fan onto the mounting
bracket, place the downrod ball into the
mounting bracket. (Figure 7)
Secure the safety cable to the building structure
as shown in Figure 8.
1.
2.
3.
4.
5.
WARNING
THE TAB IN THE RING MUST REST IN THE
GROOVE OF THE HANGER BALL AS FIGURE 7.
FAILURE TO PROPERLY SEAT THE TAB IN THE
GROOVE COULD CAUSE DAMAGE TO WIRING.
Figure 7

6
Making the Electrical
Connections
WARNING
TO AVOID POSSIBLE ELECTRICAL SHOCK, BE
SURE ELECTRICITY IS TURNED OFF AT THE
MAIN FUSE BOX BEFORE WIRING.
If you feel you do not have enough electrical
wiring knowledge or experience, have your fan
installed by a licensed electrician.
This remote control unit is equipped with 16 code
combinations to prevent possible interference
from or to other remote units. The frequency
switches on your receiver and transmitter have
been preset at the factory. Please recheck to make
sure the switches on the transmitter and the
receiver are set to the same position, any
combination of settings will operate the fan as
long as the transmitter and receiver are set to the
same position. (Figure 9).
Insert the receiver into the mounting bracket
with the flat side of the receiver facing the
ceiling as Figure 10.
1.
from the receiver. Secure the wire connections
with the plastic wire connecting nuts provided.
(Figure 11) Receiver to house supply wires
electrical connections: Connect the black (hot)
wire from the ceiling to the black wire marked
"AC in L" from the receiver. Connect the white
(neutral) wire from the ceiling to the white wire
marked "AC in N" from the receiver. Secure
the wire connections with the plastic wire
connecting nuts provided.
(Figure 11) If your outlet box has a ground
wire (green or bare copper) connect it to the fan
ground wires; otherwise connect the hanging
bracket ground wire to the mounting bracket.
Secure the wire connection with a plastic nut
provided. After connecting the wires spread
them apart so that the green and white wires are
on one side of the outlet box and black and blue
wires are on the other side. Carefully tuck the
wire connections up into the outlet box.
3.
4.
(Fig. 11) Motor to receiver electrical
connections: Connect the black wire from the
fan to black wire marked "TO MOTOR L".
Connect the white wire from the fan to the
white wire marked "TO MOTOR N" from the
receiver. Connect the blue wire from the fan to
the blue wire marked "FOR OSCILLATION"
2.
Figure 10
Receiver
Ceiling
Mounting
Bracket

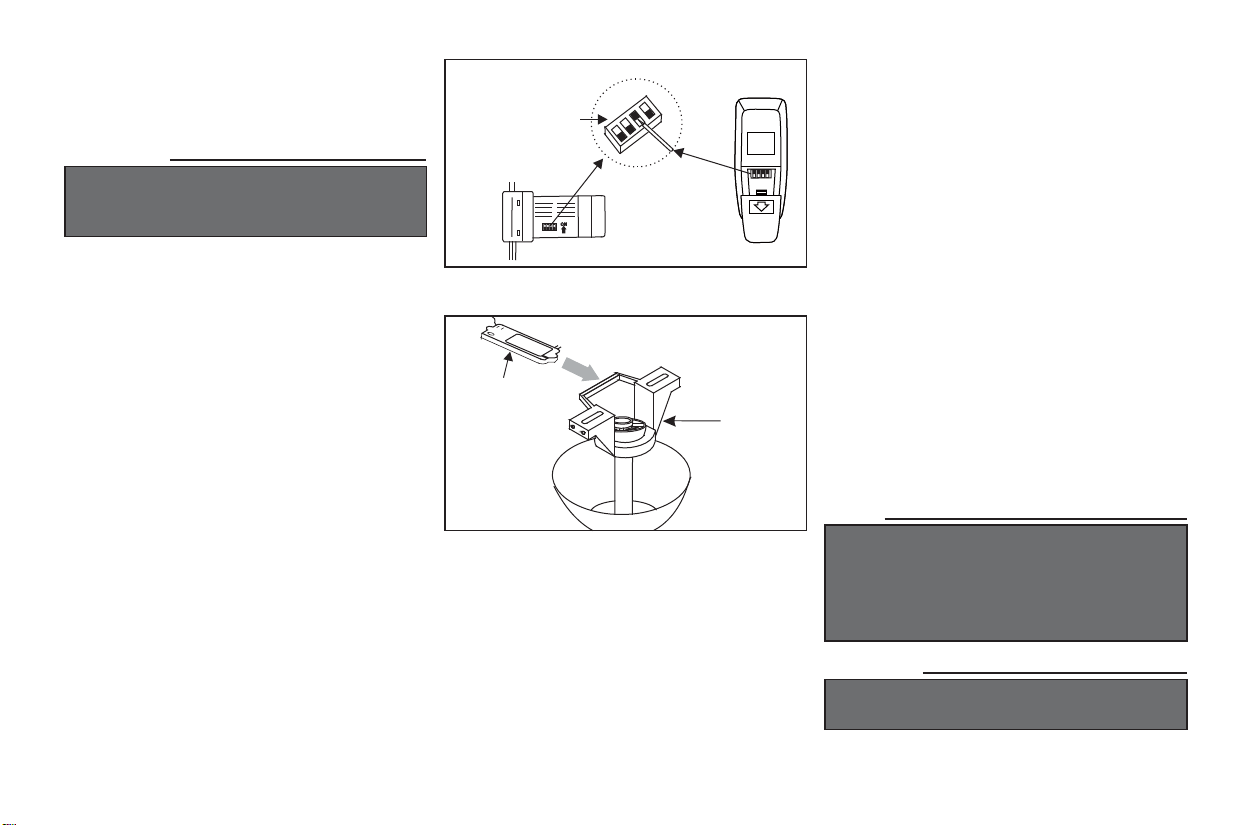

Figure 9
Frequency Switch
CAUTION
DO NOT USE WITH WALL LIGHT DIMMER
SWITCH.
NOTE
FAN MUST BE INSTALLED AT A MAXIMUM
DISTANCE OF 20 FEET FROM THE TRANSMIT-
TING UNIT FOR PROPER SIGNAL TRANSMIS-
SION BETWEEN THE TRANSMITTING UNIT
AND THE FAN'S RECEIVING UNIT.

7
SUPPLY CIRCUIT
Figure 11
WHITE
WHITE
BLACK
BLACK
BLUE
Ground
Conductor
Outlet Box
Green
Ground
Lead
GREEN
Ground to
Downrod
BLACK BLACK BLUE WHITE
WHITE
WARNING
MAKE SURE THE TAB ON THE HANGING
BRACKET PROPERLY SITS IN THE GROOVE
IN THE HANGER BALL BEFORE ATTACH-
ING THE CANOPY TO THE BRACKET BY
TURNING THE HOUSING UNTIL IT DROPS
INTO PLACE.
Tuck connections neatly into ceiling outlet
box.
Slide the canopy up to mounting bracket and
place the key hole on the canopy over the
screw on the mounting bracket, turn canopy
until it locks in place at the narrow section of
the key holes. (Fig. 12)
Align the circular hole on canopy with the
remaining hole on the mounting bracket,
secure by tightening the two set screws. Note:
Adjust the canopy screws as necessary until the
canopy and canopy cover are snug.
Remove the stopper by pressing the clip on the
stopper and sliding it forward off of the tube
and fan assembly.
1.
2.
3.
4.
Finishing the Fan
Installation
Outlet Box
Ceiling
Mounting
Bracket
Screw
Screw
Canopy
Canopy
Bottom Cove
r
Stopper
Figure 12

8
This fan is pre-assembled the rear guard, blade and front guard in factory before
shipping for your easy installation, checking all screws are tighten and securely in
place, following the below procedures if you are intended to disassemble the fan
for cleaning: (Fig. 13)
1. Loose the screws on rear guard to disassemble the front guard from rear guard.
2. Remove the blade cover from the blade by turning the blade cover counter-
clockwise.
3. Remove the blade from the rear guard by turning the blades counter-clockwise.
4. Remove the rear guard from the motor head by loosing the screws from the
motor head.
Disassembling Your Fan
Figure 13
Motor Head
Front Guard
Screws
Rear Guard
Screws
Rear Guard
Blade Cover
Blade
Front Guard

Restore power to ceiling fan and test for proper
operation.
Install 9V battery (included). to prevent damage to
transmitter, remove the battery if not used for long
periods. (Fig. 14)
( WARNING: May explode or leak if recharged,
disposed of in fire or dissected. Remove battery
from device if not in use.)
Operating Your Fan
9

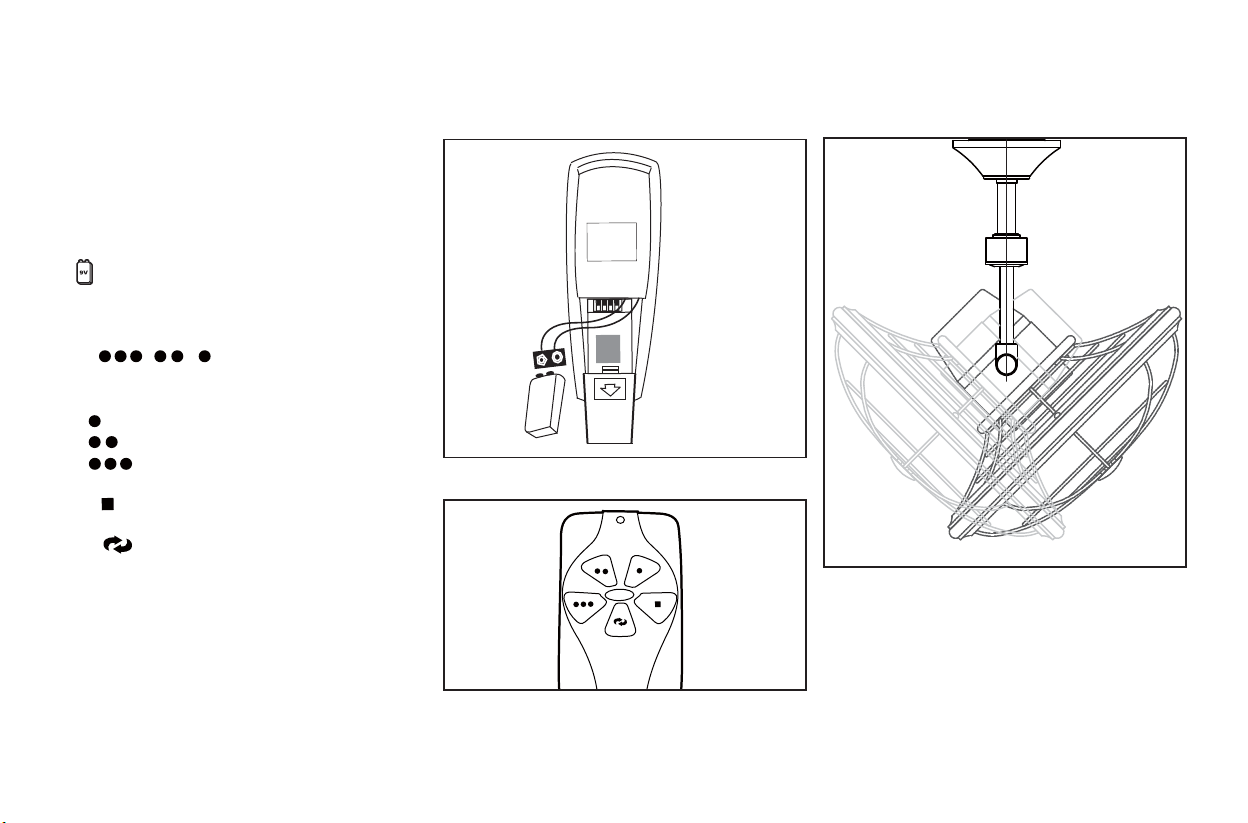

Figure 15
Figure 16
" , , " buttons:
These three buttons are used to set the fan
speed as follows:
= Low speed,
= Medium speed
= High speed
" " button: This button turns the fan off.
" " Button:
This button is used for oscillating operation;
press the button to set the fan to oscillation,
Press again to turn off the oscillation, and the
fan will stay at the same direction where the
oscillation is turned off. (Fig. 16)
1.
2.
3.
Figure 14
9 Volt
Battery

10
WARNING
MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX
BEFORE YOU ATTEMPY ANY REPAIRS. REFER TO THE SECTION,
“MAKING ELECTRICAL CONNECTIONS”.
Because of the fan’s natural movement, some
connections may become loose. Check the all
guards and protective devices are securely in
place and all visible screws are tightened twice
a year. Make sure they are secure.
Cleaning your fan periodically to help maintain
its new appearance over the years, follow the
sectioned “Disassembling Your Fan” for
properly disassembling and cleaning. Do not
use water when cleaning, this could damage
the motor, or possibly cause an electrical
shock. Use only a soft brush or lint-free cloth to
avoid scratches the finish. The plating is sealed
with a lacquer to minimize discoloration or
tarnishing.
You can apply a soft damp cloth to clean the
aluminum blades and front guard, taking care
not to alter the angle of the blades.
There is no need to oil your fan. The motor has
permanently lubricated sealed ball bearings.
1.
2.
3.
4.
Here are some suggestions to help you maintain
your fan.
Check main and branch circuit fuses or breakers.
Check line wire connections to the fan.
Check to make sure the dip switches from the transmitter and receiver
are set to the same frequency.
Make sure all screws on fan motor assembly and fan guards are snug.
Make sure the blade and the blade cover are securely in place.
Allow a 24-hour “breaking-in” period. Most noises associated with a
new fan disappear during this time.
Make sure there is a short distance from the ceiling to the canopy. It
should not touch the ceiling.
Make sure your ceiling box is secure and rubber isolator pads are used
between mounting bracket and outlet box.
Do not connect the fan with a wall mounted variable speed control(s).
Make sure the dip switches are set correctly.
1.
2.
3.
1.
2.
3.
4.
5.
1.
2.
Fan will not start
Fan sounds noisy
Remote control
Care of Your Fan Troubleshooting
PROBLEM SOLUTION

11
Specifications
FAN SIZE SPEED VOLTS AMPS WATTS RPM CMM N.W. G.W. C.F.
18” 120 6.26 kgs
(13.77 lbs)
8.5 kgs
(18.70 lbs) 4.9’
LOW
MED.
HIGH
These are approximate measures. They do not include Amps and Wattage used by the light kit.
0.24
0.28
0.36
12.62
18.28
41.83
833
1097
1611
20.84
29.02
41.29
Importer: SERVICIOS HOME DEPOT, S. DE R.L. DE C.V.
Ricardo Margain 605, Santa Engracia, San Pedro Garza García,
Nuevo León, C.P. 66267. Tel. [phone]
Warranty printed on manual is not valid for Mexico
Questions, problems, missing parts?
Before returning to the store call our customer service
01 800 004 6633
The appliance is not to be used by persons (including
children) with reduced physical, sensory or metal capabili-
ties, or lack of experience and knowledge, unless they have
been given supervision or instruction.
Children should be supervised to ensure that they do not
play with the appliance.
