Home Decorators Collection BRETTE III AM382D-BN User manual

We appreciate the trust and condence you have placed in Home Decorators Collection through the purchase of this ceiling fan. We
strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for
your home improvement needs. Thank you for choosing Home Decorators Collection!
THANK YOU
USE AND CARE GUIDE
BRETTE III 23 IN. CEILING FAN
Item #1007 746 305
1007 746 314
Model # AM382D-BN
AM382D-EB
Visual instruction of how to install this fan:
Visit www.homedepot.com and enter either the Item or Model number to nd
this fan and click the link of visual instruction in the product overview section.
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

Table of Contents ..................................
Safety Information .................................
Warranty .........................................
Pre-installation ....................................
Installation .......................................
Assembly ........................................
Operation ........................................
Care and Cleaning .................................
Troubleshooting ...................................
2
Table of Contents
2
2
3
3
6
7
12
14
14
READ AND SAVE THESE INSTRUCTIONS
To reduce the risk of electric shock, ensure electricity has been
turned off at the circuit breaker or fuse box before beginning.
All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70” and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lb. (15.9 kg)
or less. Use only UL Listed outlet boxes marked “FOR FAN
SUPPORT.”
The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
Avoid placing objects in the path of the blades.
To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box and ungrounded conductor on the other side of the
outlet box.
All set screws must be checked and retightened where
necessary before installation.
Suitable for use with solid-state speed control (AP-3RDL only).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
The following responsible party designated in FCC §2.909 is
responsible for this declaration:
Model Number: AM382D-BN, AM382D-EB
Company Name: TAL INTERNATIONAL CORPORATION
Company Address: 2919 E. Philadelphia St., Ontario, CA 91761, U.S.A.
Telephone Number: [phone] Fax: [phone]
Safety Information
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (also referred to as anges), when installing
the brackets, balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of re, electric shock or
personal injury, mount the fan to an outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
NOTE: Suitable for use in damp locations.

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS3

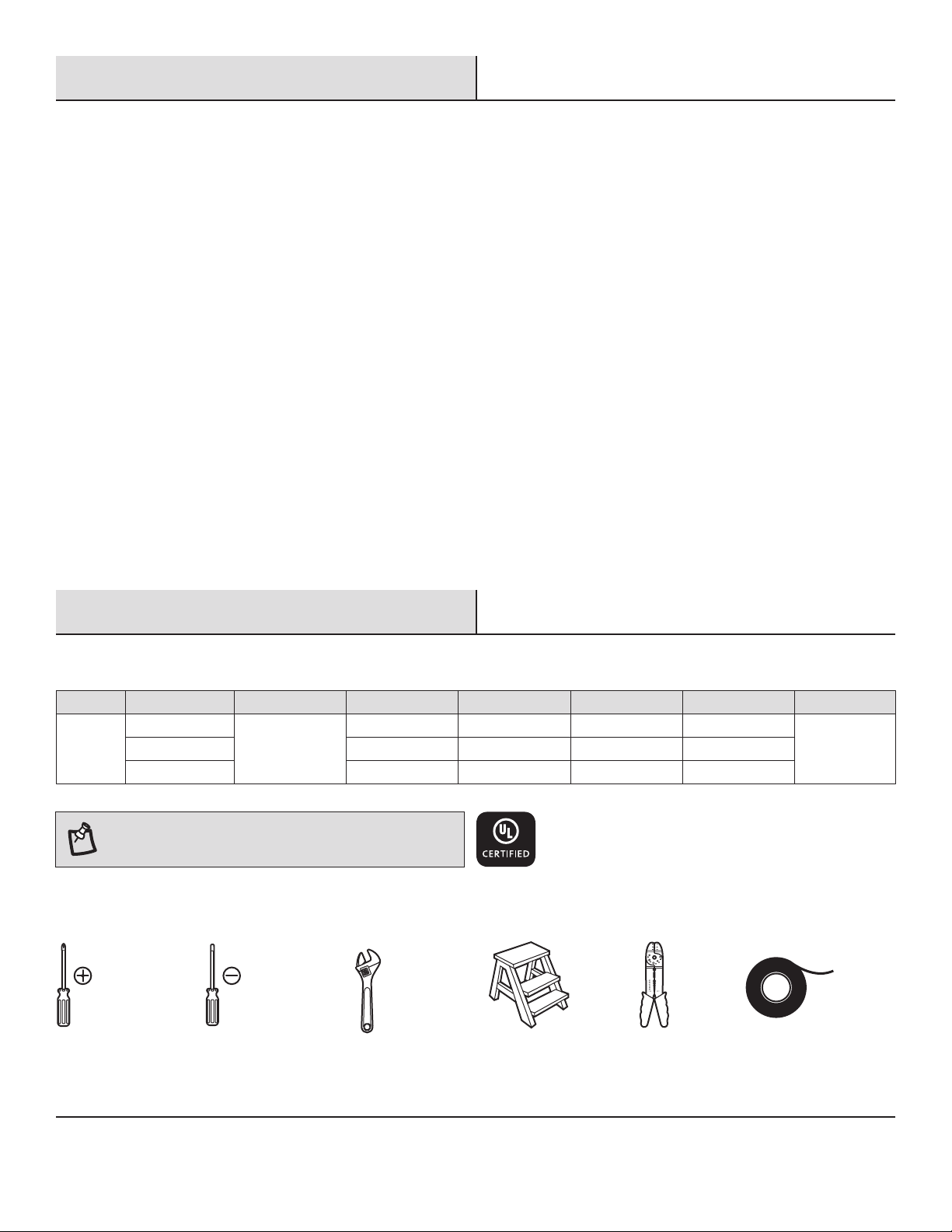

Pre-Installation
SPECIFICATIONS
TOOLS REQUIRED
The manufacturer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the
factory for a period of lifetime after the date of purchase by the original purchaser. The manufacturer warrants the light kit (excluding any
glass), to be free from defects in workmanship and material present at time of shipment from the factory for a period of ve years after
the date of purchase by the original purchaser. The manufacturer also warrants that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper
installation or by afxing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not
cover any changes in brass nish, including rusting, pitting, corroding, tarnishing or peeling. Brass nishes of this type give the longest
useful life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a
defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby
disclaim any and all warranties, including but not limited to those of merchantability and tness for a particular purpose to the extent
permitted by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specied in the
express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to
you. The retailer shall not be liable for incidental, consequential, or special damages arising out of or in connection with product use or
performance except as may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential
damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you may also have other
rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a
claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
Warranty
Phillips
screwdriver
Flat blade
screwdriver
Step
ladder
Wire
stripper
Electrical
tape
Adjustable
wrench
23 in.
0.34
0.40
0.43
26.54
37.46
47.74
792
1027
1224
807
1060
1287
10.85 kg
(23.91 lb.)
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Low
Medium
High
120
Fan size Watts RPM CFMSpeed Volts Amps N.W.

4
NOTE: Hardware not shown to actual size.
AA
BB
CC
Plastic wire nut
1.5V AAA battery
Extension cord
Part Description
3
2
1
Quantity

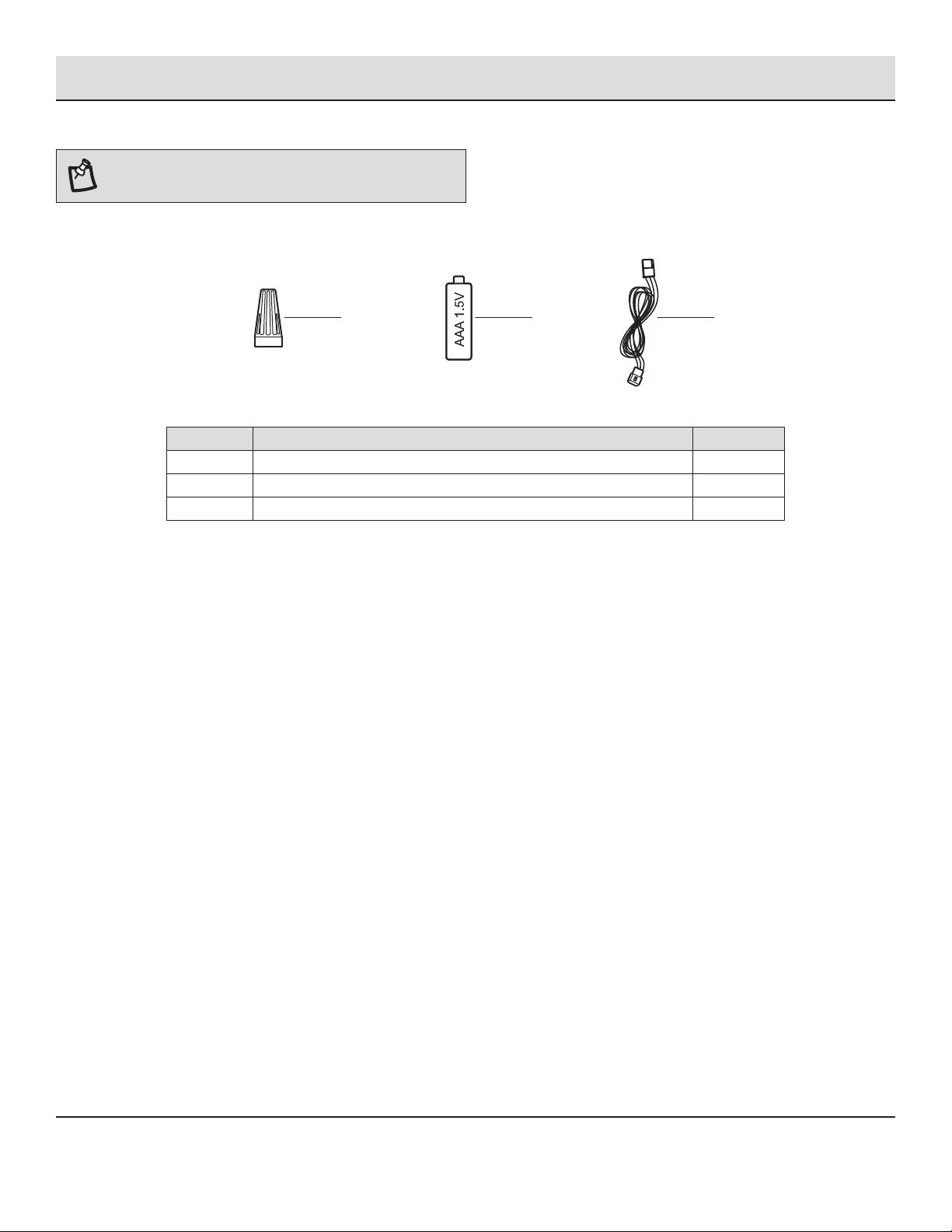

HARDWARE INCLUDED
Pre-Installation (continued)
AA BB CC

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS5

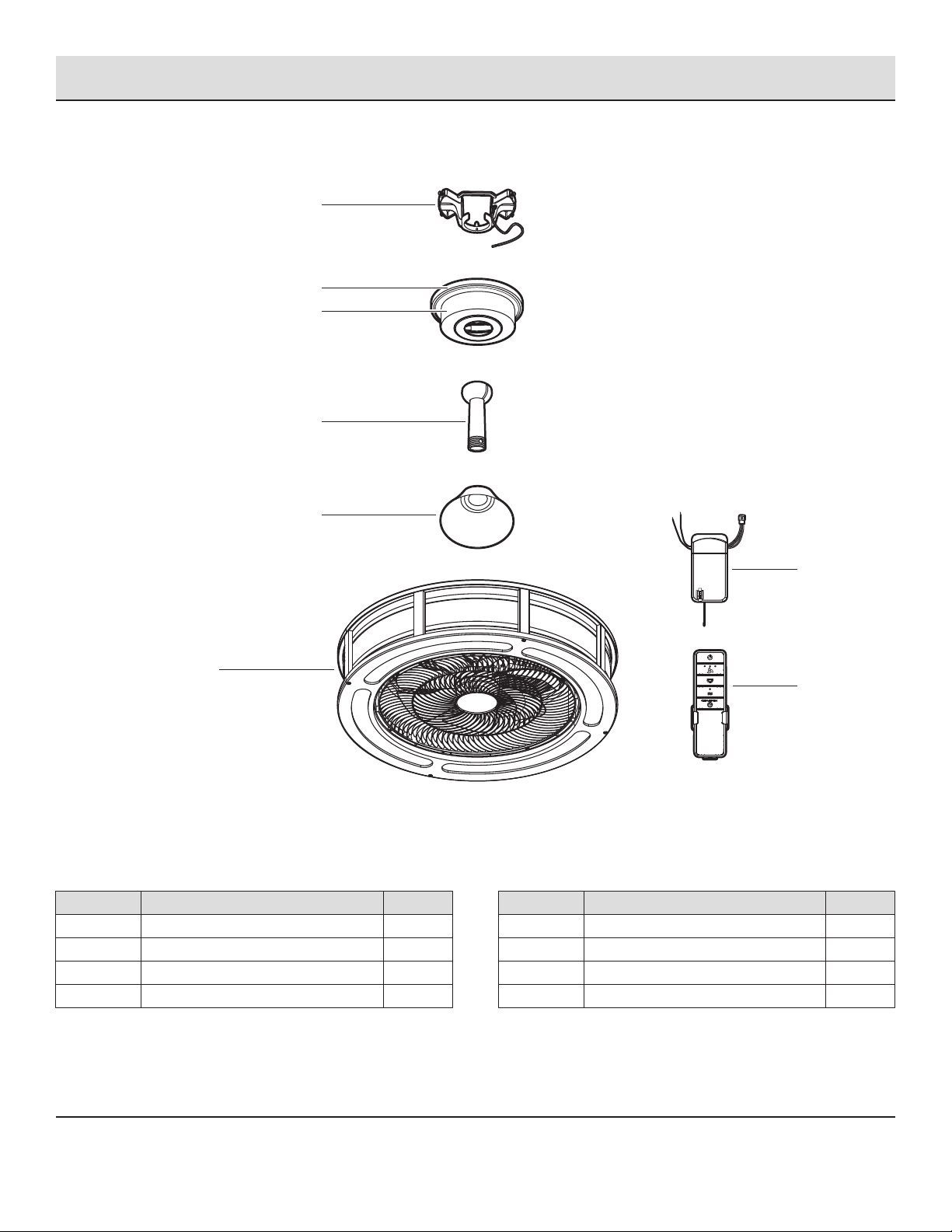

PACKAGE CONTENTS
Pre-Installation (continued)
Part
E
F
G
H
Description
Coupling cover
Fan motor assembly
Receiver
Remote control
Quantity
1
1
1
1
Part
A
B
C
D
Quantity
1
1
1
1
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Hanger ball/downrod assembly
A
D
E
F
B
C
H
G

6
If your ceiling fan does not have an existing UL Listed mounting
box, then install one using the following instructions:
Disconnect the power by removing the fuses or turning off
the circuit breakers.
Secure the outlet box (not included) directly to the building
structure. Use appropriate fasteners and materials (not
included). The outlet box and its bracing must be able to fully
support the weight of the moving fan (at least 35 lb). Do not
use a plastic outlet box.

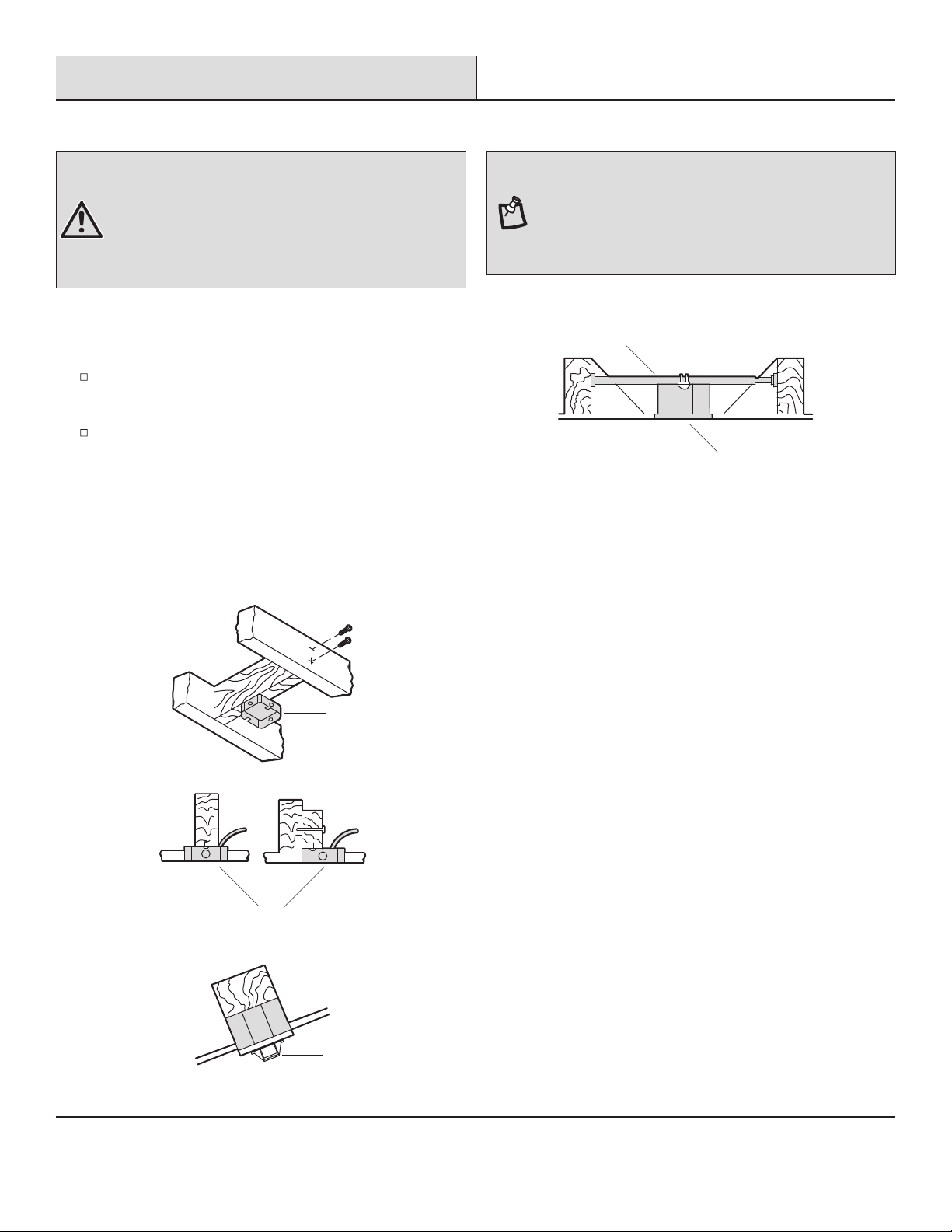

The illustrations below show three different ways to mount the
outlet box (not included).
Outlet Box
Outlet Box
Recessed
Outlet
Box
To hang your fan where there is an existing xture but no ceiling
joist, you may need an installation hanger bar (not included) as
shown above.
Outlet Box
Hanger Bar
WARNING: To reduce the risk of re, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting xtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualied
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (D),
turn the canopy (C) 180° before attaching the canopy (C) to
the mounting bracket (A).
MOUNTING OPTIONS
Installation
Ceiling
Mounting
Bracket

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS7
Assembly
1Preparing the canopy
3Assembling the fan
WARNING: Failure to properly install the cotter pin (EE) could
result in the fan loosening and possibly falling.
NOTE: If a longer downrod (not included) is needed, take out
the screw located in the hanger ball (II), lower the hanger ball
(II) and remove the cross pin (JJ). Remove all three pieces
from the downrod (LL) and assemble them onto the new longer
downrod before proceeding to the downrod installation. Be
sure to snap together the 3-pin connectors, the male plug (MM)
from the fan and female plug from the extension cord (CC).
Carefully feed the motor wires up through the downrod (LL).
Thread the downrod (LL) into the collar.
Align the holes and replace the clevis pin (FF) and cotter pin
(EE). Tighten the two collar set screws (GG).
Slip the coupling cover (E), canopy ring (B), and canopy (C)
onto the downrod (LL).
Carefully reinstall the hanger ball (II) onto the downrod (LL)
and reinstall the ground lead (KK) onto the downrod (LL),
being sure that the cross pin (JJ) is in the correct position,
the setscrew (HH) is tightened and wires are not twisted.
Preparing the motor
2
Remove the cotter pin (EE) and clevis pin (FF), and loosen the
two collar set screws (GG) from the motor collar.
Take out the set screw (HH) located in the hanger ball (II),
lower the hanger ball (II) and remove the cross pin (JJ).
Remove the hanger ball (II) from the hanger ball/downrod
assembly (D).
Remove the ground lead (KK) from the downrod assembly (D).
Remove the canopy ring (B) from the canopy (C).
Remove the two non-slotted canopy mounting screws with
lock washers (DD) from the canopy (C), and loosen the
slotted canopy mounting screws with lock washers (DD) on
the canopy (C).
Remove the canopy (C) from the mounting bracket (A) by
turning the canopy (C) counterclockwise.
F
A
DD
DD
C
B
EE
GG
GG
HH
D
JJ KK
II
FF
B
E
KK
II
LL
FF
EE
JJ
HH
C
GG
GG
CC
MM

8
WARNING: To reduce the risk of re, electric shock or other
personal injury, mount the fan only to an outlet box or supporting
system marked acceptable for fan support and use the mounting
screws provided with the outlet box.
Assembly — Hanging the Fan
4 Installing the mounting bracket to the
electrical box
Pass the 120-volt supply wires through the center hole in the
mounting bracket (A).
Attach the mounting bracket (A) on the outlet box by sliding
the mounting bracket (A) over the screws provided with the
outlet box. Note that the at side of the mounting bracket
(A) is toward the outlet box.
Securely tighten the two mounting screws.
WARNING: The tab in the ring must rest in the groove of
the hanger ball/downrod assembly (D). Failure to properly seat
the tab in the groove could cause damage to the wiring.

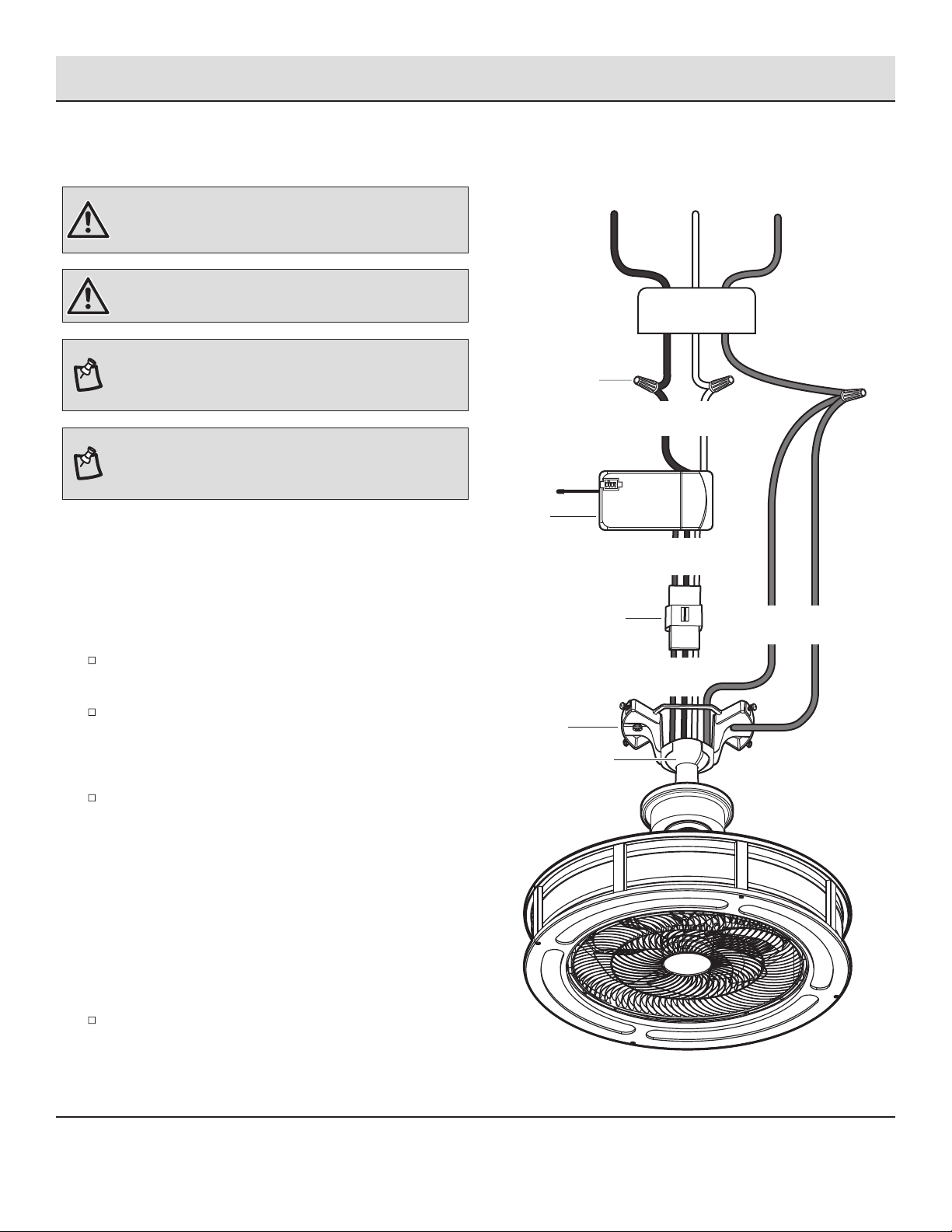

Hanging the fan to the mounting
bracket
5
Carefully lift the fan motor assembly (F) up to the mounting
bracket (A) and seat the hanger ball/downrod assembly (D)
in the mounting bracket (A) socket. Make sure the tab on
the mounting bracket (A) socket is properly seated in the
groove in the hanger ball/downrod assembly (D). This will
help to balance the ceiling fan.
A
Outlet Box
D
F
A

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS9
Assembly — Hanging the Fan (continued)

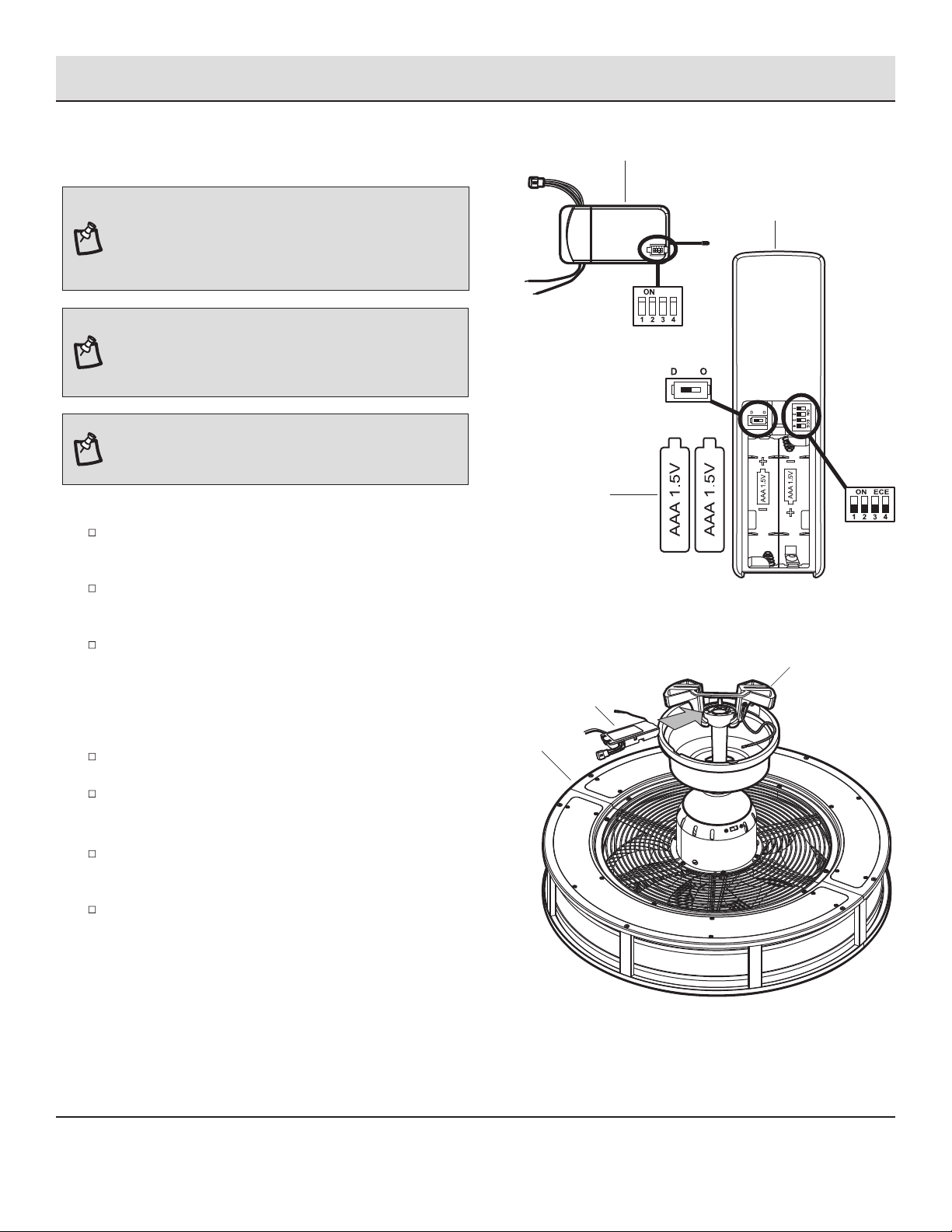

6Preparing the receiver and remote
control
Setting the Code on the Remote:
Remove the battery cover on the back of the remote control
(H) by pressing rmly on the arrow and sliding the cover off.
Slide the code switches to your choice of either up or down.
The factory setting is up.
The switch marked O/D controls the dimming function of the
lights. If using non-dimmable bulbs, use a ballpoint pen or
small screwdriver to set the switch to O to disable the
dimming function. If using dimmable bulbs, set the switch
to D to enable the dimming function.
Install two 1.5V AAA batteries (BB) (included).
Replace the battery cover on the remote control (H).
Setting the Code on the Receiver:
Slide the code switches on the receiver (G) to the same
positions as set on the remote control (H).
After checking the switches, insert the receiver (G) into the
mounting bracket (A) with the at side of the receiver (G)
facing the ceiling.
NOTE: The frequencies on your receiver and remote control
have been preset at the factory. Before installing the receiver,
make sure the dip switches on the receiver and remote control
are set to the same frequency. The dip switches on the remote
control are located inside the battery compartment.
NOTE: The battery will weaken with age and should be
replaced before leaking takes place as this will damage the
remote control. Dispose of the used battery properly and keep
the battery out of the reach of children.
NOTE: The frequency switches on the receiving unit are
covered with a rubber cover. Remove the rubber cover and then
replace it after making any changes to the frequency switches.
F
G
A
H
BB
G

10
NOTE: The fan must be installed at a maximum distance of
20 ft. from the remote control for proper signal transmission
between the remote control and the fan's receiving unit.
NOTE: If a longer downrod (not included) is needed, use the
extension cord (CC) to connect with the motor wires and
receiver.
WARNING: Check to see that all connections are tight,
including ground, and that no bare wire is visible at the wire
nuts, except for the ground wire.
Assembly — Hanging the Fan (continued)
7Making the electrical connections
If you feel you do not have enough electrical wiring knowledge
or experience, have your fan installed by a licensed electrician.
Follow the steps below to connect the fan to your household
wiring. Use the plastic wire nuts (AA) with your fan. Secure the
plastic wire nuts (AA) with electrical tape. Make sure there are
no loose strands or connections.
WARNING: To reduce the risk of electric shock, this fan
must be installed with an isolating wall control/switch.
Insert the receiver (G) into the mounting bracket (A) with
the at side of the receiver (G) facing the ceiling.
Make wire connections from the fan to the receiver (G).
From Fan To Receiver
3-Pin Connector -------------- 3-Pin Connector
Make wire connections from the receiver (G) and fan to
the outlet box as follows, using the wire nuts (AA).
From Receiver To Outlet Box
Black Wire "AC in L" --------- Black Wire (Hot)
White Wire "AC in N" -------- White Wire (Neutral)
From Fan To Outlet Box
Green Wires* ----------------- Green or Bare Wire (Ground)
* There are two green grounding leads: one from the mounting
bracket (A) and one from the hanger ball/downrod assembly (D).
Turn the wire nut connections upward, spreading them
apart so the green (ground) and white wires will be on one
side of the outlet box and the black wire will be on the
other side. Carefully tuck the connections up into the
outlet box.
White Blue Black
White Blue Black
AA
White
Green
Black
Black
Ground
conductor
White
Green
A
D
Outlet Box
3-Pin connectors
G

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS11
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (II) before attaching
the canopy (C) to the mounting bracket (A) by turning the canopy
housing until it drops into place.
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting screws with lock
washers (DD) are engaged and rmly tightened.
Assembly — Hanging the Fan (continued)
8 Installing the canopy
Slide the canopy (C) up to the ceiling. Make sure you have
placed the wires safely into the outlet box.
Secure the canopy (C) to the mounting bracket (A) with the
four canopy mounting screws with lock washers (DD) included
with your fan.
Raise up the canopy ring (B) and line up the four grooves
with the four screw heads on the canopy (C). Once lined up,
slide the canopy ring (B) and secure it to the canopy (C) until
snug.
Disassembling Your Fan
DD
Outlet Box
A
DD
D
B
C
NN
F
OO
This fan comes with a pre-assembled guard (NN) for your easy
installation. Check that all screws are tight and securely in place.
Remove the guard screws (OO) to disassemble the guard (NN), if
you need to disassemble the fan for any reason such as cleaning.

12

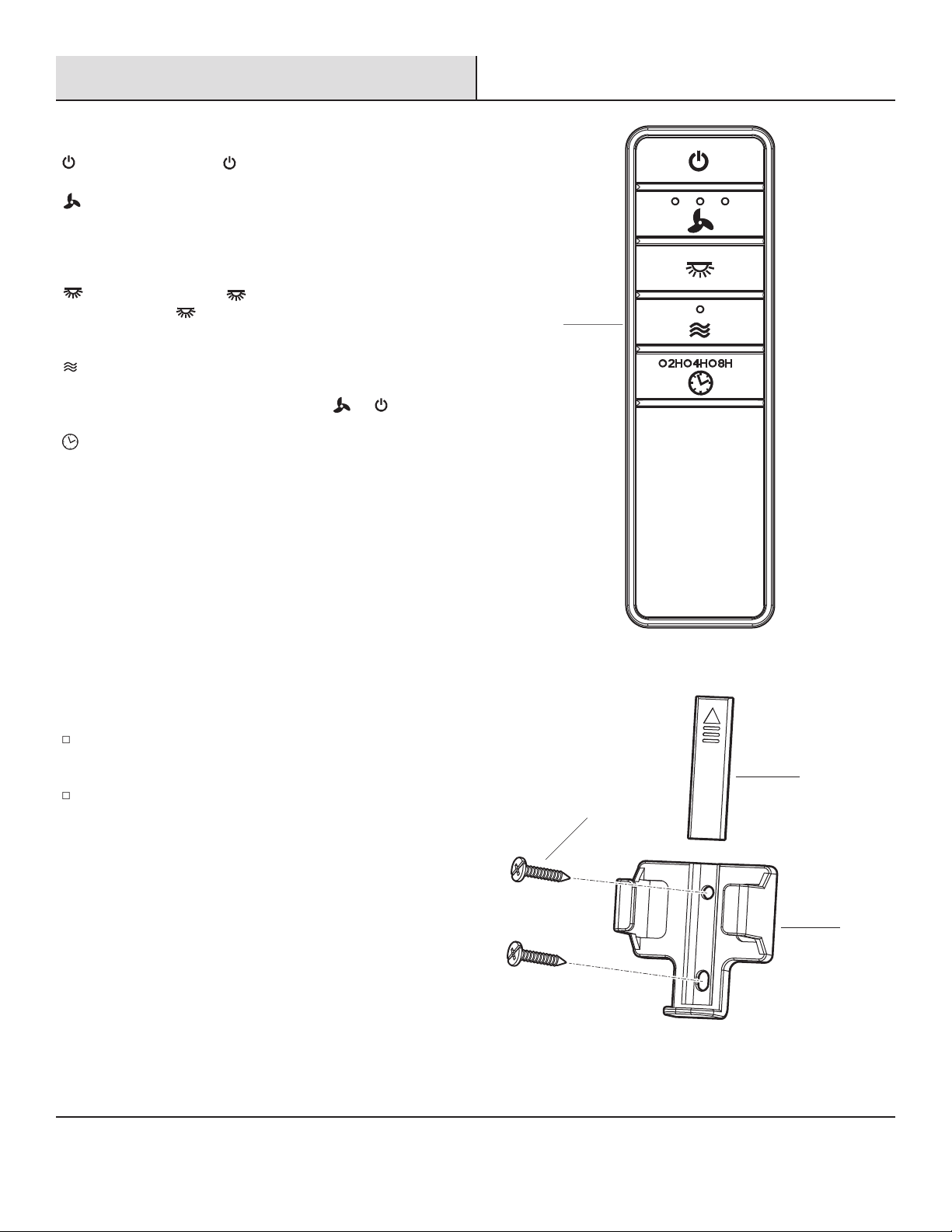

Operation
- Press and release the button to turn the fan on or off.
- Press and release 1 time - turns the fan on high speed.
- Press and release 2 times - turns the fan on medium speed.
- Press and release 3 times - turns the fan on low speed.
- Press and release 4 times - turns the fan off.
- Press and release the button to turn the light on or off.
Press and hold the button to activate the dimmer function if you
have previously set O/D dip switch in your remote to the “D” position.
- Press and hold this button for 3 seconds to enable Comfort
BreezeTM ; this will change your fan speed randomly, simulating a
relaxing breeze. To cancel this feature press or .
- While the fan is on press 1 time - turns on a 2 hour run timer.
- While the fan is on press 2 times - turns on a 4 hour run timer.
- While the fan is on press 3 times - turns on an 8 hour run timer.
REMOTE CONTROL OPERATING INSTRUCTIONS
H
QQ
RR
PP
INSTALLING THE REMOTE CONTROL HOLDER
Attach the remote control holder (PP) with the two remote
control holder mounting screws (QQ).
Replace the remote control holder cover (RR) into the
remote control holder (PP).

Please contact 1-800-986-3460 for further assistance.
HOMEDEPOT.COM/HOMEDECORATORS13

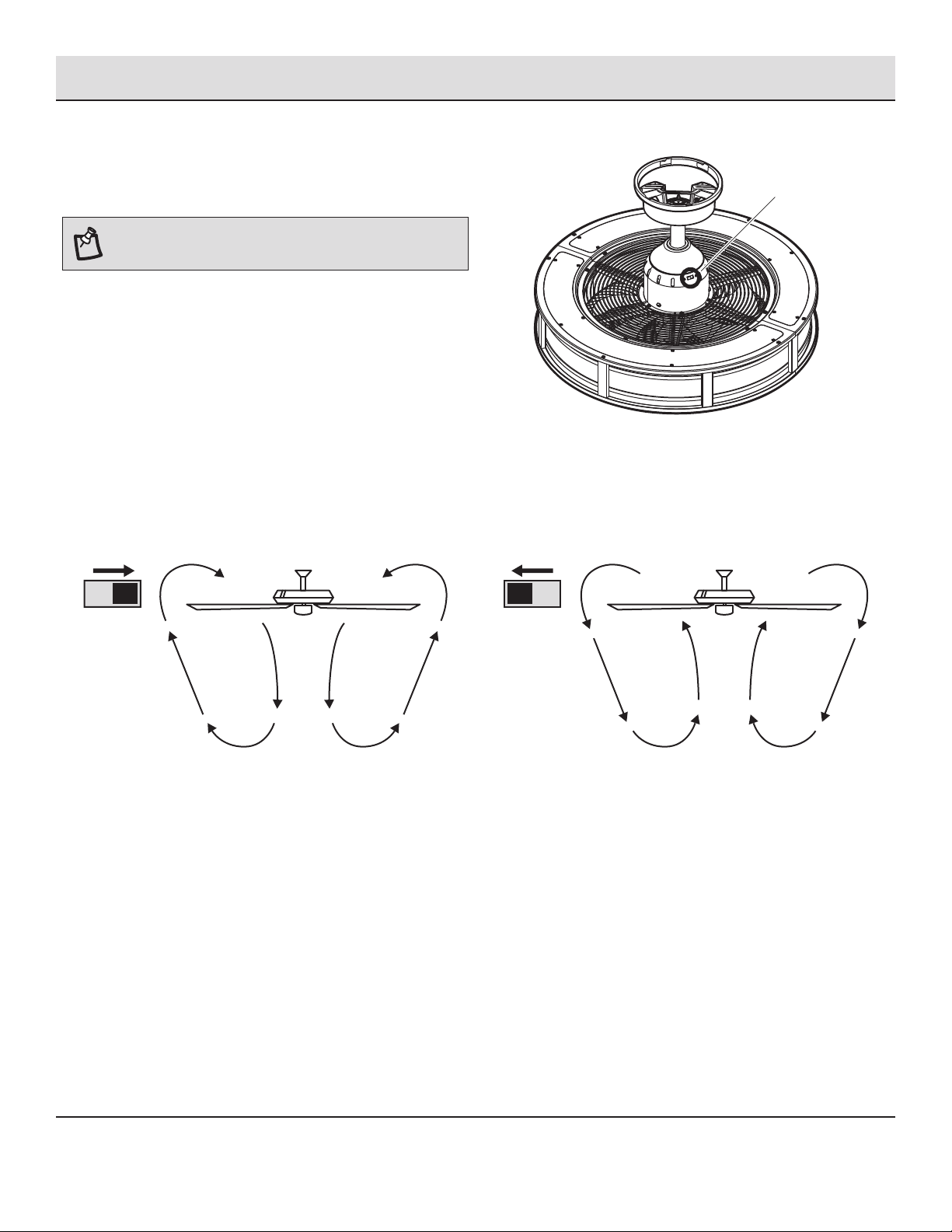

The reverse switch is located on the top of the motor housing. Slide
the switch to the right for warm weather operation. Slide the switch
to the left for cool weather operation.
Operation (continued)
REVERSE SWITCH OPERATING INSTRUCTIONS
NOTE: Wait for the fan to stop before reversing the direction
of the blade rotation.
Warm weather - (Clockwise Direction) A downward air ow creates
a cooling effect. This allows you to set your air conditioner on a
warmer setting without affecting your comfort.
Cool weather - (Counterclockwise Direction) An upward air ow
moves warm air off the ceiling. This allows you to set your heating
unit on a cooler setting without affecting your comfort.
Reverse switch

14
Do not connect the fan with wall mounted variable speed control(s).
Make sure the frequency switches are set correctly.
The remote control is
not working.
Problem Solution
Check the main and branch circuit fuses or breakers.
Check the line wire connections to the fan and switch wire connections in the switch housing.
Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
Make sure all motor housing screws are snug.
Make sure the screws that attach the fan blade to the motor hub are tight.
Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this time.
If using the ceiling light kit, make sure the glassware is secured tightly.
Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
Troubleshooting
Care and Cleaning
Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. Because of the fan’s
natural movement, some connections may become loose over time. It is not necessary to remove the fan from the ceiling.
Clean your fan periodically. Use only a soft brush or lint-free cloth to avoid scratching the nish. The plating is sealed with a lacquer to
minimize discoloration or tarnishing.
(Optional) Apply a light coat of furniture polish to the wood blades.
(Optional) Cover small scratches with a light application of shoe polish.
Do
Use water when cleaning. Water could damage the motor, or the wood, or possibly cause an electrical shock.
Apply oil to your fan or motor. The motor has permanently-lubricated sealed ball bearings.
Do not

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Retain this manual for future use.
