Home Decorators Collection KENSGROVE YG493OD-ORB User manual

USE AND CARE GUIDE
KENSGROVE (OUTDOOR) 72 IN. CEILING FAN
Item #688-762
Model #YG493OD-ORB
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
THANK YOU
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST Saturday

Operation ......................................................................
Wall Switch Operating Instructions ........................................
Reverse Switch Operating Instructions ..................................
Care and Cleaning .......................................................
Troubleshooting ..........................................................
Service Parts ...............................................................
17
17
18
18
19
20
Table of Contents
2
Table of Contents ..........................................................
Safety Information .........................................................
Warranty .........................................................................
Pre-Installation ..............................................................
Tools Required .........................................................................
Hardware Included ..................................................................
Package Contents ....................................................................
Dual Mounting Instructions ......................................................
Installation .....................................................................
Assembly ........................................................................
Standard Ceiling Mounting .......................................................
Close-to-Ceiling Mounting .....................................................
Hanging the Fan ....................................................................
Attaching the Fan Blades .......................................................
Installing the Light Kit ............................................................
2
3
4
4
4
4
5
6
7
8
9
9
10
11
15
16

Safety Information
3HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
WARNING: To reduce the risk of electrical shock or fire, do
not use this fan with any solid-state fan speed control device.
It will permanently damage the electronic circuitry.
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (also referred to as flanges), when
installing the brackets, balancing the blades or cleaning the
fan.
WARNING: Do not insert foreign objects between rotating
fan blades.
WARNING: To reduce the risk of fire, electric shock or
personal injury, mount the fan to the outlet box marked
acceptable for fan support with the screws provided with the
outlet box.
CAUTION: To reduce the risk of personal injury, use only
the screws provided with the outlet box.
1. To reduce the risk of electric shock, ensure electricity has
been turned off at the circuit breaker or fuse box before
beginning.
2. All wiring must be in accordance with the National Electrical
Code “ANSI/NFPA 70-1999” and local electrical codes.
Electrical installation should be performed by a qualified
licensed electrician.
3. The outlet box and support structure must be securely
mounted and capable of reliably supporting a minimum of 35
lbs. Use only UL-listed outlet boxes marked “FOR FAN
SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. clearance
from the trailing edge of the blades to the floor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other
items, be cautious when working around or cleaning the fan.
7. Do not use water or detergents when cleaning the fan or fan
blades. A dry dust cloth or lightly dampened cloth will be
suitable for most cleaning.
8. After making electrical connections, spliced conductors
should be turned upward and pushed carefully up into the
outlet box. The wires should be spread apart with the
grounded conductor and the equipment-grounding conductor
on one side of the outlet box and ungrounded conductor on
the other side of the outlet box.
9. All setscrews must be checked and retightened where
necessary before installation.
10. This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Warning: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for
help.

SPECIFICATIONS
SPECIFICATIONS

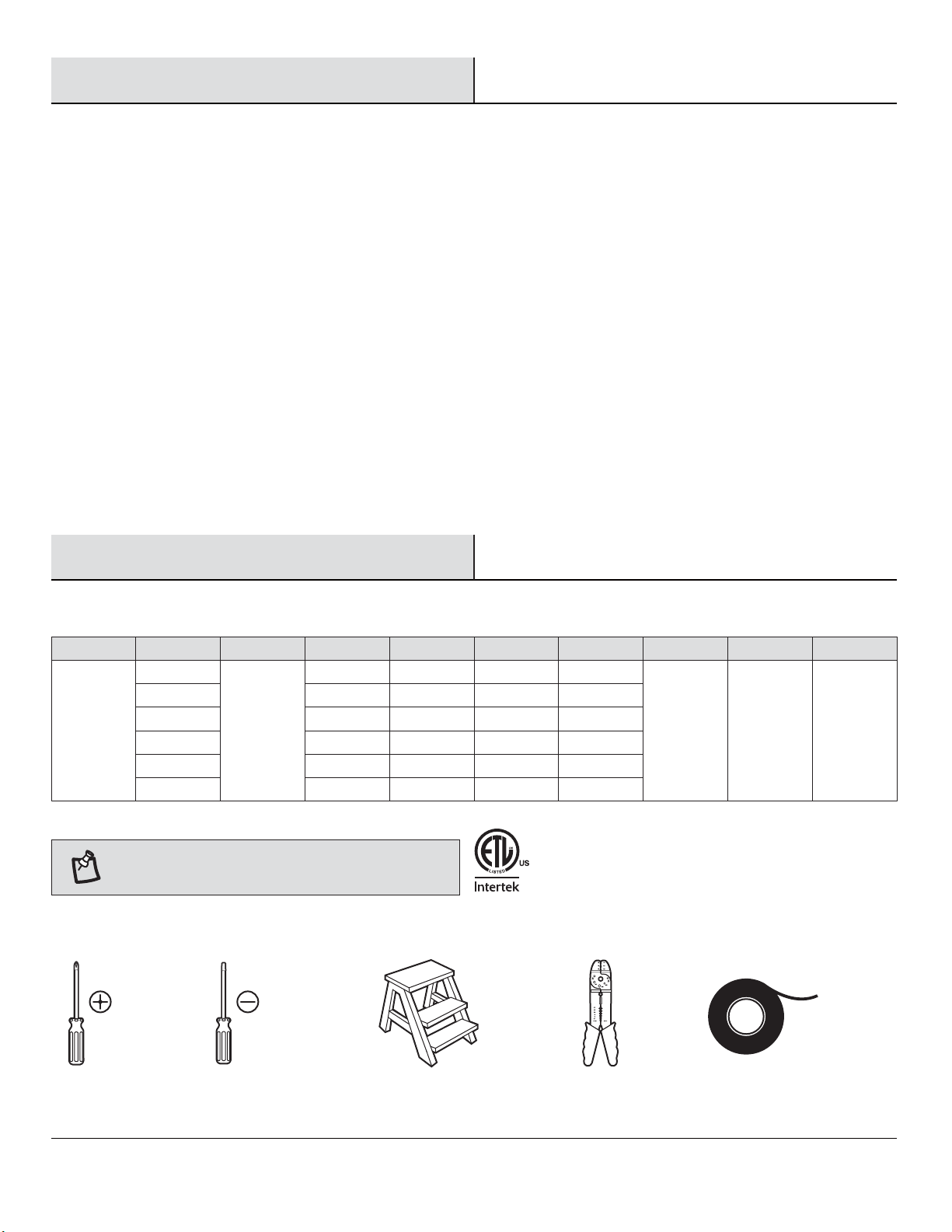

TOOLS REQUIRED
TOOLS REQUIRED
Phillips
screwdriver
Electrical
tape
Wire
stripper
Flat blade
screwdriver
Step
ladder
NOTE: These are approximate measures. They do not
include amps and wattage used by the light kit.
Warranty
4
Pre-InstallationPre-Installation
We warrant the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a period
of lifetime after the date of purchase by the original purchaser. We also warrant that all other fan parts, excluding any glass or acrylic
blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the
date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or
superior model if the product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All
costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident, misuse, improper installa-
tion or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions this warranty does not cover
any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful
life when protected from varying weather conditions. A certain amount of “wobble” is normal and should not be considered a defect.
Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. We hereby disclaim
any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted by
law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty.
Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall
not be liable for incidental, consequential, or special damages arising out of or in connection with product use or performance except as
may otherwise be accorded by law. Some states do not allow the exclusion of incidental or consequential damages, so the above
exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from
state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product as part of a claim on the warranty
must be paid by the customer.
Contact the Customer Service Team at 1-800-986-3460 or visit www.HOMEDEPOT.COM/HOMEDECORATORS
72 in.
Low
Medium Low
Medium
Medium High
High
Extra High
120
Fan size
Fan size
Watts
Watts
RPM
RPM
CFM
CFM
Speed
Speed
Volts
Volts
Amps
Amps
2.61 cu. ft.
N.W.
N.W.
G.W.
G.W.
C.F.
C.F.
0.06
0.08
0.12
0.18
0.28
0.43
2.79
4.21
6.82
11.23
18.70
29.88
30
43
56
69
82
95
2626
3805
5029
6367
7759
8881
12.05 kg
(26.52 lbs.)
13.73 kg
(30.20 lb)
3171583

Pre-Installation (continued)
HARDWARE INCLUDED
HARDWARE INCLUDED
NOTE: Hardware shown to actual size unless noted
otherwise in the table below.
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
Plastic wire nut (not to scale)
Canopy mounting bracket screw with washer (preassembled)
Blade attachment screw and fiber washer (not to scale)
Blade arm screw and lock washer (preassembled)
Wall plate screw (not to scale)
Wall control mounting screw (not to scale)
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Light kit mounting screw (preassembled)
Plastic wire nut (not to scale)
12V MN21/A23 battery (not to scale)
Part
Part
Description
Description
3
4
25
16
2
2
1
1
1
1
2
6
3
4
1
Quantity
Quantity
KK
JJ
LL
MM
NN
OO
5HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
AA
BB
CC
DD
EE
FF
GG
HH
II

PACKAGE CONTENTS
PACKAGE CONTENTS
Pre-Installation (continued)
6
A
E
F
G
J
K
H
I
B
C
D
M
L
Part
Part
H
I
J
K
L
M
Description
Description
Blade
Blade arm
16 watt LED Light kit
Glass shade
Wall plate
Wall control
Quantity
Quantity
8
8
1
1
1
1
Part
Part
A
B
C
D
E
F
G
Quantity
Quantity
1
1
1
1
1
1
1
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover (preassembled)
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly

Pre-Installation (continued)
DUAL MOUNTING INSTRUCTIONS
DUAL MOUNTING INSTRUCTIONS
This ceiling fan is supplied with two types of hanging assemblies: the
standard ceiling installation using the downrod with ball and socket
mounting, and the "close-to-ceiling" mounting. The "close-to-ceiling"
mounting is recommended in rooms with less than 8 ft. ceilings or in
areas where additional space is desired from the floor to the fan blades.
When using the standard downrod installation, the distance from the
ceiling to the bottom of the fan blades will be approximately 12 in. The
"close-to-ceiling" installation reduces the distance from the ceiling to the
bottom of the fan blades to approximately 9 in.
Once you have decided which ceiling installation you will use, refer to the
corresponding sections and procedures during the assembly period.
Where necessary, each section of the instructions will note the different
procedures to follow for the two types of installation.
Standard Ceiling Mounting
Close-to-Ceiling Mounting
7 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

To hang your fan where there is an existing fixture but no ceiling
joist, you may need an installation hanger bar (QQ) (not included)
as shown above.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box (PP) (not included) directly to the
building structure. Use appropriate fasteners and materials
(not included). The outlet box and its bracing must be able
to fully support the weight of the moving fan (at least 35
lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box (PP) (not included).
PP
PP
QQ
PP
PP
A
Installation
MOUNTING OPTIONS
MOUNTING OPTIONS
WARNING: To reduce the risk of fire, electric shock, or
personal injury, mount the fan to an outlet box marked
acceptable for fan support using the screws provided with the
outlet box. An outlet box commonly used for the support of
lighting fixtures may not be acceptable for fan support and
may need to be replaced. If in doubt, consult a qualified
electrician.
NOTE: You may need a longer downrod to maintain proper
blade clearance when installing on a steep, sloped ceiling.
The maximum angle allowable is 18° away from horizontal. If
the canopy (C) touches the hanger ball/downrod assembly (E),
then remove the decorative canopy bottom cover (D) and turn
the canopy (C) 180° before attaching the canopy (C) to the
mounting bracket (A).
8

1Preparing the canopy 2Preparing the motor
□Remove the canopy ring (B) from the canopy (C).
□Remove the two non-slotted mounting bracket screws
(BB) from the canopy (C), and loosen the slotted
mounting bracket screws (BB) on the canopy (C).
□Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
3Assembling the fan
□Remove the cotter pin (HH) and clevis pin (GG), and
loosen the two collar setscrews (KK) from the motor
collar.
□Take out the setscrew (JJ) located in the hanger ball
(RR), lower the hanger ball (RR) and remove the cross
pin (II). Remove the hanger ball (RR) from the hanger
ball/downrod assembly (E).
Assembly — Standard Ceiling Mounting
A
BB
BB
C
B
HH
GG
KK KK
JJ
E
II
RR
WARNING: Failure to properly install the cotter pin (HH)
could result in the fan loosening and possibly falling.
B
G
F
RR
C
SS
KK
KK
GG
HH
JJ
II
□Carefully feed the motor wires up through the
downrod (SS). Thread the downrod (SS) into the
collar.
□Align the holes and replace the clevis pin (GG) and
cotter pin (HH). Tighten the two collar setscrews (KK).
□Slip the coupling cover (F), canopy ring (B), and
canopy (C) onto the downrod (SS).
□Carefully reinstall the hanger ball (RR) onto the
downrod (SS), being sure that the cross pin (II) is in
the correct position, the setscrew (JJ) is tightened
and wires are not twisted.
NOTE: If a longer downrod (not included) is needed, take
out the screw located in the hanger ball (RR), lower the
hanger ball (RR) and remove the pin (II). Remove all three
pieces from the downrod and assemble them onto the new
longer downrod before proceeding to the downrod installa-
tion.
9HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

10

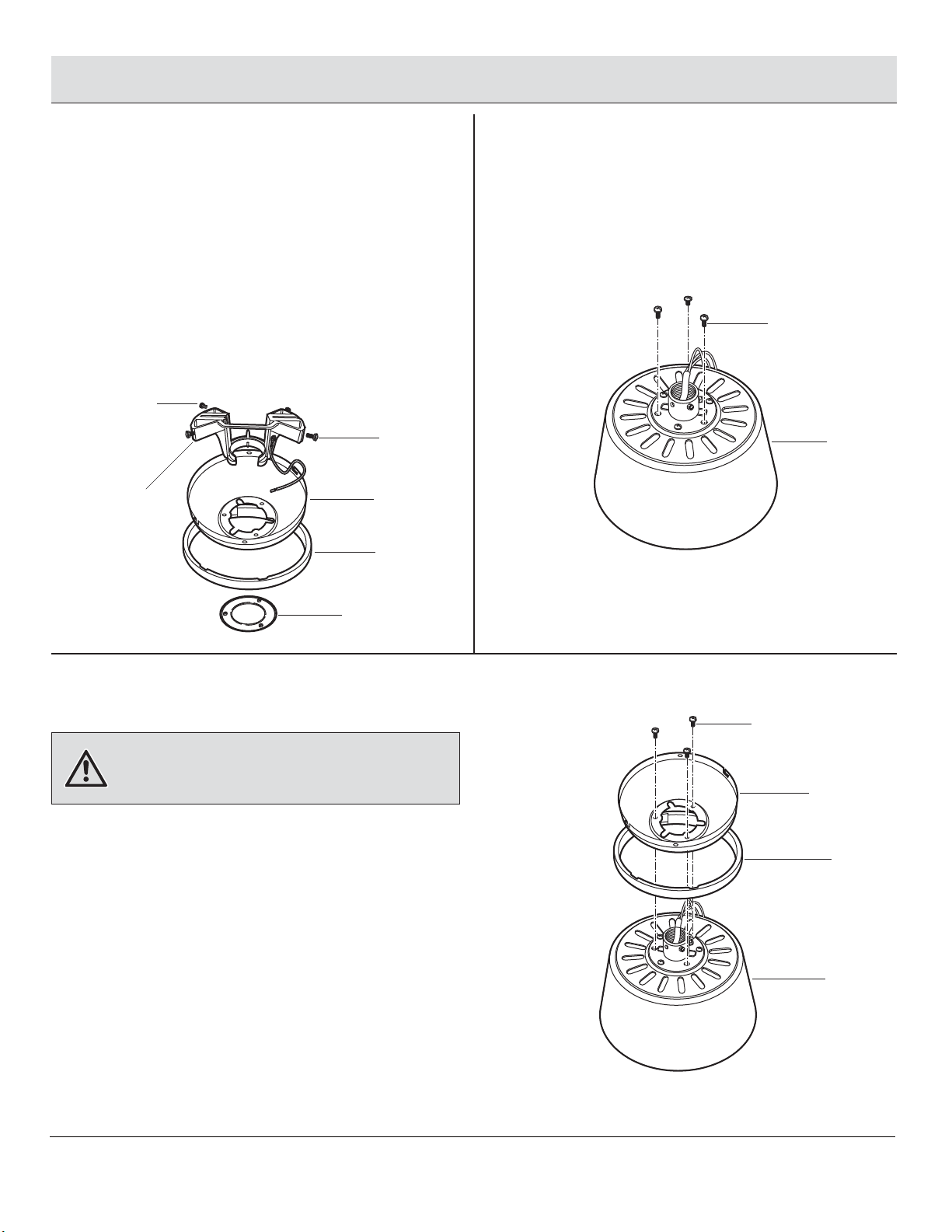

Assembly — Close-to-Ceiling Mounting
12
3Assembling the fan
Preparing the motorPreparing the canopy
□Remove three of the six collar mounting screws with
lock washers (LL) (every other one) from the collar on
top of the fan motor assembly (G).
WARNING: Failure to completely tighten the three collar
mounting screws (LL) could result in the fan becoming loose
and possibly falling. C
B
G
LL
LL
G
D
□Remove the canopy ring (B) from the canopy (C).
□Remove the mounting bracket (A) from the canopy (C)
by loosening the four canopy mounting bracket
screws (BB) on the top of the canopy (C). Remove the
two non-slotted canopy mounting bracket screws
(BB) and loosen the slotted canopy mounting bracket
screws (BB).
□Remove the canopy bottom cover (D) from the
canopy (C).
A
BB
BB
C
B
□Make sure the slot openings of the canopy ring (B)
are on top, and then proceed to place the canopy ring
(B) and canopy (C) over the collar at the top of the fan
motor assembly (G).
□Align the mounting holes in the bottom of the canopy
(C) with the holes in the top of the fan motor assem-
bly (G). Fasten using the three collar mounting screws
with lock washers (LL) previously removed.
□Tighten the collar mounting screws (LL) securely.

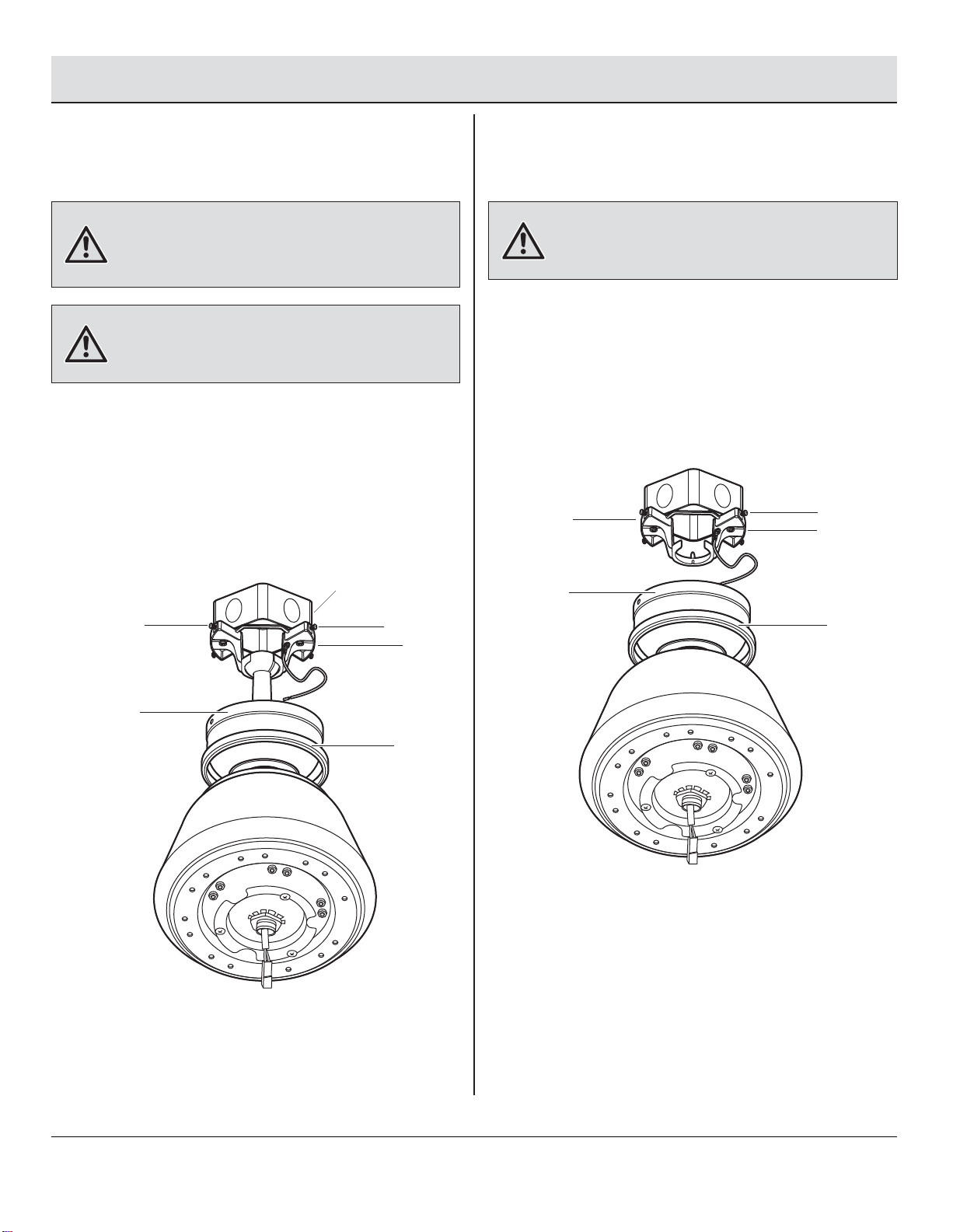

Assembly — Hanging the Fan
4Attaching the fan to the
electrical box
5b5a Hanging instructions for
standard mounting
Hanging instructions for
close-to-ceiling mounting
□Pass the 120-volt supply wires through the center
hole in the mounting bracket (A).
□Attach the mounting bracket (A) on the outlet box (PP)
by sliding the mounting bracket (A) over the screws
provided with the outlet box. When using “close-to-
ceiling” mounting, it is important that the mounting
bracket (A) be level. If necessary, use leveling
washers (not included) between the mounting
bracket (A) and the outlet box (PP). Note that the flat
side of the mounting bracket (A) is toward the outlet
box (PP).
□Securely tighten the two mounting screws.
WARNING: To reduce the risk of fire, electric shock or
other personal injury, mount the fan only to an outlet box or
supporting system marked acceptable for fan support and
use the mounting screws provided with the outlet box.
WARNING: The tab in the ring must rest in the groove of
the hanger ball (E). Failure to properly seat the tab in the
groove could cause damage to the wiring.
WARNING: The hook is only to hold the fan while attaching
wiring. Failure to hang as instructed may result in the tab
breaking causing the fan to fall. The hook must pass from the
inside to the outside of the canopy.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and seat the hanger ball (E) in
the mounting bracket (A) socket. Make sure the tab
on the mounting bracket (A) socket is properly seated
in the groove in the hanger ball (E). This will help to
balance the ceiling fan.
□Carefully lift the fan motor assembly (G) up to the
mounting bracket (A) and hang the fan on the hook
provided using one of the holes at the outer rim of the
canopy (C).
A
PP
A
A
G
E
C
11
G
C
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan (continued)

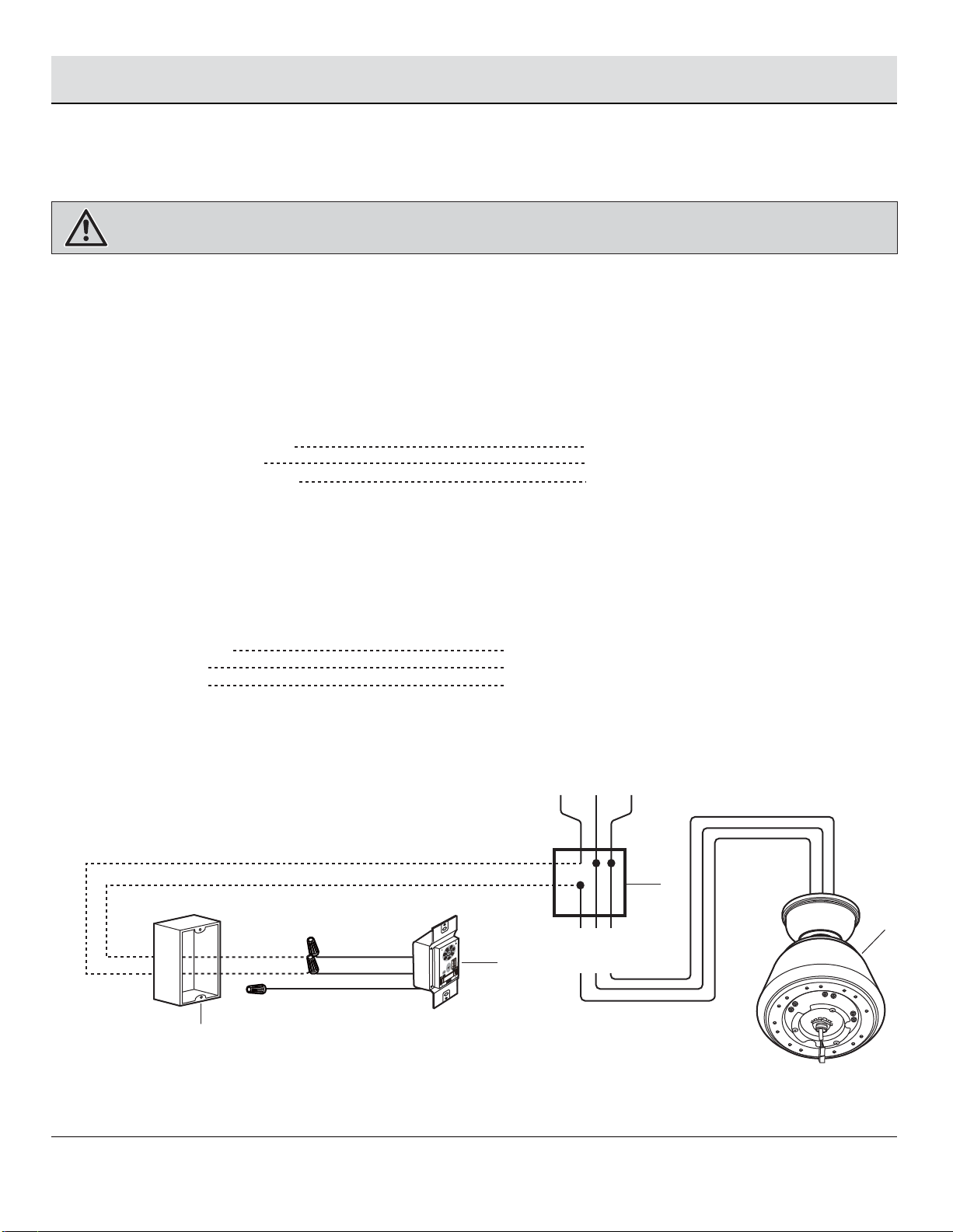

6Making the electrical connections
If you feel you do not have enough electrical wiring knowledge or experience, have your fan installed by a licensed electrician.
□Disconnect the power and remove the existing wall plate and switch from the wall outlet box.
□Make wire connections as follows, using the wire nuts.
a. Wall control wire connection
• If your wall outlet box (TT) has a ground wire (green or bare copper), connect the wall control's yellow/green
ground wire to it; otherwise connect the wall control's yellow/green ground wire directly to one of the screws from
the wall outlet box (TT).
CONNECT
(From wall control)
Black wire (TO MOTOR L)
Black wire (AC IN L)
Yellow/green ground wire
TO
(From wall outlet box)
White wire
Black wire from wall control's
Outlet box green wire
Black White
Ground
conductor
WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.
b. Fan wire connection
CONNECT
(From fan)
Black fan wire
White wire
Green wire
TO
(Conductor cable between ceiling and wall outlet box)
White wire
White wire from A/C supply source
Ground conductor of 120V supply, it may be a bare
wire or a wire with green colored insulation.
PP
M
G
Yellow/green ground
TT
Black
Black
Black
Black
White
White
Black
White
Green
12

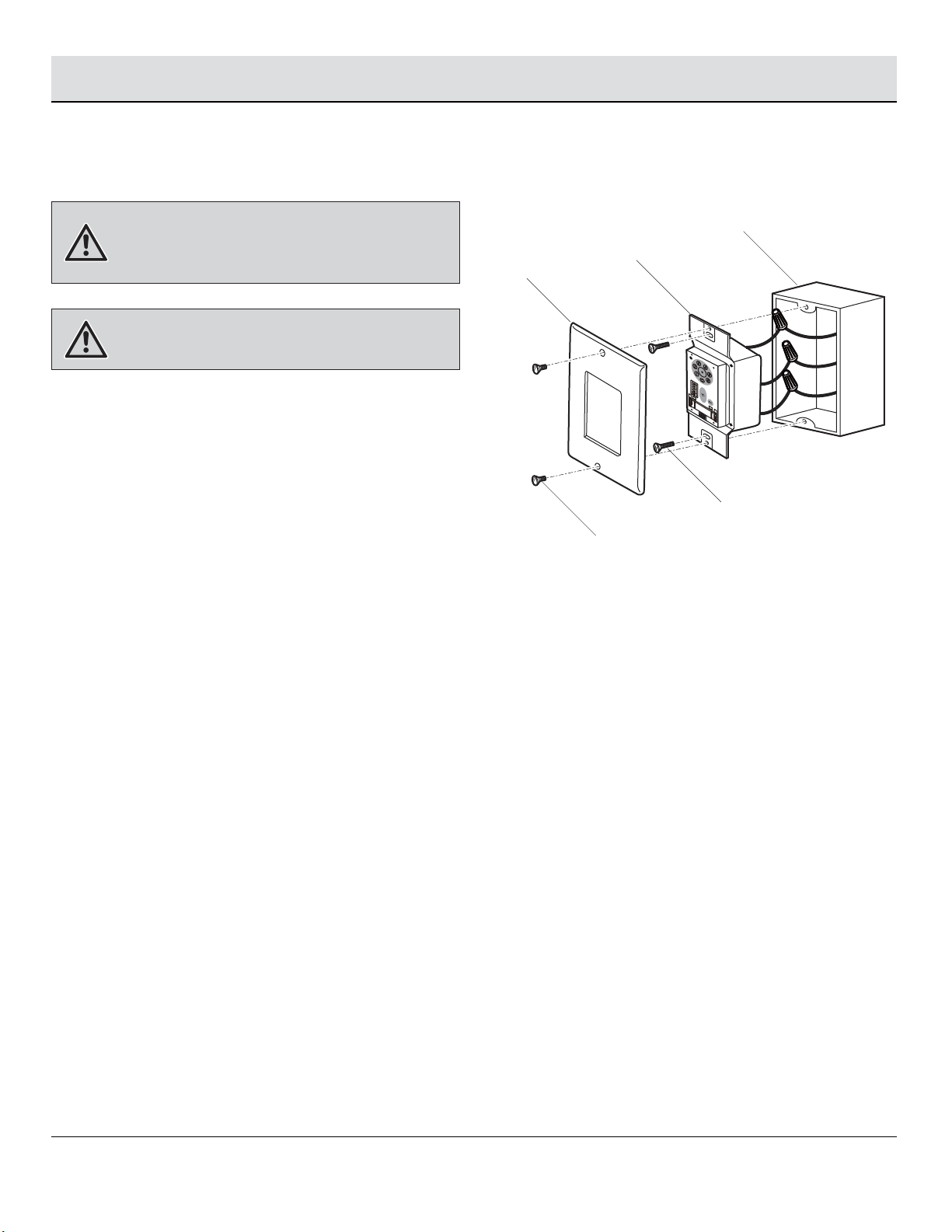

7Installing the wall switch
□Carefully tuck the wire connections inside the
junction box. Secure the wall switch (M) with the two
wall switch screws (FF) provided.
□Attach the wall plate (L) over the wall switch (M) and
secure with the two wall plate screws (EE) provided.
Assembly — Hanging the Fan (continued)
WARNING: Hook up in "series only". Do not connect the
hot and neutral wires of the electric circuit to the wall switch
- damage to the switch and possible fire could occur.
WARNING: Remember to shut the power off at the circuit
breaker or fuse box.
M
EE
FF
L
TT
13 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Assembly — Hanging the Fan (continued)
8a Standard ceiling mounting 8b Close-to-ceiling mounting
BB
PP
BB
A
BB
A
BB
WARNING: The locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy mounting bracket screws
(BB) are engaged and firmly tightened.
WARNING: Make sure the tab on the mounting bracket (A)
properly sits in the groove in the hanger ball (E) before
attaching the canopy (C) to the mounting bracket (A) by
turning the canopy (C) until it drops into place.
WARNING: Locking slots of the canopy (C) are provided
only as an aid to mounting. Do not leave the fan assembly
unattended until all four canopy screws (BB) are engaged and
firmly tightened.
□Slide the canopy (C) up to the ceiling. Make sure you
have placed the wires safely into the outlet box (PP).
□ Secure the canopy (C) to the mounting bracket (A)
with the four canopy mounting bracket screws and
lock washers (BB) included with your fan.
□Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
□Remove the fan from the hook on the mounting
bracket (A).
□Secure the canopy (C) to the mounting bracket (A)
with the four mounting bracket screws with lock
washers (BB) provided.
□Slide the canopy ring (B) over the canopy (C) and
tighten by turning the ring (B).
B
C
B
C
14

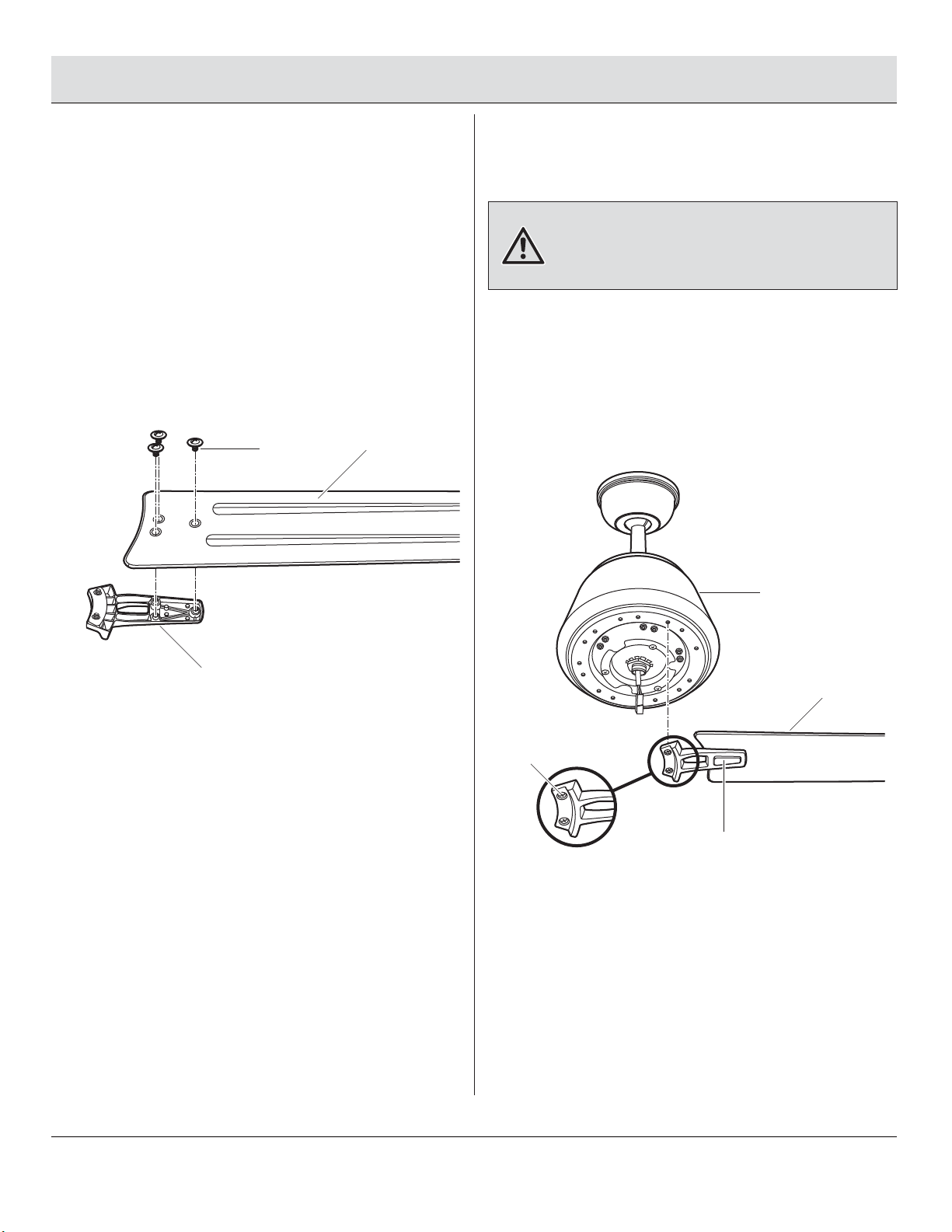

Assembly — Attaching the Fan Blades
Attaching the blades to the
blade arms
910
Fastening the blade
assemblies to the motor
WARNING: To reduce the risk of personal injury, do not
bend the blade arms (I) while installing, balancing the blades
(H), or cleaning the fan. Do not insert foreign objects between
rotating fan blades (H).
□Fasten the blade assemblies to the fan motor
assembly (G).
□Tighten the two blade arm screws and lock washers
(DD) already installed in the blade arms (I).
□Repeat this procedure for the remaining blade arms
(I).
G
H
I
DD
□Attach the blades (H) to the blade arms (I) using the
three blade attachment screws and fiber washers
(CC). Start a screw with fiber washer (CC) into the
blade arms (I), but do not tighten.
□Repeat for the two remaining blade attachment
screws and fiber washers (CC).
□Tighten each screw securely starting with the center
screw. Make sure the blade (H) is straight.
□Repeat these steps for the remaining blades (H).
H
CC
I
15 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

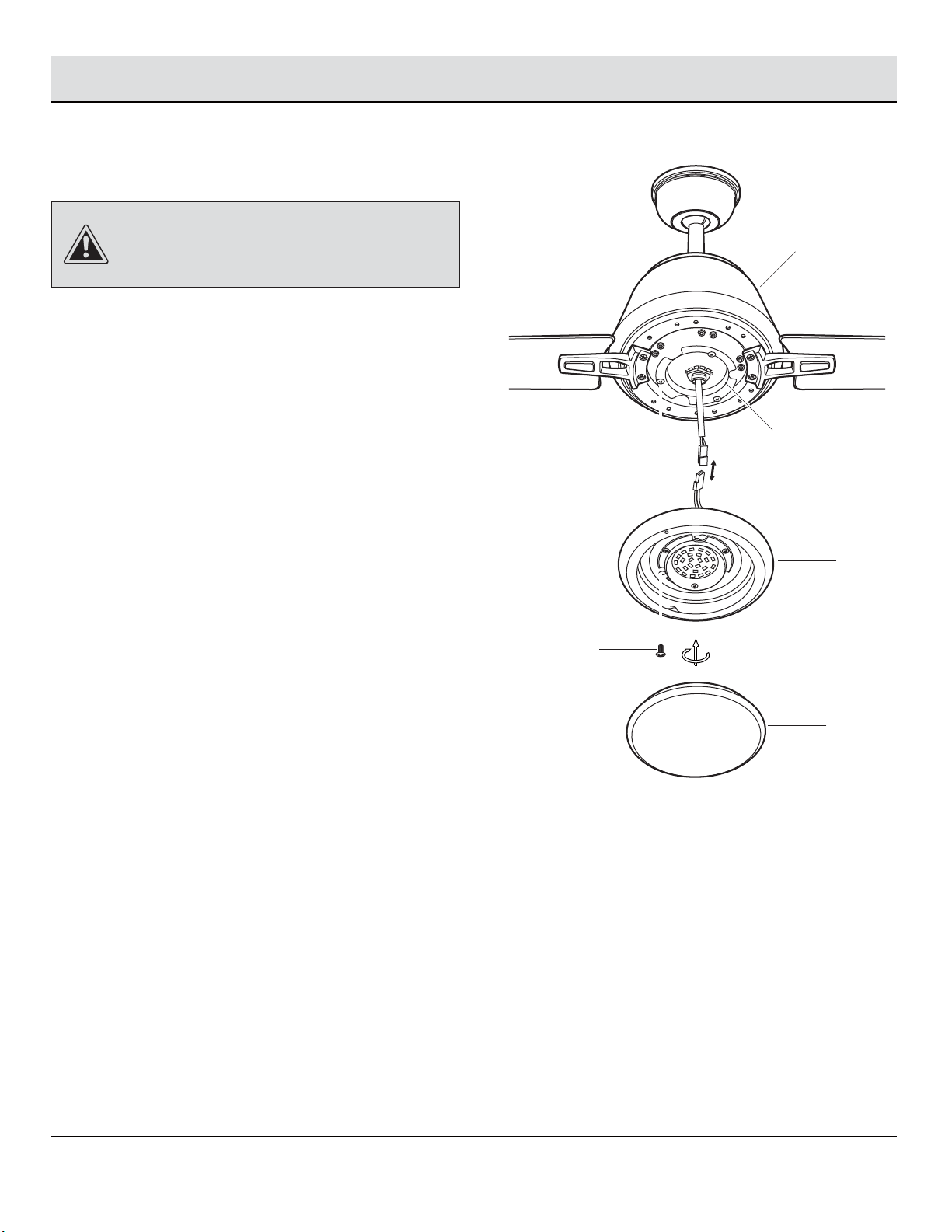

11 Attaching the LED light kit
and glass shade
Assembly — Installing the Light Kit
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□Remove one of the three light kit mounting screws
(MM) from the mounting ring (UU) and loosen the
other two screws. (Do not remove.)
□While holding the 16W LED light kit (J) under the fan
motor assembly (G), make the 2-pin wire
connections:
- Red to white
- Black to black
□Place the key holes in the 16W LED light kit (J) over
the two mounting screws (MM) previously loosened
from the mounting ring (UU). Turn the 16W LED light
kit (J) until the 16W LED light kit (J) locks in place at
the narrow section of the key holes. Securely tighten
the two light kit mounting screws (MM) previously
loosened and the one (MM) previously removed.
□Raise the glass shade (K) up against the 16W LED
light kit (J) and secure it to the fan by turning the
glass shade (K) clockwise until snug. DO NOT
OVERTIGHTEN.
UU
G
J
MM
K
16

Operation
□Your DC brushless motor is equipped with an automatically
learned type wall control. Restore power to ceiling fan and
test the wall control as below for proper operation.
□Install a 12V MN21/A23 battery (OO) (included) into the wall
control (L). To prevent damage to the wall control (L), remove
the battery if not used for long periods.

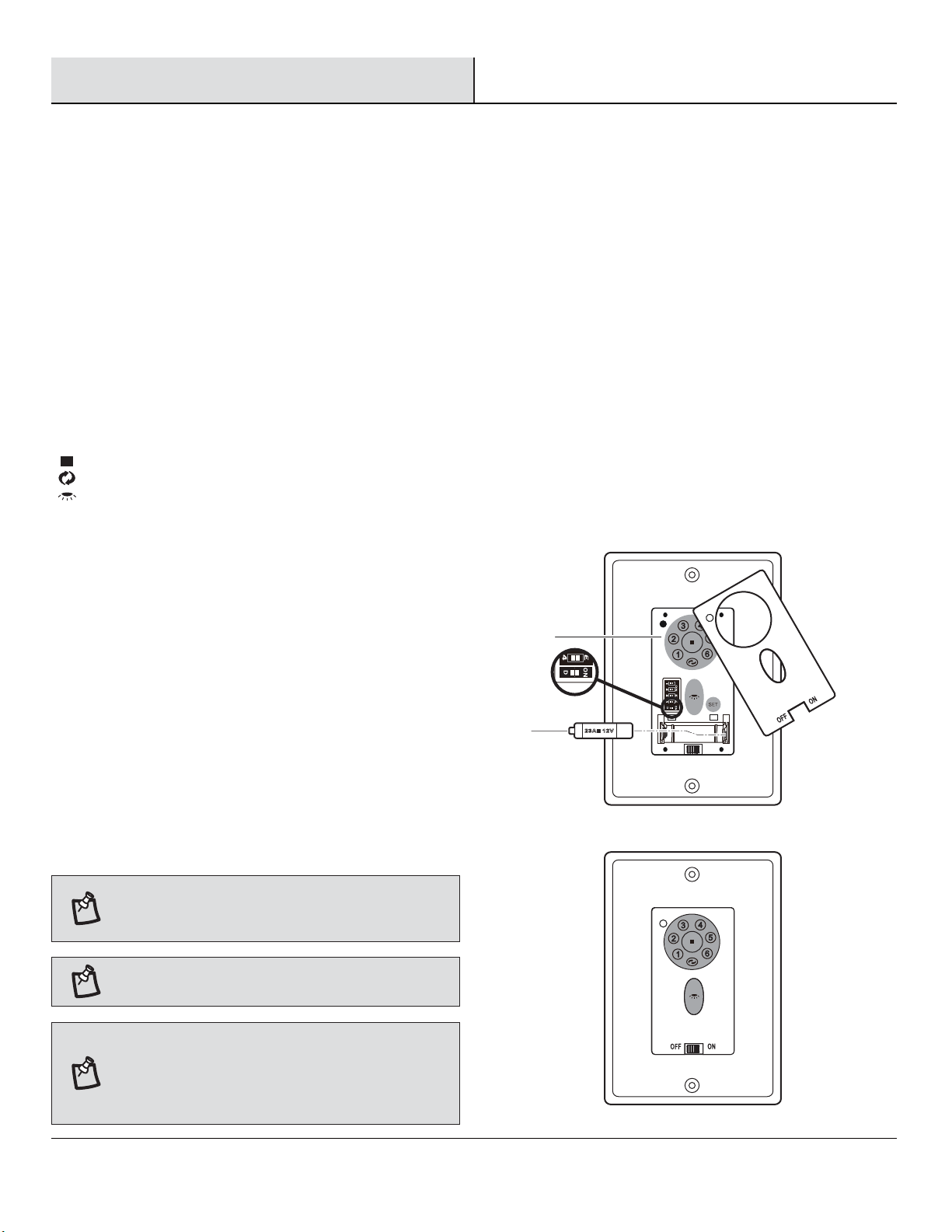

WALL SWITCH OPERATING INSTRUCTIONS
WALL SWITCH OPERATING INSTRUCTIONS
Remote Control Button Definitions
Remote Control Button Definitions
These six buttons are used to set the fan speed as follows:
1 = low
2 = medium low
3 = medium
4 = medium high
5 = high
6 = extra high
button: Turns the fan off.
button: Controls fan direction.
button: Controls light. Switch the “D” and “ON” dip switch on
the transmitter to set the light to either the “ON/OFF” or
“Dimmable” condition.
ON - OFF Slide button: This button turns the power on and off to
the fan and light.
Setting the Remote Control
Setting the Remote Control
Follow the below steps to set the remote control:
The auto learning function will only mandate within 60 seconds
when turning the fan’s AC power ON.
□Select desired frequency from the back of transmitter.
□Remove the panel from the wall control; press the “SET”
button, and hold the “SET” button for over 5 seconds. Once
the receiver has detected the frequency, the light will flash
twice, and the fan will automatically begin to operate and
start to rotate in the counterclockwise direction and on the
highest RPM for 3 minutes. When counterclockwise rotation
has finished, the fan will automatically reverse to clockwise
direction again to the highest RPM for 3 minutes. Fan will shut
off when the self calibration test has finished. The total self
calibration test will last about 6 minutes.
L
OO
NOTE: If the self calibration test failed, turn the AC
power off; restore power and process the self calibra-
tion test again.
NOTE: The learning frequency function and self
calibration test will continue to retain the last set
frequency and calibration set even when the AC power
is shut off. If the frequency is changed the self calibra-
tion test will occur again.
NOTE: During self calibration test, the remote is
non-fuctional.
“D” and “ON” dip switch:
□The “ON” selection is the light dimmable selection and is to
be used with all bulbs except for CFL bulbs. The “D” selection
is the light ON only (no dimming function) and is to be used
with CFL bulbs as CFL bulbs in most cases cannot be used
with dimming controllers.
This receiver provides the following protective function:
□Lock Rotor Position: The DC motor has a built-in safety against
a stalled or locked rotor condition (stalled blade rotation). If
there is an obstruction or fault with the motor, the current
monitoring function will automatically turn power off to the
motor after 30 seconds. Remove the obstruction and turn the
AC power off. Restore power and re-start fan motor.
□Over 80W protection: When the receiver detects motor power
consumption which is greater than 80W, the receiver power
will be stopped and operation will immediately discontinue.
Wait for 5 seconds and then turn the receiver power back on.
17 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Operation (continued)
REVERSE SWITCH OPERATING INSTRUCTIONS
REVERSE SWITCH OPERATING INSTRUCTIONS
Speed settings for warm or cool weather depend on factors such
as the room size, ceiling height, number of fans, and so on.
Warm weather - (Counterclockwise Direction) A downward air flow
creates a cooling effect. This allows you to set your air conditioner
on a warmer setting without affecting your comfort.
Cool weather - (Clockwise Direction) An upward air flow moves
warm air off the ceiling. This allows you to set your heating unit on
a cooler setting without affecting your comfort.
NOTE: To operate the reverse function on this fan, press the
for/rev button while the fan is running.
18
Care and Cleaning
□Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure.
Because of the fan’s natural movement, some
connections may become loose over time. It is not
necessary to remove the fan from the ceiling.
□Clean your fan periodically. Use only a soft brush or
lint-free cloth to avoid scratching the finish. The plating is
sealed with a lacquer to minimize discoloration or
tarnishing.
□(Optional) Apply a light coat of furniture polish to the wood
blades.
□(Optional) Cover small scratches with a light application of
shoe polish.
Do
Do
□Use water when cleaning. Water could damage the motor,
or the wood, or possibly cause an electrical shock.
□Apply oil to your fan or motor. The motor has
permanently-lubricated sealed ball bearings.
Do not
Do not

Troubleshooting
WARNING: Make sure the power is off at the electrical
panel box before you attempt any repairs. Refer to the section
“Making the Electrical Connections” on page 12.
Problem
Problem
Solution
Solution
□Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
□Check to make sure the frequency switches from the remote control and receiver are set to the same
frequency.
□Make sure all motor housing screws are snug.
□Make sure the screws that attach the fan blade arm to the motor hub are tight.
□Make sure the wire nut connections are not rattling against each other or the interior wall of the switch
housing.
□Allow a 24-hour "breaking-in" period. Most noises associated with a new fan disappear during this
time.
□If using the ceiling light kit, make sure the screws securing are tight. Check that the light bulb is also
secure.
□Make sure there is a short distance from the ceiling to the canopy. It should not touch the ceiling.
□Make sure your ceiling box is secure and that rubber isolator pads are used between the mounting
bracket and outlet box.
The fan will not start.
The fan sounds noisy.
□Do not connect the fan with wall mounted variable speed control(s).
□Make sure the frequency switches are set correctly.
The fan wobbles.
The remote control is
not working.
□Verify that all blades and blade bracket screws are secure (most fan wobble problems are caused by
loose parts). Once the fan is properly installed, run the ceiling fan for 10 minutes to let the fan
self-adjust.
If wobble occurs after running the fan for 10 minutes, verify blade level using the following process:
- Select a point on the ceiling above the tip of one of the blades, then select any fan blade and
measure from the center of the selected blade to the point on the ceiling. Rotate the fan until the next
blade is positioned and repeat the measurement using the same point from the ceiling for every blade.
Measurement deviations should be within 1/8 in..
- If all deviations are less than 1/8 in. and the fan continues to wobble, please call Customer Service
(1-800-986-3460) to order a complimentary Blade Balancing Kit.
- If deviation is greater than 1/8 in. , please call Customer Service (1-800-986-3460) to order
complimentary replacements of your brackets.
19 HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.

Part
Part
A
B
C
D
E
F
G
H
I
J
K
L
M
Description
Description
Mounting bracket (preassembled)
Canopy ring (preassembled)
Canopy
Canopy bottom cover
Hanger ball/downrod assembly
Coupling cover
Fan motor assembly
Blade
Blade arm
16 watt LED Light kit
Glass shade
Wall plate
Wall switch
Part
Part
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
Description
Description
Plastic wire nut
Canopy mounting bracket screw with washer (preassembled)
Blade attachment screw and fiber washer
Blade arm screw and lock washer (preassembled)
Wall plate screw
Wall switch screw
Clevis pin (preassembled)
Cotter pin (preassembled)
Cross pin (preassembled)
Setscrew (preassembled)
Collar setscrew (preassembled)
Collar mounting screw with lock washer (preassembled)
Light kit mounting screw (preassembled)
Plastic wire nut (not to scale)
12V MN21/A23 battery
Service Parts
J
I
AA HH
II
KK
JJ
LL
MM
NN
OO
BB
CC
DD
EE
FF
GG
K
L
M
A
E
F
G
H
B
C
D
20
