USE AND CARE GUIDE
ST. CHARLES 4PK CHAIR - BARE
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators Collection through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Decorators Collection!
Item #
1006 325 664
Model #FZA71015R-STBC

2
Table of Contents
Table of Contents..........................................................2 Pre-Assembly ................................................................3
Planning Assembly ..................................................................3
Important Safety Instructions ................................... 2
Save These Instructions ........................................................2
Read All Instructions Before Use .............................................. 2
Warranty .........................................................................3
What is Covered .......................................................................3
What is Not Covered.................................................................3
Important Safety Instructions
SAVE THESE INSTRUCTIONS
WARNING: This chair was as made for the explicit purpose of providing outdoor functions and is not to be used as a toy.
This product is intended for normal outdoor use; however, the manufacturer recommends storing and / or covering this product
when any formidable / severe weather is approaching.
W
product. Children under the age of 10, near the product, should be supervised by a competent adult at all times. This product is
NOT intended for commercial use and will void the warranty.
READ ALL INSTRUCTIONS BEFORE USE
When not in use, secure the product in a
cool and covered location.
WARNING: This chair unit is heavy, and may require
two adults for safe assembly.
CAUTION: Do not locate the product near any
heat source.
!
WARNING: Do not place heavy objects on the chair.
Please keep children out of the assembly area before assembly.
To reduce the risk of injury to persons:
1. Close supervision is necessary when this product is used by or
near children, or disabled persons, if applicable.
2. Use this product only for its intended use as described in
these instructions. Do not use attachments not recommended by
the manufacturer.
3.
WARNING: Weight limit for the chair is 250 lbs (113.39 Kg)
for each seat.
CAUTION:
!
Care and Cleaning.........................................................9
Assembly ......................................................................5
Package Contents....................................................................4
.................................................................4
Hardware Included

3
Pre-Assembly
PLANNING ASSEMBLY
Read all instructions before assembly.
To avoid damaging this product, assemble it on a soft, non-abrasive surface such as carpet or cardboard.
NOTE: More than one person may be required to
assemble this product.
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size. NOTE: Hardware not shown to actual size. NOTE: Hardware not shown to actual size.
Warranty
5 YEAR FRAME WARRANTY
WHAT IS COVERED
We warrant the frame to be free of manufacturing defects to the original purchaser f years.
WHAT IS NOT COVERED
It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover
is warranty.
We reserve the right to make substitutions with similar merchandise, if the model in question is no longer in production.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
Contact the Customer Service Team at 1-800-986-3460 or visit www.homedepot.com/homedecorators.
AA BB
EE FF
CC DD
Part
Description Quantity
AA M6x20 Combination Bolt
16+1
16+1
8+1
BB
M6x35 Combination Bolt
CC
M8x28 Combination Bolt 32+1
DD M6x20 Bolt
EE
Hex Wrench
FF
Wrench 1
1
GG
GG
Ratchet 1

4
Pre-Assembly
Part Description Quantity
A Support Bar 4
BBackrest 4
C 4
PACKAGE CONTENTS
Left Arm
D Right Arm 4
ESeat 4
F 4
Support Tube
G Left Leg 4
HRight Leg 4
I 4
Connector Bar
J Back Cushion 4
KSeat Cushion 4
D
B
A
C
E
F
HG
I
K
J

1
l
5
Assembly

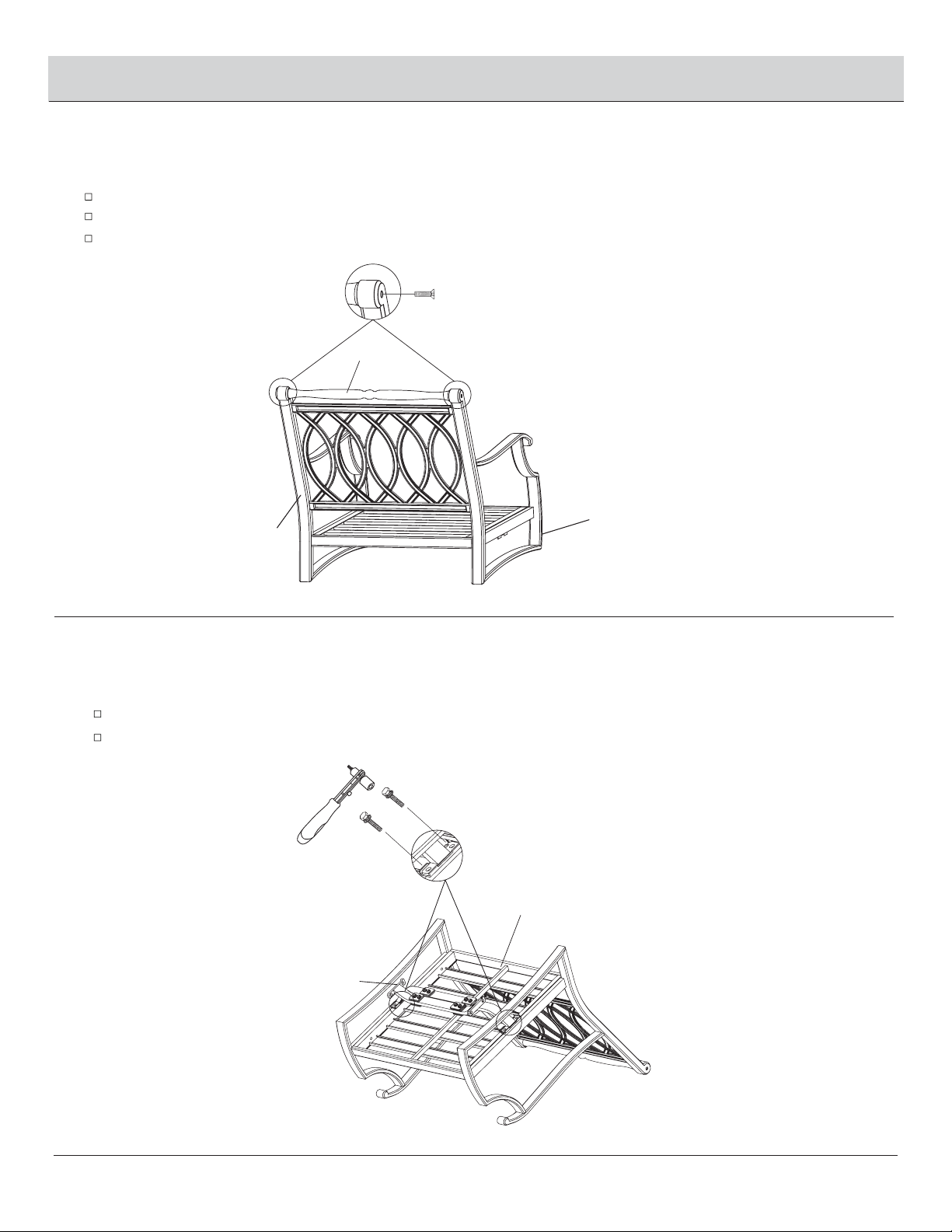

Place the left arm (C) on a soft surface.
Insert the support bar (A), backrest (B) and seat (E) to the left arm (C).
Insertingthe Support Bar, Backrest and Seat to the Left Arm
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
C
E
B
A
2Attaching the Seat to the Left Arm
Attach the seat (E) to the left arm (C) using M6x35 combination bolts (BB).
Do not tighten all bolts at this step.
NOTE: Loosely tighten the bolts using the hex wrench (EE).
E
BB
C

l
6
Assembly (continued)

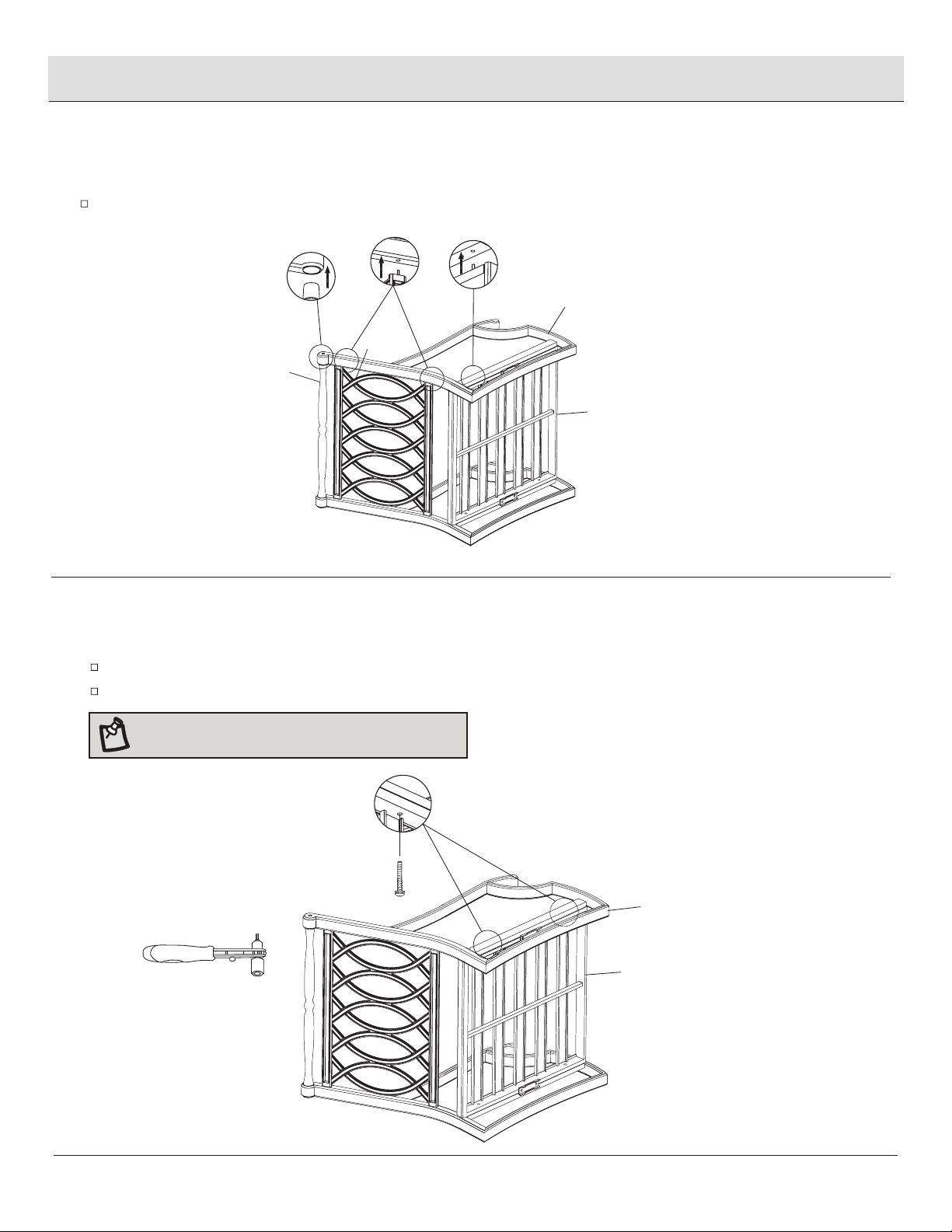

3Inserting the Right Arm to the Support Bar, Backrest and Seat
Insert the right arm (D) to the support bar (A), backrest (B) and seat (E).
D
E
4
Attach the right arm (D) to the seat (E) using M6x35 combination bolts (BB).
Do not tighten all bolts at this step.
Attaching the Right Arm to the Seat
NOTE: Loosely tighten the bolts using the hex wrench (EE).
BB
D
E
B
A

l
7
Assembly (continued)
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
5Connecting the Support Bar to the Arms
Turn the chair right side up.
Connect the support bar (A) to the left arm (C) and right arm (D) using M6x20 bolts (DD).
Once all bolts are in place, fully tighten all bolts using the hex wrench (EE).
A
DD
D
C
6Attaching the Support Tube to the Seat
Place the chair upside down on a soft surface.
Attach the support tube (F) to the seat (E) using M8x28 combination bolts (CC) and the wrench (FF).
F
E
CC
CC

8
7
Attach the left leg (G) and the right leg (H) to the support tube (F) using M8x28 combination bolts (CC) and the wrench (FF).
Attaching the Legs to the Support Tube
8Connecting the Connector Bar to the Legs
Connect the connector bar (I) to the left leg (G) and the right leg (H) using M6x20 combination bolts (AA) and the hex wrench (EE).
Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (EE) and the wrench (FF).
l
Assembly (continued)
G
CC
CC
H
F
G
I
AA
AA
H

l
9
Assembly (continued)

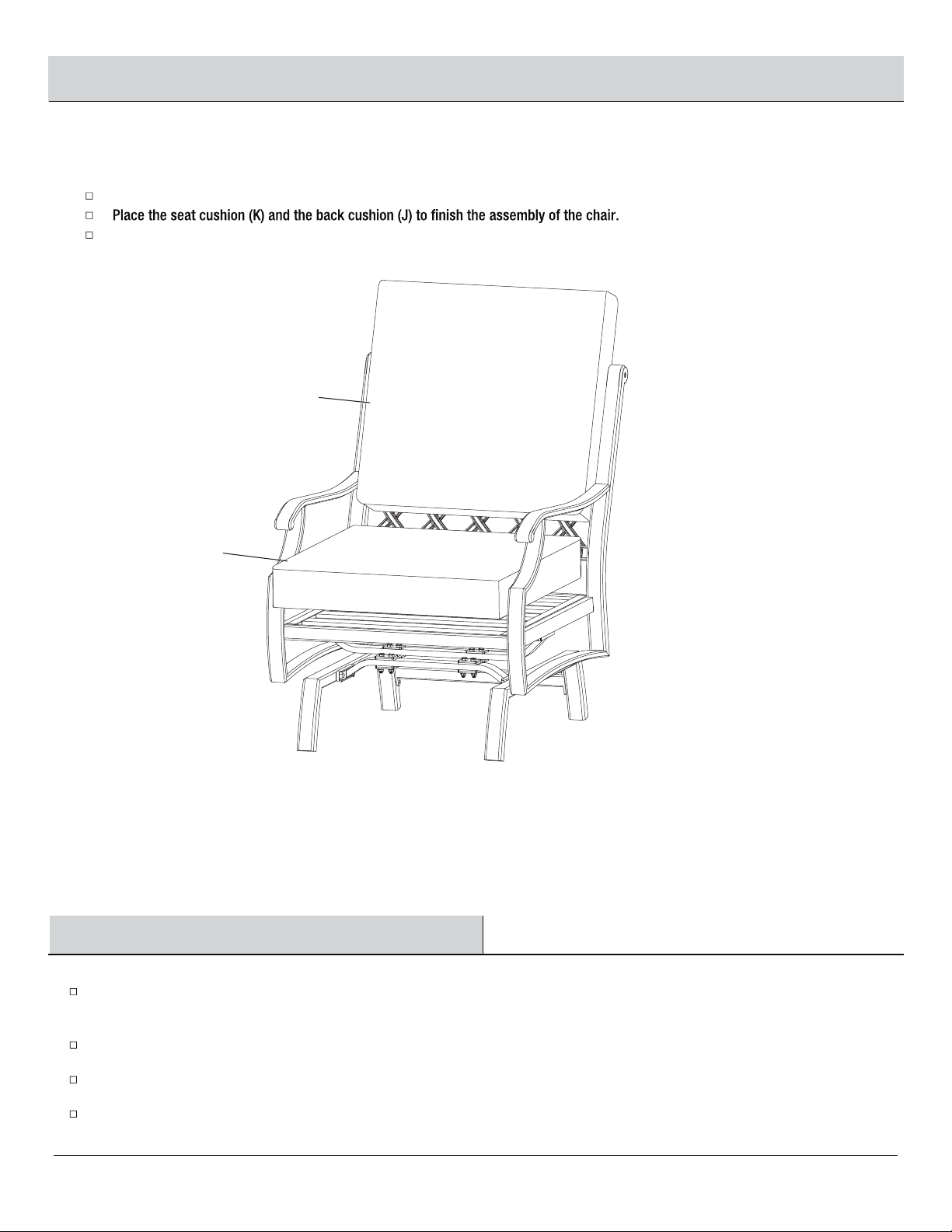

9Checking the Chair
Turn the chair right side up.
Ensure all connections are secure before use.
Care and Cleaning
For best results, clean the chair with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that
may accumulate.
Do not clean with abrasive materials, bleach, or solvents.
Store the chair in a dry,sheltered place when not in use.
Keep the chair away from fire, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind.
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance
J
K

Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
Retain this manual for future use.
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
Factory chair ID # FZM71015R
