Home Decorators Collection MARSHFIELD 19WM30692-TF969 User manual

USE AND CARE GUIDE
MARSHFIELD ELECTRIC FIREPLACE WALL MANTEL
1004151434/308824353/19WM30692-TF969
We appreciate the trust and condence you have placed in Home Decorators through the purchase of this electric replace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators!
THANK YOU
QUESTIONS, PROBLEMS, MISSING PARTS? BEFORE RETURNING TO THE STORE,
CALL HOME DECORATORS COLLECTION CUSTOMER SERVICE
8 A.M. - 7 P.M., EST, MONDAY - FRIDAY, 9 A.M. - 6 P.M., EST, SATURDAY
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS

2
MAXIMUM LOAD 15 lb. (6.8 kg)
MAXIMUM LOAD 10 lb. (4.5 kg)
CAUTION: This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier
than the maximum weights indicated may result in instability causing possible injury.
Maximum Load Warning...........................................2
Safety Information.....................................................3
Warranty ..................................................................... 5
Pre-Assembly............................................................. 6
Hardware Included ................................................... 6
Product Specications....................................................... 6
Tools Required ................................................................... 6
Package Contents.............................................................. 7
Assembly....................................................................8
Operation .................................................................15
FCC/IC Information......................................................... 18
Care & Cleaning.......................................................18
Troubleshooting....................................................... 19
Replacement Parts.................................................. 20
Maximum Load Warning
Table of Contents

3
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Please read and understand this entire manual before
attempting
to assemble, operate or install the product. If you
have any question regarding the product, please call customer
service at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
When using electrical appliances, basic precautions should
always be followed to reduce the risk of re, electrical shock,
and injury to persons including the following:
1. Read all instructions before using this appliance.
2. If possible, always unplug this appliance when not in use.
3. Only a qualied service person should repair this product.
4. Do not use outdoors.
5.
Do not cover the cord under the carpeting. Do not cover
with throw rugs, runners or the like. Arrange the cord away
from trafc areas and where it will not be tripped over.
6. To disconnect this appliance, turn the controls to the off
position, and then remove the plug from the outlet.
7. Connect to properly grounded outlets only.
8.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1
Canadian Electrical Code. For U.S.A. installations, follow
local codes and the National Electrical Code, ANSI/NFPA
NO.70.
9. This appliance has hot and arcing or sparking parts inside.
Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be
used as a drying rack for clothing. Do not hang Christmas
stockings or other decorations on or near this product.
10. There is a thermostat limiter inside the heater. When inner
temperature overheating or abnormal heating occurs, the
thermostat protective device will cut off the power supply
to avoid damage to the replace or risk of re.
Safety Information
DANGER:
High temperatures may be generated under
certain abnormal conditions. Do not partially or fully cover
or obstruct the front of this heater.
WARNING: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
WARNING: Under no circumstances should this replace be
modied. Parts that must be removed for servicing must be
replaced prior to operating this replace again.
WARNING: In order to avoid overheating, do not cover the
heater.
WARNING:
Use extreme caution when operating heater
near children and the disabled.
WARNING:
Do not insert or allow foreign objects to enter
any ventilation or exhaust opening as this may cause an electric
shock or re, or damage the appliance.
WARNING: To prevent a possible re, do not block air intakes
or exhaust in any manner. Do not use on soft surfaces, like a bed,
where the opening may become blocked.
WARNING:
This appliance has hot and arcing or sparking parts
inside. Do not use it in areas where gasoline, paint or ammable
liquids are used or stored. This replace should not be used as a
drying rack for clothing. Do not hang Christmas stockings or other
decorations on or near this product.
WARNING:
Use this appliance only as described in the manual.
Any other use not recommended by the manufacturer may cause
re, electric shock or injury to persons.
WARNING: This heater is not intended for use in bathrooms,
laundry areas and similar indoor locations. Never locate this
appliance where it may fall into a bathtub or other water container.
WARNING: This appliance is not a toy. Supervise children
playing near it.
WARNING:
This heater may include a visual alarm to warn
that parts of the heater are getting excessively hot. If the alarm
illuminates, immediately turn the heater off and inspect for any
objects on or adjacent to the heater that may have blocked the
airow or otherwise caused high temperatures to have occurred.
DO NOT OPERATE THE HEATER WITH THE ALARM ILLUMINATING.
CAUTION:
Never leave the heater operating unattended.
Extreme caution is necessary if unsupervised children or invalids
are nearby.
CAUTION:
Before assembly, carefully use scissors or a utility
knife to cut and unwrap all parts. Make sure you do not discard
the hardware.

4
Safety Information (continued)
NOTE:
To avoid injury from unexpected starting or electrical
shock, do not plug the power cord into a source of power during
unpacking and assembly. The cord must remain unplugged
whenever you are adjusting/assembling the replace.
If any part is missing or damaged, do not attempt to use or
plug in the power cord until the missing or damaged part is
correctly replaced. To avoid electric shock, use only identical
replacement parts when servicing double-insulated tools.
NOTE:
Use care in assembling your new fireplace. Take your
time and use the hardware provided and a quality Phillips head
screwdriver. Never overtighten bolts.
• Do not sit on any part of the mantel.
• It is recommended to work on a soft surface like a rug or to
lay out a blanket to protect the furniture from getting scratched
during the assembly process.
NOTE:
SAVE THESE
INSTRUCTIONS

5
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Warranty
1 Year Limited Warranty: The manufacturer warrants that your new Electric Fireplace is free from manufacturing and material defects for
a period of one year from date of purchase, subject to the following conditions and limitations.
1. Install and operate this appliance in accordance with the installation and operating instructions furnished with the
product at all times. Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify
this warranty.
2. This warranty is non-transferable, and is made to the original owner, provided that the purchase was made through
an authorized supplier of the product.
3. The warranty is limited to the repair or replacement of part(s) found to be defective in material or workmanship,
provided that such part(s) have been subjected to normal conditions of use and service, after said defect is conrmed
by the manufacturer’s inspection.
4. The manufacturer may, at its discretion, fully discharge all obligations with respect to this warranty by refunding
the wholesale price of the defective part(s).
5. Any installation, labor, construction, transportation, or other related costs/expenses arising from defective part(s),
repair, replacement, or otherwise of same, will not be covered by this warranty, nor shall the manufacturer assume
responsibility for same.
6. The owner/user assumes all other risks, if any, including the risk of any direct, indirect or consequential loss or
damage arising out of the use, or inability to use the product, except as provided by law.
7. All other warranties – expressed or implied – with respect to the product, its components and accessories, or any
obligations/liabilities on the part of the manufacturer are hereby expressly excluded.
8. The manufacturer neither assumes, nor authorizes any third party to assume on its behalf, any other liabilities with
respect to the sale of the product.
9. The warranties as outlined within this document do not apply to non-accessories used in conjunction with the
installation of this product.
10. This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
This warranty is void if:
a. The replace is subjected to prolonged periods of dampness or condensation.
b. There is any unauthorized alteration, willful abuse, accident, or misuse of the product.
c. You do not have the original receipt of purchase.
Warranty

6
HARDWARE INCLUDED
Part Description Part Number Quantity
AA Screw 3 x 16mm PH-SCRBLK001 12
BB Camlock Screw PH-KDBZNC001 14
CC Cam Lock Connector PH-KDCZNC001 14
DD Wood Dowel PH-DWLNTL001 18
EE Magnetic Catch PH-MCHBRW001 2
FF Screw 3 x 15mm Screw 3 x 15mm 4
GG Bolt 6.3 x 32mm PH-BLTBLK001 4
HH Flat Washer PH-WSRBLK002 4
II Screw 4 x 31mm PH-SCRBLK014 4
JJ Screw 4 x 12mm Screw 4 x 12mm 4
KK Black Plastic Bracket PH-BKTBLK012 2
LL Screw 4.5 x 14mm PH-SCRBLK020 4
MM Hinge Hinge 4
NN Screw 4 x 15mm PH-SCRBLK009 16
OO Handle with screws JD2529L 2
PP Tipping Restraint Hardware PH-BKTWHT003 2
QQ Screw 4 x 12mm Screw 4 x12mm 18
RR Threaded Insert PH-THRZNC001 4
SS Drawer Slide PH-DSLPCDS3512 2
TT Metal Plate (pre-attached) PH-PLTBLK001 2
UU Floor Glide (pre-attached) PH-GLDBRW001 4
Phillips Screwdriver
NOTE:
Hardware not shown to actual size.
PRODUCT SPECIFICATIONS
VOLTAGE 120VAC, 60 Hz
AMPS 12.5 Amps
WATTS 1500 Watts
PLANNING ASSEMBLY
Before beginning assembly of product, make sure all parts are present. Compare parts with Hardware Included and Package Contents lists.
If any part is missing or damaged, do not attempt to assemble, install or operate the product. Contact customer service for replacement
parts.
Estimated Assembly Time: 60 Minutes
TOOLS REQUIRED
Pre-Assembly
DD
NN
CC
MM
EE
OO
FF
PP
GG
QQ
II
SS UU
HH
RR
JJ
TT
AA
KK
BB
LL

7
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Part Description Quantity
A Bottom Shelf 1
B Left Side Panel 1
C Right Side Panel 1
D Base Front Rail 1
E Base Back Rail 1
F Top Front Rail 1
G Top Panel 1
H Base Left Leg 1
I Base Right Leg 1
J Back Panel 1
K Drawer Back 1
L Drawer Left Side 1
M Drawer Right Side 1
N Drawer Bottom 1
O Drawer Front 1
P Left Door 1
Q Right Door 1
R Fireplace Insert 1
PACKAGE CONTENTS
NOTE: All panels are labeled left
and right as viewed from the front of
unit.
Pre-Assembly (continued)
R
H
I
A
P
Q
C
BD
E
O
N
L
MK
J
F
G

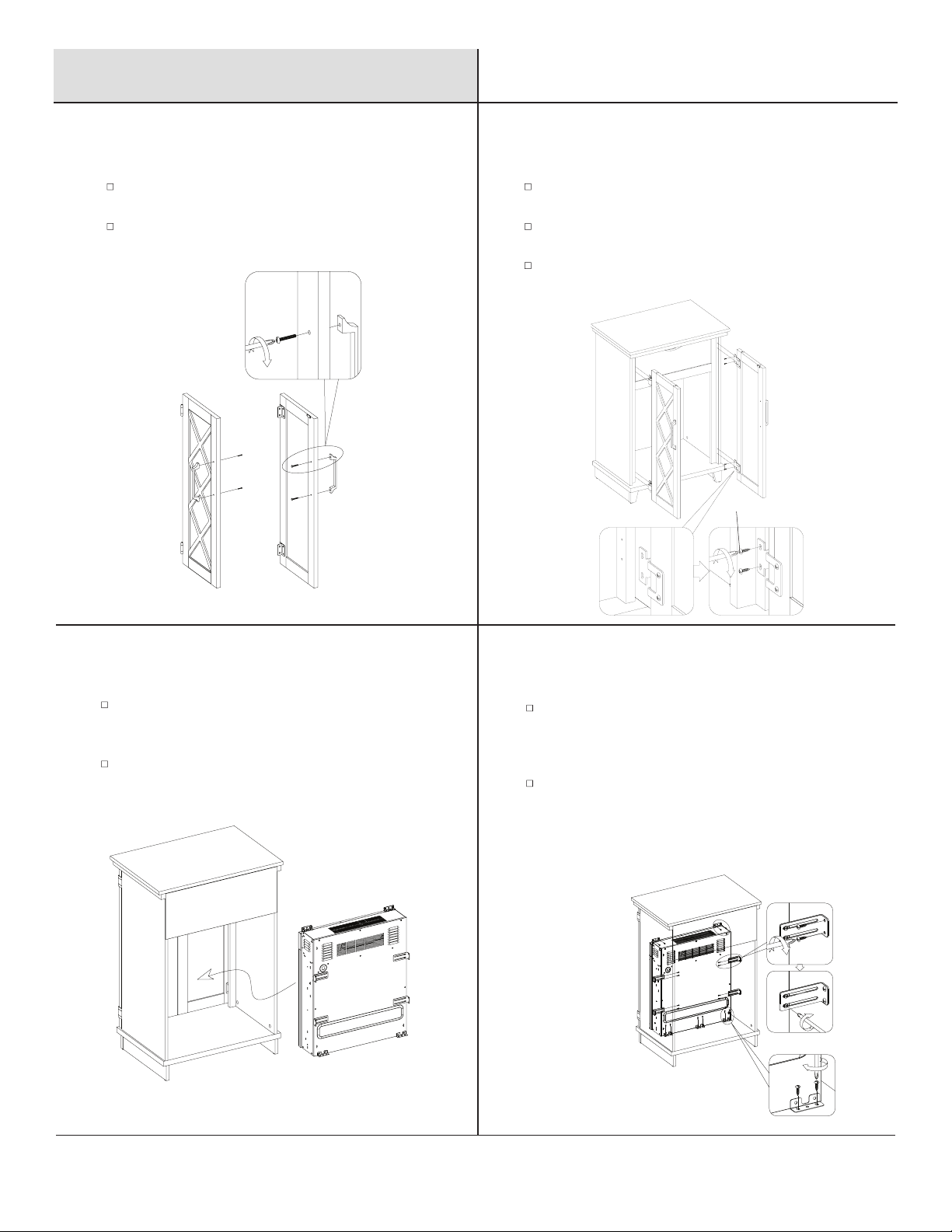

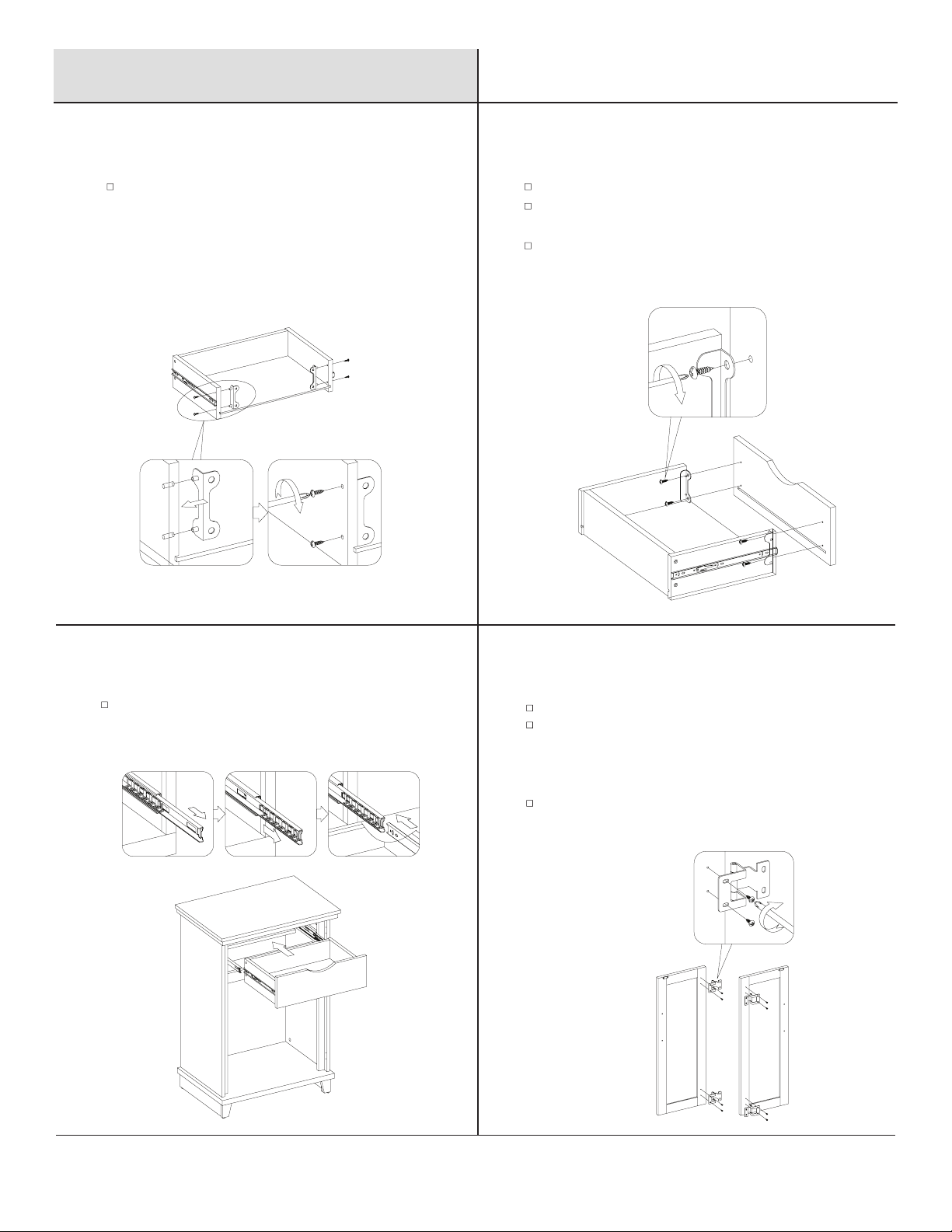

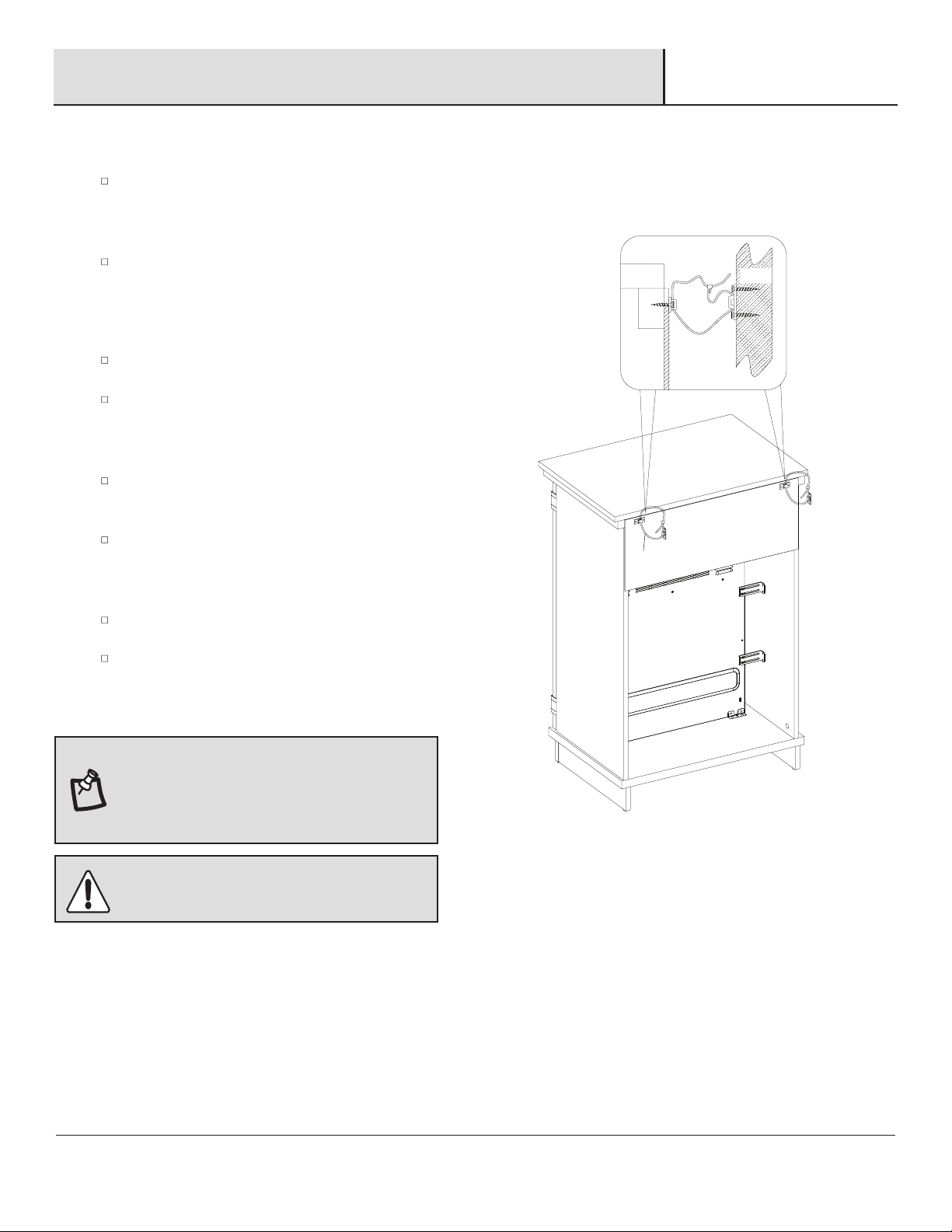

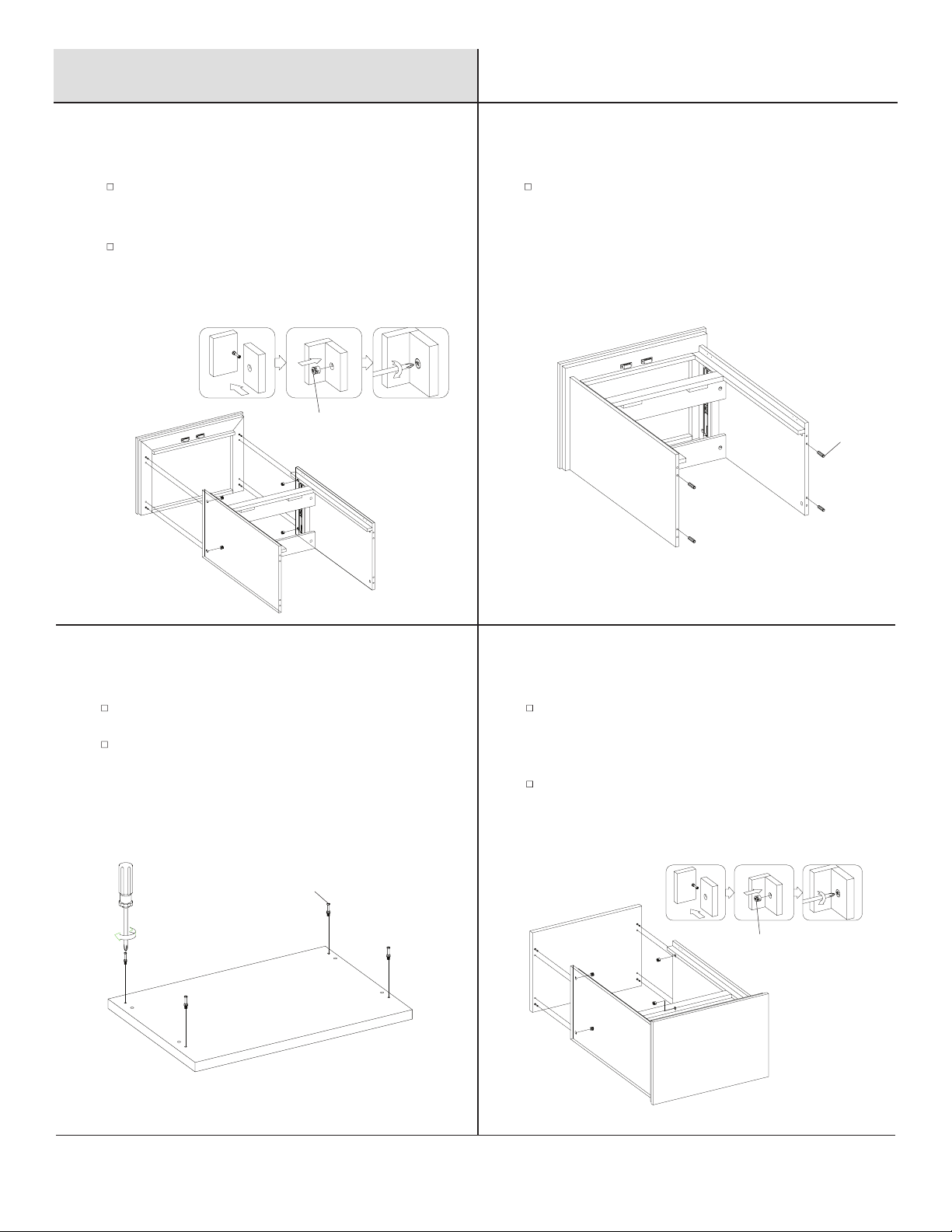

8
3 4
Using the Left Side Panel (B) and the Base Rails (D,E),
align the pre-installed dowels and cam lock screws
into the holes. Press together to secure the wooden
dowels.
Secure by inserting Cam Lock Connectors (CC) into
the pre-drilled holes as shown.
Use a Phillips screwdriver to tighten all Cam Lock
Connectors (CC).
Repeat to secure the Right Side Panel (C).
Assembling the side panels
Locate the Top Panel (G) and place onto a at
surface.
Insert the Cam Lock Screws (BB) into the
pre-drilled holes in the bottom of the Top Panel
(G). Tighten using a Phillips screwdriver.
Preparing the top assembly
Locate the Left Side Panel (B) and the
Right Side Panel (C).
Insert Cam Lock Screws (BB) into the pre-drilled holes
in each panel (B,C) and secure using a Phillips
screwdriver. Repeat until all Cam Lock Screws (BB)
have been installed as shown.
Locate the Base Front Rail (D) and the Base
Back Rail (E).
Insert Wood Dowels (DD) into the pre-drilled holes on
the edges of each Rail (D,E) as shown.
1Preparing side panels for assembly 2Preparing the back apron
Assembly
BB
DD
D
E
B
C
D
B
CC
C
G
BB
E

9
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
7 8
Locate the Magnetic Catch (EE) and align with the
pre-drilled holes at the edge of the top panel (G) as
shown.
Secure each Magnetic Catch (EE) with the Screws
(FF) using a Phillips screwdriver.
Attaching the magnetic door catches
Insert the Wood Dowels (DD) into the top edges
of the main assembly as indicated.
Preparing the center assembly
for the top panel
Insert Wood Dowels (DD) into the pre-drilled holes on
the Top Panel (G) as shown.
Locate the Top Front Rail (F) and align it with the
previously installed cam lock screws on the
Top Panel (G).
Secure the Top Front Rail (F) onto the Top Panel (G) by
inserting the Cam Lock Connectors (CC) into the
pre-drilled holes as shown.
Tighten both cam lock connectors using a Phillips
screwdriver.
5Preparing the top assembly 6Attaching the front panel
Assembly (continued)
G
DD
G
FCC
DD
EE
FF
G

10
11 12
Locate the Bottom Shelf (A) and place onto a at
surface.
Insert Cam Lock Screws (BB) into the pre-drilled holes
in the Bottom Shelf (A) and secure using a Phillips
screwdriver.
Preparing the bottom shelf
Align the Bottom Shelf (A) with the bottom of
the main assembly, press together to insert the
wood dowels and cam lock screws into the
pre-drilled holes.
Secure all previously installed cam lock screws
using the Cam Lock Connectors (CC). Tighten
with a Phillips screwdriver.
Attaching the bottom shelf
Place the Top Panel (G) on top of the main assembly
while aligning the previously installed cam lock screws
and wood dowels with the holes.
To secure the screws, insert the Cam Lock Connectors
(CC) into the pre-drilled holes. Tighten using a Phillips
screwdriver.
Insert the Wood Dowels (DD) into the bottom edges of
the main assembly as indicated.
9Attaching the top panel 10 Preparing the center assembly
for the base
Assembly (continued)
DD
G
CC
A
A
BB
CC

11
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
15 16
Locate the Drawer Back (K), Drawer Left Side (L), and
Drawer Right Side (M).
Attach the Drawer Left Side (L) to the Drawer Back (K)
using the Screws (II) and a Phillips screwdriver.
Repeat to attach the Drawer Right Side (M).
Assembling the drawer box
Locate the Drawer Bottom (N).
Slide the Drawer Bottom (N) into the groove of
the previously assembled drawer panels.
Assembling the drawer box
Locate the Base Left Leg (H) and the Base Right Leg (I).
Place the Bolts (GG) through the Flat Washers (HH) and
secure through each Leg (H,I) and into the main
assembly as shown in the diagram. Tighten each Bolt
(GG) using a Phillips screwdriver.
Locate the Back Panel (J).
Insert the Screws (AA) through the pre-drilled holes in
the Back Panel (J) and tighten using a
Phillips screwdriver.
13 Attaching the base legs 14Securing the back panel
Assembly (continued)
J
AA
GG
H
I
HH
K
L
II
M N

12
19 20
When inserting the drawer box, fully extend each
hinge on the main assembly. This will ensure that the
drawer slides into place properly.
Attaching the drawer
Locate the Left Door (P) and Right Door (Q).
Attach the Hinges (MM) on the upper and lower
corners of each Door (P, Q) by lining up each
hinge with the pre-drilled holes as shown in the
diagram.
Secure each Hinge (MM) using the Screws (NN)
and a Phillips screwdriver.
Attaching the door hinges
Attach the Black Plastic Brackets (KK) onto the inside
of the drawer assembly as shown using the Screws
(JJ) and a Phillips screwdriver.
Locate the Drawer Front (O).
Align the pre-drilled holes on the Drawer Front (O) with
the brackets inside the drawer.
From inside the drawer, secure the brackets onto the
Drawer Front (O) using the Screws (LL) and a Phillips
screwdriver.
17 Attaching the drawer brackets 18Assembling the drawer box
Assembly (continued)
KK
JJ
O
LL
P Q
MM NN

13
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
23 24
Lift the electric Fireplace Insert (R) carefully into the
back of the unit and center in the replace insert
opening.
Do not drag the replace insert across the base as it
may scratch your unit.
Installing the replace insert
Slide the loosely attached L-brackets on the back of
the insert out toward the side panels. Secure each
bracket to the side panels using the Screws (QQ) and
Phillips screwdriver.
At the top and bottom of the insert, secure each of the
pre-attached mounting brackets on the back of the
electric replace by inserting the attached Screws
(QQ) through the pre-drilled holes. Secure all screws
with a Phillips screwdriver.
Securing the replace insert
Remove the pre-assembled screws from the Handles
(OO), then attach to the Left Door (P).
Repeat for the Right Door (Q).
Align the previously installed hinges on the Left Door (P)
with the hinges on the left side of the main assembly.
Insert Screws (NN) to secure the Left Door (C) into place
using a Phillips screwdriver.
Repeat to attach the Right Door (Q).
21 Attaching the door handles 22Attaching the double doors
Assembly (continued)
P
P
Q
NN
Q
OO
R
QQ

14
25
G
PP
When the Tipping Restraint Hardware (PP) is properly
installed, it can provide protection against unexpected
tipping of the Unit due to small tremors, bumps
or climbing.
Your Unit comes with two Tipping Restraint Hardware
(PP). Each Tipping Restraint Hardware (PP) includes
one Unit Anchor, one Wall Anchor, one Anchor Tether,
and four Anchor Screws. Use these to complete the
following steps for a proper installation.
Locate a secure wall stud behind the unit closest to the
left side.
Align the Unit Anchor with a wall stud and attach with
two Anchor Screws using a Philips screwdriver. The
Anchor Screws must pass through the Top Panel (G) for
proper installation.
Align the Wall Anchor in the center of the wall stud, at
level with the Unit Anchor, and attach with two Anchor
Screws using a Philips screwdriver.
On the Anchor Tether, detach the cable from the
connector and loop the loose cable through the eyelets
on the Wall Anchor and Unit Anchor. Reattach the loose
cable to the connector, but do not tighten.
Locate a secure wall stud behind the unit closest to the
right side, and repeat the steps above.
Tighten both Anchor Tethers by pulling the cable
the through connector.
Installing the tipping restraint hardware
WARNING:
Installing the Tipping Restraint
Hardware will help prevent accidents or damage to the
unit.
NOTE:
Installation of the Tipping Restraint Hardware
(PP) will provide a small space between the wall and the
unit. This will allow you to run power cords and connector
cables to your television or other devices placed on top of
the Unit.
Assembly (continued)
Wall

15
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation
Operation
3 4
Adjusting the heater
The thermostat setting range is 62°F - 82°F (17°C - 27°C) or
continuously ON or OFF.
The thermostat is adjustable by 2°F or 1°C increments.
NOTE: To change between °F and °C press and hold the
HEATER button on the control panel for 3 seconds.
Push the Power button to supply power to all
functions of the replace and put the insert in a
standby mode.
Push the Power button again to turn off all functions.
1 2
Powering the replace
NOTE: Holding the Power button on the control panel for
10 seconds will disable the heater function.
NOTE: All previous settings are held in memory, so the
next time you power up the replace, the unit will turn on
with the same settings.
Adjusting the ame
There are 6 brightness levels including 00 (OFF)
setting that can be selected.
Settings F5 - F1 decrease in brightness
Pressing the Timer button will cycle through the timer
settings: 30 minutes, 1 Hour, 2H, 3H, 4H, 5H, 6H, 7H,
8H, 9H and off.
Setting the timer
NOTE: The control panel can be accessed at the upper-right corner of the insert.
/

16
NOTE: Please operate the remote control at a slow
measured pace. Press the remote control buttons with
an even motion and gentle pressure. Repeatedly pressing
buttons in rapid succession may cause the transmitter to
malfunction.
NOTE: Do not mix old and new batteries. Do not mix
alkaline, standard (carbonzinc), or rechargeable (nicad,
nimh, etc) batteries. Do not ingest batteries.
Operation (continued)
When the remote control stops operating or its range
seems reduced, it is time to replace the batteries with
new ones.
On the back end of the remote, press and slide
the battery door open and remove the old battery.
Insert 2 AAA batteries, checking that the + and -
sides of the battery match inside the battery
compartment.
Replace the battery compartment door.
The battery may contain hazardous substances that
could endanger the environment and human health.
This symbol marked on the battery and/or packaging
indicates that used batteries shall not be treated as
municipal waste. Instead they should be left at the
appropriate collection point for recycling.
By correctly disposing of used batteries, you prevent
potential negative consequences for the environment
and human health. Recycling used materials also
conserves natural resources.
For more information about collecting and recycling
used batteries, please contact your local municipality,
your waste disposal service or the point of sale where
you purchased this product.
5 6
Replacing the remote control battery Disposing of used batteries
7Power cord information
This heater is for use on 120 volts. The cord has a plug
as shown in the figure.
Connect to properly grounded outlets only.
Do not use a 2 prong adapter. Never use with an
extension cord or relocatable power tap (outlet/
power strip).
NOTE: Batteries should be removed if the product is
to be left unused for a long time.

17
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Operation (continued)
8Patent pending Safer Plug®information
9Patent pending Safer Sensor™ information
This product is equipped with a Safer Sensor™; an advanced safety device
that helps prevent heaters from being accidently covered or blocked
causing a potentially unsafe condition.
The Safer Sensor detects if an object is too close to the front of the heater
potentially obstructing the air outlet. If blocked, the control panel will ash
“E5” icon and the heater will be turned off. Once the object has been
moved and after the user presses the power button, “E5” will disappear
and the unit will be back on the previous setting with the heat on.
This product is equipped with a Safer Plug®, which is an advanced safety
device that helps detect electrical res caused from faulty outlets.
Overloading of outlets, adapters and surge protectors may cause
overheating, damage, and increased risk of res. The Safer Plug
continuously monitors the temperature in the plug and outlet and will turn
off the heater to prevent unsafe outlet overheating.
If the Safer Plug cuts the power due to unsafe conditions it will show an
“ Er ”message on the screen. If this occurs the Safer Plug has prevented a
potentially unsafe condition.
To reset the device if this occurs, rst allow the plug to cool down. Once
the plug has cooled down, unplug the device and wait 5 seconds, then
plug back in and continue to use normally.
If the Safer Plug continues to activate your outlet may be faulty. Check
your heater cord and plug connections. Faulty wall outlet connections or
loose plugs can cause the outlet or plug to overheat. Be sure the plug ts
tight in the outlet. Heaters draw more current than small appliances, over-
heating of the outlet may occur even if it has not occurred with the use of
other appliances. During use check frequently to determine if your plug
outlet or faceplate is HOT! If so, discontinue use of the heater and have a
qualied electrician check and/or replace the faulty outlet(s).
SAFER PLUG
Patent Pending
SAFER SENSOR

18
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
Care and Cleaning
Dust your replace regularly with a soft non-lint-producing cloth or household dusting product.
Clean your replace with a gentle non-abrasive household cleaner. Dry your replace immediately with a soft cloth or towel.
The motors used on the fan and the ame generator assembly are pre-lubricated for extended bearing life and require no further
lubrication. However, we recommend periodic cleaning/vacuuming of the fan/heater.
Make sure the unit is turned OFF and unplugged whenever you are cleaning the heater or replace.
FCC/IC Information
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
WARNING:
Disconnect power before attempting any maintenance or cleaning to reduce the risk of re, electrical shock or personal injury.
WARNING:
Make sure the power is turned off before proceeding with repairs. Any electrical repairs or rewiring of this unit should be
carried out by a licensed electrician in accordance with national and local codes. If repairing or replacing any electrical component or wiring,
the original wire routing, color coding and securing locations must be followed. During any service of this appliance, the power to the unit
must be turned off. First turn the main power switch to the OFF position. Then remove the electrical plug from the wall outlet.
WARNING:
Electrical outlet wiring must comply with local building codes and other applicable regulations to reduce the risk of fire,
electrical shock and injury to persons.
WARNING:
Do not use this replace if any part of it has been under water. Immediately call a qualied service technician to inspect the
replace and replace any part of the electrical system.
WARNING:
Changes or modications to this unit not expressly approved by the party responsible for compliance could
void user’s authority to operate the equipment.

19
Troubleshooting
PROBLEM ROOT CAUSE CORRECTIVE ACTION
Display shows “ ” e thermostat sensor is
broken or disconnected.
Unplug the replace, remove the back panel of the replace and check that
the thermostat is plugged into the main circuit board. If this does not solve
the problem, contact customer service for a replacement thermostat sensor.
Display shows “ ” e thermostat sensor is
broken. Contact customer service for a replacement thermostat sensor.
Display shows “ ” Manual Reset overheat
protection has triggered.
Inspect the heater and check that the air inlets and outlets are not blocked as
this may cause overheating. Unplug the heater for 30 minutes and allow it to
cool down. Replug and operate, but monitor the heater for signs of over-
heating. If the problem persists, discontinue use of the heater and contact
customer service.
Display shows “ ” Normal operation.
Check your heater cord and plug connections. Faulty wall outlet
connections or loose plugs can cause the outlet or plug to overheat. Be sure
the plug ts tight in the outlet. Heaters draw more current than small appli-
ances, so overheating of the outlet may occur even if it has not occurred with
the use of other appliances. During use check frequently to determine if your
plug, outlet or faceplate is HOT! If so, discontinue use of the heater and have
a qualied electrician check and/or replace the faulty outlet(s).
Display shows “ ” e heater air outlet is
blocked. Verify there is a 3 foot clear space in front of the heater air outlet.
Heater does not blow
warm air. Cool down cycle.
Normal operation. Heater will continue to run for several minutes before
shutting down. Times will vary based on temperatures. During this time,
cool air will blow.
No power, logs do not
glow. No power to the unit Check that unit is plugged into a standard 120V outlet. Press power button several times, make sure power is set at “ON” position.
Logs glow, but no
ame eect. Flame eect turned o Press ame button several times.
Heater does not blow
warm air.
ermostat setting is
preventing heater from
turning on.
Adjust the temperature settings to ensure that the thermostat is set higher
than the current room temperature.
Flame eect works, but
heater function does not
and the emberbed ashes
when the heater button is
pressed.
e heater is disabled.
With the power on, press and hold the POWER button on the control panel
for 10 seconds. Once re-enabled, the ember bed lights will ash multiple
times.
Remote control is not
working.
No batteries Change the remote batteries.
Poor Signal
Operate remote transmitter at a slow measured pace.
Press the remote control buttons with an even motion and gentle pressure.
Repeatedly pressing buttons in rapid succession may cause the transmitter to
malfunction.
Distance Operate the remote at a distance less than 20 feet from the front of the
appliance; point the remote at the control panel.

20
HOMEDEPOT.COM/HOMEDECORATORS
Please contact 1-800-986-3460 for further assistance.
For replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday.
Replacement Parts
Part Description Qty.
1 Remote Control 1
2 Flame Circuit Board 1
3 Flame Spinner 1
4Flame Generator Drive Motor 1
5 Thermostat Sensor 1
6Blower/ Heater Assembly 1
7 Control Panel Circuit Board 1
8 Front Panel with Flame 1
9 Embered with Logest 1
10 Embered Circuit Board 1
11 Main Power PCB 1
