Home Decorators Collection WSMSL-LHW User manual

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Storage Factory No.: 15548 Page #1 of 16
MARTHA STEWART LIVING CLOSET HAMPER W/
DRAWER 39 3/8"Hx27 7/8"Wx19"D & MSL CLOSET CABINET
TOP 5/8"Hx27 7/8"Wx18.25"D ANTIQUE WHITE/NATURAL
Assembly Instructions
HDC #:2945200410/2945200950 & 3160300410/3160300950
MFG #:WSMSL-LHW/WSMSL-LHN &
WSMSL-CTPW/ WSMSL-CTPN
Please read over the instructions; it will be a
time-saver in the long run.
Note: Before Assembly, please be sure to work on a soft flat
surface to avoid any damage to the finish.

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #2 of 16
ASSEMBLY TIPS
Read all instructions BEFORE assembly.
Remove all hardware from box and sort by size.
Check to see that all hardware and parts are present BEFORE assembling.
Ask a friend to assist you with the assembly of this furniture.
To avoid damage, assemble the unit on a sturdy, level and non-abrasive surface.
Please wait until all steps are completed before tightening bolts.
Make sure all bolts are tightly fastened before the unit is used.

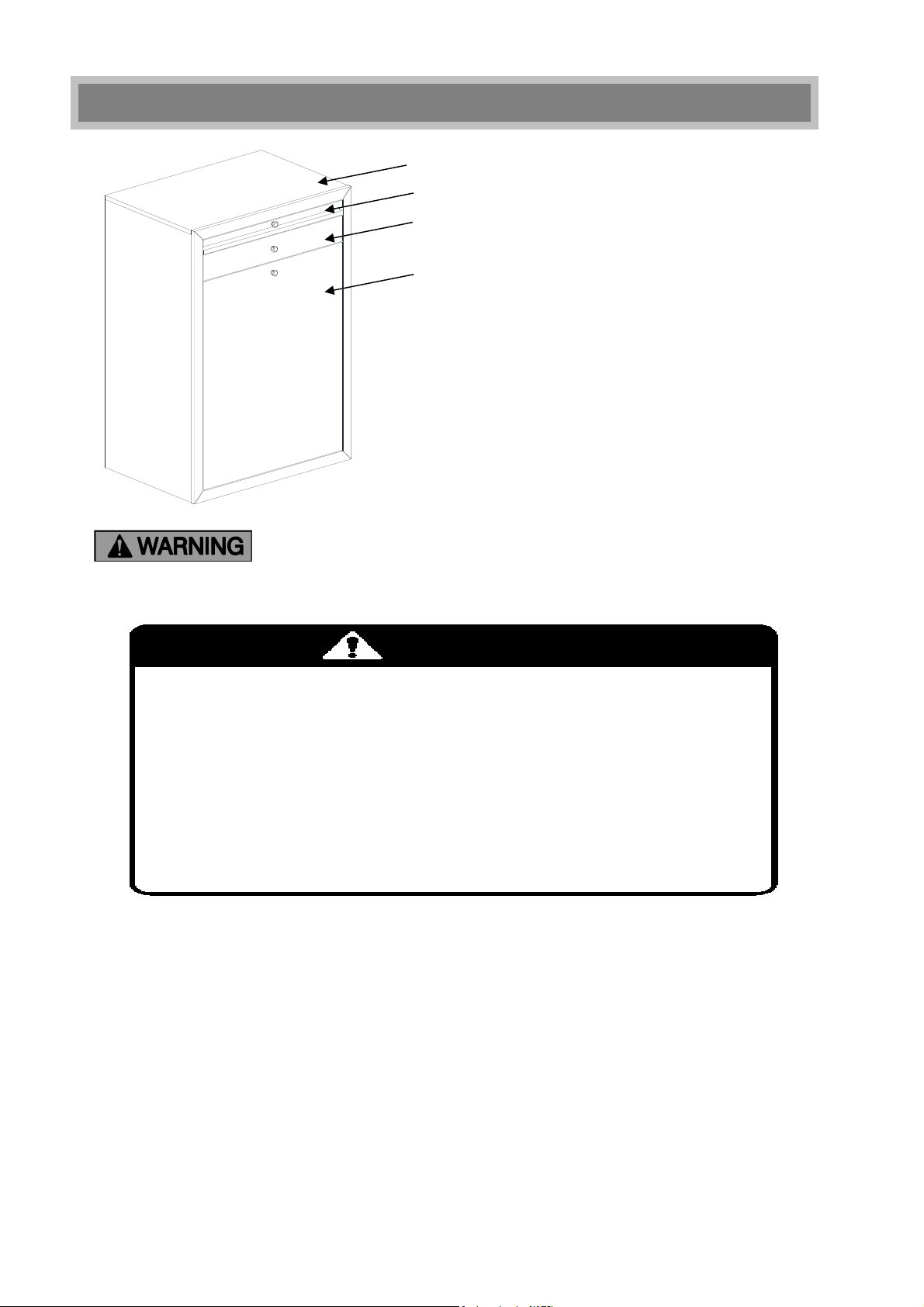

WARNING
Serious or fatal crushing injuries can occur from furniture tip-over.
To help prevent tip-over:
Place heaviest items in the lowest drawer, shelf.
Do not set TVs or other heaviest objects on the top of this product.
Never open more than one drawer at a time and never allow children to climb or
hang on drawers, doors, or shelves.
Use of tip-over restraints may only reduce, but not eliminate, the risk of tip-over.
This is a permanent label. Do not attempt to remove!
MAXIMUM RECOMMENDED WEIGHT LOADS
This unit is intended for use only with the maximum weights
indicated. Use with products heavier than the maximum weights indicated may
result in instability causing possible injury.
TOP MAXIMUM LOAD: 200 LBS. (90.9KG)
TRAY MAXIMUM LOAD: 15 LBS. (6.8KG)
DRAWER MAXIMUM LOAD: 12 LBS. (5.5KG)
HAMPER MAXIMUM LOAD: 100 LBS. (45.5KG)

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #3 of 16
Important
Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat
and non-abrasive surface. You will need the parts identified on page 3 and 4 of this instruction
manual.
NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE
WIPED OFF WITH DAMP CLOTH.
Insert Dowel at least half way by tapping lightly with a rubber mallet, IF NECESSARY.

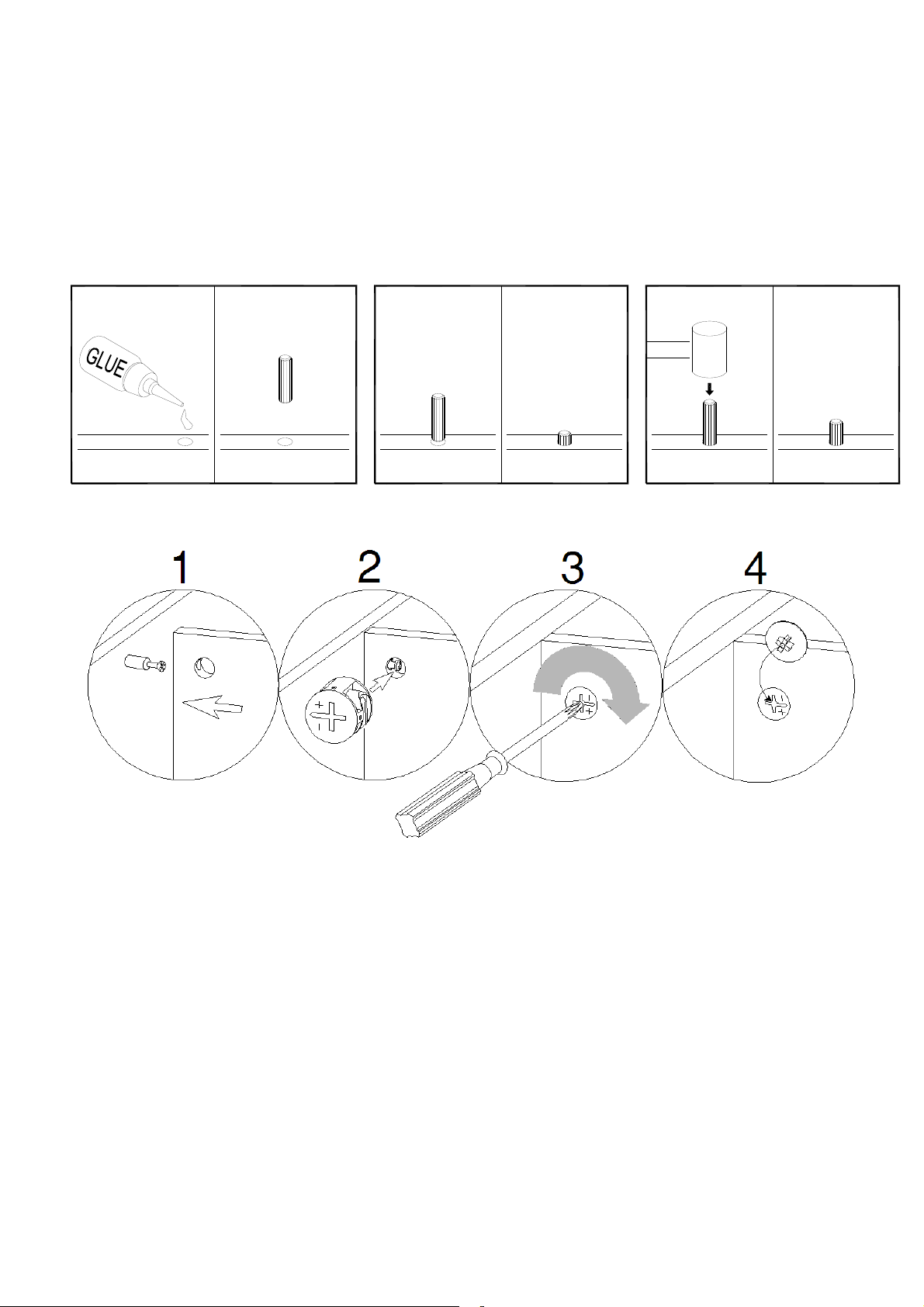

CAM LOCK SYSTEM OPERATION
HOW THE KNOCK DOWN (KD) ASSEMBLY SYSTEM WORKS
1. Screw the Cam Bolt into the threaded inserts on the panel. Connect both panels together;
making sure Cam Bolt goes into the pre-drilled hole on the end of panel for Cam Lock.
2. Insert the Cam Lock into the pre-drilled large hole on the panel. Make sure the arrow on the
face of Cam Lock faces out and points towards Cam Bolt.
3. Take a Phillips screwdriver and rotate the Cam Lock clockwise to lock the Cam Bolt in place.
4. Plug the Cam Lock Cover into the cross slot of the Cam Lock to conceal the Cam.
You are now ready to assemble the KD unit.
XXFINAL
12 43

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #4 of 16

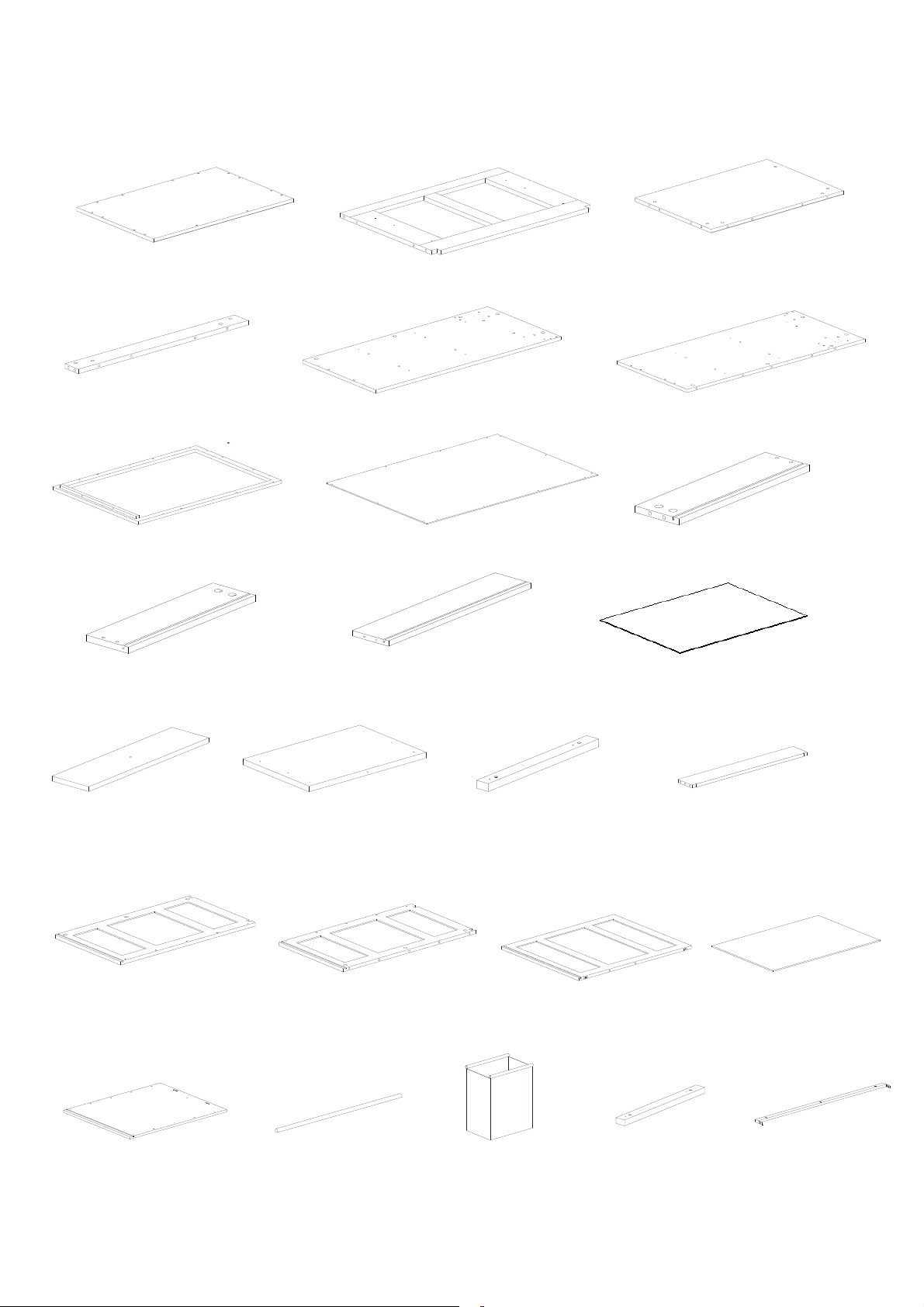

Parts List
Please read completely through the instructions and verify that all parts listed are present before
beginning assembly.
A- Top Panel (x 1) (Sold Separately) B- Shelf Panel (x 1) C- Bottom Panel (x 1)
D- Back Stretcher (x 1) E- Side Panel Left (x 1) F- Side Panel Right (x 1)
G- Front Frame (x 1) H- Back Panel (x 1) I- Drawer Left Panel (x 1)
J- Drawer Right Panel (x 1) K- Drawer Back (x 1) L- Drawer Bottom (x 1)
M- Drawer Front (x 1) N- Tray Panel (x 1) O- Drawer Crosser (x 2) P- Front Stretcher (x 1)
Q- Hamper Left Panel (x 1) R- Hamper Right Panel (x 1) S- Hamper Back (x 1) T- Hamper Bottom (x 1)
U- Hamper Front V- Hamper Rod W- Fabric Bag X- Hamper Crosser Y- Steel Tube
(x 1) (x 2) (x 1) (x 4) (x 1)

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #5 of 16

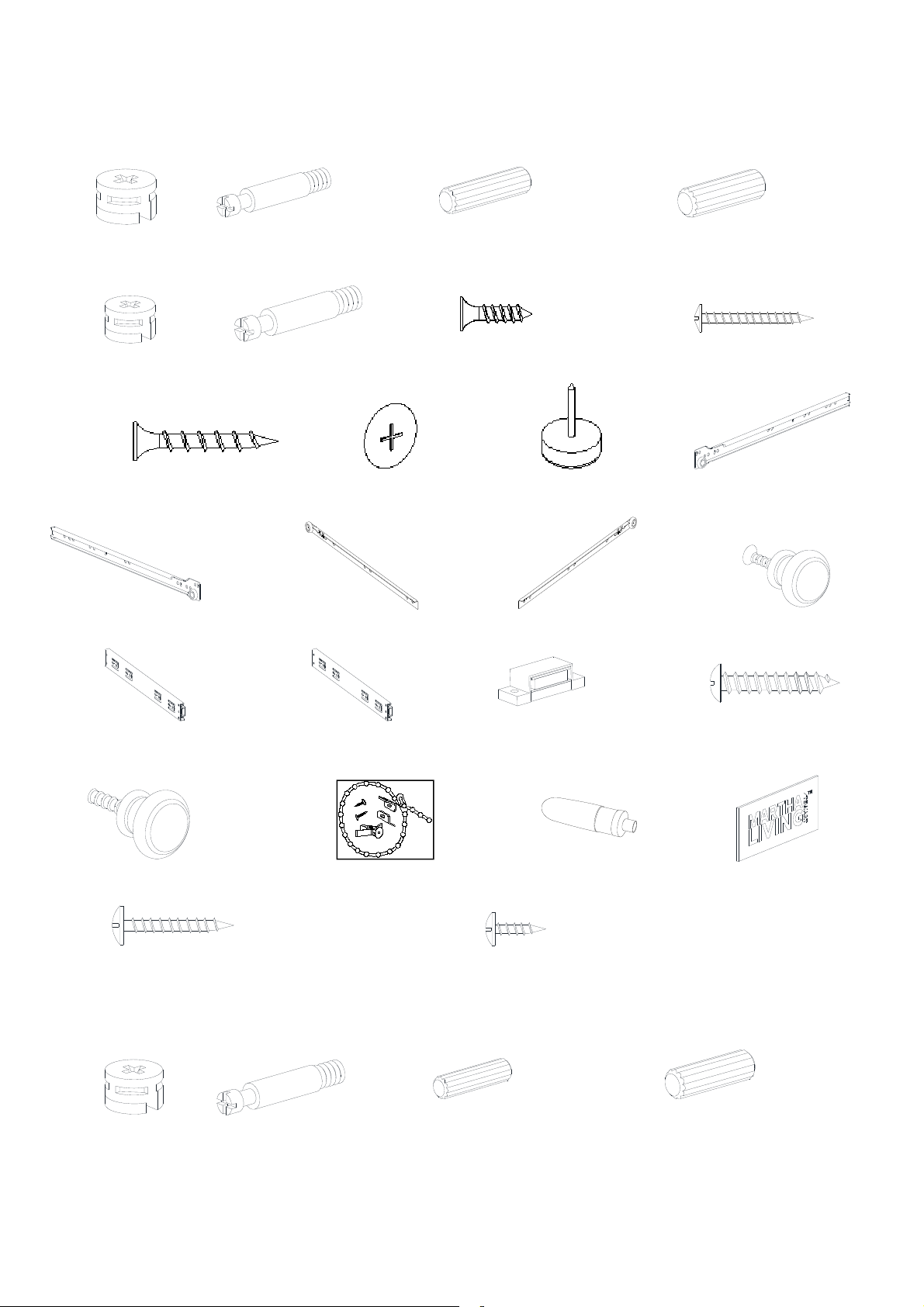

Hardware List
Please read completely through the instructions and verify that all hardware listed are present
before beginning assembly.
1- Cam Lock 2- Cam Bolt 3- M8 x 30 mm Wood Dowel 4- M8 x 20 mm Wood Dowel
(x 30+1 extra) (x 30+1 extra) (x 30+1 extra) (x 12+1 extra)
5- Small Cam Lock 6- Small Cam Bolt 7- M3.5x12 mm Flat Head Screw 8- M2x19 mm Pan Head Screw
(x 4+1 extra) (x 4+1 extra) (x 48+1 extra) (x 18+1 extra)
9- M5x32 mm Flat Head Screw 10- Plastic Cover 11- Floor Protector 12- Left Slide Track
(x 16+1 extra) (x 10+1 extra) (x 4) (x 1)
13- Right Slide Track 14- Left Slide Runner 15-Rght Slide Runner 16- -Handle w/Bolts
(x 1) (x 1) (x 1) (x 2)
17- 16” 3-packed Slide 18-14” 3-packed Slide 19- Magnetism Mass 20- M3x16 mm Pan Head Screw
(x 2) (x 4) (x 2) (x 4+1 extra)
21- Tray Handle(x 1) 22- Tipping Restraint Hardware(x 2) 23- Glue(x 1) 24- Name Plate (x 1)
25- #8x7/8” Pan Head Screw (x 3) 26- #8x1/2” Pan Head Screw(x 2)
Hardware List of Top Panel (Sold Separately)
1- Cam Lock 2- Cam Bolt 3- M8 x 30 mm Wood Dowel 4- M8 x 20 mm Wood Dowel
(x 6+1 extra) (x 6+1 extra) (x 6+1 extra) (x 2)
Tools required (not provided): Rubber mallet, Phillips screwdriver, Power drill

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #6 of 16
Assembly Instructions
1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a
carpeted floor or the empty carton to avoid any scratch.
2. Attach Drawer Side Panels (I&J) to Drawer Back (K) using M5x32 mm Flat Head Screws (9). Then slide
the Drawer Bottom (L) all the way into the grooves.
3. Insert and screw the Small Cam Bolts (6) into the pre-drilled small holes on back side of Small Drawer
Front (M) as shown. Attach Drawer Front to the drawer frame by engaging 4 Small Cam Locks (5).
4. Attach Slide Runner (14&15) to Drawer Side Panel (I&J) using M3.5x12 mm Flat Head Screws (7)
through pilot holes into place. Plug Plastic Covers (10) to cover the Small Cam Locks for nice looking.
5. Attach a Handle (16) to front side of Drawer front (M) using the Handle Bolts provided.
7
M
J
K
I
9
6
L
5
10
14
16
14&15

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #7 of 16
Assembly Instructions
6. Place the Hamper Left Panel (Q), the Hamper Right Panel (R) and the Hamper Front (U) on a level and
protective surface with the holes facing up. Securely screw the Cam Bolts (2) into the designated small
holes, as shown in the illustration.
7. Insert four M8x30mm Wood Dowels (3) into the inner end holes of the Hamper Back (S). Tap in with a
mallet, if necessary. Make sure you use a small amount of glue with both ends of all dowels.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
8. Align the inserted M8x30mm Wood Dowels (3) on the Hamper Back (S) with the drilled holes on the
Hamper Left Panel (Q) and press them together. Make sure that the Cam Lock holes will face the right side
as shown below. Fasten the Hamper Back (S) to the Hamper Left Panel (Q) by engaging Cam Locks (1).
(Refer to page 3 on Cam Lock system operation supplement).
9. Repeat the same procedure to attach the Hamper Right Panel (R) at the other end.
10. Then slide the Hamper Bottom (T) all the way into the grooves.
R
Q
2
S
Q
R
1
3
T
Q
R
S
U
2
2

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #8 of 16
Assembly Instructions
11. Insert four M8x30mm Wood Dowels (3) into the pre-drilled small holes on back side the Hamper Front (U).
Tap in with a mallet, if necessary. Make sure you use a small amount of glue with both ends of all dowels.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
12. Align the inserted M8x30mm Wood Dowels (3) on the Hamper Front (U) with the drilled holes on the
Hamper Left Panel (Q) and press them together. Make sure that the Cam Lock holes will face the right side
as shown below. Fasten the Hamper Left Panel (Q) to the Hamper Front (U) by engaging Cam Locks (1).
(Refer to page 3 on Cam Lock system operation supplement).
13. Repeat the same procedure to attach the Hamper Right Panel (R) at the other end.

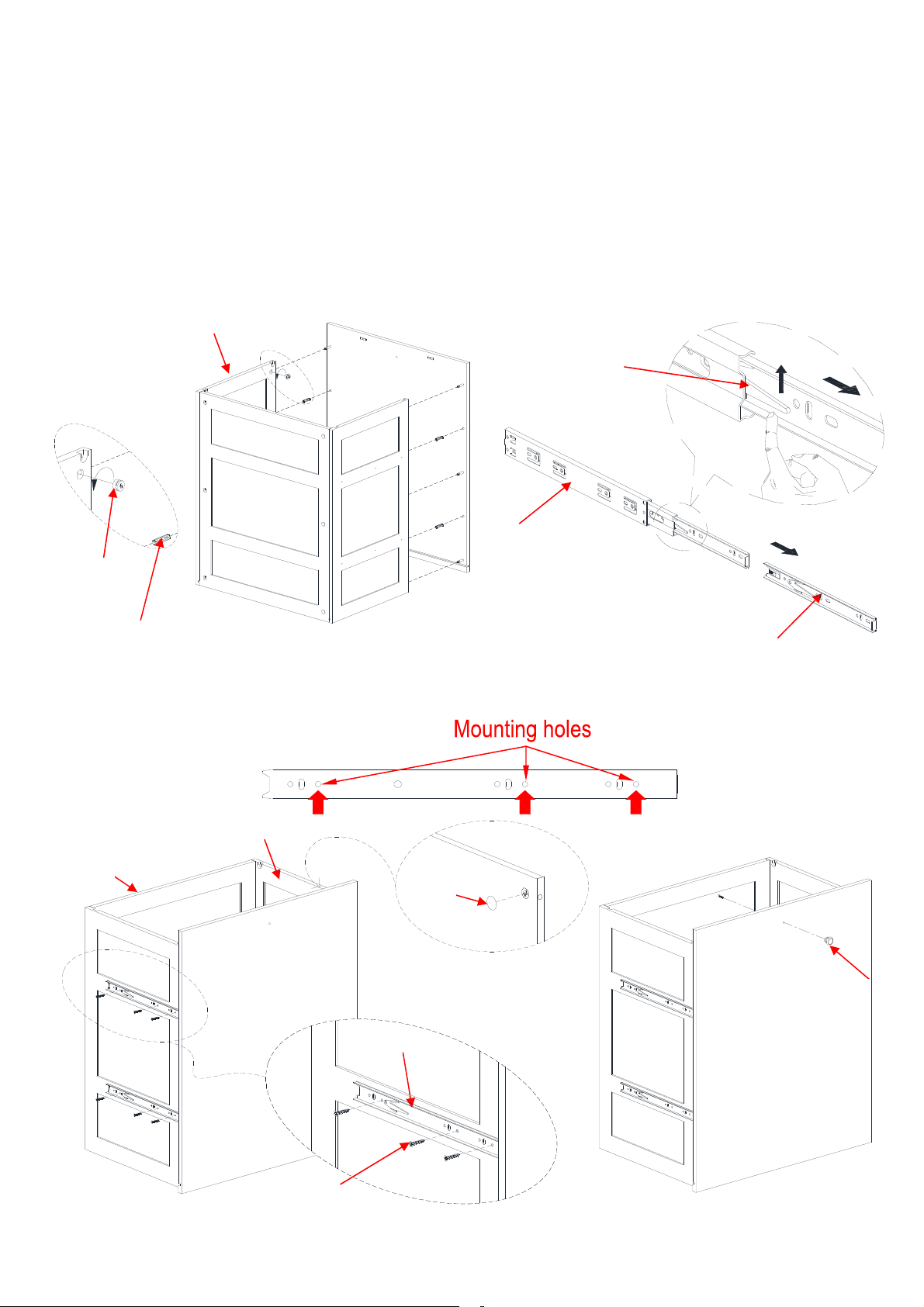

14. Attach Slide Runner of 14” 3-packed Slide (18) to Hamper Side Panel (Q&R) using M3.5x12 mm Flat
Head Screws (7) through pilot holes into place. Plug Plastic Covers (10) to cover the Cam Locks for nice
looking.
18
16
10
7
S
U
U
Q
R
SQ
U
R
1
3
Release
Leve
r
18
Slide Runner
UP

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #9 of 16
Assembly Instructions
15. Attach a Handle (16) to front side of Hamper front (U) using the Handle Bolts provided.
16. Unfold the Fabric Bag (W) and insert the Hamper Rod (V) into fabric socket as shown below.
17. Then put the Fabric Bag (W) into the hamper by location the Hamper Rod (V) to the half slot on the
Hamper Side Panel (Q&R) as shown below.
W
UQ
W
V
UQ
W W
V
V

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #10 of 16
Assembly Instructions
18. Insert M8x20mm Wood Dowels (4) into the inner end holes of Drawer Crosser (O) and Hamper Crosser
(X), .Tap in with a mallet, if necessary. Make sure you use a small amount of glue with both ends of all
dowels.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
19. Align the inserted M8x20mm Wood Dowels (4) on the Drawer Crosser (O) and Hamper Crosser (X) with
the drilled holes on the Side Panel Left (E) and press them together. Attach Crossers (O) and Hamper
Crosser (X) to Side Panel Left (E) using M5x32 mm Flat Head Screws (9). Repeat previous steps to attach
the Side Panel Right (F).

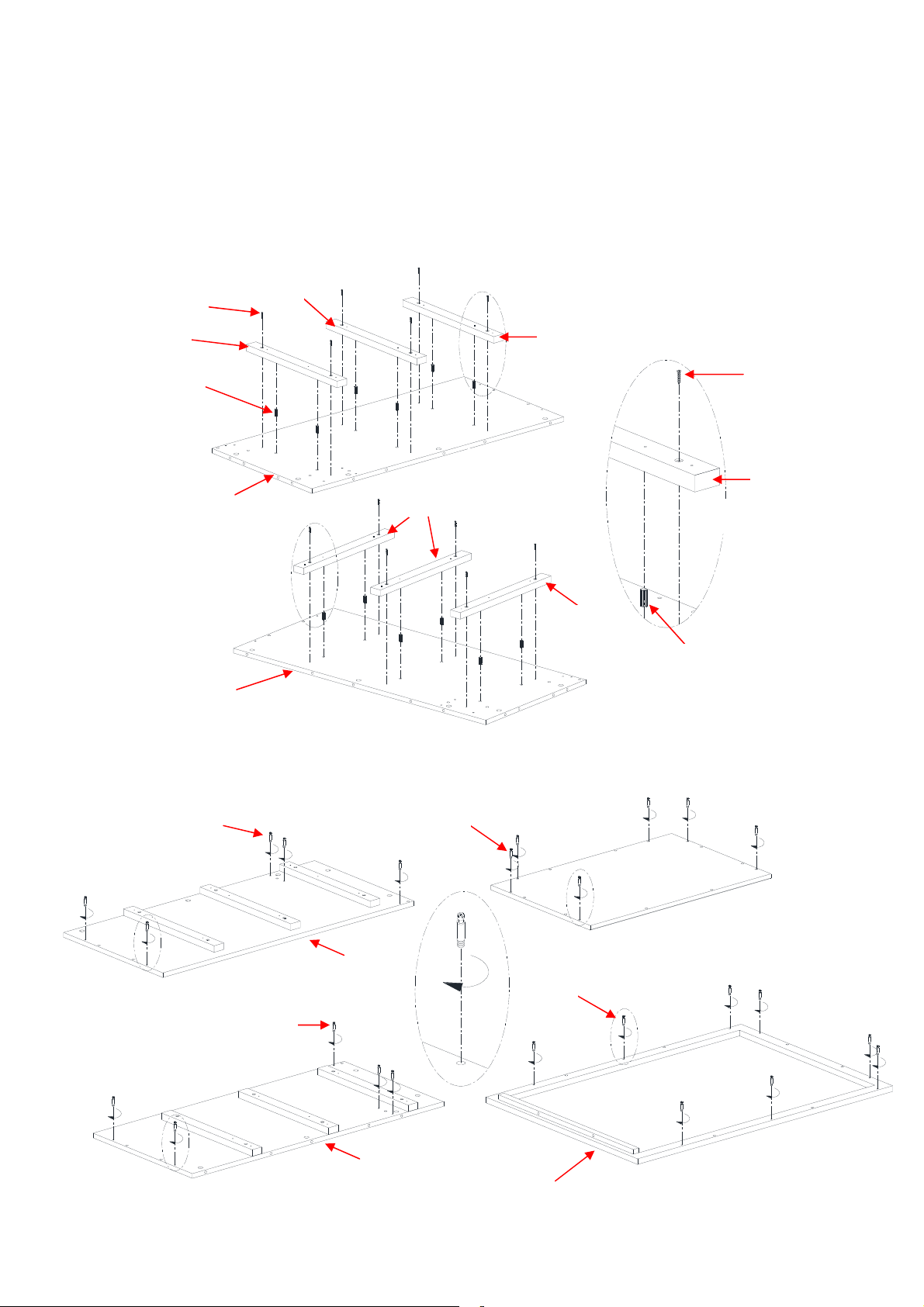

20. Place the Top Panel (A) (Sold Separately), the Front Frame (G), the Side Panel Left (E) and the Side Panel
Right (F) on a level and protective surface with the holes facing up. Securely screw the Cam Bolts (2) into
the designated small holes, as shown in the illustration.
E
9
4
F
E X
2
F
G
A
2
2
2
20
9
Front
Front
Front
O
X
X
X
O

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #11 of 16
Assembly Instructions
21. Align and attach Magnetism mass (19) to Front Stretcher (P) using four M3x16 mm Pan Head Screws (20)
through holes on Magnetism mass into the pilot holes, as shown in figure below.
22. Lay the Shelf Panel (B) and Tray Panel (N) on a scratch free surface. Align and attach Slide Tracks of 16”
3-packed Slide (17) to Shelf Panel (B) using three M3.5x12 mm Flat Head Screws (7) through holes on
Slide Track into the pilot holes, Repeat the same procedure to attach the Slide Runners of 16” 3-packed
Slide (17) to Tray Panel (N), as shown in figure below. Make sure the Slide Tracks and Runners are
properly aligned with the pilot holes and Slide runner opening facing backward.

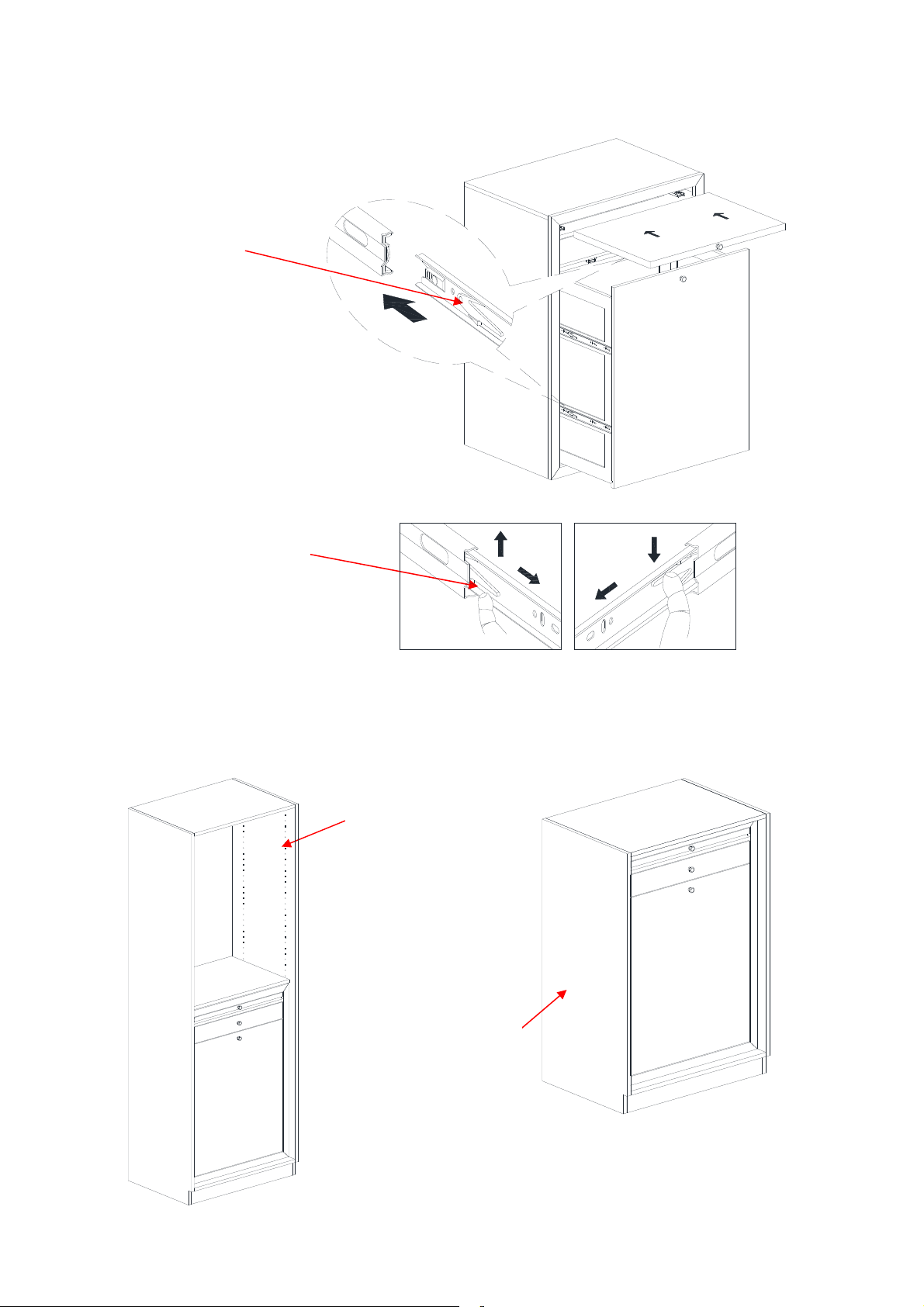

23. Turn the Shelf Panel (B) over , Align and attach Steel Tube (Y) to Shelf Panel (B) using three #8x7/8” Pan
Head Screw (25) through holes on Steel Tube into the pilot holes,
24. Insert the Tray Handle (21) into the pre-drilled small holes on front side of Tray Panel (N) as shown.
UP
7
Release
Leve
r
17
Slide Runner
Slide Runner opening
facin
g
backward
Slide Track
7
B
N 21
20
19
P B
25 Y

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #12 of 16
Assembly Instructions

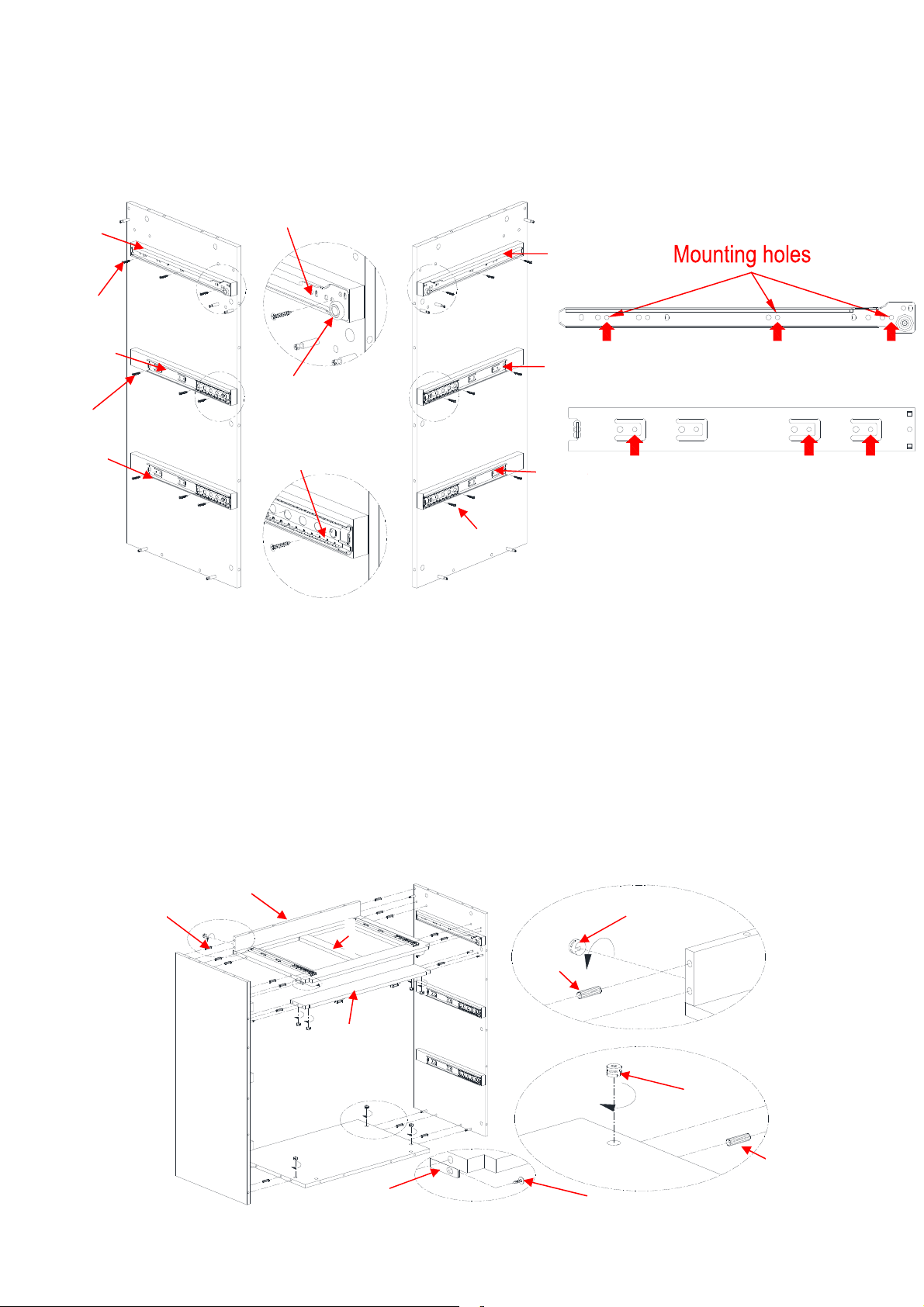

25. Lay the Side Panel Left & Right (E & F) on a scratch free surface. Align and attach Slide Tracks (12 &
13&18) to Side Panels using three M3.5x12 mm Flat Head Screws (7) through holes on Glide Track into
the pilot holes, as shown in figure below. Make sure the Slide Tracks are properly aligned with the pilot
holes and the roller on of Slide Track (with roller) is against the front edge of Side Panel.
`
26. Insert M8x30mm Wood Dowels (3) into the inner end holes of Back Stretcher (D), Shelf Panel (B), Bottom
Panel (C) and Front Stretcher (P) Tap in with a mallet, if necessary. Make sure you use a small amount of
glue with both ends of all dowels.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
27. Align the inserted M8x30mm Wood Dowels (3) on the Back Stretcher (D), Shelf Panel (B), Bottom Panel
(C), Front Stretcher (P) with the drilled holes on the Side Panel Left (E) and press them together. Make
sure that the raw edge on the Shelf Panel (B), Bottom Panel (C) points towards the back of the unit and the
Cam Lock holes will face the right side as shown below. Fasten the Back Stretcher (D), Shelf Panel (B),
Bottom Panel (C) and Front Stretcher (P) to the Side Panel Left (E) by engaging Cam Locks (1). (Refer to
page 3 on Cam Lock system operation supplement). Align and attach Steel Tube (Y) to the Side Panel Left
(E) using two #8x1/2” Pan Head Screw (26) through holes on Steel Tube into the pilot holes,
28. Repeat the same procedure to attach the Side Panel Right (F) at the other end.
26
B
Roller
is bottom
C
E
D 1
1
3
3
F
3
P
Front
F
E
13
7 12&13
12&13
7
18
18
18
18
7
18
Y
18
12

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #13 of 16
Assembly Instructions
29. Insert six M8x30mm Wood Dowels (3) into the back side holes of Front Frame (G). Tap in with a mallet,
if necessary. Make sure you use a small amount of glue with both ends of all dowels.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
30. Align the inserted M8x30mm Wood Dowels (3) on the Front Frame (G) with the drilled holes on the
Bottom Panel (C), Side Panels (E&F) and press them together. As shown below. Fasten the Front Frame
(G) to the Bottom Panel (C) and the Side Panels (E&F) by engaging 6 Cam Locks (1). (Refer to page 3 on
Cam Lock system operation supplement).
31. Insert six M8x30mm Wood Dowels (3) and two M8x20mm Wood Dowels (4) into the bottom side holes of
Top Panel (A) (Sold Separately). Tap in with a mallet, if necessary. Make sure you use a small amount of
glue with both ends of all dowels.
NOTE: It is very important to use a small amount of glue on both ends of dowels.
32. Align the inserted Wood Dowels (3&4) on the Top Panel (A) (Sold Separately) with the drilled holes on
the Side Panels (E&F), Front Frame (G), Back Stretcher (D) and press them together. Make sure that the
Cam Lock holes will face the right side as shown below. Fasten the Top Panel (A) (Sold Separately) to the
Side Panels (E&F), Front Frame (G) and Back Stretcher (D) by engaging 6 Cam Locks (1). (Refer to page
3 on Cam Lock system operation supplement).
C
23
3
F
A
1
G
G
E
F1
1
D
C
4
G
E
NOTE: M8x20mm
Wood Dowels (4)
are used to front
frame of the
cabinet onl
y

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #14 of 16
Assembly Instructions
33. Now, go back and tighten all Cam Locks and Screws. Make sure that all the parts are tight and there are no
gaps between the pieces. This will help keep the unit square.
34. Lay the Back Panel (H) to the back edges of the assembled unit, as shown. Make sure the overlaps on the
panels are even all the way around. Secure the Back Panel (H) in place using the M2x19 mm Pan Head
Screw (8). We recommend attaching the back panel with the screws at the corners first.
35. Gently tap the Floor Protectors (11) at the bottom of side panels avoiding crack or damage of side panel.
If you intend to put this cabinet into the tower, please ignore this step.
36. Stand the assembled unit upright.
37. To insert the small drawer inside the Drawer Cabinet, tip the front of drawer down and drop the rollers of
the drawer slide runners behind the rollers of slide tracks on the unit. Lift the front of the drawer up and
slide it into the unit. As shown below.
8
8 8
H
FC
11
11
24

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #15 of 16
Assembly Instructions
38. To insert the Tray Panel (N) inside the unit as shown below. Repeat the same procedure to insert the
Hamper.
Important Notice Please Read
Note: The unit is designed to combine with our other product at the same series as shown
below for your reference.
Press down the
release lever
while sliding the
tray in.
If you need to remove the
tray, extend it all the way
forward, then press the
release lever up on one side
and down on the other
side ,and then pull the tray
completely out
WSMSL-SKW
WSMSL-SKN
(Sold Separately)
WSMSL-HSCW
WSMSL-HSCN
(Sold Separately)

Please call for replacement parts or assistance:1-866-942-5362
Whalen Storage Factory No.: 15548 Page #16 of 16
TIPPING RESTRAINT HARDWARE
We have included one Tipping Restraint Hardware bag (22) for this unit. You must install this hardware
to prevent accidents or injuries from falling unit.
When properly installed, this restraint can provide protection against the unexpected tipping of the storage
rack due to small tremors, bumps or climbing. We strongly recommended mounting this hardware to a
wall stud and your unit.
Please carefully read the instructions printed on the bag.
Note: You must install the Tipping Restraint Hardware with the unit in use to prevent any accidents or
damage to the unit.
Tools required: Phillips Screwdriver, Mallet, Power Drill, and 3/8” Drill Bit.
Care and Maintenance
Use a soft, clean cloth that will not scratch the surface when dusting.
Use of furniture polishes is not necessary. Should you choose to use polishes, test in an
inconspicuous area first.
Using solvents of any kind on your furniture may damage the finish.
Never use water to clean your furniture as it may cause damage to the finish.
Always use coasters under beverage glasses and flowerpots.
Liquid spills should be removed immediately. Using a soft clean cloth, blot the spill gently.
Avoid rubbing.
Always use protective pads under hot dishes and plates. Heat can cause chemical changes
that may create spotting within the furniture finish.
Stains or marks from crayons or ink markers will be difficult to remove.
In the event that your furniture is stained or otherwise damaged during use, we recommend
that you call a professional to repair your furniture.
Check bolts/screws periodically and tighten them if necessary.
Further advice about wood furniture care
It is best to keep your furniture in a climate controlled environment. Extreme temperature and
humidity changes can cause fading, warping, shrinking and splitting of wood. It is advised to
keep furniture away from direct sunlight as may damage the finish.
Proper care and cleaning at home will extend the life of your purchase. Follow the important
and helpful tips that will enhance your furniture as it ages.
We hope you enjoy your purchase for many years.
Thank you for your purchase.
