DELANEY 60
GBSH173 / GBSH174
INSTALLATION MANUAL
2023-07-24 HOMEDEPOT.COM/HOMEDEPOT.CA/HOMEDECORATORS
Questions, problems, missing parts?
Before returning to the store, call Home Decorators Collection customer service department at
1-800-986-3460, 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday.
An installation video guide can be found on our Youtube channel:
https://tinyurl.com/3u8vuyzt

PAGE 2
CAUTION
Please carefully read the following important safety information before handling or installing this shower. There is a
risk of serious injury while handling this product. To minimize these risks, please note:
• Always wear safety glasses and gloves while handling.
• Always read and follow all the steps in the installation instructions.
• Inspect all contents and glass for damage before installation.
• Keep the corner protectors on glass panels until the installation is nished.
• Extreme caution should be taken while handling the glass during installation as the tempered glass may shatter if
in contact with a hard surface.
• Handle the tempered glass with caution! Improperly handling the glass can cause it to break suddenly in small
pieces (never in pointed fragments).
• Always take all precautions not to touch the tempered glass with any tools during the installation, or after installed.
• Do not cut or modify the tempered glass as it will shatter if cut.
• Carefully remove product from packaging and keep packaging until installation is complete.
• Inspect all parts for damage; if there is damage to the unit prior to installation, please contact customer service at
the number provided in this guide.
• Install the shower on a oor that is level and able to accommodate the weight of the unit and an occupant.
• Consult local building codes and compliance standards prior to installation and ensure conformity.
• After installation, and from time to time, check the glass for t and nish to ensure that nothing has come loose
since installation.
• Keep this installation manual for future reference.
SAFETY INFORMATION
NOTICE
Any modication or alteration from what is specied in this instruction manual will void any and all warranty on this
product.
The distributor is not responsible for any damage to the unit or personal property caused by improper installation. If
you disregard instructional warnings, you will void your warranty and possibly deal with water damage.
Consult the distributor’s website for any additional information or question on this product’s installation.
SAFETY NOTICE
PREPARATION

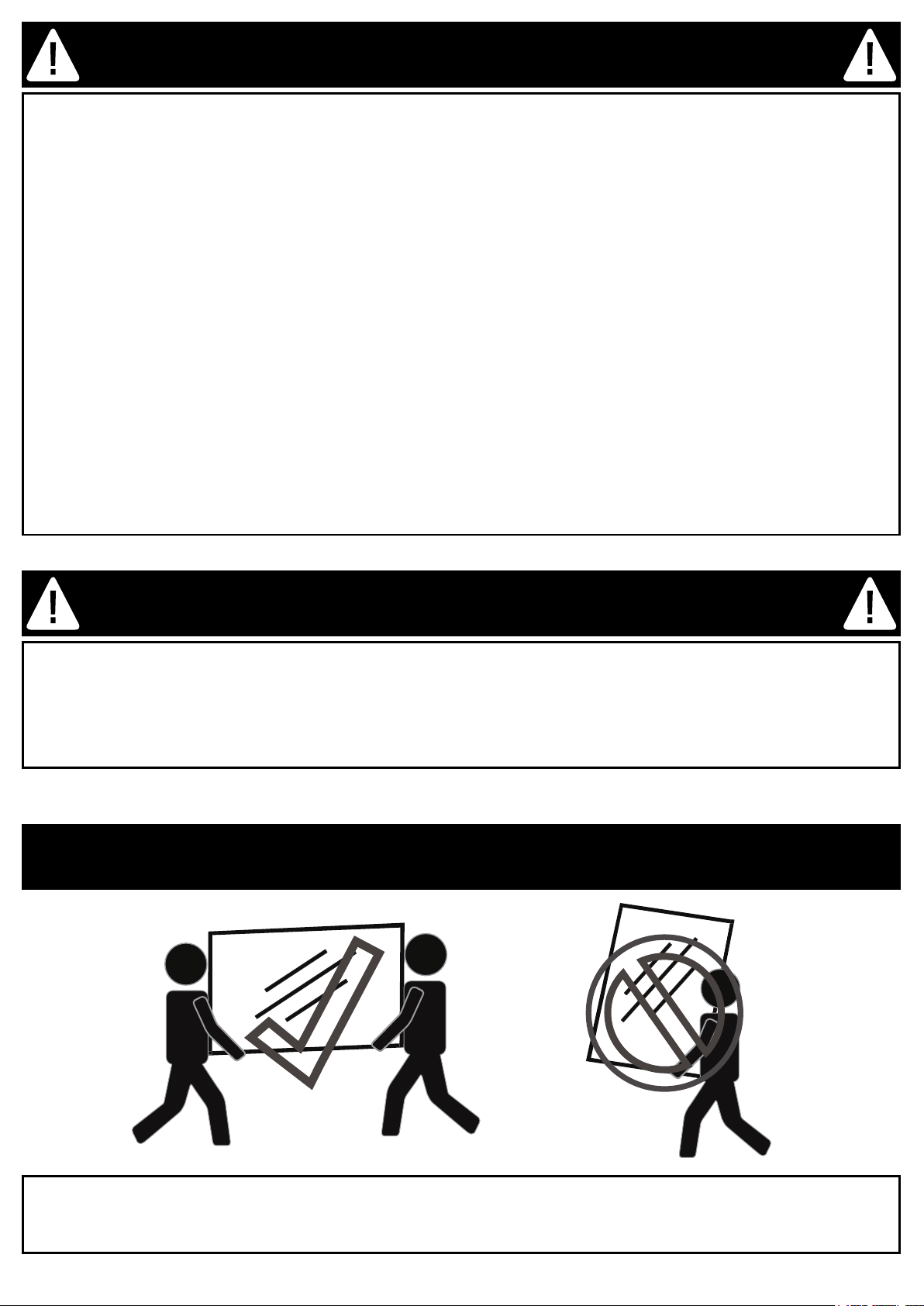

You will need at least two people to install this unit properly.
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list
and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product.

PAGE 3
C
33 3/16 in D
23 5/8 in
A
74 1/8 in
E
23 5/8 in
F
10 13/16 in
A
74 1/8 in
*B*
58 1/4 in~60 in
SHOWER DIMENSIONS
Measures: inch
Measurements
AShower height
*B* Shower width
CFixed panel width
DDoor panel width
EDoor opening
FDistance between handle holes
*B*
ATTENTION!
This is the required shower space
measurement to install the shower.

PAGE 4
WALL-TO-WALL DIMENSIONS
74 1/8 in
D
• Measure the thickness of your nished surface on either side before installing the metal tracks.
• Make sure to have a nished surface distance (D) between the min and max permissible dimensions according to the table
below.
FINISHED SURFACE OPENING (D) SHOWER DOOR HEIGHT
(Make sure the door height is not surpassing your tile /
acrylic wall height)
Support bar adjustability
MIN** MAX*
58 1/4 in 60 in 74 1/8 in

PAGE 5
PACKAGE CONTENT
C
1+1
D
1x
E
1x
H
1x
J
2x
K
1x
F
1x
L
1x
A
1x
G
x1
I
1x
B
1x
Wall track (Fixed Panel)
Brushed Nickel: 99STR3821-WM
Matte Black: 99STR3822-WM
Fixed panel
Brushed Nickel: 99SGP-1S0CXUGF-WM
Matte Black: 99SGP-43INV5LI-WM
Fixed panel support bracket
Brushed Nickel:99SGC4145-WM
Matte Black: 99SGC4146-WM
Door panel
99SGD-6FW88S9S-WM
Support bar anchor
Brushed Nickel: 99SGC-33IBW13O-WM
Matte Black: 99SGC-53020Q2S-WM
Support bar
Brushed Nickel: 99SGS-C2Z08L8J-WM
Matte Black: 99SGS-VN379J8H-WM
Support bar bracket
Brushed Nickel: 99SGC-W043EZH9-WM
Matte Black: 99SGC-1N919SD3-WM
Fixed panel vertical seal strip
Transparent: 99SRU3757-WM
Matte Black: 99SRU3772-WM
Magnetic strip
Transparent: 99SRU3748-WM
Matte Black: 99SRU3768-WM
Shower door hinge
Brushed Nickel: 99SHI-2IX1W9YH-WM
Matte Black: 99SHI-11PCES5P-WM
Fixed panel bottom seal strip
Transparent: 99SRU3805-WM
Matte Black: 99SRU-OD3F3058-WM
Glass panel clamp
Brushed Nickel: 99SGC-Z208TY08-WM
Matte Black: 99SGC-7F7Q5I1I-WM

PAGE 6
PACKAGE CONTENT
M
1x
N
1x
R
1x
Q
1x
O
1x
P
1+1
S
1x
T
x1
Door bottom seal strip
Transparent: 99SRU3756-WM
Matte Black: 99SRU3771-WM
Door handle
Brushed Nickel: 99SHA-3AQA9U9F-WM
Matte Black: 99SHA-3O3Z8833-WM
Decorative track
Brushed Nickel: 99STR-91ZTY026-WM
Matte Black: 99STR-YMTBQX74-WM
Decorative cap
Brushed Nickel: 99SGC4147-WM
Matte Black: 99SGC4148-WM
Magnetic track
Brushed Nickel: 99SRU3750-WM
Matte Black: 99SRU3751-WM
Wall track (with Q)
Brushed Nickel: 99STR3826-WM
Matte Black: 99STR3834-WM
Support bar anchor cover
Brushed Nickel: 99SGC-M491470D-WM
Matte Black: 99SGC-79832WY2-WM
Support bar bracket cover
Brushed Nickel: 99SGC-8516MI5O-WM
Matte Black: 99SGC-0IA5939G-WM
Complete hardware kit (refer to next page)
Brushed Nickel: 99SHW-40048L4D-WM
Matte Black: 99SHW-NW2938J8-WM

PAGE 7
SUPPLIED HARDWARE LIST
BB DD EEAA FF
HH
Screw
ST4x12mm
6+2
Wall Anchor
ø8x30mm
8+2
Screw
ST5x30mm
6+2
Cap
6x
Fitting
6x
Allen key
2.5mm & 3mm & 4mm
Bolt
M5x20mm
2x
CC
GG
Screw
ST5x40mm
2+1
Screw
ST4x20mm
1+1
Cap
2x
Cap
1x
JJ
II
Wood block
2x
Cap
8x
KK
TOOLS REQUIRED (not supplied)
Pencil Screwdriver Drill and drill bits
ø1/8 in & ø5/16 in
LevelMeasuring Tape Silicone Rubber mallet
Cutter
Safety glasses Ratchet
3/16 in Bit socket Glass suction cup

PAGE 8
DOOR ASSEMBLY OVERVIEW
A
B
J
FG
E
H
IQR
D
K
L
O
C
M
P
N
S
T

PAGE 9
BEFORE INSTALLATION
For the easy installation of this shower please read the following important points:
• READ ALL the instructions completely before beginning.
• Make sure your walls are within 3/8 in of plumb. And wall corners should meet at 90oas illustrated.
• Make sure your tub or shower base is level.
• When using Solid Polymer Composite (SPC) shower walls, dry t your shower door and make sure there is a stud where the
wall track will be installed.
Please see the images below for Alcove shower.
90o
90o
LEVEL
LEVEL
90o
LEVEL
LEVEL
90o

PAGE 10
A B
PREPARATION
This instruction is drawn up for a door opening from right to left (see illustration A).
For an installation for a door opening from left to right (see illustration B), use the same
instructions, but switch around the panels: mirror e󰀨ect.
DOOR DOOR
FIXED
PANEL
FIXED
PANEL
RIGHT DOOR
OPENING
LEFT DOOR
OPENING
FAQ
Q: If the shower head is installed
on the other wall, will it leak?
A: It is possible to install your
shower head on the other side,
but we strongly recommend to
install it as illustrated.
Install the shower head on the door’s side as shown in the illustration!
This will reduce the risk of leaking.

PAGE 11
WALL TRACK INSTALLATION
1.1-1.2. Position the wall track (A) as illustrated. Level the track (A) and mark the track holes positions.
1.3. Remove the track and drill pilot holes in the marked locations with a ø5/16 in drill bit.
1.4. If there are no studs located behind the wall track (A), then insert the wall anchors (AA) using a rubber mallet until the wall
anchors are ush with the wall.
1.5. Replace and secure the track (A) with screws (BB). Do not overtighten.
1
A
1.2
1 in
1.1
A
AA
ø5/16 in
1.3
1.4
WARNING!
If there are no studs aligned
to the wall track behind the
drywall, use the wall anchors
to ensure the screws won’t
become loose.
AA
A
A
BB
RIGHT DOOR OPENING
LEFT DOOR OPENING
BB
1.5
B
1.5

PAGE 12
FIXED PANEL INSTALLATION
2.1-2.2. Cut the xed panel bottom seal strip (K). Insert the xed panel bottom seal strip (K) on the base of the xed panel (B).
2.3. Insert the xed panel (B) into the wall track (A). Do not fully tighten it as further adjustments may be required.
Note: The wall track (A) allows you to adjust the position of the xed panel (B). Adjusting the depth and/or giving the
glass panel a slight angle allows for precise alignment with the door.
2.4. Insert the xed panel support bracket (C) into the xed panel (B).
2.5. Install the xed panel vertical seal strip (H) onto the xed panel (B).
2
A
B
2.3 2.4
B
C
2.5
B
H
K
2.1
1/2 in
1/2 in
K
B
9/16 in
2.2
LEFT DOOR OPENINGRIGHT DOOR OPENING
A A
B B
C C
H H
K K

PAGE 13
SHOWER DOOR INSTALLATION
3.1. Disassemble the hinges (J). Be careful not to lose any pieces.
3.2. Install the rst part of the hinges (J) onto the xed panel (B). Ensure that the hinges are tightly screwed in place. Use a
ratchet to strongly tighten the blots.
3.3. It is recommended that you use wood blocks to steadily hold up the door panel (D) to nish the hinge installation.
3.4. Align the holes of the door panel (D) to the corresponding holes of the hinges (J), and install the hinges. Ensure that the
hinges are tightly screwed in place. Use a ratchet to strongly tighten the blots. Install the caps (KK) onto the hinges (J).
3
3.1 3.2
J
3.4
J
B
J
D
D
3.3
KK
KK
WARNING!
Use wood block to hold up the door at
a leveled and stable position while you
install the hinges.
J J
J J
D D
B B
LEFT DOOR OPENINGRIGHT DOOR OPENING

PAGE 14
SHOWER DOOR INSTALLATION
4
4.1-4.2. Using a cutter, cut the surplus parts of the lip of the door bottom seal strip (M).
4.3-4.4. Insert the door bottom seal strip (M) into the door panel (D).
4.1 4.1
4.3 4.3
1/4 in 1/4 in
M M
3/16 in 3/16 in
D D
M M
4.4 4.4
M M
D D
4.2 4.2
3/8 in 3/8 in
JJ
J J
D D
B B
LEFT DOOR OPENINGRIGHT DOOR OPENING
M M

PAGE 15
SHOWER DOOR INSTALLATION
5
5.1-5.2. Insert the magnetic strip (I) on the door panel (D).
5.3. Insert the wall track (R) into the magnetic track (Q), place the magnetic track (Q) to the magnetic strip (I).
5.4. Close the door, level the wall track (R) and mark the position of it to the wall.
D
IM
D
5.1 5.2
I
QR
R
I
5.3 5.4
DD
D
QR
I
M
D
Q
RI
M
LEFT DOOR OPENINGRIGHT DOOR OPENING

PAGE 16
SHOWER DOOR INSTALLATION
6.1 Place the wall track (R) back on it’s wall mark. Level the track (R) and mark the track holes positions.
6.2. Remove the track and drill pilot holes in the marked locations with a ø5/16 in drill bit.
6.3. If there are no studs located behind the wall track (R), then insert the wall anchors (AA) using a rubber mallet until the wall
anchors are ush with the wall. Replace and secure the track (R) with screws (BB). Do not overtighten.
6
ø5/16 in
R
6.1 6.2
WARNING!
If there are no studs aligned to the
wall track behind the drywall, use the
wall anchors to ensure the screws
won’t become loose.
R
AA
BB
6.3
D
QR
I
M
D
Q
RI
M
LEFT DOOR OPENINGRIGHT DOOR OPENING

PAGE 17
CLAMP INSTALLATION
7.1. Disassemble the clamp (L).
7.2. Place the clamp (L) into the notch of the xed panel (B), mark the hole’s place and make a hole in the base using ø1/8 in
drill bit.
7.3. Secure the clamp (L) using screw (HH).
7.4. Completely install the clamp (L). Install the cap (JJ) onto the clamp (L).
7
ø1/8 in
HELPFUL HINT!
Add a drop of silicone
in the holes before
inserting the screws.
LL
B
L
7.1 7.2
7.3 7.4
BB
JJ
HH
LEFT DOOR OPENINGRIGHT DOOR OPENING
L L
BB

PAGE 18
SHOWER DOOR INSTALLATION
8
8.1-8.2. Fix the magnetic track (Q) by drilling guide holes through the wall track (R) and screwing it in place using ttings (DD),
screws (CC) and caps (EE).
8.3-8.4. Fix the xed panel (B) by drilling guide holes through the wall track (A) and screwing it in place using ttings (DD), screws
(CC) and caps (EE). Measure approximately 3 15/16 in from the top and bottom, and at the center height of the wall track (A).
DD
EE
CC
R
A
B
ø1/8 in
3 15/16 in 3 15/16 in
BA
EE
CC
DD
8.2
8.3 8.4
ø1/8 in
3 15/16 in 3 15/16 in
R
8.1
Center
Center

PAGE 19
SUPPORT BAR INSTALLATION
9.1. Loose the bolts on the anchor (E), mount the anchor (E) and the xed panel bracket (G) onto the support bar (F).
9.2. Fix the anchor (E) to the support bar (F) with the bolts (FF).
9.3. Adequately position the support bar in place, atop the panel (B). Do not forget the plastic gaskets keeping the glass panels
separated from the metal brackets.
9.4. Use a level and mark the holes of the support bar’s anchor (E) on the wall.
9
9.2
9.3
F
E
9.1
G
B
FE
B
E
FFF
9.4
F F
E E
G G
B B
LEFT DOOR OPENINGRIGHT DOOR OPENING
LOOSE
LOOSE

PAGE 20
B
F
SUPPORT BAR INSTALLATION
10.1. Completely remove the support bar (F).
10.2-10.3. Drill a hole on the center marks with a ø5/16 in drill bit. If there are no studs located behind the support bar anchor
(E), then insert the wall anchors (AA) using a rubber mallet until the wall anchors are ush with the wall.
10.4. Reinstall the support bar (F) onto the xed panel (B).
10
ø5/16 in
10.1 10.2
10.3 10.4
WARNING!
If there are no studs aligned to support bar
anchors behind the drywall, use the wall
anchors to ensure the screws won’t become
loose.
AA
B
F
F F
E E
G G
B B
LEFT DOOR OPENINGRIGHT DOOR OPENING
