HoMedics BPW-715 User manual

WITH SMART MEASURE™TECHNOLOGY
BPW-715
Le manuel en français
commence à la page 32
El manual en español
empieza en la página 64

1
TABLE OF CONTENTS
INTRODUCTORY INFORMATION:
Important Product Notices and
Safety Instructions .............................................. 3
About Blood Pressure......................................... 5
Blood Pressure Standard ................................... 6
How This Blood Pressure
Monitor Works ..................................................... 7
USAGE INFORMATION:
Name/Function of Each Part............................... 8
Display Explanations........................................... 9
Installing Batteries ............................................ 11
Date & Time Set Procedure .............................. 13
Applying the Cuff .............................................. 14
Correct Measurement Posture ......................... 15
Measurement Procedure .................................. 16

2
Risk Category Indicator.................................... 19
Irregular Heartbeat Detector (IHB)................... 20
Recalling Values from Memory......................... 21
Clearing Values from Memory.......................... 21
Important Notes Regarding Your
Blood Pressure Measurement.......................... 22
Care, Maintenance & Cleaning......................... 23
Potential for Electromagnetic
Interference ....................................................... 25
Electromagnetic Compatibility (EMC) ............. 26
Troubleshooting ................................................ 28
Specifications.................................................... 29
5-Year Limited Warranty .................................... 31

3
IMPORTANT PRODUCT NOTICES AND
SAFETY INSTRUCTIONS
When using your blood pressure monitor, basic precautions
should always be followed. Please read and follow all
instructions and warnings before using this product. Save
these instructions for future reference.
• This device uses the oscillometric method to measure
systolic and diastolic blood pressure, as well as heart rate.
• Please note that this is a home health care product only and
is not intended to serve as a substitute for the advice of a
physician or medical professional.
• Not for use by or on persons under the age of 18.
• DO NOT use this device for diagnosis or treatment of any
health problem or disease. Measurement results are for
reference only. Consult a health care professional for
interpretation of blood pressure measurements. Contact
your physician if you have or suspect any medical problem.
DO NOT change your medications without the advice of
your physician or health care professional.
• This product is not suitable for people with arrhythmias.
• This device may have difculty determining the proper blood
pressure for pregnant women, individuals with irregular
heartbeat, diabetes, poor circulation, kidney problems, or for
users who have suffered a stroke.
• Not suitable for people undergoing intravenous injection on
any limb and for those with preeclampsia.
• For those who have had mastectomy surgery (especially
lymph node removal), it’s recommended to take a
measurement on the unaffected side.

4
• Excessive use may result in blood ow interference, which
is likely to cause uncomfortable sensations, such as partial
subcutaneous hemorrhage, or temporary numbness to your
wrist. In general, these symptoms should not last long.
However, if you continue to experience these sensations,
please seek advice from a medical professional.
• When used along with other medical electronic equipment
on the same arm, pressurization of the cuff may cause the
other devices to temporarily malfunction.
• Consult your physician before measuring blood pressure at
the wrist if you have any of the following conditions: Severe
hypertension, diabetes, arteriosclerosis, kidney disease, or
vascular disease that may compromise circulation.
• The pulse display is not suitable for checking the frequency of
heart pacemakers.
• Electromagnetic interference: This device contains sensitive
electronic components. Avoid strong electrical or
electromagnetic elds in the direct vicinity of the device (e.g.
cell phones, microwave ovens). These may lead to temporary
impairment of measurement accuracy.
• Consider the electromagnetic compatibility of the device
(ex. power disturbance, radio frequency interference, etc.)
• Please use this device in a home health care environment only.
• Use blood pressure monitor only for its intended use.
• DO NOT wrap the cuff around body parts other than your wrist.
• DO NOT use this device on infants, children, or those who
cannot express their own intention.
• Use only 1.5V “AAA” alkaline batteries.

5
Blood pressure measurements determined with this device are
equivalent to those obtained by a trained observer using the
cuff/stethoscope auscultatory method within the limits
prescribed by the American National Standard, manual,
electronic, or automated sphygmomanometers. The
sphygmomanometer was clinically investigated according
to the requirement of ISO 81060-2:2013.
ABOUT BLOOD PRESSURE
What is blood pressure?
Blood pressure is the pressure exerted on the artery walls while
blood ows through the arteries. The pressure measured when
the heart contracts and sends blood out of the heart is systolic
(highest) blood pressure. The pressure measured when the
heart dilates with blood owing back into the heart is called
diastolic (lowest) blood pressure.
Why measure your blood pressure?
Among today’s various health problems, those associated with
high blood pressure are very common. High blood pressure
dangerously correlates with cardiovascular diseases. Therefore,
blood pressure monitoring is important for identifying those
at risk.
Why do my readings vary?
Blood pressure is a body parameter that is subject to normal
variations throughout the day. A single reading that is different from
yours or your doctor’s readings are not necessary inaccurate. The
average of several readings, taken under similar conditions using
the same arm, is preferred for accurate blood pressure readings.
Why are my readings different than those taken at
my doctor’s office?
Many experience a phenomenon called “White Coat Hypertension”
when measured by a doctor. White Coat Hypertension refers to

6
blood pressure that rises above its usual level when measured
in a clinical setting, such as a doctor’s ofce.
BLOOD PRESSURE STANDARD
The table below contains dened levels for hypertension that
are publicly available from the American Heart Association®
(AHA 2017).
Users can compare their own blood pressure readings against
these dened levels to determine if they may potentially be at
an increased risk.
This table is applicable to most adults aged 18 and older.
Blood pressure tends to go up and down, even in people who
normally don’t have high readings. If your numbers stay above
the normal range most of the time, you may be an increased
risk and should consult your physician.
Although one can easily nd where their own blood pressure
readings fall on this table, this monitor comes equipped with a
Risk Category Indicator that automatically compares each reading
to the dened levels and provides a helpful cue if your reading falls
into one of the stages that could potentially indicate increased
risk. See page 19 for more information on this feature.
Blood Pressure Category Systolic
mmHg (upper
number)
Diastolic
mmHg (lower
number)
Normal <120 and <80
Elevated 120–129 and <80
High Blood Pressure (hypertension) Stage 1 130–139 or 80–89
High Blood Pressure (hypertension) Stage 2 140–180 or 90–120
Hypertensive Crisis (consult your doctor immediately) >180 and/or >120
*Source: AHA 2017

7
Please note that cues provided by this monitor are only
intended to assist you in using this table. The table and cues
are only provided for convenience in helping you to understand
your noninvasive blood pressure reading as it relates to the
American Heart Association® (AHA 2017) i nformation. They are not
a substitute for a medical examination by your physician. It is
important for you to consult with your physician regularly. Your
physician will tell you your normal blood pressure range as well as
the point at which you may actually be considered to be at risk.
HOW THIS BLOOD PRESSURE
MONITOR WORKS
This monitor uses innovative technology to detect your blood
pressure. This technology enables the monitor to
automatically inate and deate at the appropriate level for
each individual. With the touch of a button, the cuff will
automatically inate to block the blood ow through your
artery. Next, the deation process starts.
Please note that any muscle movement during ination or
deation will cause measurement error. When measurement
is complete, the monitor will display your systolic pressure,
diastolic pressure, and pulse readings.
The monitor automatically nds where your measurement
results fall on the American Heart Association®(AHA 2017)
table and provides a cue if your reading falls into one of the
stages that could potentially indicate increased risk. See page
19 for more information on this feature.
The appearance of the iicon indicates that a pulse
irregularity consistent with an irregular heartbeat was detected
during measurement. Refer to page 20 for more information on
the Irregular Heartbeat Detector.

8
NAME/FUNCTION OF EACH PART
MEMORY Recall
Wrist Cuff
Battery Cover START/STOP
Date/Time Set
LCD Display

9

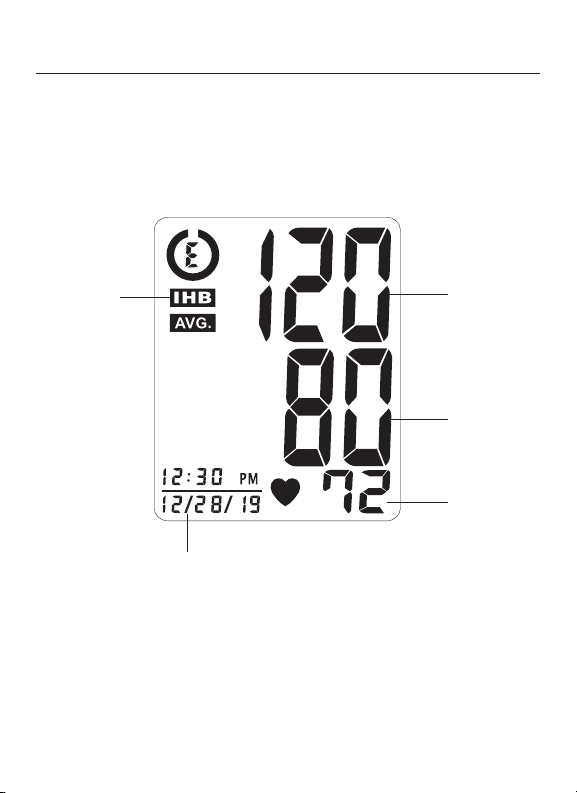

DISPLAY EXPLANATIONS
Systolic
Pressure
Diastolic
Pressure
Date/Time Indicator
Heart Rate
Irregular
Heartbeat
Detector

10
Display Symbols:
If eand any of the following letters and numbers
appear in the area that systolic pressure should be
displayed, an error has occurred with your reading. See the
Troubleshooting section of this manual for more information.
%Excessive Body Motion Detected/Measurement
Error: Wrap the cuff correctly and keep wrist
steady during measurement. Measure again.
^Air Circuit Abnormality: Measure again.
&Pressure Exceeding 300 mmHg: Switch the unit
off to clear, then measure again.
*Error Determining Measurement Data:
Measure again.
+System Error: Measure again.
bLow Battery Symbol: Appears when batteries
should be replaced, or+/- polarities have been
positioned incorrectly.
hPulse Symbol: Shows the heart rate per
minute.
iIrregular Heartbeat Detector: Irregular
heartbeat detected during measurement.
See page 20 for more information.
)Risk Category Indicator: Indicates the blood
pressure level. See page 19 for more
information.

11
INSTALLING BATTERIES
1. The battery cover is located along the
side of the monitor. Remove battery
cover by pressing down and pulling
away from the monitor (Fig.1).
2. Install or replace the 2 “AAA”
alkaline batteries according to
the indications inside the battery
compartment (Fig. 2).
3. Replace the cover by inserting it
back into place (Fig. 3).
Fig. 1
Fig. 2
Fig. 3

12
Replace the batteries if:
• The low battery symbol appears on the display.
• Nothing appears on the display when the power is switched on.
NOTE:
• Date and time will need to be reset if batteries are removed
or replaced.
• Replace all batteries at one time (as simultaneous set).
Do not mix old and new batteries.
• Use only 1.5V “AAA” alkaline batteries. Do not mix
alkaline, standard (carbon-zinc) or rechargeable (Ni-Cad,
Ni-MH, etc.) batteries.
• When installing batteries, observe proper +/- polarities.
Incorrect installation of batteries may cause damage to
the unit.
• When the batteries are removed, the measurement values
stored in the memory are retained. However, the date and
time must be reset.
• Remove batteries when unit is not in use for extended
periods of time to prevent damage due to possible leakage.
• Clean contacts on battery and in battery compartment with a
soft, dry cloth each time you install batteries.
• Keep batteries away from children as they could pose a
choking hazard.
• Recycle or dispose of properly in accordance with local,
state, province, and country regulations.
• Batteries are hazardous waste. DO NOT dispose of them
together with household garbage.
• DO NOT dispose of batteries in re. Batteries may
explode or leak.

13
DATE & TIME SET PROCEDURE
1. To adjust the date and time, press the Date/Time Set t
button located on the top of the monitor.
2. The display will show a blinking number showing the HOUR.
Change the HOUR by pressing the +button. Each press
will increase the number by one in a cycling manner. Press
the Date/Time Set tbutton again to conrm the entry,
and the screen will show a blinking number
representing the MINUTE.
3. Change the MINUTE, MONTH, DAY and YEAR as
described in Step 2 above, using the +button to change
the numbers and the Date/Time Set tbutton to conrm
the entries.
Press the button
blinking HOUR
increasing HOUR
confirm the entry
repeat process to set MINUTE,
MONTH, DAY and YEAR
IMPORTANT: IF YOU ARE USING THIS BLOOD PRESSURE MONITOR FOR THE FIRST
TIME, PLEASE REMOVE THE PROTECTIVE FILM FROM THE DISPLAY SCREEN.

14

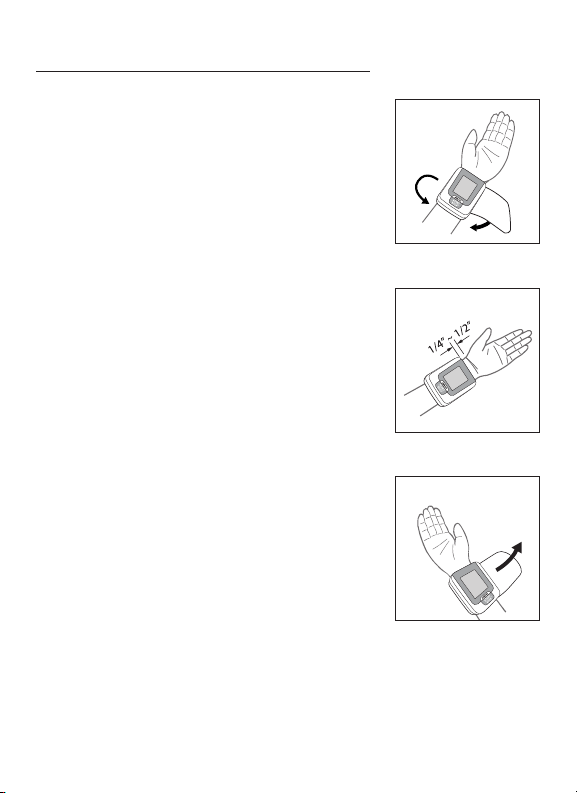

APPLYING THE CUFF
1. Remove all watches, wrist jewelry,
etc. prior to attaching the wrist
monitor. Clothing sleeves should
be rolled up and the cuff should
be wrapped around bare skin for
correct measurements.
2. Apply cuff to left wrist with palm facing
up (Fig. 1).
3. Make sure the edge of the cuff is about
¼"–½"(1cm-1.5cm) from the palm facing
up (Fig. 2).
4. In order to ensure accurate measurements,
fasten the hook and loop strap securely
around your wrist so there is no extra
space between the cuff and the wrist.
If the cuff is not wrapped tight enough,
the measurement values will not
be accurate.
5. If your physician has diagnosed you
with poor circulation in your left arm,
place the cuff around your right wrist
(Fig. 3).
NOTE:
• This device should not be used if your
wrist is wounded or injured.
• If it is not possible to use the cuff
on your left wrist, it can also be
used on your right wrist. However,
all measurements should be made
using the same wrist.
Fig. 1
Fig. 2
Fig. 3

15
CORRECT MEASUREMENT POSTURE
1. Place your elbow on a table so that
the cuff is at the same level as your
heart (Fig. 1). Relax your entire
body, especially between your
elbow and ngers.
NOTE: Your heart is located slightly
below your armpit.
2. If the cuff is not at the same level as
your heart, or if you cannot keep
your arm completely still throughout
the reading, use a soft object such
as a folded towel to support your
wrist (Fig. 2).
3. Turn your palm upwards.
4. Sit upright in a chair, and take
5-6 deep breaths. Avoid leaning
back while the measurement is
being taken (Fig. 3).
Fig. 1
(X)
Fig. 2
Fig. 3

16
MEASUREMENT PROCEDURE
NOTE:
• Blood pressure changes with every heartbeat and is in
constant uctuation throughout the day.
• Blood pressure measurement can be affected by the
position of the user, his or her physiologic condition, and
other factors.
Before measurement:
To help ensure an accurate reading, follow these instructions
before taking a measurement:
• Wait 1 hour after exercising, bathing, eating, drinking
beverages with alcohol or caffeine, or smoking to measure
blood pressure.
• Sit quietly and rest for 15 minutes.
• Stress raises blood pressure. Avoid taking measurements
during stressful times.
• Take your reading in a comfortable environment as
measurements can be affected by hot or cold temperatures.
Take your blood pressure at a normal body temperature.
During measurement:
• DO NOT talk or move your arm or hand muscles.
• DO NOT cross your legs. Sit with feet at on the oor.
• DO NOT touch cuff or monitor during measurement.

17

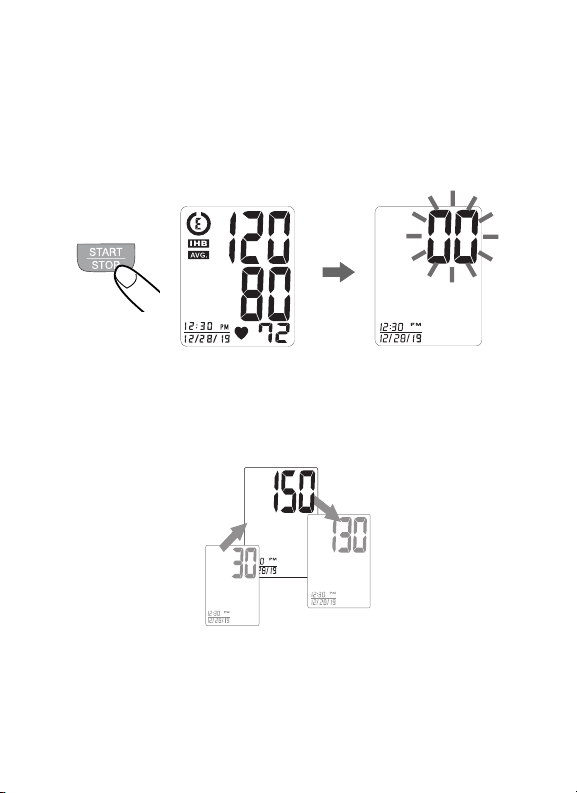

1. With the cuff wrapped around your wrist, press the
“START/STOP” button. Do not inate the cuff unless it is
wrapped around your wrist. All digits will light up to check
the display functions. The checking procedure will be
completed after about 3 seconds.
2. After all symbols disappear, the display will show “00”. The
monitor is ready to measure and will automatically inate
the cuff to begin measurement. The cuff will then begin
deating as measurement continues.
/

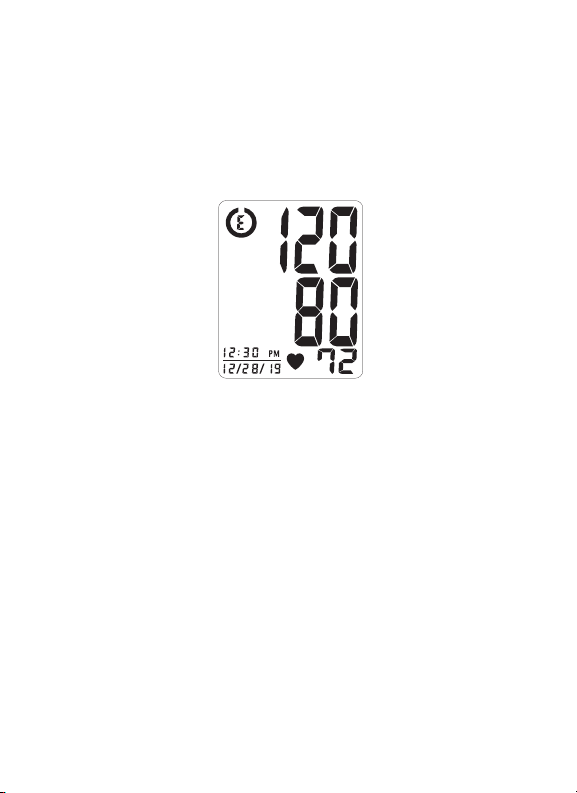

3. When the measurement is completed, the cuff will deate
entirely. Systolic pressure, diastolic pressure, and pulse will be
shown simultaneously on the LCD screen. The measurement
is then automatically stored into memory.
NOTE:
• If the monitor detects Excessive Body movement during the
measurement, EE “error” will display on the screen. Keep
arm steady and measure again.
• This monitor will reinate automatically if the system detects
that your body requires more pressure for measurement.
• This monitor automatically turns off approximately 1 minute
after last operation. You may also press the “START/STOP”
button to turn the unit off.
• To interrupt the measurement, you may press the “START/
STOP” button (recommended), the “MEMORY”button or
“Date/Time Set” tbuttons. The cuff will deate immediately
after a button is pressed.
18

19
RISK CATEGORY INDICATOR
This monitor comes equipped with a Risk Category Indicator
that automatically compares each reading to dened levels
established by the American Heart Association®(AHA 2017) as
described earlier in this manual, and provides a helpful cue if
your reading falls into one of the stages that could potentially
indicate increased risk. Please note that cues provided by this
monitor are only intended to assist you in using this table.
The table and cues are only provided for convenience to help
you understand your noninvasive blood pressure reading as it
relates to the AHA 2017 information. They are not a substitute
for a medical examination by your physician. It is important for
you to consult with your physician regularly. Your physician will
tell you your normal blood pressure range as well as the point at
which you may actually be considered to be at risk.
Stage 2 Hypertension
Stage 1 Hypertension
Elevated
Hypertension Crisis
Normal (No Symbol)
