HoMedics LEADER LDRBPA-060 User manual

LDRBPA-060
El manual en español
empieza en la página 30
Deluxe Automatic
Blood Pressure Monitor
IB-LDRBPA060A.indd 1 2010/3/19 下午 4:10

1
TABLE OF CONTENTS
INTRODUCTORY INFORMATION:
Important Product Notices and Safety
Instructions ..........................................................3
About Blood Pressure .........................................5
What is Blood Pressure?
Why Measure Your Blood Pressure?
Blood Pressure Standard ....................................5
How This Blood Pressure Monitor Works .........7
USAGE INFORMATION:
Name/Function of Each Part ...............................8
Display Explanations ...........................................9
Installing Batteries ............................................11
Using the AC Adapter .......................................12
Date & Time Set Procedure...............................13
Using the Cuff ....................................................14
Measurement Procedure ...................................17
Risk Category Index ..........................................20
Recalling Values from Memory.........................21
Clearing Values from Memory ..........................22
IB-LDRBPA060A.indd 1 2010/3/19 下午 4:10

2
Important Notes Regarding Your
Blood Pressure Measurement ..........................22
Care, Maintenance & Cleaning .........................24
Potential for Electromagnetic Interference .....26
Troubleshooting .................................................27
Specifications ....................................................28
5 Year Limited Warranty ....................................29
IB-LDRBPA060A.indd 2 2010/3/19 下午 4:10

3
IMPORTANT PRODUCT NOTICES AND SAFETY
INSTRUCTIONS
When using your blood pressure monitor, basic precau-
tions should always be followed. Please read and follow
all instructions and warnings before using this product.
Save these instructions for future reference.
• Please note that this is a home healthcare product only
and it is not intended to serve as a substitute for the
advice of a physician or medical professional.
• Do not use this device for diagnosis or treatment of any
health problem or disease. Measurement results are for
reference only. Consult a healthcare professional for
interpretation of pressure measurements. Contact your
physician if you have or suspect any medical problem.
Do not change your medications without the advice of
your physician or healthcare professional.
• Proper cuff size is critical for accurate measurements.
Follow the instructions in this manual and printed on
the arm cuff to ensure the appropriate size of cuff is
being used.
• This device may have difficulty determining the proper
blood pressure for individuals with irregular heartbeat, dia-
betes, poor circulation of blood, kidney problems or for
users who have suffered from a stroke.
• The pulse display is not suitable for checking the
frequency of heart pacemakers.
• Electromagnetic interference: The device contains
sensitive electronic components. Avoid strong electrical
IB-LDRBPA060A.indd 3 2010/3/19 下午 4:10

4
or electromagnetic fields in the direct vicinity of the device
(e.g. mobile telephones, microwave ovens). These may
lead to temporary impairment of measurement accuracy.
• Use blood pressure monitor only for its intended use.
• Do not wrap the cuff around body parts other than
your arm.
• Not for use by or on persons under the age of 18.
• Do not plug or unplug the adapter power cord with
wet hands.
• Please use only the AC adapter included with this moni-
tor or 1.5V AA alkaline batteries for power supply.
Blood pressure measurements determined with this device
are equivalent to those obtained by a trained observer using
the cuff/stethoscope ausculatory method, within the limits
prescribed by the American National Standard, Manual,
electronic, or automated sphygmomanometers.
IB-LDRBPA060A.indd 4 2010/3/19 下午 4:10

5
ABOUT BLOOD PRESSURE
What is Blood Pressure?
Blood pressure is the pressure exerted on the artery
walls while blood flows through the arteries. The
pressure measured when the heart contracts and
sends blood out of the heart is systolic (highest)
blood pressure. The pressure measured when the
heart dilates with blood flowing back into the heart
is called diastolic (lowest) blood pressure.
Why Measure Your
Blood Pressure?
Among today’s various health problems, those
associated with high blood pressure are very common.
High blood pressure dangerously correlates with
cardiovascular diseases. Therefore, blood pressure
monitoring is important for identifying those at risk.
BLOOD PRESSURE STANDARD
The table on page 6 contains defined levels based upon
standards for hypertension that are publicly available from
the National Heart Lung and Blood Institute at the U.S.
National Institutes of Health (NIH)
(http://www.nhlbi.nih.gov/health/dci/Diseases/Hbp/HBP_WhatIs.html).
Users can compare their own blood pressure readings
against these defined levels to determine if they may be
potentially at increased risk.
IB-LDRBPA060A.indd 5 2010/3/19 下午 4:10

6
Blood pressure tends to go up and down, even in people
who normally don’t have high readings. If your numbers
stay above the “normal” range most of the time, you may
be at increased risk and should consult your physician.
This table is applicable to most adults aged 18 and older.
Although one can easily find where their own blood
pressure readings fall on this table, this monitor comes
equipped with a Risk Category Index that automatically
compares each reading to the defined levels and provides
a helpful cue if your reading falls into one of the stages that
could potentially indicate increased risk. See page 20 for
more information on this feature.
Please note that cues provided by this monitor are only
intended to assist you in using this table. The table and
cues are only provided for convenience to help you
understand your non-invasive blood pressure reading as it
relates to the NIH information. They are not a substitute for
a medical examination by your physician. It is important for
you to consult with your physician regularly. Your physician
will tell you your normal blood pressure range as well as the
point at which you may actually be considered to be at risk.
Category Systolic (mmHg) Diastolic (mmHg)
Normal Less than 120 and Less than 80
Prehypertension 120-139 or 80-89
High Blood Pressure
Stage 1 140-159 or 90-99
Stage 2 160 or higher or 100 or higher
IB-LDRBPA060A.indd 6 2010/3/19 下午 4:10

7
HOW THIS BLOOD PRESSURE
MONITOR WORKS
This monitor uses Smart Measure™ Technology to
detect your blood pressure. With one touch of a but-
ton, the cuff will automatically inflate to block the blood
flow through your artery. Next, the deflation process
starts. Smart Measure™ Technology enables the moni-
tor to automatically inflate and deflate to the appropri-
ate level for each individual. Please note that any mus-
cle movement during inflation or deflation will cause
measurement error. When measurement is complete,
the monitor will display your systolic pressure, diastolic
pressure, and pulse readings.
The monitor automatically finds where your
measurement results fall on the NIH’s National Heart
Lung and Blood Institute’s table and provides a cue
if your reading falls into one of the stages that could
potentially indicate increased risk. Please refer to page
20 for more information on this feature.
Date/Time
Set Buttons
IB-LDRBPA060A.indd 7 2010/3/19 下午 4:10

8

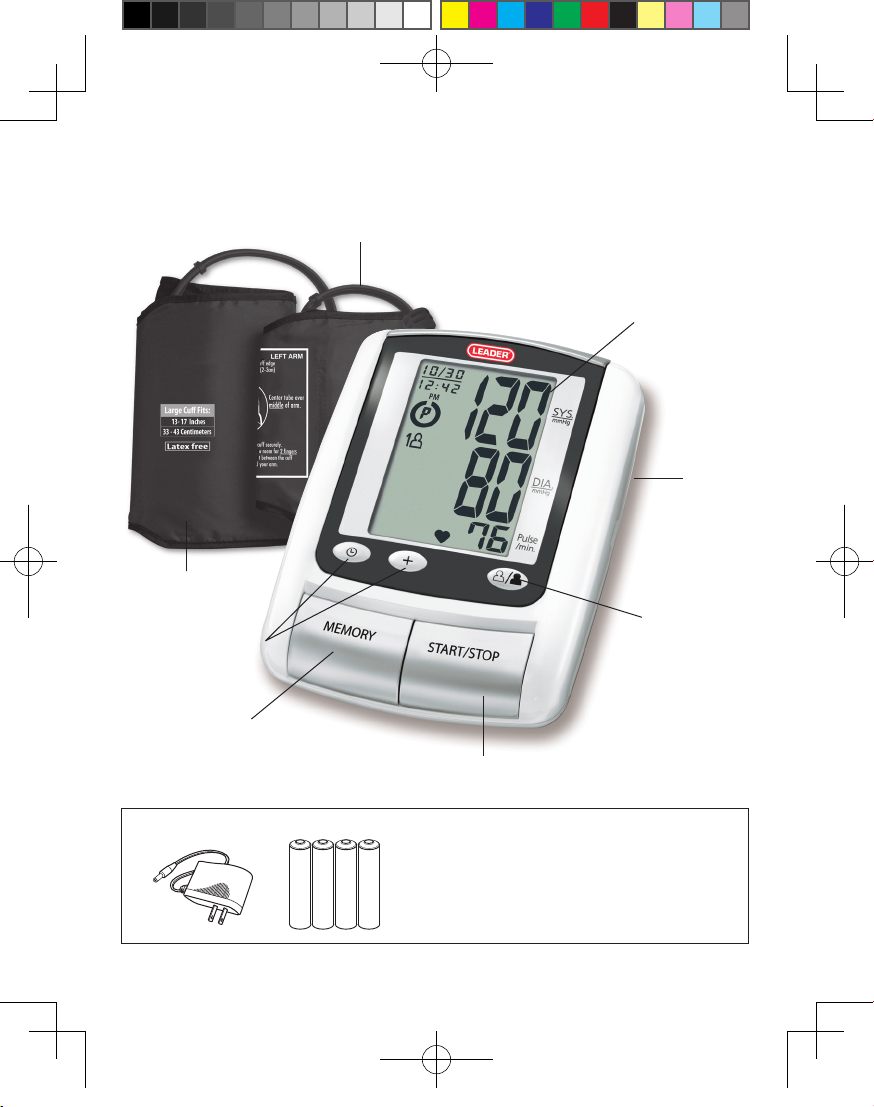

NAME/FUNCTION OF EACH PART
Other Accessories Included :
Battery
Cover
User-Select
Button
START/STOP Button
Memory Recall Button
Air Tube
and Connector
1 6V DC Output AC Adapter and
4 “AA” size, 1.5V alkaline batteries
Note: Please unload the batteries
when operating with the AC adapter
for an extended period of time.
( Located
on bottom
of unit)
Date/Time
Set Buttons
Arm Cuffs
LCD Display
IB-LDRBPA060A.indd 8 2010/3/19 下午 4:10

9
DISPLAY EXPLANATIONS
Systolic
Pressure
Diastolic
Pressure
Date/Time
Indicator
Heart Rate
IB-LDRBPA060A.indd 9 2010/3/19 下午 4:10

Measurement Error: Measure again. Wrap the cuff
correctly and keep arm steady during measurement.
Air Circuit Abnormality: Check cuff connection. Measure
again.
Pressure Exceeding 300 mmHg: Turn the unit off to clear,
then measure again.
Error Determining Measurement Data: Measure again.
10
User 1: Appears when the monitor is operated by User 1.
User 2: Appears when the monitor is operated by User 2.
Weak Battery Symbol: Appears when batteries should be
replaced.
Pulse Symbol: Shows the heart rate per minute.
Memory Average: Displays average of last 3 readings
Risk Category Index: See page 20 for more information.
Systolic
Pressure
Display Symbols:
/
START
STOP
/
START
STOP
/
START
STOP
/
START
STOP
If and any of the following letters and numbers appear in the
area that systolic pressure should be displayed, an error has occurred
with your reading. See Troubleshooting section of this manual for
more information.
IB-LDRBPA060A.indd 10 2010/3/19 下午 4:10

INSTALLING BATTERIES
1. Press down on latch and lift the battery cover to open
the battery compartment.
2. Install or replace 4 “AA ” sized batteries in the
battery compartment according to the indications
inside the compartment.
3. Close the battery cover by pushing in the top end
of the battery door.
Replace the batteries if:
1. The weak battery symbol appears on the display.
2. Nothing appears on the display when the power is
switched on.
As the supplied batteries are for test only, they may
be discharged earlier than batteries you buy in stores.
Replace all batteries at one time (as simultaneous set). Use
only 1.5V AA alkaline batteries. Remove batteries when unit
is not in use for extended periods of time. Date and time
will need to be reset if batteries are removed or replaced.
11
Battery
Cover
IB-LDRBPA060A.indd 11 2010/3/19 下午 4:10

12
Clean contacts on battery and in battery compartment with
a soft dry cloth each time you install batteries.
Note: Batteries are hazardous waste. Do not dispose of
them together with the household garbage.
USING THE AC ADAPTER
Note: • Please unload the batteries when operating with
the AC adapter for an extended period of time.
Leaving the batteries in the compartment for a
long time may cause leakage, which may lead to
damage of the unit.
• No batteries are needed when operating with
the AC adapter.
• Date and time will need to be reset if AC adapter
is unplugged.
1. Connect the AC adapter with the AC adapter jack in
the back of the unit as shown below.
2. Please use only the AC adapter included with
this monitor.
Connect AC
adapter here
AC Adapter
Input: 100-240V~0.2A 50/60Hz
Output: 6V DC 1A 6W Max
IB-LDRBPA060A.indd 12 2010/3/19 下午 4:10

DATE & TIME SET PROCEDURE
1. To adjust the date/time, press the Set button .
2. The display will show a blinking number showing
the month. Change the month by pressing the
button. Each press will increase the number by one
in a cycling manner. Press the Set button again
to confirm the entry, and the screen will show a blink-
ing number representing the day of the month.
3. Change the date and time as described in Step 2
above, using the button to change the numbers
and the Set button to confirm the entries.
13
Press the button
blinking month
increasing month
confirm the entry
repeat process to set date and time
IB-LDRBPA060A.indd 13 2010/3/19 下午 4:10

USING THE ARM CUFF
Very Important: Proper cuff size is critical to accu-
rate measurement.
This monitor comes with two sizes of arm cuffs:
Standard Size Fits 9”–13” (23 cm – 33 cm)
Large Size Fits 13”–17” (33 cm – 43 cm)
The appropriate cuff is suitable for your use if the
colored arrow falls within the solid color line as
shown below.
14
ARROW MUST FALL
WITHIN YELLOW BAND
ARROW MUST FALL
WITHIN YELLOW BAND
Center tube over
middle of arm
MODEL# PP-BPCUFF5
Position cuff
edge 0.6˝
–
1.0˝
(1.5
–
2.5cm) above elbow.
Center tube over
middle of arm.
Fit cuff secur ely. Allow room for
two fingers to fit between the cuff
and your arm.
Solid Colored Line
Colored Arrow
IB-LDRBPA060A.indd 14 2010/3/19 下午 4:10

15

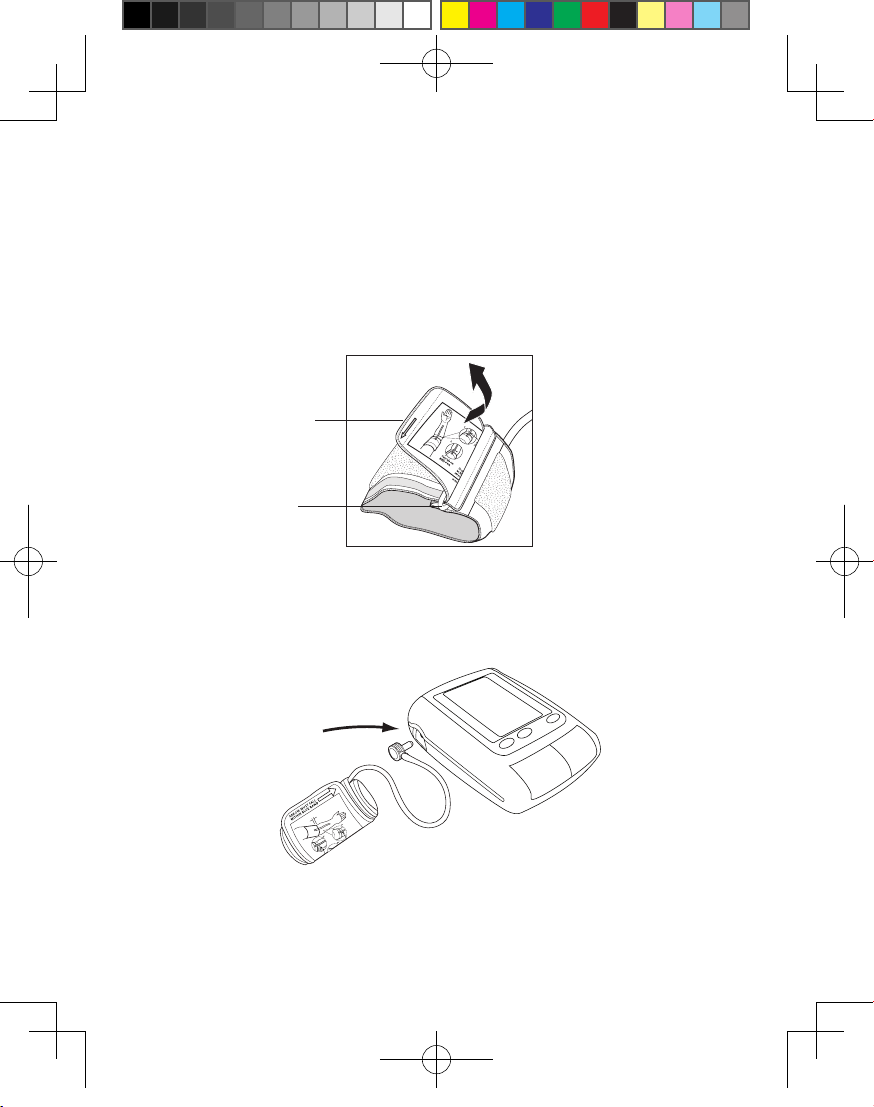

1. If the cuff is not assembled, pass the end of the
cuff furthest away from the tubing through the metal
D-ring in order to form a loop. The smooth side
without the felt material should be on the inside of
the cuff loop.
2. Plug the cuff tube into the left side of the unit.
3. Open the arm cuff so that your arm may be placed
through it.
2~3 cm
(0.8”~1.2”)
Position cuff edge
0.8
–
1.2 inches (2
–
3cm)
above elbow.
Fit cuff
Allow
to fi
and
Cen
mi
Insert plug here
ARROW MUST FALL
WITHIN YELLOW BAND
D-ring
End of cuff
IB-LDRBPA060A.indd 15 2010/3/19 下午 4:10

16
4. Remove tight fitting clothing from around
your upper left arm.
5. Position cuff edge 0.8-1.2
inches (2-3cm) above elbow.
6. Center tube over middle of arm.
7. Pull the end of the cuff so that it tightens
evenly around your arm. Press the hook
and loop material together to secure.
Allow room for 2 fingers to fit between the
cuff and your arm.
8. Lay your arm on a table (palm
upward) so the cuff is at the same
height as your heart. Make sure the
tube is not kinked.
IB-LDRBPA060A.indd 16 2010/3/19 下午 4:10

Note:
If it is not possible to fit the cuff to your left arm, it
can also be placed on your right arm. However, all
measurements should be made using the same arm.

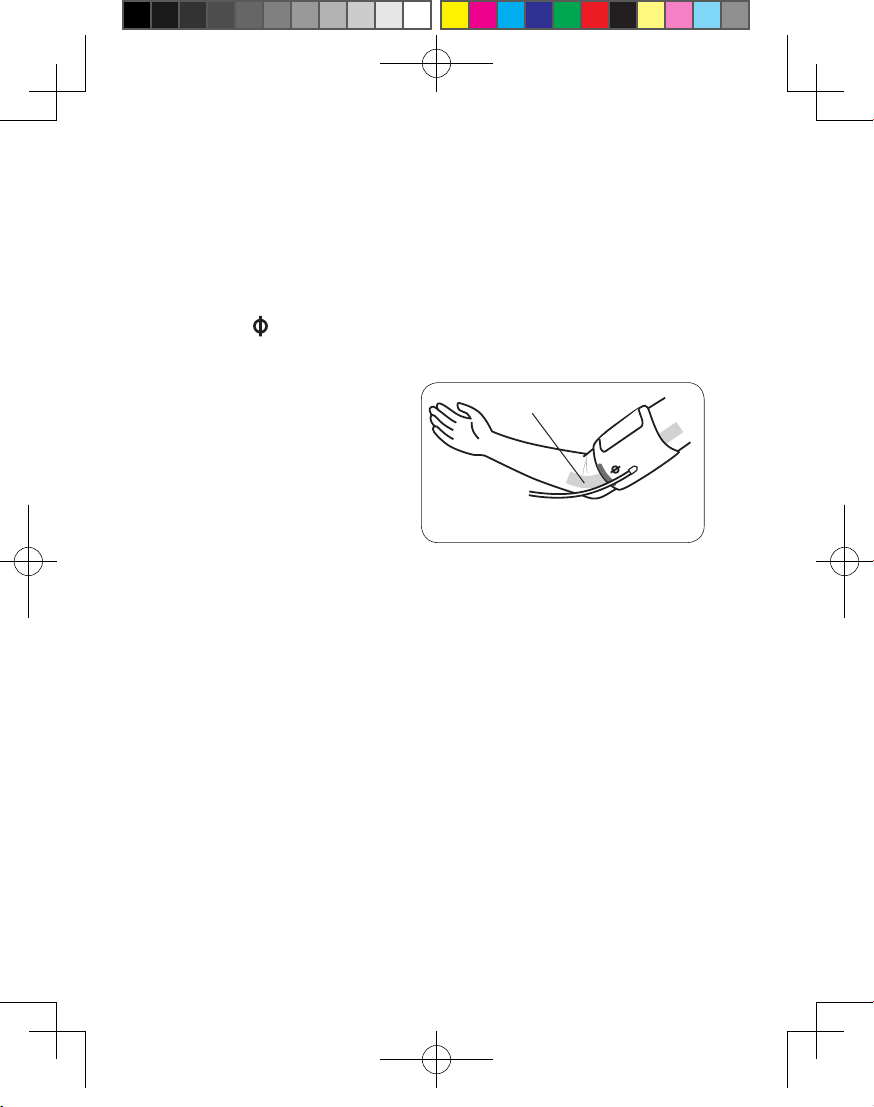

To use on the right arm, you must position the artery
symbol “ ” over the main artery. Locate the main
artery by pressing with two fingers approximately 1”
(2 cm) above the bend
of your elbow on the
inside of your right arm.
Identify where the pulse
can be felt the strongest.
This is your main artery.
17
MEASUREMENT PROCEDURE
Important Notes:
• Blood pressure changes with every heartbeat and is
in constant fluctuation throughout the day.
• Blood pressure measurement can be affected by
the position of the user, his or her physiologic condi-
tion and other factors. For greatest accuracy, wait 1
hour after exercising, bathing, eating, drinking
beverages with alcohol or caffeine, or smoking
to measure blood pressure.
• Before measurement, it is suggested that you sit
quietly for 15 minutes as measurements taken
during a relaxed state will have greater accuracy.
Main Artery
IB-LDRBPA060A.indd 17 2010/3/19 下午 4:10

You should not be physically tired or exhausted
while taking a measurement.
• During the measurement, do not talk or move
your arm or hand muscles.
• See page 22 for additional notes regarding your
blood pressure measurement.

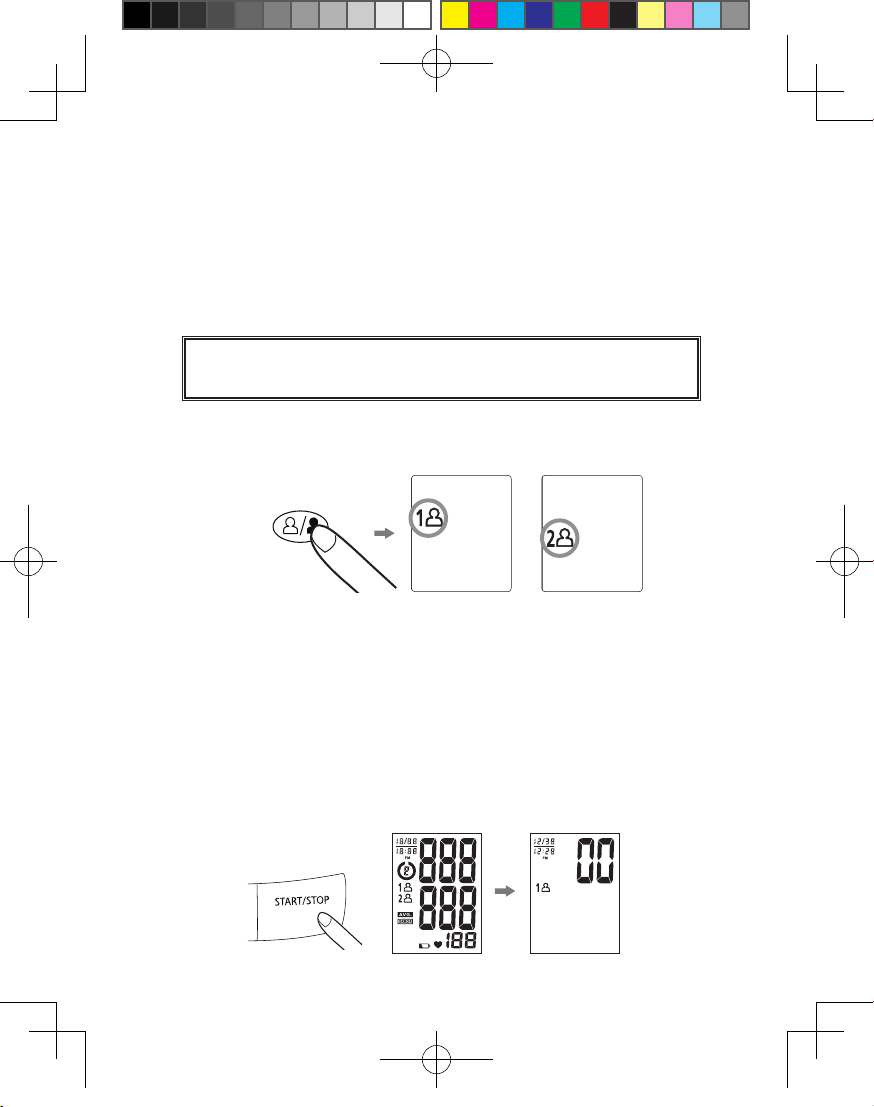

1. Press the User Select Button to choose User 1
or User 2.
After the user number is selected, press the
START/STOP button to confirm the chosen user.
2. With the cuff wrapped around your arm, press
the START/STOP button. Do not inflate the cuff
unless it is wrapped around your arm. All digits
will light up to check the display functions. The
checking procedure will be completed after about
3 seconds.
18
OR
If you are using this blood pressure monitor for the first
time, please remove the protective film from the screen.
IB-LDRBPA060A.indd 18 2010/3/19 下午 4:10

3. After all symbols disappear, the display will
show “00”. The monitor is “Ready to Measure”
and will automatically inflate the
cuff to start measurement.
4. Once your systolic pressure is determined, the monitor
will begin deflating to measure your diastolic pressure.
Note: This monitor will re-inflate automatically if the
system detects that your body requires more
pressure for measurement.
5. When the measurement is completed, the
cuff will deflate entirely. Systolic pressure,
diastolic pressure and pulse will be shown
simultaneously on the LCD screen.
The measurement is then automatically
stored into memory.
19
IB-LDRBPA060A.indd 19 2010/3/19 下午 4:10
