HomeSeer HSM200 Guide
This guide contains instructions for setting up your HomeSeer HSM200
multisensor! The HSM200 is designed to sense motion, temperature and
light levels and will work with most Z-Wave certified controllers or smart
hubs. HomeSeer HS3 system users can also program the unit to display
up to 7 different colors when things happen in the home. Since the
HSM200 is line powered, it can function as a Z-Wave network repeater
and there are no batteries to replace!
Adding the HSM200 to your Z-Wave Network (for HomeSeer HS3 System Users)
The HSM200 can be added directly through HS3 or can be added via your Z-Wave controller and then imported. (see
below if you are not using HS3)
a) Navigate to Plug-ins->Z-Wave->Controller Management. Expand your Z-Wave controller.
b) Open the Actions menu and select Add / Include Z-wave Device.
c) Click Start to initiate the Add process and press the button once on the side of the HSM200 to put it into
Inclusion mode. The process will take some time to complete.
Adding the HSM200 to your Z-Wave Network (for non-HomeSeer systems)
The HSM200 is Z-Wave certified multi-sensor that should work with any Z-Wave certified system controller. Please
follow the procedure required by your controller manufacturer for adding (“pairing”) the HSM200 with your Z-Wave
network. Note: The Color Control will only work if your control system support the Z-Wave Color Command Class. Please
check with the manufacturer of your system to verify compatibility.
Removing the HSM200 from your Z-Wave Network (for HomeSeer HS3 System Users)
Should you need to remove or reset your HSM200 to its factory configuration, please follow this procedure:
a) Navigate to Plug-ins->Z-Wave->Controller Management. Expand your Z-Wave controller.
b) Open the Actions menu and select Remove / Exclude Z-wave Device.
c) Click Start to initiate the Remove process and press the button once on the side of the HSM200 to put it into
Exclusion mode. The process should take very little time to complete.

Page 2
Configuring Device Settings
The HSM200 has some Device Settings that can be configured.
a) Go to your Device Management page (or click Home) and click on the Root device for your HSM200.
b) Click on the Z-Wave tab at the top to go to the Z-Wave Device control page.
c) On this page the HSM200 can be rescanned, optimized, removed, and other functions. Expand the Settings
section.
d) In the settings section the Name and Location of the Node can be configured internally on the HSM200.

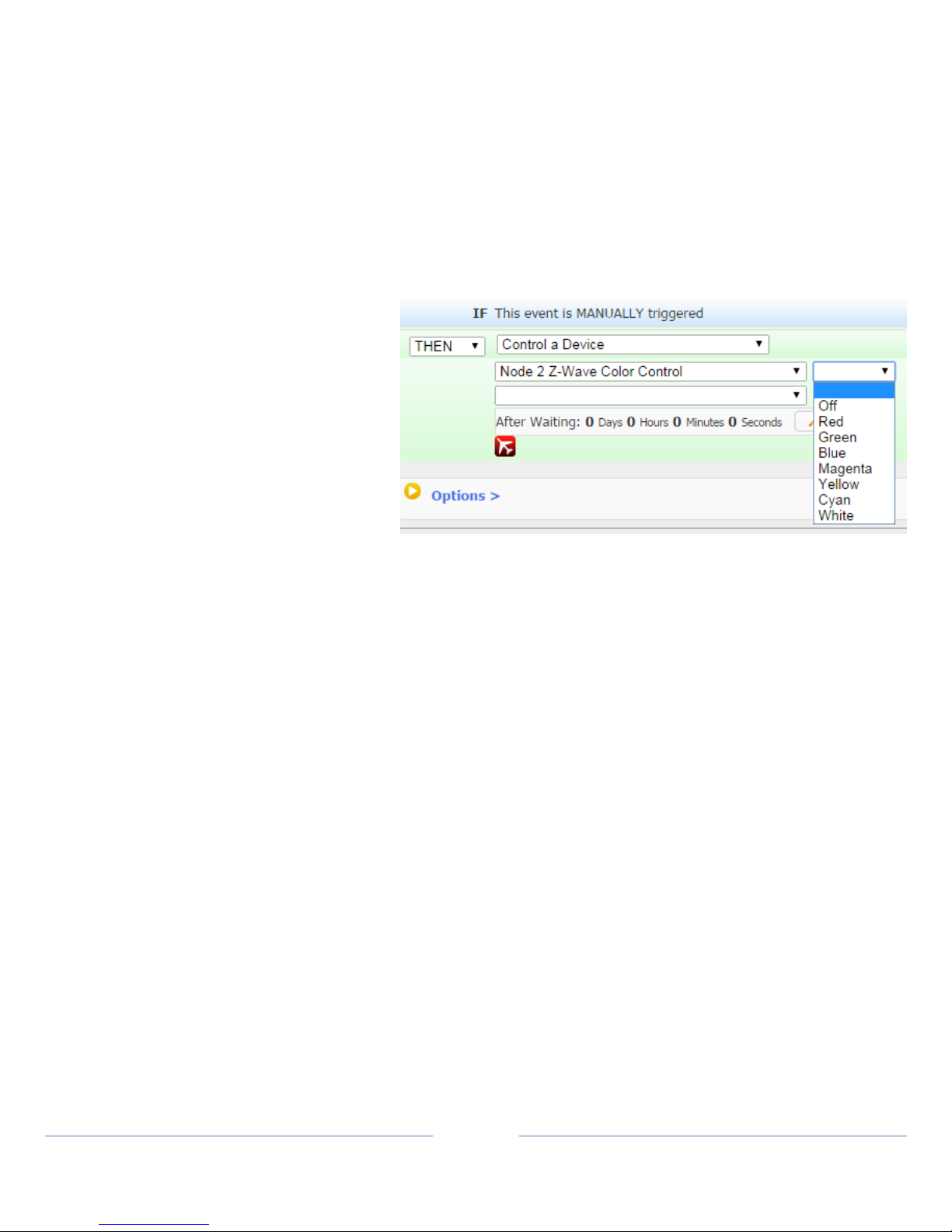

Creating Events to Utilize Color Control
The HSM200 includes a system-controllable
multi-colored LED that may be programmed
with ‘events’ to change color when things
happen in the home. HomeSeer HS3 system
users can do this by following these steps:
a) Go to View->Events and create a new
event.
b) After selection your trigger select the
Control a Device action.
c) Select HSM200 Z-Wave Color Control
option.
d) You can now select which color you
would like the LED to change based on
your trigger.
Updating the Device Firmware
From time to time, HomeSeer will update the firmware. Here the HSM200 firmware can be updated without having to
send the device back and forth with HomeSeer support.
a) Go to your Device Management page (or click Home) and click on the Root device for your HSM200.
b) Click on the Z-Wave tab at the top to go to the Z-Wave Device control page.
c) In the Firmware Update section, click Select File and select the HSM200 Firmware upgrade file.
d) Let the upgrade procedure finish before leaving the page.
Setting Up Device Associations
a) Go to your Device Management page (or click Home) and click on the Root node for your HSM200.
b) Click on the Z-Wave tab at the top to go to the Z-Wave Device control page.
c) Expand the Associations section.
d) The device should automatically associated with HomeSeer but it can be associated with other devices as well.
