HomeTech HT906 User manual

Manuale di utilizzo

2
INDEX
1. INTRODUCTION…………………………………….………….……3
2. CAUTION ……………………………….……………………………..4
3. PRECAUTIONS AND CONTRAINDICATIONS …………….5
4. INDICATOR AND CONTROLS ..………………………………..6
5. HOW TO USE THE CONDUCTIVE GEL ………………………7
6. TECHNICAL SPECIFICATIONS ……………………….………….8
7. PREPARATION FOR USE ……………..……………..…………..9
8. MAINTENANCE .……………………………..…………………….10
9. TROUBLESHOOTING ……………………………………………..11
10. WARRANTY …………………………………………………….….12
NB: Before using the instrument, please read the operating instructions carefully!

3
1. INTRODUCTION
EXPLANATION OF ULTRASOUND DIATHERMY
The ultrasound diathermy for use in applying therapeutic deep heat for selected medical conditions is a
device that applies to specific areas of body ultrasonic energy at a frequency 1 M(Hz) and that is
intended to generate deep heat within body tissues for the treatment.
INDICATIONS FOR USE
The indications for use include the following Relief of pain ;
Muscle spasms ;
Joint contractors ;
Not for the treatment of malignancies.
CONTRAINDICATION
The ultrasound diathermy should not be used for the treatment of malignancies.

4
2. CAUTION
●Clean the vibration probe completely before next user to avoid the cross-infection of skin
disease.
●Keep out of the reach of children.
●For external use only.
●Always use the specified accessories in the manual. The use of other parts not approved by
the manufacturer may cause harm.
●This device is warranted for a period of 1 year from the date of purchase by the original
buyer.
●The device's shelf-life is 3 years.
●AC adaptor type 48-240-0300 CE.
●Use timer max. 15 minutes on with 15 minutes off.
●The product complies with the electromagnetic compatibility requirement of EN60601-1-2 as
specified in EEC Directive 93/42/EEC as amended by 2007/47/EC.
●The operation envirement is 5-40°C &90% R.H.
The storage envirement is -25--55°C & 90% R.H.

5
3. PRECAUTIONS AND CONTRAINDICATIONS
Precautions
Please read the precautions, Contraindications warning card and user manual, before use.
If you choose to use high-power output, or the probe kept on the same spot or treatment time is
too long, it may cause burns.
Move the probe slowly on the treatment area in a circular motion to avoid burns.
After each treatment, unplug the AC adapter, and let the device cool for 30 minutes before re-use,
otherwise the probe may accumulate heat and cause burns.
To avoid scalding, use enough jelly to dissipate heat.
Do not submerge device and probe in water or solvent.
During use or after use, if you feel unwell, discontinue use and consult a physician.
If you have a preexisting medical condition consult your doctor before use.
Contraindications
Equipped with heart rhythm regulator, with vascular disease, malignant tumor, coagulation,
neuropathy, tuberculosis, fever, bone disease, implantation of metal plate or metal screw,
dermatitis patients, or people with nickel sensitivity.
Pregnant women, infants, people with disabilities or people with abnormal physical conditions.
Do not use on heart, blood vessels, neck, throat, eyes, ear area, wounds, anaesthetized area,
varicose veins, or genital area.

6

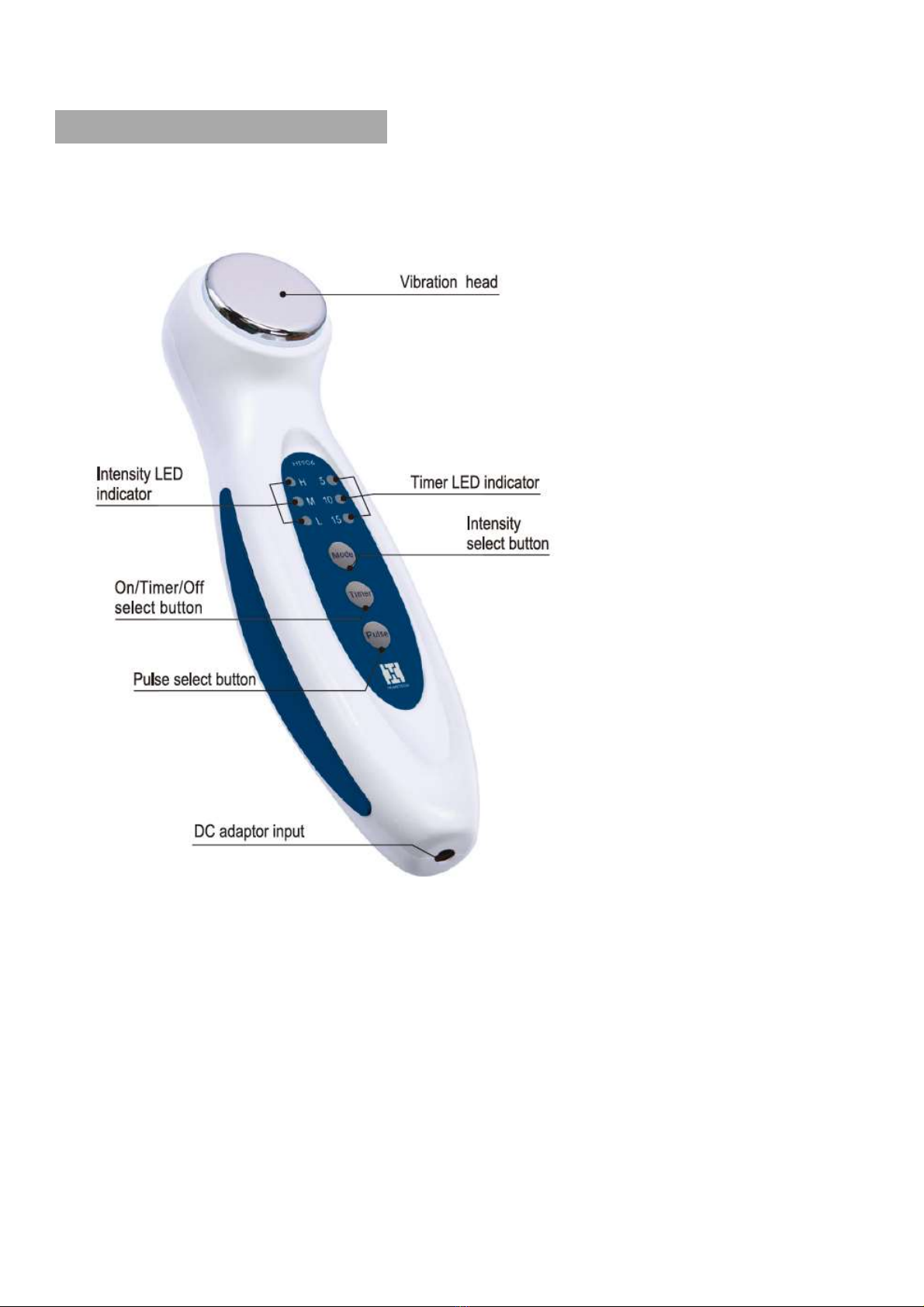

4. INDICATOR AND CONTROLS

7
5. HOW TO USE THE CONDUCTIVE GEL
Attach the conductive gel
Choose area of skin and use water or alcoholto clean it, then spread the conductive gel on the skin or the
device's vibration metal head.
Removal
After use, please use a tissue paper or soft and wet cloth to clean the skin and the vibration metal
head.
Caution
Single user use / don't touch the conductive gel package outlet.

8
6. TECHNICAL SPECIFICATIONS
Input Power : 110V or 230V AC / 24VDC adaptor
Temporal maximum ultrasonic power : 2.5W±20%(max.)
Temporal maximum average intensity : 0.5W/cm2±20%(max.)
Timer : 5 / 10 / 15 minutes, three timer setting,
default levels 5 minutes
Ultrasound Frequency : 1±5% M Hz
Pulsed Duty cycle: L:12.5% ; M:33% ; H:50%
Pulse Repetition Rate : 60Hz
Pulse Mode : continuous or
on time 0.5 seconds off time 0.5 seconds

9
7. PREPARATION FOR USE
1. Please plug in the adaptor, which is equipped with the unit.
2. Please put some jelly or cosmetic on the unit's probe or skin.
3. Press the "timer" button to turn on the unit.
The unit's default time is 5 minutes and intensity is low level, with power indicator lights.
4. Press "timer" button to choose the suitable timer setting ; "5" , "10" or "15" minutes.
There are 3 intensity levels to choose ; when the level is "15" press "timer" button to turn off the
unit, power indicator is off.
5. Press "mode" button to choose the suitable intensity level ; "L", "M" or"H"
To pause during use, please turn off the unit.
DON'T CONTINUE THE POWER OUTPUT.
6. Press "pulse" button to choose the output ; continuous or intermittent ( on time 0.5 seconds off time
0.5 seconds).
7. When the setting time is up, the unit will auto turn off.

10
8. MAINTENACE
Main unit:
Don't put it into water, neither let it fall down or throw to ground from height.
After using the device, please place the main unit into storage box.
Please do not use any chemical to clean the main unit. In case you need to clean them, please only
wipe with wet cloth.
Conductive Gel :
Keep the conducive gel clean. Be sure there is no dust, oil or other foreign material on them.
If feel the gels dry too soon or can't attach well, please spread more gel on the probe or skin. (Please
use original factory's products or same quality conductive gels.)
After using, make sure to clean the vibration metal head with wet and soft cloth.
Store at room temperature in a dry place.
Adaptor :
User can not re-assemble or change the specification of the adaptor.
Packing : Color box

11
9. TROUBLESHOOTING
Problem
Possible Cause
Corrective Action
No vibration
●settled intensity
level zero(unit
stand by)
●raise the set intensity level
●timer count down
zero
●reset intensity level
●temperature
higher than
settled
●lower intensity level
●turn off unit
●non circuit loop
●finger touch the circuit
polar
●stick a reference electrode
●unit broken
●call the dealer
Intermittent
vibration
●temperature too
high
●lower intensity level
●turn off unit
●bad circuit loop or
too dry contract
●spread some gel or hydro-
cosmetic on the probe or
skin
●contract circuit polar
completely
●mixed wave mode
●settled ultrasonic mode
unit off can
no turn on
●unit inside
humidity
●dry the unit more than 24
hours
●DC connector
loose contact or
bad contact
●fixed connector completely
●replace new adaptor
●adaptor wire
broken
●replace new adaptor
●unit broken
●contact the dealer
NB: lf, after using this guide, the unit does not operate properly,the unit should be serviced. Please call
your dealer for instruction.

12
10. WARRANTY
The device includes a 24-month warranty for the first user, starting from the purchase date,
which covers manufacturing flaws and defective materials, on condition that the device is
used properly and kept efficiently. The warranty is limited to 12 months if the device is
intended for professional use.
DOMINO srl
Via Vittorio Veneto, 52
31013 - Codogné (TV) - ITALY
tel [phone]
www.globuscorporation.com
