Honeywell Home HZ221 TrueZONE User manual

Zone Panel Professional Installation Guide
M37922
HZ221
ZONE 1
ZONE 2
EM HEAT
HEAT
COOL
FAN
PURGE
HZ221 TrueZONE
69-2200-03

Installation Guide
TABLE OF CONTENTS
Read and save these instructions.
Need Help?
For assistance with this product please visit http://honeywellhome.com
or call Zoning Hotline toll-free at 18008288367
Specifications and Accessories .................................................................................................................................. 1
Installation.............................................................................................................................................................................. 2
Wiring ........................................................................................................................................................................................ 3
Operation................................................................................................................................................................................. 5
Warranty................................................................................................................................................................................... 6

HZ221 TrueZONE
1 69-2200—03
SPECIFICATIONS AND ACCESSORIES
Input Ratings:
Voltage: 1830 VAC 50/60 Hz transformer of 40 VA
or more.
Current Draw:
Zone Panel: 6.25 VA max.
All VA specifications at 24 VAC.
Wiring:
1820-gauge solid (not stranded) wire.
Humidity Ratings:
5% to 90% RH non-condensing.
Temperature Ratings:
Shipping: 20° to 150°F (29° to 66°C)
Operating: 40° to 165°F (40° to 74°C)
Dimensions:
See below.
Emissions:
Complies with FCC Class B, part 15 requirements.
M24742A
8 (203)
8-1/8
(206)
1-55/64
(47)
HZ221 TrueZONE panel dimensions in in. (mm).
RECOMMENDED THERMOSTATS, DAMPERS, AND
ACCESSORIES
The following are suggested thermostats, dampers, and
accessories for use with the TrueZONE panel.
Table 1. Recommended Thermostats.
Compatible thermostats*
TH4210U2002 (Programmable or non-programmable)
TH6210U2001 (Programmable or non-programmable)
TH6220U2000 (Programmable or non-programmable)
TH6320U2008 (Programmable or non-programmable)
TH6220WF2006 (WiFi)
TH6320WF2003 (WiFi)
TH8321WF1001 (WiFi)
THX321WFS2001W (WiFi)
* Note: The HZ221 supports a heat pump with either a
heat or cool reversing valve, but the thermostats MUST
be configured for a heat pump with cool reversing valve
to correctly communicate to the zone panel.
Table 2. Recommended Dampers.
Type Damper Round Rectangular
Zone Spring-open/
power-closed
ARD ZD
Zone Power-open/
power-closed
MARD/RRD
Bypass Static pres-
sure regulating
damper
CPRD
Table 3. Maximum Dampers.*
Ambient Temp. Maximum Damper VA per Zone
100°F (38°C) 28.8
160°F (71°C) 16.8
* Use an SDCR (Slave Damper Control Relay) for addi-
tional dampers.
Maximum dampers per panel is limited by transformer
size.
Ensure transformer is large enough to power the panel
(6.25 VA) and dampers.
Table 4. Accessories.
Accessory Description
40 VA transformer* AT140A1042*
75 VA transformer AT175A1008
Discharge Air
Temperature
Sensor (DATS)*
DATS C7735A1000*
SDCR Slave Damper Control Relay
* Included in HZ221K kit.

Installation Guide
69-2200—03 2

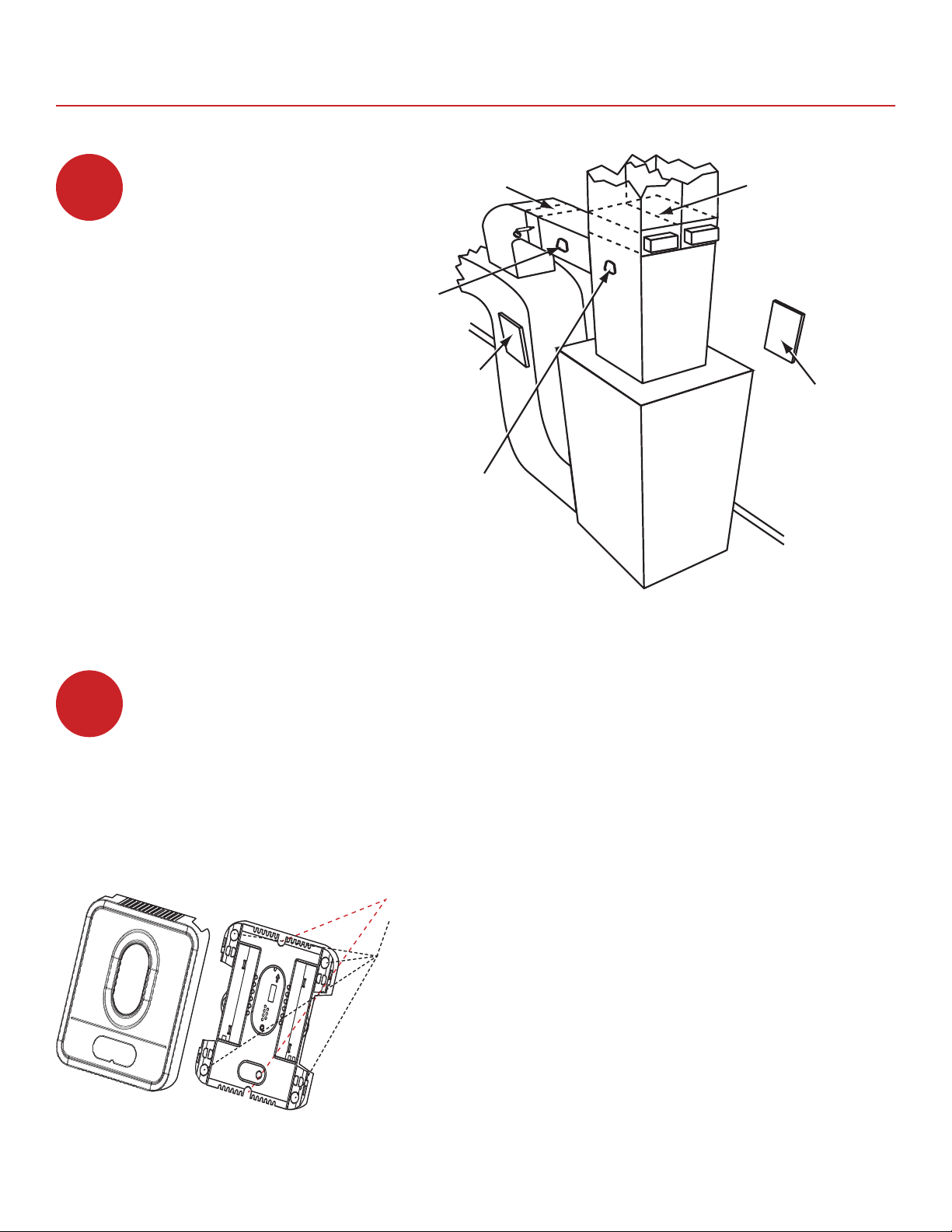

INSTALLATION
Mount the HZ221 TrueZONE
panel near the HVAC equip-
ment; locate it on a wall,
stud, roof truss, or cold-air
return.
NOTE: The HZ221
TrueZONE panel can be
mounted in any orientation;
level it for appearance only.
1
SUPPLY
DUCT
DATS
(AT LEAST 3 FT
FROM PLENUM)
DATS
(ALTERNATE
LOCATION)
Tr
ueZONE PANEL
MOUNTED ON
RETURN DUCT TrueZONE PANEL
MOUNTED ON W
ALL
ZD SERIES
ZONE DAMPERS
CPRD BYPASS
DAMPER
FURNACE OR
AIR CONDITIONER M24738
Separate the zone panel cover from the base, and use the base as a template to drill mounting holes.
Attach the base to the wall, stud, roof truss, or duct with appropriate screws (not included).
2
Use two screws for attaching to a stud or roof truss, or
four screws for duct or drywall/plaster installations.
M24803

HZ221 TrueZONE
3 69-2200—03

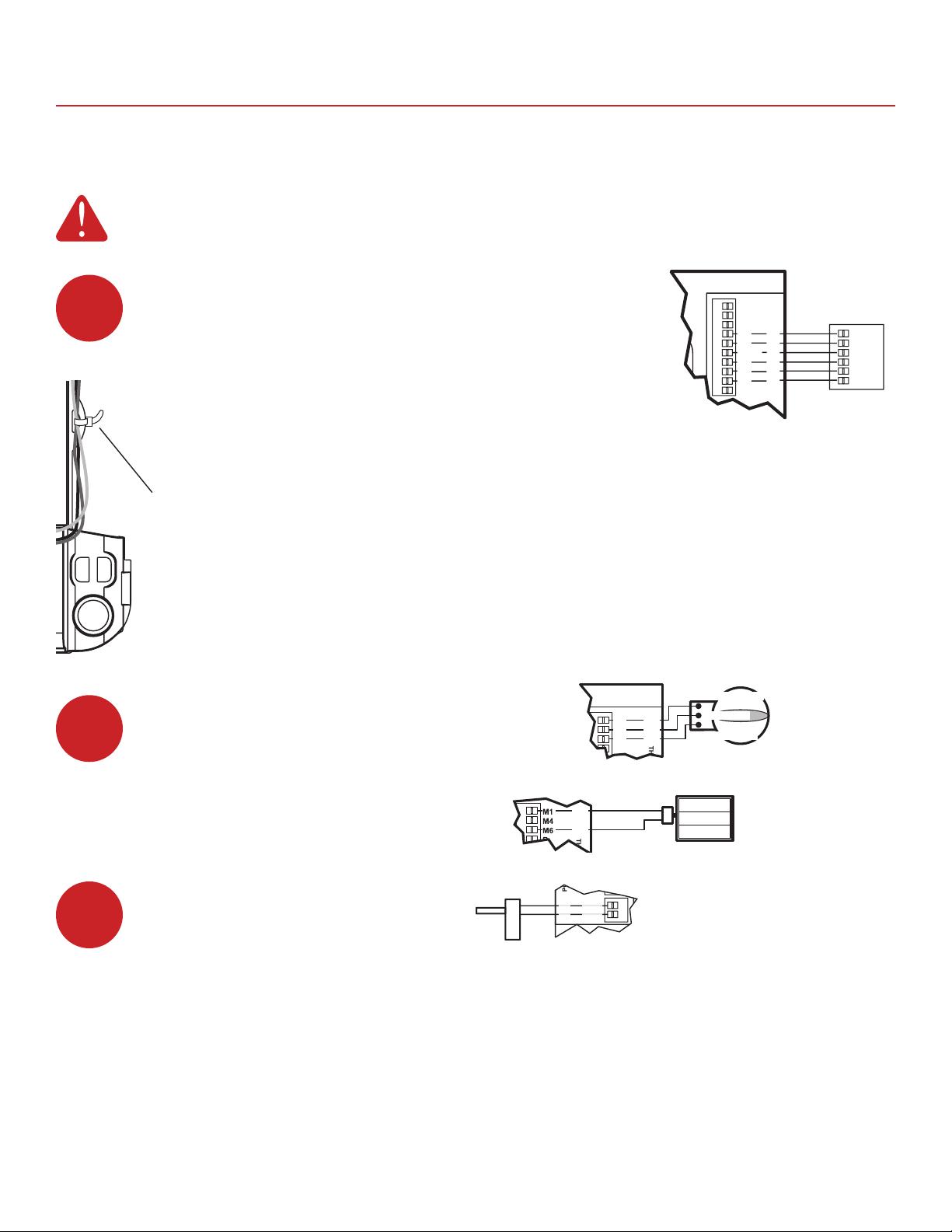

WIRING
Install thermostats using instructions provided with thermostats.
Connect thermostat to zone panel. To connect wire to the panel, strip
approximately 1/4 in. of insulation and push wire into terminal. To release
wire, press the button on top of the terminal. In retrofit applications, trim
end of wire if not straight.
If the thermostat has separate E and Aux terminals, install a jumper
between the two terminals.
Note: Thermostat must be configured for changeover in cool mode. If
heat pump uses changeover in heat mode, wire the changeover to B on
equipment terminals.
3
Wires can be run behind the panel,
through wire channels on the panel's sides,
and must be attached to a wiring anchor
with a cable tie.
M24743
ZONE 1 THERMOSTAT
M28234B
ZONE 1
DAMPER
THERMOSTAT
M1
M4
M6
R
C
E/AUX
Y
G
O
L
R
C
AUX/E
Y
G
O/B
Wiring must comply with applicable codes, ordinances, and regulations.
Install dampers using instructions provided
with dampers. Connect dampers to zone
panel.
NOTE: Multiple dampers can be wired in
parallel.
4
M28235
M1
M4
M6
R
ZONE 1
DAMPER
RRD OR MARD DAMPER
POWER-OPEN
POWER-CLOSED
M4 OPEN
M6 CLOSED
M1 COMMON
ARD OR ZD DAMPER SPRING-OPEN POWER-CLOSED
ZONE 2
DAMPER
CAUTION: Voltage Hazard.
Can cause electrical shock or equipment damage. Disconnect power before beginning installation.
Wire entire panel before applying transformer power.
Connect DATS as shown.
5
C7735A1000
M24804
DATS
DATS
SENSOR

Installation Guide
69-2200—03 4
The DS/BK terminal is used with a variable-speed fan.
Connect to the DS, BK, or ODD terminal on the furnace
equipment. When only one zone calls for heat, cool, or
fan, the DS/BK terminal operates the fan at low speed
to reduce airflow.
7Connect transformer as shown.
Connect equipment as shown.
6
WIRING
DEDICA
TED TRANSFORMER
R
C
M28237
R
C
POWER
L1
(HOT)
L2
M28236A
EQUIPMENT
R
C
E/Aux
Y
G
O
B
DS/BK
L
AIR
HANDLER
FAN RELAY
AUX/EM HEAT
HEAT PUMP
G
Y
24 VOLT TRANS.
C R
Y
E
C R
REVERSING
VALVE
M27339B
AIR
HANDLER
FAN RELAY
AUX HEAT
HEAT PUMP
G
Y
24 VOLT TRANS.
CR
Y
E
CR
REVERSING
VALVE
ZD DAMPER
SPRING-OPEN
POWER-CLOSED
PURGE OVERRIDE
EQUIPMENT
M4 OPEN
M6 CLOSED
M1 COMMON
R
C
E/AUX
Y
G
O/B
L
RRD OR MARD
DAMPER
POWER-OPEN
POWER-CLOSED
M1
M4
M6
R
C
E/AUX
Y
G
O
L
THERMOSTAT
ZONE 1
DAMPER
DEDICATED
TRANSFORMER
L1
(HOT)
L2
R
C
C7735A1000
DATS
DATS
R
C
ZONE 1
ZONE 2
EM HEAT
EMERGENCY HEAT
POWER
SENSOR
HEAT
COOL
FAN
PURGE
R
C
E/AUX
Y
G
O/B
L
M1
M4
M6
ZONE 2
DAMPER
THERMOSTAT
R
C
E/AUX
Y
G
O
L
R
C
E/Aux
Y
G
O
B
DS/BK
L
The following diagram is an overall view of wiring for a heat pump system as depicted in steps 37.
Thermostats must be wired/configured for cool changeover “O”, even if equipment uses heat changeover “B.”

HZ221 TrueZONE
5 69-2200—03

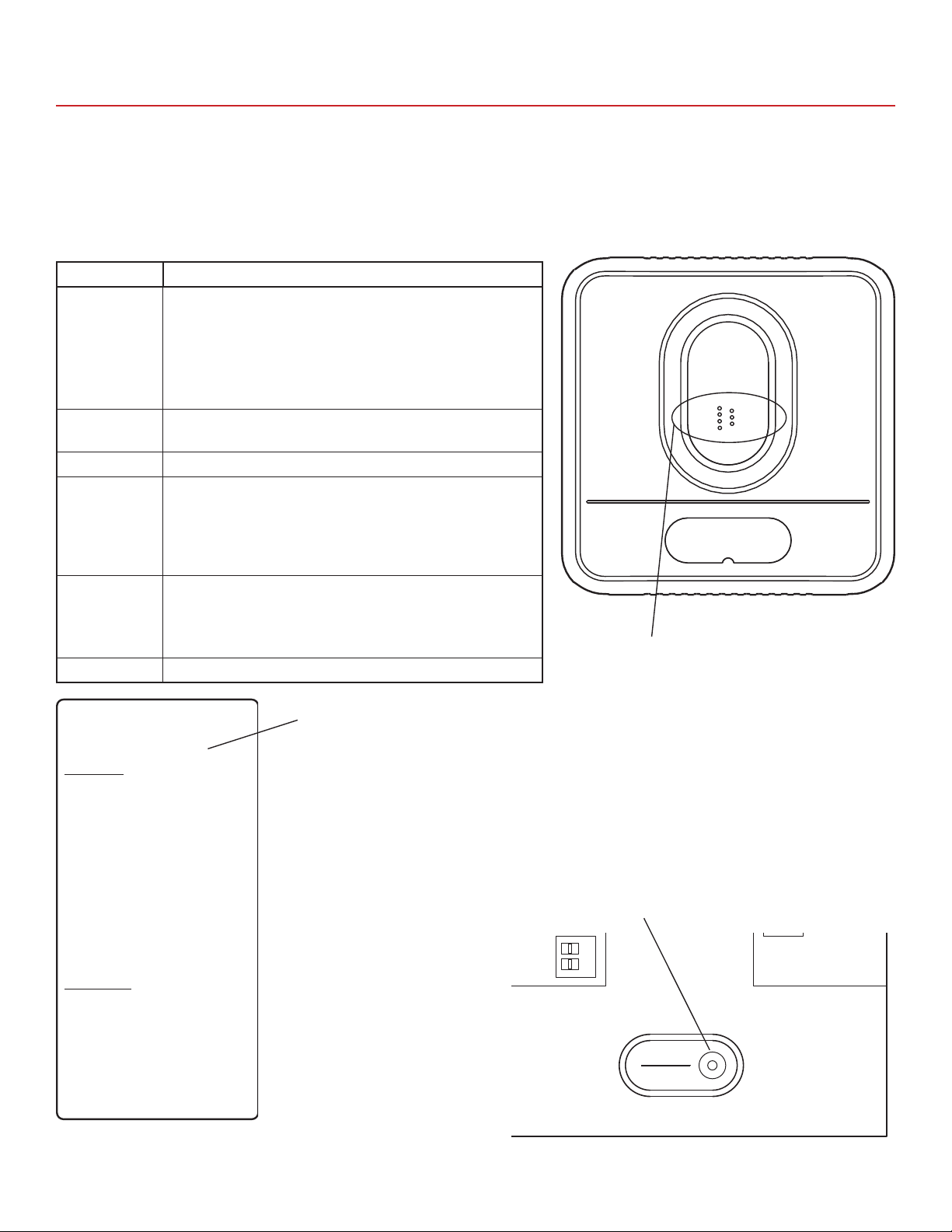

The HZ221 TrueZONE panel contains an LED display that communicates system and zone status. The LEDs indi-
cate the following information.
OPERATION
HZ221
HEAT
COOL
FAN
PURGE
ZONE 1
ZONE 2
EM HEAT
M28239A
LED display.
Table 5. LED Operation.
LED Description
HEAT Solid when in heat.
Blinking when DATS temperature exceeds 120°F
(49°C) and calling for heat pump only.
Blinking when DATS temperature exceeds 160°F
(71°C) and calling for heat pump and auxiliary
heat. At 150°F (66°C), auxiliary heat is disabled.
COOL Solid when in cool. Blinking when 45°F (7°C)
DATS low limit mode has been reached.
FAN Solid when in operation.
PURGE Solid when in purge (lasts 2 minutes at power-up
and after a call for heat or cool). Blinking when
the DATS sensor has failed, or the wires are short-
ed or open. Will blink for 3 minutes at power-up if
DATS is not present.
ZONE 1, 2 Solid green when open or opening.
Solid red when closed or closing.
Blinking amber when there is a damper or ther-
mostat short circuit (circuit breaker trip).
EM HEAT Solid when in Em Heat mode.
HZ221
2 Zones, 2H/1C
LED Status
Heat LED Heating Mode
Flashing Heat LED High Limit
Cool LED Cooling Mode
Flashing Cool LED Low Limit
Purge LED Purge Mode
Flashing Purge LED Sensor Failure
Fan LED Fan On
Zone LEDs Green - Open
Red - Closed
Flashing - Short
Zone Names
Zone 1 _______________________
Zone 2 _______________________
Technical Support: 1-800-828-8367
customer.resideo.com
Patents Pending
50031314-001 Rev. A
M28240A
Em Heat LED Em Heat Mode
Much of this information is also listed on the label on
the inside of the HZ221 cover.
When the zone panel cover is off, the EMERGENCY HEAT/PURGE OVERRIDE but-
ton is visible.
When the panel is in Purge (at startup or after a call for heat/cool), pressing this
button stops the Purge, which saves time during installation or troubleshooting.
All other times, pressing the button puts the zone panel into Em Heat mode so that
all calls for heat are handled by the auxiliary heat.
M24741A
M1
M4
M6
R
C
W
Y
G
M1
M4
M6
R
C
W
Y
G
M1
M4
M6
R
C
W
Y
G
Rh
Rc
W
Y
G
HZ311
HEAT
COOL
FAN
PURGE
ZONE 1
ZONE 2
ZONE 3
ZONE 1
DAMPER THERMOSTAT
R
C
DATS
DATS
EQUIPMENTPOWERSENSOR ZONE 3
DAMPER
THERMOSTAT
ZONE 2
DAMPER THERMOSTAT
PURGE OVERRIDE
EMERGENCY HEAT

Resideo Inc., 1985 Douglas Drive North
Golden Valley, MN 55422
www.resideo.com
This product is manufactured by Resideo Technologies, Inc., Golden Valley, MN, 1-800-828-8367
© 2019 Resideo Technologies, Inc. The Honeywell Home trademark is used under license from Honeywell
International Inc.
All rights reserved.
69-2200—03 M.S. Rev. 07-19 | Printed in United States
