SiXSIREN
Wireless Siren/Strobe
Installation and Setup Guide
This wireless siren/strobe is intended for use with Honeywell Home controls that support SiX™ series devices.
SiXSIREN
OPEN
Gently twist the top of the Siren counterclockwise and the mounting bracket clockwise to separate them.
OPEN
MOUNTING
The SiXSIREN can be mounted on the wall or on the ceiling.
The rear tamper breakout [A] MUST be mounted to a stud, solid wood, or with a robust wall anchor.
After enrolling, verify adequate signal strength by conducting Go/No Go tests (see controller’s instructions) with the device
in its intended mounting location. Adjust the device location and orientation as necessary.

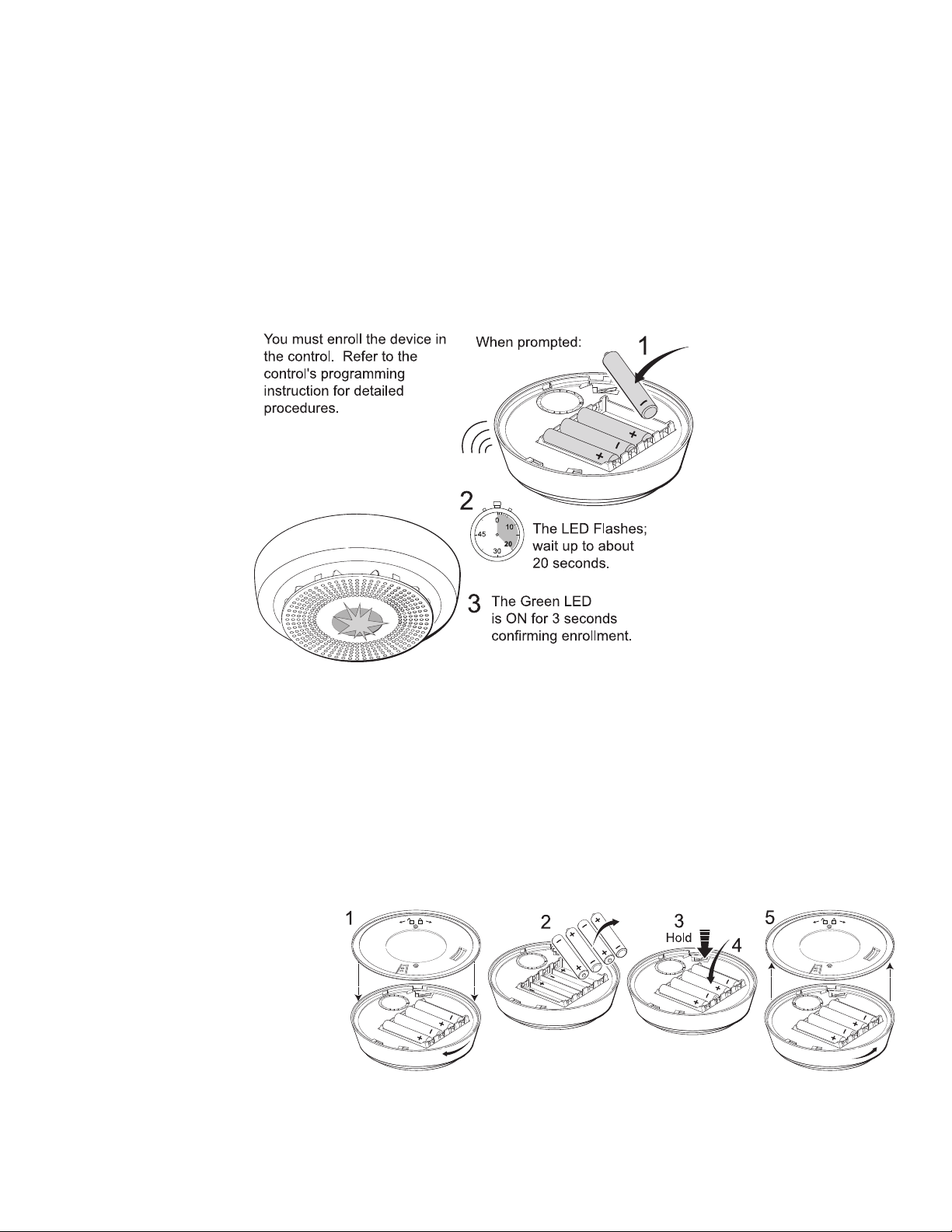

ENROLL
This device can be enrolled and programmed either before or after installation.
Set the control in Programming Mode and when prompted
1. Insert four 1.5V AA Lithium batteries (included) to activate the device and begin the enrollment process.
2. The Green LED flashes rapidly during enrollment (up to about 20 seconds*)
*NOTE: Enrollment time varies depending on the signal strength between the device and the controller.
•The device sends its unique MAC ID address (Serial Number) and Services information to the controller.
•The controller registers the device and displays the transmitter data on screen.
3. Enrollment is confirmed when the Green LED is ON for 3 seconds.
4. The device did not enroll in the system if:
•The White LED flashes, the system chirps and the device powers down.
•The Green LED flashes rapidly when the device is removed from the mounting bracket (the tamper switch is
triggered).
To restart the enrollment process, ensure the system is in programming mode and activate the tamper switch.
The device can also be manually enrolled. See the Controller’s Programming Guide for details.
NOTE: Once enrolled in a system, the device cannot be used with another controller until it is removed from the current
controller. See the Controller’s instructions for details.
Sensor Location Feature: To verify the location of each SiX device in an installation, enter programming mode and
select a SiX device. The device LED lights. Select it again to turn the LED off or select the next device to locate.
PROGRAM
See the Controller’s instructions for programming the device in the system.
Refer to the LED and Sounder table for details of chime operation when the CHIME feature is enabled (factory default is
enabled).
DEFAULT SIXSIREN
If the device is enrolled in a panel
different than the intended panel, and
you are unable to delete it from the
unintended panel, default the device:
1. Open the cover and remove the
batteries.
2. Hold down the tamper switch while
reinserting the batteries.
3. Reattach the cover.
This procedure is available for 24 hours after enrollment with a panel and the device remains powered (battery installed).

LEDS AND SOUNDER
Refer to the table below for operation of the four bi-colored LEDs and an 85dB sounder.
R / W
G / W
Sounder
Status
Green Rapid Flashes
for about 20 seconds,
then ON for 3 seconds
once Power Up – Enrollment
Green Slow Flashing
for 3 seconds once Power Up – Device enrolled
Green ON for 20
seconds
System is Disarmed
Red ON for 20 seconds System is Armed
Alternating Red and
White Strobe Flash1
(continues until the Alarm
is cleared)
Smoke / Heat Alarm
CO Alarm
White ON White ON
3 seconds
Burglary Alarm
Red flashes once
every 45 seconds
2
Low Battery
Green Flashes slowly
for 10 minutes Tamper Activated
Chime operation when the CHIME feature is enabled
x 1
The system is Disarmed
x 2
The system is Armed, Away mode
x 3
The system is Armed, Stay mode
or a Zone was Faulted
1Strobe flash = two flashes per second, then OFF for 1 second.
2After 7 days, the sounder chirps once every 45 seconds until the batteries are replaced or die. See the Battery Replacement section.
TEST THE SIXSIREN
The SiXSIREN should be tested immediately after installation and weekly. Activate Test Mode remotely from the
Controller (see Controller’s manual for details). The product must be tested at least once a year.
Test Mode tests the sounder and LED:
•Sounder – the Burglary warble tone will sound for 3 seconds.
LED – the White LED strobe will flash for 15 seconds.
BATTERY REPLACEMENT
•Twist the front cover counterclockwise and separate it from the
mounting bracket.
•Remove the batteries, wait 10 seconds and insert four new
batteries of the same type and brand.
Recommended replacement batteries:
-1.5V AA Lithium Batteries [Non-Rechargeable]
-AA Alkaline batteries can be used, but battery life will be
significantly reduced.
NOTE: Do not mix old and new batteries, battery types or
manufacturers.
•Reattach the front cover and twist clockwise to secure it in place.
BATTERY CAUTION: Risk of fire, explosion and burns. Do not recharge, disassemble,
heat above 212 F (100 C) or incinerate. Dispose of used batteries properly. Keep away
from children.
NOTE: Constant exposure to high or low temperature or high humidity may reduce
battery life.

SPECIFICATIONS:
Range: 300 feet nominal indoors (actual range determined by the system in TEST mode)
Battery: Four 1.5V, AA Lithium, Non-Rechargeable; Energizer E2,Resideo 462
Tamper: Cover and Wall tamper
RF Frequency: 2.4GHz
Input Voltage: 3,3VDC
Current: 339 mA, Typical
Siren Output Level: 85 dB at 10 feet
Operating Temperature: 0° to 50°C / 32° to 122°F (Agency Compliance 0° to 49°C / 32° to 120°F)
Relative Humidity: 95% max. (Agency compliance –93% max), non-condensing
Dimensions: 14.14 cm Diameter x 4.62 cm Thick / 5.5 in. Diameter x 1.8 in. Thick
APPROVAL LISTINGS:
FCC / IC
cETLus Listed
Conforms to UL 985 /
UL 1023
Certified to ULC-S545 &
ULC/ORD-C1023
Other Standards:
RoHS
FEDERAL COMMUNICATIONS COMMISSION (FCC) & INDUSTRY CANADA (IC) STATEMENTS
The user shall not make any changes or modifications to the equipment unless authorized by the Installation Instructions or User's Manual. Unauthorized changes or
modifications could void the user's authority to operate the equipment.
CLASS B DIGITAL DEVICE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, as defined by FCC Rules Part 15.105. The Class B Digital Device
statement can be viewed at:
https://customer.resideo.com/en-US/support/residential/codes-and-standards/FCC15105/Pages/default.aspx
FCC / IC STATEMENT
This device complies with Part 15 of the FCC Rules, and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil est conforme à la partie 15 des règles de la FCC et exempt de licence RSS d’Industrie Canada. Son fonctionnement est soumis aux conditions suivantes:
(1) Cet appareil ne doit pas causer d’interférences nuisibles. (2) Cet appareil doit accepter toute interférence reçue y compris les interférences causant une réception
indésirable.
RF EXPOSURE
Warning – The antenna(s) used for this device must be installed to provide a separation distance of at least 7.8 inches (20 cm) from all persons
and must not be co-located or operating in conjunction with any other antenna or transmitter except in accordance with FCC and ISED multi-
transmitter product procedures.
MISE EN GARDE
Exposition aux Fréquences Radio : La/les antenne(s) utilisée(s) pour cet émetteur doit/doivent être installée(s) à une distance de séparation d'au
moins 20 cm (7,8 pouces) de toute personne et ne pas être située(s) ni fonctionner parallèlement à tout autre transmetteur ou antenne, excepté en
conformité avec les procédures de produit multi transmetteur FCC et ISED.
REFER TO THE INSTALLATION INSTRUCTIONS FOR THE CONTROL WITH WHICH THIS DEVICE IS USED, FOR DETAILS REGARDING LIMITATIONS OF THE
ENTIRE ALARM SYSTEM.
Responsible Party / Issuer of Supplier’s Declaration of Conformity: Ademco Inc., a subsidiary of Resideo Technologies, Inc., 2 Corporate Center
Drive., Melville, NY 11747, Ph: 516-577-2000
The product should not be disposed of with other household waste. Check for the nearest authorized collection centers or authorized recyclers. The
correct disposal of end-of-life equipment will help prevent potential negative consequences for the environment and human health.
Any attempt to reverse-engineer this device by decoding proprietary protocols, de-compiling firmware, or any similar actions is strictly prohibited.
SUPPORT & WARRANTY INFORMATION
For the latest documentation and support, please go to:
www.resideo.com
For the latest warranty information, please go to:
www.security.honeywellhome.com/warranty
The Honeywell Home Trademark is used under license from Honeywell International Inc.
This product is manufactured by Resideo Technologies, Inc and its affiliates.
2 Corporate Center Drive, Suite 100
P.O. Box 9040, Melville, NY 11747
2020 Resideo Technologies, Inc.
www.resideo.com
Ê800-21342C5Š
800-21342C 11/15Rev C
