Welcome
Congratulations on your purchase of a Smart
programmable thermostat. When registered to
Total Connect Comfort, you can remotely monitor
and control the heating and cooling system in
your home or business—you can stay connected
to your comfort system wherever you go.
Total Connect Comfort is the perfect solution
if you travel frequently, own a vacation home, a
business or manage an Investment property or if
you are simply looking for peace of mind.
This thermostat works with common 24 volt systems such as forced air, hydronic,
heat pump, oil, gas, and electric. It will not work with millivolt systems, such as a gas
fireplace, or with 120/240 volt systems such as baseboard electric heat.
MERCURY NOTICE: Do not place your old thermostat in the trash if it contains
mercury in a sealed tube. Contact the Thermostat Recycling Corporation at
www.thermostat-recycle.org or 18002388192 for information on how and
where to properly and safely dispose of your old thermostat.
NOTICE: To avoid possible compressor damage, do not run air conditioner if the
outside temperature drops below 50°F (10°C).
Need help?
Visit resideo.com or call 18006333991 for assistance before returning the thermostat
to the store.

1 69-2715EF—07
About your new thermostat
Controls and Home screen
quick reference ..........................................................2
Preset energy-saving schedules.........................3
Installation
Installing your thermostat.....................................4

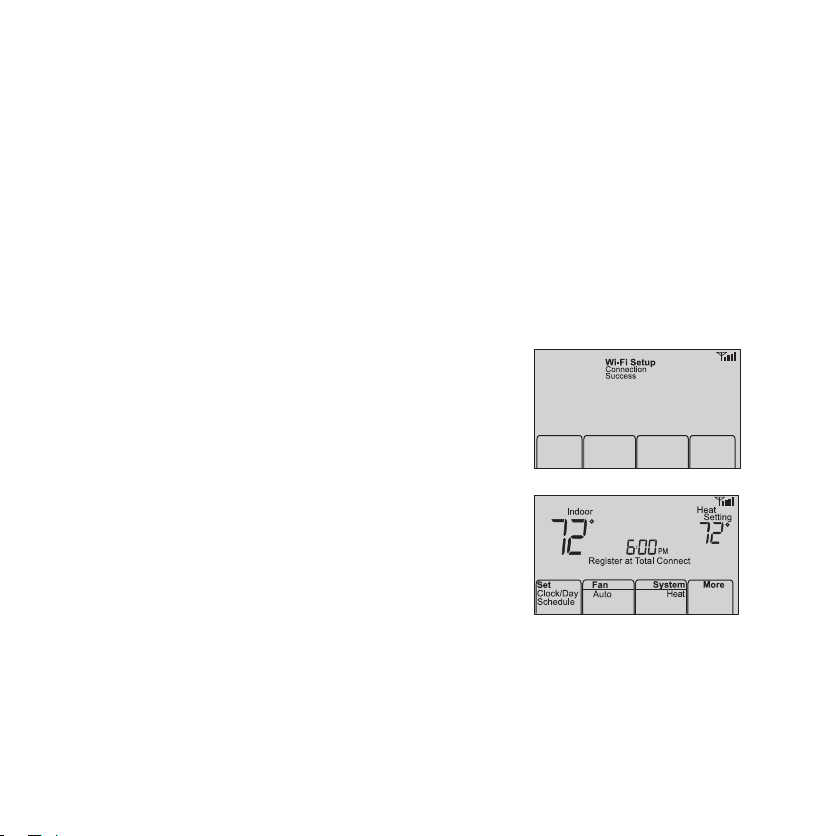

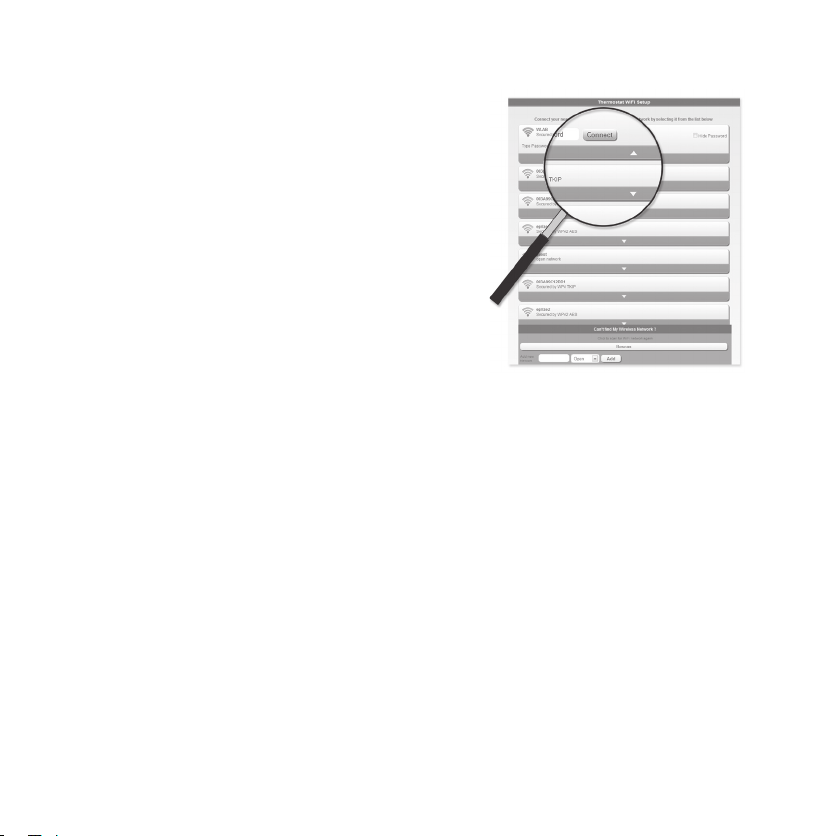

Connecting to your WiFi network .................. 16
Registering your thermostat online ............... 19
Operation
Setting the the time and day............................. 22
Setting the fan ........................................................ 23
Selecting system mode ....................................... 23
Adjusting program schedules........................... 24
Overriding schedules temporarily................... 25
Overriding schedules permanently ................ 25
Unregistering thermostat................................... 26
Disconnecting WiFi ............................................. 26
Special features...................................................... 28
Setting functions and options.......................... 30
Appendices
Frequently asked questions .............................. 33
Troubleshooting ..................................................... 34
Limited warranty .................................................... 39
Table of contents
Features of your thermostat
With your new thermostat, you can:
• Connect to the Internet to monitor and control your heating/cooling system
• View and change your heating/cooling system settings
• View and set temperature and schedules
• Receive alerts via email and get automatic upgrades
Your new thermostat provides:
• Smart Response Technology
• Compressor protection
• Heat/cool auto changeover

69-2715EF—07 2
M31586
HOLD

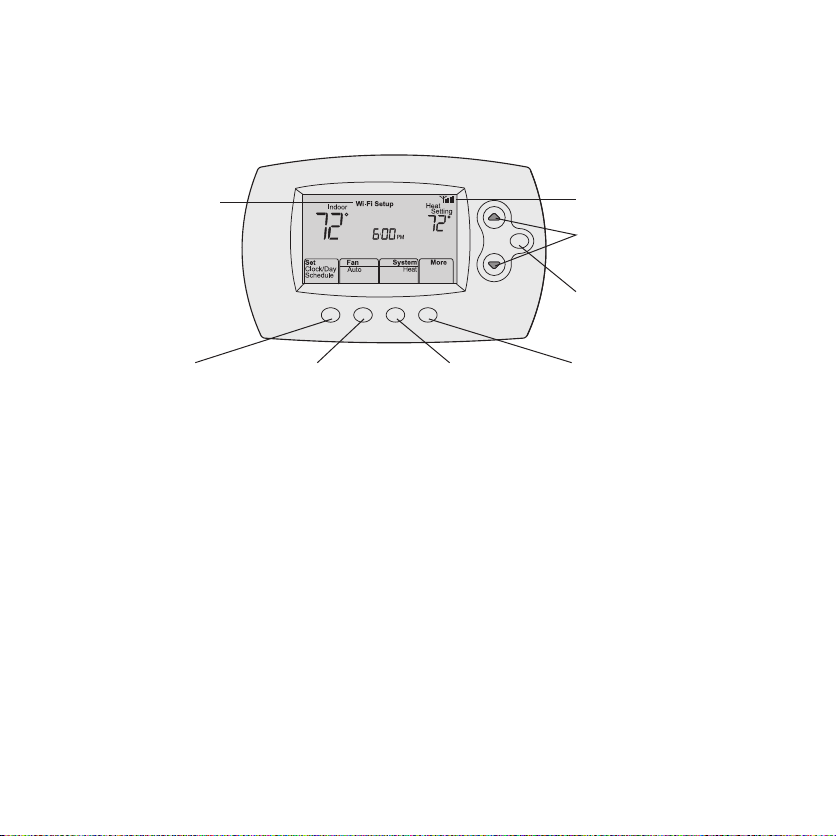

Controls and home screen quick reference
Once your thermostat is installed, it will display the home screen. Portions of this
display will change depending on how you are viewing it.
The screen lights when you press any button. It stays lit for 8 seconds after you
complete changes.
Set up messages
describe steps in the
WiFi set up process
WiFi status
Set clock, day,
or schedule
Select fan
settings
Additional
settings
Temperature
adjustment buttons
Permanent override
button
Select system
mode

3 69-2715EF—07
Preset energy-saving schedules
This thermostat is pre-set with energy-saving program settings for four time periods. Using
the default settings can reduce your heating/cooling expenses if used as directed. Savings
may vary depending on geographic region and usage. To change the settings, see page
24.
Default Heat Settings Default Cool Settings
WAKE
6:00 am 70 °78 °
LEAVE
8:00 am 62 °85 °
RETURN
6:00 pm 70 °78 °
SLEEP
10:00 pm 62 °82 °
Setting up your thermostat
Setting up your programmable thermostat is easy. It is preprogrammed and ready to
go as soon as it is installed and registered.
Install your thermostat.
Connect your home WiFi network.
Register online for remote access.
Before you begin, you may want to watch a brief installation video. Use
the QR Code®at the front of this guide, or go to
resideo.com
2
3
1

69-2715EF—07 4
Installing your thermostat
You might need the following tools to install this thermostat:
• No. 2 Phillips screwdriver
• Small pocket screwdriver
• Pencil
• Level (optional)
• Drill and bits (3/16” for drywall,
7/32” for plaster) (optional)
• Hammer (optional)
• Electrical tape (optional)
1 Switch OFF power to your
heating/cooling system.
Important! To protect your
equipment, switch OFF the power to
your heating/cooling system at the
breaker box or the system switch.
or
M31535
Circuit
breaker box
Heating/cooling
system power
switch

5 69-2715EF—07
C
C
MCR33823
If you have an older thermostat with
a sealed mercury tube, turn to page
ii for proper disposal instructions.
Installing your thermostat
2 Remove old thermostat faceplate
and leave wires connected.

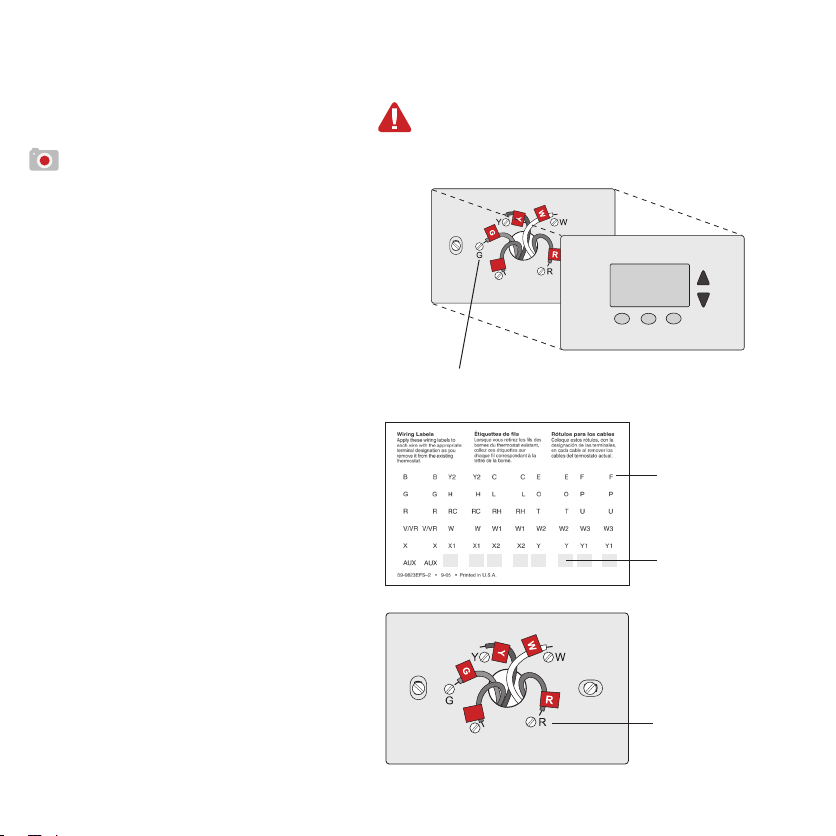

2a Take a picture of the wire
connections for later
reference.
Terminal designation
3 Label wires.
Do not label by wire color. Use
the supplied sticky tags to label
each wire as you disconnect it.
Label wires according to the old
thermostat terminal designations,
not by wire color.
Note: If no tag matches a wire
terminal label, write the terminal
label on a blank tag.
Terminal
designation
C
C
MCR31537
Blank sticky
tags
Sticky tags

69-2715EF—07 6
Installing your thermostat
Do you see a wire connected to the C terminal?
If yes, skip to step 4. If you do not see a C wire, proceed with the
options below:
Option A - Finding the CWire:

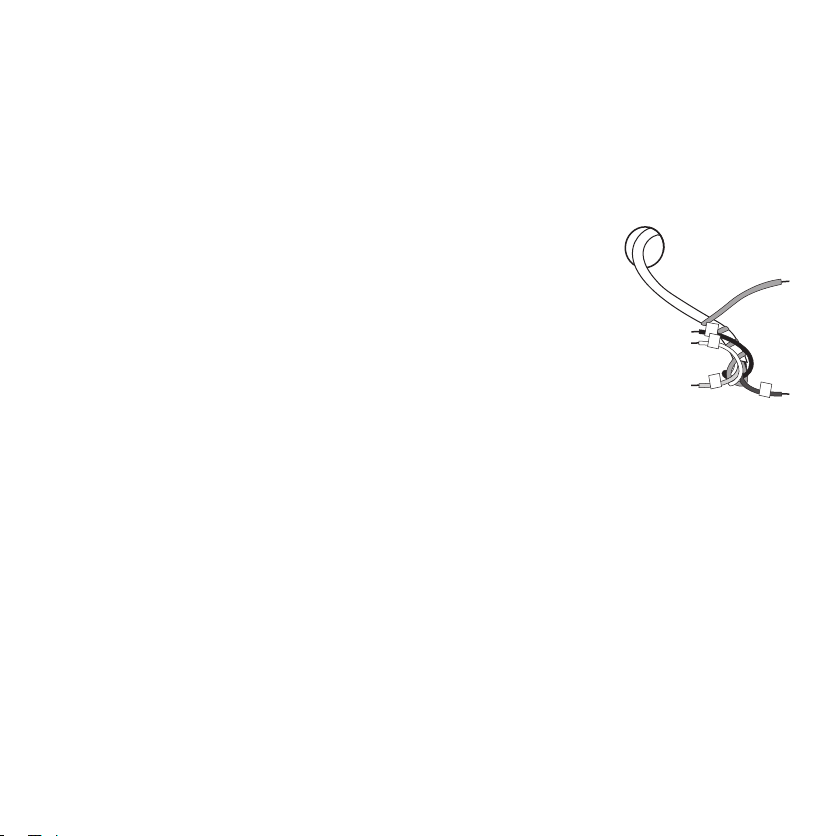

There might be an extra wire pushed into the wall or wrapped
around the wire bundle. Gently pull the wire bundle out of the wall
to check for unused wires.
If you have an unused wire, connect that wire to the C terminal on
your new thermostat in step 7A or 7B.
Connect the other end of the unused wire to the C terminal on your heating/cooling
system (or the zone panel if your home uses more than one thermostat to control
temperature). Be sure any other wire(s) connected to the C terminal stay securely
connected when you re-tighten the terminal.
Not all heating/cooling equipment use the C label for the 24 VAC common wire. If your
heating/cooling equipment does not have a C terminal, check the system manual or
contact the manufacturer to find out which terminal is the 24 VAC common.
Complete installation by following the remaining steps in this guide.
Option B - Using the CWire Power Adapter:
If you do not have an unused wire in the wall, see the CWire Power Adapter FREE
OFFER included in the thermostat box. Follow the instructions that come with the CWire
Power Adapter and then return to this page. Complete the installation by following the
remaining steps in this guide.
Important! The thermostat requires a C wire to operate. The C, or common, wire brings 24
VAC power to the thermostat. Many older mechanical or battery operated thermostats do not
require a C wire.

7 69-2715EF—07
Installing your thermostat
4 Remove wallplate.
Remove the old wallplate from the
wall after all wires have been labeled
and disconnected.
5 Separate thermostat and its
wallplate.
On your new thermostat, grasp the
finger holds on the top and bottom
of the wallplate with one hand and
the thermostat (front) with the other
hand. Pull pieces apart.
Thermostat
Wallplate (back view)
Finger holds
M33856
PULL HERE
TO REMOVE
PULL HERE
TO REMOVE
6 Mount wallplate for thermostat.
Mount your new wallplate using screws
and anchors included with the thermostat.
If necessary:
Drill 3/16-in holes for drywall.
Drill 7/32-in holes for plaster.
Note: You may be able to use your existing
wall anchors. Hold the wallplate up to the
existing anchors to check for alignment
Wallplate
MCR33857

69-2715EF—07 8
Wiring (conventional system)
7A Wire the thermostat to your conventional system.
a Starting with the C Wire, match the sticky tag on
the wire to the terminal labels.
You must have a C wire.
b Loosen screw, insert wire on inside edge
of terminal, then tighten screw.
c Verify wire is firmly secured by gently
pulling on wire.
d Repeat steps a–c for all other wires.
e Push any excess wire back into the wall
opening after all wires are installed.
f Continue to page 12.
Labels don’t match? See alternate
wiring key on pages 10.
W2 GWYR RCK Y2 C
MCR33878
Y
HEAT PUMP
CONVENTIONAL
AUX/EGO/B YRRCK LC
C
G
W
R
Remove metal jumper
only if you have both R
and RC wires
Note: The wiring for your
application might be
different from the shown
above.
Installing your thermostat
Wiring
For conventional heating/cooling systems (natural gas, oil or electric furnace, air
conditioner), see page 8. See “Glossary” on page 37 for further definition.
For a heat pump system, see page 11. See “Glossary” on page 37 for further
definition.

9 69-2715EF—07
Installing your thermostat
Wiring (heat pump system only)

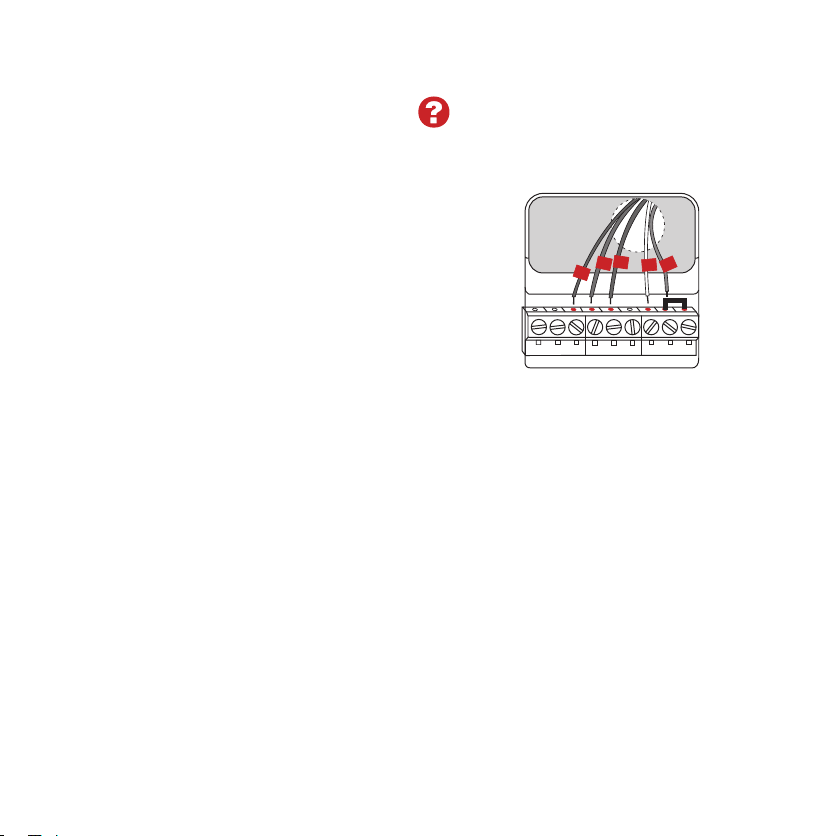

7B Wire thermostat to your heat pump.
a Starting with the C Wire, match the
sticky tag on the wire to the terminal labels.
You must have a C wire.
b Loosen screw, insert wire on inside edge
of terminal, then tighten screw.
c Verify wire is firmly secured by gently
pulling on wire.
d Repeat steps a–c for all other wires.
e Push any excess wire back into the wall
opening after all wires are installed .
f
Continue to page 12.
Note: If old thermostat has separate wires on AUX and
E, place both wires into the E/AUX terminal.
If old thermostat has wire on AUX with a jumper to E,
place wire on E/AUX terminal. No jumper is required.
Labels don’t match? See
alternate wiring key on
pages 11.
MCR33877
G
O
Y
R
HEAT PUMP
AUX/EGO/B YRRCK LC
Aux
Note: The wiring for your
application might be
different from the wiring
shown above.

69-2715EF—07 10

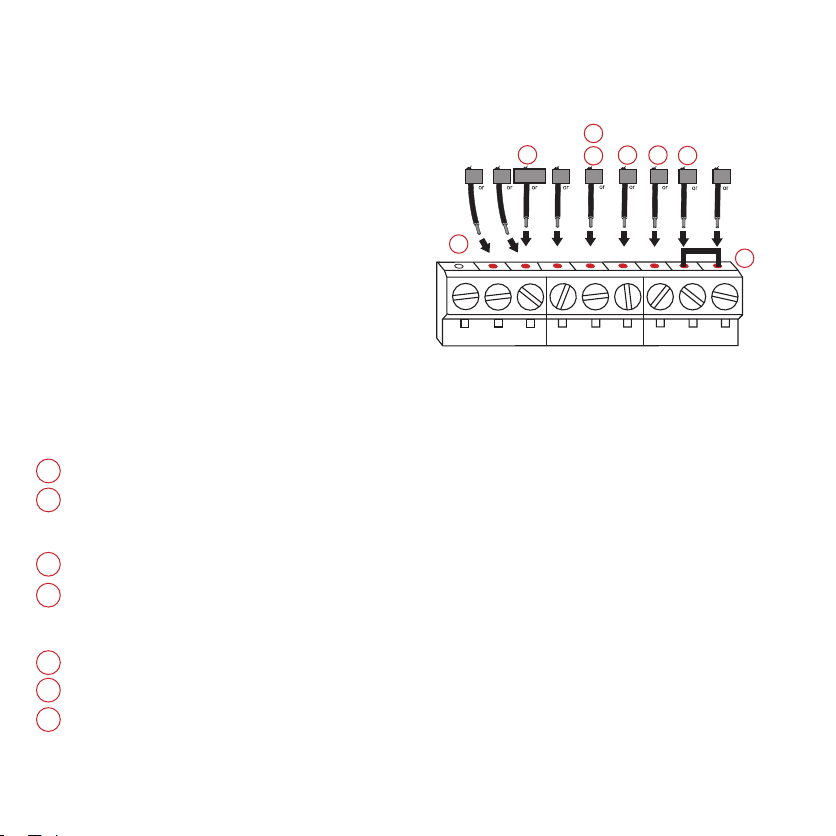

Alternate wiring (conventional system)
Use this if your wire labels don’t match the terminal labels.
Note: You must have
a C wire or equivalent.
Y2
R
4M
V
RHY1
H
W1F
RYWG
RC
W2
W2 GWYRRC
Y2 C
MCR33885
CONVENTIONAL
C
B
C1
X
K
1
2
3
Do not use Kterminal. For future use.
If your old thermostat had both Rand RH wires, remove metal jumper.
Connect the Rwire to the RC terminal, and the RH wire to the Rterminal.
Remove metal jumper connecting Rand RC only if you must connect both
Rand RC.
Alternate wiring key (conventional system)
2
3
1
Installing your thermostat

11 69-2715EF—07
Installing your thermostat
Alternate wiring key (heat pump system only)
Do not use Kterminal. For future use.
If old thermostat has separate wires on AUX and E, place both wires into the E/AUX
terminal. If old thermostat has wire on AUX with a jumper to E, place wire on E /AUX
terminal. No jumper is required.
If your old thermostat had an Owire and not a Bwire, attach the Owire to the O/B terminal.
If your old thermostat had separate Oand Bwires, attach the Bwire to the Cterminal. If
another wire is attached to the Cterminal, check resideo.com for help. Attach the Owire to
the O/B terminal.
If your old thermostat had separate Y1, W1 and W2 wires, check resideo.com for help.
If your old thermostat had both Vand VR wires, check resideo.com for help.
Leave metal jumper between Rand RC terminals in place.
2
3
1
4
5
6
7
Alternate wiring (heat pump system only)
Use this if your wire labels don’t match the
terminal labels.
Note: You must have a C wire or equivalent.
See page 9.
MCR33886
E AUX
XW FH
B
W1
W2
X2
LOG
F
C
R
VRM
VY1
B
X
RY
RC
HEAT PUMP
AUX/EGO/B YRRCK LC
1
2
3
4
7
6
5
4

69-2715EF—07 12
Installing your thermostat
8 Insert quick reference card.
Fold quick reference card
along score lines, and slide
it into the slot on the back
of the thermostat.
Back of thermostat
Quick
reference
card
MCR33916
MCR33858
9 Attach thermostat to wallplate.
Align the thermostat to the
wallplate and then snap into
place.
M33860
HOLD

13 69-2715EF—07
10 Switch heating/cooling system ON.
Important!
10a Verify that the C wire is
connected at the thermostat
and at the heating/cooling
system.
10b Make sure the heating/
cooling system door is firmly
secured.
10c Switch power back ON for
your heating/cooling system
at the breaker box or its power
switch.
M31544
or
Circuit breaker
box
Heating/
cooling
system power
switch
Installing your thermostat

69-2715EF—07 14
Installing your thermostat
11 Set clock to current day and time.
11a Press sor tto set clock.
11b Press Set Day.
11c Press sor tto select the
day of week.
11d Press Done to save.
(Press and hold a st button to
quickly change a setting.)
MCR33908
HOLD
MCR33909
HOLD

15 69-2715EF—07
12 Determine your heating/cooling system type.
Important! Heating/cooling system type must be set so that your
thermostat operates properly and does not damage your system.
12a If your system type is conventional single stage (natural gas-powered single
stage with a/c), continue to “Connecting to your WiFi network” on page
16.
12b If your system is:
• Conventional multistage heat and
cool
• Any type of heat pump
• Hydronic
• Other
You MUST change the system type by setting system function 1. See page
30 to match your thermostat to your system type.
If you are not sure of your
heating/cooling system type
or have other questions, go to
resideo.com
MCR33880
Congratulations! Your thermostat is
operational.
13 Test your thermostat
13a Press the
System button to change
to heating or cooling and begin
operation.
13b For remote access to your thermostat,
continue to
“Connecting to your WiFi
network” on page 16.
Heating/cooling system not
turning on? Refer to page 33
or FAQ at resideo.com
Installing your thermostat

69-2715EF—07 16
Connecting to your WiFi network
To complete this process, you must have a wireless device connected to your home
wireless network. Any of these device types will work:
• Tablet (recommended)
• Laptop (recommended)
• Smartphone
If you get stuck... at any point in this procedure, restart the thermostat by
removing the thermostat from the wallplate, wait for 10 seconds, and snap it
back onto the wallplate. Go to Step 1 in this procedure.
View the WiFi Enrollment video at resideo.com
1 Connect to your thermostat.
1a Make sure the thermostat displays
Wi-Fi Setup.
1b On the wireless device (laptop, tablet,
smartphone), view the list of available WiFi
networks.
1c Connect to the network called
NewThermostat_123456 (the number will
vary).
Note: If you are asked to specify a home, public,
or office network, select Home Network.
M33852
HOLD

17 69-2715EF—07
Connecting to your WiFi network
2 Join your home network.
2a Open your web browser to access the
Thermostat WiFi Setup page. The browser
should automatically direct you to the correct
page; if it does not, go to http://192.168.1.1
2b Find the name of your home network on this
page and select it.
Note: Some routers have enhanced features such as
guest networks; use your home network.
2c Complete the instructions for joining your
WiFi network and click on the Connect
button. (Depending on your network setup,
you may see an instruction such as Enter
Password for your home network.)
Note: If you did not correctly connect to the thermostat, you may
see your home router page. If so, return to Step 1.
M31567

69-2715EF—07 18
Connecting to your WiFi network
Note: If your WiFi network does not appear in the list on the Thermostat WiFi Setup
page:
• Try performing a network rescan by pressing the Rescan button. This is helpful
in areas with a lot of networks.
• If you are connecting to a hidden network, then enter the network SSID in the
textbox, select the encryption type from the drop down menu, and click on the
Add button. This manually adds the network to the top of the list. Click on the
new network in the list and enter the password if necessary. Click on Connect to
join the network.
3 Make sure your thermostat is connected.
While the connection is in process, your thermostat
will flash Wait for up to 3 minutes. When the
connection is complete, the display will show Wi-Fi
Setup Connection Success. The WiFi signal strength will
appear in the top-right corner.
After about 60 seconds, the home screen will
appear and Register at Total Connect will flash until
registration is complete.
If you don’t see these messages, see page 16.
To register online for remote access to your
thermostat continue on page 19.
Note: If the thermostat displays Connection Failure or continues to display
Wi-Fi Setup, confirm you correctly entered your home network password
in step 2. If correct, refer to the FAQ at resideo.com
M33875
M33876M33876
