Honeywell MK7580-30B41-00 - Metrologic MS7580 Genesis User manual

Genesis™
Presentation Area Imager
7580
User’s Guide

Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in
specifications and other information contained in this document without prior
notice, and the reader should in all cases consult HII to determine whether any
such changes have been made. The information in this publication does not
represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein: nor for incidental or consequential damages resulting from the furnishing,
performance, or use of this manual.
This document contains propriety information that is protected by copyright.
All rights reserved. No part of this document may be photocopied, reproduced,
or translated into another language without the prior written consent of HII.
© 2010 - 2011 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Trademarks
Omniplanar, Swiftdecoder, Metrologic, MetroSet2, and TotalFreedom are
trademarks or registered trademarks of Metrologic Instruments, Inc. or Honeywell
International Inc.
Microsoft, Windows 95, and Windows are registered trademarks of Microsoft
Corporation.
IBM is a trademark of International Business Machines Corporation.
Checkpoint is a registered trademark of Checkpoint Systems, Inc.
Other product names mentioned in this manual may be trademarks or
registered trademarks of their respective companies and are the property of their
respective owners.
Patents
For patent information, please refer to www.honeywellaidc.com/patents.

iii
Table of Contents
Introduction
Product Overview.............................................................................................1
Base Kit Components.......................................................................................2
Optional Accessories........................................................................................2
MS7580 Components.......................................................................................4
Labels...............................................................................................................5
Maintenance..................................................................................................... 5
Cable Installation and Removal........................................................................6
Interface Installation
RS232 ..............................................................................................................7
Keyboard Wedge..............................................................................................8
RS485 ..............................................................................................................9
USB................................................................................................................10
Mounting the MS7580
Components of Adapter Kit 46-00911............................................................13
Components of Wall Mount Kit 46-00913.......................................................13
Installation of Adapter Kit 46-00911 ...............................................................14
Installation of Wall Mount Kit 46-00913.......................................................... 16
Operation
Modes of Operation........................................................................................17
Audible Indicators........................................................................................... 19
Visual Indicators.............................................................................................20
Failure Modes................................................................................................. 21
Field of View................................................................................................... 22
Depth of Field by Minimum Bar Code Element Width ....................................23
IR Activation Range........................................................................................ 24
Illumination Source......................................................................................... 25
IR Source .......................................................................................................26
Targeting Source............................................................................................ 27

iv
Troubleshooting Guide.........................................................................29
Design Specifications...........................................................................33
Applications and Protocols..................................................................35
Configuration and Upgrades................................................................37
Configuration Modes......................................................................................37
Upgrading the Firmware................................................................................. 37
MS7580-124-EAS Model
Integrated RF EAS Antenna Connection........................................................39
EAS System Connection................................................................................40
Configuration for EAS Applications ................................................................42
EAS Tag Deactivation Range.........................................................................44
Imager Pinouts–MS7580-124-EAS ................................................................46
Cable Pinouts.................................................................................................47
Antenna Disconnect.......................................................................................47
Imager and Cable Terminations
Standard Imager Pinouts................................................................................ 49
Standard Cable Pinouts..................................................................................50
Limited Warranty...................................................................................53
Regulatory Compliance
Safety.............................................................................................................55
EMC ...............................................................................................................56
Index.......................................................................................................59
Customer Support.................................................................................61
Technical Assistance......................................................................................61
Product Service and Repair............................................................................62

1
Introduction
Product Overview
The MS7580 Genesis™ is a high performance presentation area-imaging bar
code imager that utilizes CMOS imaging sensors for superior image quality.
Genesis utilizes custom decoder software, for reliable decoding of both 1D and
2D bar code symbologies. Sharp images can be captured and transmitted in a
variety of outputs including: .jpg, .bmp, and .tiff.
Omnidirectional scanning capabilities and an excellent motion tolerance provides
aggressive scanning of all standard 1D, GS1 DataBar™ (RSS), PDF417,
microPDF, Composite, Matrix, and Postal Codes symbology types. Firmware
updates are easily loaded into Flash memory.
The MS7580 provides an extended scan volume and a built in object detection
sensor (IR) that instantly turns on the imager when an object is presented within
the imager’s field of view.
Genesis™Interface Support
MS7580–124
Interfaces supported include:
•RS232
•USB
•Keyboard Wedge
•RS485(External via Cable)
EAS equipped models are indicated with an EAS extension on the model number
(i.e., MS7580-124-EAS). See pages 39–47 for additional product information.
USB is configurable for Keyboard Emulation Mode, Bi-Directional Serial Emulation
Mode or IBM OEM. The default USB setting is Keyboard Emulation Mode.
Applicable for IBM®host applications.
Note: Standard models ship with the ability to read all 1D, PDF, and 2D bar
codes. Decoding and functional capability is limited and imagers will
not support key features including, but not limited to, the ability to
decode PDF, 2D or OCR fonts without proper limited use licenses
provided by Honeywell. If you wish to purchase a limited license for one
or more of the key features not included in the standard imager, please
specify at the time of sale or otherwise contact a customer service
representative for more information.

2
Base Kit Components
Part # Description
MS7580-124Genesis 7580 Presentation Area Imager
00-02544 MetroSelect®Single-Line Configuration Guide
00-05252 Area-Imaging Supplemental Configuration Guide*
GEN-7580-UG Genesis 7580 Installation and User’s Guide*
EAS equipped models are indicated with an EAS extension on the model number
(i.e., MS7580-124-EAS). See pages 39–47 for additional product information.
 Manuals are available for download from www.honeywellaidc.com.
Optional Accessories
Part # Description
AC to DC Power Transformer - Regulated 12VDC @ 1.25A output.
46-00862 90VAC to 255VAC United States, Canada and Japan
46-00863 90VAC to 255VAC Continental European
46-00864 90VAC to 255VAC United Kingdom
46-00865 90VAC to 255VAC China
46-00866 90VAC to 255VAC Australia
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor, or customer service. See page 61 for contact information.

3
Part # Description
Cable Compatibility Warning
The MS7580 requires a cable designed for a 12VDC area imager.
Do not attempt to use any cables other than the specified cables listed below
(cable series 5S-5Sxxx). Any damage incurred from incorrect cable usage
will void the limited warranty shown on page 53.
5S-5S000-3 RS232 12V VLink Cable with Built in Power Jack
Straight Black Cable with Short Strain Relief
5S-5S002-3 Keyboard Wedge 12V VLink Cable with Adapter Cable
Straight Black Cable with Short Strain Relief
5S-5S213-N-3 USB Direct Cable for 12V Host Power Locking Plus-Power™ Type A Connector
Straight Black Cable with Short Strain Relief
5S-5S235-3 USB 12V VLink Cable with Built in Power Jack Non-Locking Type A Connector
Straight Black Cable with Short Strain Relief
MX-RS485-5S006-3 RS485 Voltage Converter Cable with Build in Power Jack
Straight Black Cable with Short Strain Relief
The following MS7580-124-EAS cables are compatible with Checkpoint
®
System devices. For additional cable information for the MS7580-124-EAS,
refer pages 39–47.
MX-5S114-E-3 RS232 12V VLink Straight, Black Cable
with Built in Power Jack
MX-5S236-E-3 USB 12V VLink Straight Black Cable with
Built in Power Jack, Non-Locking Type A Connector
46-00911 MS7580 Wall Mount Adapter Kit
46-00913 MS7580 Wall Mount Kit
00-05250 MS7580 Wall Mount Installation Guide
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor, or customer service. See page 61 for contact information.

4
MS7580 Components
Item Item Description
1 Blue and White LED
See Visual Indicators (on page 20)
2 Button Mode Select Button
3 Speaker See Audible Indicators (on page 19)
4 Window LED Aperture
5 Adjustable Base
6 Cable Connection 10-pin RJ45, Female Socket,
See Imager Pinout Connections (on page 49)
7 Cable Release See Cable Installation and Removal (on page 6)
Note: The MS7580-124-EAS model is equipped with an integrated antenna
for Electronic Article Surveillance (EAS) system support. See pages
39–47 for additional product information.

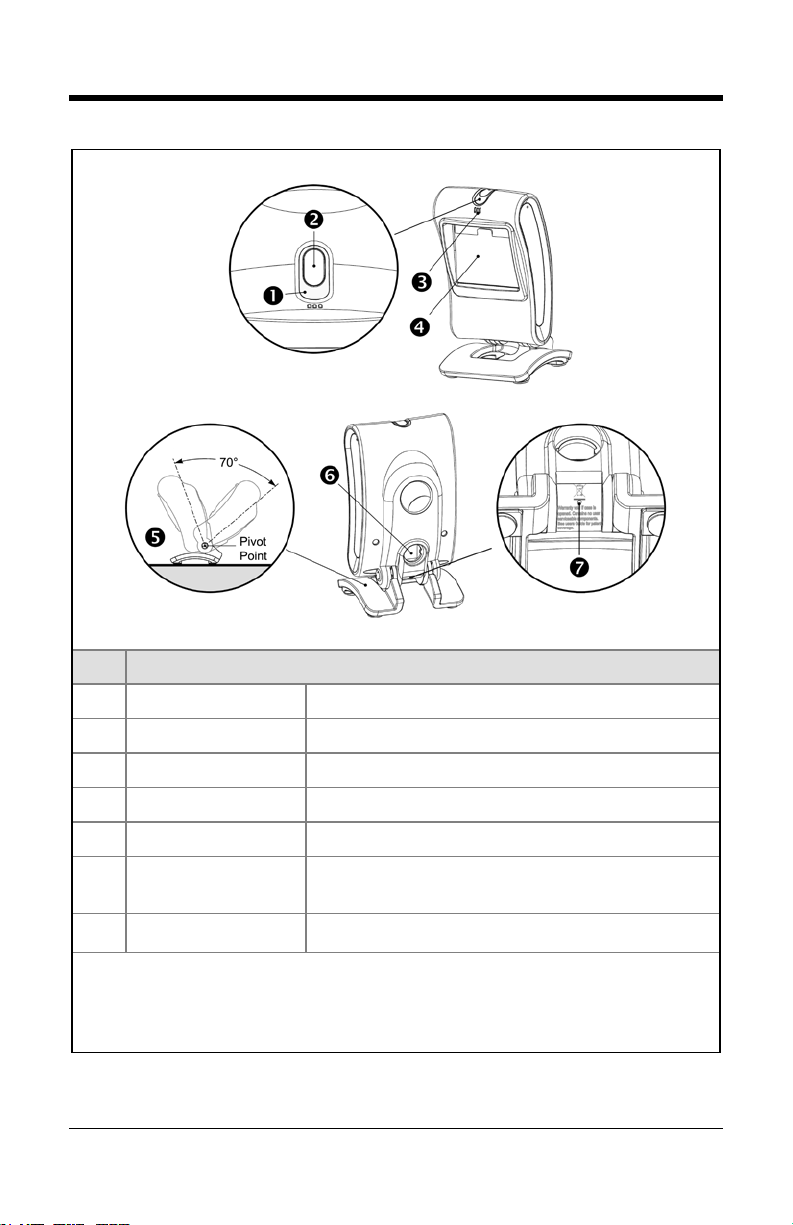

Figure 1. Imager Components

5
Labels
Each MS7580 has a label located near the top of the output window. This label
provides the imager’s model number, date of manufacture, serial number, CE
and caution information. Additional information has been molded into the
underside of the imager's case. The following figure gives an example of the
label and the molded text with their locations identified.
Figure 2. Label and Molded Text Samples
For North America:
CAUTION: To maintain compliance with applicable standards, all circuits
connected to the scanner must meet the requirements of a NEC Class 2
power source or Limited Power Source as defined in UL 60950-1 Clause 2.5.
For Other Countries:
CAUTION: To maintain compliance with applicable standards, all circuits
connected to the scanner must meet the requirements of a Limited Power
Source as defined in IEC 60950-1 Clause 2.5.
Maintenance
Smudges and dirt on the imager's window can interfere with the imager's
performance. If the window requires cleaning, use only a mild glass cleaner
containing no ammonia. When cleaning the window, spray the cleaner onto a lint
free, non-abrasive cleaning cloth and then gently wipe the window clean.
If the imager's case requires cleaning, use a mild cleaning agent that does not
contain strong oxidizing chemicals. Strong cleaning agents may discolor or
damage the imager's exterior.

6
Cable Installation and Removal
Installation
1. Insert the cable’s modular connector into the socket on the imager.
2. Pull gently on the cable strain relief to ensure the cable is installed.
Note: If the cable is not fully latched, the imager may power intermittently.
Figure 3. Installing the Cable
Removal
Turn the host power off and disconnect the power supply from the cable before
attempting to disconnect the cable from the imager.
1. Locate the small pinhole on the imager near the cable connection point.
2. Bend a paperclip into the shape shown below.
3. Insert the paperclip into the pinhole and apply pressure to release the
connector lock.
4. Pull gently on the strain-relief of the cable to remove the cable from the
imager.
Figure 4. Disconnecting the Cable
MS7580-124-EAS Model Note
See page 39 for additional cable installation/removal instructions specific to the
MS7580-124-EAS Genesis with integrated RF EAS antenna.

7
Interface Installation
RS232
1. Turn off power to the host device.
2. Plug the interface cable’s modular
connector into the socket on the imager.
3. Connect the other end of the cable to a
dedicated COM port on the host device.
4. Plug the 12V power supplyinto the
power jack on the cable.
5. Check the AC input requirements
of the power supply to verify the voltage
matches the AC outlet. The outlet must
be located near the equipment and
easily accessible.
6. Connect AC powerto the transformer.
7. The MS7580 will start to initialize.
The white and blue LED will alternately
fade on and off for three seconds.
When the imager has finished
initializing, the imager will flash the white
LED three times while simultaneously
beeping three times. The low intensity
blue LED will remain turned on.
8. Turn on power to the host device.
Installation Notes
•MS7580-124-EAS models are equipped with an integrated RF EAS
antenna. See page 39 for additional cable installation instructions for
EAS equipped Genesis models.
•Plugging the imager into a port on the host system does not guarantee
that scanned information will be communicated properly to the host
system. The imager is shipped from the factory configured with default
settings. Please refer to the MetroSelect Single-Line Configuration
Guide (PN 00-02544) or MetroSet2’s help files for instructions on
changing the imager’s configuration. In addition, please check that the
imager and host system are using the same communication protocol.
The MS7580 requires 12V power to function for RS232 operation. Honeywell
recommends using the external power supply shipped with the MS7580.

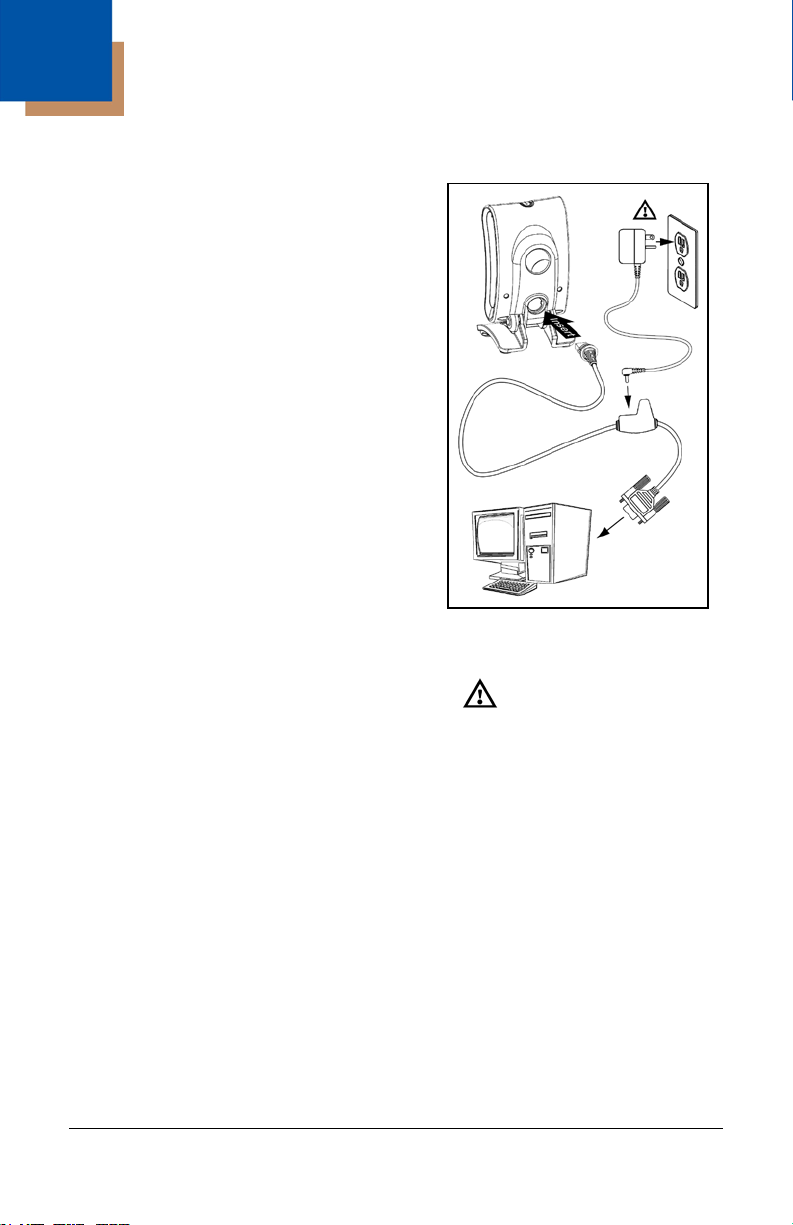

Figure 5. RS232
See caution on page 5.

8
Keyboard Wedge
1. Turn off power to the host device.
2. Plug the interface cable’s modular
connector into the socket on the imager.
3. Disconnect the keyboard from the
host device.
4. Connect the “Y” ends of the
communication cable to the keyboard
and the keyboard port on the host
device. A male/female adapter cable is
supplied with the imager kit.
5. Plug the 12V power supplyinto the
power jack on the cable.
6. Check the AC input requirements of the
power supply to verify the voltage
matches the AC outlet. The outlet must
be located near the equipment and be
easily accessible.
7. Connect AC power to the transformer.
8. The MS7580 will start to initialize. The
white and blue LED will alternately fade
on and off for three seconds. When the
imager has finished initializing, the
imager will flash the white LED three
times while simultaneously beeping
three times. The low intensity blue LED
will remain turned on.
9. Turn on power to the host device.
Installation Note
Plugging the imager into a port on the host system does not guarantee that
scanned information will be communicated properly to the host system. The
imager is shipped from the factory configured with default settings. Please refer
to the MetroSelect Single-Line Configuration Guide (PN 00-02544) or
MetroSet2’s help files for instructions on changing the imager’s configuration. In
addition, please check that the imager and host system are using the same
communication protocol.
The MS7580 requires 12V power to function for Keyboard Wedge operation.
Figure 6. Keyboard Wedge
See caution on page 5.

9
RS485
1. Turn off power to the host device.
2. Plug the interface cable’s modular
connector into the socket on the imager.
3. Connect the other end of the cable to
proper COM port of the host device.
4. Turn on power to the host device.
5. The MS7580 will start to initialize.
The white and blue LED will alternately
fade on and off for three seconds.
When the imager has finished
initializing, the imager will flash the white
LED three times while simultaneously
beeping three times. The low intensity
blue LED will remain turned on.
Installation Note
Plugging the imager into a port on the host system does not guarantee that
scanned information will be communicated properly to the host system.
The imager is shipped from the factory configured with default settings.
Please refer to the MetroSelect Single-Line Configuration Guide (PN 00-02544)
or MetroSet2’s help files for instructions on changing the imager’s configuration.
In addition, please check that the imager and host system are using the same
communication protocol.
The MS7580 requires 12V power from the host for RS485 operation.
Figure 7. RS485

10
USB
1. Turn off power to the host device.
2. Plug the interface cable’s modular
connector into the socket on the
imager.
3. Plug the USB end of the cable into
the host’s USB port.
Steps 4–6 are for VLink cables with a
built in power jack and 12V external
power supply. Skip to step 6 for USB
direct connect cablesreceiving 12V
power from the host.
4. Plug the power supply into the
power jack on the VLink cable.
5. Check the AC input requirements
of the power supply to verify the
voltage matches the AC outlet.
The outlet must be located near the
equipment and be easily
accessible.
6. Connect AC power to the transformer.
7. Turn on power to the host device.
8. The MS7580 will start to initialize. The
white and blue LED will alternately fade
on and off for three seconds. When the
imager has finished initializing, the
imager will flash the white LED three
times while simultaneously beeping
three times. The low intensity blue LED
will remain turned on.
Installation Notes
•MS7580-124-EAS models are equipped with an integrated RF EAS
antenna. See page 39 for additional installation instructions for MS7580-
124-EAS models.
•The MS7580 meets the requirements for Full Speed USB hardware.
The USB interface is configurable for Keyboard Emulation Mode,
Bi-Directional Serial Emulation Mode or IBM OEM. The default setting
for the USB interface is Keyboard Emulation Mode.
The MS7580 requires 12V power from the host for pass-through capabilities to function.
See page 3 for a complete list of USB cable options.
Figure 8. USB
See caution on page 5.

11
•For information on configuring the MS7580 for USB Serial Emulation
Mode or IBM OEM, refer to the USB section of the MetroSelect
Single-Line Configuration Guide (PN 00-02544).
•Plugging the imager into a port on the host device does not guarantee
that scanned information will be communicated properly to the host
device. The imager is shipped from the factory configured with default
settings. Please refer to the MetroSelect Single-Line Configuration
Guide (PN00-02544) or MetroSet2’s help files for instructions on
changing the imager’s configuration. In addition, please check that the
imager and host system are using the same communication protocol.

12

13
Mounting the MS7580

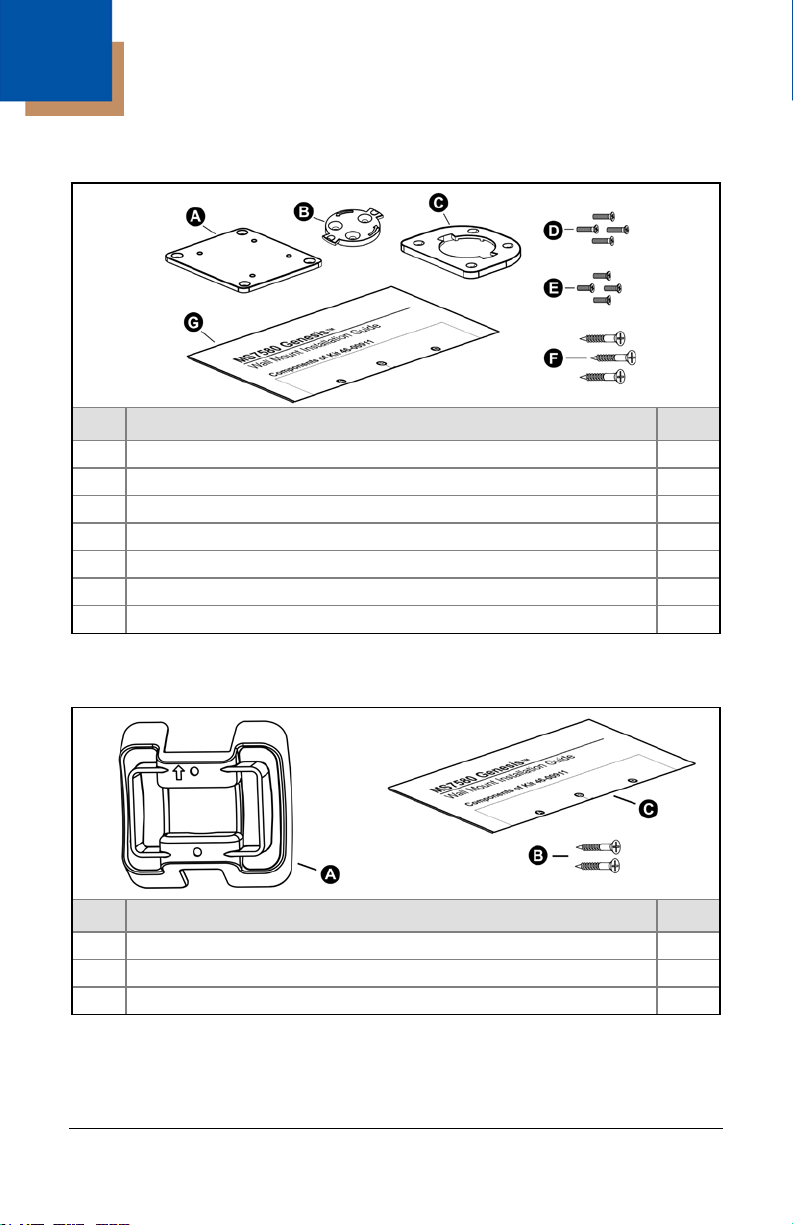

Components of Adapter Kit 46-00911
Item Item Description Qty.
A
Adapter Plate
1
B Locking Plate 1
C Base Cover 1
D
M3 x .5 - 10 mm Flat Head Phillips Screw
4
E
M3 x .5 - 8 mm Flat Head Phillips Screw
4
F #7 x 1.00 in. FHP Wood Screw 3
G MS7580 Wall Mount Installation Guide 1
Figure 9. 46-00911 Kit Components
Components of Wall Mount Kit 46-00913
Item Item Description Qty.
A Wall Mount 1
B #7 x 1.00 in. FHP Wood Screw 2
C
MS7580 Wall Mount Installation Guide
1
Figure 10. 46-00913 Kit Components

14
Installation of Adapter Kit 46-00911
1. Remove the rubber feet on the bottom of the MS7580.
2. Attach the adapter plate to the bottom of the imager with the four
M3 x .5 x 10 mm screws ( ) provided in the kit.
3. Attach the base plate to the adapter plate with the four M3 x .5 x 8 mm
screws ( ) provided in the kit.

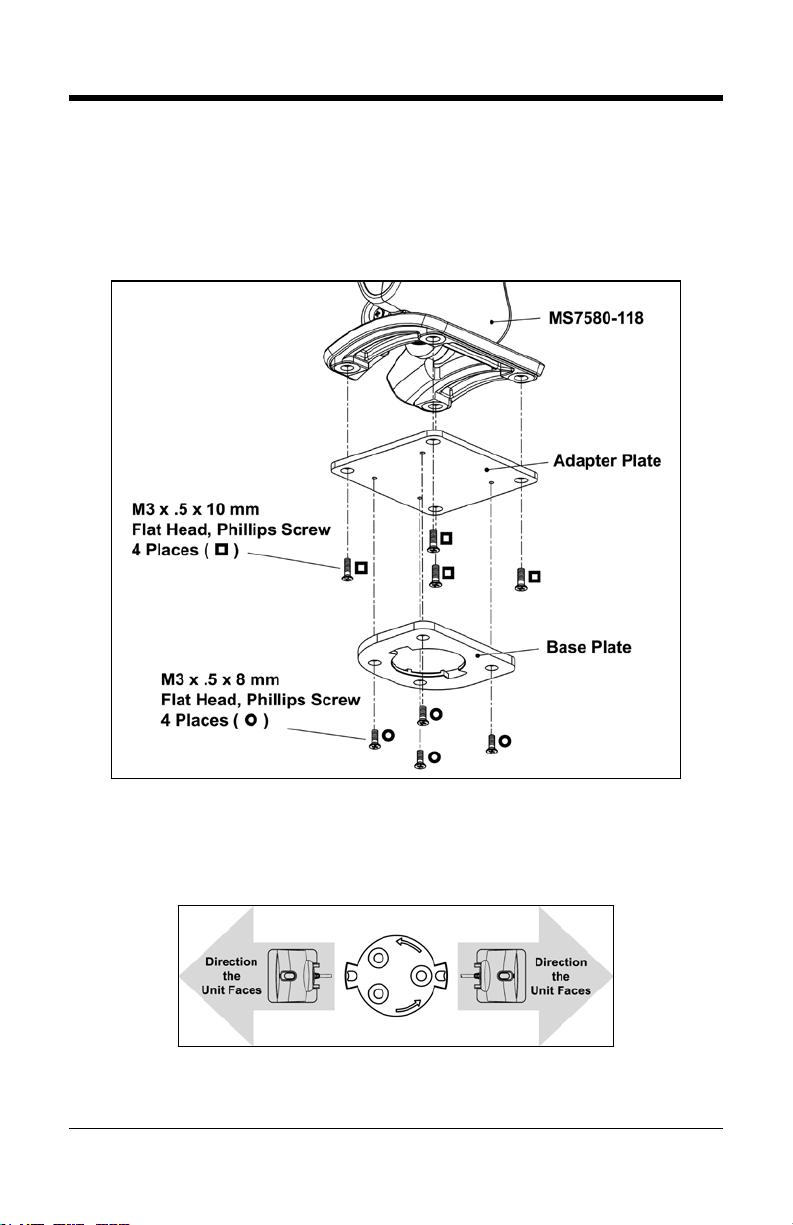

Figure 11
4. Before mounting the locking plate, consider the position the imager will rest
when fully installed. There are two tabs located on the locking plate.
These tabs indicate the two directions the imager may face when locked
into position (see figure below).
Figure 12

15
5. Use the locking plate as a guide to drill three #39 pilot holes (A) in the
mounting surface.
Figure 13. Locking Plate (Not Drawn to Scale)
6. Secure the locking plate to the wall with the three #7 wood screws ()
provided in the kit.
Figure 14
7. Position the imager so the base plate sits flush over the locking plate.
Twist the imager 90° counter-clockwise to lock the imager into place.
Figure 15

16
Installation of Wall Mount Kit 46-00913
1. Drill two #39 pilot holes in the mounting surface. The pilot holes should be
centered vertically 44 mm apart.
2. Position the wall mount over the pilot holes with the arrow pointing up.
3. Secure the wall mount to the wall with the two #7 wood screws () provided
in the kit.
Figure 16
4. Slide the imager's base under the upper corner tabs on the wall mount.
5. Slide the remainder of the base in and down behind the lower corner tabs.
Figure 17
