MS3780 Fusion

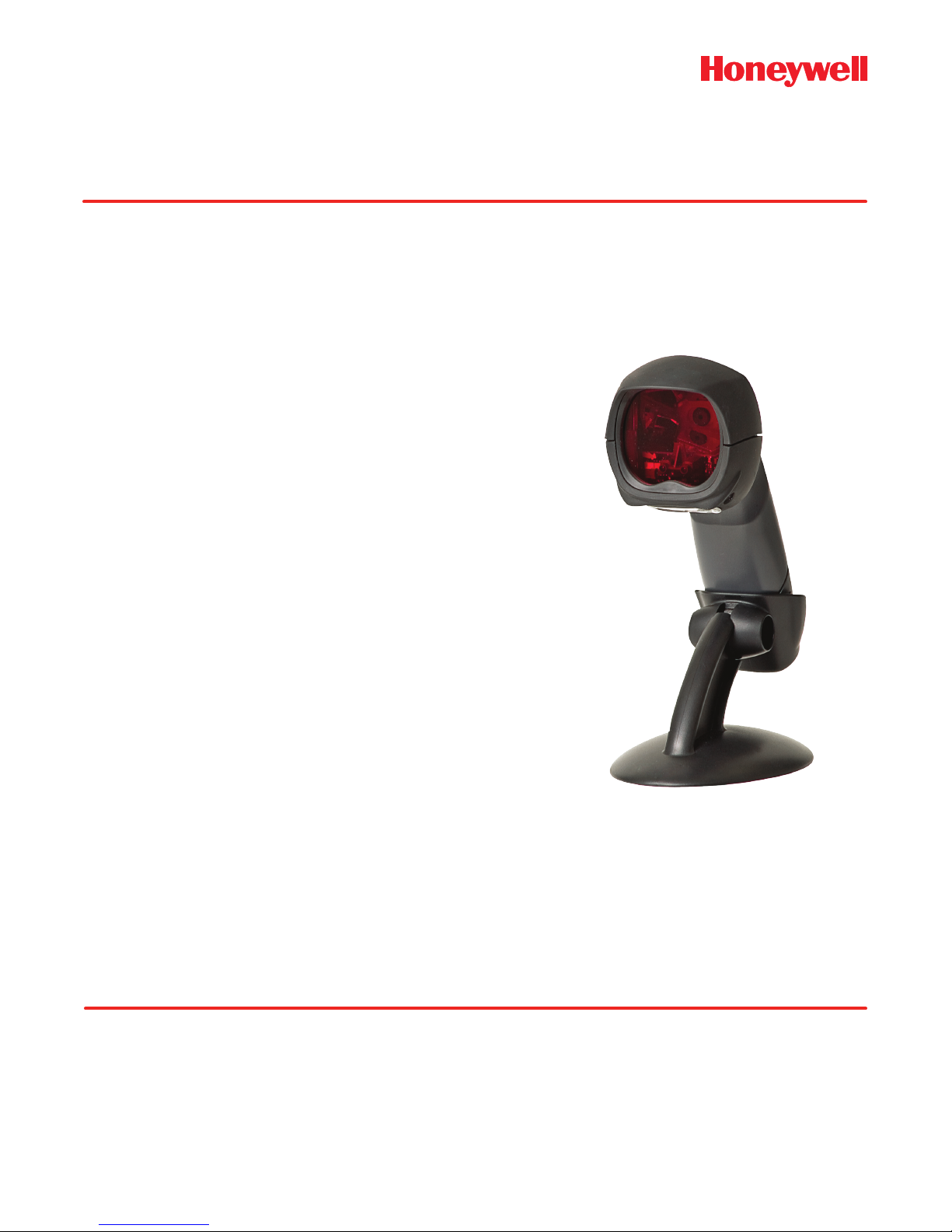

Honeywell’s MS3780 FusionTM is an affordable hand-held omnidirectional
laser scanner with single-line capability that increases retail checkout
system efficiency with its automatic in-stand operation, optionally
integrated EAS, and industry-leading scan performance.
Fusion combines omnidirectional and single-line laser bar code
scanning into a lightweight, ergonomic hand-held form factor. The
20-line scan pattern provides superior scanning over existing single-
line hand-held scanners making Fusion ideal for medium-volume
retailers including specialty stores, pharmacies, liquor stores, and
convenience stores.
An adjustable stand with 50° of tilt and three locking positions provides
flexibility for the user to position the scanner for individual comfort and
optimal performance. Stabilized with a weighted metal base, the stand
may also be hard-mounted to counters or walls.
Fusion also includes CodeGate®, a Honeywell patented feature used
in the highly successful Voyager®series. An integrated infra-red (IR)
sensor automatically activates the laser when a bar code is present.
The user then properly aligns the bar code before pressing the button,
transmitting the data to the host. This feature provides the ability to
pass over other bar codes, selecting only the required code. No other
scanner offers this much control.
Standard features such as Flash ROM, MetroSelect®and MetroSet®2
programming, and user replaceable cables protect your investment by
enabling Fusion to grow with you and your application requirements.
For more information on the MS3780 Fusion omnidirectional laser
scanner, please visit www.honeywell.com/aidc.
Omnidirectional Laser Scanner
Primary Omnidirectional Scan Pattern:• Aggressive
scanning in any orientation, increasing throughput
Secondary Single-Line Scan Pattern:• With a push
of a button, switch to a targeted single-line for menu
scanning applications
Automatic In-Stand Detection:• Hands-free operation for
presentation scanning reduces operator fatigue
Sleep Mode With IR Wake Up:• Multiple sleep modes
reduce power consumption, extending life and lowering
cost of operation
Optional Integration of RF EAS Antenna:• Increases
efficiency by simultaneously deactivating RF EAS tags
and decoding bar codes
Features

MS3780-DS Rev A 01/09
© 2009 Honeywell International Inc.
Honeywell Security & Data Collection
Honeywell Scanning & Mobility
90 Coles Road
Blackwood, NJ 08012
856.228.8100
www.honeywell.com
For more information:
www.honeywell.com/aidc
RoHS
2002/95/EC
MS3780 Fusion Technical Specifications
Operational
Light Source Visible Laser Diode 650 nm ± 10 nm
Visual Indicators Blue = ready to scan; White = good read;Yellow = automatic scanning
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
Mechanical
Dimensions (LxWxH) 189 mm x 65 mm x 73 mm (7.4˝ x 2.6˝ x 2.9˝)
Weight 195 g (6.9 oz)
Electrical
Input Voltage 5 VDC ± 0.25 V
Operating Power 1.4 W (275 mA @ 5 V)
Standby Power 1.0 W (200 mA @ 5 V)
DC Transformers Class 2: 5.2 VDC @ 1 A
Laser/LED Safety Class 1: IEC60825-1, EN60825-1
EMC FCC Part 15, ICES-003, EN55022 Class B
Environmental
Operating Temperature -20°C to 40°C (-4°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand multiple 1.5 m (5´) drop
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux (450 foot-candles)
Scan Performance
Scan Pattern Omnidirectional: 5 fields of 4 parallel lines; Button activated single line
Scan Speed Omnidirectional: 1,333 scan lines per second; Single line: 67 scan lines per second
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capability
Reads standard 1D and GS1 DataBar symbologies. Visit www.honeywell.com/aidc/symbologies for details.
Warranty
3 year factory warranty
Typical Performance*
Narrow Width Depth of Field
5.2 mil 44 mm - 108 mm (1.8˝ - 4.3˝)
7.5 mil 25 mm - 190 mm (1.0˝ - 7.5˝)
10.4 mil 25 mm - 240 mm (1.0˝ - 9.5˝)
13 mil 25 mm - 280 mm (1.0˝ - 11.0˝)
21 mil 25 mm - 300 mm (1.0˝ - 12.0˝)
*Resolution: 5 mil (0.127 mm)
*Performance may be impacted by bar code
quality and environmental conditions
