Honeywell Orbit MS7120 User manual

MS7120
Orbit®Presentation Laser Scanner
Installation and User’s Guide

Disclaimer
Honeywell International Inc. (“HII”) reserves the right to make changes in
specifications and other information contained in this document without prior
notice, and the reader should in all cases consult HII to determine whether any
such changes have been made. The information in this publication does not
represent a commitment on the part of HII.
HII shall not be liable for technical or editorial errors or omissions contained
herein: nor for incidental or consequential damages resulting from the furnishing,
performance, or use of this manual.
This document contains propriety information that is protected by copyright. All
rights reserved. No part of this document may be photocopied, reproduced, or
translated into another language without the prior written consent of HII.
© 2009 Honeywell International Inc. All rights reserved.
Web Address: www.honeywellaidc.com
Trademarks
Metrologic, MetroSelect, and MetroSet2 are trademarks or registered trademarks
of Metrologic Instruments, Inc. or Honeywell International Inc.
Microsoft, Windows, and Windows 95 are trademarks or registered trademarks of
Microsoft Corporation.
IBM is a trademark of International Business Machines Corporation.
Other product names mentioned in this manual may be trademarks or registered
trademarks of their respective companies and are the property of their respective
owners.
Patents
Please refer to page 34 for a list of patents.

ii
TABLE OF CONTENTS
Introduction
Product Overview ............................................................................................. 1
Scanner and Accessories................................................................................. 2
Scanner Components....................................................................................... 4
Cable Removal................................................................................................. 4
Caution and Serial Number Labels................................................................... 5
Maintenance..................................................................................................... 5
Mounting Specifications ................................................................................... 6
Installation
RS232, or Light Pen ......................................................................................... 7
RS485 .............................................................................................................. 8
Keyboard Wedge.............................................................................................. 9
Stand-Alone Keyboard Wedge....................................................................... 10
Full Speed or Low Speed USB....................................................................... 11
Scanner Operation
Indicators
Audible ....................................................................................................... 12
Visual ......................................................................................................... 13
Failure ........................................................................................................ 14
Depth of Field Specifications
Normal Scan Zone ..................................................................................... 15
Reduced Scan Zone................................................................................... 15
Depth of Field by Bar Code Element Width
Normal Scan Zone ..................................................................................... 16
Reduced Scan Zone................................................................................... 17
Troubleshooting Guide ....................................................................................... 18
Design Specifications ......................................................................................... 22
Applications and Protocols ................................................................................. 24

iii
TABLE OF CONTENTS
Scanner Configuration........................................................................................ 25
Configuration Modes ...................................................................................... 25
Bar Codes .................................................................................................. 25
MetroSet2................................................................................................... 25
Serial Configuration.................................................................................... 25
Upgrading the Firmware..................................................................................... 26
Scanner and Cable Terminations
Scanner Pinout Connections .......................................................................... 27
Cable Connector Configurations (Host End) .................................................. 28
Regulatory Compliance
Safety ............................................................................................................. 30
EMC ............................................................................................................... 31
Limited Warranty ................................................................................................ 33
Patents ............................................................................................................... 34
Index .................................................................................................................. 35
Customer Support .............................................................................................. 37
Technical Assistance...................................................................................... 37
Product Service and Repair............................................................................ 38

1
INTRODUCTION
Orbit®is an aggressive, omnidirectional laser bar code scanner ideal for use in
retail, convenience, liquor and specialty stores Designed to be lightweight and
rugged, Orbit’s small size makes it ideal for applications where counter space is
limited. The MS7120 unique contoured shape allows it to be picked-up and used
as a hand-held scanner when scanning large or bulky items.
Key Product Features
Fully Automatic Scanning Operation
Adjustable Scan Head
User-Replaceable Single Cable Interface To Host (Powerlink Compatible)
Seven Beeper Tones
Configurable Depth of Field
Firmware updates are easily loaded into Flash memory
OPOS and JPOS System Compatible
Support For Common Interfaces Including USB (See Table Below)
Easy Bar Code Configuration
ORBIT
MODEL NUMBER INTERFACE
MS7120-38 RS232 Low Speed USB,
Keyboard Emulation Mode or Serial Emulation Mode*
MS7120-41 RS232/Light Pen Emulation
MS7120-47 Keyboard Wedge,
Stand-Alone Keyboard and RS232 Transmit/Receive
MS7120-106 RS485and Full Speed USB
* Configurable for Keyboard Emulation Mode or Serial Emulation Mode.
Default setting is Keyboard Emulation Mode.
Applicable for IBM®Host applications.

2
INTRODUCTION
Scanner and Accessories
BASIC KIT COMPONENTS
Part No. Description
MS7120 Orbit Presentation Laser Bar Code Scanner
00-02282xMS7120 Orbit Presentation Laser Bar Code Scanner
Installation and User’s Guide
00-02407xMetroSelect®Configuration Guide
* Guides also available for download at www.honeywellaidc.com.
OPTIONAL ACCESSORIES
Part No. Description
AC to DC Power Transformer - Regulated 5.2VDC @ 1A output.
46-00525 90VAC to 255VAC United States, Canada and Japan
46-00526 90VAC to 255VAC Continental European
46-00527 90VAC to 255VAC United Kingdom
46-00528 90VAC to 255VAC Australia
46-00529 90VAC to 255VAC China
46-00530 90VAC to 255VAC India
59-59000x -3 RS232 PowerLink Cable with Built in Power Jack
straight cord, short strain relief
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or customer service representative.

INTRODUCTION
Scanner and Accessories
OPTIONAL ACCESSORIES
Part No. Description
MVC** RS485 Applications
MVC Cable ±12VDC to +5.2VDC
** Contact a customer service representative for additional information on
the MVC cable series and the host connections available.
59-59002x-3 Keyboard Wedge PowerLink Cable
straight cord, short strain relief
59-59020x-3 Stand Alone Keyboard PowerLink Cable
straight cord, short strain relief
54-54213x-N-3 USB Full Speed Cable, Locking Plus-Power™Type A
straight cord, short strain relief
54-54214x-N-3
USB Full Speed Cable, Locking Plus-Power™ Type A
straight cord, short strain relief
This cable is for use with full speed
USB (-106) interface only.
59-59235x-N-3 USB Low Speed Communication Cable, Type A
straight cord, short strain relief
45-45619 Counter/Wall Mount Kit
Other items may be ordered for the specific protocol being used. To order additional items,
contact the dealer, distributor or customer service representative.
3

INTRODUCTION
Scanner Components
ITEM NODESCRIPTION
1 White LED (see page 12)
2 Blue LED (see page 12)
3 Red Output Window (Laser Aperture)
4 Speaker (see page 12)
5 Pin Hole for Cable Release
6 10-Pin RJ45, Female Socket (see page 28)
7 Adjustable Scan Head, 30°
Figure 1. Scanner Components
Cable Removal
1. Locate the small ‘pin-hole’ on the bottom of
the scanner near the cable.
2. Bend an ordinary paperclip into the shape
shown.
3. Insert the paperclip into the small ‘pin-hole’.
4. There will be a faint ‘click’ when the cable
lock is released. Pull gently on the strain-
relief of the PowerLink cable to remove it
from the scanner.
Figure 2. Cable Release
4

INTRODUCTION
Caution and Serial Number Labels

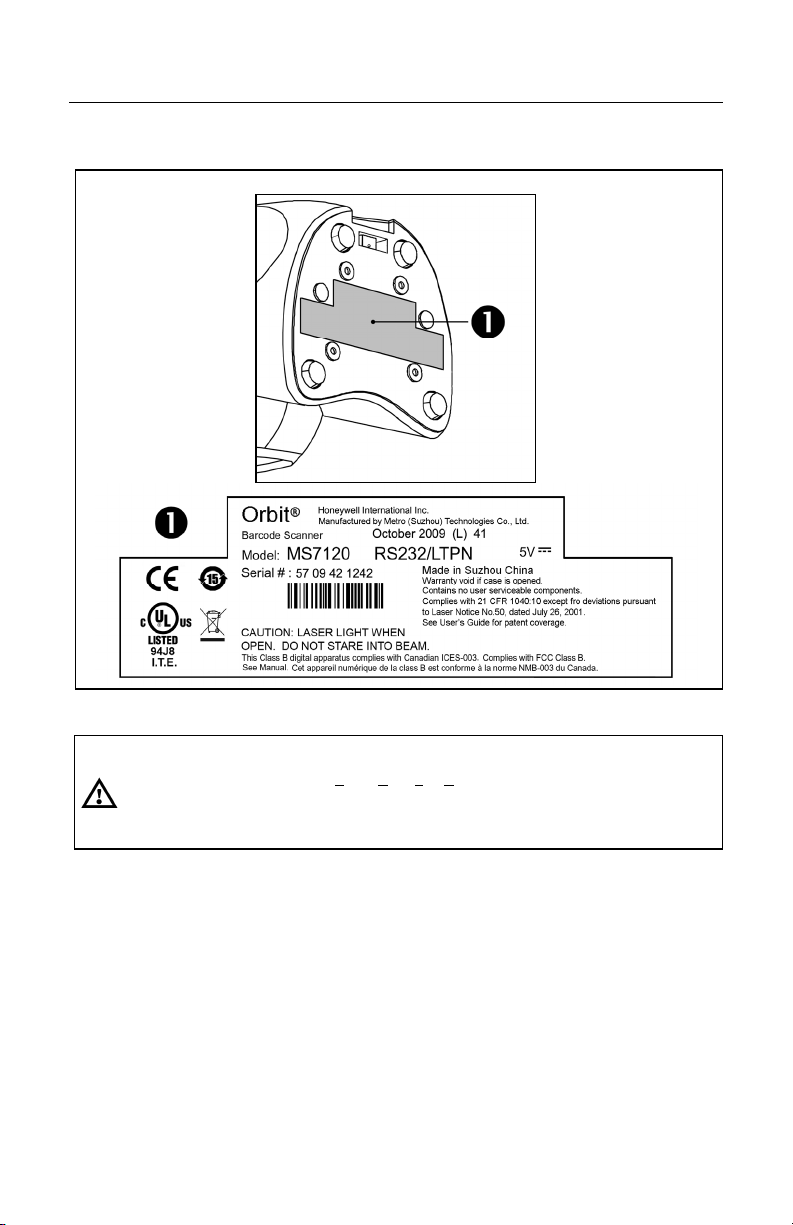

Figure 3. Labeling Locations on the Bottom of the Scanner and Examples
Caution
To maintain compliance with applicable standards, all circuits connected to the scanner must
meet the requirements for SELV (Safety Extra Low Voltage) according to EN/IEC 60950-1.
To maintain compliance with standard CSA C22.2 No. 60950-1/UL 60950-1 and norm
EN/IEC 60950-1, the power source should meet applicable performance requirements for a
limited power source.
Maintenance
Smudges and dirt on the unit's window can interfere with the unit's performance.
If the window requires cleaning, use only a mild glass cleaner containing no
ammonia. When cleaning the window, spray the cleaner onto a lint free, non-
abrasive cleaning cloth then gently wipe the window clean.
If the unit's case requires cleaning, use a mild cleaning agent that does not
contain strong oxidizing chemicals. Strong cleaning agents may discolor or
damage the unit's exterior.
5

INTRODUCTIONINTRODUCTION

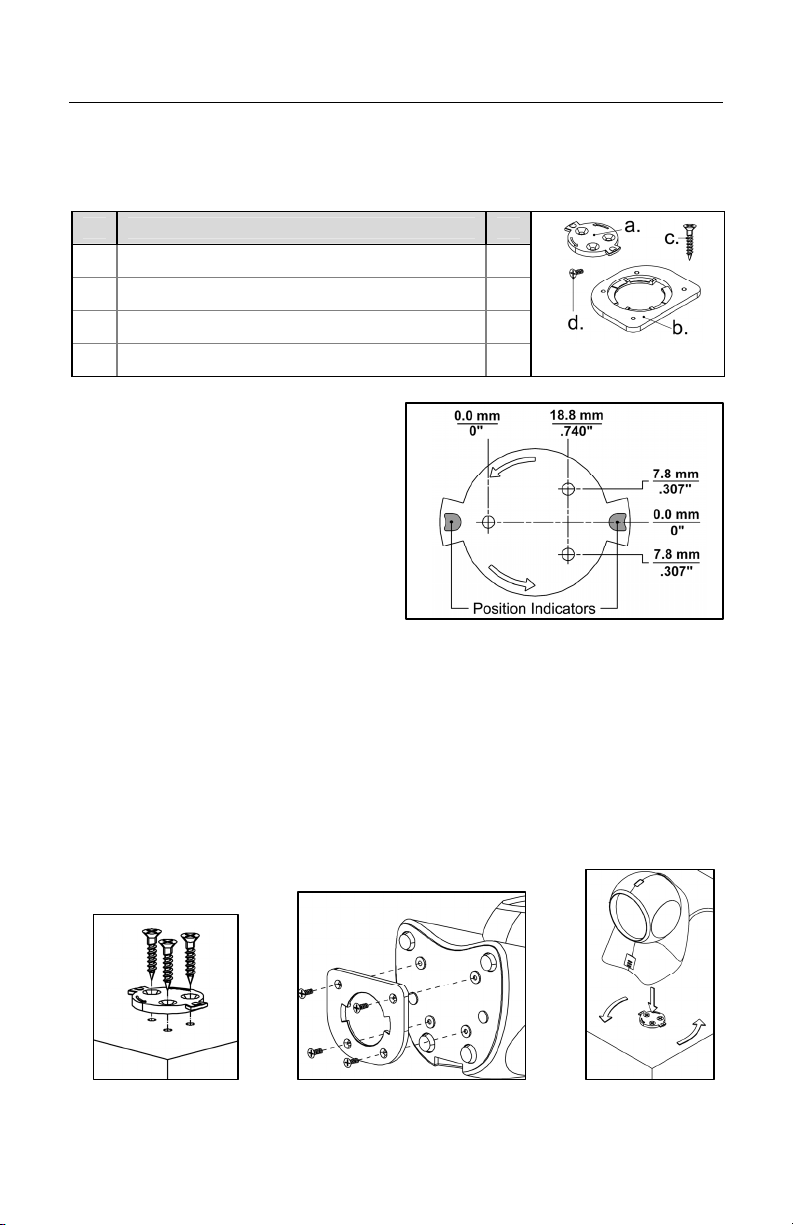

Mounting Specifications
Optional Wall/Counter Mount
Item Description Qty.
a. Locking Plate, PN 50-50302 1
b. Base Cover, PN 50-50301 1
c. #7 x 1.00" Wood Screw, PN 18-18013 3
d. M3 x 8 mm Flathead Screw, PN 18-18004 4 Figure 4. Kit Components
1. Drill three #39 pilot holes.
Note the position Orbit will rest
(see Figure 5). Use the dimensions
provided in Figure 5 or the locking
plate as a template to drill three
#39 pilot holes in the mounting
surface.
Figure 5
2. Attach the locking plate to the wall/counter.
Secure the locking plate to the counter/wall with the three #7 x 1.00" wood
screws provided (see Figure 6).
3. Attach the base plate to the Orbit.
Secure the base cover to the bottom of Orbit using the four M3 x 8 mm
screws provided (see Figure 7).
4. Mount Orbit to the locking plate.
Hold Orbit 90° clockwise from the desired position then lower it over the
locking plate until it sits flush to the countertop. Twist Orbit counter
clockwise 90° to lock the scanner in place (see Figure 8).
Figure 8
Figure 7
Figure 6
6

INSTALLATION
RS232, Light Pen Emulation
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end
of the PowerLink cable into the
10-pin socket on the MS7120.
3. Connect the 9-pin female end of the
PowerLink cable to the host device.
4. Plug the external power supply into the
power jack on the PowerLink cable.
Check the AC input requirements
of the power supply to make sure
the voltage matches the AC outlet.
The outlet must be located near
the equipment and be easily
accessible.
5. Connect AC power to the transformer.
6. Turn on the host device.
7
When the scanner first receives power, the blue and white LED will
toggle on and off then the scanner will beep once.
Plugging the scanner into the serial port of the PC does not guarantee
that scanned information will appear at the PC. A software driver and
correct configuration setting are also required for proper
communication to occur.
Powering the MS7120 directly from the host device can cause
interference with the operation of the scanner or the computer. Not
all computers supply the same current. For this reason, Honeywell
recommends using an external power supply. For additional
information contact a Honeywell customer service representative.
Figure 9.
See page 5.

INSTALLATION

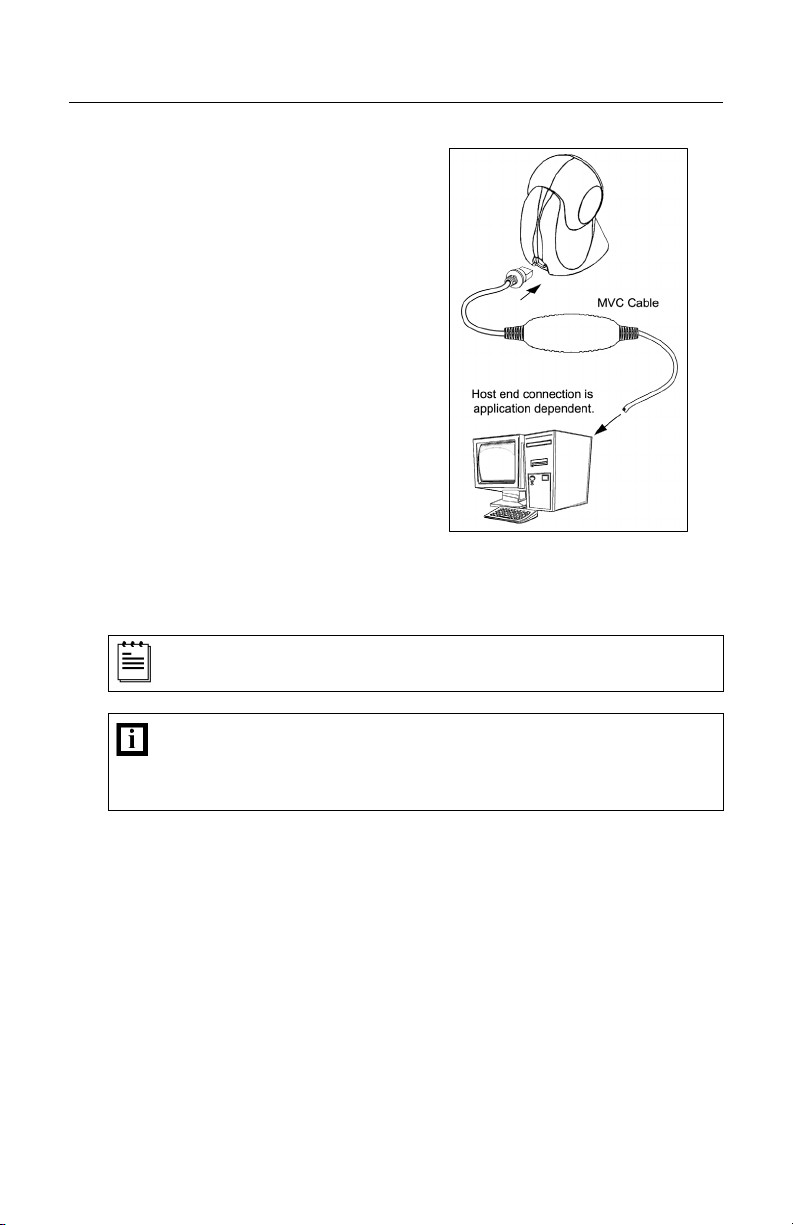

RS485
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end
of the MVC cable into the
10-pin socket on the MS7120.
3. Connect the other end of the MVC
cable to the host device.
4. Turn on the host device.
Figure 10.
When the scanner first receives power, the blue and white LED will
toggle on and off then the scanner will beep once.
Plugging the scanner into the serial port of the PC does not
guarantee that scanned information will appear at the PC. A software
driver and correct configuration setting are also required for proper
communication to occur.
8

INSTALLATION
Keyboard Wedge
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end of the
PowerLink cable into the 10-pin
socket on the MS7120.
3. Disconnect the keyboard from the
host device.
4. Connect the “Y” end of the PowerLink
cable to the keyboard and the
keyboard port on the host PC. If
necessary use the male/female
adapter cable supplied with the
scanner for proper connections.
5. Plug the external power supply into the
power jack on the PowerLink cable.
Check the AC input requirements
of the power supply to make sure
the voltage matches the AC
outlet. The outlet must be
located near the equipment and
be easily accessible. Figure 11.
6. Connect AC power to the transformer.
7. Turn on the host device.
When the scanner first receives power, the blue and white LED will
toggle on and off then the scanner will beep once.
Powering the MS7120 directly from the host device can sometimes
cause interference with the operation of the scanner or the computer.
Not all computers supply the same current through the keyboard port.
For this reason, Honeywell recommends using an external power
supply. For additional information contact a customer service
representative.
See page 5.
9

INSTALLATION

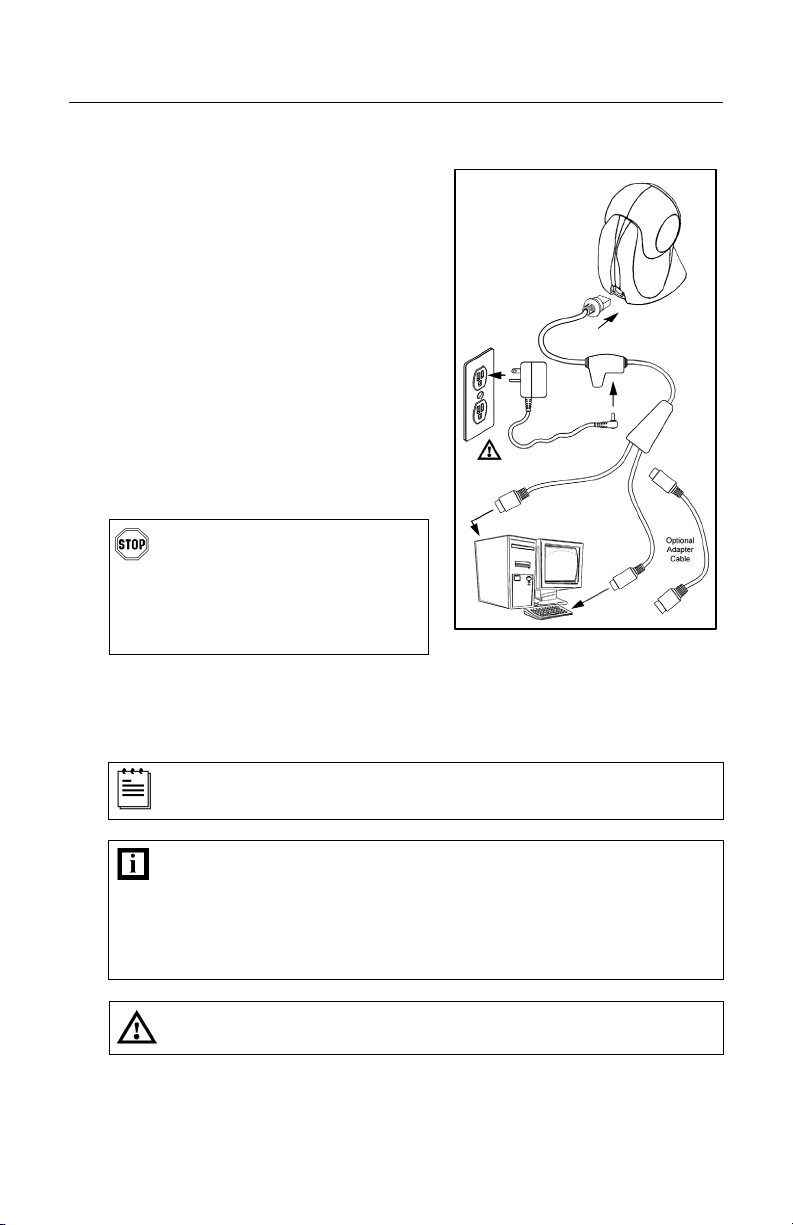

Stand-Alone Keyboard
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end
of the PowerLink cable into the
10-pin socket on the MS7120.
3. Connect the other end of the
PowerLink cable to the keyboard
port on the host device.
4. Plug the external power supply into
the power jack on the PowerLink
cable.
Check the AC input
requirements of the power
supply to make sure the
voltage matches the AC
outlet. The outlet must be
located near the equipment
and be easily accessible.
5. Connect AC power to the transformer. Figure 12.
6. Turn on the host device.
When the scanner first receives power, the blue and white LED will
toggle on and off then the scanner will beep once.
Powering the MS7120 directly from the host device can sometimes
cause interference with the operation of the scanner or the computer.
Not all computers supply the same current through the keyboard port.
For this reason, Honeywell recommends using an external power
supply. For additional information contact a customer service
representative.
See page 5.
10

INSTALLATION

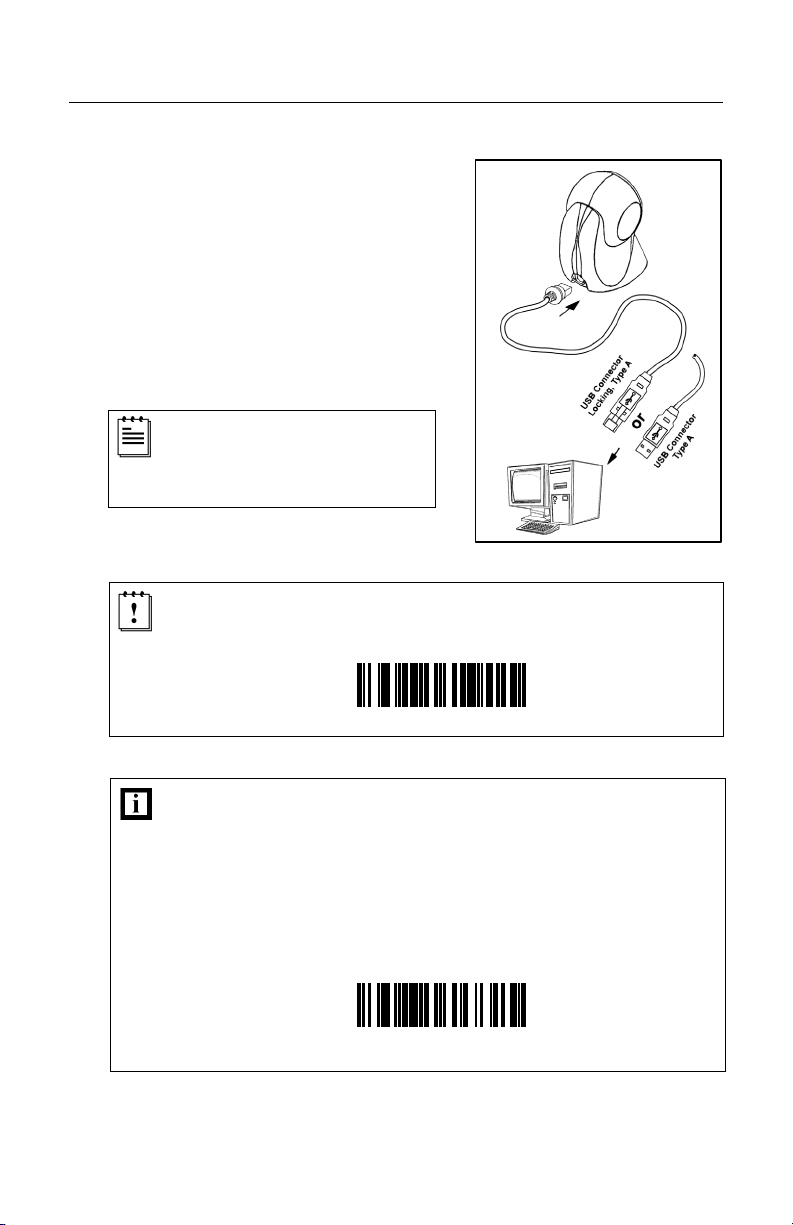

Full Speed or Low Speed USB
1. Turn off the host device.
2. Plug the male 10-pin RJ45 end of
the USB cable into the 10-pin
socket on the MS7120.
3. Plug the other end of the USB
interface cable into the host
device’s USB port.
4. Turn on the host device.
When the scanner first receives
power, the blue and white LED
will toggle on and off then the
scanner will beep once.
Figure 13.
As a default, the MS7120-38 leaves the factory with USB Keyboard
Emulation Mode enabled. Scan the following bar code to configure
the MS7120-38 for USB Serial Emulation Mode.
³316460
Plugging the scanner into the USB port of the PC does not guarantee
that scanned information will appear at the PC. A software driver and
the correct configuration settings are also required for proper
communication to occur.
For Previous User’s of the MX009
In order for the new integrated USB Orbit* to function with the same
serial emulation driver as the old external USB Orbit, scan the
following bar code.
³316470
* Rev L Orbits or above.
11

SCANNER OPERATION
Audible Indicators
When the MS7120 is in operation, it provides audible feedback to indicate the
status of the scanner. Eight settings are available for the tone of the beep
(normal, six alternate tones and no tone). For instructions on how to change the
tone of the beeper, refer to the MetroSelect Configuration Guide (00-02407).
One Beep
When the scanner first receives power the blue and white LED will toggle on
and off. The scanner will beep once, then the LEDs will stop toggling and the
blue LED will remain on to indicate the scanner is ready to scan.
When the scanner successfully reads a bar code, the white LED will flash and
the scanner will emit a beep*. If the scanner does not beep once and the white
light does not flash, then the bar code has not been successfully read.
Razzberry Tone
This is a failure indicator. Refer to Failure Mode Indicators on page 14.
When in configuration mode, a razzberry tone indicates that an invalid bar code
has been scanned.
Three Beeps - During Operation
When entering configuration mode†the scanner will beep three times and the
white and blue LED will start to toggle on and off. The blue LED and the white
LED will toggle on and off until the scanner exits the configuration mode.
Upon exiting configuration mode†, the white LED will flash three times and the
scanner will beep three times. The blue LED will then stay on indicating the
scanner is ready to scan.
When using one-code-configuring, the scanner will emit a unique beep three
times after scanning. This indicates that the single configuration bar code has
successfully configured the scanner.
Three beeps* can also indicate a communications timeout during normal
scanning mode.
Three Beeps - On Power Up
This is a failure indicator. Refer to Failure Mode Indicators on page 14.
* This feature is configuration dependent. Refer to the MetroSelect Configuration Guide
to enable this feature.
†Refer to the Multi-Code Configuration Method in the MetroSelect Configuration Guide.
12

SCANNER OPERATION
Visual Indicators
The MS7120 is equipped with a blue and a white LED that indicates the
scanner’s state and the status of the current scan when the unit is in operation.

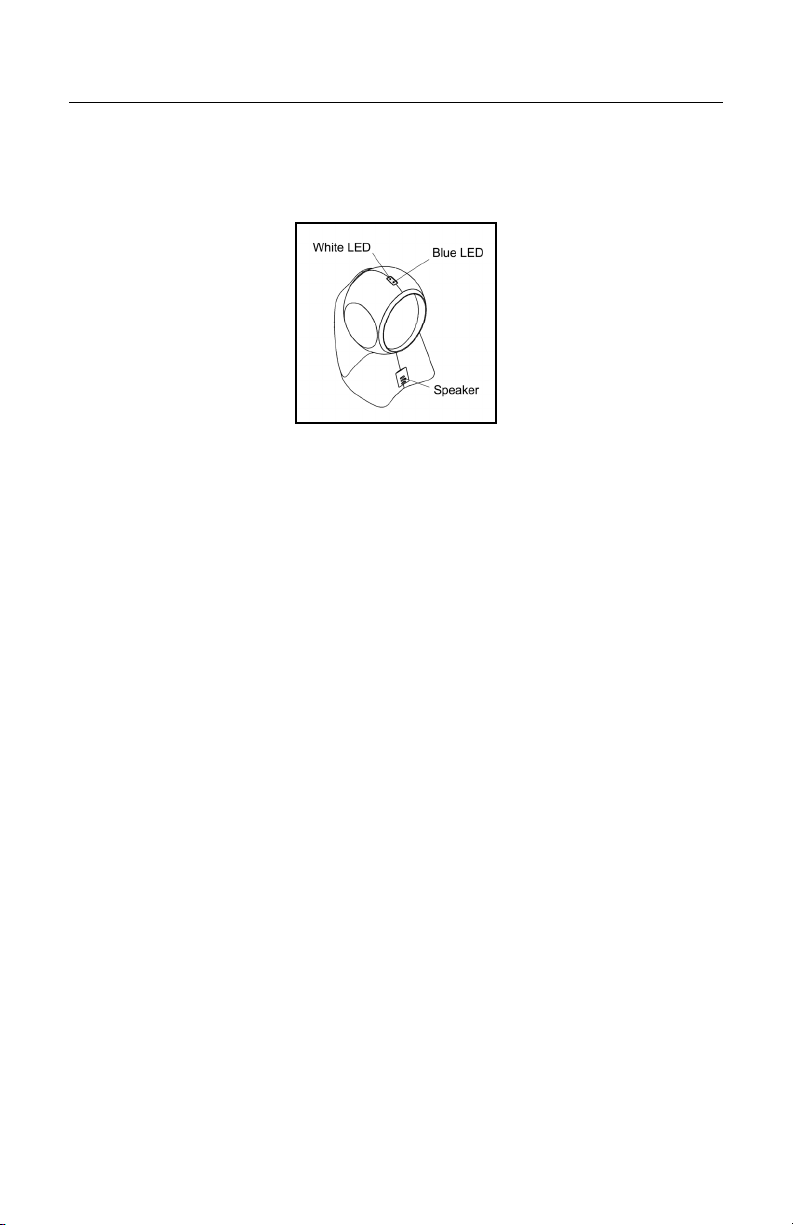

Figure 14. LED Location
No LEDs
The LEDs will not be illuminated if the scanner is not receiving power from the
host or transformer.
Steady Blue
When the laser is active, the blue LED is illuminated. The blue LED will remain
on until the laser is deactivated.
During the power save mode, the laser will turn on and off. During this period,
the blue LED will remain on.
Steady Blue and Single White Flash
When the scanner successfully reads a bar code, the white LED will flash and
the scanner will beep once. If the white LED does not flash or the scanner
does not beep once, then the bar code has not been successfully read.
Steady White and Blue
After a successful scan, the scanner transmits the data to the host device.
Some communication modes require that the host inform the scanner when
data is ready to be received. If the host is not ready to accept the information,
the scanner’s white LED will remain on until the data can be transmitted.
Alternating (Toggling) Blue and White
This indicates the scanner is in configuration mode. A razzberry tone indicates
that an invalid bar code has been scanned in this mode.
13

14
SCANNER OPERATION
Failure Mode Indicators
Flashing Blue with One Razzberry Tone
This indicates that the scanner has experienced a laser subsystem failure.
Return the unit to an authorized service center for repair.
Synchronized Flashing of Blue and White with Two Razzberry Tones
This indicates that the scanner has experienced a motor failure. Return the unit
to an authorized service center for repair.
Three Beeps - On Power Up
If the scanner beeps three times on power up, then the nonvolatile memory
that holds the scanner configuration may have failed. First, check the
scanner’s settings. Then, try to re-configure the scanner. If the problem
persists return the unit to an authorized service center for repair.

SCANNER OPERATION
Depth of Field Specifications*
Normal Scan Zone
Specifications are based on a 0.33 mm (13 mil) bar code.
Figure 15. MS7120 Normal Depth of Field
Reduced Scan Zone
Specifications are based on a 0.33 mm (13 mil) bar code.
Figure 16. MS7120 Reduced Depth of Field
* All specifications are subject to change without notice.
15

SCANNER OPERATION
Depth of Field by Bar Code Element Width*
Normal Scan Zone
MINIMUM BAR CODE ELEMENT WIDTH
A B C D E F G H J K
mm .13 - - - .19 - .25 .33 - .66
mils 5.2 - - - 7.5 - 10 13 - 26
Figure 17. Normal Scan Zone by Bar Code Element Width
* All specifications are subject to change without notice.
16
