Honeywell DH65DG115 - TrueDRY t Dehumidifier User manual

TrueDRY DH65
Dehumidification System
PROFESSIONAL INSTALLATION GUIDE

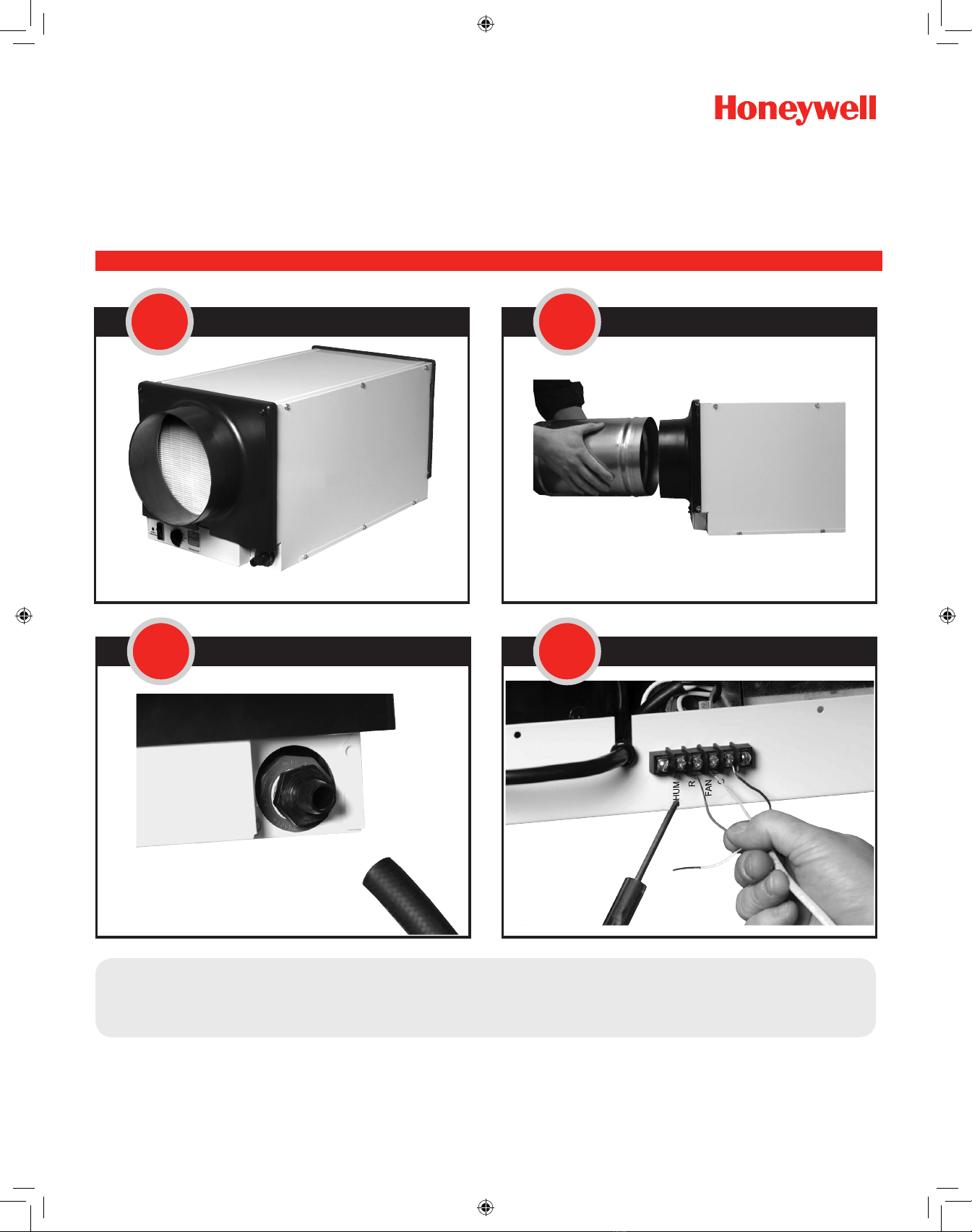

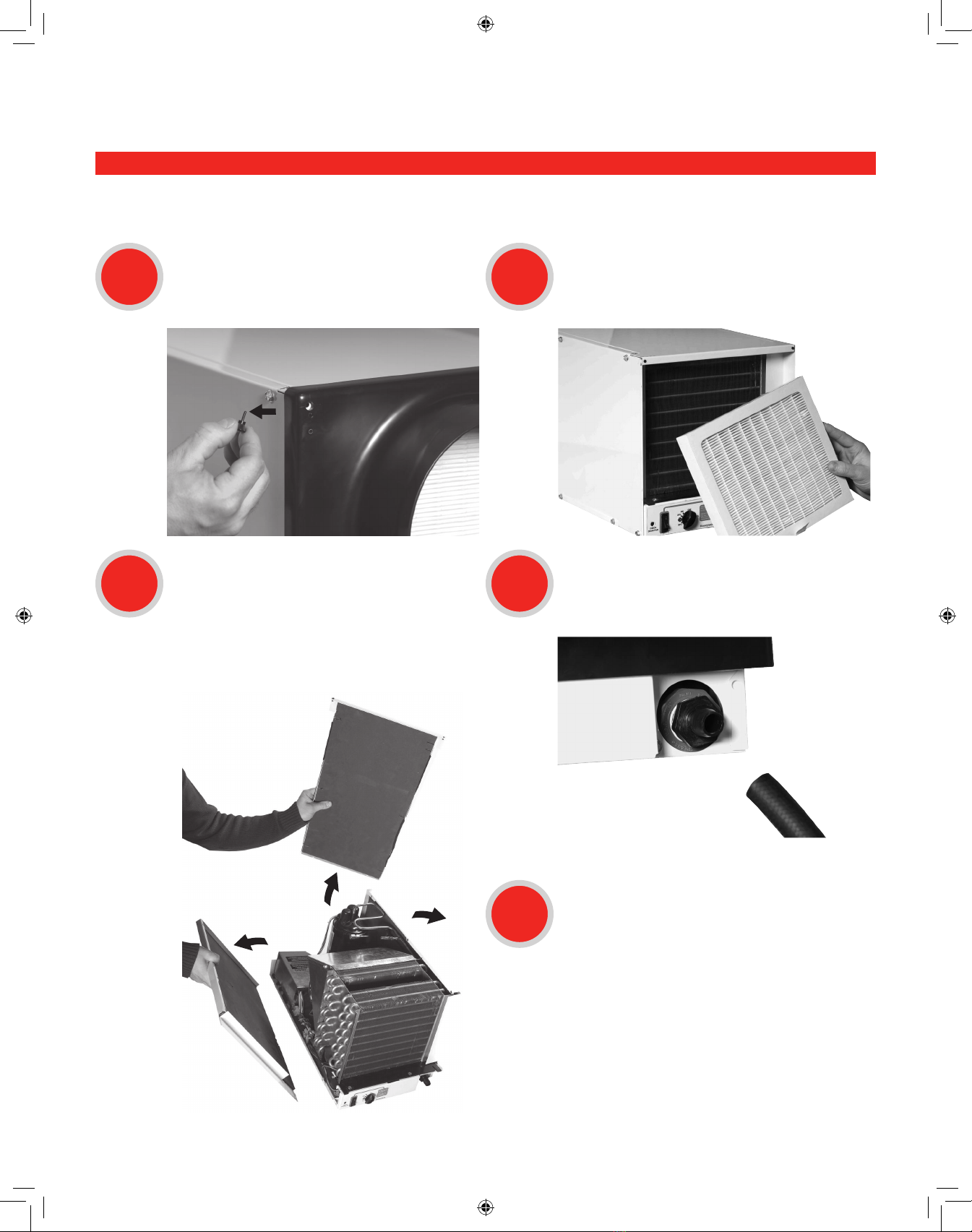

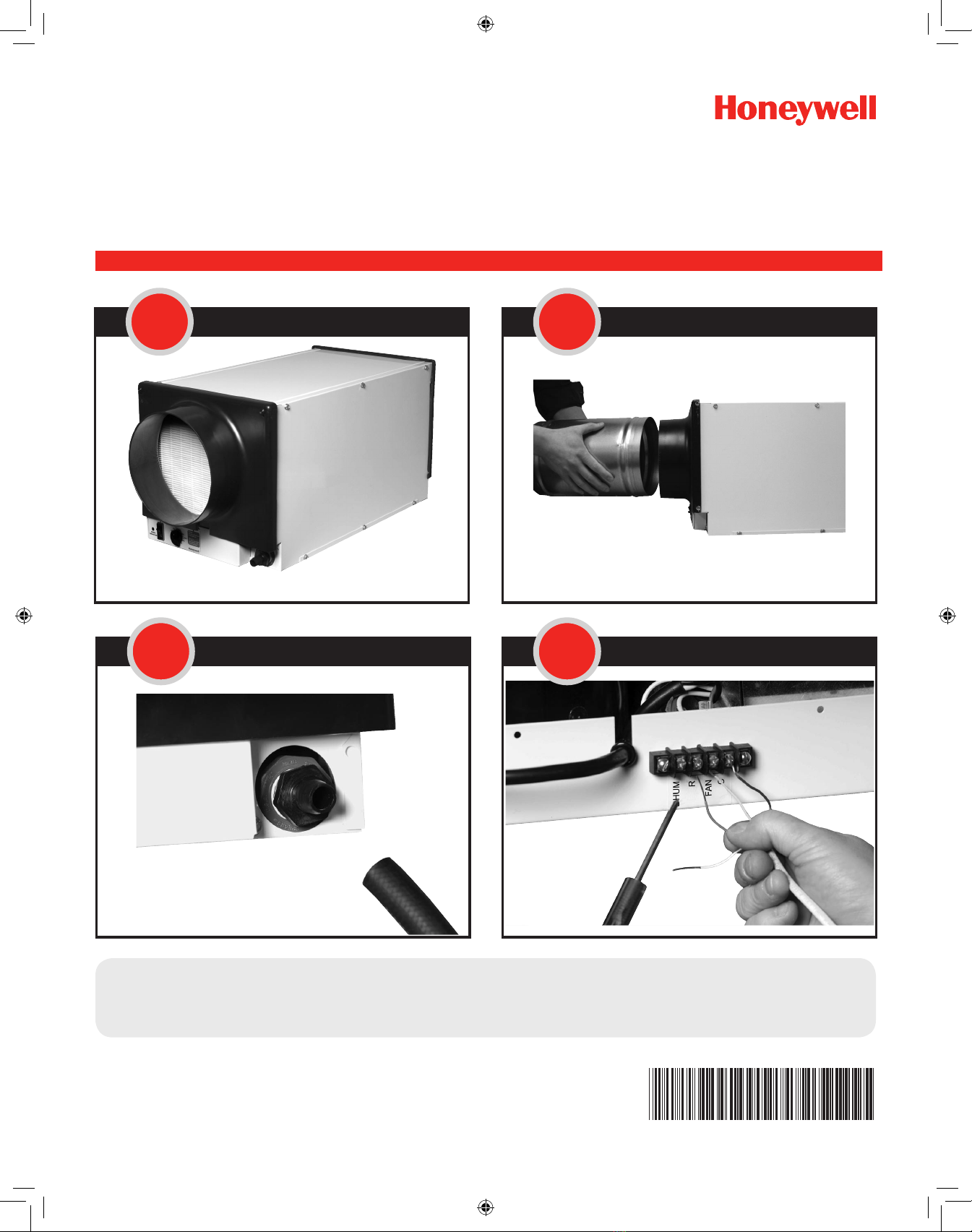

1Assemble 2Duct
3Plumb 4Wire
69-2089EFS-08
Must be installed by a trained, experienced technician
Read these instructions carefully. Failure to follow these instructions can
damage the product or cause a hazardous condition.
69-2089EFS_D.indd 1 9/22/2008 10:02:27 AM

Installation Guide
69-2089EFS—08 ii
About your new dehumidifier
Maintaining ideal humidity .................................................................................. 1
Setting the controls ............................................................................................. 2
Specifications....................................................................................................... 3
Installation
List of tools and supplies .................................................................................... 4
Choosing a location............................................................................................. 5
Ducting ................................................................................................................. 5
Plumbing............................................................................................................... 6
Terminal Descriptions .......................................................................................... 6
Wiring.................................................................................................................... 7
Checkout .............................................................................................................. 8
Maintenance
Cleaning................................................................................................................ 9
Troubleshooting ................................................................................................. 11
Parts List ............................................................................................................ 12
Warranty ............................................................................................................. 13
Read and save these instructions.
Need Help?
For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502
® U.S. Registered Trademark.
Copyright © 2008 Honeywell International Inc. All rights reserved.
Table of Contents
• DonotinstallTrueDRYDH65'sexhaustendwithoutducting.
• TrueDRYDH65isdesignedtobeinstalledindoorsinaspacethatisprotectedfromrainand
flooding.
• Installtheunitwithspacetoaccessthefrontpanelformaintenanceandservice.
• Avoiddirectingthedischargeairatpeople,oroverthewaterinpoolareas.
• Ifusednearapoolorspa,becertainthereisnochancetheunitcouldfallintothewaterorbe
splashed,andthatitispluggedintoagroundfaultinterrupt(GFI)outlet.
• Toensurequietoperation,donotplacethedevicedirectlyonthestructuralsupportsofthehome.
• Adrainpanmustbeplacedundertheunitifinstalledabovealivingareaoraboveanareawhere
water leakage could cause damage.
69-2089EFS_D.indd 2 9/22/2008 10:02:27 AM

TrueDRY DH65
1 69-2089EFS—08
TheHoneywellTrueDRYDH65ensuresthehomeismaintainedatproperhumiditylevelsthroughitshighperformance
and efficiency.
Benefits
• Removesupto65pintsofwaterfromtheindoorair.
• Built-inhumiditycontrolrequiresnoadditionalwiringtoanexternalcontrol.
Justpluginandgo!Choiceofexternalcontroloptionsalsoavailablefor
centrally ducted control.
• Feedbackonoperationandmaintenanceprovidedviaintuitiveon-board
LED light interface.
Maintaining Ideal Humidity
Dewpointsandrelativehumidity(RH)affectthewayyourbodysensesheat.
Higher humidity levels cause the air to feel much hotter than the actual temper-
ature.Whenmaintainedproperly,yourcoolingequipmentmaynotrunasmuch
because dehumidified air feels cooler in the summer.
About the TrueDRY DH65 Dehumidifier

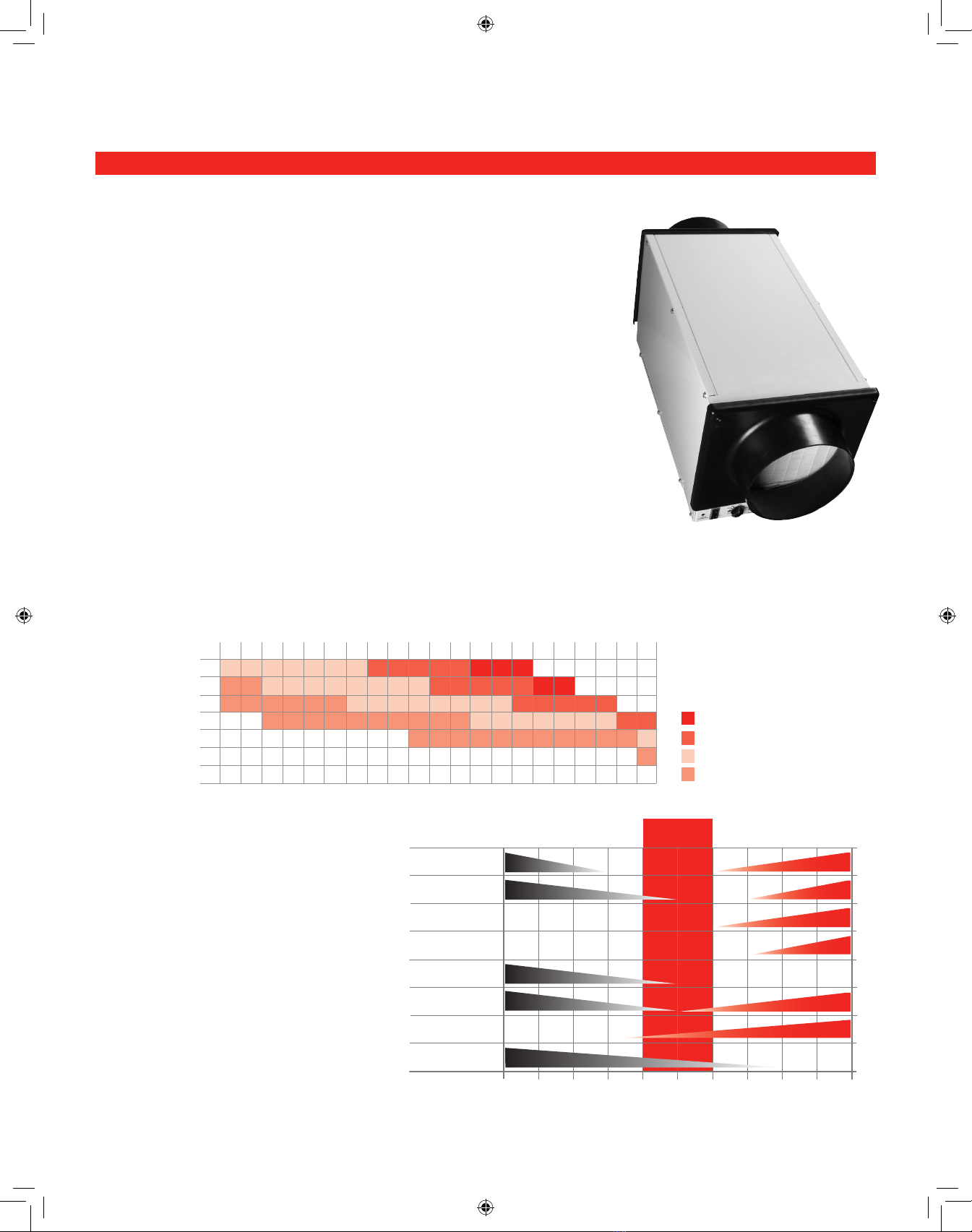

Idealhumidityisdefinedbyindustry
experts*asbeingbetween40-60%onan
average annual basis. When indoor humidi-
tyexceeds60%,thehomeismoresuscep-
tibletomoldandmildewgrowth.TrueDRY
DH65safeguardsagainstexcessivehumid-
ity in the home year-round.
*American Society of Heating, Refrigerating and Air
Conditioning Engineers (ASHRAE).
MCR24780
0102030405060708090100
OPTIMUM
ZONE
BACTERIA
VIRUSES
FUNGI
MITES
RESPIRATORY
INFECTIONS
ALLERGIC RHINITIS
AND ASTHMA
CHEMICAL
INTERACTIONS
OZONE
PRODUCTION
ASHRAE RECOMMENDED WINTER DESIGN LEVEL
00159095808570756065505540453035202510150
001 4418312316210215110117014011019979593919
59 631031421811411
0117014011018969493919098878
09 221711311901601201001896959391909887868584838
58 801501201997959391909988
878685848382818089787
08 199888786868583828181808979787777767574737
57 0897978787777767675757474737372727
17079696
07 271717171717070707969686867676666656564646
WHAT THE AIR FEELS LIKE
HOW HOT THE HEAT-HUMIDITY COMBINATION MAKES IT FEEL.
EXAMPLE: AIR AT 90ºF WITH 50% RH FEELS LIKE 96ºF TO THE HUMAN BODY!
RELATIVE HUMIDITY (PERCENTAGE)
EXTREME DANGER
EXTREME CAUTION
CAUTION
M27328
DANGER
AIR TEMPERATURE
(DEGREES FAHRENHEIT)
SOURCE: TEMPERATURE - HUMIDIY INDEX WAS DERIVED BY R.G. STEADMAN, JOURNAL OF APPLIED METEOROLOGY, JULY 1979.
69-2089EFS_D.indd 1 9/22/2008 10:02:29 AM

Installation Guide
69-2089EFS—08 2
VisionPRO IAQ Total Comfort System (YTH9421C1010)
•Controlsbothheating/coolinganddehumidification.
•Sensorincludedfordisplayingoutdoortemperature.
•Intuitiveuserinterfaceforeasy7-daytemperatureprogramming
•Easy-to-readbacklitdigitaldisplay.
•Maintenanceandservicereminders.
•Controlsotherindoorairqualityequipmentwhenyou’reready.
FAN OPTIONS: Choose to circulate air continuously or only while
thedehumidificationcompressorison,usingtheon-boardtoggle
switch.Ifexternalfancontrolisdesired,theon-boardfanswitch
mustbesettotheFanAutoposition.

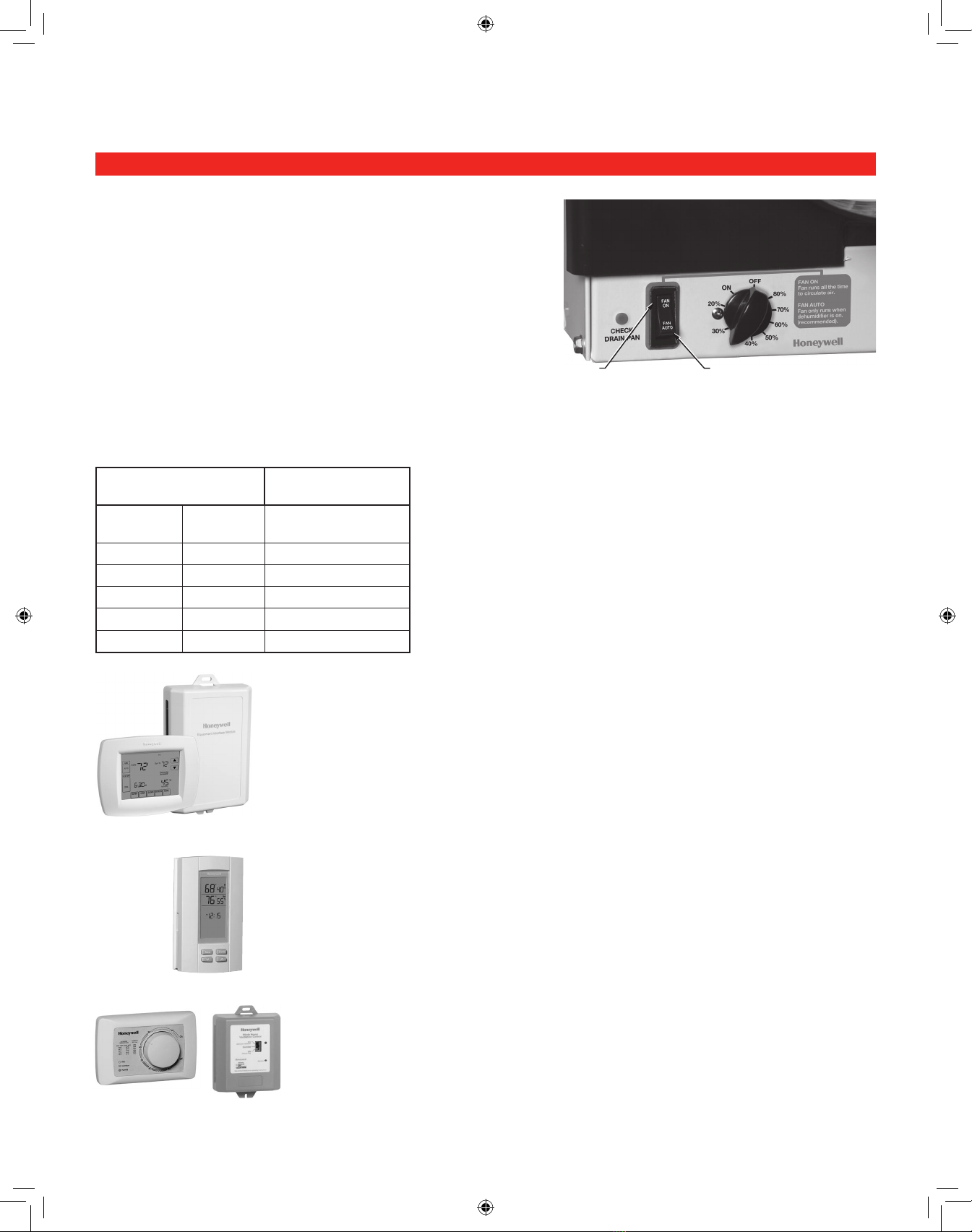

BUILT-IN HUMIDITY CONTROL: Anintuitive‘setandforget’
humidistatisbuiltintotheTrueDRYDH65tosetthehumidity
levelrightonthedevice.Optionalexternalcontrolwiringisalso
available.Ifanexternaldehumidistatisused,theon-boarddehu-
midification control must be set to the Off position.
CHECK DRAIN PAN: Lights red to indicate the internal float has
tripped by a water backup.
Each home may need slightly higher or lower humidity levels than
showninTable1becauseofitsuniquesize,shape,buildingtightness
and materials. These variables play an active role in how indoor humid-
ityfluctuates.UseTable1asastartingpoint,butadjustaccordingto
your comfort.
TrueDRYDH65isbundledwithoneofthefollowingexternalcontrols:
TrueIAQ Digital Control (DG115EZIAQ)
•Automaticadjustmentsmaintainidealhumidity.
•Sensorfordisplayingoutdoortemperatureandhumidity.
•Showsactualanddesiredhumiditysettings.
•Advancedventilationprogrammingincludeseconomizingandextreme
condition shutdown.
•Maintenanceandservicereminders
•Controlsotherindoorairqualityequipmentwhenyou’reready.

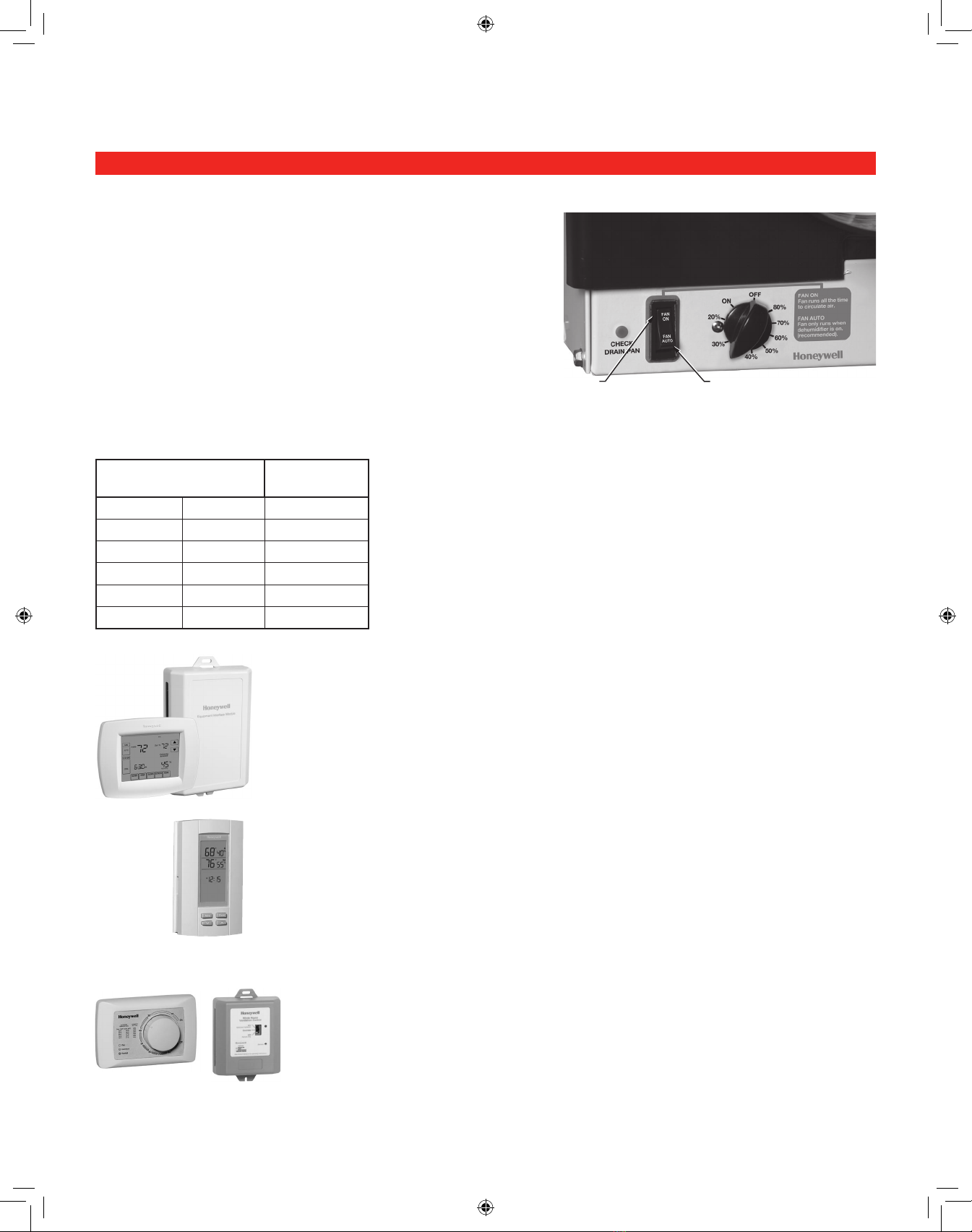

Setting the Controls
Table 1. Humidity Settings.
Outdoor Temperature Humidity
Setting
Over100°F Over38°C 20%
90°F 32°C 25%
85°F 29°C 30%
80°F 27°C 35%
75°F 24°C 40%
70°F 21°C 50%
M27406
FAN ON FAN AUTO
Manual Dehumidistat (H8908DSPST) and Automatic Ventilation
Controls (W8150A1000)
•Manualhumiditycontrolwithintuitivecomfortsettings.
•Integratedhumiditychartforaccuratecontrolinchangingoutdoorconditions.
•AutomaticW8150ventilationcontroltoASHRAEindustrycode,orfor
continuous operation.
69-2089EFS_D.indd 2 9/22/2008 10:02:31 AM

TrueDRY DH65
3 69-2089EFS—08
InstallTrueDRYDH65accordingtoNationalElectricCodes.

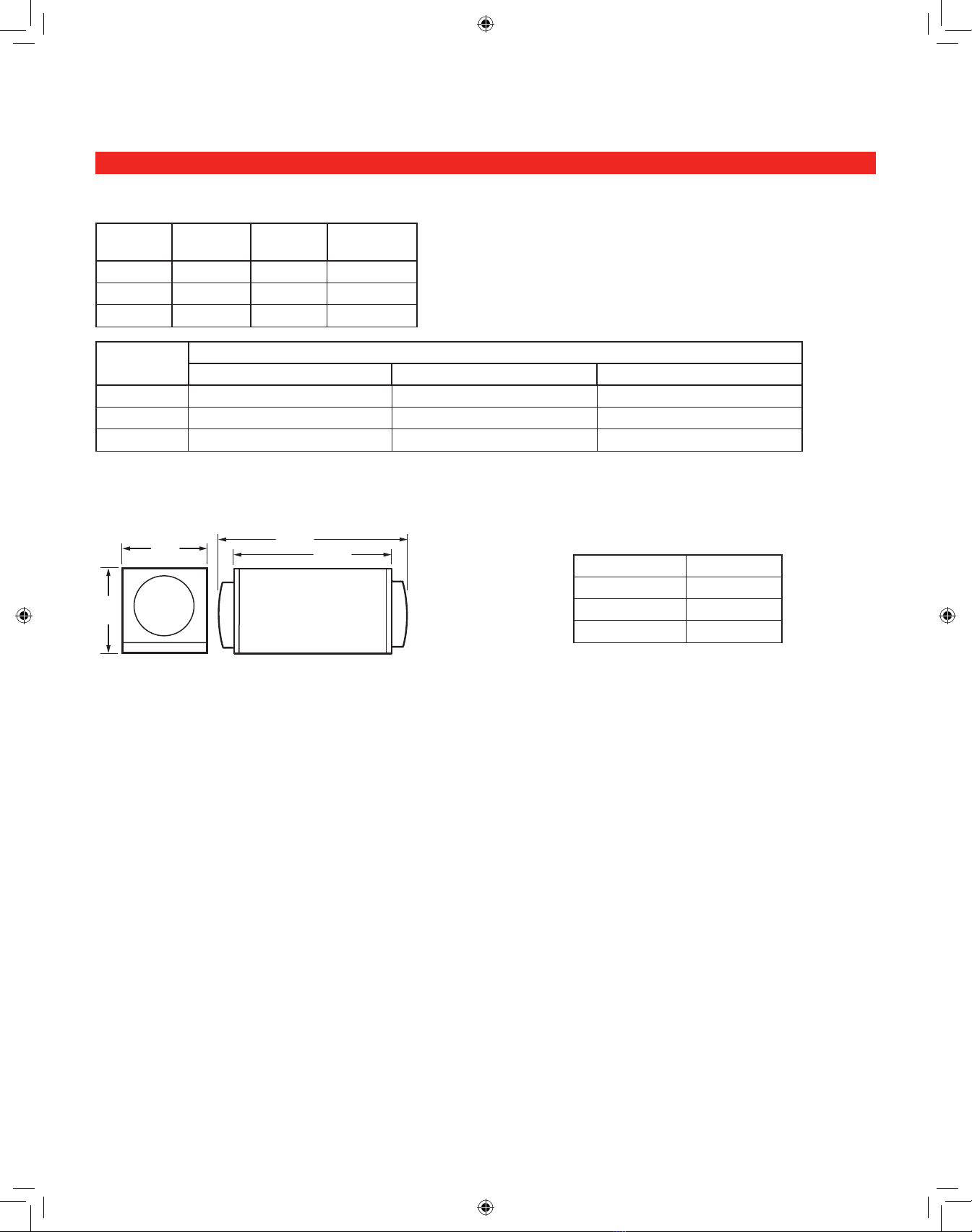

Dimensions:
Specifications
Product weight: 55 lbs
Shipping weight: 65 lbs
Shipping dimensions:16in.Hx15in.Wx31in.L
Media Filter:MERV11,9in.Hx11in.Wx1in.D
Drain connection:3/4-in.threadedfemaleNPT
connection,withattached3/4-in.maleconnection.
Duct connections:8-in.roundinletandoutlet.ABS
plastic,compatibleforconnectiontorigidor
flexibleductingwithsheetmetalscrewsand/or
tape.
Cabinet:20gaugegalvanizedsteelpowder-coat
painted.
Insulation: R value 1
Compressor: Rotary-style
Refrigerant:R22,1.0oz.
Operating Temp Range (outside cabinet):
56ºF-95ºF(13ºC-35ºC)
Operating Humidity Range: 0-99%RH
Input ratings
•Electricalinputvoltage:120VAC,60Hznominal
•Inputcurrent:5.5amps
Output ratings
•Power transformer to R/C terminals:24VAC,
0.85A
•Energy Performance:2.02litersperkilowatthour
(KWH)
Standards and approval body requirements
ETL Tested per standard UL 474 ducted dehumidifier.
Dry-Bulb
Temp Wet-Bulb Temp Intake Humidity Capacity (Pints/Day)
80°F 70°F 60%RH 65
70°F 61°F 60%RH 42
60°F 52°F 60%RH 21
Home Size
(square ft) Dehumidifier Capacity Required to Maintain Desired Indoor RH*
60% RH Indoor (pints/day) 50% RH Indoor (pints/day) 40% RH Indoor (pints/day)
2080 49–54 55–58 71–78
2600 61–68 65–72 90–97
3120 75–82 79–86 95–110
*Basedonextremeclimateswhereoutdoorhumidityis70-90%RH.Forlessextremeclimates,largerhomescanbe
adequatelyservedwithlesscapacity.Actualrequirementsmayvary.
Airflow versus external static pressure
(0–1 in. water pressure) with collars attached
0in. 160CFM
0.2in. 140CFM
0.4in. 120CFM
0.6in. 100CFM
M27329
27 (686)
21 (533)
11-5/8
(295)
11-1/2
(292)
8 INCH (203)
DIAMETER
69-2089EFS_D.indd 3 9/22/2008 10:02:31 AM

Installation Guide
69-2089EFS—08 4

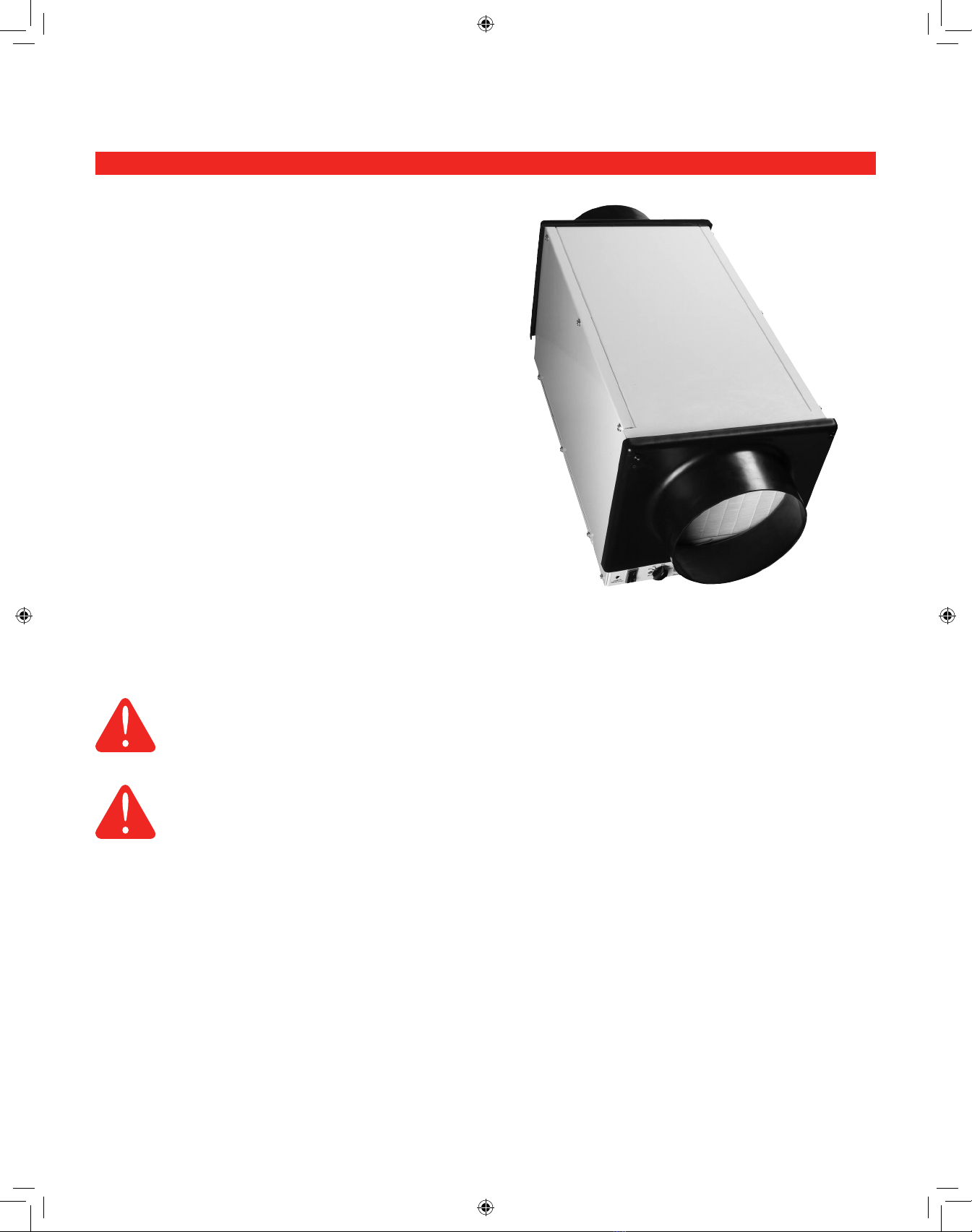

Tools Required
- 3/8-in.hexdrive
- Drill or duct-cutting tool
- Wirestripper/cutter
- Standard screwdriver
- Duct tape
- 8-in. round duct and starter collar
- 18–22gauge,5-bandthermostatwire
- 1/2-in.diameterdrainline(8ft)
- 1/2-in.drainclamps(quantity2)
Materials Provided
- Sheetmetalscrews(quantity9)
- 8-in.plasticductcollars(quantity2)
Options:
- 1/2-in.drainp-trap(mayberequiredbylocalcode)
- Externalhumiditycontrol(onlyoneincluded)
•Manualdehumidistat(H8908DSPST),Auto
Ventilation(W8150A1000)
•TrueIAQ(DG115EZIAQ)
•VisionPROIAQ(YTH9421C1010)
Installation Checklist
WARNING:Installationmustbeperformedbyaqualifiedservicetechnicianandmustcomplywithlocal
codes. Remove power to the device before installing or servicing the device. Failure to connect the
device according to these instructions may result in damage to the device or the controls.
WARNING:Exposedinternalfanmaycauseinjury.
Ductingoftheexhaustportisrequired.
69-2089EFS_D.indd 4 9/22/2008 10:02:32 AM

TrueDRY DH65
5 69-2089EFS—08
FlexductisrecommendedinconnectingtotheTrueDRYDH65collarstoreducevibrationnoise.
M24745
Electrical requirements:
115VACoutlet.Groundfault
interrupter(GFI)recommended.
Duct Sizing: Use minimum 8-in. diameter round for duct
lengthsupto25ft.Minimum10-in.requiredforlengthslonger
than25ft.Ductbranchesfromthemaininlet/exhaustshould
beminimum8-in.roundfor2-3branches,and8-in.roundor
larger for 4 branches or more.
Isolated Areas:Effectivedehumidificationmayrequireduct-
ing to isolated or stagnant air flow areas.
Install to Fit Your Application
M27405
SUPPLY
RETURN
AIR HANDLER
TrueDRY M27325
AMain Return to Main Return
SUPPLY
RETURN
AIR HANDLER
M27601
TrueDRY
SEPERATE
RETURN
D
Dedicated Return to Main Return
Idealwhen…
• RunningTrueDRYDH65withA/Coperation.
• Minimizingdischargeairtemperature(DAT)
increase is preferred.
• Spacedictates.
SUPPLY
RETURN
AIR HANDLER
TrueDRY
M27324
BACKDRAFT
DAMPER
B
Main Return to Main Supply
Idealwhen…
• RunningTrueDRYDH65oppositeA/C
operation.RunningwithA/Coperationrequires
damperontheexhaustporttominimize
backdraftwhenTrueDRYDH65isnotonbut
A/Cis.
• MinimizingDATincreaseispreferred.
• Spacedictates.
Idealwhen…
• Dryingaspecificareaofthehouse.
• RunningwithA/Coperationrequiresbackdraft
damperontheexhaustporttominimize
backdraftwhenTrueDRYDH65isnotonbut
A/Cis.
• MinimizingDATincreaseispreferred.
SUPPLY
RETURN
AIR HANDLER
TrueDRY M27326
SEPERATE
RETURN
BACKDRAFT
DAMPER
C
Dedicated Return to Main Supply
Idealwhen…
• Dryingaspecificconditionedorunconditioned
area,suchasattic,basement,orcrawlspace.
• RunningwithA/Coperation.
• MinimizingDATispreferred.
WARNING:Exposedinternalfanmaycauseinjury.
Ductingoftheexhaustportisrequired.
69-2089EFS_D.indd 5 9/22/2008 10:02:34 AM

Installation Guide
69-2089EFS—08 6

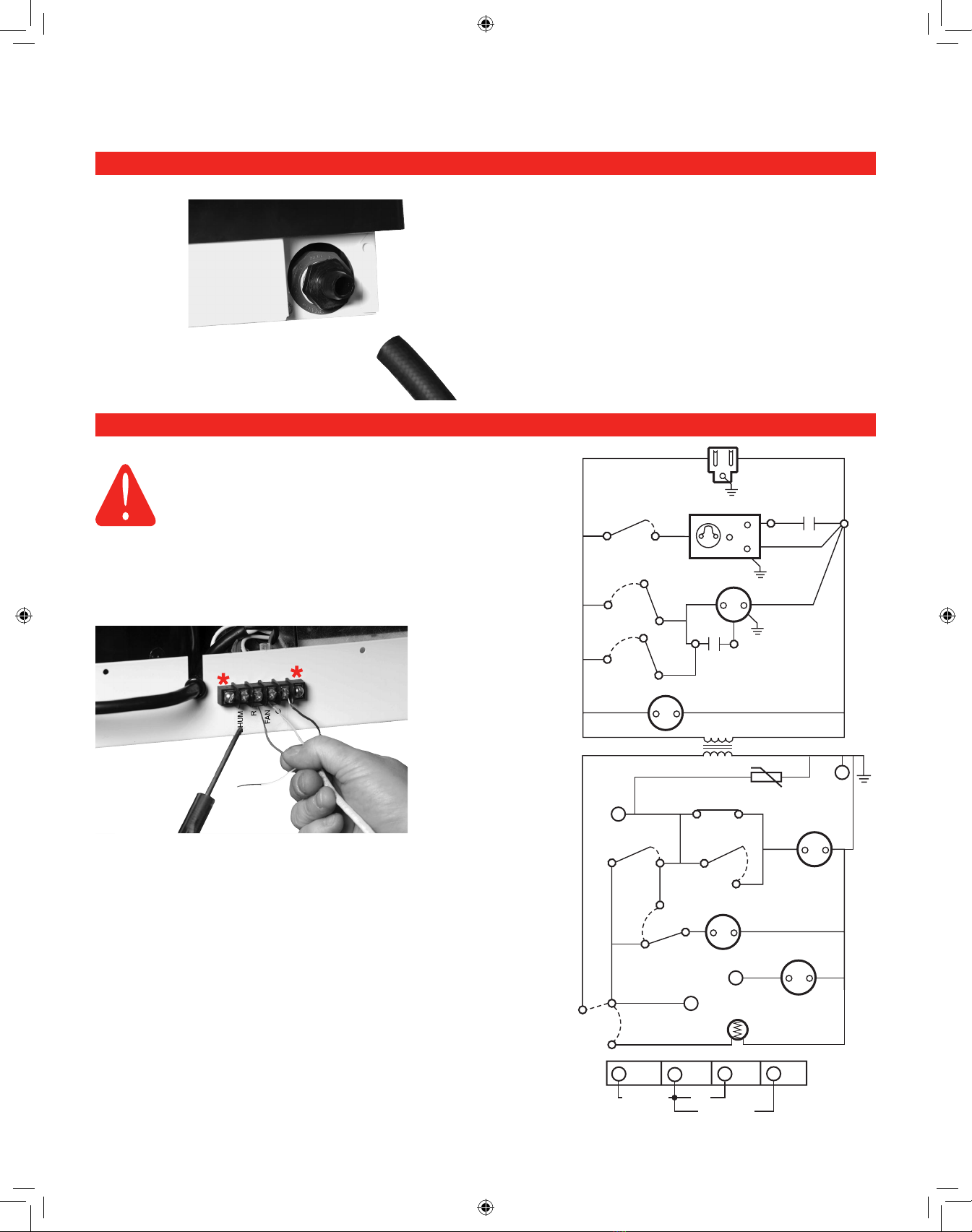

Connect1/2-in.draintubetomaleconnectiondrain
outlet. Secure drain tube to connector with hose clamp.
Run drain hose continuously downhill to an approved
drain or condensate pump.
Plumbing
Terminal Description
CAUTION: Low-voltage Hazard.
Cancauseequipmentdamage.
DisconnectHVACequipmentbeforebeginning
installation.
Afour-blockwiringterminalislocatedontheexhaustendof
TrueDRY.
*Note:OuterscrewssecureblocktoTrueDRYDH65.Notforwiring.
DHUM:  Compressorandfanoperationfordehumidification.
 R:  24Vcommon.
 FAN:  Fanactivationonlyforventilation.
 C: Externalaccessorycontrol(motorizeddamper,
dehumidistat).
M27456B
1
(DEHUM)
2
(R)
3
(FAN)
4
(C)
OVERFLOW
SAFETY
SWITCH (NO)
(NC)
1
(R)
2
(FAN)
OVERFLOW
INDICATOR
LIGHT
REMOTE FAN
RELAY COIL
FAN
13 14
13 14
FAN RELAY
COIL
2
01
COMPRESSOR
RELAY COIL
TIMER
1
(AUTO)
DEFROST
THERMOSTAT
24 VAC
DEHUMID
(DEHUMID)
3
4
(C)
12
TIMER
MOTOR
TRANSFORMER
FAN
MOTOR
115 VAC
1 (NC)
9
5
(NO)
FAN RELAY
CONTACTS
4
12
8
REMOTE
FAN RELAY
CONTACTS
COMPRESSOR
RELAY CONTACTS
46(NO)
FAN
CAPACITOR
COMPRESSOR
CAPACITOR
COMPRESSOR
CS
R
ON
(3)
VARISTOR
HUMIDITY
REMOVALFAN
ACCESSORY
69-2089EFS_D.indd 6 9/22/2008 10:02:35 AM

TrueDRY DH65
7 69-2089EFS—08
Wire the TrueDRY DH65 according to the diagram that applies to your desired operation.
Followthisdiagramforductedoperationwithanexternalhumiditycontrol.
Wiring
TrueDRY
HVAC
MECHANICAL
DEHUMIDISTAT
THERMOSTAT
GYWRRc
GYWR C
M27501A
DRY
CONTACTS
DHUM
+
+
RFANC
DPDT RELAY,
2.6A
TrueDRY
HVAC
MECHANICAL
DEHUMIDISTAT
THERMOSTAT
GY
W
RRc
GYWR C
M27502A
DRY
CONTACTS
DHUM
+
+
RFANC
DPDT
RELAY,
2.6A
EARD-6
AT120
R
C
DAMPER
AUX
REMOTE
W8150A
G
R
C
C
W
G
Forductedoperationwithexternalhumidityandventilationcontrol,followthisdiagram.
69-2089EFS_D.indd 7 9/22/2008 10:02:38 AM

Installation Guide
69-2089EFS—08 8
FollowthisdiagramifusingTrueDRYDH65withVisionPROIAQ.
FollowthisdiagramifusingTrueDRYDH65withapowereddehumidistatsuchasTrueIAQ(DG115EZIAQ).
Wiring
HVAC
THERMOSTAT
GYWRRc
M27332A
IF A THERMOSTAT OTHER THAN A TH5110, TH5220, TH5320, TH6110, TH6220, TH6320, TH8110,
TH8320, OR TH8321 IS USED, A RELAY MAY BE REQUIRED TO ISOLATE THE G WIRE.
PROGRAM ISU SETTING 60 TO Ø TO FORCE SYSTEM FAN ON WITH DEHUMIDIFICATION CALL.
DHUM
R
FAN
C
+
+
C
68 40
55
1215
:
76 %
%
In
Out
PM
R
C
W
Y
G
R
C
SENSOR
SENSOR
SWITCH
W
G
VENT
VENT
DEHUM
DEHUM
HUM
HUM
OUTDOOR
SENSOR
(PROVIDED)
EARD-6
TrueIAQ
1
1
TrueDRY
2
2
M27333A
FAN
FURNACE BOARD
EQUIPMENT INTERFACE MODULE (EIM)
G
C
CONV.HP
1
2
3
C
R
RC
RH
W1
W2
W3
Y
Y2
G
O/B
AUX
AUX2
Y
Y2
G
H1
U
M2
D1
H
M2
V1
N
T2
HEAT 1 RELAY
HEAT 2 RELAY
HEAT 3 RELAY
COOL 1 RELAY
COOL 2 RELAY
FAN RELAY
VISIONPRO IAQ
D-1
R-2
C-3
DHUM
R
FAN
C
+
+
TrueDRY
OR
ApplypowertoTrueDRYDH65.TurnthehumiditycontroltoalowRH%leveltoinitiateahumiditycall.Confirmthat
theTrueDRYDH65compressorandfanturnon.Thefurnaceblowerwillalsoturnontocirculateair.Thiswilltake
uptotwominutes.Besuretoturnthisbackdown(oroff)whencheckoutiscomplete.Turningthehumiditycontrol
toOffwillturnTrueDRYDH65off.
Checkout
69-2089EFS_D.indd 8 9/22/2008 10:02:39 AM
