Honeywell TP30WKNR User manual

Portable Dehumidifier and Smart Portable Dehumidifier
User Manual
Read and save these instructions before use
EN
Déshumidificateur Portatif et Déshumidificateur Portatif Intelligent
Mode d’emploi
Lire ces consignes avant l’utilisation de l’appareil et les conserver
FR
Deshumidificador Portátil y Deshumidificador Portátil Inteligente
Manual del Usuario
Lea y guarde estas instrucciones antes de usar la unidad
ES
Model / Modèle / Modelo:
TP30WK / TP30WKN / TP30AWKN /
TP30WKNR / TP30AWKNR /
TP50WK / TP50WKN / TP50AWKN /
TP50WKNR / TP50AWKNR /
TP70WK / TP70WKN / TP70AWKN/
TP70WKNR / TP70AWKNR /
TP70PWK / TP70PWKN /
TP70PWKNR
Customer Support:
Assistance Au Client:
Servicio de atencion a clientes:
Web: www.HoneywellAirComfort.com
USA: 1-800-474-2147 | [email protected]
CANADA^: [email protected]
^ Canada Customer Support service available for models sold in Canada only.
^ Le Service Client Canadien est disponible uniquement pour les modèles vendus sur le territoire Canadien.
^ Servicio de Atención A Clientes en Canadá disponible solo para modelos vendidos en Canadá.
Check the website for FAQ's, usage guides and more!
Consultez le site Web pour les FAQ, les guides
d'utilisation et plus encore !
Consulte el sitio web para ver las preguntas
frecuentes, las guías de uso y mucho más.
www.HoneywellAirComfort.com
Contact UsProduct Registration

1
For Models: TP30AWKN / TP30AWKNR / TP50AWKN / TP50AWKNR / TP70AWKN /
TP70AWKNR Smart Portable Dehumidifer with WiFi Connectivity
The Smart Portable Dehumidifier has added features to allow you to operate the
dehumidifier remotely using a smart device, and to use voice commands through an
Amazon Echo device, to control the unit.
Set up the Honeywell Air Comfort App on your smart phone or tablet to connect the
Honeywell Smart Portable Dehumidifier for WiFi and Voice control (only available for
Smart Dehumidifier models).
1. Download the Honeywell Air Comfort App User Manual from the below link:
2. Download the Honeywell Air Comfort App on your smart phone or tablet.
http://honeywellaircomfort.com/TPSmartAppManual.pdf
IMPORTANT: A 2.4 GHz WiFi network is required for proper connection and operation
between the Dehumidifier and the App. Other networks should be deleted,
as they can interfere with connectivity.
NOTE: The Smart Portable Dehumidifier does not have to be connected to the Honeywell
Air Comfort App to function. You can still operate manually using the unit’s
control panel.
iOS 9.0 or later
Android 4.3 or later
SEARCH “HONEYWELL AIR COMFORT”
SMART PORTABLE DEHUMIDIFIER
WITH WIFI CONNECTIVITY & VOICE CONTROL
EN

2
THANK YOU
SAFETY RULES
Thank you for purchasing a Honeywell Portable Dehumidifier. This User Manual is intended to
provide you with important information needed to set up, operate, maintain and troubleshoot this
product.
WARNING -- READ AND SAVE THESE INSTRUCTIONS BEFORE USING THIS PRODUCT.
The use of electrical products may create hazards that include, but are not limited to injury, fire,
electrical shock. Failure to follow these instructions may damage and/ or impair its operation and
void the warranty. In case there is any inconsistency or conflict between the English version and any
other language version of the content of this material, the English version shall prevail.
When using electrical appliances, basic safety precautions should always be followed:
EN
DO NOT touch the dehumidifier or the electrical plug with wet hands.
Check the household voltage to ensure it matches the appliance's specification.
Before operating, remove all packaging material and check for any damage that may have
occurred during shipping.
DO NOT operate any product with a damaged cord or plug.
DO NOT use an extension cord with this appliance.
DO NOT run power cord under carpeting, or cover it with rugs or runners. Keep the cord away from
areas where it may be tripped over.
Always power off and unplug the dehumidifier before emptying the water tank.
The water collected in the tank must be discarded. The water should never be used for drinking.
Always unplug the dehumidifier and remove the water from the water tank before cleaning,
servicing or relocating the unit.
Remove the power cord from the electrical receptacle by grasping and pulling on the power cord
plug-end only, never pull the cord.
This appliance has been manufactured for use in domestic environments and must not be used
for other purposes.
DO NOT use the product in areas where gasoline, paint or other flammable goods and objects are
used or stored.
This dehumidifier is designed for indoor residential applications only. It should not be used for
commercial or industrial applications.
DO NOT attempt to repair or adjust any electrical or mechanical functions of the dehumidifier,
as this may cause danger and void the warranty.
DO NOT cover the air inlet or outlet on the appliance as this may cause the unit to fail.
DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may damage
the product and could cause electrical shock or fire.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

3
DO NOT let children play with this appliance, packaging or included plastic bag.
If the unit is damaged or it malfunctions, do not continue to operate it. Unplug the product from
the electrical outlet. Refer to the troubleshooting section and contact the customer support
center.
Always place the dehumidifier on a leveled floor.
Never install the product near a bathtub or any water container.
Store in a dry area, away from direct sunlight, when not in use.
This appliance and its packaging materials are not intended for use by persons (including
children or elderly) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instructions concerning the use of
the appliance by a person responsible for their safety.
Always grip the top handle and keep the unit upright when transporting from room to room –
DO NOT tilt the product on its side or upside-down.
If the dehumidifier was transported tilted on its side, you must position it upright again and wait
at least 4 hours before using it.
WARNING: To reduce the risk of fire or electric shock, do not use this appliance with any solid
state speed control device.
•
•
•
•
•
•
•
•
•
SAFETY RULES (CONTINUED)
EN

4
SYMBOL NOTE EXPLANATION
WARNING
This symbol shows that this
appliance uses a flammable
refrigerant. If the refrigerant
is leaked and exposed to
an external ignition source,
there is a risk of fire.
CAUTION
This symbol shows that the
operation manual should be
read carefully.
CAUTION
This symbol shows that a
service personnel should
be handling this equipment
with reference to the
installation manual.
CAUTION
This symbol shows that
information is available,
such as the operating
manual or installation
manual.
R32 SAFETY
R32
A2L
EN

5EN
R32 SAFETY
Read the instructions carefully before using the appliance.
R32 refrigerant gas complies with UL60335240 / UL603351.
This appliance contains a certain number of grams (see rating
label at the back of the unit) of R32 refrigerant gas. The maximum
refrigerant charge amount is not greater than R32 0.918 kg based
on UL60335240.
When defrosting or cleaning, do not use any method other than
those recommended by the manufacturer.
Do not place the appliance in a room with continuous sources
of ignition (e.g. open flame, operating gas appliance or working
electrical heater).
Do not pierce and do not burn.
Do not perforate any part of the refrigerant circuit.
Refrigerant gas may be odorless.
Accumulation of possible refrigerant leaks in an unventilated
room could lead to fire or explosion should the refrigerant come in
contact with electric heaters, stoves or other sources of ignition.
The appliance must be stored in a way to prevent mechanical
damage and in a well-vented area.
Only individuals authorized by an accredited organization
certifying their competence to handle refrigerants in compliance
with industry legislation should work on the refrigerant circuit.
Servicing shall be performed only as recommended by the
manufacturer.
All working procedures that affect safety means shall only be
carried by competent persons.
Additional warnings for appliances with R32 refrigerant gas.
•
•
•
•
•
•
•
•
•
•
•
•
•
Repair must be performed based on the recommendations from the manufacturer.
Maintenance and repair that requires the assistance of other qualified personnel must be
performed under the supervision of specialists in the use of flammable refrigerants.

6EN
This marking indicates that this product should not be disposed with other household
waste throughout the US. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the
sustainable reuse of material resources. To return your used device, please use return
and collection systems or contact the retailer where the product was purchased. They
can take this product for environmentally safe recycling.
Transport of equipment containing flammable refrigerants must
comply with local transport regulations.
Marketing of equipment using signs must comply with local
regulations.
Disposal of equipment using flammable refrigerants must
comply with national regulations.
The storage of equipment should be in accordance with the
manufacturer’s instructions.
Storage package protection should be constructed such that
mechanical damage to the equipment inside the package will
not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be
stored together will be determined by local regulations.
Transportation, marking and storage for units.
1.
2.
3.
4.
5.
R32 SAFETY

7
HOW A DEHUMIDIFIER WORKS
When the dehumidifier is switched ON, a fan pulls moisture-laden air into the dehumidifier where it
passes through dehumidifying coils inside the unit. These coils condense moisture from the air
and collect it in the water tank. The dry air is then exhausted from the dehumidifier. The air flows
through the air vents of the dehumidifier into the room as dry, warm air.
IMPORTANT: The dehumidifier is designed to operate between 41°F (5°C) and 89°F (32°C).
The dehumidifier’s performance may be greatly reduced if room temperature is beyond this
temperature range.
EN
Before using the dehumidifier, place the unit UPRIGHT for at least 4 hours before use to allow the
refrigerant to stabilize in case it was transported on its side or upside-down.
For optimal efficiency, the dehumidifier must be operated in an enclosed area. Keep all doors,
windows and other outside entrances to the room closed.
•
•
SELECTING A LOCATION - IMPORTANT

8
Place the dehumidifier in an area where the temperature will not drop below 41°F (5°C)

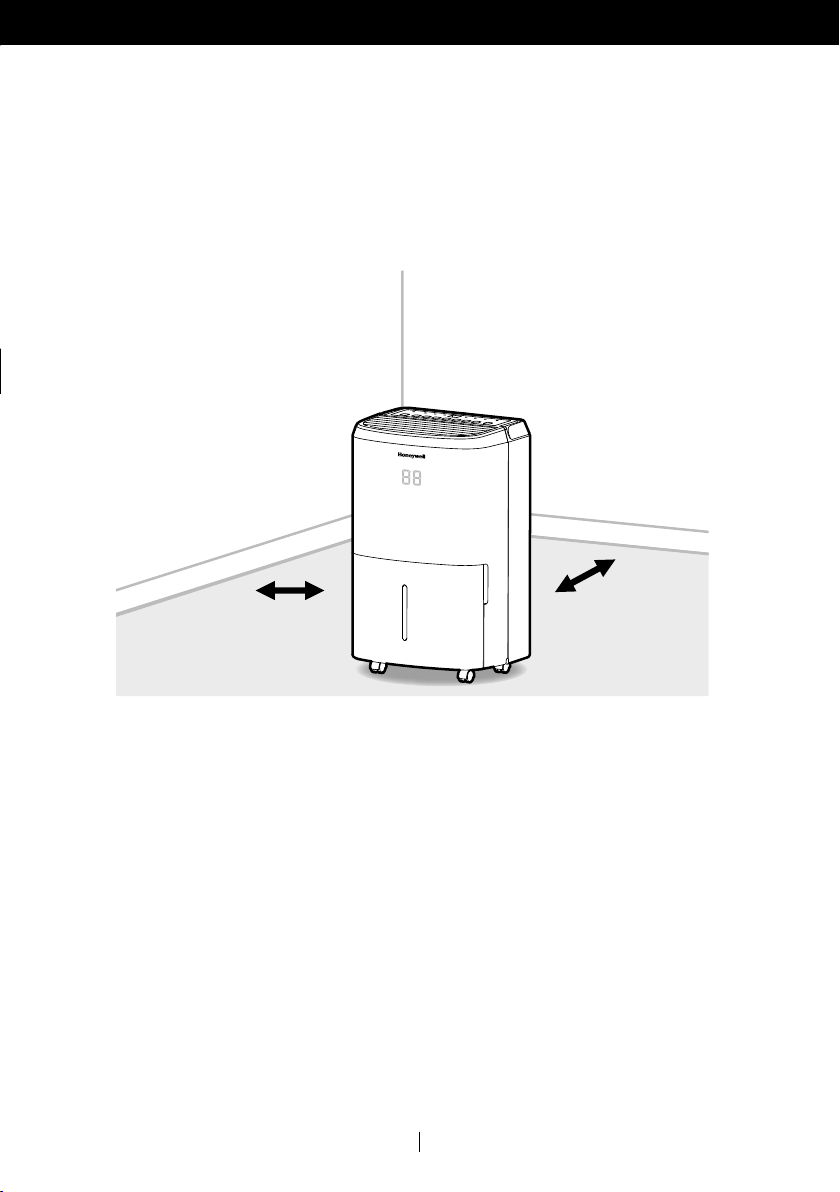

Place the dehumidifier at least 17.7 inches (45 cm) away from other objects (e.g. curtains or
furniture) that may restrict airflow from the back or through the air vents of the unit.
The dehumidifier must be positioned on a level floor.
•
•
•
SELECTING A LOCATION - IMPORTANT (CONTINUED)
17.7 inches (45 cm) 17.7 inches (45 cm)
IMPORTANT: The effectiveness of the dehumidifier can be influenced by different factors. One
factor is the rate at which new, moisture-laden air enters the room and the amount of air circulating
in and out of the area to be dehumidified. For example, if a door to a basement is constantly
opened, letting new, moisture-laden air into the room, dehumidification will take longer than
if the door was kept closed. If the dehumidifier is in a room with a storage closet or cabinets, it
will have little or no effect in drying the inside of the storage closet or cabinets unless there
is adequate circulation of air in and out of these spaces. To dehumidify these spaces, open the
storage door or cabinet doors to allow air circulation. You may find that installing a second
dehumidifier may be required for larger enclosed areas.
EN

9EN
UNPACKAGING THE DEHUMIDIFIER
There is a Foam Float inside the water tank that senses the water
level to automatically stop dehumidification when the water
tank is full. Make sure the Foam Float is positioned correctly
inside the water tank by ensuring it lies level with the top edge
of the water tank.
DO NOT REMOVE THIS FOAM FLOAT.
This Dehumidifier is packaged with a colored or transparent tape to secure some parts during
transportation. Remove the colored or transparent packaging tape from the unit.
1. Gently pull the water tank from out of the dehumidifier
2. Remove the splash guard from the top part of the
water tank
3. Take out the power plug, drain hose and other accessories,
which is placed inside the tank of the dehumidifier.
4. Once all accessories have been removed, replace
the splash guard onto the top part of the water tank.
Make sure that the tank is properly positioned.
Splash
Guard
Foam
Float
•
•

10
PARTS DESCRIPTION
11
10
7
8
12
3
9
6
16
15
12
13
17 18 19 20
5
4
1) Control Panel 10) Dehumidified Air Exhaust Vent
2) Handle 11) Washable Dust Filter
3) LED Display 12) Direct Drain Outlet
4) Splash Guard 13) Direct Drain Cap
5) Water Tank Handle 14) Mounting Holes for Cord Winders
6) Foam Float 15) Power Cord & Plug
7) Water Tank 16) Cord Winders
8) Water Level Indicator 17) Continuous Water Drain Tube
(Inner Dia.: 0.47 inch; Length: 3.28 ft.)
9) Casters 18) Continuous Water Drain Cap
19)
Auto Drain Pump Tube
(Inner Dia: 0.21 inch; Length: 16.4 ft.)
20) Auto Drain Pump Cap
* THIS IS ONLY FOR MODEL TP70PWK / TP70PWKN / TP70PWKNR
WITH BUILTIN DRAIN PUMP
14
EN
x2
* *

11
Once you have removed the cord winder accessories from the water tank - follow the steps below.
EN

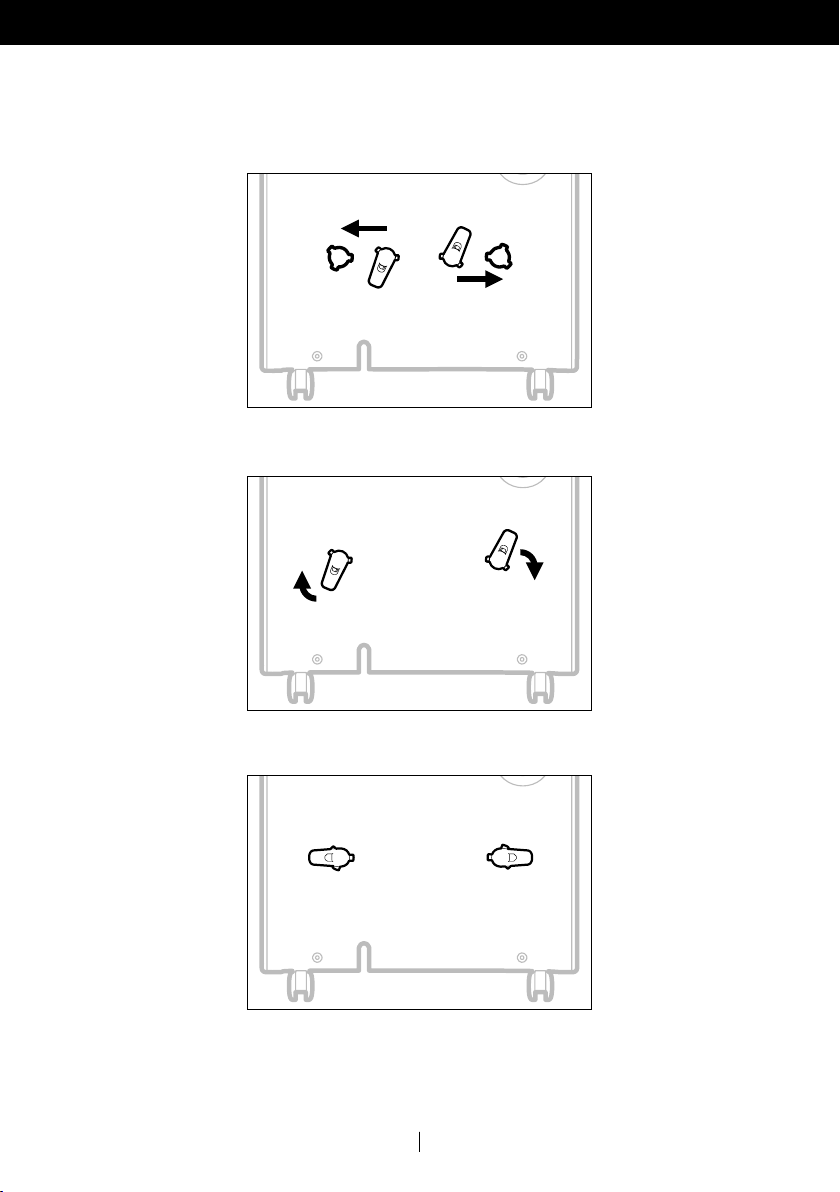

INSTALL THE CORD WINDER
EN
Step 2: Rotate 45-degrees clock-wise.
Step 1: Line up the cord winder pieces to the mounting holes.
Step 3: Once you hear “click”, then you know the cord winder is ready for use.
NOTE: Once the installation of the cord winder has been completed. The cord winder cannot be
removed. The installation is permanent.

12EN
USE & OPERATION
CONTROL PANEL
1) Display Screen 6) Filter Alert
2) Power Control 7) Sleep Mode
3) Humidity / Timer Set Controls 8) Water Full Indicator Light
4) Fan Speed Control 9) Continuous Operation Light
5) Timer Control
(6) (4) (3) (2) (3) (5) (7) (11*)
(1)(8) (9) (10^)
11*) Auto Drain Pump Mode
*THIS IS ONLY FOR MODEL TP70PWK / TP70PWKN / TP70PWKNR
WITH BUILTIN DRAIN PUMP
^ THIS IS ONLY FOR MODEL TP30AWKN / TP30AWKNR / TP50AWKN / TP50AWKNR /
TP70AWKN / TP70AWKNR WITH WIFI SMART FEATURES
NOTE: For detailed instructions to set up your dehumidifier for
connected operation from your smart phone or tablet, separate user
manual can be downloaded at:
10^) WiFi Connectivity and Voice Activated Control
http://honeywellaircomfort.com/TPSmartAppManual.pdf

13
HUMIDITY CONTROL SETTING
When the unit is switched ON, the Display Screen shows the current humidity percentage.
Press or to select your preferred humidity level. The humidity is adjusted in increments of 5%
by pressing or . The adjustable Relative Humidity (RH) range is between 30% RH to
90% RH. Ten seconds after setting the preferred humidity setting, the display will revert back
to displaying the current humidity.
IMPORTANT: There is a 5% threshold when the desired humidity setting has been reached. The
compressor will shut off once the relative humidity is 5% lower than your desired setting. The fan will
continue to run for up to 3 minutes to cool the motor and will then shut off. Operation restores once
the relative humidity is 5% higher than your desired setting.
Recommended Settings: It is recommended to leave the unit running at 30% humidity at
High Fan Speed during the first 2 to 3 days until damp odors are removed. After a few days when
the Relative Humidity has been reduced to a more comfortable level, press or to choose a
higher RH% that maintains a comfortable humidity level thereafter. A recommended healthy
humidity level is between 40% and 50%.
NOTE: The humidity sensor senses current humidity in the surrounding area. It is normal for about
a 5% variance above or below the actual relative humidity in the room. Therefore, if there is a slight
variance, the unit may sometimes operate slightly longer or shorter than the set RH% level.
CONTINUOUS MODE
To activate the Continuous Mode, press the button on the Display Screen until appears.
The indicator light will be illuminated. The unit will run continuously.
FUNCTION BUTTONS
USE & OPERATION (CONTINUED)
EN
WATER TANK FULL ALERT
When the Water Tank is full, the indicator will be illuminated. The unit will beep for 3 seconds.
The compressor will shut off, and the fan will stop for a few minutes. To switch off the indicator
light, empty the water tank and when replacing it ensure the tank is secured properly in place.
IMPORTANT: Do not place the Water Tank on the floor when full. In case of an uneven base which may
cause the tank to spillover.
POWER CONTROL
Press to switch the dehumidifier ON or OFF.
COCO

14
AutoOn Timer:
When unit is in Standby Mode, press , the timer indicator light will flash, press or to
select the number of hours (0.524 hours) until you want the unit to automatically start
running. In 5 seconds without the operation, the Timer start function, the timer indicator
light is illuminated. The previous fan speed and humidity setting will be maintained. The unit
will turn on and continue running until the water tank is full (unless the unit is set up for continuous
draining) or until you switch it off manually. Timer must be set again after each use.
NOTE:
• To cancel any Timer settings, simply press again, and the timer indicator light will disappear.
• The solid power light indicates the tank of unit is full.
• "--"display in LED indicates the unit is on Standby Mode.
AutoOff Timer:
While the unit is running, press , the timer indicator light will flash, press or to select
the number of hours (0.524 hours) you want the unit to run before it switches off. In 5 seconds
without the operation, the Timer start function, the timer indicator light is illuminated. Timer
must be set again after each use.
TIMER CONTROL
The dehumidifier can be set to automatically switch ON or OFF for a selected period of time (between
0.524 hour intervals). The Timer hours selection is displayed on the Display Screen.
NOTE: Before setting the Timer control, make sure there is power to the unit.
FAN SPEED CONTROL
There are two fan speeds - High and Low. When, the indicator light is illuminated, the
unit is operating on High speed. When the indicator light is off, and the unit is on -
the unit is operating on Low speed.
FUNCTION BUTTONS (CONTINUED)
USE & OPERATION (CONTINUED)
EN
SLEEP MODE
The LED display brightness will be reduced when the unit is in Sleep Mode. Press the to activate
the Sleep Mode. When Sleep Mode is activated the indicator light will be illuminated. There
is a one-minute window period in which you can adjust the settings such as humidity and fan speed.
After one minute has lapsed, the top display will shut off, except the indicator light. Press any
button to deactivate Sleep Mode.
FILTER ALERT
When the Filter Alert Light is ON, it is time to clean the filter. Switch the unit OFF and carefully remove
the filter from the unit and clean. Replace the filter, switch on the unit and reactivate the Filter Alert
button by pressing it once.
The Filter Alert Light should not be illuminated until the filter requires cleaning again. The frequency
of filter cleaning depends on room environment conditions. Some rooms may require changing more
frequently than others.

15
AUTO DRAIN PUMP MODE*
The Auto Drain Pump function helps to remove condensation vertically and horizontally.
Press the to activate the Pump function, the indicator light will be illuminated.
Press button to activate the pump function. When water Pump starts, LED displays “PU” for
5 seconds on every 1 minute. When water pump does not work, there is no “PU” display.
IMPORTANT: Water pump will start only as water in bucket reachs the level of pump starting
condition. The pump will not draw full bucket of water on its cycle of runing. The pump function will
be restored after a power outage.
* THIS IS ONLY FOR MODEL TP70PWK / TP70PWKN / TP70PWKNR
WITH BUILTIN DRAIN PUMP
FUNCTION BUTTONS (CONTINUED)
USE & OPERATION (CONTINUED)
EN
PUMP DOES NOT AUTORESTART AFTER POWER FAILURE
AUTOMATIC DEFROST
WARNING: For models with Auto Drain Pump, the Auto Drain Pump function will automatically
recover after a power outage recovers. The water pump starting will be controlled by water floater in
tank under its programme.
Frost may build up on the internal coils of the unit. When there is frost build up, the internal
compressor will turn off and the fan will continue to run until the frost has melted. Frost may build
up on the internal coils of the unit. When there is frost build up, the internal compressor will turn off
and the fan will continue to run until the frost has melted. Once the internal coils have defrosted
and dried, the fan will continues to run 8 minutes and the compressor will automatically restart and
dehumidifying will resume.
WIFI MODE^
When the Smart Dehumidifier is connected to the wifi function, the indicator light will be
illuminated.
^ THIS IS ONLY FOR MODEL TP30AWKN / TP30AWKNR / TP50AWKN / TP50AWKNR / TP70AWKN /
TP70AWKNR WITH WIFI SMART FEATURES

16
The condensed water can be collected directly into the water tank. When the water tank is full, the
dehumidifier will automatically shut OFF and the indicator will flash on the control
panel followed by a beeping sound.
IMPORTANT: Do not move the dehumidifier when the Water Tank is full as it will be heavy and can
cause water spillage.
USE & OPERATION (CONTINUED)
EN
DRAINING THE WATER
WARNING: Always drain and discard water collected from dehumidification.
The water is not clean and cannot be used for drinking.
IMPORTANT: Improper alignment or positioning of the
water tank will cause the unit to pause operation,
• Error code "P1"display in LED for auto pump model
• The warning light on top of the dehumidifier will flash
followed by a beeping sound for non-auto pump model, until
the water tank is fitted properly.
NOTE: There is a Foam Float inside the water tank
that senses the water level to automatically stop
dehumidification when the water tank is full. Make sure the
Foam Float is positioned correctly inside the water tank by
ensuring it lies level with the top edge of the water tank.
DO NOT REMOVE THIS FOAM FLOAT.
Locate the water tank at the front of the dehumidifier.
Gently pull the water tank out.
Grip the handle inside the water tank and carry the
water tank to a sink to empty.
Replace the empty water tank back into the front of
the dehumidifier. Please make sure that the tank is
properly positioned. The safety feature ensures that
any misalignment of the tank and the unit will prevent
the unit from turning back on.
1. Draining water collected in the Water Tank
1.1
1.2
1.3
Foam Float
1.1
1.2

17
DRAINING THE WATER (CONTINUED)
USE & OPERATION (CONTINUED)
EN
Locate the drain outlet at the back of the unit. Unscrew and remove the Direct Drain Cap.
Insert and screw the Continuous Water Drain Tube into the Direct Drain Outlet.
2.1
A continuous water drain tube is included with this unit. To activate the continuous water draining
function, you will require a suitable water drain (e.g. sink or drain hole at floor level) near the
dehumidifier.
NOTE: The Continuous Drain Tube and Continuous Drain Cap come pre-installed.
2. Continuous Water Drainage – Using a Continuous Water Drain Tube
Direct Drain Cap
Continuous
Water Drain Tube
Continuous Water
Drain Tube
3.28 ft. (1 m) Continuous Water Drain Cap
VERY IMPORTANT: Do not use pump function when you connect a continuous water drain
tube.

18
If there are leaks, the Continuous Water Drain Tube and Cap may have loosened and may not be
connected properly. Disconnect, replace and tighten again.
Position the other end of the Continuous Water Drain Tube in the sink or drain. Make sure the
tube is not bent or kinked which might stop the water flow. Make sure the tube is secured over
the drain and will not fall out of place causing unwanted water spillage.
2.2
2.3
IMPORTANT: Make sure water can flow down the Continuous Water Drain Tube by keeping the tube
angled down and free of bends or kinks.
IMPORTANT: If the unit is placed on uneven ground, or the Drain Tube is installed incorrectly, the
water may fill the water tank and stop running. Please check whether the ground is uneven and
reinstall the Drain Tube.
EN
DRAINING THE WATER (CONTINUED)
USE & OPERATION (CONTINUED)

19
DRAINING THE WATER (CONTINUED)
USE & OPERATION (CONTINUED)
EN
The Auto Drain Pump is available if you want to use the continuous drain function, but the drain is
further away, or located above the dehumidifier. The Auto Drain Pump Tube can be attached to the
Direct Drain Outlet located on the back side of the dehumidifier. When the water level in the water
tank reaches a certain level, the drain pump will automatically pump the water out of the tank to
the drain. This allows you to drain water condensation vertically or horizontally, even if the drain is
located above the dehumidifier.
Auto Drain Pump Tube
16.4 ft. (5 m)
Auto Drain Pump Cap
3. Continuous Water Drainage – Using the Auto Drain Pump option
*THIS IS ONLY FOR MODEL TP70PWK / TP70PWKN / TP70WKNR WITH BUILTIN DRAIN PUMP
Locate the drain outlet at the back of the unit. Unscrew and remove the Direct Drain Cap.
Insert and screw the Auto Drain Pump Tube into the Direct Drain Outlet.
3.1
Direct Drain Cap
Auto Drain Pump Tube
NOTE: The Auto Drain Pump Tube and Auto Drain Pump Cap come pre-installed.
VERY IMPORTANT: Only use pump function when you connect an Auto Drain Pump Tube.
