Introduction
The unobtrusive, compact design of the HD3VC4S Series CCTV Camera is
ideal for indoor installations in commercial and residential environments.
Before You Begin
Unpack Everything
Check that the items received match those listed on the order form and
packing slip. The HD3VC4S Series 3 Inch Dome Camera packing box
should include, in addition to this Install Guide:
• One fully assembled camera
• One hardware kit
• One 2nd video monitor output cable
• One mounting template
If any parts are missing or damaged, contact the dealer you purchased the
camera from or call Honeywell Customer Service.
Please read this guide carefully before
you install the HD3VC4S Series 3 Inch
Dome Camera. Keep this guide for
future reference.

Rev 1.00 2 Document 900.0510
05/06
Cautions and Operating Notes
Power Supply This dome camera can operate on 24 VAC or 12 VDC.
Operating Conditions Avoid:
• Viewing bright objects (example, light fixtures) for extended periods.
• Operating or storing the unit in the following locations:
• Extremely humid, dusty, hot/cold environments (where the
operating temperature is outside the recommended range of 14°F
to 122°F [-10°C to +50°C])
• Close to sources of powerful electromagnetic radiation, such as
radio or TV transmitters
• Close to fluorescent lamps or objects reflecting light
• Under unstable light sources (may cause flickering)

Rev 1.00 3 Document 900.0510
05/06
Installation
The HD3VC4S Series is a fully-integrated enclosure with camera and lens.
Figure 1 Camera Parts
Legend
1Conduit hole used for surface
run power/video connector
2Camera housing
3Dome cover
4Zoom lever
5Focus lever
aVideo output connector
b24 VAC/12 VDC power input
connector
1
2
3
4
5
b
a
Note See Figure 5 for an explanation of the camera board settings.

Rev 1.00 4 Document 900.0510
05/06
Removing the Dome Cover
1. Gently turn the dome cover (#5 on Figure 2) counter-clockwise to
unlock and pull free of the housing.
2. Remove the inner liner (#4) by gently pulling it free of the two notches
(#2) in the housing (#1). Set the dome (and liner) aside.
Figure 2 Dome Cover Removal.
Connecting the Wiring
Follow Figure 1 to connect the video output connector (#a) and 24 VAC/12
VDC power connector (#b).
1
4
5
3
Legend
1Camera housing
2Notches (x2)
3Tilt adjustment bracket and
thumbnuts
4Inner liner
5Dome cover
2

Rev 1.00 5 Document 900.0510
05/06
Mounting the Camera
1. Place the supplied mounting template (#2 on Figure 3) on the
mounting surface and mark the holes.
2. Drill two holes, then insert the screw anchors (#1) into the holes.
3. Secure the camera housing to the wall with the TP4 x 15 mm tapping
screws supplied (#3).
Note Depending on the material of your mounting surface, you may
require different screws and anchors than those supplied.
Figure 3 Camera Installation
Mounting Template
Logo Direction
MON
PC
1:BLC
2:AGC
3:DC/AES
4:LL
1234
ON
OFF
LEVEL
HL
V PHASE
+ -
TOP
3
1
Legend
1Screw anchors (x2), supplied
2Mounting template
3TP4 x 15 mm tapping screws (x2),
supplied
2

Rev 1.00 6 Document 900.0510
05/06
Adjusting the Camera Position
Figure 4 Camera Position Adjustment
1. Loosen the Tilt adjustment thumbnuts (see #1 on Figure 4). Turn one
Tilt adjustment thumbnut counter-clockwise and one clockwise.
2. Turn the Tilt adjustment bracket (#1) and Axis ring (#2) in the desired
direction, then retighten the thumbnuts.
3. Loosen the Zoom lever (#3) counter-clockwise a little, then rotate the
Zoom lever and determine the image view.
4. Loosen the Focus lever (#4) counter-clockwise a little, then adjust the
focus for optimum picture sharpness.
5. Re-tighten the Zoom lever and Focus lever after adjustment.
6. Repeat step 1 to step 4 until the desired range and focus are set.
Legend
1Tilt adjustment bracket and
thumbnuts (x2)
2Axis ring
3Zoom lever
4Focus lever
1
2
3
4

Rev 1.00 7 Document 900.0510
05/06
Note It is important that you lock the zoom and focus levers after
making adjustments. This will avoid the positions moving (for
example, from temperature changes or vibrations).
Caution Do not turn the lens more than 360° as this may cause the
internal cables to twist and disconnect or break.
Optional Camera Settings
See Figure 5 for location on the camera board of the camera adjustment
functions described below.
Figure 5 Camera Adjustment Functions
Note Please use the supplied DC Iris and Line lock adjustment tool
to adjust picture brightness and phase adjustment.
LEVEL
HL
V
PHASE
+
-
1:BLC
2:AGC
3 : DC/AES
4:LL
1 2 3 4
ON
OFF
MON
LEVEL
H L
V PHASE
+ -
PC
MON
1:BLC
2:AGC
3:DC/AES
4:LL
1 2 3 4
ON
OFF
TOP
Legend
1LEVEL adjustment pot (Iris level)
2V Phase adjustment pot (24 VAC only)
3Mode setting DIP switches
4Monitor out
5Camera mounting holes (x2)
1
2
3
4
5

Rev 1.00 8 Document 900.0510
05/06
Picture Brightness Use the LEVEL screw (#1) to compensate for the iris
level. L(low) makes the picture darker. H(high) makes the picture brighter.
Phase Adjustment Use the V Phase Adjustment Pot (#2) to adjust the
phase difference between cameras. Make sure Switch 4 is ON to activate
the Line lock function (AC operation only).
DIP Switches Set the DIP switches (#3) to activate or deactivate the
following functions:
Switch Function
1BLC (Backlight Compensation). Set to ON to have the
camera adjust the exposure to compensate for situations
where the subject is lit from behind. The factory default setting
is OFF.
2AGC (Automatic Gain Control). Set to ON (default) to have the
camera adjust the picture for low light conditions.
3DC/AES Mode. Leave in ON position only.
4LL (Line Lock). Set the camera synchronization to internal or
line lock (line lock is only available with 24 VAC). The factory
default setting is ON.

Rev 1.00 9 Document 900.0510
05/06
Attaching the Dome Cover
To attach the dome cover, follow Figure 6:
1. Use a soft, lint-free cloth to wipe the dome cover clean and remove
fingerprints.
2. Attach the inner liner (#3) to the Tilt adjustment screw (#2). Push
down until it clicks into place.
3. Place the dome (#4) on the unit. Make sure all three dome tabs (#5)
are inside the housing opening.
4. Turn the dome gently clockwise until it locks in place.

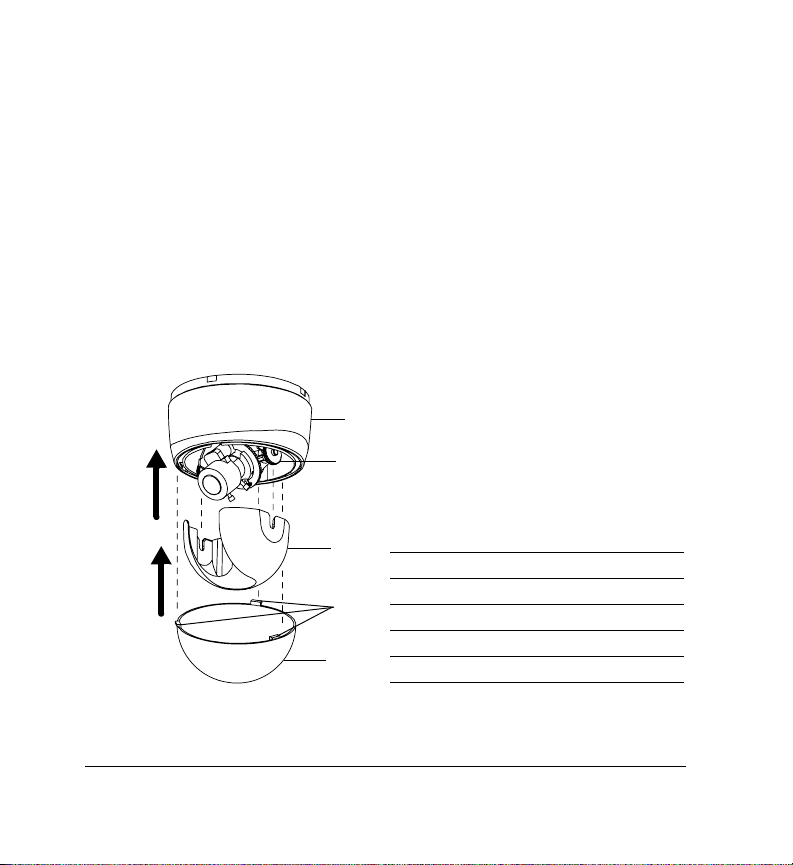

Figure 6 Dome Installation
1
3
4
2
Legend
1Camera housing
2Tilt adjustment bracket and thumbnuts
3Inner liner
4Dome cover
5Dome tabs (x3)
5

Rev 1.00 10 Document 900.0510
05/06
Routine Maintenance
• The dome cover is an optical part. Use a soft, dry cloth to remove any
fingerprints or dust.
• Clean the camera housing with a soft, dry cloth. For more stubborn
stains, use a cloth dampened with a small quantity of neutral
detergent, then wipe dry.
Caution Do not use volatile solvents such as alcohol, benzene or
thinners to avoid damaging the surface finish.
Product Dimensions
4.33”(110 mm)
3.91”(96.3 mm)
3.27”(83 mm)
0.2”
(5 mm) diameter

Rev 1.00 11 Document 900.0510
05/06
Warranty and Service
Subject to the terms and conditions listed on the Product warranty, during the warranty period
Honeywell will repair or replace, at its sole option, free of charge, any defective product returned
prepaid.
In the event you have a problem with any Honeywell product, please call Customer Service for
assistance or to request a Return Merchandise Authorization (RMA) number. Call
1.800.796.CCTV (North America only).
Be sure to have the model number, serial number, and the nature of the problem available for
the technical service representative.
Prior authorization must be obtained for all returns, exchanges, or credits. Items shipped to
Honeywell without a clearly identified Return Merchandise Authorization (RMA) number
may be refused.

Rev 1.00 12 Document 900.0510
05/06
Specifications
Video Signal Specifications NTSC PAL
Video Standard: High Res Standard Res High Res Standard Res
Scanning System: 525 lines, 2:1 Interlace
Image Sensor: 1/3” Interline Transfer CCD
Number of Pixels
(H x V):
768 x 494 510 x 492 752 x 582 500 x 582
Minimum
Illumination:
0.5 lux @ F1.6
(AGC on, 50
IRE)
0.3 lux @ F1.6
(AGC on, 50
IRE)
0.5 lux @ F1.6
(AGC on, 50
IRE)
0.3 lux @ F1.6
(AGC on, 50
IRE)
Horizontal
Resolution:
530 TVL 380 TVL 530 TVL 380 TVL
Video Output: 1.0 Vp-p @ 75 Ohms
Sync System: 12 VDC: Internal, 24 VAC: Line lock
S/N Ratio: 50 dB (AGC Off)
AGC Control: On/off, switchable
Auto Electronic
Shutter:
1/60 - 1/100,000 sec 1/50 - 1/100,000 sec
AI/AES Selection: On/off, switchable
Lens Type: 3.7 mm to 12.0 mm Vari-focal Auto Iris, F1.6
Lens Iris Control: Direct Drive (DC) AI
Angle of View
(Lens):
Horizontal: 76.1° (wide), -23.8° (tele)
Vertical: 55.8° (wide), -17.9° (tele)
Focal Length: f = 3.7 mm to 12 mm

Rev 1.00 13 Document 900.0510
05/06
White Balance: AWB
Gamma: 0.45
BLC: On/Off, switchable
Electrical Specifications
Input Voltage: 12 VDC/24 VAC
Input Tolerance: ± 15%
Power
Consumption:
3.5 W (max)
Mechanical
Dimensions
(WxH):
4.33”x 3.91”(110 mm x 96.3 mm)
Weight: .66 lb (.3 Kg) Net, 1.32 lb (.6 Kg) Shipping
Construction: Housing and dome: Polycarbonate
Environmental
Temperature: Operating: -14°F to 122°F (-10°C to 50°C)
Storage: -4°F to 140°F (-20°C to 60°C))
Relative Humidity: 0% to 90%, non-condensing
Regulatory
Emissions FCC, CE (EN55013)
Immunity CE (EN50130-4)
Safety EU: 73/23/EEC LVD

Rev 1.00 14 Document 900.0510
05/06
Cable Guidelines
Maximum Power Supply Cable Length (feet/meters)
Cameras With AC/DC Power Supplies
Wire gauge
Total load Power supply 24 AWG 22 AWG 18 AWG 16 AWG
High Res 12 VDC
15 VDC
24 VAC
89/27
348/106
991/302
148/45
561/171
1601/488
374/114
1427/435
4061/1238
597/182
2273/693
6462/1970
Std Res 12 VDC
15 VDC
24 VAC
236/72
420/128
1155/352
384/117
679/207
1866/569
977/298
1729/527
4736/1444
1555/474
2752/839
7541/2299
Caution Calculations are based on an unregulated linear power supply, which
would be the worst case. Using a regulated or switching power
supply can increase the cable distance. Honeywell recommends
using a CSA Certified/UL listed Class 2 power adapter to ensure
compliance with electrical safety standards.
Maximum Video Coaxial Cable Length (feet/meters)
Cable type RG-59 RG-6 RG-11
Wire gauge 23 AWG* 18 AWG* 14 AWG*
Maximum length (feet/meters) 750/229 1500/457 2000/610
* Copper clad steel core, 95% braided shield

Honeywell Video Systems (Head Office)
2700 Blankenbaker Pkwy, Suite 150
Louisville, KY 40299, USA
www.honeywellvideo.com
℡+1.800.796.2288
Honeywell Security Australia Pty Ltd.
Unit 5, Riverside Centre, 24-28 River Road West
Parramatta, NSW 2150, Australia
www.ademco.com.au
℡+61.2.8837.9300
Honeywell Security Asia Pacific
33/F Tower A, City Center, 100 Zun Yi Road
Shanghai 200051, China
www.security.honeywell.com/cn
℡+86 21.2527.4568
Honeywell Security Asia
Flat A, 16/F, CDW Building, 388 Castle Peak Road
Tsuen Wan, N.T., Hong Kong
www.security.honeywell.com/hk
℡+852.2405.2323
Honeywell Security France
Parc Gutenberg, 8, Voie La Cardon
91120, Palaiseau, France
www.honeywell.com/security/fr
℡+33.01.64.53.80.40
Honeywell Security Italia SpA
Via Treviso 2 / 4
31020 San Vendemiano
Treviso, Italy
www.honeywell.com/security/it
℡+39.04.38.36.51
Honeywell Security España
Calle Vivero, 5, 28040
Madrid, Spain
www.honeywell.com/security/es
℡+34.91.102.5900
Honeywell Video Systems Northern Europe
Netwerk 121
1446 WV Purmerend, The Netherlands
www.SecurityHouse.nl
℡+31.299.410.200
Honeywell Video Systems UK Ltd.
Aston Fields Road, Whitehouse Ind Est
Runcorn, Cheshire, WA7 3DL, UK
www.honeywellvideo.com
℡+0844 8000 235
Honeywell Security South Africa
Unit 6 Galaxy Park, 17 Galaxy Avenue
Linbro Park, P.O. Box 59904
2100 Kengray, Johannesburg, South Africa
www.honeywell.co.za
℡+27.11.574.2500
Honeywell Security Germany
Großenbaumer Weg 8
40472 Düsseldorf, Germany
www.honeywell-security.de
℡+49.211.41.50.90
Honeywell Security Poland
Chmielewskiego 22a, 70-028
Szczecin, Polska
www.ultrak.pl
℡+48.91.485.40.60
Honeywell Security Czech Republic
Havránkova 33, Brno
Dolní Heršpice, 619 00, Czech Republic
www.olympo.cz
℡+420.543.558.111
Honeywell Security Slovakia Republic
Vajnorská 142, 83104 Bratislava
Slovakia
www.olympo.sk
℡+421.2.444.54.660
Video Systems
www.honeywellvideo.com
+1.800.796.CCTV (North America only)
© 2006 Honeywell International Inc. All rights reserved. No part of this publication may be reproduced by any means without written
permission from Honeywell Video Systems. The information in this publication is believed to be accurate in all respects. However,
Honeywell Video Systems cannot assume responsibility for any consequences resulting from the use thereof. The information contained
herein is subject to change without notice. Revisions or new editions to this publication may be issued to incorporate such changes.
