Honeywell FocusPro TH5320R User manual

Operating
Manual
FocusPro®TH5320R
Wireless Thermostat
Thermostat Sans Fil
Termóstato inalámbrico
Operating Manual
69-2094EFS-05

M28430
Read and save these instructions.
Need Help?
For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502
® U.S. Registered Trademark. Patents pending
Copyright © 2012 Honeywell International Inc. All rights reserved.
Battery Holder
Press down and pull to
remove batteries.
Batteries should be
replaced once a year
(see page 11).
CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible compressor damage, do
not operate cooling system when outdoor temperature is below 50°F (10°C).

1 69-2094EFS—05
Français : voir la page 15 • Español: vea la página 30
Contents
About your new thermostat
Initial setup ......................................... 2
Quick reference to controls................. 3
Quick reference to display .................. 4
Operation
Fan settings (auto/on)......................... 5
System settings (heat/cool) ................ 6
Auto-changeover (heat/cool)............... 7
Remote control ................................... 8
Display outdoor climate ...................... 9
Find lost remote control...................... 9
Compressor protection ..................... 10
Appendices
Battery replacement ......................... 11
In case of difficulty............................ 13
Limited warranty ............................... 14
Regulatory information ..................... 45

Operating Manual
69-2094EFS—05 2
About your new thermostat
Your new wireless thermostat is pre-set for immediate use. All you have to do is
choose the settings you prefer:
1. Select fan setting (Auto/On).................................................See page 5
2. Select system setting (Heat/Cool).......................................See page 6

FocusPro® TH5320R Wireless Thermostat
3 69-2094EFS—05
Quick reference to controls
M28431
Digital display (see page 4) Battery holder (see page 11)
Temperature buttons
Press to adjust temperature
Function buttons
Press to select the function displayed just above each button.
(Functions change depending on the task.)

Operating Manual
69-2094EFS—05 4
Auto
Fan
Aux
Heat On
System More
Heat
Heat
Setting
M28432
Indoor
75
75
Replace Battery
Quick reference to display screen
Current inside temperature Low battery warnings (see pages 11-12)
Temperature setting
More
Press to view outdoor climate (if outdoor
sensor is installed), or to find a misplaced
remote control if installed (see page 9)
Auxillary heat
(Only for heat pumps
with auxillary heat)
System status
Heat On/Cool On
(If flashing, see page 10)
System setting
Heat/Cool/Auto/Off/Em
Heat (see page 6)
Fan Setting
Auto/On
(see page 5)

FocusPro® TH5320R Wireless Thermostat
5 69-2094EFS—05
Select the fan setting
Auto
FanSystem More
Heat
M28433
On
FanSystem More
Heat
M28434
Press FAN to select Auto or On.
In “Auto” mode (the most commonly used
setting), the fan runs only when the heating
or cooling system is on.
If set to “On,” the fan runs continuously.
Note: Options may vary
depending on your heating/
cooling equipment.

Operating Manual
69-2094EFS—05 6
Select the system setting
• Heat: Thermostat controls only the
heating system.
• Cool: Thermostat controls only the
cooling system.
• Off: All systems are off.
• Auto: Thermostat automatically selects
heating or cooling depending on the
indoor temperature.
• Em Heat (only for heat pumps with
auxiliary heat): Thermostat controls
Emergency and Auxiliary Heat.
Compressor is locked out.
Press SYSTEM to select:
Auto
FanSystem More
Heat
M28435
Auto
FanSystem More
Cool
M28436
Note: Options may vary
depending on your heating/
cooling equipment.

FocusPro® TH5320R Wireless Thermostat
7 69-2094EFS—05
Auto Changeover (heat/cool)
Auto changeover is a feature used in
climates where both air conditioning and
heating are often used on the same day.
When the system is set to Auto, the ther-
mostat automatically selects heating or
cooling depending on the indoor tempera-
ture.
Heat and cool settings must be at least 3
degrees apart. The thermostat will auto-
matically adjust settings to maintain this 3
degree separation.
Auto
FanSystem More
Auto
MCR28437
Note: The Auto system setting
may not appear, depending
on how your thermostat was
installed.
Press until screen
displays “Auto”

Operating Manual
69-2094EFS—05 8
Remote Control
The optional remote control can act as a
mobile thermostat, to maintain a comfortable
temperature as you move from room to room.
When the system is responding to tempera-
tures measured at the Remote, the thermo-
stat will display “Remote has Control.”
Press CANCEL to restore temperature con-
trol to the thermostat (the system will only
respond to temperatures measured at the
thermostat).
Auto
at Thermostat
Reading
at Remote
Fan
Remote
has Control
Cancel
More
MCR28438
72
75
Temperature is measured at location
of remote control
Note: The thermostat may take up to 15 seconds to respond to commands entered at
the remote control. See Remote Control Operating Manual for more information.

FocusPro® TH5320R Wireless Thermostat
9 69-2094EFS—05
Additional Features
To display outdoor climate
If you have an outdoor air sensor, press
MORE to display the current outdoor tempera-
ture and humidity. Press DONE to exit.
To find a lost remote control
If you misplace a remote control, press
MORE, then FIND REMOTE. The remote will
beep for two minutes to help you locate it.
Press anywhere on the display screen to
stop the beeping.
Auto
FanSystem More
Heat
MCR28439
Done
%
Find Remote
MCR28440
Outdoor
Humidity
Outdoor
85
50
Press to diplay
more options.
Press to find a lost
remote control.
Outdoor
temperature Outdoor humidity

Operating Manual
69-2094EFS—05 10
Built-in compressor protection
This feature helps prevent damage to the compressor in your air conditioning or heat
pump system. Damage can occur if the compressor is re-started too soon after shut-
down. This feature forces the compressor to wait a few minutes before re-starting.
During the wait time, the display will flash the message Cool On (or Heat On if you
have a heat pump).

FocusPro® TH5320R Wireless Thermostat
11 69-2094EFS—05
MCR28442M
C
R2
8
442
M28441
Battery replacement (thermostat)
Install fresh batteries when the REPLACE
BATTERY warning begins flashing. The warning
flashes about two months before the batteries
are depleted.
Remove the battery holder and install 2 fresh
AA alkaline batteries.
After batteries are installed, the thermostat will
automatically restore communication with the
wireless network within a few minutes.
Press down and pull to remove.
Insert fresh AA alkaline
batteries, then reinstall
battery holder. Note: If batteries are inserted within 2
minutes, the time and day will not have to
be reset. All other settings are retained in
memory.

Operating Manual
69-2094EFS—05 12
MCR28444M
C
R2
8
444
M28443

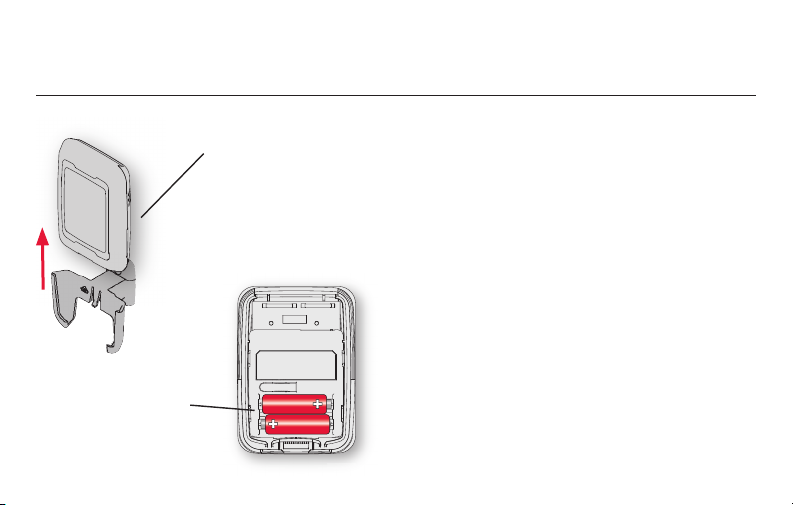

Battery replacement (outdoor air sensor)
Replace outdoor air sensor batteries when
the REPLACE BATTERY OUTDOOR warning
begins flashing on the the thermostat. The
warning flashes about two months before
the batteries are depleted.
Remove the sensor from the bracket,
remove the cover and install 2 fresh AA
lithium batteries.
After batteries are installed, the sensor will
automatically restore communication with
the wireless network within a few minutes.
Remove sensor
from bracket
Remove cover and
install 2 fresh AA
lithium batteries

FocusPro® TH5320R Wireless Thermostat
13 69-2094EFS—05
In case of difficulty
Heating or cooling
system does not
respond
• Checkcircuitbreakerandresetifnecessary.
• Makesurepowerswitchatheating&coolingsystemison.
• Makesurefurnacedoorisclosedsecurely.
• Wait5minutesforthesystemtorespond.
Screen displays
“No Signal”
Thermostat has lost radio contact with the wireless network (usually
because of a power outage). To restore power:
• Checkcircuitbreakerandresetifnecessary.
• Makesurepowerswitchatheating&coolingsystemison.
• Makesurefurnacedoorisclosedsecurely.
After power is restored, the thermostat will automatically restore wireless
communication within a few minutes.

Operating Manual
69-2094EFS—05 14
Up to 5-year limited warranty
Honeywell warrants this product, excluding battery, to be free from
defects in the workmanship or materials, under normal use and
service, for a period of three (3) years from the date of purchase
by the consumer. If at any time during the warranty period the
product is determined to be defective or malfunctions, Honeywell
shall repair or replace it (at Honeywell’s option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to
the place from which you purchased it; or
(ii) call Honeywell Customer Care at 1-800-468-1502.
Customer Care will make the determination whether the product
should be returned to the following address:
Honeywell Return Goods, Dock 4 MN10-3860, 1885 Douglas Dr.
N., Golden Valley, MN 55422, or whether a replacement product
can be sent to you.
This warranty does not cover removal or reinstallation costs.
This warranty shall not apply if it is shown by Honeywell that the
defect or malfunction was caused by damage which occurred
while the product was in the possession of a consumer.
Honeywell’s sole responsibility shall be to repair or replace the
product within the terms stated above. HONEYWELL SHALL
NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY
KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM
ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED,
OR ANY OTHER FAILURE OF THIS PRODUCT.
Some states do not allow the exclusion or limitation of incidental
or consequential damages, so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY
HONEYWELL MAKES ON THIS PRODUCT. THE DURATION OF
ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES
OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, IS HEREBY LIMITED TO THE THREE-YEAR
DURATION OF THIS WARRANTY. Some states do not allow
limitations on how long an implied warranty lasts, so the above
limitation may not apply to you.
This warranty gives you specific legal rights, and you may have
other rights which vary from state to state.
If you have any questions concerning this warranty, please write
Honeywell Customer Relations, 1985 Douglas Dr, Golden Valley,
MN 55422 or call 1-800-468-1502. When the product is registered
on-line at www.warranty.Honeywell.com, the standard manufacture
coverage stated above extends to a period of (5) years.

M28430
Porte-piles
Appuyer vers le bas et
tirer pour retirer
les piles. Les piles
devraient être remplacées
une fois par
année (voir la page 26).
Lire et conserver ces instructions.
® Marque déposée aux É.-U. Brevets en instance.
© 2012 Honeywell International Inc. Tous droits réservés.
Vous faut-il de l’aide ?
Pour obtenir de l’assistance concernant ce produit, visitez
http://yourhome.honeywell.com ou appelez gratuitement l’assistance
client d’Honeywell au 1-800-468-1502
MISE EN GARDE : RISQUE DE DOMMAGE MATÉRIEL. Pour éviter d’endommager le
compresseur, ne pas faire fonctionner le système de refroidissement lorsque la température
extérieure est inférieure à 10 °C (50 °F).

16 69-2094EFS—05
English: see page 1 • Español: vea la página 30
Table des matières
Un mot sur votre nouvel appareil
Programmation en un coup d’oeil..... 17
Coup d’oeil sur les commandes ....... 18
Coup d’oeil sur l’affichage ................ 19
Fonctionnement
Réglages du ventilateur.................... 20
Réglages du système....................... 21
Commutation chaud-froid
automatique...................................... 22
Télécommande ................................. 23
Affichage de la temp. extérieure....... 24
Retrouver une télécommande
égarée............................................... 24
Protection du compresseur............... 25
Annexes
Remplacement des piles .................. 26
En cas de difficulté ........................... 28
Garantie limitée ................................ 29
Information sur la
réglementation.................................. 46

FocusPro® TH5320R Thermostat Sans Fil
17 69-2094EFS—05
Un mot sur votre nouvel appareil
Votre nouveau thermostat est préréglé et prêt à l’emploi. Il suffit de choisir les
réglages qui vous conviennent le mieux :
1. Sélectionner le réglage du ventilateur (Auto/On) ............Voir page 20
2. Sélectionner le réglage du système (Heat/Cool) .............Voir page 21

Mode d’emploi
69-2094EFS—05 18
Coup d’oeil sur les commandes
M28431
Affichage numérique (Voir page 19) Porte-piles (Voir page 26)
Boutons de réglage de la
température
Appuyer sur le bouton pour
régler la température
Boutons de fonction
Appuyer pour sélectionner la fonction affichée sous chaque bouton.
(Le changement de fonction dépend de la tâche accomplie.)
