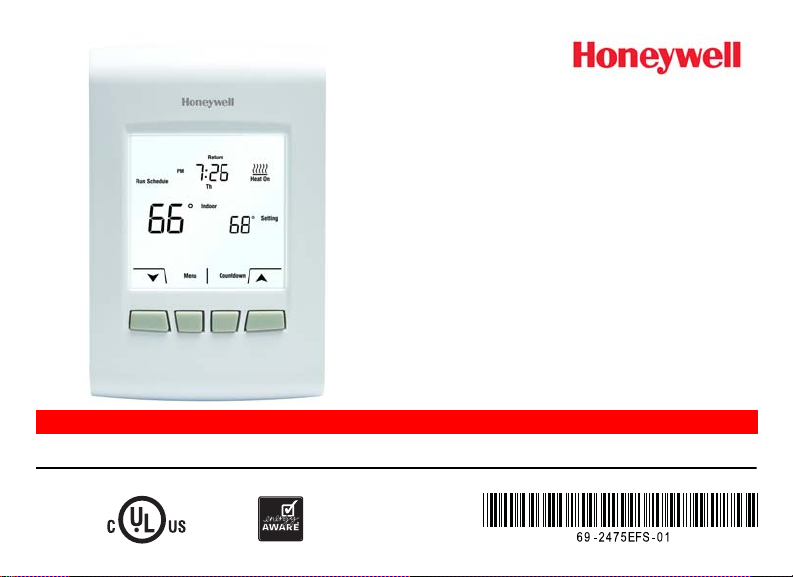

Honeywell EConnect TL9160AR User manual

EConnect™ TL9160AR
Wireless Programmable/Non-programmable Thermostat
Français : voir la page 25 • Español : vea la página 49
Operating Manual
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 1 Friday, June 17, 2011 3:34 PM

Do you know your thermostat configuration?
To know whether your new thermostat is configured in
programmable mode or non-programmable mode, look
for the time and day display on the thermostat screen. If
the time and day appear on the screen, the thermostat
is configured as a programmable thermostat.
Refer to the table of contents on the next page for
sections that apply to your thermostat configuration.
Before you begin
Need Help?
For assistance with this product please visit http://yourhome.honeywell.com
or call Honeywell Customer Care toll-free at 1-800-468-1502.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 2 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
3
Table of contents Français : voir la page 25 • Español : vea la página 49
Non-programmable
configuration Programmable configuration
Basic operation

Thermostat display in non-programmable mode........................4

Setting the temperature..............................................................5

Countdown mode.......................................................................6
Programmable mode

Thermostat display in programmable mode...............................8

Following the heating schedule..................................................9

Setting the time and the date ...................................................10

Modifying the heating schedule................................................12

Temporary Hold........................................................................14

Permanent Hold .......................................................................15

Copying the heating schedule..................................................16
Appendices

Advanced setup........................................................................18

Replacing the batteries.............................................................20

In case of difficulty....................................................................21

Three-year limited warranty......................................................22

Regulatory information.............................................................23
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 3 Friday, June 17, 2011 3:34 PM

Operating Manual
4

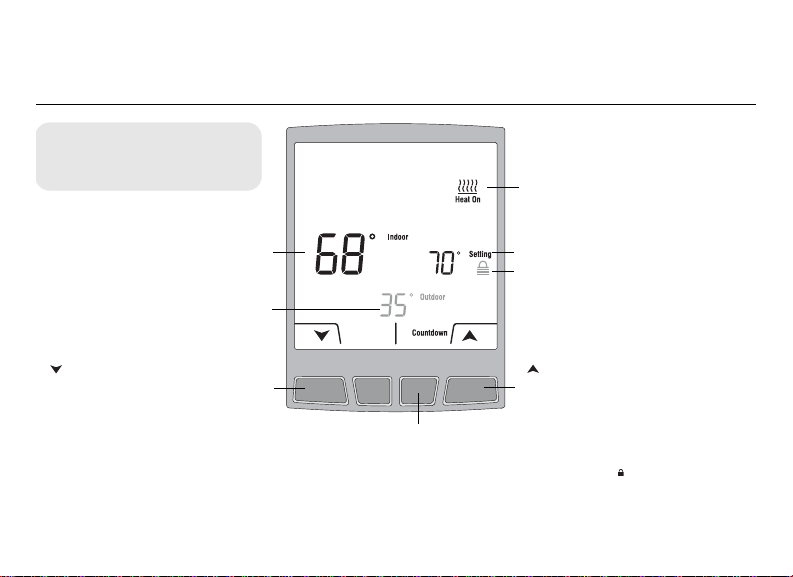

Thermostat display in non-programmable mode
Indoortemperature
(room temperature)
button
Press to decrease the temperature.
Countdown button
Press to place in countdown mode (see page 6).
Does not appear if the thermostat is locked ( ).
button
Press to increase the temperature.
Set temperature
Heating Indicator
The number of flames depends on
the heating intensity. The image
disappears when heating stops.
Outdoor temperature
(requires outdoor sensor)
Lock
The thermostat settings are totally
or partially locked. See installation
guide for details.
If your thermostat is configured
in programmable mode, see
more description on page 8.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 4 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
5

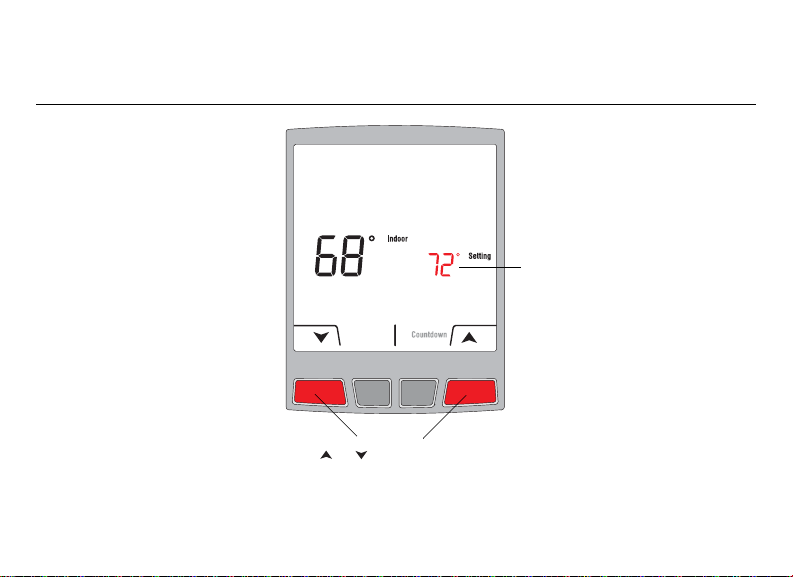

Setting the temperature
Press or to set the temperature.
Set temperature
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 5 Friday, June 17, 2011 3:34 PM

Operating Manual
6
Press Countdown to set a new temperature and to select the time you wish to hold this temperature
setting. The thermostat will return to its previous or programmed temperature setting at the end of the
countdown time. The countdown time is selectable from 15 minutes to 14 days.

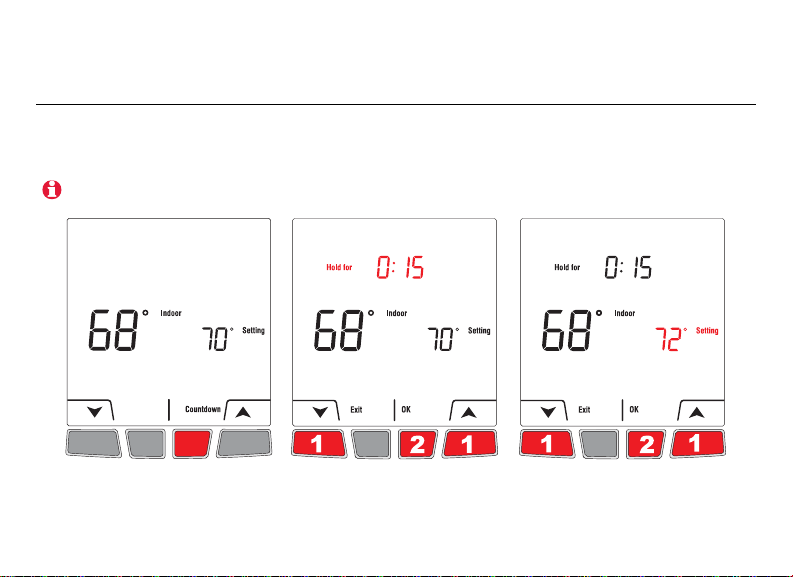

Countdown mode
The Countdown mode is not available when the thermostat is locked.
Press Countdown.Select the countdown time. Set the temperature.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 6 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
7

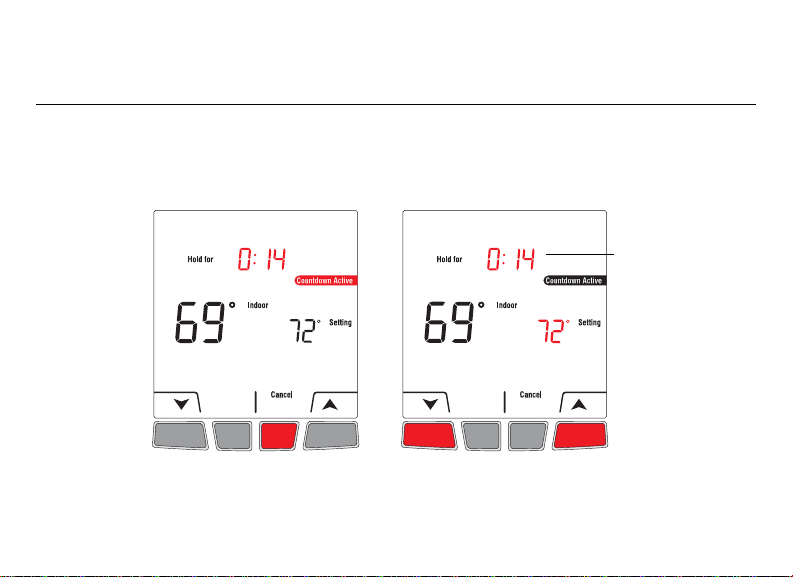

Countdown mode (cont’d)
The countdown
time changes in
real time to show
the remaining time.
You can change the countdown
time and temperature any time.
Press Cancel any time to
cancel the Countdown mode.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 7 Friday, June 17, 2011 3:34 PM

Operating Manual
8
The thermostat displays the current time and day when the thermostat is configured in programmable mode. When
the thermostat is following the schedule, it also displays the current period of the schedule: Wake, Leave, Return or
Sleep. The period is not displayed when the thermostat is placed in Temporary Hold or Permanent Hold.

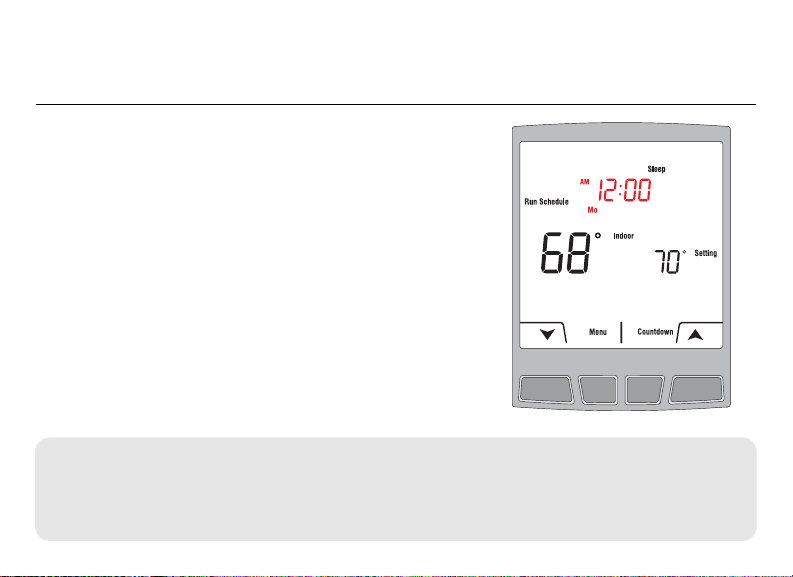

Thermostat display in programmable mode
Run Schedule: Appears when the thermostat is following the
schedule.
Temporary Hold: See page 14.
Permanent Hold: See page 15.
Menu button
Press to access the menu to set the time & date and the schedule.
The menu button is not available when the thermostat is locked.
See page 4 for the description of the other items on the thermostat display.
Periods of the schedule
Current time and day
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 8 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
9
Run Schedule appears on the screen when the thermostat is following the programmed
schedule. Your thermostat has been programmed with an energy-saving schedule which can
reduce your heating expenses by as much as 33%.
The schedule consists of 4 periods per day, which represents a typical weekday. However, you
can program the thermostat to skip (cancel) the periods that do not apply to your situation. For
example,
Leave and Return periods are skipped for the weekend in the default schedule.
You can choose a different program every day; i.e., each period can have a different starting
time and a different temperature every day.
Following the heating schedule
Monday to Friday
(Mo, Tu, We, Th & Fr) Saturday and Sunday (Sa & Su)
Period Starting time Temperature Starting time Temperature
Wake 6:00 AM (6h) 70°F (21.0°C) 8:00 AM (8h) 70°F (21.0°C)
Leave 8:00 AM (8h) 62°F (16.5°C) - - - - - -
Return 6:00 PM (18h) 70°F (21.0°C) - - - - - -
Sleep 10:00 PM (22h) 62°F (16.5°C) 10:00 PM (22h) 62°F (16.5°C)
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 9 Friday, June 17, 2011 3:34 PM

Operating Manual
10
* Copy will appear only if the thermostat is linked to a remote control or an outdoor sensor.
Setting the time and the date
Press Menu.Select Date & Time.Set the hour. Set the minutes.
*
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 10 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
11
* When this function is enabled, the thermostat switches to daylight savings time on the second Sunday of March
and to normal time on the first Sunday of November. When the function is disabled, the thermostat keeps the
normal time all year long.
Setting the time and the date (cont’d)
Set the year. Set the month. Set the day
of the month
Enable/disable
Daylight Saving Time*.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 11 Friday, June 17, 2011 3:34 PM

Operating Manual
12

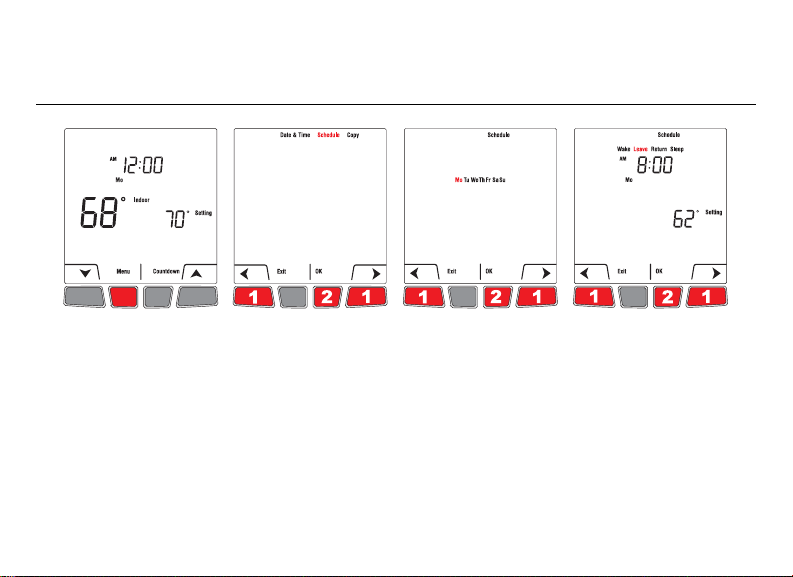

Modifying the heating schedule
Press Menu.Select Schedule.Select the day or
the group* you
wish to modify.
Select the period you
wish to modify.
*The groups are: Mo-Fr, Sa-Su and Mon-Su. Selecting a group will apply the changes to all the days within
that group.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 12 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
13
Modifying the heating schedule (cont’d)
Set the time
(15-minute
intervals)
Set the
temperature.
Selectanotherperiod
or press Exit to go to
the day selection
menu (step 3).
When all changes are
done, press Exit until
you return to the
home screen.
If you wish to clear a period (e.g., you may want to skip the Leave and Return periods if you
stay home all day), select the period (step 4) and press and simultaneously. The time and
temperature settings appear as dashes when the period is cleared.
The Wake period cannot be erased.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 13 Friday, June 17, 2011 3:34 PM

Operating Manual
14

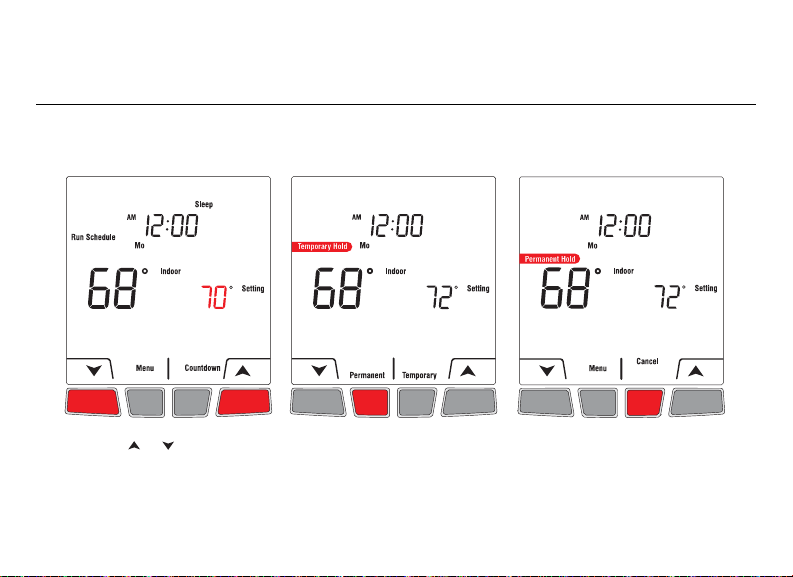

Use Temporary Hold mode to temporarily bypass the schedule and set a new temperature. The thermostat will hold
the new temperature during the current period. The thermostat will resume the heating schedule when the next period
starts or if you press Cancel.

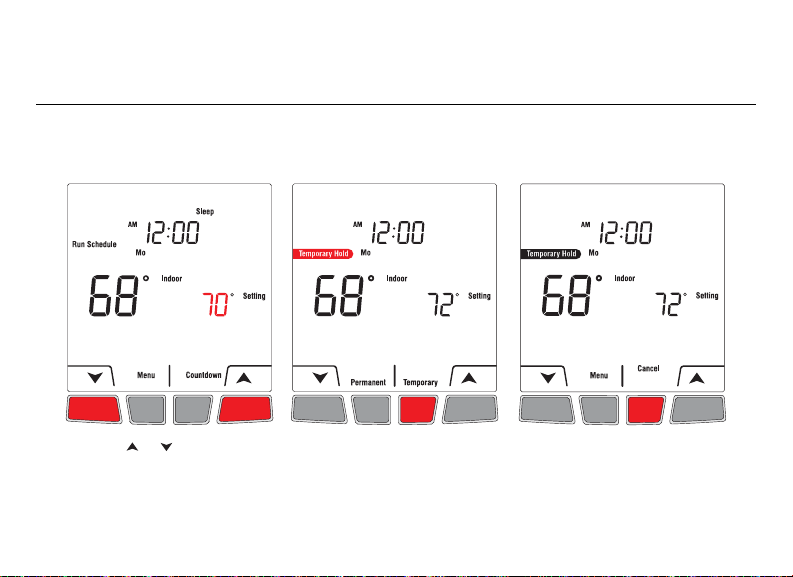

Temporary Hold
Press or until the desired
temperature is displayed. Press Temporary.At any time, you can press
Cancel to follow the schedule.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 14 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
15
Use Permanent Hold mode to bypass the schedule and set a new temperature for an indefinite period of time. To
resume the heating schedule, press Cancel.
Permanent Hold
Press or until the desired
temperature is displayed. Press Permanent.At any time, you can press
Cancel to follow the schedule.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 15 Friday, June 17, 2011 3:34 PM

Operating Manual
16
Use the Copy function to transmit the schedule settings of this thermostat to other wireless thermostats in your
house.

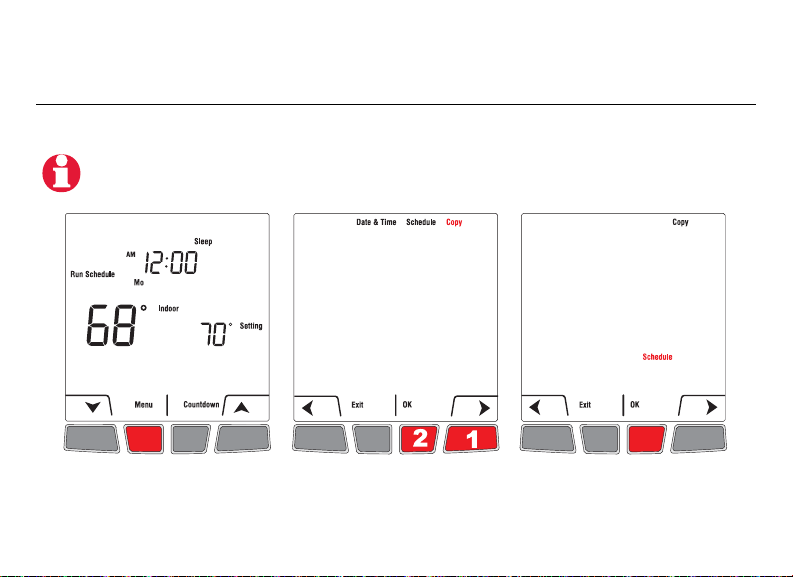

Copying the heating schedule
This function is available only if the thermostat is connected to a remote control or to an outdoor sensor. The
schedule settings are transmitted to any other thermostats connected to the same remote control or outdoor
sensor.
Press Menu.Select Copy.Press OK.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 16 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
17

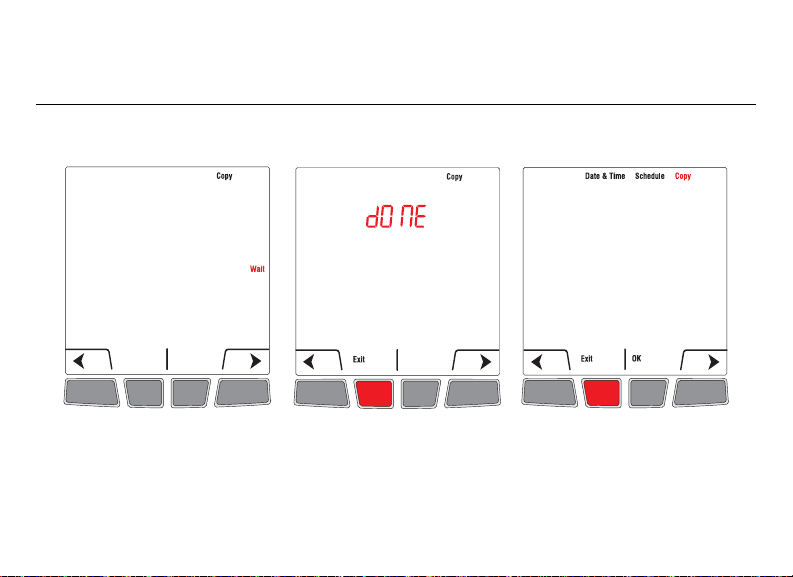

Copying the heating schedule (cont’d)
Wait flashes when the schedule
settings are transmitted to the
other thermostats (this can last
up to 2 minutes).
Done appears when the
transmission is completed.
Press Exit twice to return to
the home screen.
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 17 Friday, June 17, 2011 3:34 PM

Operating Manual
18
* You can set the temperature display unit in °C or °F. You can set the time display format in 12-hour or 24-hour
(military time) if the thermostat is in programmable mode.
** Accessible only if you use the thermostat in programmable mode.
When Adaptive Intelligent Recovery is on, the thermostat “learns” how long your heater takes to reach the set
temperature. The thermostat will then determine when to activate heating so the desired temperature is attained
at the desired time. The thermostat re-assesses the heating start time daily based on the previous day’s
performance. When Adaptive Intelligent Recovery is off, heating starts at the set time.
*** Leave at On to use the thermostat in programmable mode. Place at Off to use the thermostat in non-
programmable mode.
Advanced setup
Setup functions Default setting Options
Temperature and time formats * °F °C / °F
12h 12h / 24h
Adaptive Intelligent Recovery ** On On / Off
Programmable mode (Schedule) *** On On / Off
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 18 Friday, June 17, 2011 3:34 PM

EConnect™ Wireless Programmable/Non-programmable Thermostat TL9160AR
19
* These parameters are available only if the thermostat is configured in programmable mode.

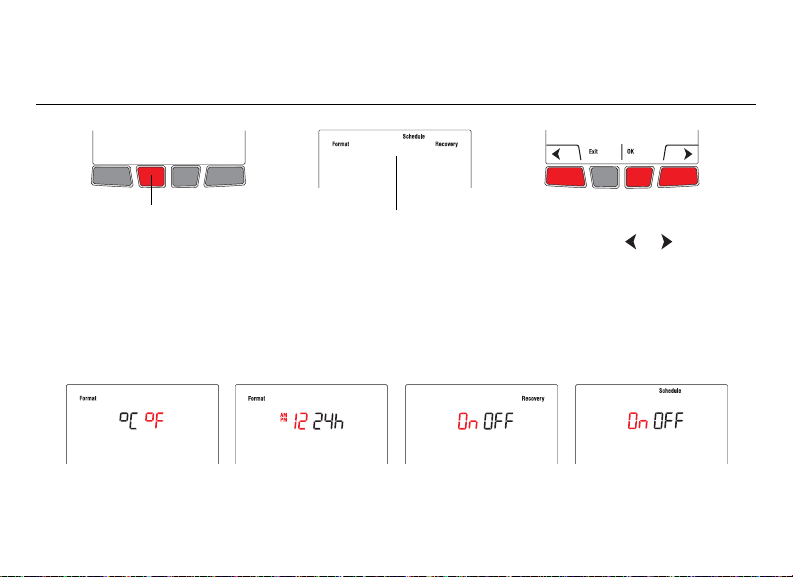

Accessing the advanced setup menu
Press this button for 5
seconds to access the
advanced setup menu.
From the advanced setup
menu, press or to
select the setup functions
and press OK.
Advanced setup menu
AdaptiveIntelligent
Recovery *12h / 24h *
°C / °F Programmable mode
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 19 Friday, June 17, 2011 3:34 PM

Operating Manual
20
Thermostat

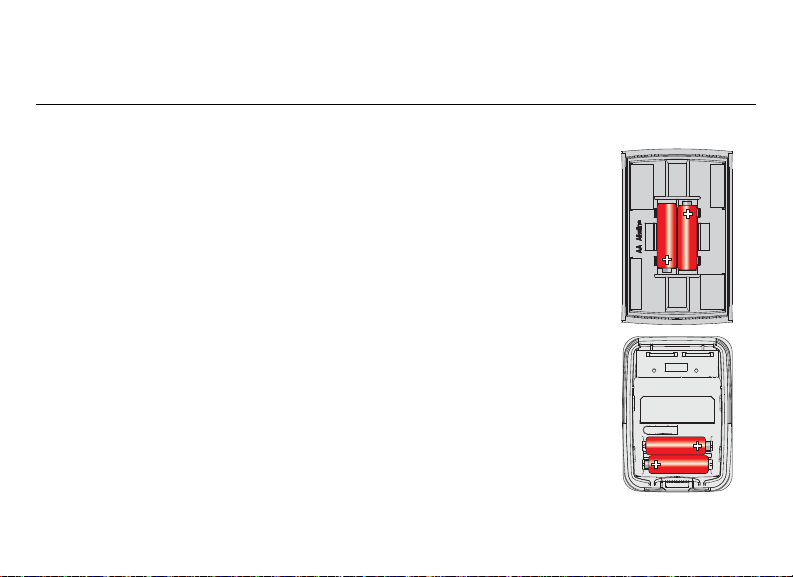

Install 2 new alkaline AA batteries when the Low Battery warning starts
flashing. It is recommended to replace batteries once a year, or when you will
be away for more than a month.
To access the batteries, pull the thermostat from its mounting plate.
You will need to set the time and date if new batteries are not inserted within 2
minutes after the old ones are removed. However, other settings are not
erased.
After new batteries are installed, the thermostat will automatically restore
communication with the wireless network within a few minutes.
Outdoor air sensor
Install 2 new AA lithium batteries when the Outdoor Air Sensor Low Battery
warning starts flashing on the thermostat’s screen.
To access the batteries, remove the sensor from the bracket and remove the
sensor cover.
After new batteries are installed, the sensor will automatically restore
communication with the wireless network within a few minutes.
Replacing the batteries
69-2475EFS (Honeywell YTL9160 Operating Manual).book Page 20 Friday, June 17, 2011 3:34 PM
