OPERATING INSTRUCTIONS
idromed®5 PS
Art.-No. 110001
Art.-No. 110003
Before putting the unit into operation and starting treatment, read this
operating manual carefully!
#110001/3 / S0408 e

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
2

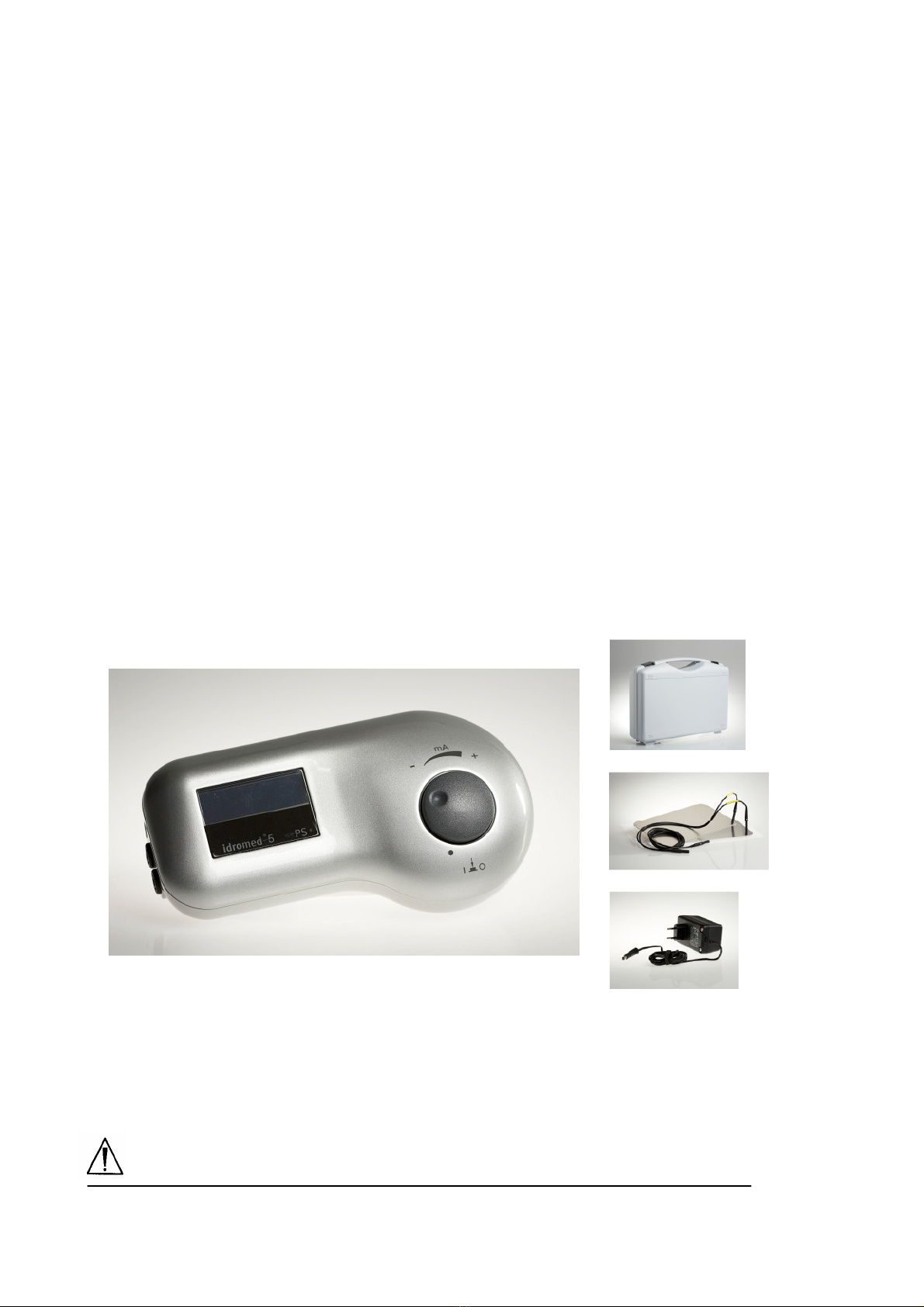

Supplied Items
Please ensure that all items are present
•idromed®5 PS (basic unit)
•power supply
•2 x stainless steel plate electrodes (nickel-free)
•2 x electrode cables
•2 x distance grids
•shock-proof case
the 2 parts of the case are used as treatment tubs
optional accessories:

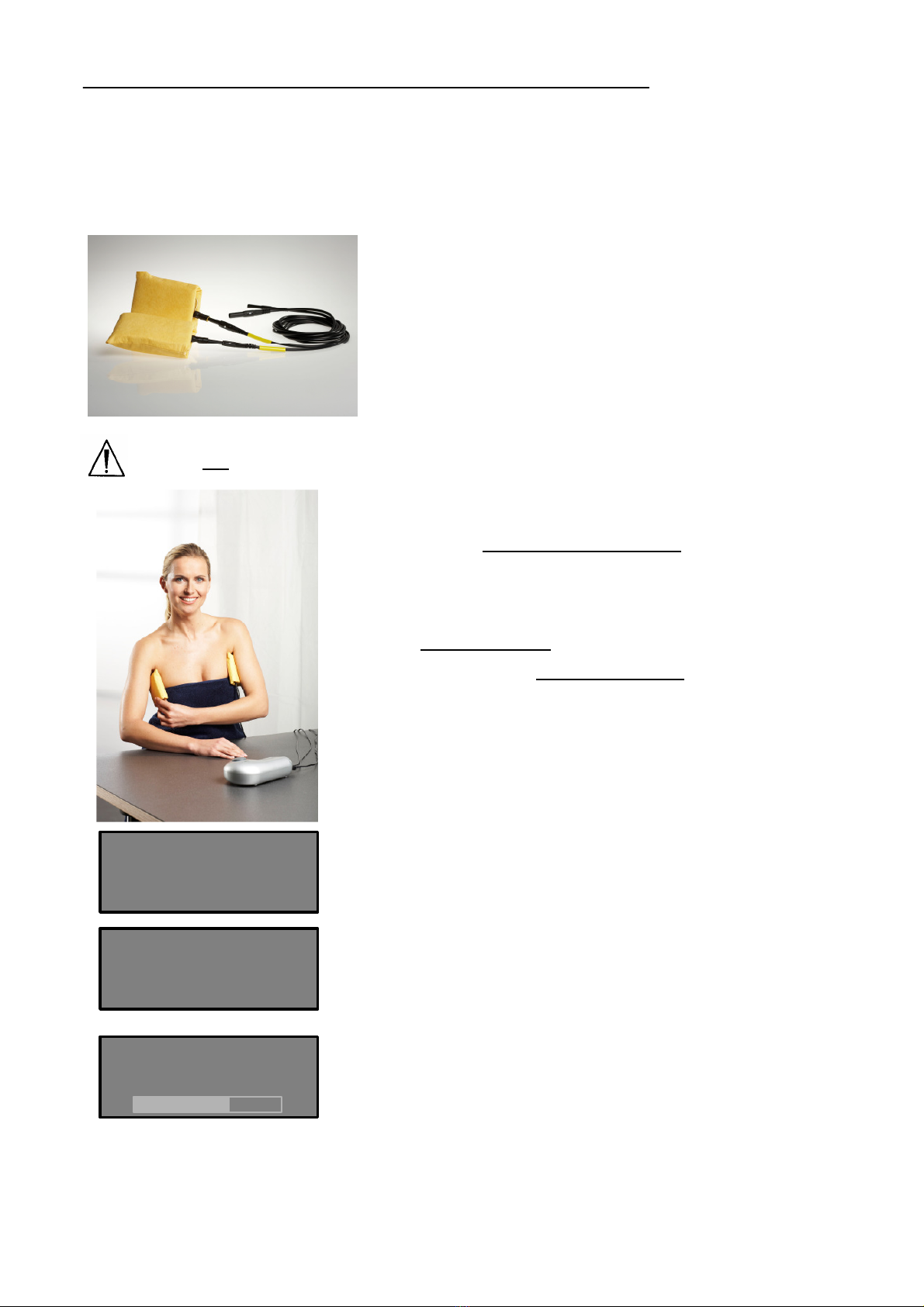

•2x nickel-free electrodes with sponges (from eudermic material) for
treatment of the armpits
•2 x large treatment tubs (art.-no. 995130)
•2 x distance grids for large treatment tubs (art.-no. 995131)
Content
1. Important information on idromed®5 PS............................................................3
1.1. Symbols and warning on the unit............................................................................4
1.2. Electromagnetical compatibility ..............................................................................4
2. Application of the idromed®5 PS........................................................................5
2.1. Fields of Application ...............................................................................................5
2.2. Conditions of Application ........................................................................................5
2.3. Preparation of the Treatment..................................................................................5
2.4. Treatment...............................................................................................................6
2.4.1. Treatment of hyperhidrosis on the hands and/or feet .............................................6
2.4.2. Treatment of hyperhidrosis at the armpits ..............................................................8
3. Important Tips and Information...........................................................................9
4. Problems and how to solve them......................................................................10
5. Cleaning and Care..............................................................................................11
6. Maintenance........................................................................................................11
7. Warranty and Liability ........................................................................................11
8. Technical Data ....................................................................................................12

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
3
1. IMPORTANT INFORMATION ON IDROMED®5PS
Symbol for important safety instructions.
Please follow these instructions carefully to prevent health risks and damage to
property.
In case of the following conditions the idromed®5 should not be used or should only
be used after consulting your doctor:
cardiac arrhythmia
electronically controlled implanted devices (e.g. pacemaker)
metallic implanted devices in the area where the current flows
metallic intrauterine implanted devices (loop)
pregnancy
bigger skin diseases
insensibility for pain
Prolonged usage of high frequency surgery units on a patient can cause burns under
electrodes.
Application of the electrodes close to the ribcage can increase the risk of ventricular
fibrillation.
Effective current densities over 2 mA/cm² at all electrode faces require higher
attention from the user.
During treatment the electric circuit needs to be completed constantly, i.e. maintain
at least one hand or foot in each tub.
Conductive material (e.g. metal, water pipes etc.) must not be touched during
treatment.
All jewellery on hands and feet must be removed before starting treatment.
Any damage to skin (minor injuries, scratches etc.) on the palms of the hands, soles
of the feet, cuticles or at the armpits must be coated with vaseline or a fatty cream
before treatment, as current permeability will be higher than normal on those spots.
Please do only cover these spots!
Current intensity is set according to individual requirements of the user. The ideal
current intensity evokes a pleasant, tingling sensation (not on the treatment of the
armpits). The values listed in these instructions are the maximum values allowed.
Current intensity chosen by the user, however, should normally be much lower,
otherwise there is a danger of burning the skin (e.g. the usual range for the
treatment of the armpits is about 1 – 2 mA).
Moisten the sponges from inside and outside, until they don’t drip (do not wring
them out). If the sponges are too dry, there is a danger of burns!
Attention, there is a danger of burns, when the metallic electrodes are in direct
contact with the skin. When treating armpits, the sponge electrodes have to be kept
still and with constant pressure under the armpits, otherwise fluctuations of current
will occur on the display of the unit.
Never short-circuit the metallic electrodes!

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
4
Proper use
The idromed®5 PS is an iontophoresis unit for the treatment of hyperhidrosis on the hands and
feet and in the armpits.
The operator undertakes to observe the prescribed schedule for inspection and maintenance work
and the replacement of consumables.
The observance of the safety instructions and regulations in this operating instructions and the
accident-prevention rules and regulations prevailing at the place of use belong to the proper use of
the unit.
The company Dr. K. Hönle Medizintechnik GmbH shall not be liable for any damage caused by
improper use of the equipment.

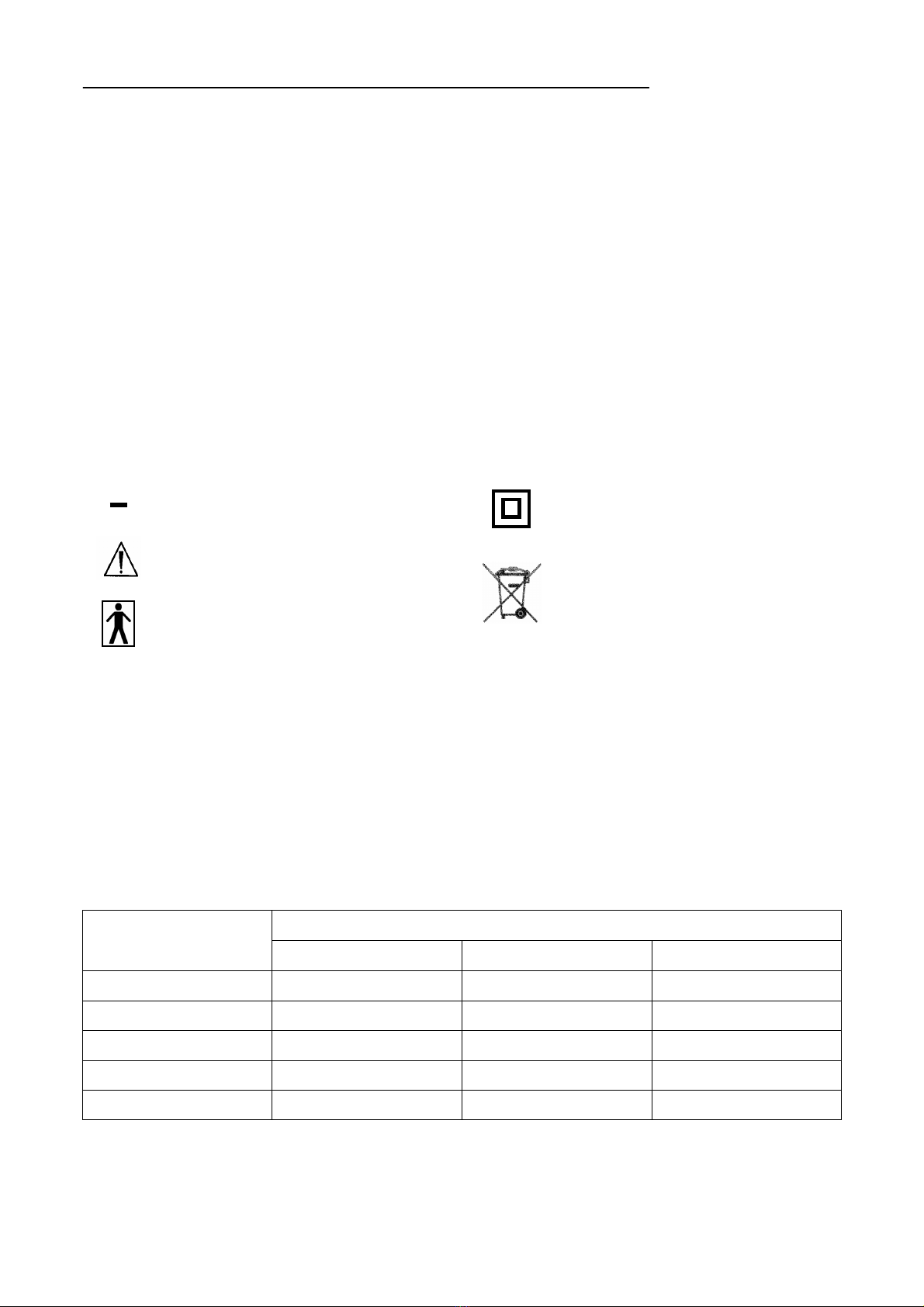

1.1. SYMBOLS AND WARNING ON THE UNIT
+Anode ~Alternating current
Cathode Units of protection class II
Attention! See operating instructions!
Application device of type BF
Ecology
Unit contains electronic parts and
may not be disposed in the
household rubbish.
1.2. ELECTROMAGNETICAL COMPATIBILITY
idromed®5 PS uses high frequency energy exclusively for its internal function. Therefore its HF-
emission is very low and it is unlikely that surrounding electronic devices are disturbed.
(HF-emissions acc. to CISPR 11, group 1)
idromed®5 PS is determined for the use in all facilities, including residential areas and such
facilities connected directly to an official supply network, which also supplies buildings and
residential buildings. (HF-emissions acc. to CISPR 11, class B)
Portable and mobile radios should not be used at a closer distance to the idromed®5 PS
including cables than the recommended security distances in the table below:
Security distance depending on the transmitter frequency m
Nominal capacity of
the transmitter 150 kHz - 80 MHz 80 MHz - 800 MHz 800 MHz - 2,5 GHz
0,01 0,12 m 0,12 m 0,23 m
0,1 0,37 m 0,37 m 0,74 m
1 1,17 m 1,17m 2,33 m
10 3,70 m 3,70 m 7,37 m
100 11,7 m 11,7 m 23,3 m

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
5
2. APPLICATION OF THE IDROMED®5PS
2.1. FIELDS OF APPLICATION
Condition: Used for the treatment of the following conditions:
•Hyperhidrosis
2.2. CONDITIONS OF APPLICATION
idromed®5 PS has been designed for operation in dry rooms with an ambient temperature from
10°C to 45°C.
Protect the unit against chemical vapours and never operate it in explosive areas.
2.3. PREPARATION OF THE TREATMENT
The idromed®5 PS is operated with the power supply (IDROMED AC/AC ADAPTER, Typ: FM
6299M). After the following preparations your unit is ready for use:
a) For the best results and for your own security, the unit should only be used with
original accessories from the manufacturer.
b) For treatment you should separate the two parts of the case. To do this, open the case
completely, put it on a plain surface and separate the 2 parts carefully in opposite directions
(see arrows on the hinges on the case).
c) Fill the 2 treatment tubs with tap water to a depth of approx. 3-4 cm (finger and toe joints
should be just covered). Please see also the warnings on page 10, point 4.3.
d) Connect one of the cables to one of the plate electrodes and to the (+)-connection on the
front of the idromed®5 PS.
e) Connect the 2nd cable of the electrode with the other electrode and with the (-)-connection on
the front of the idromed®5 PS.
f) Place the electrodes 1 in each tub and cover the electrodes with the distance grids.
g) Connect the plug of the power supply to the rear of the idromed®5 PS and plug the power
supply to a mains socket (220-230 V / 50 Hz). The green control lamp on the power pack is
now alight.

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
6
2.4. TREATMENT
If possible, treatment should be performed once a day initially. Treatment should last 10-15
minutes, depending on the doctor’s prescription. Normally, after 10 -15 treatments, a normal
hydrosis level is reached and the skin moisture is normalized. The intervals of treatment should
now be extended gradually. (1st week - every 2 days, 2nd week - every 3 days, until there is just
one treatment per week)
The inhibition of sweating is much more pronounced at the plus pole than at the minus pole. In
order to optimize the therapeutic effect, you should therefore switch polarities before every
5th treatment session. To do this, all you have to do is swap the electrode leads.
The adjustment of current occurs to the individual user. The following values are maximum
permissible values. Normally values however are considerably lower.
The maximum values permissible are:
•For the treatment of the hands: 15 mA
•For the treatment of the feet or of hands and feet: 25 mA
•For the treatment of the armpits: 5 mA
If the current intensity selected is too high, you may experience an unpleasant tingling
sensation in the extremities treated during the session. If this occurs, a lower current
intensity has to be selected otherwise there is a danger of burns.
2.4.1. TREATMENT OF HYPERHIDROSIS ON THE HANDS AND/OR FEET
Self-test
Maximum armpits 5mA
Values! hands 15mA
feet 25mA
Check that the intensity knob is on switch setting (●).
The unit carries out a self-test. This action takes some seconds.
Set the therapy
current!
Place your hands, feet or
armpit sponges
7mA
Adjust the required current intensity with the knob. A turn to
right increases the current intensity (treatment of the hands
approx. 7mA and of the feet approx. 13mA). A turn to left
decreases it. Please note also the maximum values permissible.
(see point 2.4.)
Do not sw
itch off the unit
during treatment.
Separate the two parts of the case
(treatment tubs
) as described in
point 2.3.b) and place in front of the
idromed®5 PS
on the table.
Connect the electrodes as
described in point 2.3.
Switch on the unit by pushing down
the dark grey current intensity knob.

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
7
Therapy time is
running!
Remaining time 11 min.
7mA
Complete the circuit. For this put each hand or foot in the water-
filled treatment tubs.
If you feel a tingling sensation or burning, the current
intensity is too high and must be scaled down.
If you do not feel a tingling sensation or light cauterisation,
the current intensity have to be increased until a tingling
sensation or light cauterisation occurs and then have to be
decreased.
If you do also not feel a tingling sensation or light
cauterisation at a maximum adjusted current, treatment
should be administered with the maximum permissible
current intensity.
Set the therapy
current!
Place your hands, feet or
armpit sponges
7mA
Therapy time is
running!
Remaining time 11 min.
7 mA
At the treatment of the feet regulate the current intensity by
turning the knob to the right or left (tingling sensation, turn the
knob a little to left).
For treatment of the hands adjustments can be made by
another person or you would break the circuit by taking one
hand out of the tubs.
While adjusting the current, hands or feet may be taken out
of the treatment tubs and while the unit is still running
without any danger.
Please dry your hands before regulating the current at the
unit!
Regulate the current by turning the knob right or left and close
the circuit again by putting again your hands in the treatment
tubs. Repeat this process until you feel a tingling sensation with
the adjusted current and then turn the knob back a little to left.
Treatment time takes 15 minutes.
Take your hands,
feet or
armpit sponges out
If there is a breaking in treatment, the unit retains the
remaining treatment time.
At the end of the treatment time take your hands and/or feet out
of the treatment tubs.
Please
switch off
the machine!
Turn the knob to the switch setting (●) and switch off the unit by
pushing down the knob.
If you need to treat both hands and feet simultaneously, take one treatment tub for your
hands and the other treatment tub for your feet.
Check after the switching-on of the unit and the self-test always the position of the
turning knob. (Position ●)
After each session, please empty the tubs and dry the tubs, the electrodes and the cable with a
towel.

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
8
2.4.2. TREATMENT OF HYPERHIDROSIS AT THE ARMPITS
Before the treatment clean the armpits with clear water, in order to remove any cosmetics
and so to avoid any irritations of the skin.
Do not switch off the unit during treatment.
Moisten the sponges together with the electrodes in a water bath
for about 30 seconds. Press the water from the sponges until
they do not drip (do not wring them out). The more water
remains in the sponges, the better the current will be directed to
the areas which has to be treated.
There is a danger of burns, if the sponges are too dry!
Attention, there is a danger of burns, if the metallic
electrodes are in direct contact with the skin.
Use the 2 electrode cables to connect the electrodes with the
positive and the negative pole of the unit.
Self-test
Maximum armpits 5mA
Values! hands 15mA
feet 25mA
Switch on the unit while pushing down the turning knob.
Pay attention that the turning knob is on switch setting
(●).
The unit carries out a self-test. This action takes some seconds.
Set the therapy
current!
Place your hands, feet or
armpit sponges
2mA
Adjust the required current intensity with the turning knob for the
treatment of the armpits of approx. 3 mA. A turn to right
increases the current intensity. A turn to left decreases it.
Therapy time is
running!
Remaining time 9 min.
2mA
Complete the circuit. For this put one sponge electrode under
each armpit.
Attention! Because of the compression, water may leak from
the sponge electrodes. Put for example a towel underneath
to absorb the water.
For treatment of the armpits use the 2 optional sponge
electrodes with the sponges:
optional accessory
armpit electrodes with sponges
(art.-no. 995100)

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
9
Set the therapy
current!
Place your hands, feet or
armpit sponges
2mA
Therapy time is
running!
Remaining time 9 min.
2mA
If you feel a tingling sensation or burning, the current
intensity is too high and must be scaled down.
If you do not feel a tingling sensation or light cauterisation,
the current intensity have to be increased until a tingling
sensation or light cauterisation occurs and then have to be
decreased.
Regulate the current by turning the knob right or left until you feel
a soft tingling sensation at the armpits.
Repeat this process until the tingling sensation/burning ends or
until you feel it and then turn the knob a little back to the left.
When treating (15 minutes) the armpits, the sponge electrodes
have to be kept still and with constant pressure under the
armpits. Otherwise there will occur fluctuations of current at the
display of the unit or the unit can display a malfunction
information.
Take your hands,
feet or
armpit sponges out
Please
switch off
the machine!
If there is a break in treatment, the unit retains the remaining
treatment time.
At the end of the treatment remove the sponge electrodes from
the armpits.
Turn the knob to the switch setting (●) and switch off the unit by
pushing down the knob.
Always check the position of the turning knob. (Position ●) immediately after
switching on the unit and the self-test completes.
3. IMPORTANT TIPS AND INFORMATION
•To simplify therapy the current intensity in mA for your treatment (pleasant tingling sensation –
aside from the treatment of the armpits) is displayed and can be set again consistently.
•The maximum current and voltage are limited by safety limits prescribed for electrical medical
equipment. Nevertheless, do not remove your hand and/or feet from treatment tubs during the
session (keep the current circuit closed). Take care, that the unit is not switched off during
treatment.
•The inhibition of sweating is much more pronounced at the positive pole than at the negative
pole. In order to optimize the therapeutic effect, you should therefore switch polarities before
every 5th treatment session. To do this, you have only to swap the electrode leads.
•Please take care, that the water you are using is normal tap water and has not been treated
with a water softener before. That reduces the conductibility of water and treatment can be
make only conditional or none.

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
10
4. PROBLEMS AND HOW TO SOLVE THEM
PROBLEM SOLUTION
4.1. The green lamp on
the mains plug
(IDROMED ADAPTER)
does not work.
In brightly lit rooms, it can be difficult to see whether the lamp is on or
not. Shade the lamp with your hand to check, whether it is working
properly.
The wall socket may be defective. Please connect the unit to another
wall socket or check whether the wall socket in question is working
properly.
4.2. The unit shows on
the display:
Malfunction!
Switch off the machine!
At a failure malfunction the unit’s output current stops automatically and
the unit displays a malfunction message. Switch off the unit and switch it
on again. If the error lamp is still alight, please contact Customer
Services.
4.3. Current intensity is
adequate.
Check the connections of the plug and electrodes and the function of
the unit.
Please check if the water you are using has been treated with a water
softener. By using softened water, the conductivity is reduced. In this
case please use untreated tap water or use non-carbonated (still)
mineral or table water.
For the treatment of the armpits, check if the sponges are still moist
enough, as in the description under point 2.4.2.
If current intensity is not adequate despite the above mentioned points,
please contact the Customer Service.
4.4. The display shows
nothing.
Check if the lamp is lit on the plug unit (see point 4.1.). Check the
functioning of the socket.
Press the on/off switch several times (turning knob).
If you have further problems please send the unit to the manufacturer
for repair.
If you have further problems or to order spare parts please apply to your locally retailer.

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
11
5. CLEANING AND CARE
After each treatment session, empty the treatment tubs and dry the tubs, the electrodes and the
cable with a towel. Disinfect the treatment set regularly with a normal commercial disinfectant.
Discoloration of the surface of electrodes after the initial therapy sessions are quite normal.
6. MAINTENANCE
The manufacturer recommends to check the unit every 2 years through our customer service. This
applies only to commercial users. Nevertheless we generally recommend the same procedure also
to private users.
7. WARRANTY AND LIABILITY
Generally, the general Terms of Sales and Delivery of the company Dr. K. Hönle Medizintechnik
GmbH shall apply. These shall be submitted to the operator upon the signing of the contract at the
very latest. The warranty for the idromed®5 PS is 24 months. Warranty and liability claims are
excluded in case of personal injury or damage of property if these are attributable to one or more
of the following causes:
•The use of the idromed®5 PS for a purpose other than that for which it is intended
•Unauthorized structural modifications on the idromed®5 PS
•Failure to observe the information contained in the Operating instructions on the
commissioning, maintenance and operation of the unit
•Repair work performed by persons not authorized by the company Dr. K. Hönle
Medizintechnik GmbH
•Catastrophes caused by foreign bodies or acts of God

Dr. K. Hönle Medizintechnik GmbH idromed®5 PS
GEBRAUCHSANWEISUNG
12
8. TECHNICAL DATA
Type idromed®5 PS
Art.-No. 110001
110003 (GB)
Dimensions of the unit 210 mm x 120 mm x 70 mm (L x W x D)
Dimensions of the suitcase 290 mm x 390 mm x 110 mm (L x W x D)
Total weight (unit, suitcase and
accessories) 2,5 kg
Current supply Power pack, 230 V~ / 50 Hz
Fan-out current 25 mA an 2 kΩ
infinitely varaible from 0 – 25 mA
Accuracy ± 0,5%
Nominal input voltage 24 V ~
Fuse protection
The unit has an electronic current limiting device. In the event of
a functional error the output current is automatically cut off and
the orange lamp will be alight. Once the unit has been switched
off, the lamp will be out.
Protection class II, all insulated
MDD classification IIa
Protection against intrusion
of liquids IPX1
CE-Mark

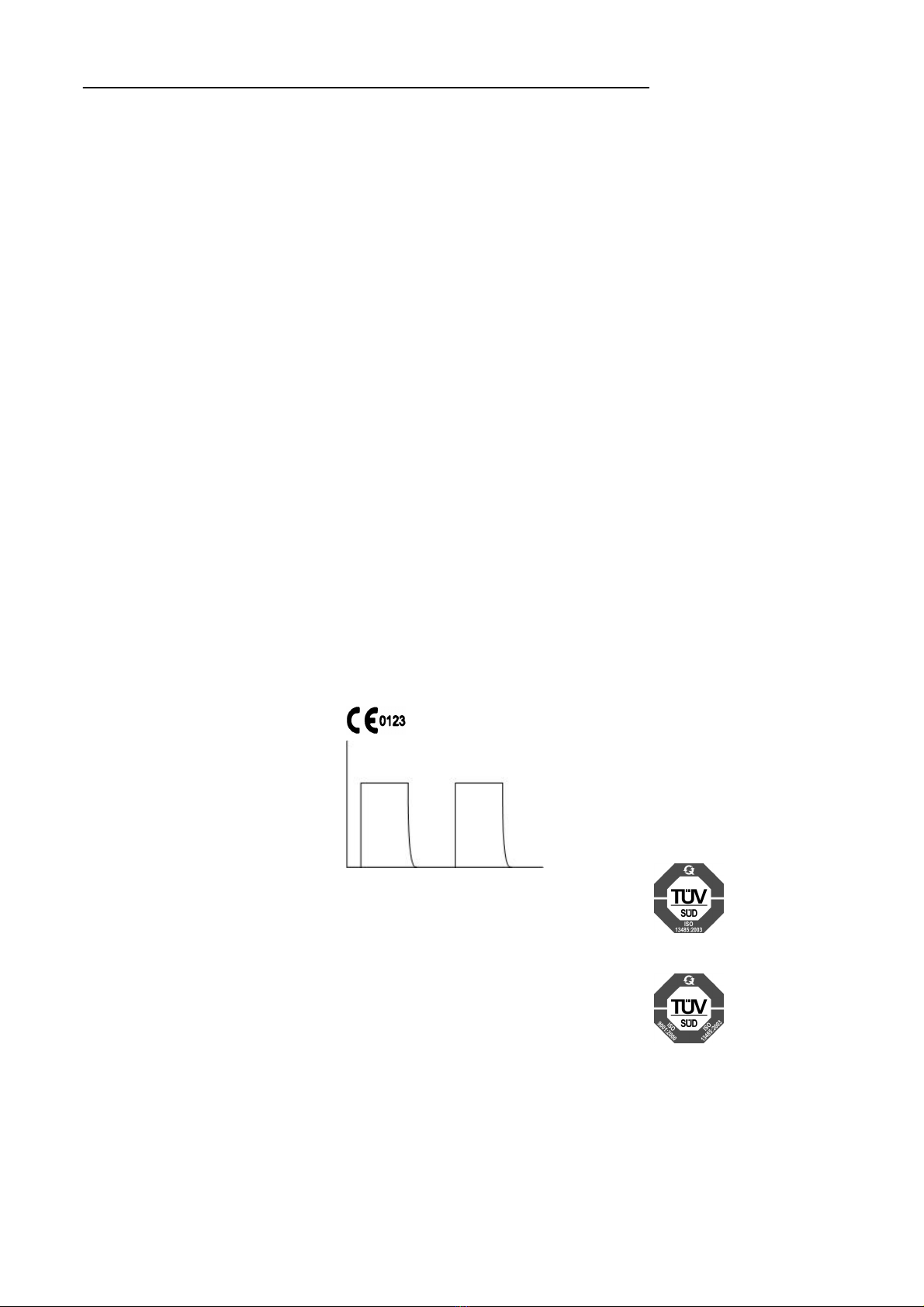

Output wave form
Manufacturer A.L.T. Lichttherapietechnik GmbH
Thura Mark 10
D-06780 Zörbig
Exclusive sales
Dr. K. Hönle Medizintechnik GmbH
Viktor-Frankl-Str. 20
D-86916 Kaufering
Tel.: [phone]
Fax: [phone]
E-Mail: [email protected]
http://www.drhoenle.de
(Subject to technical alterations!)
Download provided from Bindner Medical - https://www.bindner-medical.com/en/download/
Please verify your Idromed version!
This manual is from the Idromed 5 PS - version before Serial-No 160623001
for the Idromed 5 PS after SN 160623001 please click below:
https://www.bindner-medical.com/en/idro-5-ps-english-manual-5-pc-pulsedcurrent/
