Hoover UH70010 User manual

CYCLONIC
BAGLESS
UPRIGHT
OPERATING AND SERVICING INSTRUCTIONS
IMPORTANT:READCAREFULLY
BEFOREASSEMBLYAND USE.
Questions or concerns? For assistance,
please call Customer Service at
1-800-944-9200 Mon-Fri 8am-7pm EST
before returning this product to the store.
THIS PRODUCTIS INTENDEDFORHOUSEHOLDUSEONLY.
IF USEDCOMMERCIALLYWARRANTYISVOID.

Safety Instructions .................... 3
1. FEATURES ............................... 5
2. CARTON CONTENTS ................. 6
3. VACUUM CONTROLS ................. 7
4. HOW TO ASSEMBLE ................. 8
Attach Handle ..................................................... 8
Tool Storage ........................................................ 8
5. HOW TO OPERATE ................... 9
Carry Handle ...................................................... 9
Handle Release Pedal ........................................... 9
Handle Positions .................................................. 9
Select Proper Tools .............................................. 10
Attach Tools ......................................................... 1 0
Stair Cleaning ...................................................... 1 1
Embedded DirtFINDER TM ...................................... 1 1
6. GENERAL MAINTENANCE .......... 12
Dirt Cup .............................................................. 1 2
Cleaning Filters .................................................... 1 3
Primary Filter .................................................. 1 3
Umbrella Filter ................................................ 1 4
HEPA Filter ..................................................... 15
Brushroll .............................................................. 1 6
7. TROUBLESHOOTING GUIDE ........ 17
8. SERVICE .................................. 18
9. WARRANTY .............................. 19
OWNER'S INSTRUCTIONS
English pp. 1-20
Espa_ol pag. EI-E20
I e sure to register your product online at Hoover.corn
or call 1-800-944-9200 to register by phone.
WARNING:Product assemblymay include
smallparts.Smallpartscanpresenta chokinghazard.

SAVETHESEINSTRUCTIONS
When using an electrical appliance, basic precautions should always befollowed, including the following:
READALLINSTRUCTIONSBEFOREUSINGTHISAPPLIANCE.
WARNING:TOREDUCETHERISKOFFIRE,ELECTRICSHOCKORINJURY:
•Fully assemble before operating.
• Operatevacuum only at voltage specified on data label on the
underside of cleaner foot.
• Do not leave appliance when plugged in. Unplug from outlet
when not in useand before cleaning or servicing.
• Do not use outdoors or on wet surfaces.
• Donotallow to be usedas a toy. Notintendedfor use bychildren
age 12 and under. Close supervision is necessary when used
near children. To avoid injury or damage, keep children away
from product, and do not allow children to place fingers or other
objects into any openings.
• Use only as described in this manual. Use only manufacturer's
recommended attachments and products.
• Donot usewith damagedcordor plug.If applianceisnot working
asitshould,hasbeendropped,damaged,left outdoors,or dropped
intowater, take itto a servicecenter priorto continuing use.
• Do not pull or carry by cord, use cord as a handle, close a door
on cord, or pull cord around sharp edges or corners. Do not
place product on cord. Do not run appliance over cord. Keep
cord away from heated surfaces.
• Donot unplug by pulling on cord. Tounplug, grasp the plug, not
the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any
opening blocked; keepfree of dust, lint, hair, and anything that
may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away
from openings and moving parts.
• Turn off all controls before unplugging.
• Useextra carewhen cleaningon stairs.Toavoidpersonalinjury
or damage,and topreventthe cleanerfrom falling, always place
cleanerat bottomofstairson floor. Donotplacecleaneron stairs
or furniture,as it may result in injuryor damage.
• Do not use to pick up flammable or combustible liquids, such
as gasoline,or fine wood sandings, or use in areaswhere they
may be present.
• Do not pick up anything that is burning or smoking, such as
cigarettes, matches, or hot ashes.
• Do not use without dirt cup and/or filters in place.
• WARNING:Thisproduct containschemicals known tothe State
of California to cause cancer, birth defects or reproductive
harm. WASHHANDSAFTERHANDLING.

CAUTION-TOREDUCETHERISKOF
DAMAGE:
•Avoid picking up hard, sharp objects with this product, as they
may cause damage.
• Store in a dry place. Do not expose machine to freezing
temperatures.
• Do not use sharp objects to clean out hose as they can cause
damage.
WARNING:
• To reduce the risk of electric shock, this appliance has a
polarized plug (one blade is wider than the other). This plug
will fit in a polarized outlet only one way. If the plug does
not fit fully in the outlet, reverse the plug. If it still doesnot
fit, contact a qualified electrican to install the proper outlet.
Donot change the plug in any way.

] Handle Grip
2 Power Button
3 Floor Selector Button
4 Floor Selector Indicator Light
.5 Dirt Cup Release Button
6 Stretch Hose
7Wand Handle
8 Primary Filter Access Button
(Filter located above dirt cup)
9 Carrying Handle
] 0 Dusting/Upholstery Tool
] Dirt Cup
] 2 Crevice Tool
]3 Handle Release Peda
]4 Headligm
].5 Embedded DirtFINDER-
Available on select moaels on j
]6 Furniture Guard
]7Access to filter made _vltn HEPA meala
,Filter oca_ea unaer alrt cud
]

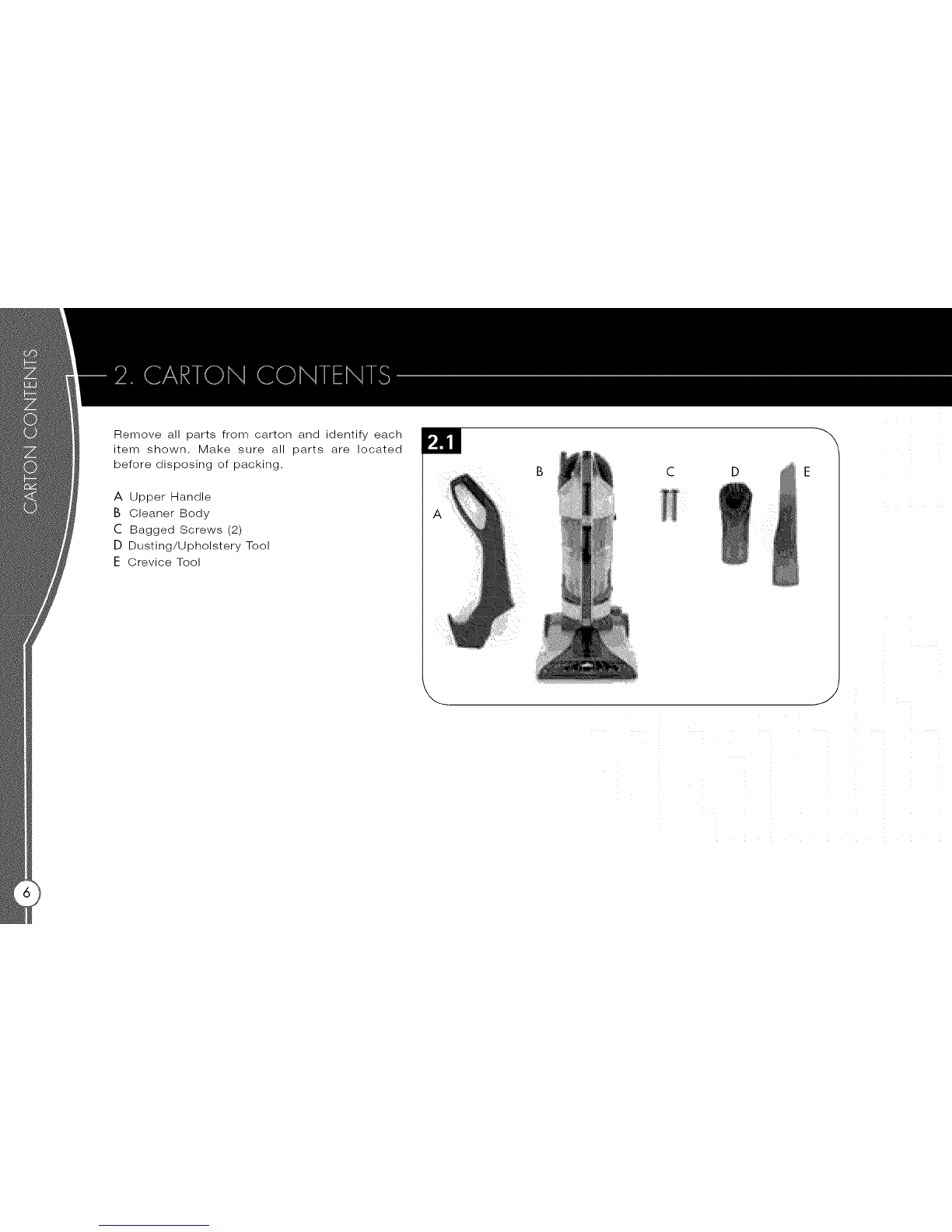

Remove all parts from carton and identify each
item shown. Make sure all parts are located
before disposing of packing.
A Upper Handle
B Cleaner Body
([ Bagged Screws (2)
D Dusting/Upholstery Tool
E Crevice Tool
WD

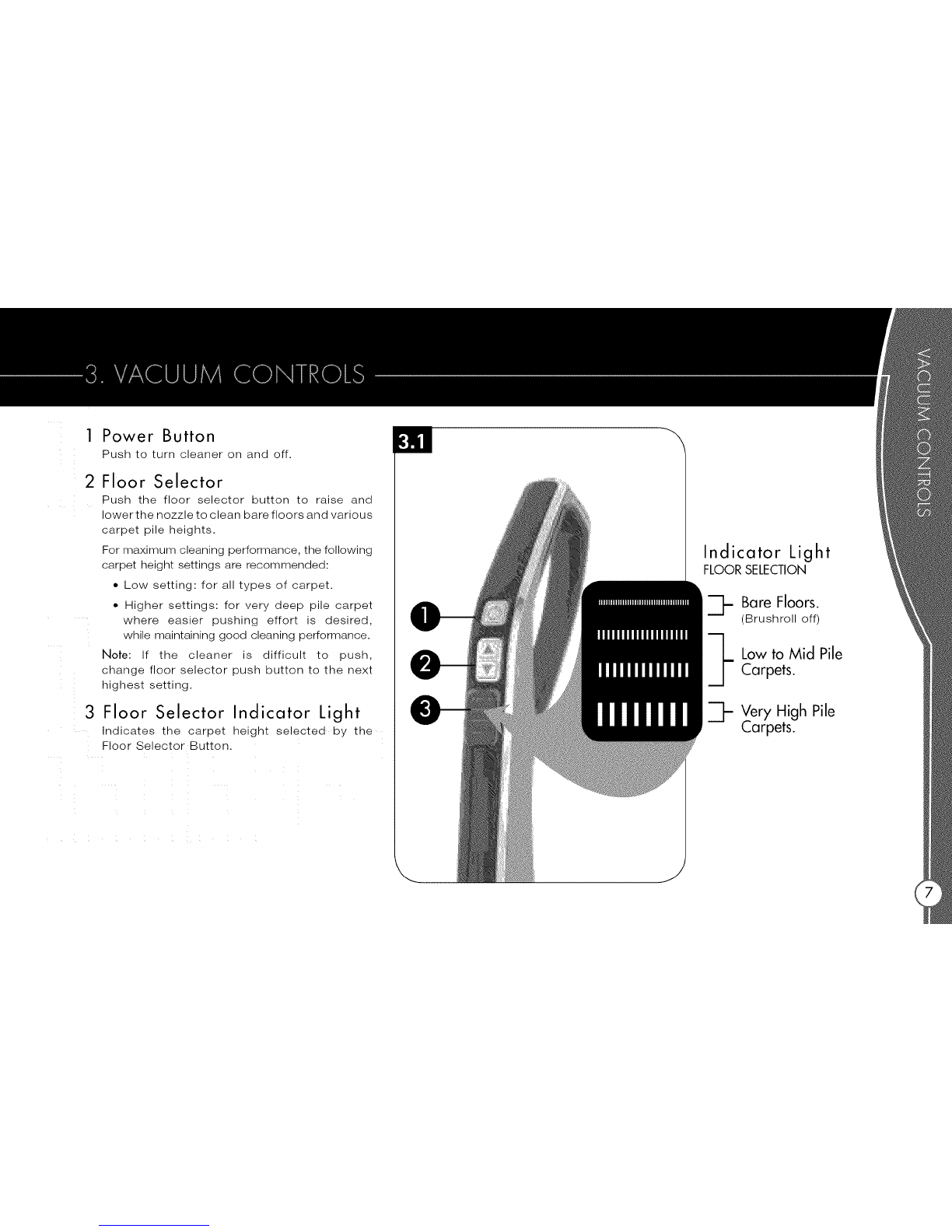

1 Power Button
Push to turn cleaner on and off.
2 Floor Selector
Push the floor selector button to raise and
lower the nozzle to clean bare floors and various
carpet pile heights.
For maximum cleaning performance, the following
carpet height settings are recommended:
• Low setting: for all types of carpet.
• Higher settings: for very deep pile carpet
Nnere easier pusnng effort is desired,
wme maintaining gooc cleaning oerformance.
Note: If tne cleaner s difficult to push,
cnange floor selector ousn _)uttor to the next
nlgnest setting.
3 Floor Selector Indicator Light
indicates tne carL)e_ nelgnt selected D the
Floor Selector Button.
!111
Indicator Light
FLOORSELECTION
_- Bare Floors.
(Brushroll off)
_Low to Mid Pile
Carpets.
Very High Pile
Carpets.

Attach Handle
4.1 Slide upper handle down into cleaner body.
4.2 Insert the (2) screws provided into the handle
where indicated in the figure.
4.3 Tighten with screwdriver.
Tool Storage
4.4 A. Dusting/Upholstery Tool storage.
B. Crevice Tool storage.
Cord Storage
4.5 Wrap the cord in a clockwise direction
around the two cord hooks (C). Attach the plug
end to the cord (D).

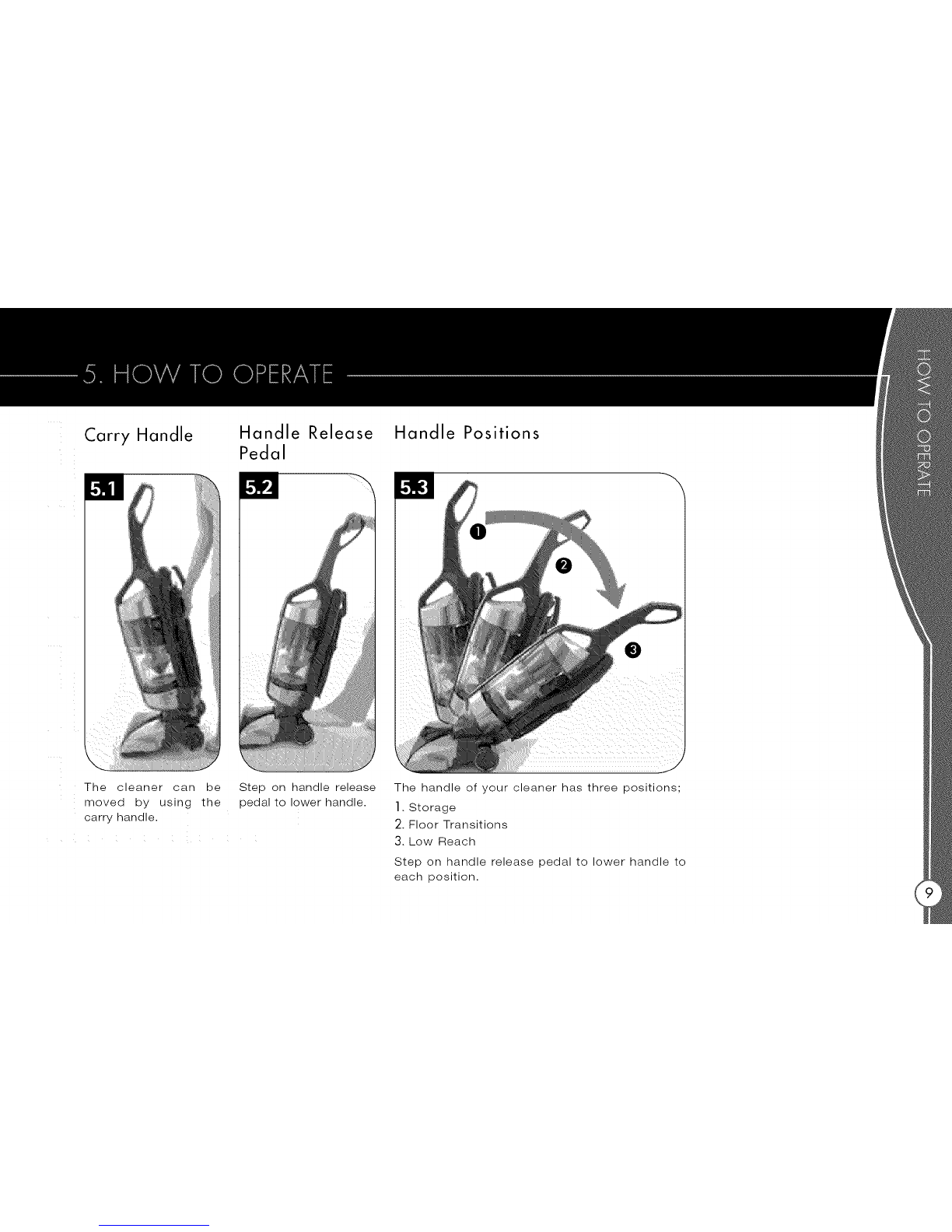

Carry Handle Handle Release Handle Positions
Pedal
The cleaner can be
moved by using the
carry handle.
Step on handle release
pedal to lower handle.
@
The handle of your cleaner has three positions;
]. Storage
2. Floor Transitions
3. Low Reach
Step on handle release pedal to lower handle to
each position.

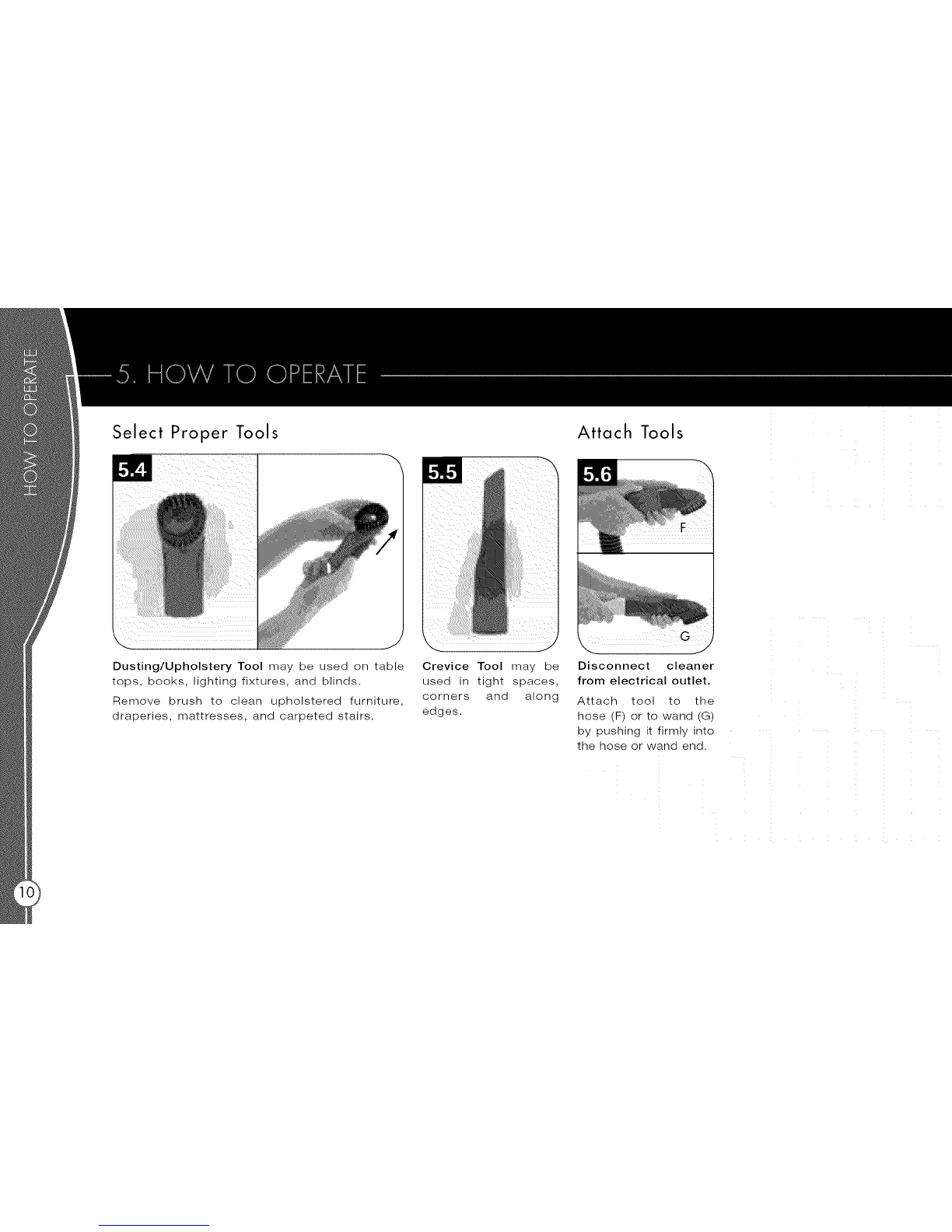

Select Proper Tools
Dusting/Upholstery Tool may be used on table
tops, books, lighting fixtures, and blinds.
Remove brush to clean upholstered furniture,
draperies, mattresses, and carpeted stairs.
Crevice Tool may be
used in tight spaces,
corners and along
edges.
Attach Tools
G
\ J
Disconnecl cleaner
from electrical outlet.
Attach too [o tne
nose /_ or to wana (G_
Dy pusnlng t firmly nto
tne qose or wand ena

Stair Cleaning
Use the wand and the Dusting/Upholstery Tool for
stair cleaning. Clean from bottom to top.
CAUTION: Use extra care when cleaning on stairs.
To avoid personal injury or damage, and to prevent
the cleaner from falling, always place cleaner at
bottom of stairs or on floor. Do not place cleaner
on stairs or furniture, as it may result in injury
or damage.
Embedded DirtFINDER TM
(Available on select models only)
With red and green lights, the Embedded
DirtFINDER TM system alerts the user to areas of
carpet that may need more cleaning attention.
it is able to sense when embedded dirt is being
removed. The clean light (green) will remain on
throughout cleaning except when the detector
senses that a larger amount of dirt is being picked
up; then the dirty light (red) will come on. When the
dirty light is on, you should take additional cleaning
strokes in the area until it changes to clean (green).

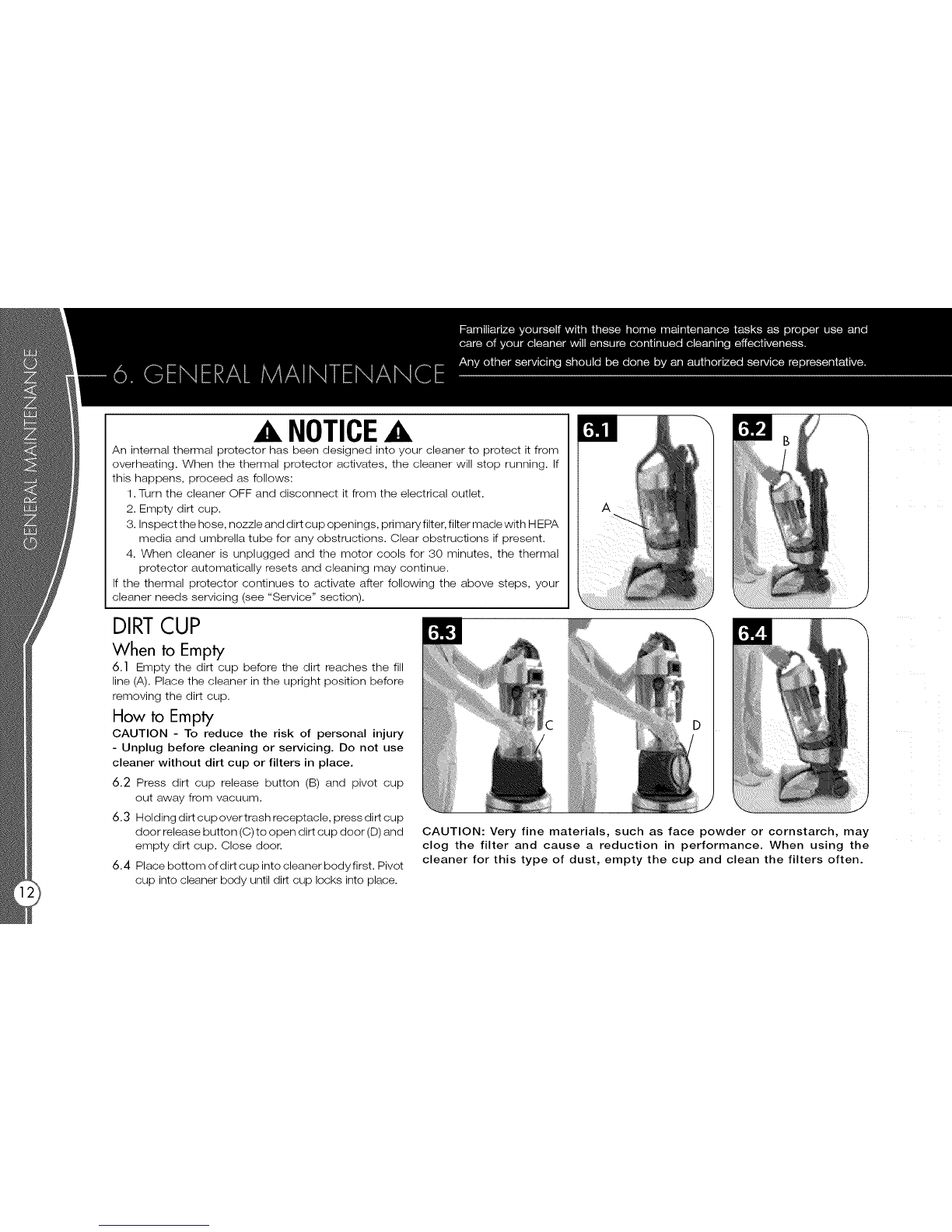

A NOTICE
An internal thermal protector has been designed into your cleaner to protect it from
overheating. When the thermal protector activates, the cleaner will stop running. If
this happens, proceed as follows:
1. Turn the cleaner OFF and disconnect it from the electrical outlet.
2. Empty dirt cup.
3. Inspect the hose, nozzle and dirt cup openings, primary filter, filter made with H EPA
media and umbrella tube for any obstructions. Clear obstructions if present.
4. When cleaner is unplugged and the motor cools for 30 minutes, the thermal
protector automatically resets and cleaning may continue.
If the thermal protector continues to activate after following the above steps, your
cleaner needs servicing (see "Service" section).
DIRT CUP
When to Empty
6.1 Empty the dirt cup before the dirt reaches the fill
line (A). Place the cleaner in the upright position before
removing the dirt cup.
How to Empty
CAUTION - To reduce the risk of personal injury
- Unplug before cleaning or servicing. Do not use
cleaner without dirt cup or filters in place.
6.2 Press dirt cup release button (B) and pivot cup
out away from vacuum.
6.3 Holding dirt cup over trash receptacle, press dirt cup
door release button (C) to open dirt cup door (D) and
empty dirt cup. Close door.
6.4 Place bottom of dirt cup into cleaner body first. Pivot
cup into cleaner body until dirt cup locks into place.
CAUTION: Very fine materials, such as face powder or cornstarch, may
clog the filter and cause a reduction in performance. When using the
cleaner for this type of dust, empty the cup and clean the filters often.

6.9

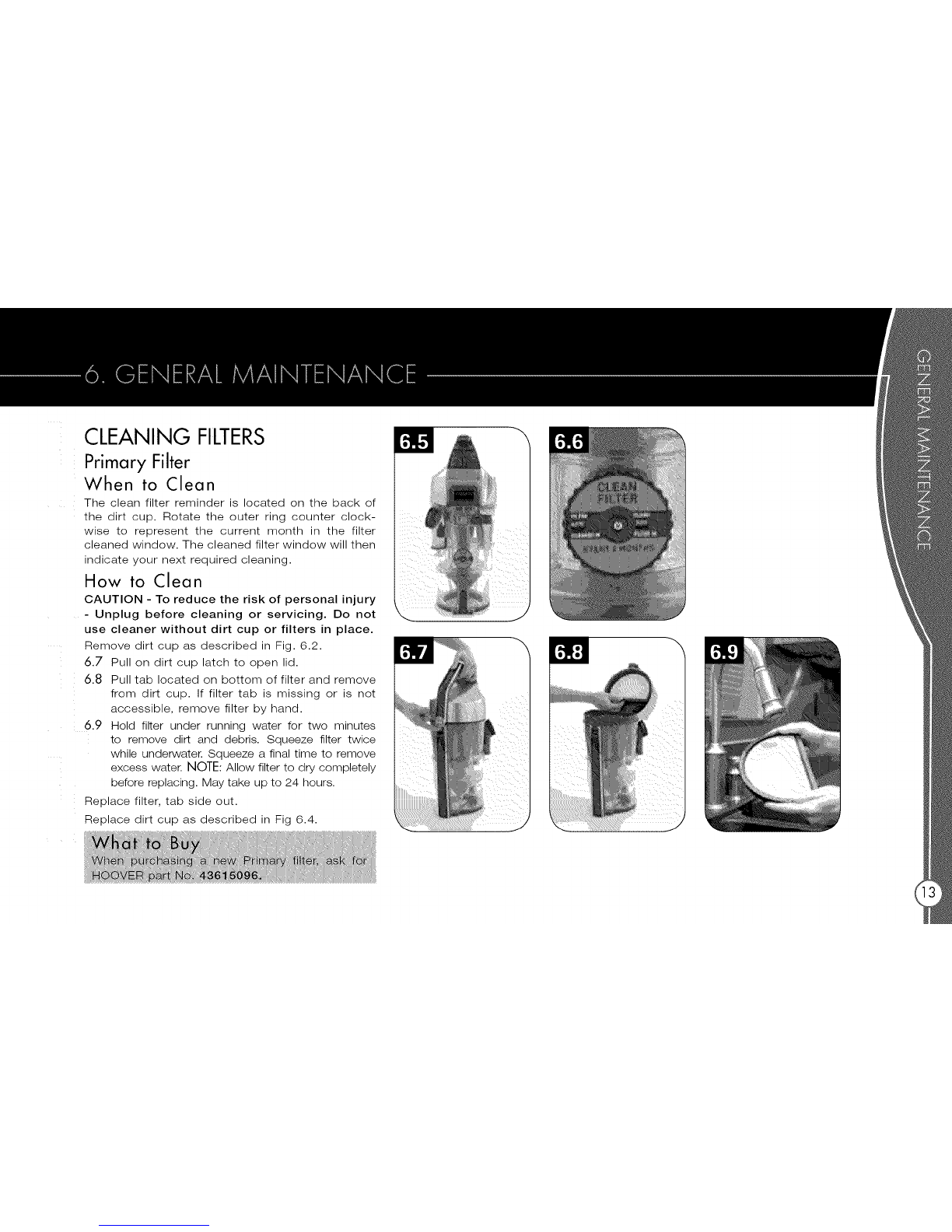

CLEANING FILTERS
Primary Filter
When to Clean
The clean filter reminder is located on the back of
the dirt cup. Rotate the outer ring counter clock-
wise to represent the current month in the filter
cleaned window. The cleaned filter window will then
indicate your next required cleaning.
How to Clean
CAUTION - To reduce the risk of personal injury
- Unplug before cleaning or servicing. Do not
use cleaner without dirt cup or filters in place.
Remove dirt cup as described in Fig. 6.2.
6.7 Pull on dirt cup latch to open lid.
6.8 Pull tab located on bottom of filter and remove
from dirt cup. If filter tab is missing or is not
accessible, remove filter by hand.
Hold filter under running water for two minutes
to remove dirt and debris. Squeeze filter twice
while underwater. Squeeze a final time to remove
excess water. NOTE: Allow filter to dry completely
before replacing. May take up to 24 hours.
Replace filter, tab side out.
Replace dirt cup as described in Fig 6.4.

CLEANING FILTERS
Umbrella Tube
When to Clean
Check Umbrella tube on a monthly basis and clean
when it is wrapped with debris.
How to Clean
CAUTION - To reduce the risk of personal injury
- Unplug before cleaning or servicing. Do not
use cleaner without dirt cup or filters in place.
Remove dirt cup as described in Fig. 6.2.
6.]0 Press red dirt cup door release button (O) to
open dirt cup door.
6.]] Twist Umbrella tube left and remove from
bottom of the dirt cup.
6.]2 Hold filter over trash receptacle and remove
dirt and debris.
Replace Umbrella tube in bottom of dirt cup and
twist right.

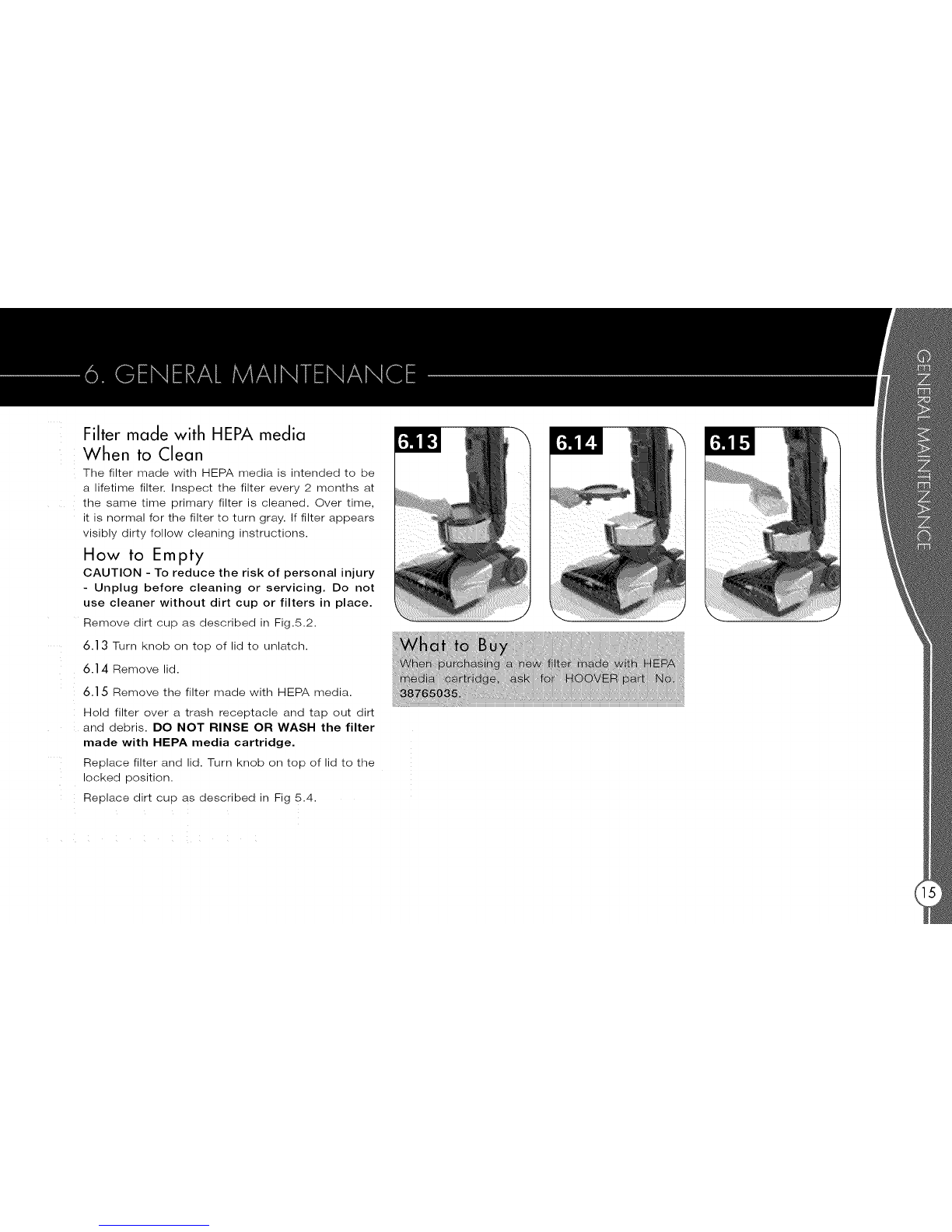

Filter made with HEPA media
When to Clean
The filter made with HEPA media is intended to be
a lifetime filter. Inspect the filter every 2 months at
the same time primary filter is cleaned. Over time,
it is normal for the filter to turn gray. If filter appears
visibly dirty follow cleaning instructions.
How to Empty
CAUTION - To reduce the risk of personal injury
- Unplug before cleaning or servicing. Do not
use cleaner without dirt cup or filters in place.
Remove dirt cup as described in Fig.5.2.
6.13 Turn KnoIo on tOlO of (3 to unlatch.
6.14 Remove a.
6.15 Remove tne filter _nade wltn HEPA media.
Holc filter over a trash receotacle and tap out dirt
ana aeDrls. DO NOT RINSE OR WASH the filter
made with HEPA media cartridge.
Replace filter ana a. Turn KnoIo on top of lid to the
IocKecI iOOSltlOn.
Reolace alrt cup as aescriDea in Fig 5.4.

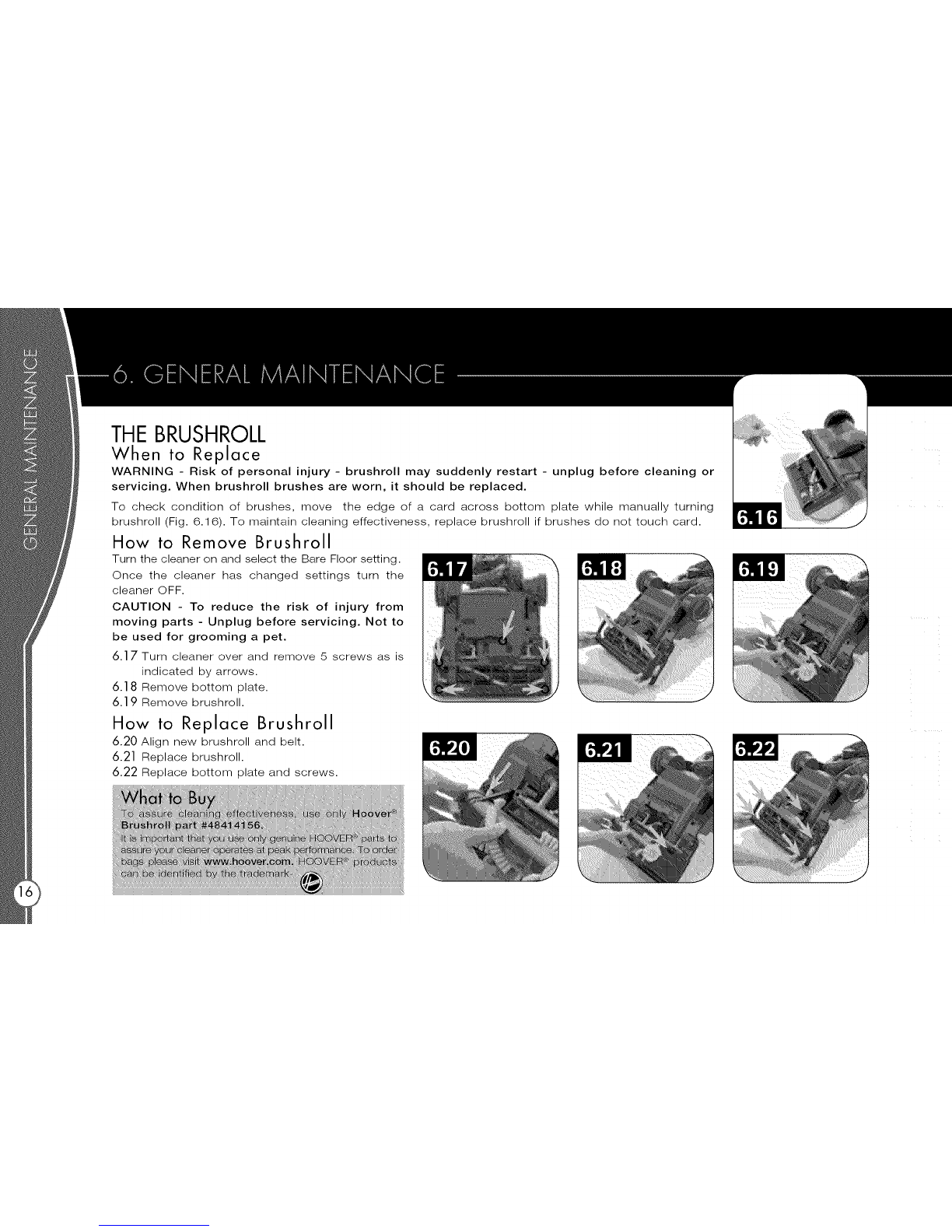

THEBRUSHROLL
When to Replace
WARNING - Risk of personal injury - brushroll may suddenly restart - unplug before cleaning or
servicing. When brushroll brushes are worn, it should be replaced.
To check condition of brushes, move the edge of a card across bottom plate while manually turning
brushroll (Fig. 6.1 6). To maintain cleaning effectiveness, replace brushroll if brushes do not touch card.
How to Remove Brushroll
Turn the cleaner on and select the Bare Floor setting.
Once the cleaner has changed settings turn the
cleaner OFF.
CAUTION - To reduce the risk of injury from
moving parts - Unplug before servicing. Not to
be used for grooming a pet.
6.17 Turn cleaner over and remove 5 screws as is
indicated by arrows.
6.] 8 Remove bottom plate.
6.] 9 Remove brushroll.
How to Replace Brushroll
6.20 Align new brushroll and belt.
6.2] Replace brushroll.
6.22 Replace bottom plate and screws.

WARNING: TO REDUCE RISK OF PERSONAL INJURY
PROBLEM
Cleaner won't run.
UNPLUG CLEANER BEFORE SERVICING CLEANER.
POSSIBLECAUSE POSSIBLESOLUTION
No voltage in wall plug F_er)lace fuse or reset circuit
Disconnect cleaner from electrical outlet. Turn (;leaner over and remove any debris
that have accumulated on the brushroll.
Dirt cup full. Empty dirt cup.
Blockage in system Clear blockage.
Dirt cup full. Empty dirt cup.
Blockage in system. Clear blockage.
Broken or worn belt. Replace bolt.
Brushroll is obstructed. Turn cleaner off and disconnect from electrical outlet, furn (;leaner over and
remove any debris that have accumulated on the brushroll.
Agitator brushroll
brushes aren't turning.
Cleaner wont pick
up.
Cleaner hard to
3ush.
Cleaning tools won't
pick up.
Poweredpet hair
cleaninq tool agitator
brushroll won't turn.
Power Button Flashing.
Needs service. [_ke to service center ]o find nearest location, visit our website at hoovercom or
(;all 1 -8776975866. Monday through Friday 8am 5pro ESI
ANY OTHER SERVICING SHOULD BE DONE BYAN AUTHORIZED SERVICE REPRESENTATIVE.
Exclusive Hoover Platinum Collection ®Member Services Line 1.877.MYPLTNM (1.877.697.5866)
In the event thFlt further assistance is required, see your Yellow Pages tot an authorized HOC)VER ® Dealer er visit our website Fit www.hoover.com. Costs of any tmnspoRation to
and from any place of repair are to be paid by the owner. The ee/vice parts used in this unit are easily replaced and readily available from an authorized HOOVER <_Dealer or retailer.
Always identify your cleaner by the model number and manutactudng code when requesting intormF/tion or ordering replacement parts. (The model number appears on the bol_om
of the cleaner.)

Service Information
To obtain approved Hoover ® service and genuine Hoover ® parts, locate the
nearest Hoover ® Sales and Service Center or Authorized Hoover ® Warranty
Service Dealer (Depot) by:
• checking the Yellow Pages under "Vacuum Cleaners - Household" OR -
• checking the Service section of on-line at www.hoover.com OR -
• call 1-800-944-9200 for an automated referral of authorized service
outlet locations (U.S. only).
Do not send your cleaner to Hoover, Inc., in Glenwillow for service, this will
only result in delay.
If further assistance is needed, contact the Exclusive Hoover Platinum
Collection ® Member Services Line 1.877.MYPLTNM (1.877.697.5866), Mon-
Fri 8am-5pm EST.
Always identify your cleaner by the complete model number when requesting
information or ordering parts. (The model number appears on the Data Plate
on the bottom of the cleaner foot.)

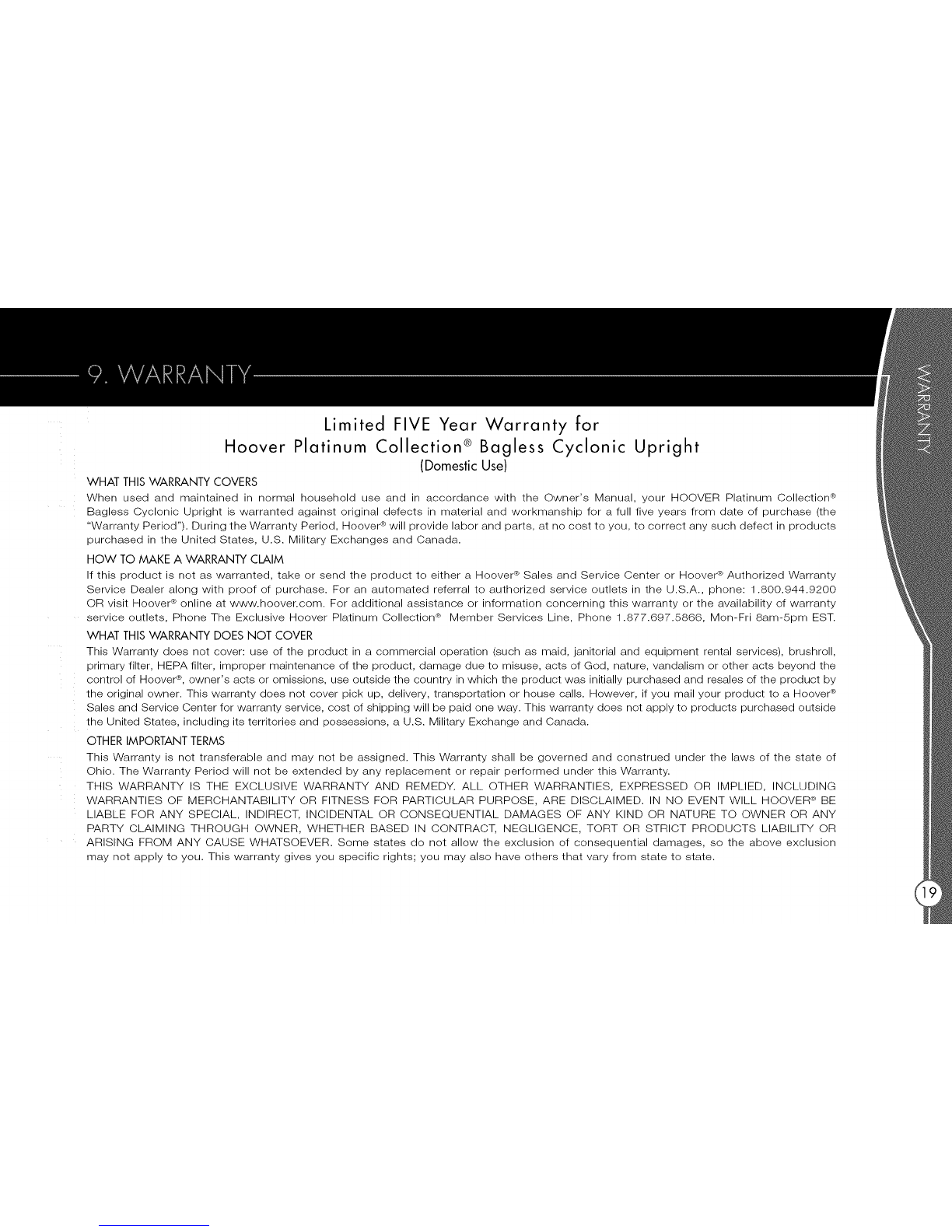

Limited FIVE Year Warranty for
Hoover Platinum Collection ® Bagless Cyclonic Upright
(Domestic Use)
WHAT THIS WARRANTY COVERS
When used and maintained in normal household use and in accordance with the Owner's Manual, your HOOVER Platinum Collection ®
Bagless Cyclonic Upright is warranted against original defects in material and workmanship for a full five years from date of purchase (the
"Warranty Period"). During the Warranty Period, Hoover ® will provide labor and parts, at no cost to you, to correct any such defect in products
purchased in the United States, U.S. Military Exchanges and Canada.
HOW TO MAKE A WARRANTY CLAIM
If this product is not as warranted, take or send the product to either a Hoover cB'Sales and Service Center or Hoove¢ B'Authorized Warranty
Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone]
OR visit Hoover ® online at www.hoover.com. For additional assistance or information concerning this warranty or the availability of warranty
service outlets, Phone The Exclusive Hoover Platinum Collection _ Member Services Line, Phone [phone], Mon-Fri 8am-5pm EST.
WHAT THIS WARRANTY DOES NOT COVER
This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), brushroll,
primary filter, HEPA filter, improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the
control of Hoover% owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by
the original owner. This warranty does not cover pick up, delivery, transportation or house calls. However, if you mail your product to a Hoover ®
Sales and Service Center for warranty service, cost of shipping will be paid one way. This warranty does not apply to products purchased outside
the United States, including its territories and possessions, a U.S. Military Exchange and Canada.
OTHER IMPORTANT TERMS
This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of
Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty.
THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY. ALL OTHER WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL HOOVER _ BE
LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY
PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR
ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion
may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

CYCLONIC
BAGLESS
UPRIGHT

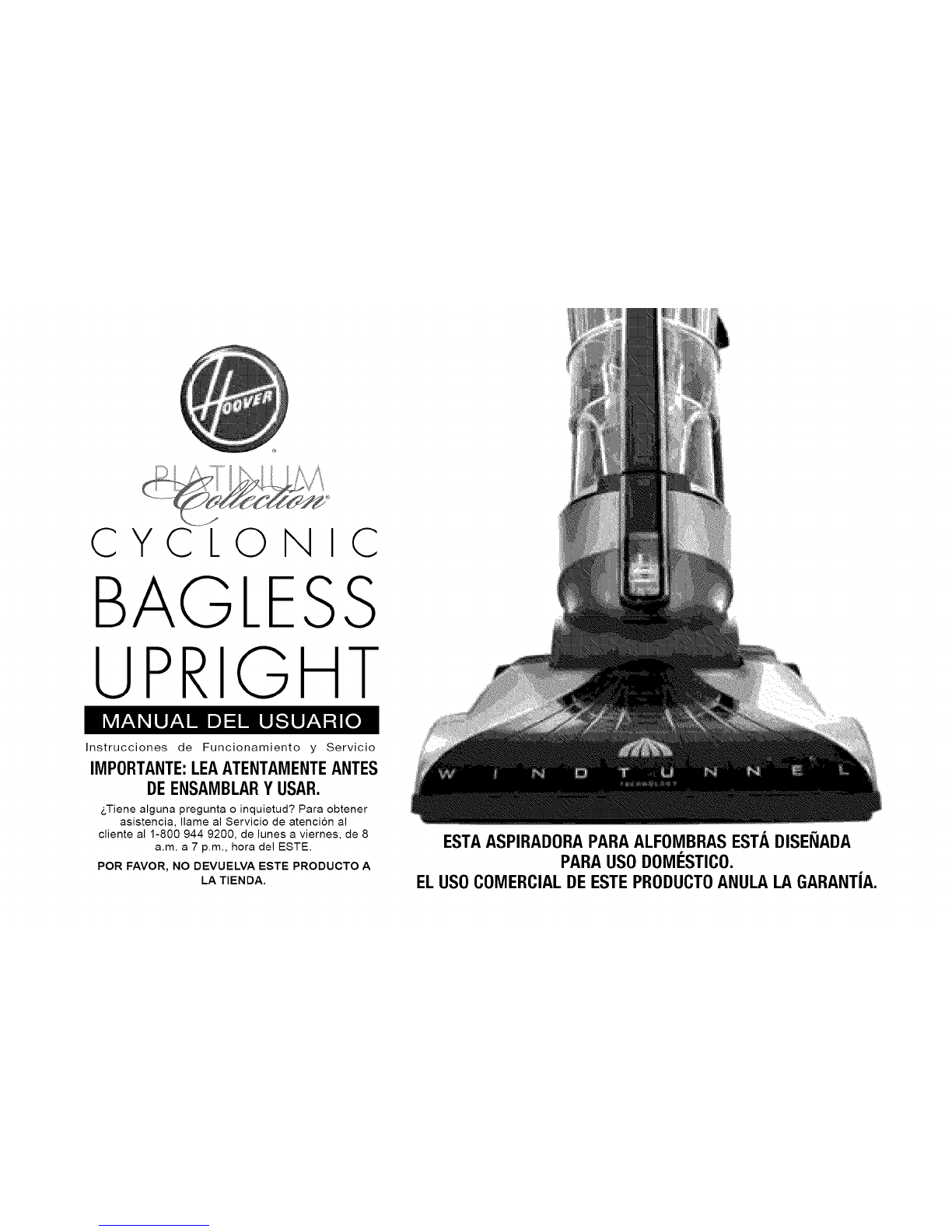

Instrucciones de Funcionamiento y Servicio
IMPORTANTE:LEAATENTAMENTEANTES
DEENSAMBLARY USAR.
4,Tiene alguna pregunta oinquietud? Para obtener
asistencia, Ilame al Servicio de atenci6n al
cliente al 1-800 944 9200, de lunes a viernes, de 8
a.m. a 7 p.m., hora del ESTE.
POR FAVOR, NO DEVUELVA ESTE PRODUCTO A
LA TIENDA.
ESTAASPIRADORAPARAALFOMBRASESTADISENADA
PARAUSODOMESTICO.
EL USOCOMERCIALDEESTEPRODUCTOANULA LAGARANTIA.
