Hoover RDSV685PN User manual

ENGLIS
H
INSTALLATION AND USER’S MANUAL
FRENC
H
NOTICE D’INSTALLATION ET
D’UTILISATION
ITALIAN
MANUALE D’ISTRUZIONE
1

INSTALLATION AND USER’S MANUAL
CONTENT
INTRODUCTION 03
SAFETY PRECAUTION 03
SPECIFICATION 05
INSTALLATION (VENT OUTSIDE) 06
INSTALLATION (VENT INSIDE) 10
DESCRIPTION OF COMPONENTS 11
OPERATION 11
MAINTENANCE 13
TROBULESHOOTING 14
CONFORMITY WITH DIRECTIVES 15
ENVIRONMENTAL PROTECTION 15
2

INTRODUCTION
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the appliance.
In order to operate the unit correctly and safety, please read this instruction
manual carefully before installation and usage.
The cooker hood uses high quality materials, and is made with a streamlined
design. Equipped with large power electric motor and centrifugal fan, it also
provides strong suction power, low noise operation, non-stick grease filter and
easy assembly installation.
SAFETY PRECAUTION
Never let the children operate the machine.
The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purpose.
The cooker hood and its filter should be clean regularly in order to
keep in good working condition.
Clean the cooker hood according to the instruction manual and keep
the unit from danger of burning.
Forbid the direct baking from the gas cooker.
Please keep the kitchen room a good convection.
Before connecting this appliance check that the power supply cord is
not damaged. A damage supply cord must be replaced by qualified
service personnel only.
There shall be adequate ventilation of the room when the range hood
is used at the same time as appliances burning gas or other fuels;
The air must not be discharged into a flue that is used for exhausting
fumes from appliances burning gas or other fuels;
•Regulations concerning the discharge of air have to be fulfilled.
•
•Children should be supervised to ensure that they do not play with the
appliance.
•Do not flambé under the range hood.
•The range hood is not intended to be installed over a hob having more
than four hob elements
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet. If in doubt seek
advice from a suitably qualified engineer.
Failure to follow these instructions can result in death, fire, or
electrical shock.
3

4

Standard Installation Accessories List
Spec.
Illustration Picture
Qty
Casing
1
Upper Chimney
1
Lower Chimney
1
Lower chimney bracket
1
Upper chimney bracket
1
Hanging Board
1
φ8 rawl plugs
φ8×φ6 white color
9
Screws
ST4.0×30
9
φ7.2screws
ST4.0×8
2
#
#
#
#
#
#
#
#
!
5

INSTALLATION （wall mounting）
If you have an outlet to the outside, your cooker hood can be connected as
below picture by means of an extraction duct (enamel, aluminum, flexible pipe
non flammabe with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.

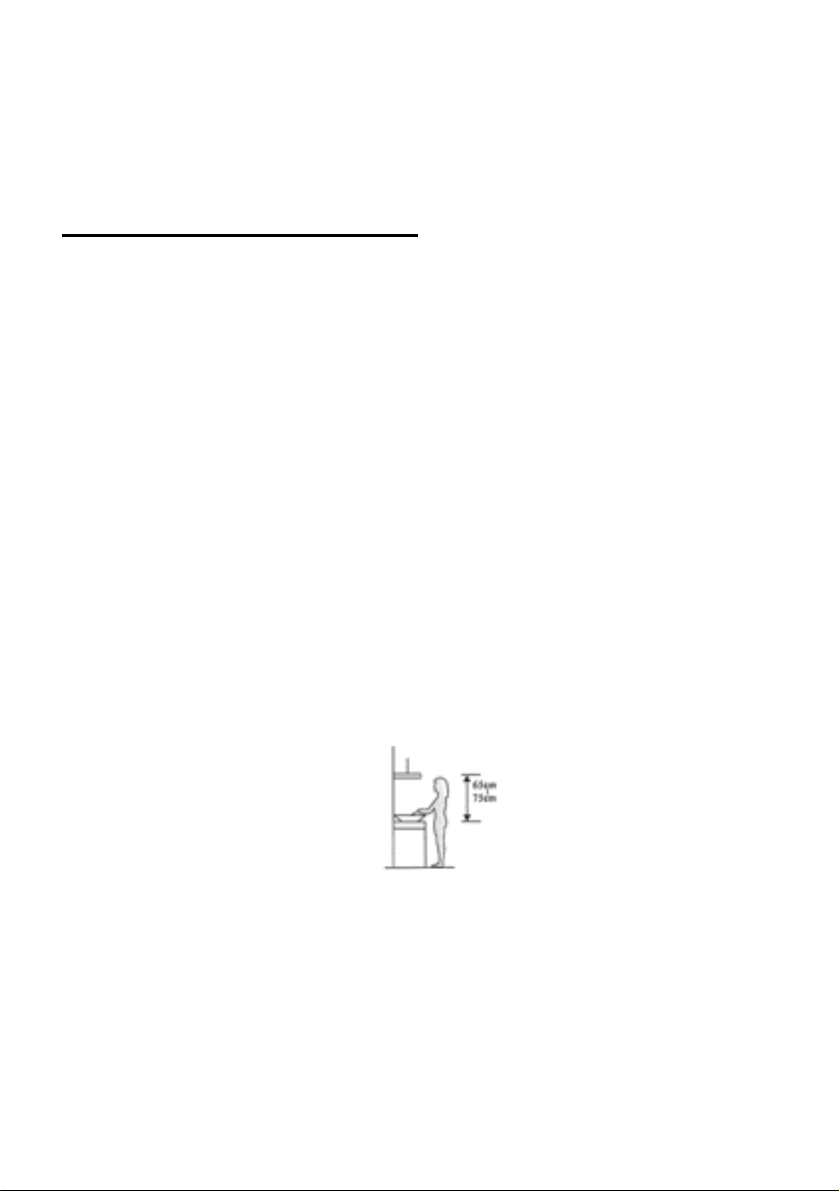

2. The cooker hood should be placed at a distance of 65~75cm above
the cooking plane for best effect.
#
3. Drill 3 x 8mm holes to accommodate the bracket. Screw and tighten
the bracket onto the wall with the screws provided.
Wall plug
6

Wall bracket
107.5
mm
Screw(4mm x 30mm)
7

4. Leave up the cooker hood and hang onto the wall bracket hook.
Cooker hook
Wall
bracket
#
5. Fix the one-way-valve to the air outlet of the cooker hood. Then,
attached the exhaust pipe onto the one-way-valve as shown below.
Exhaust pipe
Cooker hood
8

6.
i. Place the glass in appropriate position on the top the cooker
hood.
ii. Fix with 4 screws and washer. In order to avoid the glass
cracking, please do not tighten the screws too strongly.

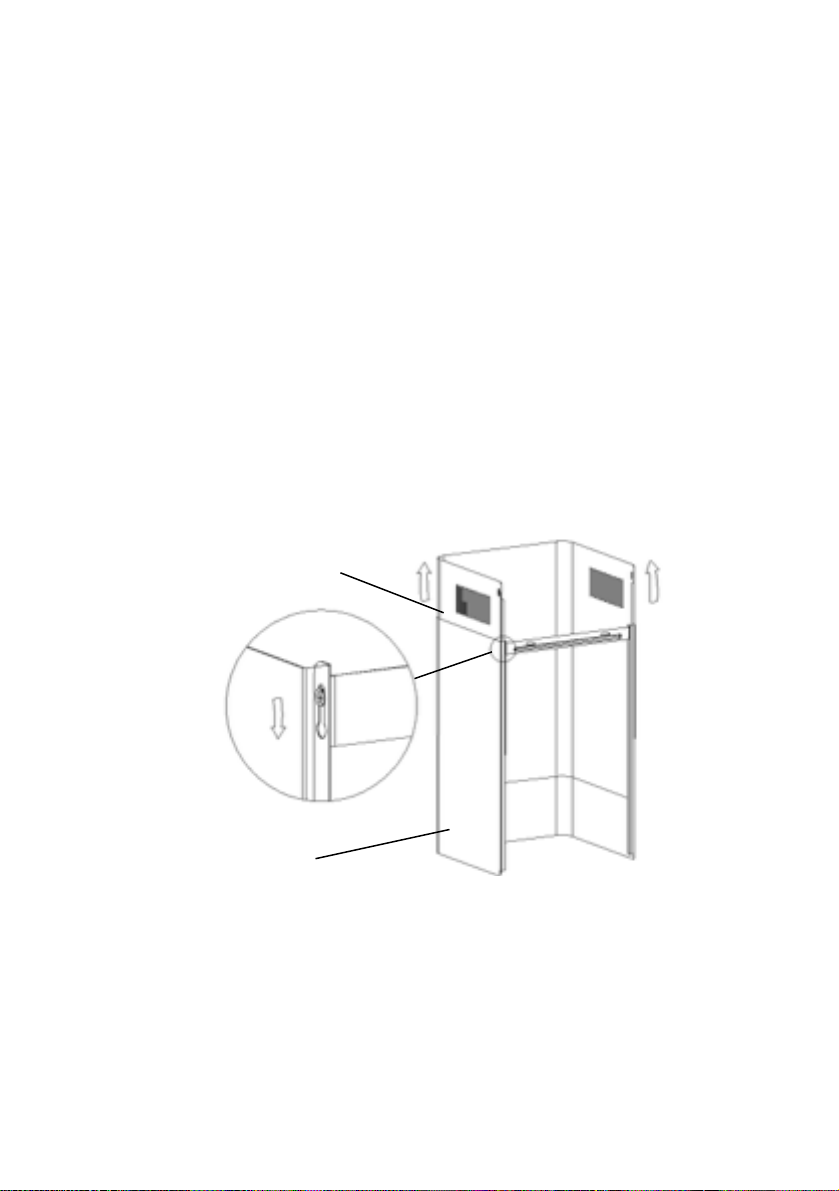

i. By Put the inner chimney into outer chimney .Then pulling out
the inner chimney upwards. Adjust to reach the height required.
ii. Sliding the chimney to adjust the chimney height. When the
height you required is reached, then hang the fixing hole to the
fixing screws as showed in below pictures.
Inner chimney
Outer
chimney
9

8.
i. Drill 2 x 8mm holes to accommodate the plate II. Screw and
tighten the plate II onto the wall with 2 screws provided.
ii. Assembly the chimney onto the unit and fix it with 2 screws.
Plate II
Wall plug
Screw
4mm x 8mm
Screw
(4mm x 30mm)!
10
