Hoover HADD9SS6B User manual

HADD9SS6B
Cooker Hood
Instruction Manual
ENGLISH(EN).............................................................................. page 001
CZECH(CS)................................................................................. page 013
FRENCH(FR)............................................................................... page 025
ITALIAN(IT) ................................................................................. page 037
SLOVAK(SK)............................................................................... page 049
POLISH (PL)................................................................................ page 061
ESPAÑOL (ES)............................................................................ page 073
PORTUGUÊS (PT) ...................................................................... page 085
GERMAN(DE).............................................................................. page 097
ROMÂNĂ (RO) ..........................................................................pagina 109

Cooker Hood
Instruction Manual
1
HADD9SS6B

Content
1…………………………………..………………………………Safety instructions
2…………………………………..………………………………Installation
3…………………………………..………………………………Start using your cooker hood
4…………………………………..………………………………Troubleshooting
5…………………………………..………………………………Maintenance and cleaning
6…………………………………..………………………………Environment protection
2

SAFETY INSTRUCTIONS
This manual explains the proper installation and use of your cooker hood,
please read it carefully before using even if you are familiar with the product.
The manual should be kept in a safe place for future reference.
Never to do:
● Do not try to use the cooker hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.

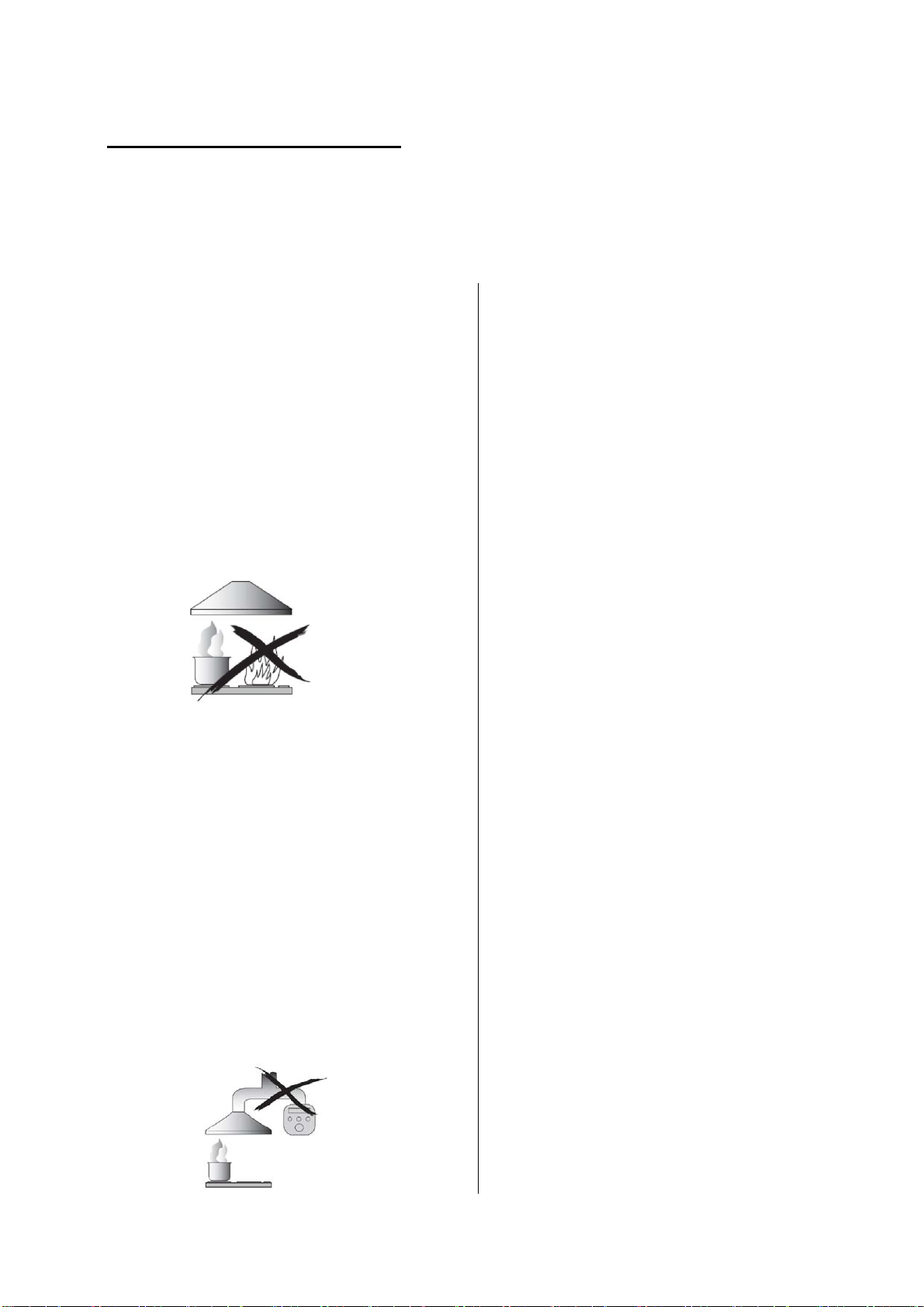

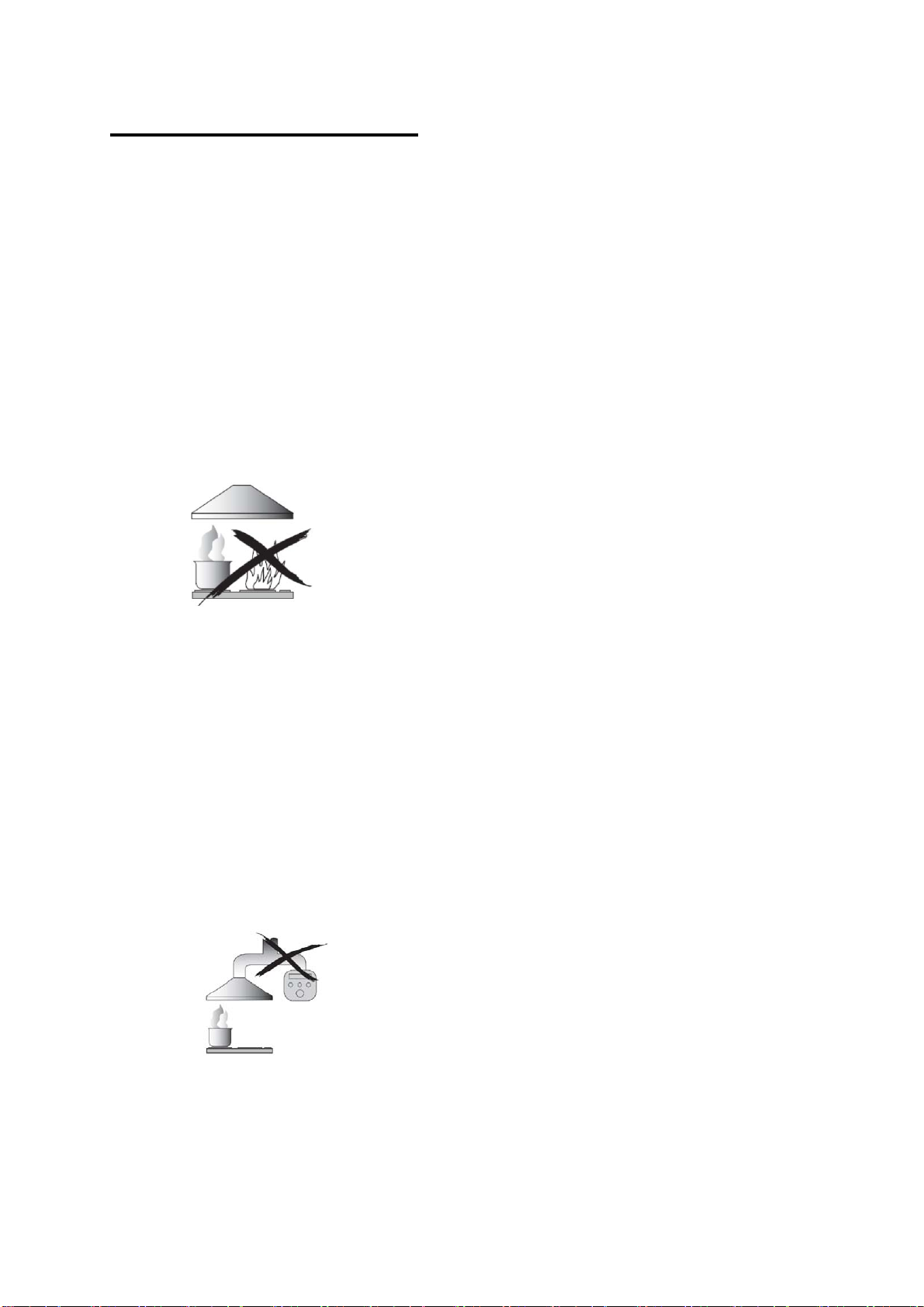

●Never leave naked flames under the
cooker hood.
●If the cooker hood is damaged, do not
attempt to use.
●Do not flambé under the cooker hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the cooker hood. (When the cooker
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels.
Always to do:
● Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The cooker hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent person or qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
● Pay attention to the sharp edges
inside the cooker hood especially
during installation and cleaning.
●When the cooker hood is located
above a gas appliance,the minimum
distance between the supporting
surface for the cooking vessels on the
hob and the lowest part of the cooker
hood that distance must be:
Gas cookers: 75 cm
Electric cookers: 65 cm
Coal or oil cookers: 75 cm
●Make sure the ducting has no bends
sharper than 90 degrees as this will
reduce the efficiency of the cooker
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.
3

Always to do:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the cooker
hood. Please make sure that proper
ventilation measures are being
observed. The cooker hood removes
odours from room but not steam.
●Cooker hood is for domestic use only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
appliance in a safe way and
understand the hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Always to do:
● Caution: The appliance and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
● There shall be adequate ventilation of
the room when the cooker hood is
used at the same time as appliances
burning gas or other fuels.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your appliance periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the cooker hood and
appliances supplied with energy other
than electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●A steam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. with a lid or a
fire blanket.
4

INSTALLATION (VENT OUTSIDE)
If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or inflammable
material with an interior diameter of 150mm)
Before installation, turn the unit off and unplug it from the outlet.

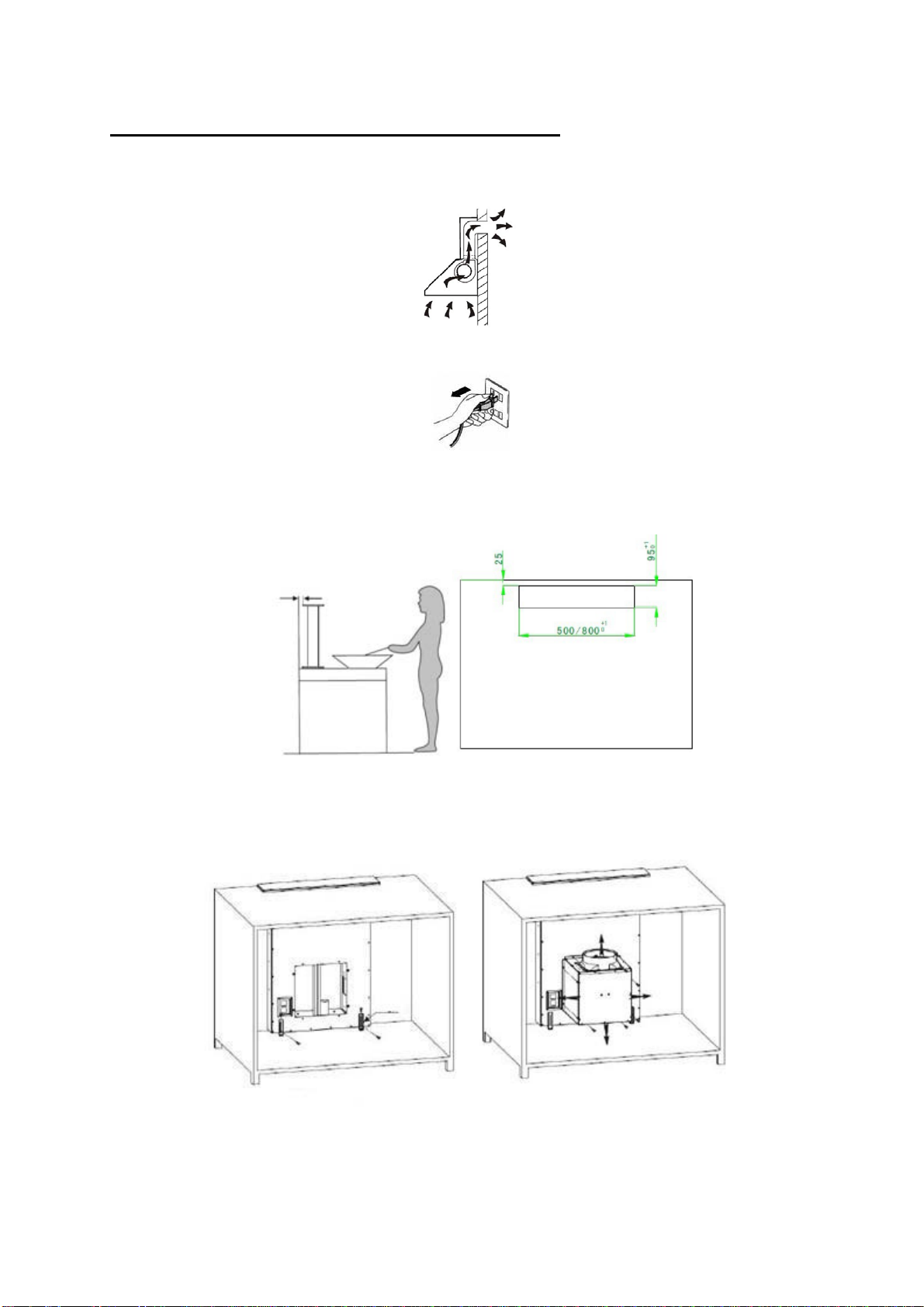

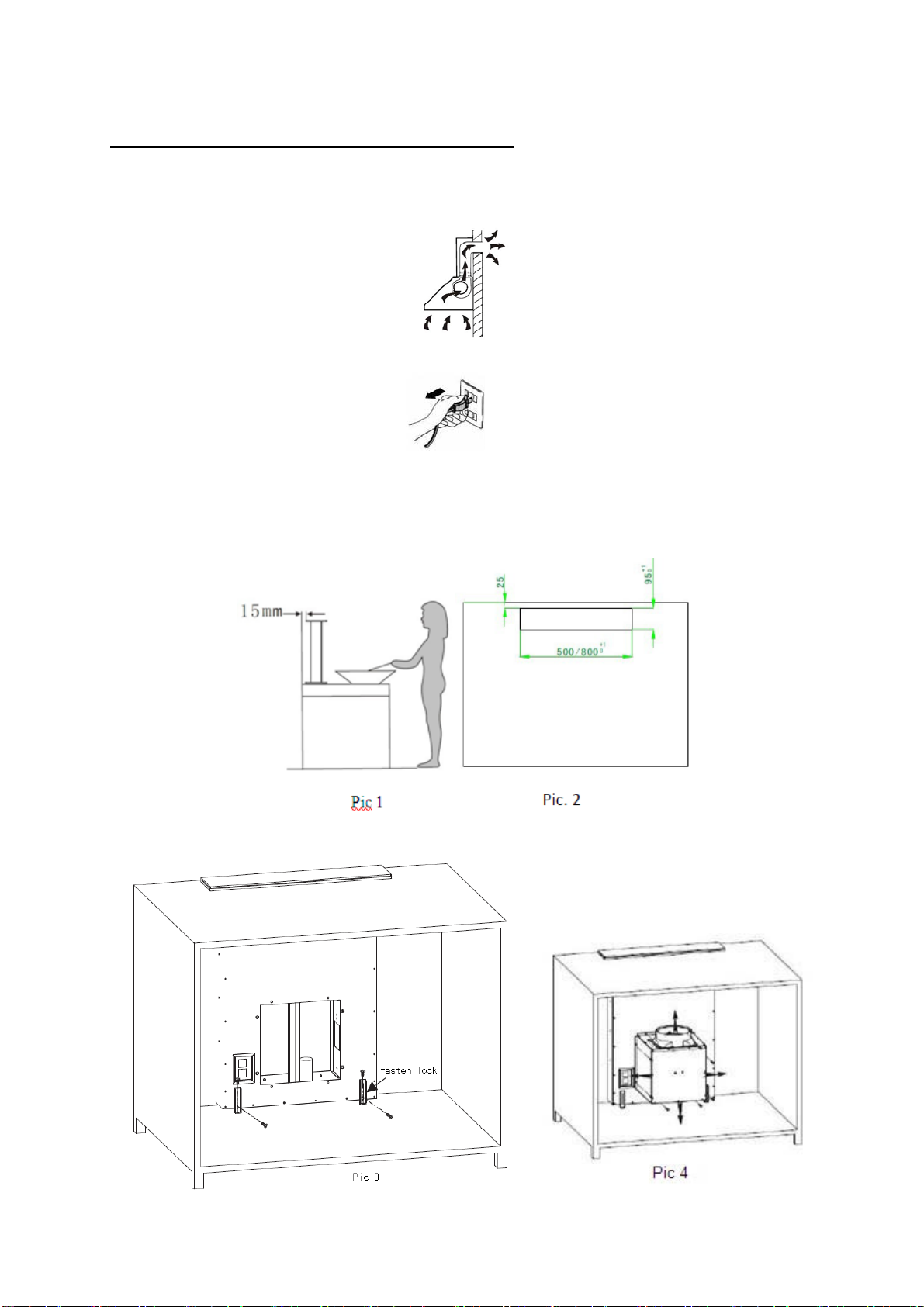

1. The cooker hood should be placed at a distance of 15mm from the wall at least.
(See Pic1)
2. Put the hood into the hole of the cabinet.(See pic 2) Use 4pcs screw ST4*8 & screw
ST4*14 & fasten lock to fix the hood.(See pic 3)
3.Connect the casing & hood by 8pcs screw M10*10, the wind direction are up, down,
left, right, the user can select according to the space of the cabinet.(See pic 4)
5

4.Fix the pipe on the outlet, and use 4pcs screw ST4*14 to fix the PCB box, connect
the power and finish the installation.(See pic 5)
WARNING:

For safety reason, please use only the same
size of f i
xing o r m ounting sc rew which are
recommended in this instruction manual.
 Failure to install the screws or fixing device in
accordance w ith t hese instructions may r esult
in electrical hazards.
Start Using Your Cooker Hood
Slide control
This control system consists of two parts, power panel and touch panel.
Touch panel contains five function buttons (power, speed, light, timer, slide control)
Timer Light Slide control Speed Power
Functional Operation

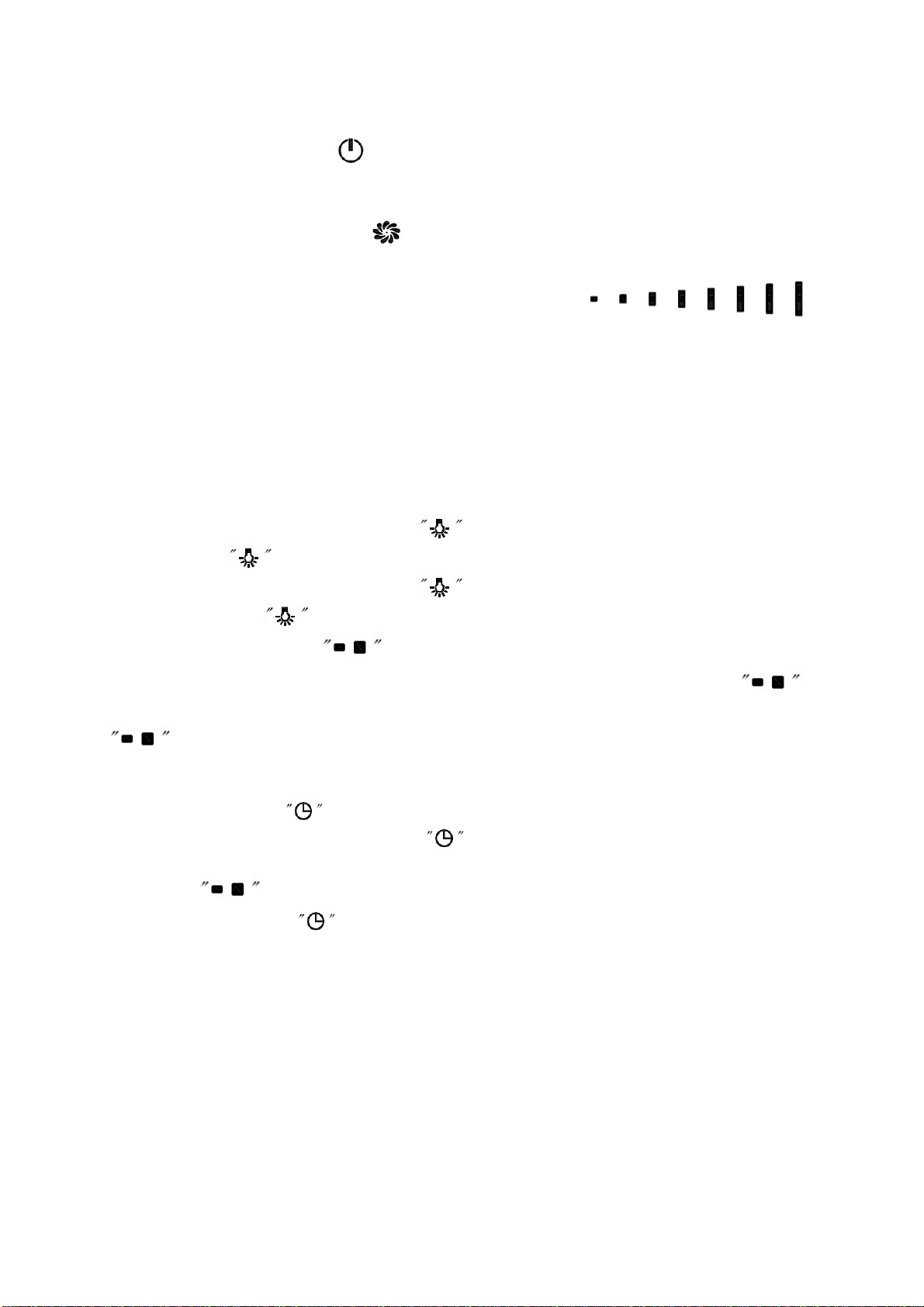

1 Power on, the hood will standby with backlight, backlight will be extinguished after 5
seconds without any operation, for using the hood again, touch any key to wake up it’s
standby motion.
2 Touch the power button for 2 seconds, the hood will slide upwards, and works
at the first speed. Touch the power button for 2 seconds again, the hood will slide
downwards, and stop working. If you stop the hood, without stopping the motor, when
you open the hood again, the hood will work at the speed it works last time.
6

2.1 Press the power button , when the hood is coming upwards or going
downwards, the hood will stop moving, with motor keeping running. Press the power
button again, the hood will move again.
3. Motor on/off and speed setting:
3.1 Touch the speed button , the motor will turn on; touch it again, it will turn off.
3.2、How to set the speed? Touch this area , with your
finger sliding on it. When your finger stops at the first or second point, the motor will
run at the lowest speed; when your finger stops at the third or fourth point, the motor
will run at the second speed; when your finger stops at the fifth or sixth point, the
motor will run at the third speed; when your finger stops at the seventh or eighth point,
the motor will run at the highest speed.
4. Lighting: :
4.1. After the hood slides up, the lights will turn on automatically in 8-10 seconds.
4.2 Touch the button of light , lights will turn off. Touch the light button
again, the lights will turn off.
4.3 When you touch the button of light , the pilot light is flashing. Slide the
button to control the light intensity when the pilot light is flashing. When enter into
the controlling of light intensity, the silde button control the light intensity. There
is 8 speeds of slide button when lighting, every speed means one light intensity. When
touch slide button and slide to one light and it will be on, the light will be on in
corresponding light intensity. It can also use the manual keys by touching the button
to operate the hoods on one pilot light and it will be on in corresponding light
intensity. The pilot light will stop flashing after 15s if no function adjustment.
5. Timer button
5.1 Touch timer button when light or motor is working; the hood will enter into
timer working. When the pilot light of timer is flashing, slide button to select the
timer section. There are eight sections of timer button when timer is working, they are:
5-10-15-20-25-30-35-40, touch the timer button to enter into timer working when
confirm the timer section. Or, enter into timer working automatically 5s later. The motor
and light are off automatically when finish the timer, the hood will enter into standby,
the decorative cover will close automatically.
5.2 Use the timer function again when keep power on, touch the timer button but
without time setting, the hood will keep the time which setted on last time. It will
decrease by second after 5s.It will work as new time after new setting.
Touch the speed button or control the light intensity when timer is working, the timer
function will cancel automatically.
7

TROUBLESHOOTING
Fault Possible Cause Solution
Light on, but
motor does not
work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Power cord loose or
disconnected
Refit cord to power outlet.
Switch power outlet on.
Oil leakage
One way valve and the outlet
are not tightly sealed
Take down the one way valve
and seal with sealant.
Leakage from the connection
of chimney and cover Take chimney down and seal.
Lights not
working Broken/Faulty globes Replace globes as per this instruction.
Insufficient
suction
The distance between the
cooker hood and the gas top
is too far
Refit the cooker hood to the
correct distance.
The Cooker hood
inclines
The fixing screw not tight
enough
Tighten the hanging screw
and make it horizontal.
NOTE:
Any electrical repairs to this appliance must conform to your local, state and
federal laws.Please contact the service centre if in any doubt before
undertaking any of the above.Always disconnect the unit from the power source when
opening the unit.
MAINTENANCE AND CLEANING
Caution:
• Before maintenance or cleaning is carried out, the cooker hood
should be disconnected from the main power supply. Ensure
that the cooker hood is switched off at the wall socket and the
plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the
cleaning instructions to ensure the best possible result is achieved without damage.
8

GENERAL
Cleaning and maintenance should be carried out with the appliance cold especially
when cleaning.Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on
the surfaces.
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life
expectancy.Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure that wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives,as this will affect the appliance
appearance and potentially remove any printing of artwork on the control panel and
will void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand.

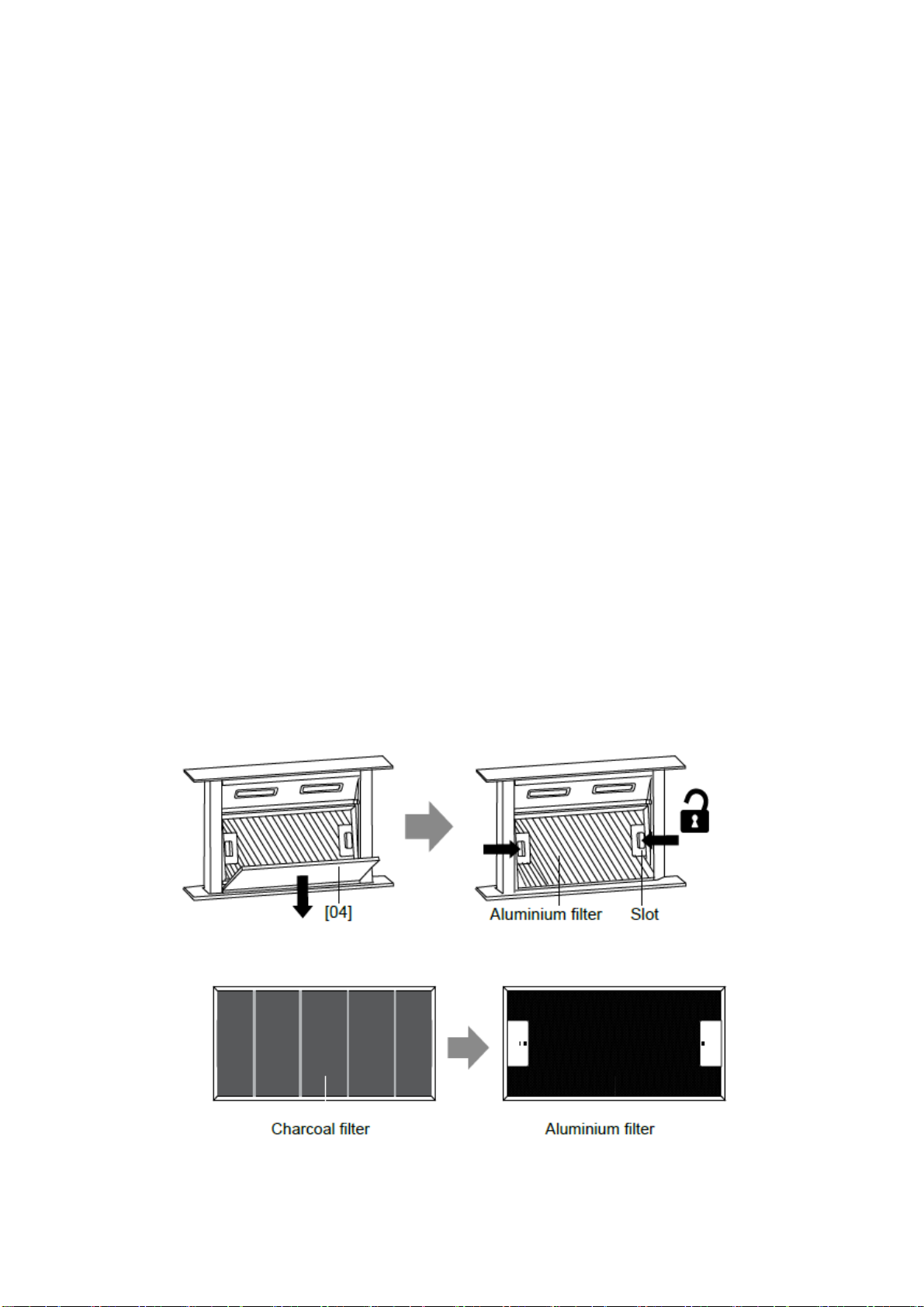

• Remove the decorative board [04] and wipe it clean with a damp cloth. Then,remove
the aluminium filter by pressing and holding the 2 slots.
• Place the aluminium filter upside down. Then detach the charcoal filter.
• Soak the aluminium filter into the solution of warm water and mild detergent for
about 10 minutes.
9
