Hopeland HF340 User manual

HF340/380
Sharp 340/380
User Manual

Welcome to become user of Hopeland RFID products.
Thank you for choosing the multi-port reader Sharp 340/380,
hope to bring convenience for your work

CONTENTS
1. TECHNICAL SPECIFICATIONS ..................................................................................................................5
1.1 FEATURES.....................................................................................................................................................5
1.2 FCC/CE RULES............................................................................................................................................5
1.2.1 Part 15 FCC Rules...............................................................................................................................5
1.2.2 CE Rules..............................................................................................................................................6
1.3 MAIN FUNCTIONS AND TECHNICAL PERFORMANCE..........................................................................................7
1.3.1 Product Features..................................................................................................................................7
1.3.2 Performance Parameters.....................................................................................................................7
1.3.3 Environmental Parameters ..................................................................................................................8
2. SKETCH MAP..................................................................................................................................................9
2.1 PHYSICAL CONSTRUCTION .............................................................................................................................9
2.2 NET WEIGHT.................................................................................................................................................9
2.3 INTERFACE DIAGRAM.....................................................................................................................................9
2.3.1 Power, Communication and I/O Interfaces ..........................................................................................9
2.3.2 I/O Interface Definition .......................................................................................................................10
2.3.3 Coaxial RF Feeder Cable (optional) ..................................................................................................13
2.3.4 Network Connection Diagram............................................................................................................13
3. INSTALLATION INSTRUCTIONS..................................................................................................................14
3.1 PRECAUTIONS.............................................................................................................................................14
3.2 INSTALLATION CONDITIONS ..........................................................................................................................15
3.3 DEVICE CONNECTION ..................................................................................................................................15
3.3.1 Connect Power Adapter Or PoE Switch ............................................................................................15
a. Connect Power Adapter ......................................................................................................................15
b. Connect PoE Switch............................................................................................................................15
3.3.2 Connect External Antenna and RF Cable..........................................................................................16
3.3.3 Connect to PC....................................................................................................................................16
3.4 INSTALL READER .........................................................................................................................................17
3.5ACCEPTANCE ..............................................................................................................................................17
3.5.1Structural Acceptance.........................................................................................................................17
3.5.2 Performance Acceptance...................................................................................................................17
4. WEB PAGE OPERATION INSTRUCTIONS..................................................................................................18

4.1 SYSTEM LOGIN............................................................................................................................................18

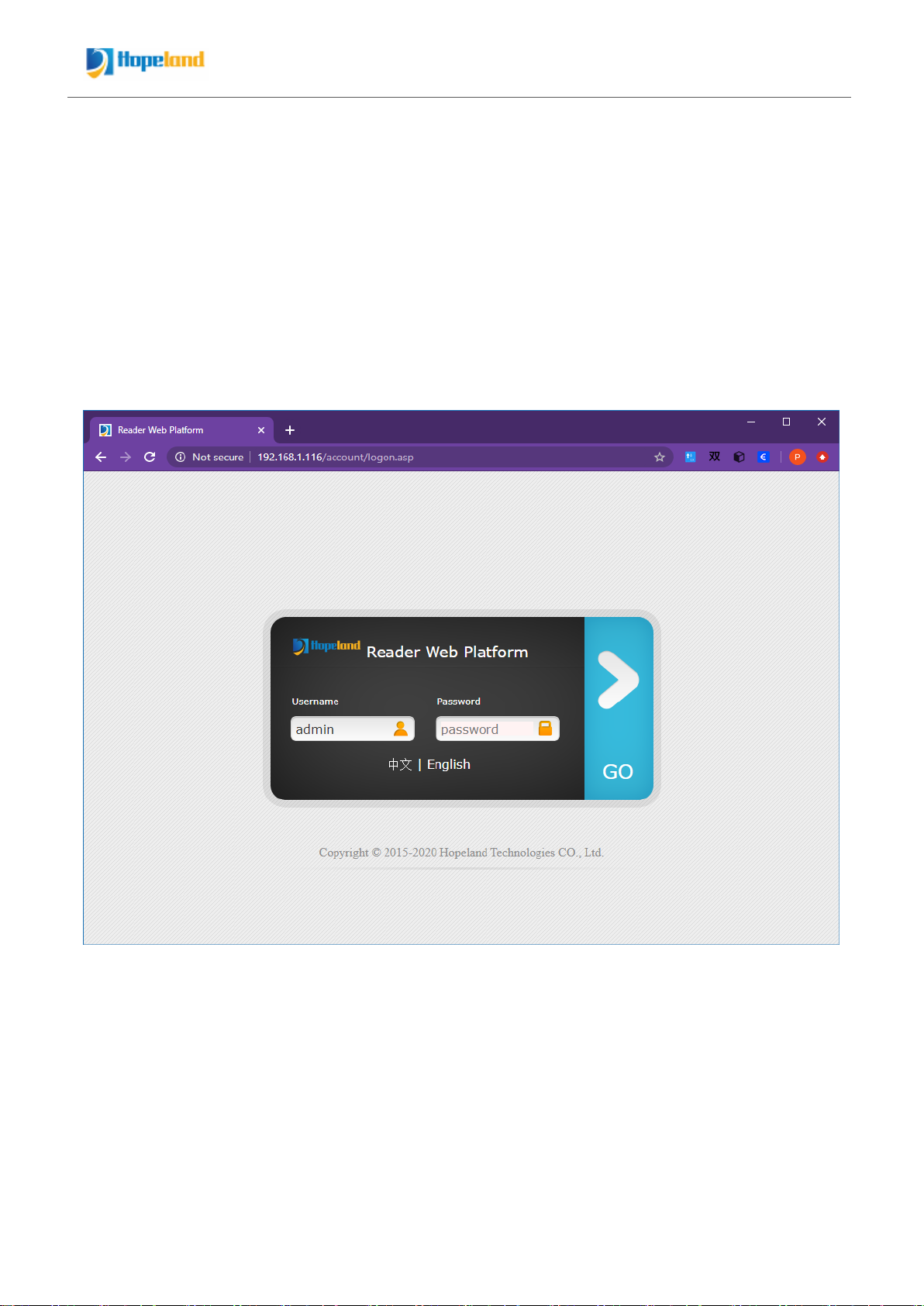

4.1.1 Login ..................................................................................................................................................18
4.1.2 System Navigation.............................................................................................................................18
4.2 PARAMETER CONFIGURATION.......................................................................................................................19
4.2.1 Antenna Configuration .......................................................................................................................19
4.2.2 RFID Configuration ............................................................................................................................20
4.2.3 Network Configuration .......................................................................................................................21
4.2.4 Output Configuration..........................................................................................................................22
4.2.5 GPI Configuration...............................................................................................................................23
4.2.6 Web Parameter Configuration Example ............................................................................................24
4.3 SYSTEM MANAGEMENT................................................................................................................................27
4.3.1 System Management.........................................................................................................................27
4.3.1.1 Clock Sync ..................................................................................................................................28
4.3.1.2 Application Upgrade....................................................................................................................28
4.3.1.3 Baseband Upgrade .....................................................................................................................30
4.3.2 Change Password..............................................................................................................................32
5. COMMON FAILURES....................................................................................................................................33
5.1 DAILY MAINTENANCE ...................................................................................................................................33
5.2 COMMON FAILURE ANALYSIS AND SOLUTION.................................................................................................33
6. PACKAGING ACCESSORIES AND STORAGE ...........................................................................................35
6.1 PACKAGE....................................................................................................................................................35
6.2ACCESSORIES.............................................................................................................................................35
6.3 STORAGE REQUIREMENTS...........................................................................................................................36
7. AFTER-SALE SERVICE ................................................................................................................................37

Sharp 340/380 user manual
1.Technical Specifications
1.1 Features
Sharp HF340/380 is a high performance four-port/eight-port fixed UHF RFID reader, it
supports ISO18000-6C/6B protocols. The work frequency includes China standard dual
frequency 920MHz~ 925MHz and 840MHz - 845MHz, FCC 902MHz ~ 928MHz and ETSI
865MHz ~ 868MHz.
Output power from 0 ~ 33dBm optional, with long identification distance, fast reading speed,
high accurate rate, strong anti-interference ability, good protection performance and easy
installation.
1.2 FCC/CE Rules
1.2.1 Part 15 FCC Rules
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
three conditions:
This device may not cause harmful interference
This device must accept any interference received, including interference that may cause
undesired operation.
The distance between user and products should be no less than 20cm
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.

Sharp 340/380 user manual
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. such modifications could void the user’s
authority to operate this equipment
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
1.2.2 CE Rules
Manufacturer: Shenzhen Hopeland Technologies CO., Ltd.
Address: 17/F, Block A, Clou Bldg, Baoshen Road, Hitech Industrial Park North, Nanshan
District, 518007, Shenzhen, China
Hereby, Shenzhen Hopeland Technologies CO., Ltd. declares that this device is in
compliance with the essential requirements and other relevant provisions of Directive
2014/53/EU
Importers: XXXXXXX
Address: XXXXXXX
A copy of the declaration of conformity can be obtained with this user manual; this product is
not restricted in the EU.
Hardware Version: V2
Software Version: V0.1.12
The wireless operation frequency
RFID: 865MHz-868MHz, Max EIRP Power 30.14dBm
Safety warning and Attentions
If use adapter, adapter must be comply 2014/30/EU Directive
Adapter Caution: Adapter shall be installed near the equipment and shall be easily accessible.
Do not store or use your product in temperatures higher than 70ºC RF Exposure Statement
The distance between user and products should be no less than 20cm

Sharp 340/380 user manual
1.3 Main Functions And Technical Performance
1.3.1 Product Features
Support protocol: ISO18000-6B/C EPC C1G2
Built-in Linux OS
Rich communication interfaces:RJ-45, RS232, RS-485, USB, WiFi, Bluetooth, Wiegand
interface
Support tag data filtering
RSSI support: the strength of the signal can be sensed.
Adjustable RF output power
Working mode: fixed frequency/frequency hopping optional
Support for tag caching, breakpoint continuation
Support antenna detection function
Support online upgrade
I/O interface: 4 optocoupler inputs, 4 relay outputs (drive capacity: DC 30V/ 2A, AC
125V/0.3A)
Support web management Platform
1.3.2 Performance Parameters
Working frequency: GB,920MHz～925MHz、GB,840MHz～845MHz、FCC,902MHz～
928MHz、ETSI，865MHz～868MHz
RF output power (port)：35dBm±1dB（MAX）
Output power adjustment: 1 dB step
Reading distance: 0m～20m (related to factors such as transmitting power, antenna type,
tag type and application environment)
Channel occupied bandwidth: <200KHz
RS232 interface communication rate: 115200bps(default),19200 bps,9600bps
RS485 interface communication rate: 115200bps(default),19200 bps,9600bps

Sharp 340/380 user manual
Support weigand format 26,34,66
AC-DC power adapter:AC input 100V～240V,50Hz～60Hz DC output 24V/2.5A
POE: IEEE802.3af/at/bt standard (optional)
High protection level: IP53
1.3.3 Environmental Parameters
Working temperature: -20℃～+70℃
Working humidity: 5%～90%RH (+25℃)

Sharp 340/380 user manual
2. Sketch map
2.1 Physical construction

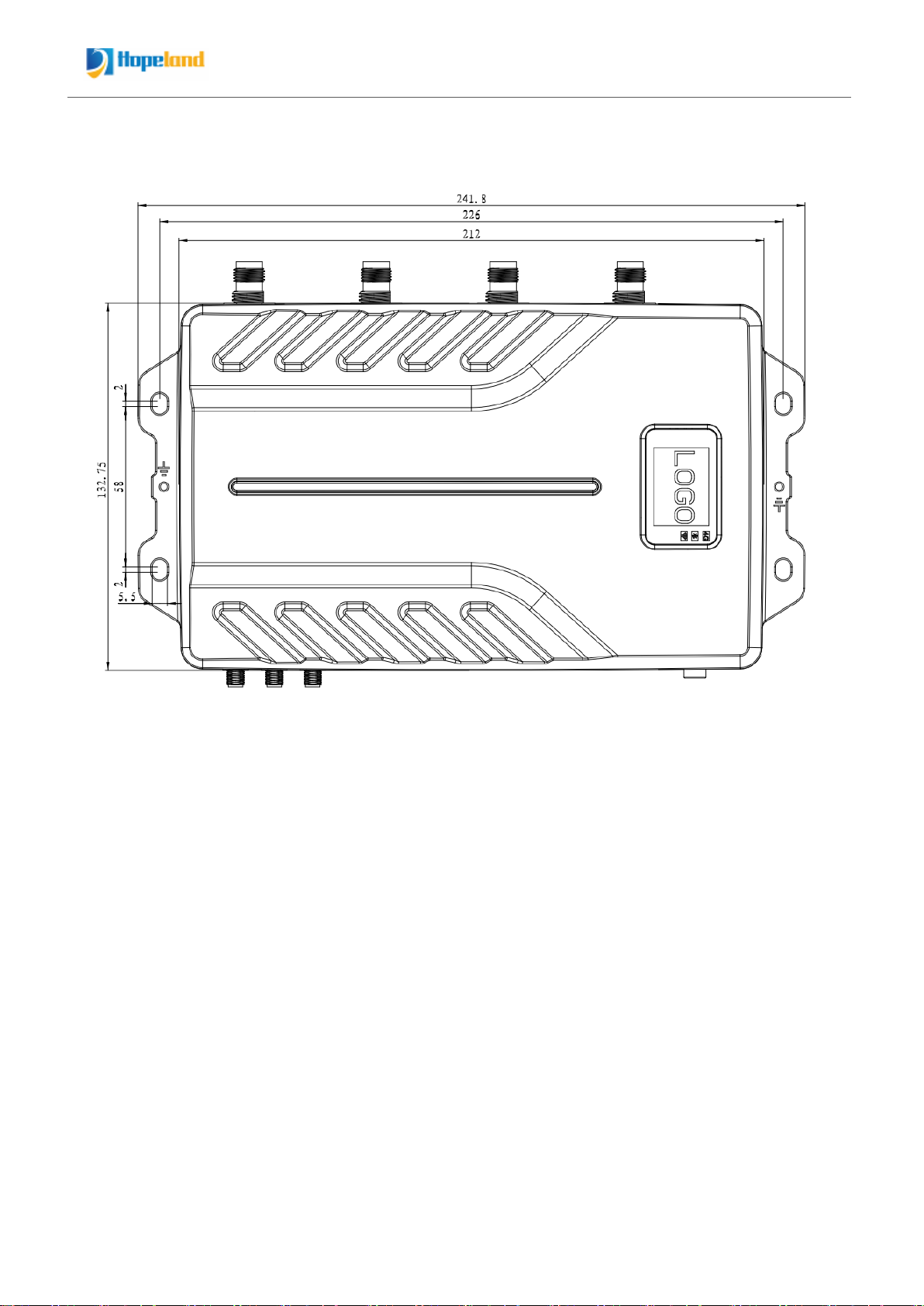

Figure 2-1 Structure diagram of Sharp 340/380 reader
Sharp 340/380 Reader Volume Parameter is:
241mm×132mm×36mm
2.2 Net Weight
HF340: 0.9kg
HF380: 1kg
2.3 Interface Diagram
2.3.1 Power, Communication and I/O Interfaces

Sharp 340/380 user manual
Figure 2-2 Schematic diagram of reader power, communication and I/O interfaces
Picture 2-2 is a schematic diagram of the reader and the power supply, communication and
I/O interface panel. For details, see Table 2-1.
Table 2-1 Reader power supply, communication and I/O interfaces
Interface ID
Interface Name
Detailed Description
Power supply
interface
DC, 10~30V, power capacity not less than 30W.
Ethernet interface
10/100M Ethernet interface, reader control and
communication interface.
POE:IEEE802.3af/at/bt standard (optional)
RS232
Serial port, reader control and communication interface.
USB interface
The USB TYPE-C interface can be connected to a computer
I/O interface
See 2.3.2 for detailed definition
Antenna (optional)
The left first one is WIFI, the second one is Bluetooth
antenna
Reset button
Long press for 10 seconds to restore factory settings
2.3.2 I/O Interface Definition
Upper Row:

Sharp 340/380 user manual
Bottom Row：
I/O control signal definitions are shown in Table 2-2:
Table 2-2 I/O control interface signal function definition
Pin ID
Pin Description
R1
Relay 1# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open
circuit, logic '1' indicates closed, default is open circuit.
L1
Relay 1# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open
circuit, logic '1' indicates closed, default is open circuit.
R2
Relay 2# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open
circuit, logic '1' indicates closed, default is open circuit.
L2
Relay 2# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open
circuit, logic '1' indicates closed, default is open circuit.
R3
Relay 3# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open
circuit, logic '1' indicates closed, default is open circuit.
L3
Relay 3# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open
circuit, logic '1' indicates closed, default is open circuit.
R4
Relay 4# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open
circuit, logic '1' indicates closed, default is open circuit.
L4
Relay 4# output; DC_MAX: 30V, 2A; AC_MAX: 125V, 0.3A; logic '0' indicates open
circuit, logic '1' indicates closed, default is open circuit.
GND
Ground
GND
Ground
IN1
Optocoupler 1# input, DC, 0~24V, higher than 1V is high level, lower than 1V is low level
IN2
Optocoupler 2# input, DC, 0~24V, higher than 1V is high level, lower than 1V is low level
IN3
Optocoupler 3# input, DC, 0~24V, higher than 1V is high level, lower than 1V is low level
IN4
Optocoupler 4# input, DC, 0~24V, higher than 1V is high level, lower than 1V is low level
IN_GND
Optocoupler input ground, reader optocoupler external input signal ground
WG0
Wiegand data 0 signal, the default state is high level
WG1
Wiegand data 1 signal, the default state is high level
GND
Ground

Sharp 340/380 user manual
485-A
RS485 A signal
485-B
RS485 B signal
GPI Usage Example:
Infrared sensor type selection: Choose PNP NO type, which means that the infrared is
normally low, when the object is detected, the signal line outputs a positive voltage signal.
GPO Usage Example:
Relay type GPO: GPO is equivalent to a switch, logic ‘0’means open circuit, logic ‘1’means
closed, default is open circuit state. You can connect the alarm light, buzzer, etc. to the GPO
for use. The usage is shown in the following figure.

Sharp 340/380 user manual
Wiegand Connection Instructions：
Connect reader Wiegand 0 to Wiegand 0 of controller,
Connect reader Wiegand 1 to Wiegand 1 of controller,
Connect reader GND to Wiegand controller GND
2.3.3 Coaxial RF Feeder Cable (optional)
Figure 2-3 schematic diagram of feeder line
RF cable TNC(Reverse polarity, internal thread, inner pin) connector connect with reader
antenna TNC connector, RF cable SMA connector connect with external circular polarization
antenna’s SMA connector, cable maximum length is 5m, impedance 50Ω, insertion loss is
less than 2dB, high-performance cable can also be selected, and the length can be increased
appropriately, insertion loss is less than 2dB.
Note: Poor contact of cable connector or an ultra-long RF cable can cause excessive
attenuation of the transmitted signal and received echo signal, resulting in deterioration of
read/write performance.
2.3.4 Network Connection Diagram
The network interface is used for long-distance high-speed connection (not greater than 80
m). It can be connectedto a switch or router via a network cable or it can be directlyconnected
to a PC network interface. The specific connection is shown in Figure 2-4:
Figure 2-4 Network application connection diagram

Sharp 340/380 user manual
3. Installation Instructions
3.1 Precautions
To ensure the normal and stable operation of the device and your personal property and
safety, please carefully read the following notes before install HH340/380 reader.
1. Firstly, check whether the power socket is connected to the ground, and to see whether
the local power supply voltage is in accordance with the applicable voltage range of the
reader;
2. Check the device and the external connection if is closely connected;
3. Pay attention to the type selection and the length limit of the network cable and the
serial cable:
Network cable connects directly, no longer than 80 meters
Serial cable connects directly, no longer than 10 meters
4. When installing several readers, the antenna position and the antenna spacing should
be appropriate to avoid interference with each other.

Sharp 340/380 user manual
3.2 Installation Conditions
Before installing the reader, please check carefully whether the product is in good condition
and the accessories are complete. If there is any parts missing or damage, please contact
the supplier in time.
3.3 Device Connection
3.3.1 Connect Power Adapter Or PoE Switch
a. Connect Power Adapter
Plug the power cord into the AC power supply outlet and then plug the other end of the
power cord into the power connector of the reader and fasten it.
Power on the reader, wait for about 10 seconds, the system completes the initialization
process and enters the standby state.
b. Connect PoE Switch
A complete PoE system includes two parts: Power Sourcing Equipment (PSE) and Powered
Device (PD). PoE switches are PSE devices, and readers are PD devices. According to the
power consumption required by the reader, it belongs to 802.3at class 4 or 802.3bt class 5
devices.
Choose the PoE switch according to the maximum output power of the reader that needs to
be used in the actual project.
0dBm to +35.0dBm (PoE++)
0dBm to +33dBm (PoE+)
PD Classes:
IEEE802.3af(PoE) include Class 0~3, IEEE802.3at (PoE+)include Class 4,
IEEE802.3bt(POE++) include Class 5 ~ 8
Class
PD available power
Class
PD available power
0
13W
5
40W
1
3.84W
6
51W

Sharp 340/380 user manual
2
6.49W
7
62W
3
13W
8
71W
4
25.5W
PoE protocols supported by various network cables:
PoE(AF)
PoE+(AT)
PoE++(BT)
CAT 5E
√
√
CAT 6
√
√
CAT 6A UTP
√
√
CAT 6A FTP
√
√
CAT 7 S/FTP
√
√
√
CAT 7A S/FTP
√
√
√
CAT 8.2 S/FTP
√
√
√
3.3.2 Connect External Antenna and RF Cable
The reader built with four/eight TNC coaxial cable connectors for connecting external
antennas, select low consumption RF cable, connectors should be tightened (Ensure to be
waterproof when install outdoors);
The reader antenna angle or tilt need to adjust to the best position through the actual test
according to the specific application.
3.3.3 Connect to PC
The reader is supplied with different dedicated connection cables for the network, USB
and power interfaces.
USB interface is used for short-distance communication (not greater than 2m), directly
connected to the PC USB interface through a USB TYPE-C cable to realize the
communication between the PC and the reader;
The RJ45 network port is used for long-distance communication (not greater than 80m),
and an extended network cable can be used to connect to a PC.

Sharp 340/380 user manual
3.4 Install Reader
The reading and writing range of the reader depends on the on-site application, the tilt
angle of the antenna is adjusted to achieve the best reading and writing performance.
3.5 Acceptance
The acceptance criteria are mainly given from two aspects: structure and performance.
3.5.1Structural Acceptance
Whether the reader is fixed firmly without looseness;
Whether the cables are connected firmly;
Whether the screws are tightened.
3.5.2 Performance Acceptance
Whether the reader is working normally;
Whether the reading range is reasonable.

Sharp 340/380 user manual
4. Web page Operation Instructions
4.1 System Login
4.1.1 Login
It is recommended to use Google Chrome to log in. When logging in, please enter the URL
of the reader in the address bar, such as: http://192.168.1.116/. The login interface is shown
in Figure 4.1.1. Enter the username and password, and click the "GO" button to log in. (The
default administrator account is admin, and the password is admin)
Figure 4.1.1
4.1.2 System Navigation
After login successfully, the system is shown in Figure 4.1.2, the left side of the system is
menu navigation, with the functions of parameter configuration and system management; the
right side of the system is the current function page, and the default content is the antenna
configuration.

Sharp 340/380 user manual
Figure 4.1.2
4.2 Parameter Configuration
The parameter configuration menu contains antenna configuration, RFID configuration,
network configuration, output configuration and GPI configuration.
4.2.1 Antenna Configuration
Click Param Config-->Antenna Config under the left navigation to enter the antenna
configuration page, which is shown in Figure 4.2.1.1.
In the antenna configuration page, you can set the antenna port RF output power, click the
corresponding drop-down list to select the power you want to set and click the Set button, the
prompt box of successful configuration will pop up.

Sharp 340/380 user manual
Figure 4.2.1.1
4.2.2 RFID Configuration
Click Param Config-->RFID Config under the left navigation to enter the RFID configuration
page, which is shown in Figure 4.2.2.1.
In the RFID configuration page, you can set the frequency range, frequency point list and
baseband parameters of the device. The frequency point list is not selectable when the auto
option of the frequency hopping is selected. If the reader does not support certain frequency
ranges, setting these frequency ranges will fail
You can also set the tag upload filtering parameters, including the duplicate tag upload
filtering time and RSSI threshold parameters.
Filter time: The same tag data will be uploaded only once within the specified duplicate tag
filter time.
RSSI Threshold: If the RSSI value returned by the tag is lower than the threshold, the tag
data will not be uploaded and the tag data will be discarded.
