horiba HU-200SS SS-90 User manual

MLSS meter
HU-200SS SS-90
Instruction Manual
CODE:GZ0000230907

October, 2010 © 2010 HORIBA Advanced Techno, CO., Ltd.
Preface
This manual describes the operation of the MLSS meter, HU-200SS SS-90.
Be sure to read this manual before using the product to ensure proper and safe operation of
the instrument. Also safely store the manual so it is readily available whenever necessary.
Product specifications and appearance, as well as the contents of this manual are subject to
change without notice.
Warranty and Responsibility
HORIBA Advanced Techno, CO., Ltd. warrants that the Product shall be free from defects in
material and workmanship and agrees to repair or replace free of charge, at option of HORIBA
Advanced Techno, CO., Ltd., any malfunctioned or damaged Product attributable to
responsibility of HORIBA Advanced Techno, CO., Ltd. for a period of one (1) year from the
delivery unless otherwise agreed with a written agreement. In any one of the following cases,
none of the warranties set forth herein shall be extended;
zAny malfunction or damage attributable to improper operation
zAny malfunction attributable to repair or modification by any person not authorized by
HORIBA Advanced Techno, CO., Ltd.
zAny malfunction or damage attributable to the use in an environment not specified in this
manual
zAny malfunction or damage attributable to violation of the instructions in this manual or
operations in the manner not specified in this manual
zAny malfunction or damage attributable to any cause or causes beyond the reasonable
control of HORIBA Advanced Techno, CO., Ltd. such as natural disasters
zAny deterioration in appearance attributable to corrosion, rust, and so on
zReplacement of consumables
HORIBA ADVANCED TECHNO, CO., LTD. SHALL NOT BE LIABLE FOR ANY DAMAGES
RESULTING FROM ANY MALFUNCTIONS OF THE PRODUCT, ANY ERASURE OF DATA,
OR ANY OTHER USES OF THE PRODUCT.
Trademarks
Generally, company names and brand names are either registered trademarks or trademarks
of the respective companies.

Regulations
Conformable Directive
This equipment conforms to the following directives and standards:
JInstallation Environment
This product is designed for the following environment.
zInstallation Categories II
zPollution degree 2
FCC Rules
Any changes or modifications not expressly approved by the party responsible for compliance
shall void the user's authority to operate the equipment.
JWARNING
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense.
Directives: the EMC Directive 2004/108/EC
the Low Voltage Directive 2006/95/EC
Standards: [the EMC Directive]
EN61326-1: 2006 Class A, industry
[the Low Voltage Directive] EN61010-1: 2001
Note
If the sensor cable, transmission cable, or relay cable is extended to 30 m or more,
the surge test in the EMC Directive for CE Marking is not applicable.

For Your Safety
Hazard Classification and Warning Symbols
Warning messages are described in the following manner. Read the messages and follow the
instructions carefully.
QHazard classification
QWarning symbols
This indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury. This signal word is to be limited to the most
extreme situations.
This indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
This indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury. It may also be used to alert against
unsafe practices.
Without safety alert indication of hazardous situation which, if not avoided,
could result in property damage.
Description of what should be done, or what should be followed
Description of what should never be done, or what is prohibited

Safety Precautions
This section provides precautions to enable you to use the product safely and correctly and to
prevent injury and damage. The terms of DANGER, WARNING, and CAUTION indicate the
degree of imminency and hazardous situation. Read the precautions carefully as it contains
important safety messages.
WARNING
To connect any load exceeding the contact capacity or any induction load (e.g., a motor or a pump),
be sure to use a power relay exceeding the load rating.
If there is a possibility of a lightning strike, install an arrester on the output side of the converter and on
the side of receiving instruments.
Be sure to ground the grounding terminal (class D grounding).
Electric shock hazard
Be sure to check that no power is supplied before starting work.
The air contained in the covered biological processing tank is of a low oxygen concentration, so there
is the danger of suffocation.
CAUTION
If the instrument's power source is OFF, the C-NC contact is short-circuited. Therefore, be careful
about the connection of any load.
If there is corrosive gas in the installation environment, send clean instrumentation air from the air
purge inlet to the device.
Since the operation of the device at any voltage outside the rated range can cause damage to the
unit, confirm the power supply voltage.
Do not turn the sensor head (tip part). Otherwise, the detector may be damaged.
Do not drop anything in the biological processing tank, such as a MLSS detector, tools, and
holdbacks. Perform your work carefully.
The sensor head is not provided with a protective cover against drop impact.
Handle the sensor head with care when taking it out in air.

Product Handling Information
Operational Precautions
Use of the equipment in a manner not specified by the manufacturer may impair the protection
provided by the equipment. And it may also reduce equipment performance.
Therefore, exercise the following precautions:
zDo not press any operation key with the tip of your fingernail or with any pointed object.
zDo not use organic solvents or the like.
Disposal of the Product
When disposing of the product, follow the related laws and/or regulations of your country for
disposal of the product.
Manual Information
Description in This Manual
Note
This interprets the necessary points for correct operation and notifies the important points for
handling the unit.
Reference
This indicates the part of where to refer the information.
Tip
This indicates reference information.
Term Definition
This document uses the following terms as defined:
Term Definition
Hold down Maintain pressing a key until the indicator turns ON or the display changes.
Flash Quickly flash several times, indicating that the setting has been established.

Contents
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Overview of equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Content . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Description of each part (converter) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Description of operation keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Status display. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Description of operation modes and menu items . . . . . . . . . . . . . . . . . . . 7
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installation environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Installing the HU-200SS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Procedures for connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting the power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Connecting the contact output terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Connecting the transmission output terminals . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the contact input terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Connecting the communication terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting the detector cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Detector installation method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Preparation for operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Starting operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Meas mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cal menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
User check menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Contact output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Output conditions for various kinds of output . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Information for accurate measurements. . . . . . . . . . . . . . . . . . . . 41

Zero calibration Cal mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Selecting the sample properties-specific working curves . . . . . . . . . . . . 42
Checking the zero calibration data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Span calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Maintenance of the detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Troubles with measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Measurements exceeding the measurable range. . . . . . . . . . . . . . . . . . 48
Error code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Reference data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Measuring principle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Disposal method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Table of MLSS meter's on-screen display . . . . . . . . . . . . . . . . . . . . . . . 57

Overview
1
Overview
Overview of equipment
Thank you very much for purchasing our Industrial-Use HU-200SS SS-90 MLSS Meter.
This Industrial-Use MLSS Meter consists of a HU-200SS converter and a SS-90 immersion
type detector.
With this MLSS Meter, a wide range (from 0 mg/L to 20000 mg/L) of SS contents can be
measured with excellent reproducibility using the near-infrared-radiation transmission method.
Any of the working curves of MLSS, Clay (inorganic mud) and Kaolin may be used as
standard substances of SS.
If “MLSS” is selected for an activated sludge treatment tank, “Clay” for the precipitation
treatment of construction sludge, or “Kaolin” for white mud, a concentration can be obtained
closer to an analyzed value. However, Kaolin has transmission properties that are different
from those of other components and a signal stops changing if the concentration is too high.
So measurement is limited up to 10000 mg/L.
The outputs from the converter are a concentration signal of 4 mA to 20 mA DC, contact
output of two channels, and FAIL contact output. The MLSS detector is connected by five
wires; two for communication, two for the power, and one for the ground potential. Cables may
be extended up to a length of 50 m. The sensor head (tip part) of the SS-90 detector is made
of PFA resin to which dirt does not adhere easily. A light source and detectors are attached in
a face-to-face position to the two sticks of the sensor head. The decay of transmitted light in
the gap of about 7 mm is converted to a concentration. The amount of light from a light source
is monitored by an optical detector for a reference purpose, and variations in the amount of
light are corrected by computing a ratio to a transmitted light signal. A near infrared radiation
LED light source blinks at approx. 10 Hz, and the influence of ambient light is canceled by
taking out the signal of the difference between when the light is ON and OFF.
Since the span sensitivity of the transmission method remains stable, sensitivity correction
over elapsed time is not required. In general, only zero calibration is performed at regular
intervals.
For MLSS measurement, the MLSS detector is attached to an immersion type holder or is
dropped in a pipe. A cleaner for spraying water or air on the holders is available as option. If a
cleaner is installed, the power source that can directly drive solenoid valves, etc. used for
cleaning is output from the converter.
The self-diagnosis capability checks the status of this equipment continuously and outputs an
error signal when any abnormality is found.
QFeatures of the Converter
zRugged aluminum die cast
zWide wiring space, and a terminal block for which the drop-off of screws is prevented.
zOutdoor installation type (equivalent to IP65; splash-proof construction)
zEasy-to-view display (150% zoom as compared with the conventional type)
zFront-face keys for all key operations
zEnhanced self-diagnosis capabilities
zProgrammable transmission output range
zCalibration history memory
zMeasurement by calling up detector-specific data without machine difference.
zCleaning output (active voltage)

Overview
2
QFeatures of the detector
zBuilt-in CPU and ADC
zData communication with the converter
zNear-infrared radiation transmission method with stable sensitivity
zPFA sensor head to which dirt does not adhere easily
z3 types of built-in working curves
zLong-life LED light sources, and the elimination of ambient light by blinking
zLight source monitoring capability provides high stability
Content
QItems included
A SS-90 Detector is packed separately.
Components included with a detector
zDetector (adaptor and 10 m cable)
zOperational check board
zZero calibration bottle
Components included for installation and sampling (optional)
zDrop-type holder
zImmersion-type holder
zCleaning device for drop-type holders
zSolenoid valve

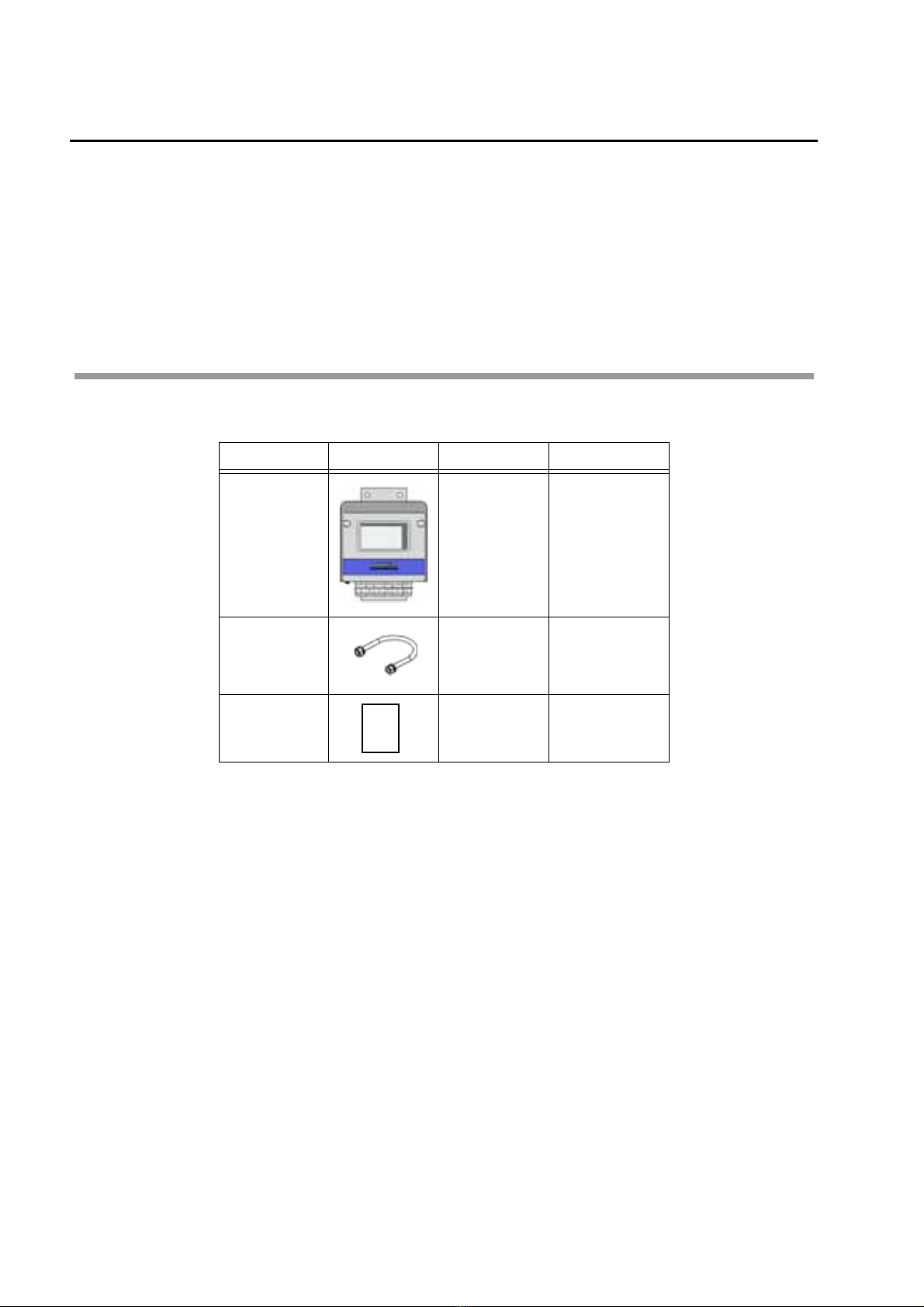

Name Illustration Quantity Remarks
Converter 1 set With bracket
With cover
U-bolt 2 sets
U-bolt: 2
M8 nut: 4
Spring washer: 4
Flat washer: 4
Instruction
manual 1 copy This document
Instruction

Overview
3
Description of each part (converter)

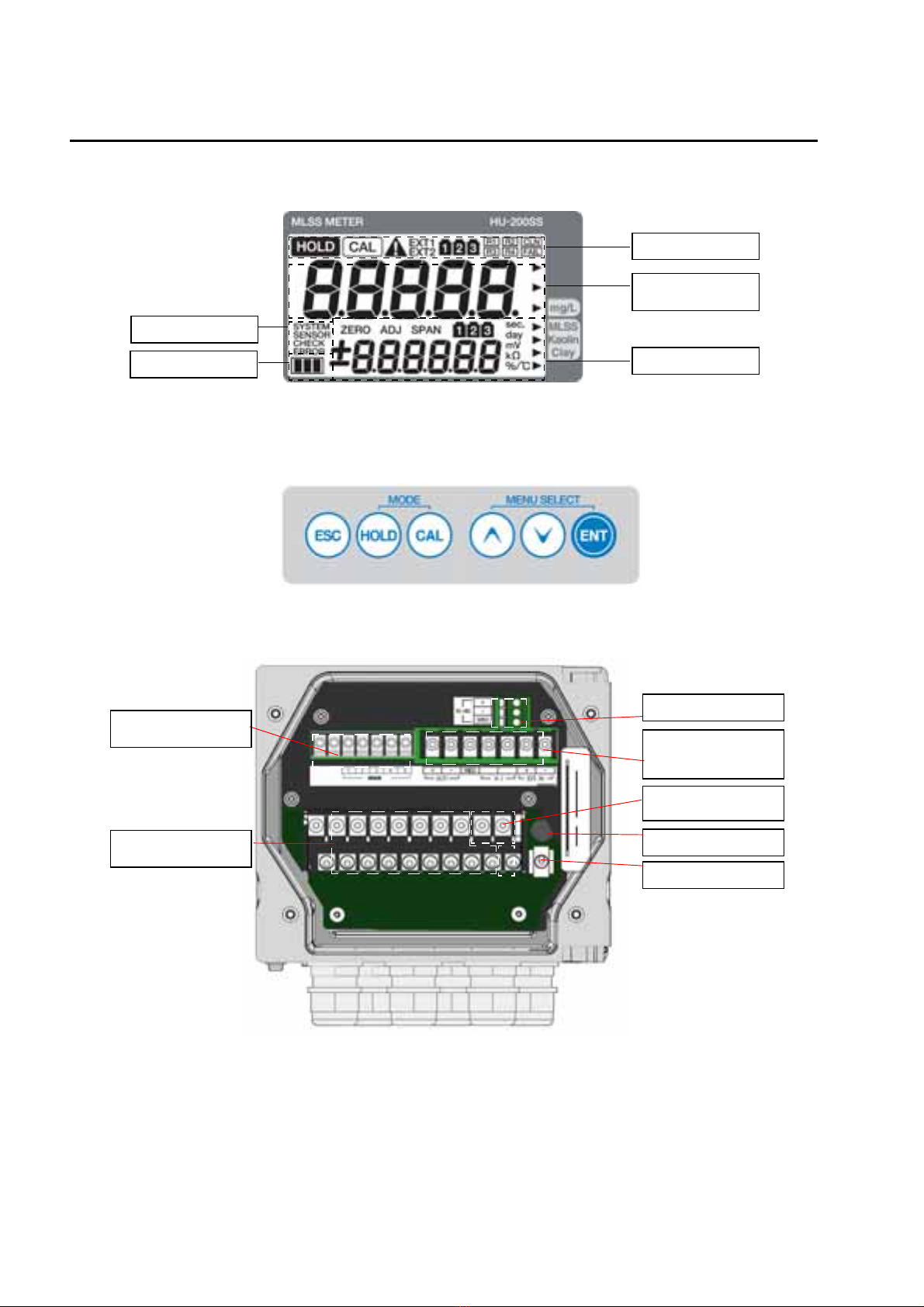

QFront view
QWhen the front cover is opened
Display
The measured value
and other information
is displayed here.
When the cover is opened,
There are 6 operation keys.
Up to 6 pieces of
wiring with diameter
from 9 mm to 11.5
mm can be used.
Purge air is sent through
this inlet to prevent internal
corrosion, normally
requiring no connection.
Cable gland
Cover
Hood for outdoor
installation
Front cover
Purge air inlet
Screw cap
When the two screw
caps are removed, the
front case screws can
be seen.
When four screws are
removed, the front
case can be opened.
Front case screw
Comes with 6
operation keys.
Operation key section
Front case

Overview
4
QDisplay
QOperation key section
QTerminal block
Status display
Indicator
Status display
Measured value
display
Auxiliary display
Detector connection
terminal
Power connection
terminal
Transmission output
terminal
Contact input terminal
RS-485 terminal
Fuse box
Power switch
Contact output
terminal

Overview
5

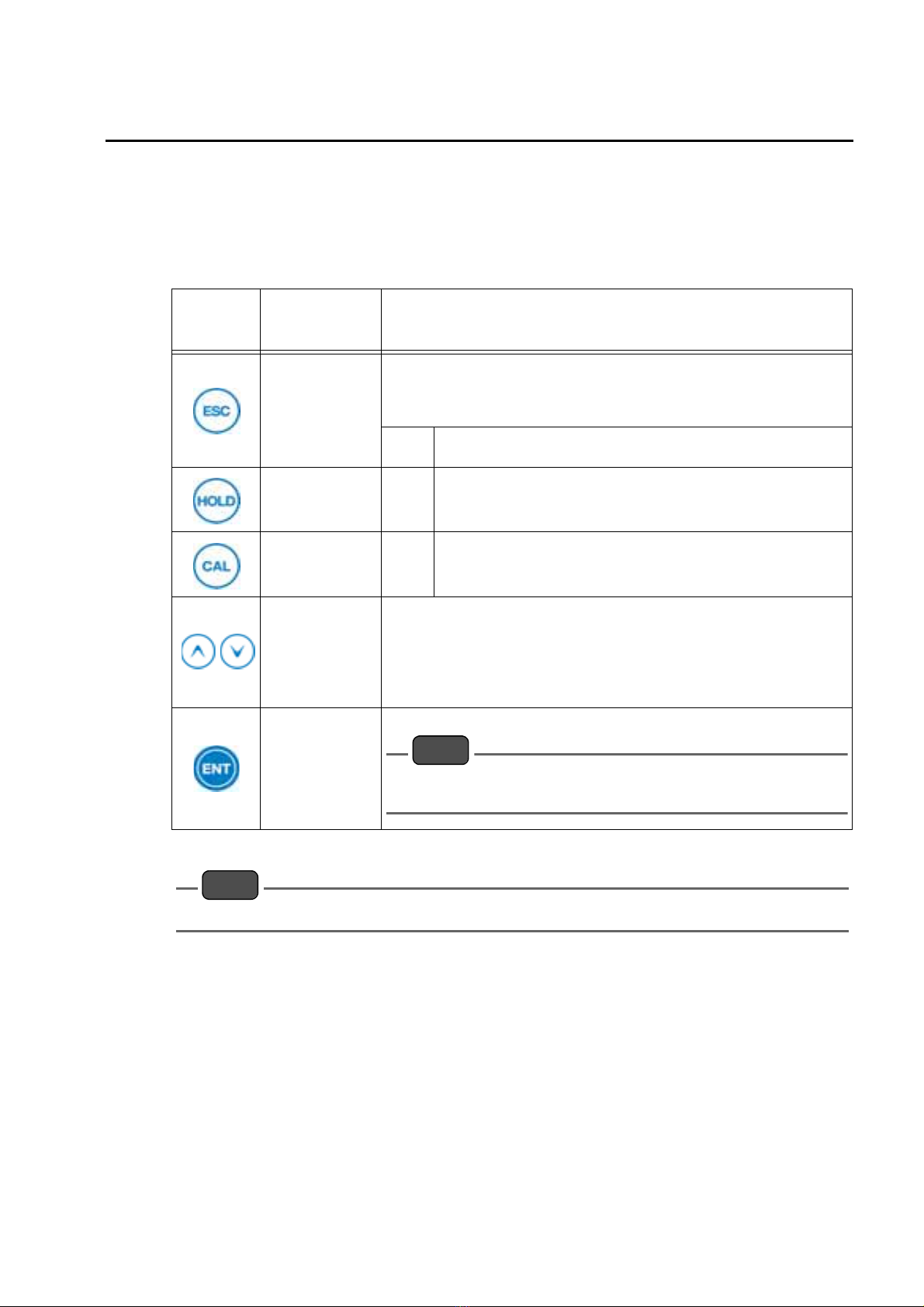

JDescription of operation keys
The operation keys are used to toggle between displayed information, to enter any setting
values, or to perform calibration work.
When the indication is blinking, the figures and parameters can be changed.
Use the ▲/▼(UP/DOWN) key to select a blinking value or item, and then press the ENT key.
The setting will flash and then be established.
Note
Do not press any operation key with the tip of your fingernail or any pointed object.
Key
Representation in
text
(meaning)
Description/Operation
ESC key
(escape)
Used to go back to the previous menu from any other menu.
When various settings are made in the Hold mode, pressing this key once
will return you to the previous item.
The change that has been previously made to any setting is canceled.
Hold
down Holding down this key in the Hold mode will enter the Meas mode.
HOLD key
(hold)
Hold
down
Holding down this key in the Meas mode will enter the Hold mode.
Holding down this key in the Hold mode will enter the Meas mode.
CAL key
(calibration)
Hold
down
Holding down this key until the CAL indicator lights up will select
the Calibration mode.
▲key
▼key
(select)
Used to change the displayed item or value.
Pressing this key changes the value in increments or decrements of 1.
Holding down the key continuously increases or decreases the value.
The ▲and ▼keys are used to scroll up and down, respectively. If the
screen is scrolled up or down excessively with either key, press the other
key.
ENT key
(input)
Used to establish each setting or calibrated value.
Note
No change is reflected if you return to the previous menu by pressing
the ESC key.

Overview
6
JStatus display
QStatus display
Display
Representation
in text
(meaning)
Description/Operation
HOLD
zIlluminated in the Hold mode (when the transmission output is held).
zStarts blinking when contact input is received or when the hold mode
becomes active due to an error.
CAL Illuminated when the Cal mode becomes active.
EXT1 Lights up while the cleaning directive contact signal is input.
CLN Lights up when the cleaning output contact is output.
FAIL Lights up when the contact of a FAIL signal is output. The coil current of a FAIL
output relay is turned off when a Fail signal is output.
System
Priority levels of
errors
Turns ON when system error E-90, E-91, or E-92 occurs.
Sensor
Priority levels of
errors
Lights up when sensor errors E-41 or E-80 to E-84 occur.
Sensor
CHECK Lights up during connection check of the detector.

Overview
7
Description of operation modes and menu items
This equipment offers three types of operation modes and four types of menus.
QOperation mode
Meas mode
In this mode, samples are measured, and transmission signals and relays are controlled.
Cal mode
This mode allows you to perform zero calibration and span calibration.
The Cal menu is also used to perform calibration.
Hold mode
This mode allows you to stop measurements to do the processing in the Setup menu, the Cal
menu or the User Check menu.
QMenu
The Meas mode and the Hold mode have the following menus in the lower tier.
For selecting each mode or item, see the corresponding paragraph.
Meas mode
Cal/Control Value Setting menu
This menu allows you to check the calibrated value or to set/change some controlled values
while checking the output.
Hold mode
Setting menu (SEt)
Prior to operation, this menu allows you to set all the measurement-related parameters, such
as the detector information input and the allocation output.
Cal menu (CAL)
This menu allows you to perform zero calibration and span calibration of the MLSS detector.
User Check menu (USr)
This menu allows you to check the output status, the measured value, and other data. The set
values can be reset to the factory settings.

Overview
8
QEach mode and menu from Meas mode
Meas mode
Hold down the
CAL key.
See page 41.
Cal mode
Hold down the
HOLD key.
Hold mode
▼key
Setup menu
▼key
Cal menu
▼key
User Check menu
▲/▼Key
Cal/Control Value Setting menu
See page 34.
See page 32.
See page 27.
See page 24.
(MLSS calibration)
(MLSS calibration)
The measurement output is held.

Overview
9
Hold down
Hold down
Setting
Menu
Calibration
Menu
User
Check
Menu
Meas mode Hold mode
or
Check the
contact output.
Check the
calibration data.
Adjust a moving
average.

Installation
10
Installation
Installation environment
To ensure the stable use of the HU-200SS SS-90 condition, install the HU-200SS SS-90 in a
location that meets the following requirements.
QInstrument mainframe
zThe location should be well ventilated to prevent build-up of moisture.
zThe ambient temperature should be between −20°C and 55°C.
zThe HU-200SS SS-90 should not be exposed to direct sunlight.
zThe HU-200SS SS-90 should not be exposed to direct high radiation heat.
zThe relative humidity should be 90% or lower.
zThe HU-200SS SS-90 should not be exposed to splashed water or chemical agent.
zThe mechanical vibration in the location should be minimal.
zThe location should have adequate space to allow maintenance and wire connecting
work.
zThe location should be free from dust and corrosive gas.
zThe location should be minimally affected by an electromagnetic fields.
zThe altitude should be no more than 2000 m.
zThe range of fluctuations in supply voltage should be within 100 V to 240 V AC ±10%.
QDetector
zThe location should have adequate space to allow for checking and maintenance of the
detector.
zSpilled water should not adversely affect the location.
zUtilities should be made available for zero water.
zMeasured liquids should be those that will not damage the portion of the detector that
comes into contact with the liquid.
zThe solution being measured should be free from air bubbles.
zMeasured liquid should be adequately agitated to be uniform.
zIf measured liquid is aerated, air bubbles do not directly come in contact with the detector.
Note
If measured liquid flows in only one direction, install and orient the sensor head to the downstream
side.

Installation
11
Installing the HU-200SS
This instrument can be mounted on a pole (50 A) or on a wall.
QInstallation on a pole
QInstallation on a wall
Note
Provide a service area for the converter.
[Unit: mm]
View of the HU-
200SS mounted
on a pole
Maintenance
area
12050
262
[Unit: mm]
View of the HU-
200SS mounted
on a wall
220
71 4-10 × 11 slot

Installation
12
Procedures for connections
QOpening the converter cover
1. Remove the two rubber-made screw caps located on the upper part of the front of
the converter. Do not lose the removed screw caps that will be reattached after the
work.
2. Open the front cover.
3. Completely loosen the four screw located on the front of the converter. These
screws will not drop off. Make sure that these screws are pushed out forward by
the force of a spring.
4. Open the front case of the converter.

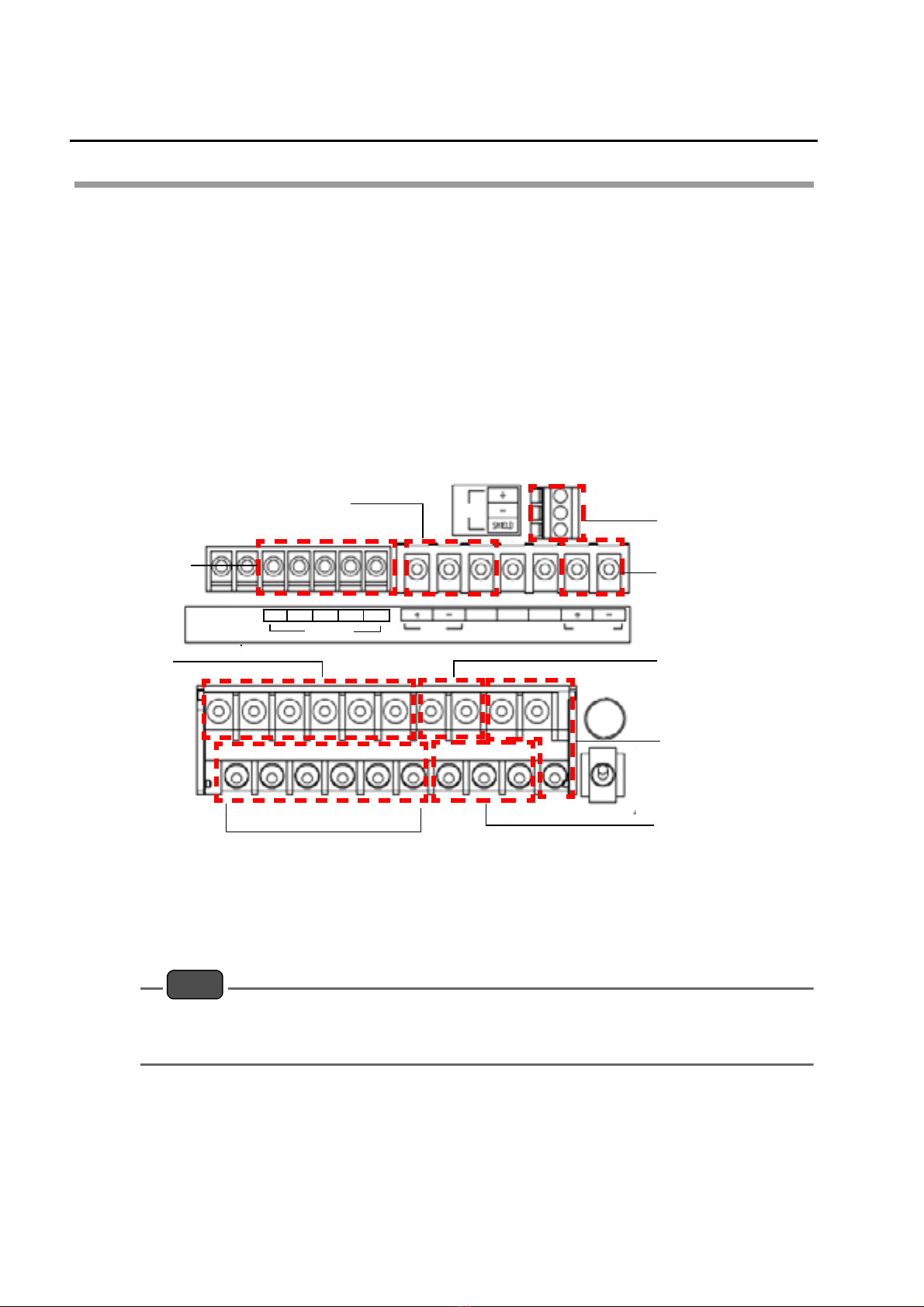

QDiagram of connection terminals
For wire-connecting work, pull forward and raise the black resin-made terminal cover that is
covering the power terminal, or remove the terminal cover by detaching a hinge.
Note
zThe screws on the front case and the terminal block are structurally prevented from dropping off.
zTo attach a round-shaped terminal, turn the screw counterclockwise until the screw is floated.
zIf the outside of the case is wet, wipe off all water before opening the case.
Communication
terminal
Contact input
terminal
(M3.5)
Power terminal
(M4)
Detector
terminal
(M3)
Contact
output
terminal
(M4)
RS-485
OUT1
SENSOR
12 34 5
Empty terminal
(Do not connect it.)
SHIELD
EXT.IN
Cleaning output
terminal
(AC active voltage)
Transmission
output terminal
(M3.5)
Abnormality
alarm output
(M4)
