Horizon Hobby Hangar 9 User manual

ASH 31 6.4M
Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni

2
EN
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon
Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product.
Age Recommendation: Not For Children Under 14 Years. This Is Not A Toy.
SAFETY WARNINGS AND PRECAUTIONS
Read and follow all instructions and safety precautions before use. Improper use can result in fire, serious injury and
damage to property.
Components
Use only with compatible components. Should any compatibility questions exist, please refer to the product
instructions, component instructions or contact the appropriate Horizon Hobby office.
Flight
Fly only in open areas to ensure safety. It is recommended flying be done at radio control flying fields. Consult local
ordinances before choosing a flying location.
Propeller
If using the motor powered option, always keep loose items that can become entangled in the propeller away from the
prop. This includes loose clothing or other objects such as pencils and screwdrivers. Keep your hands away from the
propeller as injury can occur.
Batteries
Always follow the manufacturer’s instructions when using and disposing of any batteries. Mishandling of Li-Po
batteries can result in fire causing serious injury and damage.
Small Parts
This kit includes small parts and should not be left unattended near children as choking and serious injury could result.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate various levels of potential harm when
operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage,
and serious injury OR create a high probability of superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a
possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or
no possibility of injury.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before
operating. Failure to operate the product correctly can result in damage to the product, personal property and
cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic
mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or damage
to the product or other property. This product is not intended for use by children without direct adult supervision. Do
not attempt disassembly, use with incompatible components or augment product in any way without the approval of
Horizon Hobby, LLC.This manual contains instructions for safety, operation and maintenance. It is essential to read and
follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and
avoid damage or serious injury.
SAFE OPERATING RECOMMENDATIONS
• Inspect your model before every flight to ensure it is airworthy.
• Be aware of any other radio frequency user who may present an interference problem.
• Always be courteous and respectful of other users in your selected flight area.
• Choose an area clear of obstacles and large enough to safely accomodate your flying activity.
• Make sure this area is clear of friends and spectators prior to launching your aircraft.
• Be aware of other activities in the vicinity of your flight path that could cause potential conflict.
• Carefully plan your flight path prior to launch.
• Abide by any and all established AMA National Model Aircraft Safety Code.
BEFORE STARTING ASSEMBLY
• Remove parts from bag.
• Inspect fuselage, wing panels, rudder and stabilizer for damage.
• If you find damaged or missing parts, contact your place of purchase.
• Charge transmitter and receiver batteries.
• Center trims and sticks on your transmitter.
• For a computer radio, create a model memory for this particular model.
• Bind your transmitter and receiver, using your radio system’s instructions.
NOTICE: Rebind the radio system once all control throws are set. This will keep the servos from moving to their
endpoints until the transmitter and receiver connect. It will also guarantee the servo reversal settings are saved in
the radio system.
FAA INFORMATION
If you own this product, you may be required to register with the FAA.
For up-to-date information on how to register with the FAA, please visit https://registermyuas.faa.gov/.
For additional assistance on regulations and guidance on UAS usage, visit knowbeforeyoufly.org/.

3
EN
ASH 31 6.4M ARF
SPECIFICATIONS LARGE PARTS LAYOUT
252 in (6.4m)
1920 sq in (123.87 dm2)
88 in (2.2m)
26 lbs (11.8 kg)
6-channel (or greater) with 7 servos
Notice......................................................................................................................................................................2
Meaning of Special Language..................................................................................................................................2
Safety Warnings and Precautions.............................................................................................................................2
Safe Operating Recommendations...........................................................................................................................2
Before Starting Assembly.........................................................................................................................................2
FAA INFORMATION...................................................................................................................................................2
Specifications..........................................................................................................................................................3
Large Parts Layout...................................................................................................................................................3
Required for Completion ..........................................................................................................................................4
Optional Parts..........................................................................................................................................................4
Additional Items Required ........................................................................................................................................4
Tools Required.........................................................................................................................................................4
Building Precautions................................................................................................................................................5
Transportation and Storage......................................................................................................................................5
Fluorescent Color Care.............................................................................................................................................5
Outer Wing Panels ...................................................................................................................................................5
Inner Wing Panels ....................................................................................................................................................7
Winglet Installation ................................................................................................................................................10
Rudder Installation.................................................................................................................................................10
Elevator Installation ...............................................................................................................................................12
Tow Release Installation.........................................................................................................................................13
Radio Installation ...................................................................................................................................................13
Cockpit Installation ................................................................................................................................................14
Optional Electric Power System Installation............................................................................................................14
Final Assembly.......................................................................................................................................................17
Balancing the Aircraft.............................................................................................................................................18
Control Throws ......................................................................................................................................................19
Preflight Checklist..................................................................................................................................................19
Daily Flight Checks ................................................................................................................................................19
Limited Warranty ...................................................................................................................................................19
Warranty and Service Contact Information .............................................................................................................20
Compliance Information for the European Union.....................................................................................................20
Instructions for Disposal of WEEE by Users in the European Union..........................................................................20
AMA National Model Aircraft Safety Code ..............................................................................................................21
Replacement Parts.................................................................................................................................................22
Recommended Parts..............................................................................................................................................22
Optional Parts........................................................................................................................................................22
TABLE OF CONTENTS

4
EN
REQUIRED FOR COMPLETION
ADDITIONAL ITEMS REQUIRED
TOOLS REQUIRED
# Required Part # Description
1 SPMAR12310T AR12310T 12CH PowerSafe Tele RX
4 SPMSA5060 A5060 H-T / H-S Mini Metal HV Servo
2 SPMSA7050 A7050 HV Thin Wing Hi Torq MG
3 SPMA3003 Heavy-Duty Servo Extension 12-inch
8 SPMA3004 Heavy-Duty Servo Extension 18-inch
5 SPMA3005 Heavy-Duty Servo Extension 24-inch
4 SPMA3007 Heavy-Duty Servo Extension 48-inch
1 SPMA3008 Heavy-Duty Y-Harness 6-inch
2 SPMB4000LPRX 4000mAh 2S 7.4V LiPo Rx Battery
1 SPMA3054 Servo Connector Clips (25)
1 SPMVR5203 VR5203 Dual Output Regulator
Description
6+ channel transmitter
LiPo battery charger
All Versions
Unpowered, Tow-Launched Version
Electric Powered Version
# Required Part # Description
1 SPMSA7040 A7040 HV Retract Servo
DLMBD38 Liquid Gravity; Weight System
# Required Part # Description
1 CSE010009700 Talon 90 Heli ESC 010-0097-00
1 EFLM4060B Power 60 BLOutrunner Mtr, 470Kv
1 EFLP16080FA Spinner, 45mm: ASW 20 4.7m
1 HAN495512 Propeller 16 x 10: ASW 20 4.7m
1 KXSB40006S40 F-Tek 4000mAh 6S 40C, EC5, LED
Description
Balancing stand
Box wrench: 17mm
Clamps
Clear tape
Crimping tool
Cyanoacrylate (CA) glue, thin and medium
Drill with various size bits
Epoxy
Epoxy brushes
Felt-tipped pen
Isopropyl alcohol
Hemostat
Hex drivers, metric, various sizes
Hobby knife
Long plastic pushrod
Low-tack masking tape
Medium grit sandpaper
Metric ruler
Microballoons
Mixing cups and sticks
Paper towels
Pencil
Phillips screwdriver: #1, #2
Pin vise
Pliers
Rotary tool with cutting disk, drum sander, carbide cutter, grinding stone
Soldering iron and solder
String
Part # Description
SPMA3008 Heavy-Duty Y-Harness 6 inch
SPMAS3000 AS3000 AS3X Stabilization Module
TAM85013 Spray Lacquer TS-13 Clear
TAM86024 PS-24 Fluor Org 100ml Spray Can
TAM87044 Primer White 180ml
OPTIONAL PARTS

5
EN
ASH 31 6.4M ARF

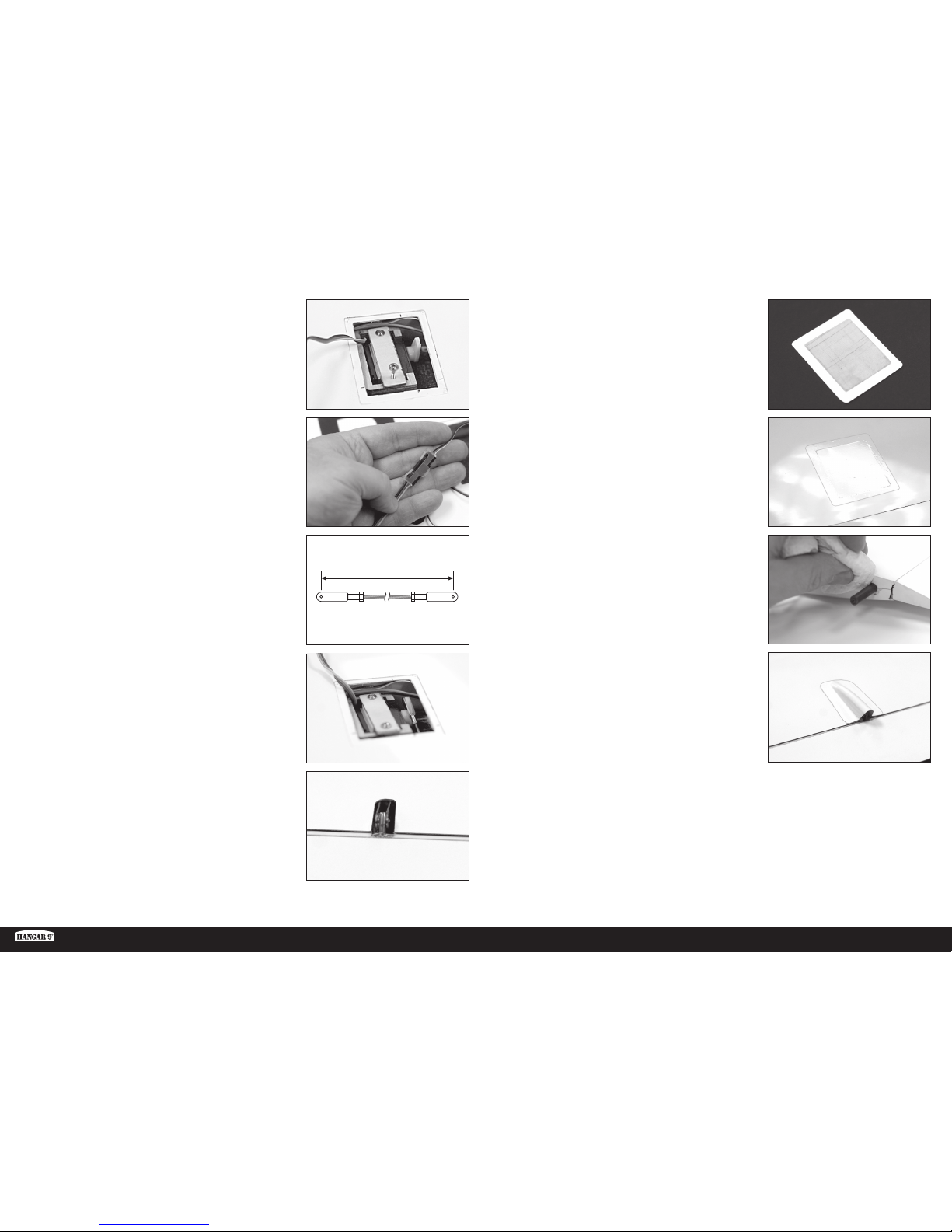

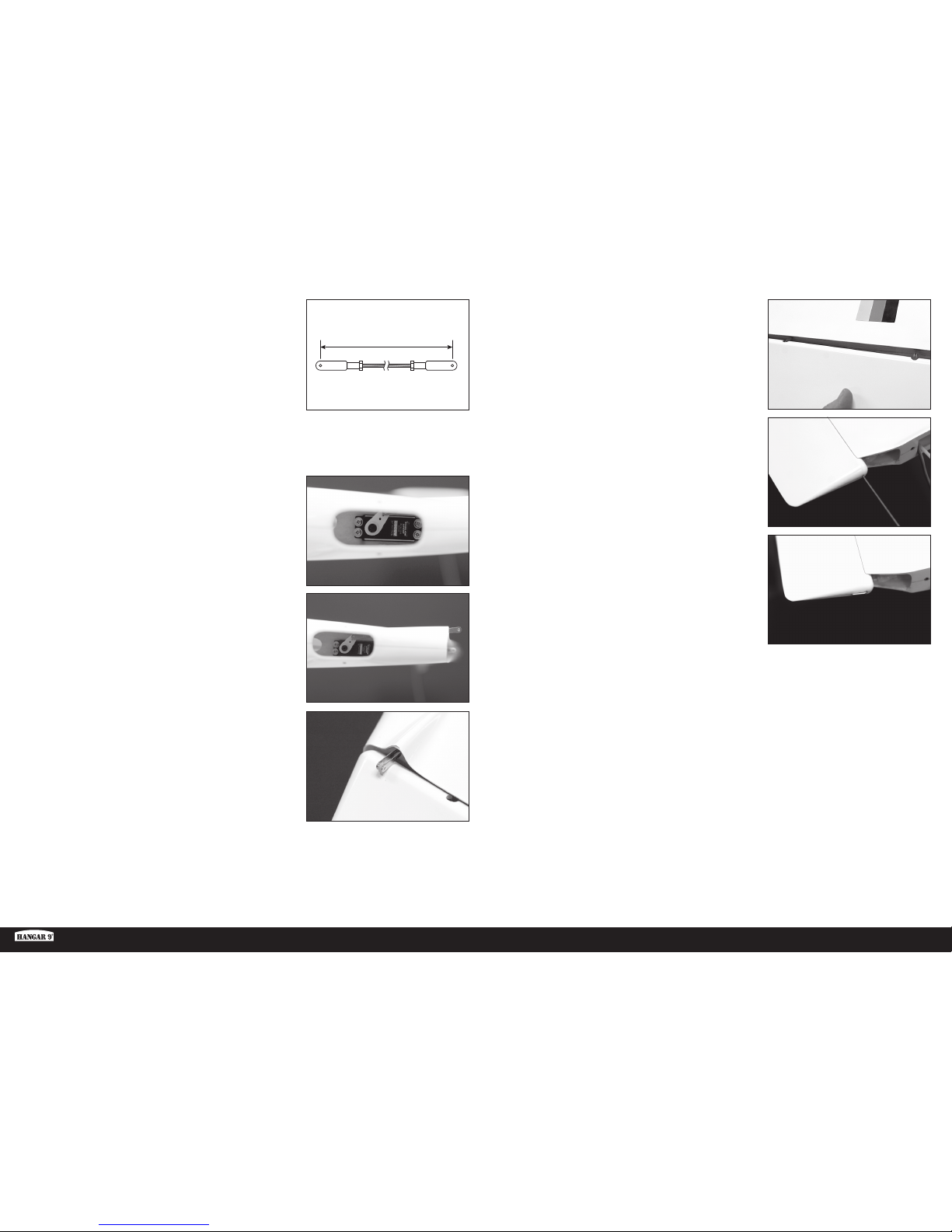

1. Remove packing tape, clean and polish the wing surface.
3. Find the short servo mounts. Drill pilot holes for the servo mounting
screws.
4. Carefully roughen the wing servo mounting surface for the servo
mount using either a rotary tool on low speed or 80 grit sandpaper.
Only lightly scuff the inner surface of the wing panel to give the
epoxy something to grip. DO NOT sand through the surface of the
wing panel. Clean the mounting surface thoroughly with denatured
alcohol or 91% IPA.
5. Cut 3 arms from a 4 arm servo horn.
6. Test fit the servo with the servo arm
installed. Enlarge the opening in the mount
as necessary to allow the servo to sit fully
in the mount.
Test fit the servo mount screws as well to
ensure they do not protrude through the
mount and damage the wing surface. If
the screws protrude, cut them off so they
are below the surface of the mount.
BUILDING PRECAUTIONS
Prepare the work surface prior to beginning the build. The surface
should be soft and free of any sharp objects. We recommend resting
the airframe parts on a soft towel or pit mat to prevent scratching or
denting the surface of the aircraft.
TRANSPORTATION AND STORAGE
When transporting and storing your model, you will need a minimum
of 80 inches (2m) in length, and 18 inches (46cm) in height to
accommodate the size of the fuselage. We also recommend the use of
wing and stabilizer bags to help protect these surfaces during transport
and storage. The control horns and linkages can cause damage to
other surfaces even when placed in storage bags. Always transport
and store the wings and stabilizer so the linkages do not contact other
panels to prevent damage.
FLUORESCENT COLOR CARE
The fluorescent color used on your model can fade with exposure to
direct sunlight over time. To increase the longevity of the fluorescent
color on the aircraft, limit the exposure to direct sunlight when not flying.
If repairs become necessary or if you decide to color optional parts
to match the fuselage color, Tamiya spray color, PS-24, Fluorescent
Orange is a close match to the color used on the model. For best
results, PS-24 needs to be sprayed over Tamiya Fine White Primer
(TAM87044) and clearcoated with Tamiya TS-13, Clear.
OUTER WING PANELS
2. Cut an access hole in the root end of the outer wing panel using a
rotary tool.
TIP: Make the hole just large enough for the servo connector to fit
through. If the hole is too big, the extension will fall back into the
wing panel when disconnected.
