Horizon Hobby BLH9600 User manual

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
RTF

2
EN
WARNING: Read the ENTIRE instruction manual to become
familiar with the features of the product before operating.
Failure to operate the product correctly can result in damage to
the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with cau-
tion and common sense and requires some basic mechanical ability.
The following terms are used throughout the product literature to indi-
cate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the
probability of property damage, collateral damage, and serious injury
OR create a high probability of supercial injury.
CAUTION: Procedures, which if not properly followed, create the prob-
ability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of
physical property damage AND a little or no possibility of injury.
NOTICE
All instructions, warranties and other collateral documents are
subject to change at the sole discretion of Horizon Hobby, LLC. For
up-to-date product literature, visit www.horizonhobby.com and click
on the support tab for this product.
Meaning of Special Language

3EN
Age Recommendation: Not for children under 14 years.
This is not a toy.
Failure to operate this Product in a safe and responsible manner
could result in injury or damage to the product or other property.
This product is not intended for use by children without direct adult
supervision. Do not use with incompatible components or alter this
product in any way outside of the instructions provided by Horizon
Hobby, LLC. This manual contains instructions for safety, operation
and maintenance. It is essential to read and follow all the instruc-
tions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.

4
EN
•Always keep a safe distance in all directions around your model to
avoid collisions or injury. This model is controlled by a radio signal
subject to interference from many sources outside your control.
Interference can cause momentary loss of control.
•Always operate your model in open spaces away from full-size
vehicles, trafc and people.
•Always carefully follow the directions and warnings for this and any op-
tional support equipment (chargers, rechargeable battery packs, etc.).
•Always keep all chemicals, small parts and anything electrical out of
the reach of children.
•Always avoid water exposure to all equipment not specically designed
and protected for this purpose. Moisture causes damage to electronics.
•Never place any portion of the model in your mouth as it could cause
serious injury or even death.
•Never operate your model with low transmitter batteries.
•Always keep aircraft in sight and under control.
•Always move the throttle fully down at rotor strike.
•Always use fully charged batteries.
•Always keep transmitter powered on while aircraft is powered.
•Always remove batteries before disassembly.
•Always keep moving parts clean.
•Always keep parts dry.
•Always let parts cool after use before touching.
Safety Precautions and Warnings

5EN
If you are operating this product in North America,
you are required to have an Amateur Radio (HAM) license.
Visit www.arrl.org for more information.
•Always remove batteries after use.
•Never operate aircraft with damaged wiring.
•Never touch moving parts.
This product uses Betaight Third Party Software in portions of its
coding. For more information on Betaight Software, please visit: https://
github.com/betaight/betaight/wiki.
THIRD PARTY SOFTWARE. This product may include code developed
by one or more third parties (“Third Party Software”). Some Third Party
Software may be subject to other terms and conditions that may be
available for download with the product documentation. Notwithstanding
the terms and conditions of this Agreement, the Third Party Software
is licensed to you subject to the terms and conditions of the software
license agreement identied in the open source software disclosure. If
the third party terms and conditions include licenses that provide for the
availability of source code (such as the GNU General Public License),
the open source software disclosure or the media on which the software
may be delivered will provide instructions where a copy of such source
code can be obtained.

6
EN
Table of Contents
First Flight Preparation ............10
Flying Checklist.......................10
Charging Warnings..................11
Charge the Flight Battery.........11
Installing the Propellers ...........13
Installing the
Transmitter Batteries (RTF).......14
Install the Flight Battery...........15
BNF Transmitter Setup.............16
Transmitter
and Receiver Binding ..............16
Transmitter Control (RTF).........18

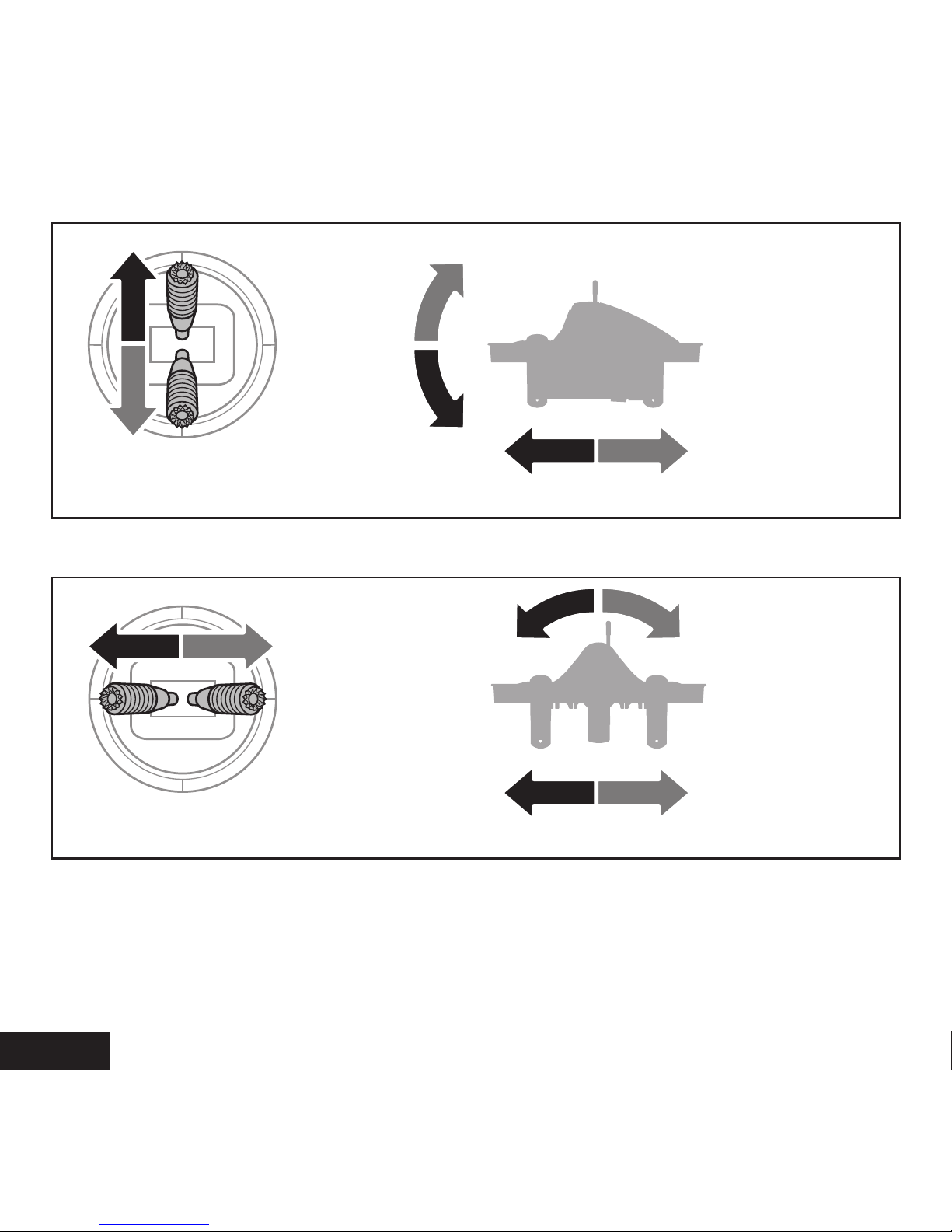

Understanding the
Primary Flight Controls............20
Flight Mode Selection..............22
Fly the Quadcopter..................23
Low Voltage Cutoff (LVC)..........25
Battery Level Indicator.............25
Changing the
Center LED Taillight Color ........26
FPV Camera
and Video Transmitter..............27
Video Monitor (RTF).................29
Troubleshooting Guide.............34
Exploded View.........................36
Parts Listings..........................37
Optional Parts.........................37
Limited Warranty.....................38
Warranty and Service
Contact Information.................42
FCC Information......................43
IC Information.........................44
Compliance Information
for the European Union............45

7EN
Length 3.74 in (95mm)
Width 3.74 in (95mm)
Height 1.77 in (45mm)
Propeller Diameter 1.57 in (40mm)
Flying Weight 1.83 oz (52g)
Specifications
To receive product updates, special offers and more,
register your product at www.bladehelis.com.
NOTICE: Consult local laws and ordinances before operating FPV (rst
person view) equipment. In some areas, FPV operation may be limited
or prohibited. You are responsible for operating this product in a legal
and responsible manner.

8
EN

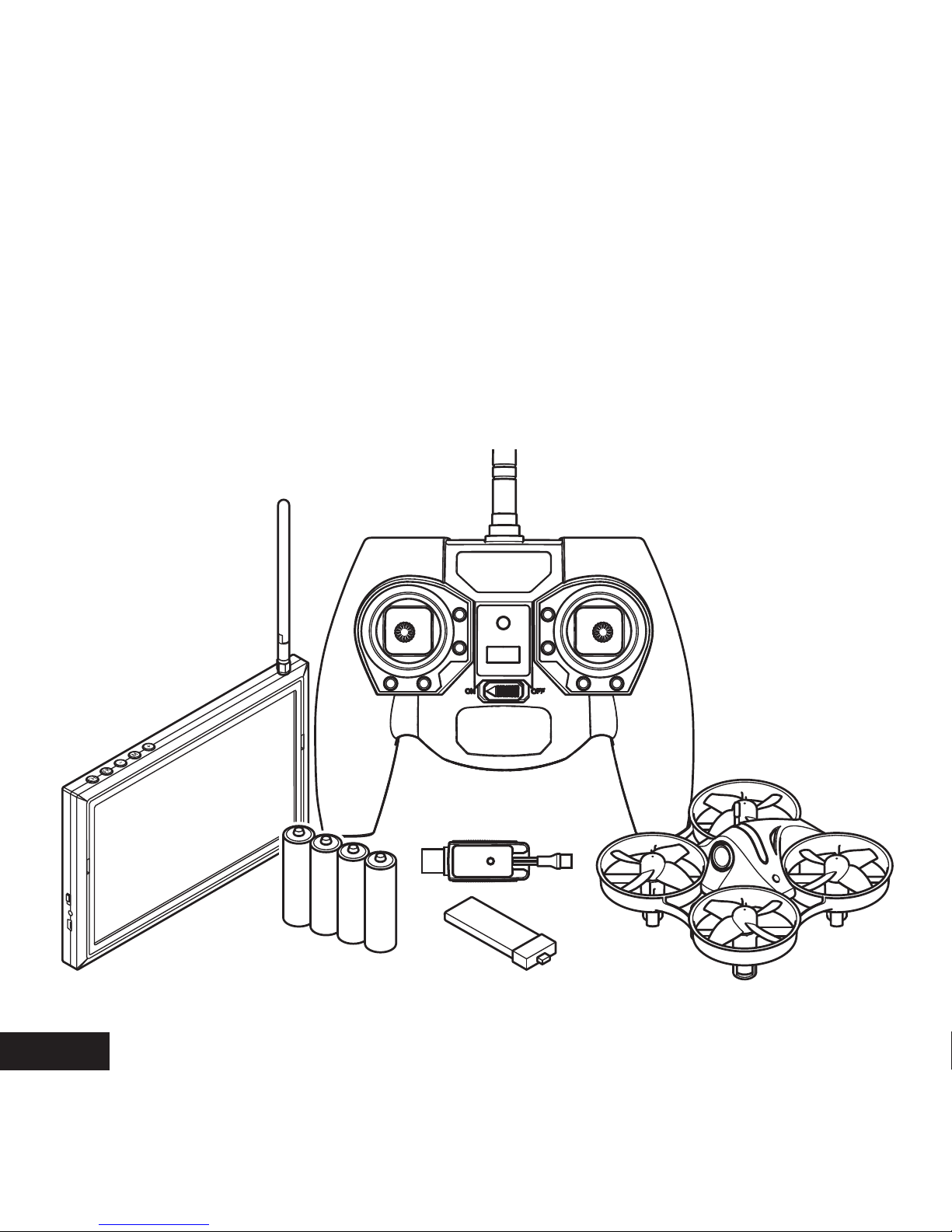

Box Contents:
•Inductrix®FPV Plus Quadcopter
•3.7V 500mAh 1S 25C LiPo (EFLB5001S25UM)
•Charger, 1S 3.7V LiPo, USB (EFLC1013)
•Video Monitor w/DVR (SPMVM435) (RTF Only)
•MLP6DSM 6CH Transmitter 2.4GHz (EFLRMLP6) (RTF Only)

9EN
First Flight Preparation
•Remove and inspect contents
•Begin charging the ight battery
•Assemble the aircraft
•Program your computer transmitter
•Install the ight battery in the aircraft (once it has been fully charged)
•Bind your transmitter
•Familiarize yourself with the controls
•Find a suitable area for ying
Flying Checklist
❏Always turn the transmitter on first
❏Plug the ight battery into the lead from the ESC
❏Allow the ESC to initialize and arm properly
❏Fly the model
❏Land the model
❏Unplug the ight battery from the ESC
❏Always turn the transmitter off last

10
EN
Charging Warnings
WARNING: Failure to comply with the following warnings could
result in product malfunction, electrical issues, excessive heat,
FIRE, and ultimately injury and property damage.
•NEVER LEAVE CHARGING BATTERIES UNATTENDED.
•NEVER CHARGE BATTERIES OVERNIGHT.
•Never charge damaged batteries. If the battery begins to swell during
charging or use, discontinue immediately.
•Always use the included battery and charger. Disconnect the battery
after charging.
•Charge batteries away from ammable materials in a well-ventilated area.
•Never charge, transport, or store batteries in hot, cold, or very sunny
places (recommended between 40–120° F or 5–49° C).
Charge the Flight Battery
CAUTION: Only use chargers specically designed to charge
the included Li-Po battery. Failure to do so could result in re,
causing injury or property damage.
CAUTION: Never exceed the recommended charge rate.

11 EN
The USB battery charger (EFLC1013) included with your aircraft has been
designed to safely charge the 1S 3.7V 500mAh 25C Li-Po ight battery.
NOTICE: Inspect the battery to make sure it is not damaged e.g., swollen,
bent, broken or punctured. Charge only batteries that are cool to the touch
and are not damaged.
1. Insert the charger into a USB port. The charger only uses power from
the USB port. USB power supplies, such as those used to charge cellular
phones, can also be used.
2. Connect the battery to the
charger as shown in the
illustration above. When
you make the connection successfully, the LED on the charger turns solid
red, indicating charging has begun. Charging a fully discharged (not over-
discharged) 500mAh battery takes approximately 60 minutes.The LED
goes out when the charge is complete.
CHARGING (Solid Red LED)
MAX CHARGE (LED OFF)
3.Always disconnect the ight battery from the charger immediately upon
completion of charging.
CAUTION: Once charging is complete, immediately remove the
battery. Never leave a battery connected to the charger.
USB Li-Po
Charger
EFLC1013
SOLID REDLED
–Charging
DC Input:5.0V 500mA
DC Output:4.2V 500mA
LED OFF
–Charge
Complete

12
EN
Installing the Propellers
1. Refer to the illustration for the proper motor rotation and propeller location.
2. The propellers are press t onto the motor shafts. Remove the
propellers by pulling the center hub straight up away from the motor.
3. Install the propellers by pressing the center hub over the motor shaft,
being careful not to press it too far down on the shaft. The propeller
and motor should spin freely when installed correctly.
Clockwise
Counter-
Clockwise

13 EN
Installing the Transmitter Batteries (RTF)
The LED indicator ashes and the transmitter beeps progressively
faster as the battery voltage drops.
Replace the transmitter batteries when the transmitter begins to beep.

14
EN
Install the Flight Battery
12Throttle down Power ON
34
CAUTION: Always disconnect the Li-Po battery from the
aircraft when not ying to avoid over-discharging the battery.
Batteries discharged to a voltage lower than the lowest approved
voltage may become damaged, resulting in loss of performance and
potential re when the batteries are charged.

15 EN
Transmitter and Receiver Binding
BNF Transmitter Setup
If you are using a computer transmitter, set the model type to “Acro” or
“Airplane” mode. In the channel input menu, set channel 6 (Aux1) to
a momentary switch such as the bind button ( I) and channel 5 (Gear)
to a 3-position switch (switch B). In the Servo Setup menu, reverse
channel 6 (Aux1).
Bind the quadcopter to your transmitter following the Transmitter and
Receiver Binding directions below.
General Binding Procedure (BNF®)
1. Disconnect the ight battery from the quadcopter.
2. Set the model type in your transmitter settings to “Acro” mode.
3. Center all trims on your transmitter.
4. Power off the transmitter and fully lower the throttle.
5. Connect the ight battery in the quadcopter. All of the LEDs on the
aircraft will ash rapidly, indicating the aircraft has entered bind mode.
6. Put the transmitter into bind mode while powering on the transmitter.
7. Release the bind button/switch after 2–3 seconds. The quadcopter
is bound when all of the LEDs on the aircraft turn solid.
8. Disconnect the ight battery and power the transmitter off.

16
EN
If you encounter problems binding either the included RTF transmitter
or your computer radio, obey the binding instructions and refer to the
troubleshooting guide for other instructions. If needed, contact the
appropriate Horizon Product Support ofce.
Your RTF transmitter comes prebound to the quadcopter. If you need to
re-bind, follow the directions below.
MLP6DSM Binding Procedure (RTF)
1. Disconnect the ight battery from the quadcopter.
2. Center all trims on your transmitter.
3. Power off the transmitter and fully lower the throttle.
4. Connect the ight battery in the quadcopter. All of the LEDs on the
aircraft will ash rapidly, indicating the aircraft has entered bind mode.
5. Push in and hold down the left stick while powering on the transmitter
(you will hear a ‘click’ and a long tone).
6. Release the left stick. The transmitter will beep and the power LED
will blink. The quadcopter is bound when all of the LEDs on the
aircraft turn solid.
7. Disconnect the ight battery and power the transmitter off.

17 EN
Transmitter Control (RTF)
Flight mode switch
Dual rate switch
ON/OFF
Switch
Bind switch Power LED/ight
mode indicator
D
E
C
B
A
F
Meow Mode/Arming Switch

18
EN
Adjusting Flight Trims
When pressed down, trim buttons make a sound that increases or
decreases in pitch at each pressing. The middle or neutral trim position
is heard as a middle tone in the pitch range of the sounds. The end of
the control range is sounded by a series of beeps.
Dual Rate Selection
The control sensitivity can be changed by pressing and releasing the
right control stick. The LED on the transmitter will show solid for high
sensitivity (default) and ashing for low sensitivity.
Mode 1 Mode 2
ARudder (Left/Right)
Elevator (Up/Down)
Rudder (Left/Right)
Throttle/Collective (Up/Down)
BRudder Trim Rudder Trim
CElevator Trim Throttle Trim
DAileron (Left/Right)
Throttle/Collective (Up/Down)
Aileron (Left/Right)
Elevator (Up/Down)
EAileron Trim Aileron Trim
FThrottle Trim Elevator Trim

19 EN
Understanding the Primary Flight Controls
If you are not familiar with the controls of your quadcopter, take a few
minutes to familiarize yourself with them before attempting your rst ight.
Throttle
Rudder
Left Side View
Top View
Climb
Nose yaws
right
Nose yaws
left
Descend
Throttle up/down
Rudder left/right

20
EN
Elevator
Aileron
Left Side View
Rear View
Pitches Forward
Rolls Left
Pitches Backward
Rolls Right
Aileron left/right
Elevator up/down
