Horizon Hobby Blade mCX2 User manual

Instruction Manual |Bedienungsanleitung
Manuel d’utilisation |Manuale di Istruzioni
RTF
CAUTION: Attempting to fly the helicopter without completely reading the manual may cause injury to yourself and people
in the vicinity, as well as damage to the helicopter.
ACHTUNG: Der Versuch, den Helikopter zu fliegen, ohne das Handbuch vollständig zu lesen, kann Verletzungen an Ihnen
selbst und Menschen in der Nähe, wie auch Schäden am Helikopter verursachen.
ATTENTION: tenter de faire voler l’hélicoptère sans avoir lu l’intégralité du manuel peut provoquer des blessures (à
vous-même et aux personnes alentour) ainsi que des dégâts à l’hélicoptère.
ATTENZIONE: Un tentativo di far volare l’elicottero senza aver letto completamente il manuale può avere come risultato
una lesione del manovratore e delle persone circostanti, nonchè danni all’elicottero stesso.

2
EN
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before
operating. Failure to operate the product correctly can result in damage to the product, personal property
and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some
basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result in injury or
damage to the product or other property. This product is not intended for use by children without direct adult su-
pervision. Do not attempt disassembly, use with incompatible components or augment product in any way without
the approval of Horizon Hobby, Inc. This manual contains instructions for safety, operation and maintenance. It is
essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in
order to operate correctly and avoid damage or serious injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
The following terms are used throughout the product literature to indicate various levels of potential harm when
operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little
or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a
possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral
damage, and serious injury OR create a high probability of superficial injury.
Additional Safety Precautions and Warnings
• Alwayskeepasafedistanceinalldirectionsaroundyourmodeltoavoidcollisionsorinjury.Thismodeliscon-
trolled by a radio signal subject to interference from many sources outside your control. Interference can cause
momentary loss of control.
• Alwaysoperateyourmodelinopenspacesawayfromfull-sizevehicles,trafcandpeople.
• Alwayscarefullyfollowthedirectionsandwarningsforthisandanyoptionalsupportequipment(chargers,
rechargeablebatterypacks,etc.).
• Alwayskeepallchemicals,smallpartsandanythingelectricaloutofthereachofchildren.
• Alwaysavoidwaterexposuretoallequipmentnotspecicallydesignedandprotectedforthispurpose.Moisture
causes damage to electronics.
• Neverplaceanyportionofthemodelinyourmouthasitcouldcauseseriousinjuryorevendeath.
• Neveroperateyourmodelwithlowtransmitterbatteries.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of
HorizonHobby,Inc.Forup-to-dateproductliterature,visithorizonhobby.comandclickonthesupporttabforthis
product.
Meaning of Special Language

3EN
Troubleshooting
If you encounter any difficulties while charging, setting up, testing functions or flying your Blade mCX2,
see page 17 to contact the appropriate Horizon Product Support office.
Specifications
Fuselage Length ............7.9in(200mm)
Height....................4.7in(120mm)
MainRotorDiameter.........7.5in(190mm)
Weight with Battery .........1.0oz(28g)
MainMotors ...............Microcoreless(2installed)
Battery ...................1-Cell3.7V150mAhLiPo(included)
Charger ..................1-Cell3.7VDCLiPo(included)
Transmitter................MLP4DSM2.4GHzDSM4-channel(RTF Only)
On-Board Electronics ........5-in-1receiver/servos/mixer/ESCs/gyro(installed)
Table of Contents
Troubleshooting ................................................................3
Specifications ..................................................................3
Blade®mCX2 Contents ...........................................................4
First Flight Preparation ...........................................................4
FlyingChecklist.................................................................4
BatteryWarningsandGuidelines....................................................5
LowVoltageCutoff(LVC) ..........................................................5
Battery Charging................................................................6
InstallingtheTransmitterBatteries(RTFONLY) .........................................6
Installing the Flight Battery ........................................................7
Transmitter and Receiver Binding ...................................................7
Transmitter Control Identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control Test...................................................................10
Channel 5 Information...........................................................12
5-in-1ControlUnitDescription,ArmingandMotorControlTest ............................12
Understanding the Primary Flight Controls ...........................................14
Dual Rates ...................................................................15
Choosing a Flying Area ..........................................................15
Flying the Blade mCX2 ..........................................................15
Advanced Swashplate Settings ....................................................16
TroubleshootingGuide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ExplodedViewPartsListing.......................................................18
ExplodedView.................................................................19
Replacement Parts List ..........................................................20
Option Parts ..................................................................20
Limited Warranty...............................................................22
Warranty and Service Contact Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Customer Service Information.....................................................23
Compliance Information for the European Union .......................................24

4
EN
Warning
An RC helicopter is not a toy! If misused, it can cause serious bodily harm and damage to property. Fly
onlyinopenareas,preferablyatAMA(AcademyofModelAeronautics)approvedyingsites,following
all instructions.
Keep items that can get entangled in the rotor blades away from the main and tail blades, including
looseclothing,pencilsandscrewdrivers.Especiallykeepyourhandsawayfromtherotorblades.
Blade®mCX2 Contents
Item Description
Not Available Separately ......Blade mCX2 RTF Airframe
EFLH1064B. . . . . . . . . . . . . . . . MLP4DSM4-ChannelTransmitter,2.4GHzDSMX
EFLB1501S25..............150mAh1-Cell3.7VLi-Po
EFLC1000.................1-Cell3.7VLi-PoCharger,0.3A
EFLH1209.................Screwdriver
Not Available Separately ......8AABatteries(RTF),4AABatteries(BNF)
(Optional)FUG4.............4 AA Batteries
First Flight Preparation
• Remove and inspect contents
• Install four of the included AA batteries in
the charger
• Begin charging the flight battery
• Install the remaining four AA batteries in the
transmitter (RTF ONLY)
• Install the flight battery in the helicopter
(onceithasbeenfullycharged)
• Test the controls
• Familiarize yourself with the controls
• Find a suitable area for flying
Flying Checklist
❏Always turn the transmitter on first
❏Plug the flight battery into the lead from the
5-in-1 control unit
❏Allow the 5-in-1 control unit to initialize and
arm properly
❏Fly the model
❏Land the model
❏Unplug the flight battery from the 5-in-1
control unit
❏Always turn the transmitter off last
*Transmitter and 4 AA Batteries not included with BNF Version

5EN
Battery Warnings and Guidelines
Theincludedbatterycharger(EFLC1000)hasbeendesignedtosafelychargetheincluded
Li-Po battery.
CAUTION:Allinstructionsandwarningsmustbefollowedexactly.MishandlingofLi-Po
batteries can result in a fire, personal injury, and/or property damage.
•Byhandling,chargingorusingtheincludedLi-Pobattery,youassumeallrisksassociatedwith
lithium batteries.
•Ifatanytimethebatterybeginstoballoonorswell,discontinueuseimmediately.Ifchargingor
discharging, discontinue and disconnect. Continuing to use, charge or discharge a battery that is
ballooning or swelling can result in fire.
•Alwaysstorethebatteryatroomtemperatureinadryareaforbestresults.
•Alwaystransportortemporarilystorethebatteryinatemperaturerangeof40–120ºF(4.44–48.88º
C).Donotstorebatteryoraircraftinacarordirectsunlight.Ifstoredinahotcar,thebatterycanbe
damaged or even catch fire.
•Alwayschargebatteriesawayfromammablematerials.
•Alwaysinspectthebatterybeforechargingandneverchargedamagedbatteries.
•Alwaysdisconnectthebatteryaftercharging,andletthechargercoolbetweencharges.
•Alwaysconstantlymonitorthetemperatureofthebatterypackwhilecharging.
•ONLYUSEACHARGERSPECIFICALLYDESIGNEDTOCHARGELI-POBATTERIES.Failuretocharge
the battery with a compatible charger may cause fire resulting in personal injury and/or property
damage.
•NeverdischargeLi-Pocellstobelow3Vunderload.
•Nevercoverwarninglabelswithhookandloopstrips.
•Neverleavechargingbatteriesunattended.
•Neverchargebatteriesoutsiderecommendedlevels.
•Neverattempttodismantleoralterthecharger.
•Neverallowminorstochargebatterypacks.
•Neverchargebatteriesinextremelyhotorcoldplaces(recommendedbetween40–120°For
4.44–48.88°C)orplaceindirectsunlight.
Low Voltage Cuto (LVC)
When a Li-Po battery is discharged below 3V, the battery may be damaged and may no longer accept
a charge. The mCX2’s 5-in-1 control unit protects the flight battery from over-discharge using Low
VoltageCutoff(LVC).Beforethebatterychargedecreasestoomuch,LVCremovespowersupplyfrom
themotor.PowertothemotordecreasesandtheLEDonthe5-in-1controlunitblinks,showingsome
battery power is reserved for flight control and safe landing.
When the motor power decreases, please land the aircraft immediately and recharge the flight battery.
DisconnectandremovetheLi-Pobatteryfromtheaircraftafterusetopreventtrickledischarge.Before
storage,chargetheLi-Pobatterytofullcapacity.Duringstoragemakesurethebatterychargedoes
not go below 3V.
NOTICE: Repeated flying to LVC will damage the battery.

6
EN
Battery Charging
Follow these steps to charge the Li-Po battery with the included charger:
1. Remove the cover on the bottom of the charger and install four of the included AA batteries, not-
ing proper polarity. Replace the cover after the AA batteries are installed.
2. Slide the battery into the slot on the charger. The endcap
of the battery has been specifically designed to allow the
batterytobeslidintothesloteasilyoneway(usuallywith
thelabelonthebatteryfacingoutward)topreventreverse
polarityconnection.However,checkforproperalignment
andpolaritybeforeproceedingtothenextstep.
3.Gentlypressthebatteryanditsconnectorintothecharge
jack/connectorlocatedatthebottomoftheslotonthe
charger.
4. Once the connection is successful, the LED light on the
charger turns solid red, indicating
charging has begun.
5.Afullydischargedbattery(notover-discharged)takesapproximately30–40minutestocharge.
Asthebatterynearsfullcharge,theLEDlightwillblink.WhenthebatteryisfullychargedtheLED
lightblinksapproximatelyevery20secondsorgoesoutentirely.
The Li-Po battery included with your Blade mCX2 will arrive partially charged. For this reason the initial
chargemayonlytake15–20minutes.
YoucanexpecttochargetheLi-Poightbatteryapproximately15–20timesbeforeitwillbeneces-
sary to replace the AA batteries in the charger. An optional 6V power supply is also available separate-
ly(EFLC1005).ThispowersupplywillallowyoutochargeathomewithouttheneedforAAbatteries.
Installing the Transmitter Batteries (RTF ONLY)
InstallfouroftheincludedAAbatteriesinthetransmitter.Checkforproperoperationofthetransmitter
byswitchingthepowerswitchon(totheleft).TheLEDlightatthetopofthetransmittershouldbegin
to glow solid red while the transmitter beeps.

7EN
Installing the Flight Battery
Once the Li-Po battery is fully charged, you can install it in the helicopter. This is done by sliding it into
the battery mounting supports/slots just below the main gears. Slide the battery into the slots with the
labelfacingdownwardandtheconnectororientedtowardthebackofthehelicopter.
Be sure to slide the battery into the slots until the endcap of the battery comes into contact with the
rear battery support. This allows you to achieve the correct center of gravity for the best overall flight
performance.However,besurethebatteryisnotpushedfarenoughforwardthatitmakescontact
with the servo gears, as this could cause damage to the gears and a potential crash.
Transmitter and Receiver Binding
The Blade mCX2 RTF comes bound to the MLP4DSM transmitter included.
The BNF version requires you to bind to your own compatible DSMX Aircraft Transmitter.
To bind or re-bind your mCX2 to your chosen transmitter please follow the directions below:
BindingistheprocessofprogrammingthereceiverofthecontrolunittorecognizetheGUID(Globally
UniqueIdentier)codeofasinglespecictransmitter.Youneedto‘bind’yourchosenSpektrumDSMX
technology equipped aircraft transmitter to the receiver for proper operation.
FollowingaresomeoftheSpektrumDSMX-equippedtransmittersandmodulesthatbindtothe
receiver of your Blade mCX2.
 E-iteMLP4DSM  E-iteLP5DSM ParkZoneVaporTransmitter
 PKZEmber2Transmitter JR12X2.4 SpektrumDX5e
 SpektrumDX6i  SpektrumDX7/DX7se
Note:TheSpektrumDX6(SPM2460)isequippedwithDSM(notDSMX)technologyandisnotcompat-
ible with the receiver of the Blade mCX2.
The following steps outline the binding process:
• Makesuretheightbatteryisdisconnectedfromthe5-in-1unitandthetransmitteristurnedoff.
• Plug the flight battery into the 5-in-1 unit.
• Plug the flight battery into the 5-in-1 unit. After 5 seconds the LED on the 5-in1 unit will begin
flashing.

8
EN
MLP4DSM and ParkZone Vapor/Ember 2 Transmitters
AfterverifyingtheLEDisashingonthereceiver/5-in-1,PUSHdirectlydownontheleft-handstick
whileswitchingthetransmitteron(youwillfeela‘click’whenyoupushinontheendofthestick).
Afterapproximately5–10secondsthereceiver/5-in-1shouldbeboundtothetransmitterandyou
should now have full control and function.
LP5DSM
IfyoudecidetouseanE-iteLP5DSMtransmitter,pleasepositionyourchannelreversaldipswitches
as follows.
1. Plug the flight battery into the 5-in-1 unit. After 5 seconds the LED on the 5-in-1 unit will
begin flashing.
2.Movethesticksandswitchesonthetransmittertothedesiredfailsafepositions(lowthrottleand
neutralcontrolpositions).
3. Turn the transmitter on. The red LED located under the door on the bottom left front of the trans-
mitterwillblinkrapidly.
DX5e and DX6i
1.Movethesticksandswitchesonthetransmittertothedesiredfailsafepositions(lowthrottleand
neutralcontrolpositions).
2. For the DX5e: Pull and hold the Trainer Switch on the transmitter while turning the transmitter on.
Release the trainer switch once the LEDs on the front of the transmitter flash.
3. For the DX6i: Pull and hold the Trainer Switch on the transmitter while turning the transmitter on.
Release the trainer switch once “BIND” Flashes on the LCD screen of the transmitter.
4.Afterapproximately5–10secondsthereceiver/5-in-1shouldbeboundtothetransmitterandyou
should have full control and function.
DX7, DX7se, X9303, or 12X:
1.Movethesticksandswitchesonthetransmittertothedesiredfailsafepositions(lowthrottleand
neutralcontrolpositions)
2.Pressthebindbuttononthebackofthetransmitterwhileturningthetransmitteron.Thebind
buttononthebackofthetransmitterwillash.Releasethebuttonafter2–3seconds.
3.Afterapproximately5-10secondsthereceiver/5-in-1shouldbeboundtothetransmitterandyou
should now have full control and function.
Additional Binding Information
Prior to each flight, power on your transmitter and wait about five seconds before you plug the flight
battery into the receiver. This allows time for the transmitter to scan and secure two open frequencies.
Ifyouplugtheightbatteryintooquicklyandmissthelink,thereceivermayinadvertentlyenterbind
mode. If this occurs leave the transmitter on, then disconnect and reconnect the flight battery.

9EN

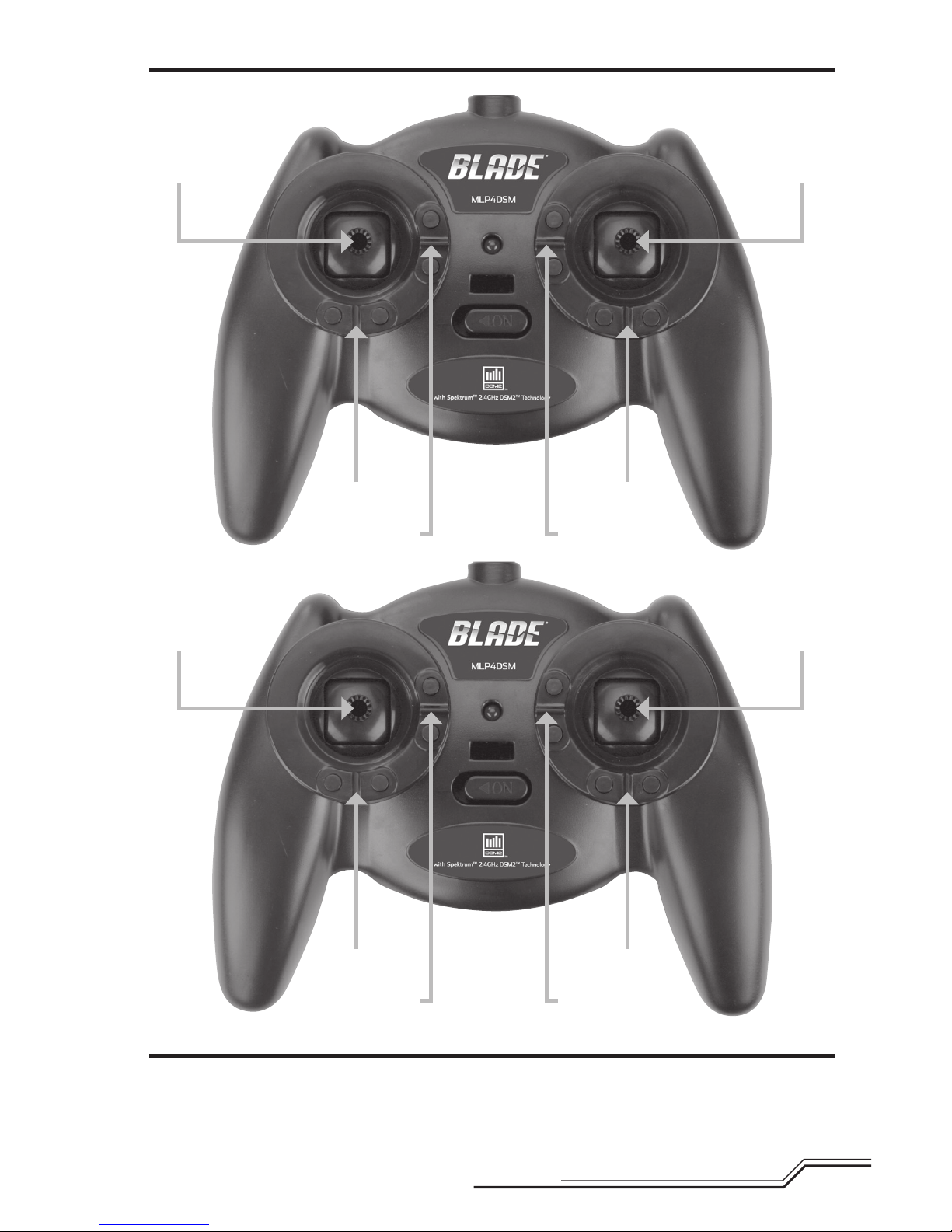

Transmitter Control Identification
Mode2
Mode1
Rudder/Throttle
Functions
Rudder Trim
Throttle Trim
Rudder Trim
Elevator Trim
Aileron Trim
Elevator Trim
Aileron Trim
Throttle Trim
Rudder/Elevator
Functions
Aileron/Elevator
Functions
Aileron/Throttle
Functions

10
EN

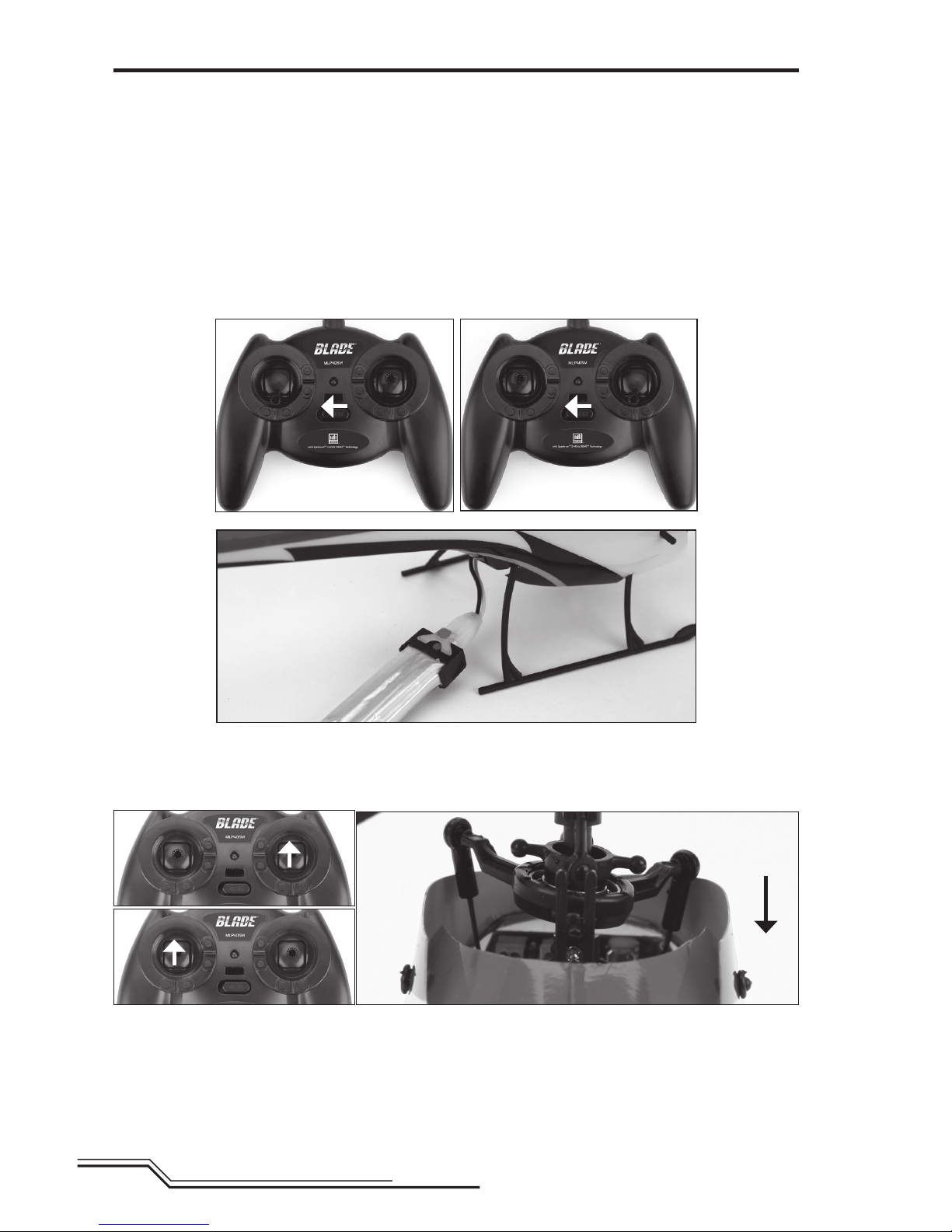

Control Test
Although each Blade mCX2 model is test flown at the factory, you should test the controls prior to the
rstighttoensurenoneoftheservos,linkagesorpartsweredamagedduringshippingandhandling.
Turnthetransmitteronrstandlowerthethrottlestickcompletely.Then,plugthebatteryintothe
battery lead of the 5-in-1 unit.
Theconnectorsonthebatteryandbatteryleadarekeyedtopreventreversepolarityconnection.How-
ever, if you force them together in the wrong orientation/wrong polarity it is possible to damage the
battery and/or 5-in-1 unit. To help further prevent a reverse polarity connection, one side of the endcap
on the battery and the connector on the battery lead of the 5-in-1 unit have a red dot. The connectors
areorientedforaproperpolarityconnectionwhenthereddotsareonthesameside(usuallytoward
thetopofthehelicopter).
Mode1
Mode2
Positionthehelicoptertoviewitfrombehind.Movetheelevatorstickonthetransmitterforwardand
afttocheckelevatorpitchcontrol.Whenthestickispushedforward,theright-handservoshouldpull
the swashplate downward.
M2
M1

11 EN

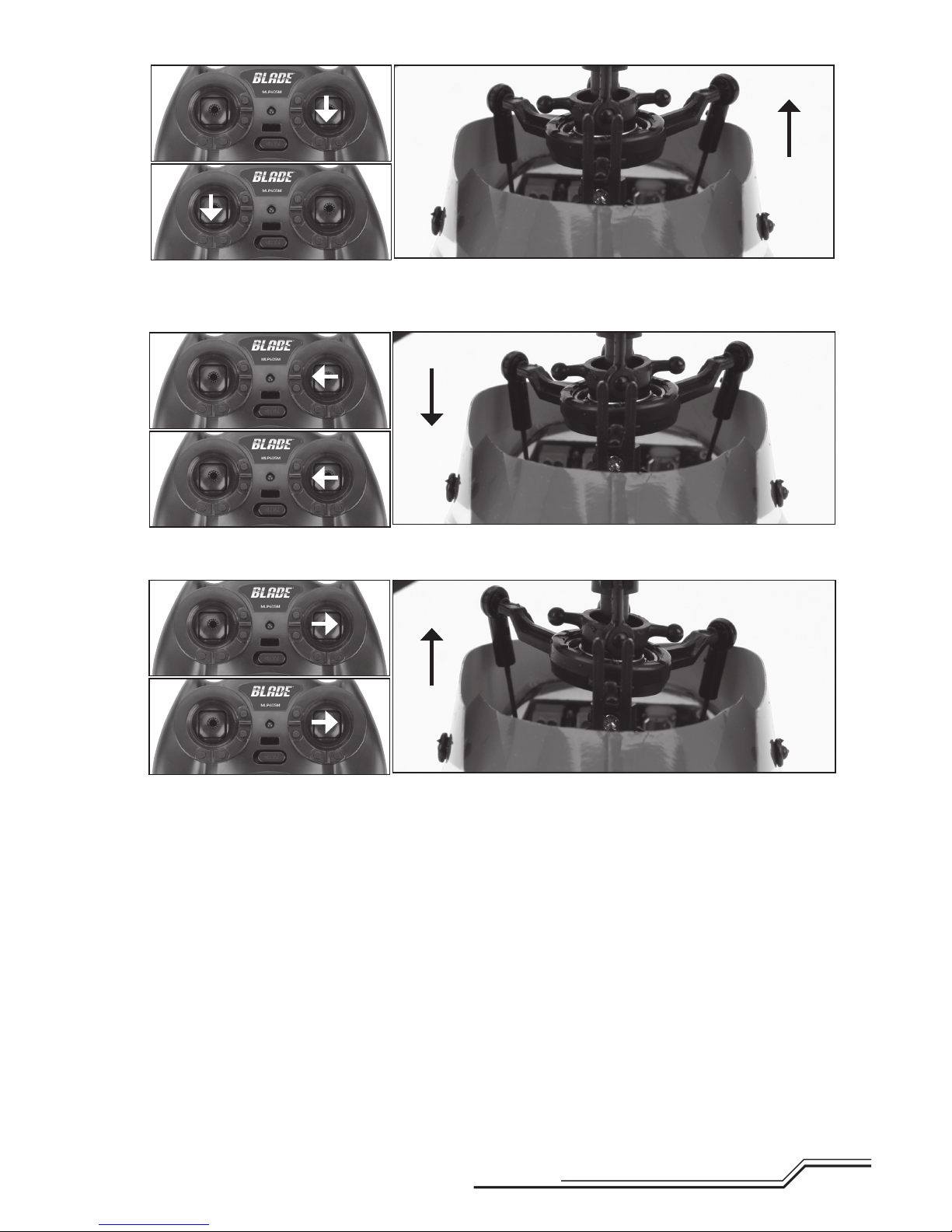

Withthestickpulledback,theright-handservoshouldpushtheswashplateupward.
M2
M1
Movetheright-handstickleftandrighttocheckaileronrollcontrol.Whenthestickispushedtothe
left, the left-hand servo should pull the swashplate downward.
M2
M1
Withthestickpushedright,theleft-handservoshouldpushtheswashplateupward.
M2
M1
If at any time during the test the controls respond in the opposite direction, it may be necessary to
reverse/change the direction of operation of the flight controls. Follow these steps to change the direc-
tion the various flight controls:
• Be certain that the battery is disconnected from the battery lead of the 5-in-1 control unit and the
transmitter is turned off.
• Pushdownontheappropriatedigitaltrimbuttononthetransmitterforthecontrolyouwouldlike
tochangethedirectionof.Forexample:
Top elevator trim button—elevator channel normal
Bottom elevator trim button—elevator channel reversed
Left aileron trim button—aileron channel normal
Right aileron trim button—aileron channel reversed
• Continue to hold the appropriate trim button while turning the transmitter on.
• Holdthedigitaltrimbuttondownforapproximatelyveseconds,untilaseriesofbeeps/tonesare
heard confirming the selection.
• Connect the battery to the 5-in-1 and complete the flight control test, confirming that all controls
are operating in the correct directions.

12
EN
IfyoudecidetouseanE-iteLP5DSMtransmitter,pleasepositionyourchannelreversaldipswitches
as follows:
If you’ve confirmed proper control operation of your Blade mCX2, unplug the flight battery.
Channel 5 Information
Channel 5 affects rate settings of the 5-in-1 Control Unit.
• IfusingthestockMLP4DSMTransmitter,pleasereadPage21ofthismanualforDualRate
information.
• IfusinganLP5DSMTransmitter,pleaseturntheChannel5knobclockwise
completely.
• IfusinganyotherDSMXcompatibletransmitter,pleaseensureChannel5issettodefaultservo
reversalandtheswitchorknobissettoapositionthatallowsfulltravelcontrol.
Note:Thiscaneasilybetestedbyinducingfullcyclic(Aileron/Elevator)inputandmovingtheswitchor
knob.There’sapproximately10–15%lessservotraveldependingonwhatpositionChannel5isin.
5-in-1 Control Unit Description, Arming and Motor Control Test
The unique Control Unit installed on your Blade mCX2 is a lightweight combination of main motor
electronicspeedcontrols,mixer,gyro,servosandSpektrumDSMXcompatiblereceiver.The5-in-1unit
is also equipped with a status indicator LED.
Thefollowingchecklistcontainsthestepstoensureproperarmingandoperationofthecontrolunit,as
well as proper motor response:
❏BeforeeachightALWAYSturnthetransmitteronbeforeconnectingtheightbatterytothe
5-in-1 unit. Never connect the flight battery to the 5-in-1 unit before powering the transmitter on
first. After each flight, always disconnect the flight battery from the 5-in-1 unit before powering
the transmitter off.
Note: the only time you should connect the flight battery to the 5-in-1 unit before powering the
transmitter on is when you are binding the receiver of the 5-in-1 unit to the transmitter. Please see the
Transmitter and Receiver Binding section of this manual for more information.
❏ThethrottlestickMUSTbesetinthelowestpossibleposition,andthethrottletrimmustbeset
tothemiddleoralowerthanmiddleposition(themiddlepositionisindicatedbyalongerthan
usualbeep/tone),inorderforthe5-in-1unittoarm.

13 EN
If this is the first test flight, or a test flight following repairs, you should also center the rudder,
aileron and elevator trims.
Mode1Mode2
Setthrottlesticktolowestposition.
Rudder Trim
Throttle Trim
Aileron Trim
Elevator Trim
Rudder Trim
Elevator Trim
Aileron Trim
Throttle Trim
Setthrottlesticktolowestposition.
After confirming that the transmitter has been turned on and that the LED is glowing solid RED, it is
now safe to connect the flight battery to the 5-in-1 unit.
❏With the transmitter turned on and the LED glowing solid BLUE, it is now safe to connect the
flight battery to the 5-in-1 unit.
❏With battery power applied to the 5-in-1 unit, the status indicator LED should glow solid RED
within a few seconds.
Note:Itisextremelyimportantthatyoudonotmove,swayorpretendtoythehelicopteroncethe
flight battery is connected because the initialization process and calibration of the gyro has
begun. If you do move the helicopter before the LED is solid RED, disconnect the flight battery
from the 5-in-1 unit and repeat the initialization process.
❏When the status LED becomes solid RED, the control unit is initialized and ready for flight. Also,
aslongasyousetthethrottlestickandtrimtothecorrectpositionsduringtheinitialization
process, the ESCs/motors will now be armed. Use caution as both rotor blades will now spin with
throttlestickinput.
Note: If the status LED does not become solid RED, please review the following:
•IfafterBLUEstatusLEDbecomessolid,butyouhavenocontrolofthemotors,youhaveapositive
RadioFrequency(RF)linkbetweenthetransmitterandreceiver,butthethrottlestickandthrottletrim
maynotbesettothecorrectpositions.Checkthatthethrottlestickisinthelowestpossibleposition,
and the throttle trim is set to the middle or a lower than the middle position. If you now have control
ofthemotors,proceedtothenextstepofthechecklist.
•IfREDstatusLEDisoffcompletely,youdonothaveapositiveRFlinkbetweenthetransmitterand
receiver.CheckthatthetransmitterhasbeenpoweredonandtheLEDindicatoronthetransmitter
is glowing solid RED. If the transmitter is powered on and functioning properly, disconnect the flight
battery from the 5-in-1 unit, then reconnect it. The 5-in-1 unit should initialize and arm properly.
Once you place the helicopter in a safe area, free of obstructions, and are clear of the rotor blades, you
cansafelypowerupthemodeltocheckforproperoperationofthemotors.
Advancethethrottlestickupwardslowly,justuntilbothrotorbladesbegintospin.DONOTattemptto
fly the helicopter at this time. Note the direction each of the rotor blades spins. When viewed from the
top,theuppermainrotorbladesshouldspincounterclockwiseandthelowermainrotorbladesshould
spinclockwise.Ifeithersetofrotorbladesisoperatinginthewrongdirection,disconnectthebattery
and reverse the polarity of the corresponding motor’s input power leads.
After confirming the rotor blades rotate in the correct direction, confirm that both rotor blades respond
properly to rudder control inputs.

14
EN
Withtherotorbladesspinningatalowlevelofpower,movetherudder(left-hand)stickallthewayto
the right. This should cause the speed of the upper main rotor blade to increase, and the speed of the
lower main rotor blade to decrease.
Next,movetherudderstickallthewaytotheleft.Thisshouldcausethespeedofthelowermainrotor
blade to increase and the speed of the upper main rotor blade to decrease. If both rotor blades are not
responding properly to rudder input, simply reverse the locations of their motor plugs on the 5-in-1
unit.
With both rotor blades rotating in the correct directions and responding properly to rudder inputs, your
Blade mCX2 is ready for flight. But you will need to review the following sections of the manual BE-
FORE proceeding with the first flight.
Understanding the Primary Flight Controls
IfyouarenotfamiliarwiththecontrolsofyourmCPX,takeafewminutestofamiliarizeyourselfwith
them before attempting your first flight.

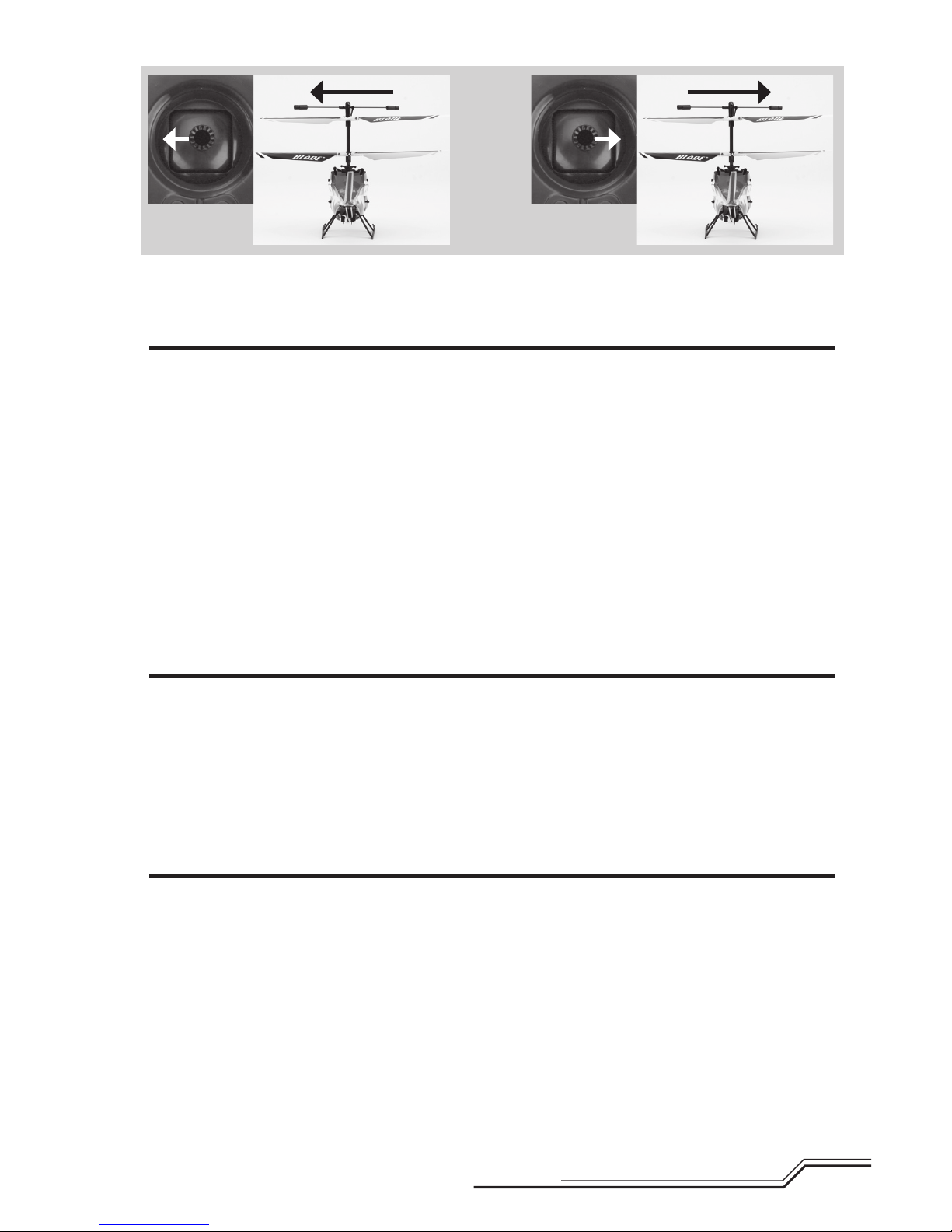

Throttle
Rudder
Elevator
Ascend Decend
NoseYawsLeft NoseYawsRight
Forward Backward

15 EN
Dual Rates
TheMLP4DSMtransmitterincludedwithyourBlademCX2RTFisequippedwithadualratefeature.
This feature allows the pilot the toggle between the high and low control rates available for the aileron,
elevator and rudder channels. To toggle between the high and low rates, push in on the right-hand
stickonthetransmitter(whilethetransmitterispoweredon).
Thetransmittercomessetinhigh-ratemode.Youcantellyouareinthehigh-ratemodewhentheLED
onthetransmitterglowssolidred.Inhigh-ratemodethecontrolsareallowedtoreachtheirmaximum
values,typicallypreferredbyexperiencedpilotsformaximumcontrolauthority.
Pushtheright-handstickinwhileinhigh-ratemodetoenterlow-ratemode.Youcantellyouarein
thelow-ratemodewhentheLEDonthetransmitterblinkscontinuously.Thelow-ratemodeistypically
preferredby(andbestfor)rst-time,low-timeandotherpilotsmostinterestedinreducedcontrolthat
allows for smoother and more easily controlled hovering and flying.
Note: The throttle curve in the low rate mode is also different than it is in the high rate mode. This
makeslow-rate-modethrottlesmootherandeasiertocontrol.
Choosing a Flying Area
When ready for your first flight, select a relatively open indoor area free of people and obstructions.
WhileitispossibleforexperiencedpilotstoytheBlademCX2inrelativelysmallindoorareaswith
greatsuccess,westronglyrecommendanareawithatleast10-feetby10-feetofoorspaceandno
lessthan8-footceilingswhenmakingyourrstfewights.
Once you properly trim your helicopter and become familiar with its handling and capabilities, you will
be able to fly in other smaller, less open areas.
Note:TheBlademCX2isdesignedandintendedtobeownINDOORSONLY.
Flying the Blade mCX2
Note: In addition to reviewing the flight maneuvers outlined below, we recommend you watch Videos
located on the product page for the Blade mCX2 on www.horizonhobby.com to see many of these
maneuvers and adjustments performed by the helicopter and pilot.
• Slowlyraisethethrottlestick,increasingthespeedofthemainrotorbladesuntilthemodel
begins to lift off. Do not raise the throttle stick too quickly as the model could climb too fast
causing you to lose control or make contact with objects above.
• Liftthemodeloffthegroundjustafewinchesandconcentrateonbalancingthethrottlestick
positionsothatthemodelholdsasteadyhoveraltitude.Insomecasesitmaybebesttomake
a few short “hops” to an altitude of just a few inches until you become familiar with the control
inputs and trim settings required to maintain a steady hover and altitude.
As you will find, the Blade mCX2 requires minor throttle adjustments to maintain its altitude in
hover.Remembertokeepthesethrottleadjustmentsasminimalaspossibleaslargeadjustments
could result in a loss of control and/or a possible crash.
Aileron
Left Right

16
EN
• Whileattemptingtoestablishalow-levelhover,youcanalsochecktoseeifanytrimadjustments
arerequiredtohelpkeeptheBlademCX2fromconstantlydriftinginvariousdirections.Ifyou
find the helicopter constantly drifts without any directional control input, it will be best to land
themodelbeforemakinganyadjustmentstothetrimsettings.Additionaldetailsregardingthe
location and function of the trim buttons can be found in the “Understanding the Primary Flight
Controls” section of this manual.
- If the nose of the helicopter drifts to the left or right, adjust the rudder trim.
-Ifthehelicopterdriftsforwardorbackward,adjusttheelevatortrim.
- If the helicopter drifts to the left or right, adjust the aileron trim.
Continuemakingtrimadjustmentsuntilthehelicopterhoversatalowaltitudewithverylittle
drifting and directional control input. If the Blade mCX2 is your first helicopter model, it may be
besttohavethehelpofanexperiencedhelicopterpilottotrimthemodelforyoubeforemaking
your first flight.
• With your Blade mCX2 properly trimmed and maintaining a stable low-level hover, practice using
the rudder, elevator and aileron controls to familiarize yourself with the helicopter’s responses to
controlinputs.Remembertokeepthecontrolinputsasminimalaspossible.
When comfortable with low-level hovering, you can transition to hovering and flying the helicop-
ter at higher altitudes of three to four feet. At these higher altitudes you will become comfortable
with the flight characteristics of the Blade mCX2.
• If you feel the helicopter drifting out of control during flight, release all of the
controlsexceptforthrottle.Youwillneedthrottletomaintainaltitude,butbecauseoftheinherent
stabilityofthecoaxial,counter-rotatingbladedesign,theBlademCX2willreturntoastable
hover on its own, if space allows.
• Don’tbeafraidtosetthehelicopterdownonthegroundquicklybyloweringthethrottlewhen
approachingwallsorotherobstaclestohelppreventmainrotorbladestrikes.
• IN THE EVENT OF A CRASH OR ROTOR BLADE STRIKE, NO MATTER HOW MINOR OR MAJOR,
LOWER THE THROTTLE STICK TO THE LOWEST POSSIBLE POSITION AS QUICKLY AS POSSI-
BLE TO PREVENT DAMAGE TO THE ESCS OF THE 5-IN-1 UNIT. ALSO BE SURE THE THROTTLE
TRIM IS SET TO THE MIDDLE POSITION OR TO A LOWER THAN THE MIDDLE POSITION.
Failure to lower the throttle stick to the lowest possible position in the event of a crash
could result in damage to the ESCs in the 5-in-1 unit, which may require replacement of
the 5-in-1 unit.
Note: Crash damage is not covered under warranty.
OnceyouhavegainedexperienceandcondenceinhoveringtheBlademCX2,youcanattemptmore
advanced maneuvers including:
  ForwardFlight BackwardFlight SkiddingTakeoffs
  Pirouettes SpotLandings SkiddingLandings

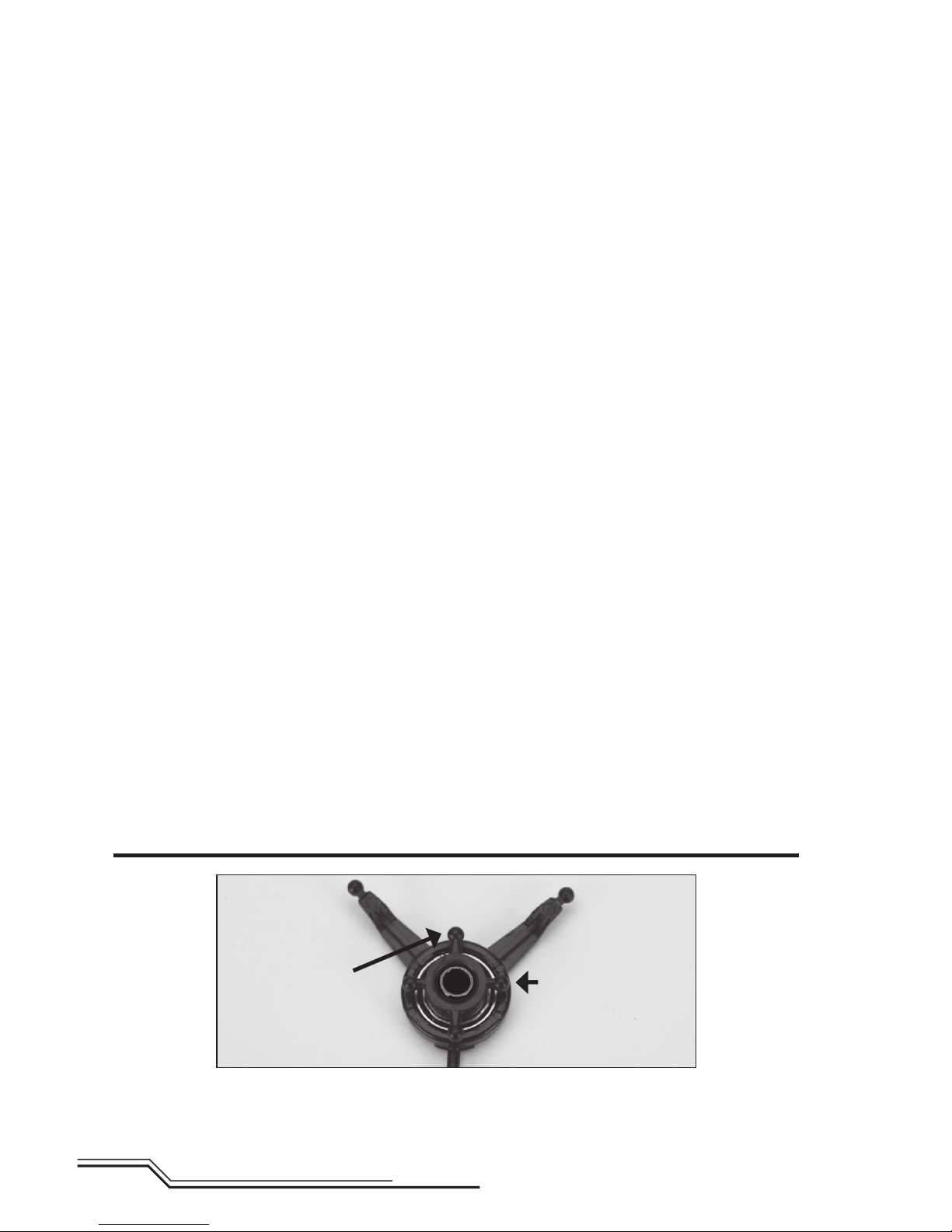

Advanced Swashplate Settings
Short Swashplate
Control Balls
Long Swashplate
Control Balls
The Blade mCX2 comes with an adjustable swashplate. Advanced pilots may benefit from a more
aggressivesetup.Toachieveamoreaggressivesetup,popoffthelowerrotorheadlinksandmove
them onto the longer set of inner swashplate control balls.

17 EN
Troubleshooting Guide
Problem Solution
Aircraft will not “throttle up” but all
other controls seem to function.
•Lowerthrottlestickandthrottletrimtotheirlowestset-
tings.
•Reversethrottlechannelonspecictransmitterif
applicable.
Upperrotorhead/hubisbroken. •ReplacewithEFLH2412bycarefullyremovingthe(2)
screws in the lower main gear and transferring all unbro-
kenpartstothenewupperrotorhead/hub.Followthe
“ExplodedView”sectionofthemanual.
Aircraft appears to show significant
decrease in flight time.
•Rechargeightbatterycompletely.
•ReplaceAAbatteriesinthechargerandrechargeight
battery completely.
•ReplaceEFLB1501S25batteryandread“BatteryWarn-
ingsandGuidelines”sectionofmanual.
Charger light stays on after Li-Po
battery is disconnected or remains
onforlongerthan40minuteswhen
charging.
•ReplaceAAbatteriesinthecharger.
Aircraft hovers with a “toilet bowl”
effect type circle on its own.
•Loosenupperrotorhubybarretainingscrew.
•Replacerotorblades.
LED on Aircraft remains flashing and
cannot be controlled by transmitter.
•Unplug,thenreconnectightbattery.
•RebindAircrafttoyourdesiredcompatibletransmitter.
•Movetransmitter(poweredon)afewfeetfromtheAircraft
prior to reconnecting the flight battery.
Aircraft appears to drift towards a
certain direction.
•Read“UnderstandingthePrimaryFlightControls”section
of this manual.
Controls appear to be reversed after
binding to a different transmitter.
•Read“ControlTest”sectionofthismanual.
Aircraft constantly spins on its own. •Centertheruddertrimonyourtransmitterandre-initialize
the aircraft.
•Unplug,thenreconnecttheightbatteryandDONOT
move or sway the helicopter during initialization.
•Read“UnderstandingPrimaryControls”sectionofthis
manual.
•Loosen(2)screwsonthelowermaingearandensure
there is slight “play” in between the upper and lower
main gears. Lube between the upper and lower main
gears if applicable.
Aircraft does not function after
connecting flight battery and aircraft
smells burnt.
•Replace5-in-1board(EFLH2401)andensuretheRED
polaritymarksarefacingthesamedirectionwhencon-
necting the flight battery to the 5-in-1 board.

18
EN
Exploded View Parts Listing
# Item Number Description
1 EFLH2219B Stabilizer Flybar Set
2 EFLH2412 Inner Shaft with Head/Hub
3 EFLH2421 UpperMainBladeSet(1pr)
4 EFLH2421 UpperMainBladeSet(1pr)
5 EFLH2225 ST1.2x5(2)Screw
6 EFLH2412 Inner Shaft with Head/Hub
7 EFLH2213 OuterShaft,MainGearandBushingHolderSet
8 EFLH2420 LowerMainBladeSet(1pair)
9 EFLH2213 OuterShaft,MainGearandBushingHolderSet
10 EFLH2217 LowerRotorHeadandLinkageSet
11 EFLH2225 M1.2x1.8(2)Screw
12 EFLH2410 MotorwithPinion,Counterclockwise
13 EFLH2416 Swashplate(1)
14 EFLH2416 Swashplate(1)
15 EFLH2416 Swashplate(1)
16 EFLH2214 Outer Shaft Retaining Collar Set
17 EFLH2409 MotorwithPinion,Clockwise
18 EFLH2418 Servo Pushrod Set
19 EFLH2418 Servo Pushrod Set
20 EFLH2424 MainFrameSet
21 EFLH1066 ReplacementServoMechanics
22 EFLH2401 5-in-1ControlUnit,RX/Servos/ESCs/Mxr/Gyro
23 EFLH2225 Washers
24 EFLH2225 ST1.2x5(2)Screw
25 EFLH2427 CompleteRedCanopywithLEDs(installed)
26 EFLH2211 InnerShaftMainGear
27 EFLH2211 InnerShaftMainGear
28 EFLH2222 LandingSkidandBatteryMountSet
29 EFLH2225 M1.2x2.5(2)Screw
30 EFLB1501S25 150mAh1-Cell3.7V14CLi-Po
31 EFLH2213 OuterShaft,MainGearandBushingHolderSet
32 EFLH2215 OuterShaftBearing3x6x2mm(2)
33 EFLH3021 CanopyMountingGrommets(8)
34 EFLH2427 CompleteRedCanopywithLEDs(installed)
35 EFLH2404 ReplacementLEDSet(4)

19 EN
Exploded View
1
2
3
4
5
6
7
8
13
14
15
21
22
23
24
25 26 27
32
20
16
18
19
12
17
33
34
30
31
35
28
29
9
10
11

20
EN
Replacement Parts List
EFLB1501S25 150mAh1-Cell3.7V14CLi-Po
EFLC1000 1-Cell3.7V0.3ADCLi-PoCharger
EFLH1064B BladeMLP4DSM4-channelTransmitter,2.4GHz
EFLH1066 ReplacementServoMechanics
EFLH1067 Replacement Servo Retaining Collars
EFLH2211 InnerShaftMainGear
EFLH2213 OuterShaft,MainGearandBushingHolderSet
EFLH2214 Outer Shaft Retaining Collar Set
EFLH2215 OuterShaftBearing3x6x2mm(2)
EFLH2217 LowerRotorHeadandLinkageSet
EFLH2219B Stabilizer Flybar Set
EFLH2222 LandingSkidandBatteryMountSet
EFLH2225 Hardware Set
EFLH2401 5-in-1ControlUnit,Receiver/Servos/ESCs/Mixer/Gyro
EFLH2404 ReplacementLEDSet(4)
EFLH2409 MotorwithPinion,Clockwise
EFLH2410 MotorwithPinion,Counter-Clockwise
EFLH2412 Inner Shaft with Head/Hub
EFLH2416 Swashplate(1)
EFLH2418 Servo Pushrod Set
EFLH2420 LowerMainBladeSet(1pr)
EFLH2421 UpperMainBladeSet(1pr)
EFLH2424 MainFrameSet
EFLH2427 CompleteRedCanopywithLEDs(Installed)
EFLH3021 CanopyMountingGrommets(8)
Option Parts
EFLC1005 6V AC Power Supply
EFLH2220GL LowerMainBladeSet,Glow-in-the-Dark(1pr)
EFLH2221GL UpperMainBladeSet,Glow-in-the-Dark(1pr)
EFLH2222GL LandingSkidandBatteryMountSet,Glow-in-the-Dark
EFLH2428 Carbon Fiber Tail Boom with Fin
EFLH3023 CarbonFiberTrainingGearSet
