Horst Welding CONTOUR SHCF36 User manual
HORST WELDING
8082 Rd 129 Listowel, ON N4W 3G8 Canada
519-291-4162
1-866-567-4162
Fax 1-519-291-5388
Rev 300320 HWA00109 SHCF Series Assembly.Ref.Book.SIS.130120
Assembly
and Reference Book
Please review and understand the assembly manual d understand the assembly manual
before attempting to assemble this machinery. before attempting to assemble this machinery.
PRINTED IN CANADA
!
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required during
assembly.
SNL00001
!
CAUTION
Operational Hazard
Machine assembly should be done by
SWATHER HEADER WAGON
SHCF36, SHCF45
2
Assembly Safety � � � � � � � � � � � � � � � � � � � � � � � 3
Reference Information � � � � � � � � � � � � � � � � � � 4
Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
. . . . . . . . . . . . . . . . .4
Tire Pressure Table. . . . . . . . . . . . . . . . . . . . . . . .4
Bolt Torque Table . . . . . . . . . . . . . . . . . . . . . . . . .5
Label Layout SHCF Series . . . . . . . . . . . . . . . . . .6
Product labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . 6
California Proposition 65. . . . . . . . . . . . . . . . . . . . . . 6
Safety Label Layout . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Label Descriptions . . . . . . . . . . . . . . . . . . . . . 8
If labels need to be replaced: . . . . . . . . . . . . . . . . . . 8
Parts � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 9
Hardware Bag. . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Parts Bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Crated. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Chassis Parts . . . . . . . . . . . . . . . . . . . . . . . . . .10
Assembly � � � � � � � � � � � � � � � � � � � � � � � � � � � � 11
STEP 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Reach & Bottom Rail. . . . . . . . . . . . . . . . . . . . . . . . 11
STEP 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Joiner Tie Rod, . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Reach Brace Plate . . . . . . . . . . . . . . . . . . . . . . . . . 12
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
STEP 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Tongue Assembly:. . . . . . . . . . . . . . . . . . . . . . . . . . 13
Spring Balancer . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
STEP 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Riser Plates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
STEP 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Top Rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ratchet Strap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
STEP 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Shoe Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
. . . . . . . . . . . . . . . . . . . 16
STEP 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Trailing Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . 17
Accessories � � � � � � � � � � � � � � � � � � � � � � � � � � 18
LK30 Road Signal Kit . . . . . . . . . . . . . . . . . . . . .18
!
CAUTION
Prepare
Read and understand ALL safety and
operating instructions in the owner
manual, read and understand ALL
safety labels located on the machine.
SL00004
Alignment is set at the factory with proper toe-in settings on the front
and rear steering axles. Check alignment as outlined below.
To check toe-in:
• Position the tongue parallel to the reach tubes
• Run a string or straight edge from front to back along the outside
of the front and rear wheels, check both sides.
•
• Measure across the front of the wheels, - dimension A
• Then across the back of the wheels, - dimension B.
• Dimension A measurement should be approximately 0.32 -
If adjustment is required, loosen the tie rod end jam nuts, then:
• Front axle: adjust as required by turning the two tie rods.
• Rear axle: adjust as required by turning the single long tie rod
•
0.6cm - 0.32cm
1/16” - 1/8”
0.16cm - 0.32cm
1/16” - 1/8”
Dimension A
Dimension B
Tie Rods
Tie Rod
Front axle
Rear axle
3
tires are
inspected after unit is loaded. Do not exceed maximum recommended tire
pressure.
It is an extremely important safety procedure to apply and
maintain proper wheel mounting torque on your trailer axle.
Torque wrenches are the best method to assure the proper
amount of torque is being applied to a fastener.
Wheel lugs should be torqued before rst road use and after
each wheel removal. Check and re torque after the rst 10
miles, 25 miles, and again at 50 miles. Check periodically
thereafter.
Note: Wheel lugs must be applied and maintained at the
proper torque levels to prevent loose wheels, broken studs,
and possible dangerous separation of wheels from your axle.
1. Start all lugs by hand to prevent cross threading.
2. Tighten lugs in sequence, as shown in the diagram.
3. Tighten the lugs - see chart
Wheel Lug Torque Sequence
lbs-ft
N-m
lbs-ft
N-m
1/2" 90 122 65 88
1/2" (brake drum) 100 136 75 102
9/16" 120 163 90 122
5/8 180 244 130 176
3/4 300 407 220 298
Torque
Dry
Torque
Lubricated
Wheel Nut / Bolt
Size
5 Bolt 6 Bolt 8 Bolt 10 Bolt
55
5
59
4
4
4
4
3
3
3
3
22
2
2
1
1
1
1
6
6
6
7
7
8
810
Tire PSI kPa
Tires: 20.5 x 8 - 10 (F Range)
tire 105 723
Tires: 26 x 12 12 ply tire 62 427
Tires: 235/85 R16 (F Range)
Highway Trailer tire 95 655
Tires: 11L x 15 (F Range) Highway
90 620
225/75 R15 Load Range D 65 448
The SIS and standard is part of the US Federal Regulation 49CFR Part 562.
on public roads.
Header Wagons is 30 mile/h.
The SIS needs to be used in conjunction with the SMV sign.
You may see a warning label similar to the following:
WARNING
Cancer and Reproductive Harm
www.P65 Warnings.ca.gov
This warning is required by California Proposition 65 (Prop 65), which is meant to notify California residents of exposures
30
mile/h
IL00009
S
.
I
.
S
S
y
m
b
o
l
:
U
.
S
.
m
o
d
e
l
s
o
n
l
y
4
Read and understand the Assembly Manual and all safety signs before starting.
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required while assembling
or maintaining this machine.
SNL00001
!
CAUTION
Heavy or bulky parts
lifting equipment or ask for help when lifting or
!
This Safety Alert Symbol means:
ATTENTION!
BECOME ALERT!
YOUR SAFETY IS INVOLVED!
manual. When you see this symbol, read and understand the message, be alert to the potential
hazard in the message. Follow the instructions in the safety message.
1. Follow good safety practices:
•
• Be sure electrical outlets and tools are properly
grounded.
• Use adequate light for the job at hand.
2.
slipping or tripping.
3. Position in a large open area to allow access from all
sides during assembly.
4. When using lifting equipment, place jack stands
under the machine to securely stabilize it before
working on, beside or under it during assembly.
5.
obstructions when lifting the machine during
assembly. Contact with power lines can cause
electrocution. Contact with obstructions can damage
components or cause them to fail.
6.
ask for help.
7. Use properly sized tools, stands, jacks and hoists at
all times.
8.
recheck before using the machine
5
B
A
B
A
8.8 10.9
SAE 2 SAE 5 SAE 8
These tables are offered as the suggested maximum torque values for dry (not lubricated) threaded products and
are only a general guide.
Check tightness of bolts periodically, replace hardware with the same strength bolt.
Torque specication for bolts are identied by their head markings as shown.
See the “Wheel Torque Specication” page for wheel bolt /nut torque settings
METRIC TORQUE SPECIFICATIONS
SAE TORQUE SPECIFICATIONS
N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft
10 mm 6 x 0.75 --- --- --- --- 6 x 1.0 11.3 8.3 16.5 12.2
13 mm 8 x 1.0 27 20 38 28 8 x 1.25 27.3 20.1 40.1 29.6
16 mm 10 x 1.25 52 38 73 54 10 x 1.5 54 40 49 36
18 mm 12 x 1.25 95 70 135 100 12.1.75 93 69 137 101
21 mm 14 x 1.5 150 111 210 155 14 x 2.0 148 109 218 161
24 mm 16 x 1.5 225 166 315 232 16 x 2.0 230 170 338 249
27 mm 18 x 1.5 325 240 460 339 18 x 2.5 329 243 469 346
30 mm 20 x 1.5 460 339 640 472 20 x 2.5 464 342 661 487
34 mm 22 x 1.5 610 450 860 634 22 x 2.5 634 468 904 667
36 mm 24 x 2.0 780 575 1100 811 24 x 3.0 798 588 1136 838
41 mm 27 x 3.0 --- --- --- --- 27 x 3.0 1176 867 1674 1234
46 mm 30 x 2.0 --- --- --- --- 30 x 3.0 1597 1178 2274 1677
Class 10.9Class 8.8
Wrench
Size:
"A"
Thread Size:
"B"
Fine
Thread Size: "B"
Coarse
Class 10.9 Class 8.8
lbs-ft.N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m lbs-ft N-m
7/16” 1/4-28 6 8.1 10 13.6 14 19.0 1/4-20 5 6.8 8 10.8 12 16.3
1/2” 5/16-24 13 17.6 19 25.7 27 36.6 5/16-18 11 14.9 17 23.0 25 33.9
9/16” 3/8-24 23 31.2 35 47.4 49 66.4 3/8-16 20 27.1 31 42.0 44 59.6
5/8” 7/16-20 36 48.8 55 74.5 75 101.6 7/16-14 32 43.4 49 66.4 70 94.9
3/4” 1/2-20 55 74.5 85 115.2 120 162.6 1/2-13 49 66.4 75 101.6 107 145.0
13/16” 9/16-18 79 107.0 122 165.3 172 233.1 9/16-12 70 94.9 109 147.7 154 208.7
15/16” 5/8-18 110 149.1 170 230.4 240 325.2 5/8-11 97 131.4 150 203.3 212 287.3
1-1/8” 3/4-16 192 260.2 297 402.4 420 569.1 3/4-10 173 234.4 266 360.4 376 509.5
1-5/16” 7/8-14 184 249.3 474 642.3 668 905.1 7/8-9 166 224.9 429 581.3 606 821.1
1-1/2” 1.0-12 274 371.3 705 955.3 995 1348.2 1.0-8 250 338.8 644 872.6 909 1231.7
SAE 8SAE 2 SAE 5 SAE 8
Wrench
Size:
"A"
Thread
Size: "B"
Fine
Thread
Size: "B"
Coarse
SAE 2 SAE 5
6
SHCF36, SHCF45�
Product labels serial plate with locations on the equipment are shown in the illustrations below. The label locations are
similar for all models, unless otherwise indicated.
Rear View Front View
Manufactured by
HORST WELDING
MODEL NO.
SERIAL NO.
MADE IN CANADA
Rear all SHCF
ASTM D-4956 compliant.
Red x 2 all models
SHCF36 -Yellow x 11
SHCF45 -Yellow x 11
• Be sure that the installation area is clean and dry.
•
•
•
•
• Slowly peel back the remaining paper and carefully smooth the remaining portion of the sign in place.
• Small air pockets can be pierced with a pin and smoothed out using the piece of sign backing paper.
30
mile/h
IL00009
S
.
I
.
S
S
y
m
b
o
l
:
U
.
S
.
m
o
d
e
l
s
o
n
l
y
30
mile/h
IL00009
S
.
I
.
S
S
y
m
b
o
l
:
U
.
S
.
m
o
d
e
l
s
o
n
l
y
7
Safety signs and locations on the equipment are shown in the illustrations below. The label locations are similar for all
header wagon models, unless otherwise indicated.
of the equipment or particular equipment feature that requires your SAFETY AWARENESS.
SL00001H
SL00003H
Tongue
32
km/h
20
mile/h
MAXIMUM
IL00002
SL00004
SL00005
SNL00001
Right Side
Left Side
SL00006
SL00003H
SL00002
SNL00002
SNL00002
SNL00002
SNL00002
SL00001H
SL00003H
SL00001
SL00002
SL00001
Rear View Front View
new labels must be
applied. New safety signs
dealer or contact Horst
Wagons
WARNING
Cancer and
Reproductive Harm
www.P65 Wa
30
mile/h
IL00009
S
.
I
.
S
S
y
m
b
o
l
:
U
.
S
.
m
o
d
e
l
s
o
n
l
y
30
mile/h
IL00009
S
.
I
.
S
S
y
m
b
o
l
:
U
.
S
.
m
o
d
e
l
s
o
n
l
y
8
potential injury or death, and is important to follow these points to help keep your implement safe for you and others who
may be using it.
• Keep safety signs clean and legible at all times.
•
illegible.
• Replaced parts that displayed a safety sign should
also display the current sign.
•
displayed with it. Use this part number when ordering
replacement parts.
•
Distributor or the factory order desk.
SL00001
SL00002
SL00003
SL00004
SL00005
SL00006
SNL00001
Caution: read and understand ALL safety and
operating instructions in the manual, read and
understand ALL safety labels located on the
this equipment is an informed SAFE operator.
Caution: Accidental wagon disconnection on
a public road could result in death or serious
injury and/or implement damage. Before
hitch
pin is installed.
Caution: an unsecured load may fall from the
wagon and could result in death or serious injury
and/or implement damage. Before transport on
public roads always check the ratchet straps
are tight and in locked position.
Caution: Do not stand under or directly in front
of the top rail while it is being adjusted, potential
collision exists if the rail drops suddenly and
could result in death or serious injury.
hazard and could result in a serious injury. Use
caution and be aware of parts as they are being
Caution: Loading the header on the wagon
presents a potential pinch hazard and could
result in a serious injury. Use caution and be
aware as the header is loaded on potential
pinch points on the header supports and the
top rail.
Caution: Personal Protection Equipment (PPE)
is required when operating or maintaining this
machine. Failure to wear PPE will result in
personal injury.
marking of implements for length / width.
50
km/h
30
mile/h
MAXIMUM
IL00007
Caution: Wagon components are rated at 50
km/h (30 mile/h) maximum speed. Potential for
road users that the wagon displaying the sign
maximum road speed of 40 km/h
(25 mile/h) or less. Ensure the sign is in place
SNL00002
Caution: Block or chock the wheels. Loading
or unloading the wagon presents a potential
when loading or unloading or storing the wagon.
30
mile/h
IL00009
S
.
I
.
S
S
y
m
b
o
l
:
U
.
S
.
m
o
d
e
l
s
o
n
l
y
(SIS) used in conjunction with the SMV sign
Header Wagons is 30 mile/h.
U�S� only does not apply in Canada
9
Check for missing or damaged parts� Contact the shipping company if
damage is found� For missing parts contact your dealer
Description Qty Used in Model Description Qty Used in Model Description Qty Used in Model
#10 x 5/8 socket head 2 CHCFSP36 / 45 1/2 x 4 x 7 1/2 u-bolts 6 CHCFSP36 / 45 5/8" x 6" hex bolts 2 All
#10 locknut 2 CHCFSP36 / 45 1/2 x 1.5 hex bolts 8 All 5/8" x 5.0 Draw Pin 2 All
¼-20 x .250 socket head 4 All 1/2 x 7 1/2” hex bolts 4 All 5/8" x 7.0 Draw Pin 2 All
¼-20 x1 ¼ hex head 8 All 5/8 x 1 1/2 carriage bolt 8 All 5/8" x 7.0 Draw Pin 1 CHCFSP36 / 45
¼-20 lock nut 8 All 5/8 x 4.5 hex bolt 4 All 3/4" x 2" hex bolts 7 CHCFSP36 / 45
5/16 x 1.0 carriage 4 All 5/8 lock nut 22 All 3/4" lock nuts 7 CHCFSP36 / 45
5/16 locknut 4 All 5/8 ubolt 4 All 13mm P clamp 9 All
#12 x 3/4 hex self drill 10 All 5/8 flat wahers 8 All 5/16 P clamp 18 CHCFSP36 / 45
#12 x 3/4 hex self drill 18 CHCFSP36 / 45 5/8" x 7" Eye Bolt 2 All Tie Wrap 14 All
1/2 x 2.0 hex bolts 8 CHCFSP36 / 45 5/8 Hex Nut 5 All Tie Wrap 4 CHCFSP36 / 45
1/2 locknut 20 All 5/8 x 1 1/2 Bolt 3 All 3/4 x 11 pins 4 All
1/2 locknut 20 CHCFSP36 / 45 5/8" Lock Washer 3 All #9 Hitch Pins 4 All
1/2” x 4 x 5 1/2 u-bolts 4 All
ID Qty Description Used.In.Model
12 5/8" x 7" Eye Bolt All
22 5/8 x 4 1/2 Hex Bolt All
312 5/8" Lock Nut All
42 5/8 x 6 Bolt & Locknut All
58 5/8 Flat Washer All
64 Hitch Pin (480-009) All
73 5/8 x 1 1/2 Bolt, Nut & Lockwasher All
87 3/4" Locking nut All
92 1/2" x 1 1/2" Hex Bolt All
10 7 3/4 x 2 Hex Bolt All
11 14 1/2" Lock Nut All
12 4 1/2" x 2" Bolt All
13 5 5/8 Hex Nut All
14 3 5/8" Lock Washer All
x3
14
x2
9
11
x14
5
x8
x4
6
x7
8
10
x7
13
x5
2
x2
x12
3
x2
1x4
12
7
x3
4
x2
x2
24
x6
22
x4
20
21
x8
x2
15
16
17
x2
18
x4
23
x4
19
37
x2
33
x2
31
x2
29
x2
30
x2
36
x2
27
x2
26
32
34
x2
28
35
25
x2
ID Qty Description Used.In.Model
15 2 Moveable Ratchet Complete Assembly All
16 1 8-14 Ton Safety Chain All
17 23/8" Coil x 1-7/8" OD x 12" Extension Spring All
18 4 11-1224 [U Bolt (.5 x 4 x 5.5) All
19 4 5/8 Bottom Rail U-Bolt All
20 4 Shoe Heal Pin All
21 8 Draw Pin (.625 x 5.0) c/w Chain & Lynch Pin All
22 6 Draw Pin (.625 x 7.0) c/w Chain & Lynch Pin All
23 1 Spring Balancer Mount All
24 2 Double Spring Balancer Plate All
ID Qty Description Used.In.Model
25 2 Upright Tube Cradle Assembly All
26 2 Upright Tube Pocket Assembly All
27 2 Top Rail Riser Assembly All
28 2 Top Rail Mount Assembly All
29 2 Main Mount Bracket Assembly All
30 2 Main Tube Assembly All
31 2 Top Rail Mount Assembly All
32 1 Tie Rod Support Assembly All
33 2 Shoe Assembly less Pad All
34 1 Reach Clamp Plate All
35 1 6 x 4 Clamp Plate All
36 1 Joiner Rod Cradle All
37 2 Stablizer Tube All
10
28
30
26
x2
25
x2
32
x4
38
31
27 29
x2
33
ID Qty Description Used.In.Model
25 2 Swather Top Rail 36' (4" x 4" x .188 HSS) Split SHCF36
26 2 Swather Top Rail 45' (4" x 4" x .188 HSS) Split SHCF45
27 1Main Tongue Assembly All
28 1 CHCF Complete Rear Axle All
29 1 CHCF Complete Front Axle All
30 1 30' Wheelbase Joiner Tie Rod Assembly All
31 1 30ft Reach All
32 1 Swather Head Bottom Rail All
33 2 Top Rail Riser Plate All
38 4 Tires 20.5 x 8-10 Load Range 'F' on 10 x 6 x 6 rim All
11
This assembly manual is for SHCF series Header Wagon models. The example in the illustrations generally applies to all
1. Clear the area of bystanders, especially small children.
3. Prepare a clean, clear work area that is accessible from all sides.
STEP 1
1. Set the axle assemblies up on wheel stands, ensure they are secure
2.
3.
brackets on both axles. Center the rail between front and back axles
!
CAUTION
Operational Hazard
Personal Protection Equipment
(PPE) is required while assembling
or maintaining this machine.
SNL00001
!
CAUTION
Heavy or bulky parts
lifting equipment or ask for help when lifting or
Reach tube assembly
Cradle
Bracket
Reach
Bottom rail assembly
12
STEP 2
Tie rod rear
Tie rod front
Wheel assembly
Reach tube
Joiner tie rod
Reach brace plate
Steering plate
Tongue bracket
Clamping plates
1. Insert rear tie rod end from top side through tapered
bushings in steering plate.
2. Insert front tie rod end from top side through tapered
bushings in the tongue bracket.
1. Position reach brace plate under the reach,
approximately halfway back from the front.
2. Place clamping plates on top of the reach tube
locknuts.
3.
& locknuts
1.
hub.
2.
3.
manual as a guide.
4. Repeat for remaining wheels.
5.
3. At each end assemble and tighten with castle nut and
secure with a cotter pin.
Joiner rod cradle
13

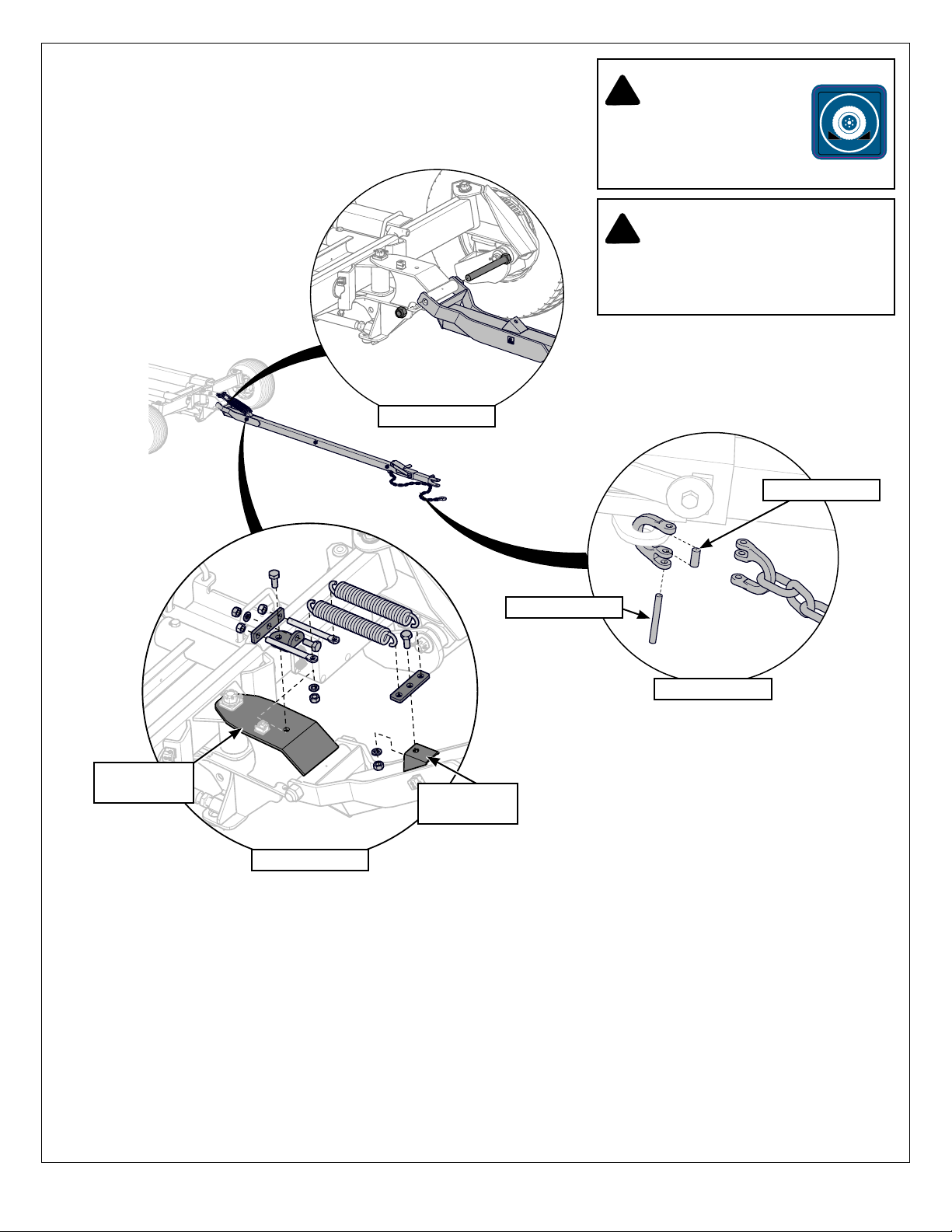

STEP 3
!
CAUTION
Heavy or bulky parts
-
1. Carefully pre-assemble the double spring balancer
assembly as shown.
2.
angle.
3. Mount the balancer assembly spring end to the mount
and nut.
Tongue
Bracket Tongue Mount
Plate
1.
1. Position the tongue on the bracket assembly, and from the left side of the
tongue bracket, insert the hex bolt.
2. Thread the locking nut onto the
bolt and tighten until the bolt is
snug against the plates.
3.
4. Attach the two safety chains to the chain
links on the chain. Assemble the link with
the coupling pin and locking collar as
shown.
Tongue mount
Spring Balancer
!
CAUTION
Operational Hazard
Chock wheels while
assembling the wagon
SNL00002
Coupling link
4. Mount the opposite end to the mounting hole in the
nut.
5.
6.
Locking collar
Coupling pin
14
!
CAUTION
Heavy or bulky parts
lifting equipment or ask for help when lifting or
1. Pin the adjuster bracket to right cast bushing on top
remaining bracket.
Adjuster bracket
2. Next, mount the riser plate to the left cast bushing on
top of axles, and to the top hole on adjuster brackets.
3.
the bolt and tighten until the bolt is snug against the
4. Pin the top rail mount to the top of the riser plate
channel.
5.
6. Repeat for the remaining axle.
Top rail mount
Riser plate
Cast bushing
!
CAUTION
Operational Hazard
Chock wheels while
assembling the wagon
SNL00002
STEP 4
15
STEP 5
1.
2. At each end of the top rail assembly, slide on the top rail supports.
3.
Clamp or hold the rail in place.
4.
5.
in the owners manual.
Secure top rail
1. Set the ratchet outer mount on the bottom rail at the
preferred location
2. Set and hold the inner bracket in place and secure
3. Tighten the nuts and bolts
4. Fasten the ratchet to the outer mount with the existing
bolt and locknut.
5. Thread the strap into the ratchet and wind it up.
6. Repeat process for second ratchet strap.
Outer mount
Inner bracket
Rail support
Bolt top rail
sections
1. Attach the SMV bracket to the top rail with the
u-bolt and nuts (if attaching the SIS see below)
2. Insert the bolts into the SMV, align and insert the
bolts in the mounting holes in the SMV bracket,
3. Loosely fasten the nuts.
4. Adjust the SMV so the sign is straight and tighten
the nuts and bolts.
An SIS is required for U.S. customers that intend to
1.
the SMV bolts in the SMV bracket
2. Secure with the two bolts and nuts.
3. Loosely fasten with bolts and nuts.
4. Adjust the SMV so the sign is straight and tighten
the nuts and bolts.
30
mile/h
IL00009
S
.
I
.
S
S
y
m
b
o
l
:
U
.
S
.
m
o
d
e
l
s
o
n
l
y
SIS bracket
SMV bracket
16
1. Unlatch the quick release
mechanism on the shoe
assembly.
2. Set the shoe assembly on the
preferred location.
3. Swing the latch up to the
quick release catch.
4. Engage the quick release by
pulling up on the handle and
lock the shoe assembly in
place.
5. Repeat process for second
header pad.
Latch
Catch
Quick
release
handle
1. Attach the main mount bracket to the
shoe assembly with the two shoe heal
pins. Secure with the hitch pins.
2. Assemble the support system as shown
in the diagram and lock into place with
attached lynch pins.
3. Repeat for the remaining header support.
Shoe assembly
Main mount
Heal pins
!
CAUTION
Heavy or bulky parts
lifting equipment or ask for help when lifting or
STEP 6
17
STEP 7
lengthening or shortening the short tie rod at the rear of the wagon, between the rear axle plate assembly, and the right
steering spindle.
• Loosen jam nuts at the left and right of the rear tie rod to allow free rotation of the tie rod.
• Rotate the tie rod to lengthen or shorten as required (see diagram below).
• When adjustment is complete, tighten the jam nuts to secure the setting.
•
When the wagon is being trailed empty, it should track slightly left. When the wagon is loaded it may track slightly to the
Lengthen tie rod
Rotate tie rod to
adjust tracking.
Shorten tie rod
Both axles are preset at the factory with .3175 - .635 cm
be made by
Jam nut -
right
Jam nut - left
Rear tie rod
Right spindle Rear axle plate
assembly
18
Light bar assembly and mount.
• Assemble the light bracket top plate to the light bar, using two
•
header wagon, fasten the light bracket bottom brace using the
Light Bracket
Top Plate
Light Bar
Light Bracket
Bottom Brace
This instruction sheet applies to:
LK30 Road Signal Light Kit and CHCF36, SHCF36, CHCF45, SHCF45
header
wagon models.
Do not fully tighten until all the clamps are in place.
Front:
• At the front axle, carefully route the cable through the reach tube
•
• Next fasten the clamp to the top of the tongue bracket, ensure
• Fasten the cable to the three tongue cable clamps,
Rear:
• Attach the harness to the light bar
•
plate, take out any cable slack to the light bar.
•
check that the cable is free from stretching, binding or
pinching, tighten up all clamps.
Rear
Front
19
Notes
20
HORST WELDING
8082 Rd 129 Listowel, ON N4W 3G8 Canada
519-291-4162
1-866-567-4162
Fax 1-519-291-5388
This manual suits for next models
1
Table of contents
Other Horst Welding Tractor Accessories manuals
Popular Tractor Accessories manuals by other brands
horsch
horsch Maestro SW 1630 owner's manual
Avantco
Avantco S30 Operator's manual for Attachment
Toro
Toro 08865 installation instructions
Victory
Victory BACKHOE Series Operator's manual
Homelite
Homelite LM-990932 Instructions-parts list
First Products
First Products AERA-vator AE40L Operator's manual & parts list
Curtis
Curtis 1JD2520AS installation instructions
MTD
MTD Pro Z Series Operator's manual
Meyer
Meyer Drive Pro 41200 Assembly and installation
Redexim
Redexim Extreme Clean II 1200 User manual and parts book
Original Tractor Cabs
Original Tractor Cabs 60275 Parts List & Assembly Instructions
Bercomac
Bercomac 700277-2 owner's manual
Walker
Walker A43 Operator's manual
Arctic
Arctic Sectional Sno-Pusher CD-6.5 owner's manual
Remlinger
Remlinger 3HD Setup/Owner's Manual
Buyers Products Company
Buyers Products Company PW22 Pro-Wings installation instructions
Land Pride
Land Pride GB2084 Operator's manual
Claydon
Claydon TERRABLADE Operator's manual
