NO.
JAN. 8, 1999
ISSUED:
71128
(FINAL) PARTS LIST
HOSHIZAKI
STACKABLE CRESCENT CUBER
MODEL
KM-1600SWF
KM-1600SRF
KM-1600SWF3
KM-1600SRF3
JULY 30, 2002
REVISED:

HA
2
KM-1600SWF H-1 JULY 1998
H-2 OCT. 1998
J-0 DEC. 1998
K-0 MARCH 2000
L-0 DEC. 2000
KM-1600SRF H-0 MAY 1998
H-1 SEP. 1998
H-2 OCT. 1998
J-1 JAN. 1999
K-0 DEC. 1999
L-0 DEC. 2000
KM-1600SWF3 H-1 JULY 1998
J-1 MARCH 1999
K-0 MARCH 2000
L-0 FEB. 2001
KM-1600SRF3 H-0 MAY 1998
H-1 SEP. 1998
H-2 OCT. 1998
J-0 DEC. 1998
K-0 DEC. 1999
L-0 MARCH 2001

HA
3

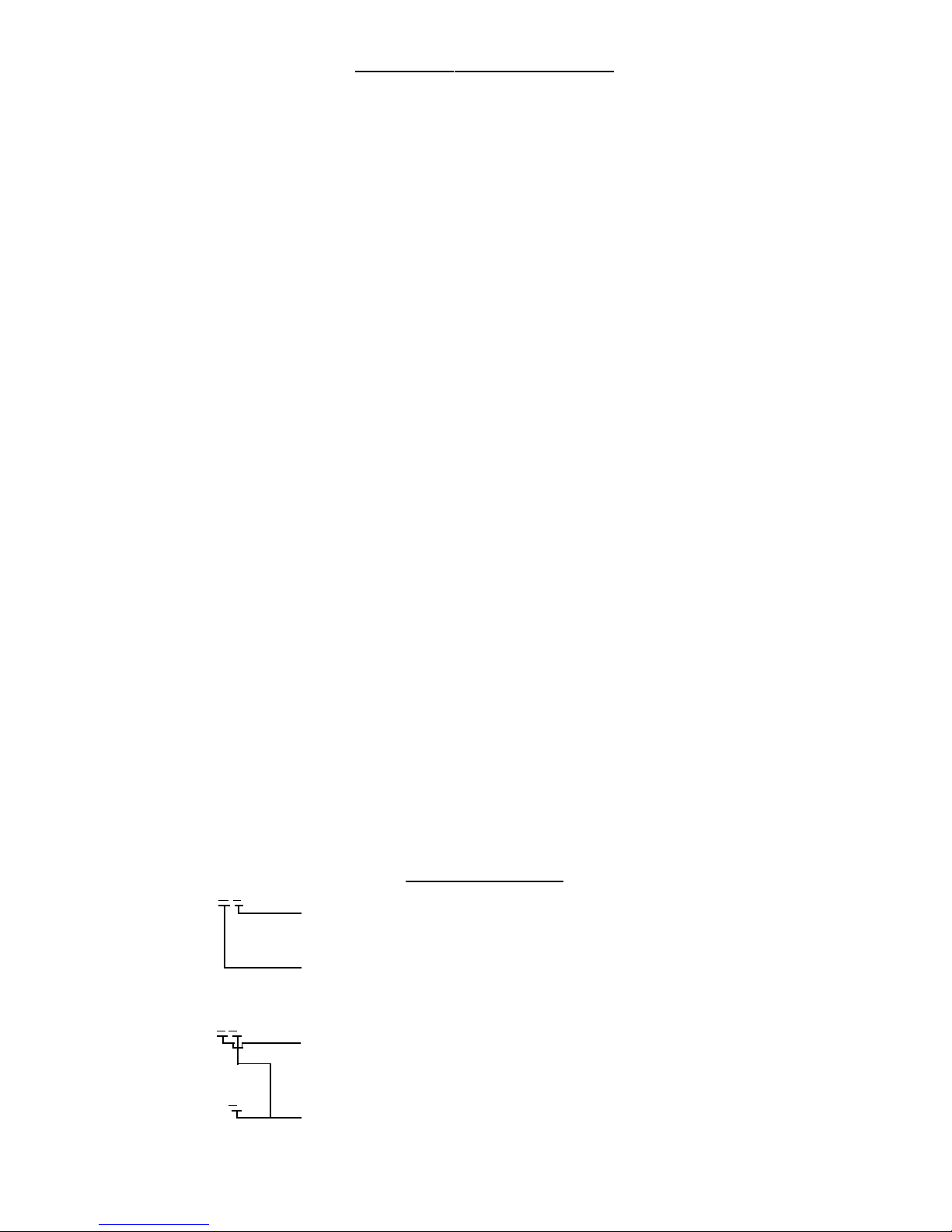

MATERIAL ABBREVIATIONS
ALUMINUM
AL = Aluminum
COPPER
CU = Copper
PLASTIC
ABS = Acrylonitrile -butadiene - styrene
AC = Polyacetal
EVA = Ethylene vinyl acetate
PA = Polyamide = Nylon
PC = Polycarbonate
PE = Polyethylene
PES = Polyester
PE P = Polyethylene terephthalate = etlon
PP = Polypropylene
PS = Polystyrene
PIFE = Polytetrafluoroethylene = eflon
PUR = Polyurethane
PVC = Polyvinyl chloride
RUBBER
VN = Vinyl Nitrile
EPDM = EP rubber
NBR = Nitrile butadiene rubber
NR = Natural rubber
NP = Neoprene
SI.R = Silicone rubber
SY.R = Synthetic rubber
EPH = Epichlorohydrin
STEEL
GS = Galvanized steel
SS = Stainless steel
PS = Plated steel
PAS = Primed steel
AUXILIARY CODE
Ex.1 K-0
Parts are the same as in the preceding (Note) - = Part deleted.
year.
x = Part deleted and replaced
"K" is the tenth in alphabetical order with "I" by "o" part.
skipped. So, "K" indicates "2000".
o = New part for "x"
Ex.2 L-0 in the same auxiliary code.
"L" is the next in alphabetical
order. So, "L" indicates "2001".
Ex.3 L-1
Each time a part is changed non-interchangeably,
in a year, this number advances.

HA
4

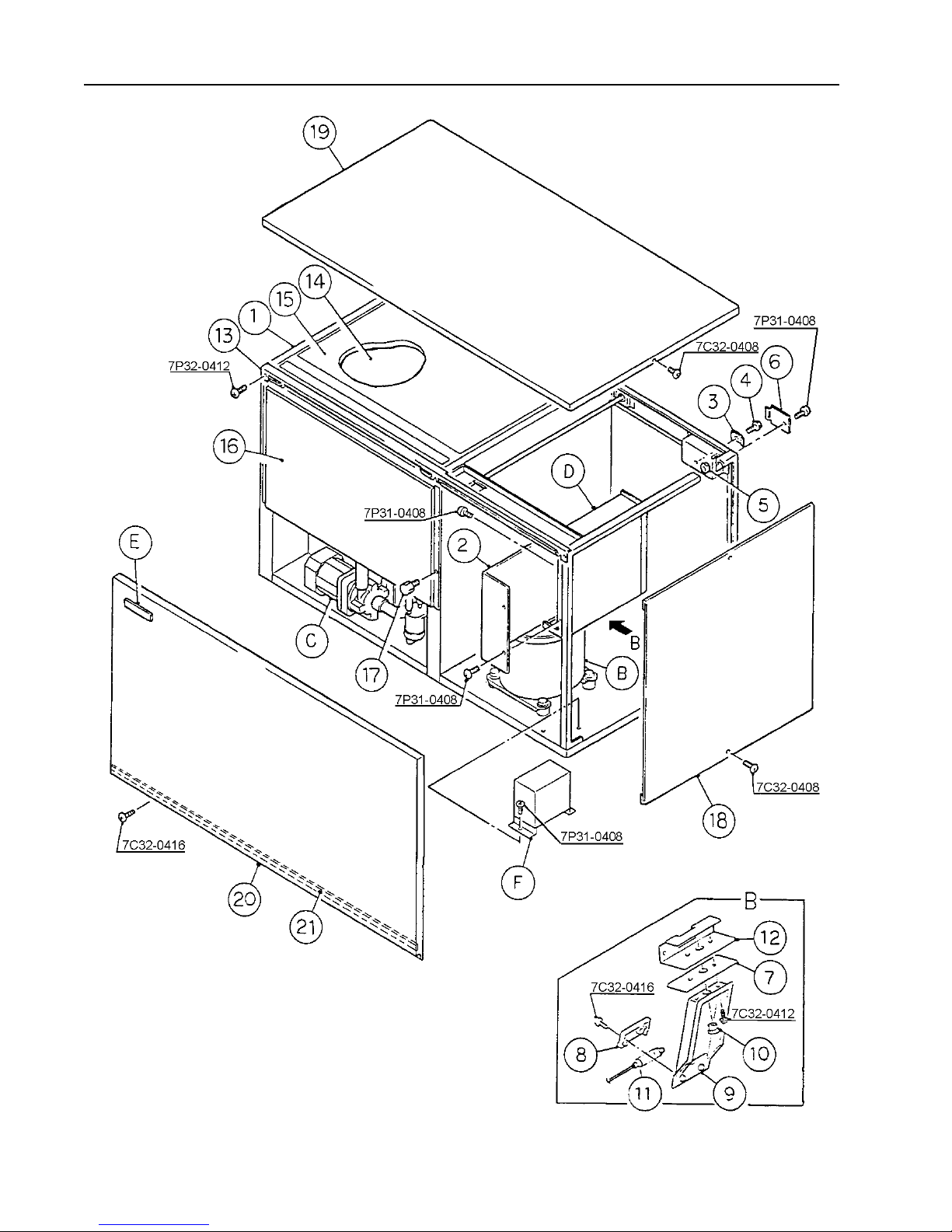

KM-1600SWF A. ICE CUBER ASSEMBLY H-1, H-2, J-0, K-0, L-0

HA
5
MODEL: KM-1600SWF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 H-2 J-0 K-0 L-0
B REFRIGERATION CIRCUIT - 1A0294A01 1 1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1 1
D CONTROL BOX ASSEMBLY - 2A1122A03 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
E LABEL LOCATION - 2A1275A02 1 1 1 1 1
F CAPACITOR BOX ASSEMBLY - 3A1003A01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 2 2 2 2 2
1 EVAPORATOR CASE - 105860G38 1 1 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1 1
5 BUSHING SR-34-2 420472-05 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 1 1 1 1 1
7 SPACER ABS 439727-01 1 1 1 1 1
8 BULB HOLDER PE 328919-01 1 1 1 1 1
T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2
10 CAPILLARY RING - 425307-01 1 1 1 1 1
11 SPACER PE 443545-01 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1
13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1
T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1

HA
6
MODEL: KM-1600SWF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 H-2 J-0 K-0 L-0
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1
19 TOP PANEL (A) SS 213669-02 1 1 1 1 1
TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3
20 FRONT PANEL SS 325508G01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2
21 GASKET L=1219 4A0808L02 1

HA
7
KM-1600SWF3 A. ICE CUBER ASSEMBLY H-1, J-1, K-0, L-0

HA
8
MODEL: KM-1600SWF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 J-1 K-0 L-0
B REFRIGERATION CIRCUIT - 1A0294A02 1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1
D CONTROL BOX ASSEMBLY - 2A1122A03 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3
E LABEL LOCATION - 2A1275A02 1 1 1 1
F TRANSFORMER BOX
ASSEMBLY
- 3A1102A01 1 1 1 1
HEX HEAD BOLT W/ WASHER
(LF)
5X10 7B0130510 4 4 4 4
1 EVAPORATOR CASE - 105860G38 1 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 1 1 1 1
4 SCREW - GROUNDING BRASS 433304-02 1 1 1 1
5 BUSHING SR-34-2 420472-05 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 1 1 1 1
T2 SCREW 4X8 7P31-0408 1 1 1 1
7 SPACER ABS 439727-01 1 1 1 1
8 BULB HOLDER PE 328919-01 1 1 1 1
T2 SCREW 4X16, SS 7P32-0416 2 2 2 2
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2
10 CAPILLARY RING - 425307-01 1 1 1 1
11 SPACER PE 443545-01 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1
13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1
T2 SCREW 4X12, SS 7P32-0412 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1

HA
9
MODEL: KM-1600SWF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 J-1 K-0 L-0
18 SIDE PANEL (R) SS 213668G01 1 1 1 1
19 TOP PANEL (A) SS 213669-02 1 1 1 1
TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3
20 FRONT PANEL SS 325508G01 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2
21 GASKET L=1219 4A0808L02 1

HA
10
KM-1600SRF A. ICE CUBER ASSEMBLY H-0, H-1, H-2, J-1, K-0, L-0

HA
11
MODEL: KM-1600SRF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 H-2 J-1 K-0
L-0
B REFRIGERATION CIRCUIT - 1A0274A01 1 1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1 1
D CONTROL BOX ASSEMBLY - 2A1122A03 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
E LABEL LOCATION - 2A1214A01 1 1 1 1 1
F CAPACITOR BOX ASSEMBLY - 3A1003A01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 2 2 2 2 2
1 EVAPORATOR CASE - 105860G36 1 1 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2
4 SCREW - GROUNDING BRASS 433304-02 2 2 2 2 2
5 BUSHING SR-34-2 420472-05 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2
T2 SCREW 4X8 7P31-0408 2 2 2 2 2
7 SPACER ABS 439727-01 1 1 1 1 1
8 BULB HOLDER PE 328919-01 1 1 1 1 1
T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2
10 CAPILLARY RING - 425307-01 1 1 1 1 1
11 SPACER PE 443545-01 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1
13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1
T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1

HA
12
MODEL: KM-1600SRF TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 H-2 J-1 K-0
L-0
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1
19 TOP PANEL (A) SS 213669-02 1 1 1 1 1
TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3
20 FRONT PANEL SS 325508G01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2
21 BUSHING SR-34-2 420472-03 1 1 1 1 1
22 GASKET L=1219 4A0808L02 1

HA
13
KM-1600SRF3 A. ICE CUBER ASSEMBLY H-0, H-1, H-2, J-0, K-0, L-0

HA
14
MODEL: KM-1600SRF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 H-2 J-0 K-0
L-0
B REFRIGERATION CIRCUIT - 1A0274A02 1 1 1 1 1
C WATER CIRCUIT - 105109A04 1 1 1 1 1
D CONTROL BOX ASSEMBLY - 2A1122A03 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
E LABEL LOCATION - 2A1214A02 1 1 1 1 1
F TRANSFORMER BOX
ASSEMBLY
- 3A1102A01 1 1 1 1 1
HEX HEAD BOLT W/ WASHER
(LF)
5X10 7B0130510 4 4 4 4 4
1 EVAPORATOR CASE - 105860G36 1 1 1 1 1
2 CONTROL BOX COVER GS 3A0174-01 1 1 1 1 1
T2 SCREW 4X8 7P31-0408 3 3 3 3 3
3 SQUARE WASHER BRASS 433537-02 2 2 2 2 2
4 SCREW - GROUNDING BRASS 433304-02 2 2 2 2 2
5 BUSHING SR-34-2 420472-05 1 1 1 1 1
6 JUNCTION BOX COVER GS 433410-01 2 2 2 2 2
T2 SCREW 4X8 7P31-0408 2 2 2 2 2
7 SPACER ABS 439727-01 1 1 1 1 1
8 BULB HOLDER PE 328919-01 1 1 1 1 1
T2 SCREW 4X16, SS 7P32-0416 2 2 2 2 2
9 BULB HOLDER (C) ABS 216340G01 1 1 1 1 1
TRUSS HEAD SCREW 4X12, SS 7C32-0412 2 2 2 2 2
10 CAPILLARY RING - 425307-01 1 1 1 1 1
11 SPACER PE 443545-01 1 1 1 1 1
12 BULB HOLDER (D) GS 328742-01 1 1 1 1 1
13 FRONT PANEL - BRACKET SS 323903-01 1 1 1 1 1
T2 SCREW 4X12, SS 7P32-0412 3 3 3 3 3
14 SPACER ABS 324321-01 1 1 1 1 1
15 TOP INSULATION ABS, PE 324216G01 1 1 1 1 1
16 FRONT INSULATION ABS, PE 324215G01 1 1 1 1 1

HA
15
MODEL: KM-1600SRF3 TITLE:A. ICE CUBER ASSEMBLY
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-0 H-1 H-2 J-0 K-0
L-0
17 THUMBSCREW ABS, SS 415949G01 1 1 1 1 1
18 SIDE PANEL (R) SS 213668G01 1 1 1 1 1
19 TOP PANEL (A) SS 213669-02 1 1 1 1 1
TRUSS HEAD SCREW 4X8, SS 7C32-0408 3 3 3 3 3
20 FRONT PANEL SS 325508G01 1 1 1 1 1
TRUSS HEAD SCREW 4X16, SS 7C32-0416 2 2 2 2 2
21 BUSHING SR-34-2 420472-03 1 1 1 1 1
22 GASKET L=1219 4A0808L02 1

HA
16

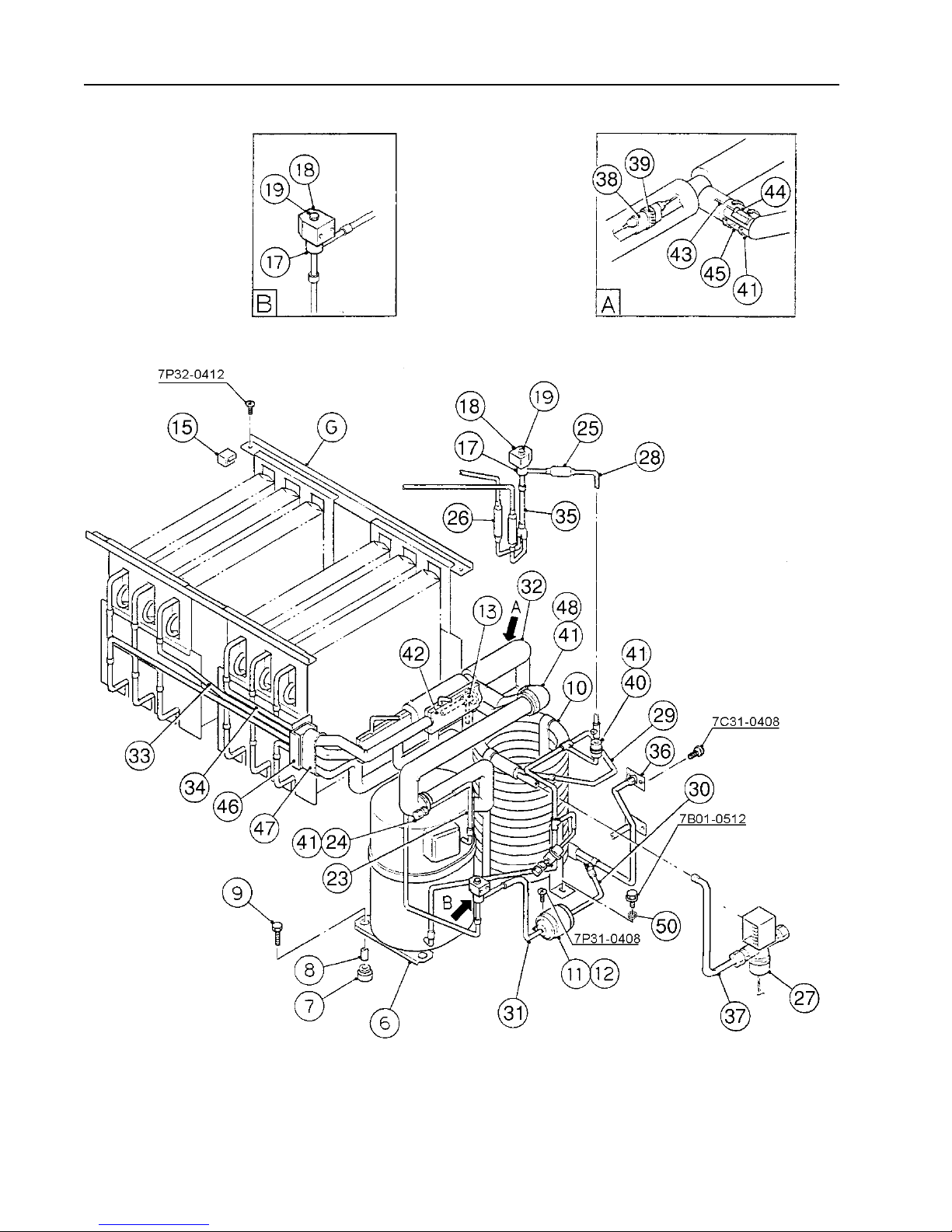

KM-1600SWF, SWF3 B. REFRIGERATION CIRCUIT 1/2 H-1, H-2, J-0, J-1, K-0, L-0

HA
17
KM-1600SWF, SWF3 B. REFRIGERATION CIRCUIT 2/2 H-1, H-2, J-0, J-1, K-0, L-0

HA
18
MODEL: KM-1600SWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 H-2 J-0 K-0 L-0
G EVAPORATOR - 104696A01 1 1 1 1 1
1 REAR FRAME G.S 439285G04 1 1 1 1 1
2 SIDE FRAME (A) G.S 219472G01 1 1 1 1 1
3 SIDE FRAME (B) G.S 323901G01 1 1 1 1 1
4 FRONT FRAME G.S 325857-01 1 1 1 1 1
5 REAR PANEL (A) G.S 2A1254-01 1 1 1 1 1
6 COMPRESSOR CS20K6E-PFV-
237
4A1420-01 1 1 1 1 1
7 GROMMET 027-0167-00 434922-01 4 4 4 4 4
8 SPACER 028-0188-02 434921-01 4 4 4 4 4
9 BOLT 8 x 45 437889-01 4 4 4 4 4
10 CONDENSER - WATER-
COOLED
- 219382-01 1 1 1 1 1
11 DRIER CW-053-S 4A1461-01 1 1 1 1 1
12 DRIER BRACKET G.S 445251-01 1 1 1 1 1
13 EXPANSION VALVE HFE-15NHD-2 4A1482-01 2 2 2 2 2
14 TERMINAL GASKET RUBBER FOAM 4A1420F04 1 1 1 1 1
15 FRAME SEAL EPDM 323925-01 4 4 4 4 4
16 HOT GAS VALVE BRACKET G.S 440507-01 1 1 1 1 1
17 VALVE BODY 70 440352-01 2 2 2 2 2
18 COIL - VALVE ABS-25-1-HD-2 440353-01 2 2 2 2 2
19 BOLT 4 x 6 440353F01 2 2 2 2 2
20 LINE VALVE BRACKET G.S 4A1406-01 1 1 1 1 1
21 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1 1 1
22 PRESSURE SWITCH
BRACKET
G.S 434938-01 1 1 1 1 1
23 COPPER TUBE - ACCESS
VALVE
COPPER 4A1497G01 1 1 1 1 1
24 ACCESS VALVE - 457729-01 2 2 2 2 2
25 STRAINER - 441569-02 1 1 1 1 1
26 CHECK VALVE - 4A1373-01 2 2 2 2 2

HA
19
MODEL: KM-1600SWF TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL
OR MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 H-2 J-0 K-0 L-0
27 WATER REGULATOR - 4A1417-01 1 1 1 1 1
28 COPPER TUBE (A) - HIGH
SIDE
COPPER 2A1229G01 1 1 1 1 1
29 COPPER TUBE (B) - HIGH
SIDE
COPPER 3A1085-01 1 1 1 1 1
30 COPPER TUBE (C) - HIGH
SIDE
COPPER 4A1469G01 1 1 1 1 1
31 COPPER TUBE (F) - HIGH
SIDE
COPPER 3A1050-01 1 1 1 1 1
32 HEAT EXCHANGER COPPER 1A0291G01 1 1 1 1 1
33 COPPER TUBE (R) - HIGH
SIDE
COPPER 2A1243G01 1 1 1 1 1
34 COPPER TUBE (L) - LOW SIDE COPPER 2A1242G01 1 1 1 1 1
35 COPPER TUBE - HOT GAS COPPER 3A0212G01 1 1 1 1 1
36 COPPER TUBE (A) COPPER 3A0997G01 1 1 1 1 1
37 COPPER TUBE (B) COPPER 4A1470G01 1 1 1 1 1
38 HOLDER / EXPANSION VALVE
- 3/8
S.S 3A0107-01 2 2 2 2 2
39 CLAMP S.S 443461-01 2 2 2 2 2
40 INSULATION TUBE L=40 7762-1020 3 3 3 3 3
41 CABLE TIE CV-200 7920-0010 14 14 14 14 14
42 EXPANSION VALVE COVER PE FOAM 3A0944-01 2 2 2 2 2
43 THERMISTOR - 429006-03 1 1 1 1 1
44 HOLDER - THERMISTOR COPPER 438247-01 1 1 1 1 1
45 INSULATION - THERMISTOR PE FOAM 427441-01 1 1 1 1 1
46 INSULATED RUBBER TUBE EPDM 323975G01 1 1 1 1 1
47 INSULATION PE FOAM 436671-01 1 1 1 1 1
48 INSULATIONTUBE L=575 7762-1630 1 1 1 1 1
49 WIRE SADDLE VWS4238-C 4A0338-02 3 3 3 3 3
50 WASHER S.S 4A0655-03 3 3 3 3 3

HA
20
MODEL: KM-1600SWF3 TITLE:B. REFRIGERATION CIRCUIT
INDEX
NO.
DESCRIPTION MATERIAL OR
MODEL
PART
NUMBER
REQUIRED NUMBER
NUMBER H-1 J-1 K-0 L-0
G EVAPORATOR - 104696A01 1 1 1 1
1 REAR FRAME G.S 439285G04 1 1 1 1
2 SIDE FRAME (A) G.S 219472G01 1 1 1 1
3 SIDE FRAME (B) G.S 323901G01 1 1 1 1
4 FRONT FRAME G.S 325857-01 1 1 1 1
5 REAR PANEL (A) G.S 2A1254-01 1 1 1 1
6 COMPRESSOR CS20K6E-TF5-
237
4A1419-01 1 1 1 1
7 GROMMET 027-0167-00 434922-01 4 4 4 4
8 SPACER 028-0188-02 434921-01 4 4 4 4
9 BOLT 8 x 45 437889-01 4 4 4 4
10 CONDENSER - WATER-
COOLED
- 219382-01 1 1 1 1
11 DRIER CW-053-S 4A1461-01 1 1 1 1
12 DRIER BRACKET G.S 445251-01 1 1 1 1
13 EXPANSION VALVE HFE-15NHD-2 4A1482-01 2 2 2 2
14 TERMINAL GASKET RUBBER FOAM 4A1419F04 1 1 1 1
15 FRAME SEAL EPDM 323925-01 4 4 4 4
16 HOT GAS VALVE BRACKET G.S 440507-01 1 1 1 1
17 VALVE BODY 70 440352-01 2 2 2 2
18 COIL - VALVE ABS-25-1-HD-2 440353-01 2 2 2 2
19 BOLT 4 x 6 440353F01 2 2 2 2
20 LINE VALVE BRACKET G.S 4A1406-01 1 1 1 1
21 PRESSURE SWITCH ACB-2UB04 433441-05 1 1 1 1
22 PRESSURE SWITCH
BRACKET
G.S 434938-01 1 1 1 1
23 COPPER TUBE - ACCESS
VALVE
COPPER 4A1497G01 1 1 1 1
24 ACCESS VALVE - 457729-01 2 2 2 2
25 STRAINER - 441569-02 1 1 1 1
26 CHECK VALVE - 4A1373-01 2 2 2 2
