Hotass Saunas ClubHeat C1000/K10G-U1 User manual

IMPORTANT!This manual must be left with owner, manager, or
operator of sauna after it is used by electrician!
MODELS
C1000/K10G-U1
C1250/K12.5G-U1
C1500/K15G-U1
C1000-3/K10G-U3
C1250-3/K12.5G-U3
C1500-3/K15G-U3
CONTROLS
HeatPad10
HeatPad15
ETL LISTED
CONFORMS
TO UL STD 875
CERTIFIEDTO
CAN/CSA STD
E60335-2-53-05
ClubHeat Series Sauna Heaters
Installation and Operation Manual

TABLE OF CONTENTS
1. WARNINGS! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. INSTRUCTIONS FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1. Piling of the Sauna Stones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2.Heating of the Sauna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3.Control Unit of Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.4.Throwing Water on Heated Stones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2.1. Sauna Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2.2.Temperature and Humidity of the Sauna Room . . . . . . . . . . . . . . . . . . . . . . 6
2.5.Instructions for Bathing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.6.Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.7. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3. ROOM CONSTRUCTION - GENERAL INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . 8
4. INSTRUCTIONS FOR INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1. Prior to Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2.Installation of Control Panel and Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3.Installation of Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4.1. Single Phase Heater Wiring and Hookup (C1000/K10G-U1, C1250/
K12.5G-U1, C1500/K15G-U1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4.2.3-Phase Heater Wiring and Hookup (C1000-3/K10G-U3, C1250-3/
K12.5G-U3, C1500-3/K15G-U3) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.4.After Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.4.1. Testing of Sauna Heater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.4.2.Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4.3.Caution! Electrician or Service Person! . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.4.4.Overheating Limiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5. MAINTENANCE INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6. SPARE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7. GUARANTEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8. WARNINGS! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
PURPOSE OFTHE ELECTRIC HEATER:
The ClubHeat / KG-heaters are designed for the heating of large saunas to bathing
temperature. It is forbidden to use the heater for any other purposes. Please read the
user’s instructions carefully before using the heater.
NOTE!
These instructions for installation and use are intended for the owner or the person in
charge of the sauna, as well as for the electrician in charge of the electrical installation
of the heater.

3
WARNINGS!
Do not smoke, use alcohol, or exercise in the sauna!
Do not exceed 30-minutes in the sauna at one time, as excessive exposure can
be harmful to health.The sauna should not be used as an endurance test!
Persons with poor health should consult their physicians before using the sauna!
Avoid re, do not place any combustible material over the sauna heater (towels,
bathing suits, wooden bucket or dipper)!
Use only clean water on the stones - do not use pool or spa water, as chlorine
gas can be produced and the heating elements can be damaged!
Keep away from the heater when it is hot. The stones and outer surface of the
heater may burn your skin.
Do not pour too much water on the stones.The evaporating water is boiling hot.
Do not let young, handicapped or ill people bathe in the saune on their own.
Consult your dodcutor about health-related limitations of bathing.
Parents should keep their children away from the hot heater.
Consult your child welfare clinic about taking little babies to the sauna.
- Age?
-Temperature of the sauna?
-Time spent in the warm sauna?
Be very careful when moving in the sauna, as the platform and oors may be
slippery.
Hyperthermia occurs when the internal temperature of the body reaches a
level several degrees above the normal body temperatures of 98.6°F (37°C).The
symptoms of hyperthermia include an increase in the internal temperature of
the body, dizziness, lethargy, drowsiness, and fainting.
The effects of hyperthermia include:
A) Failure to perceive heat
B) Failure to recognize the need to exit the room
C) Unawareness of impending hazard
D) Fetal damage in pregnant women
E) Physical inability to exit the room
F) Unconsciousness
Warning - the use of alcohol, drugs or medication is capable of greatly increasing
the risk of fatal hyperthermia!

4
The stones disintegrate with use.
Therefore, they should be rearranged at
least once a year or even more often if the
sauna is in frequent use.At the same time,
any pieces of stone should be removed
from the bottom of the heater, and
disintegrated stones should be replaced
with new ones.
The guarantee does not cover any
faults caused by the use of stones not
recommended by the manufacturer.
Neither does the guarantee cover any
faults caused by disintegrated or too small
stones blocking the heater ventilation.
No such objects or devices should be
placed inside the heater stone space or
near the heater that could change the
amount or direction of the air owing
through the heater, thus causing the
resistance temperature to rise too high,
which may set the wall surfaces on re!
INSTRUCTIONS FOR USE
PILING OFTHE SAUNA STONES
The sauna stones for an electric heater
should be 2 - 4” in diameter. The heater
stones should be solid blocks of stone
specially intended for use in the heater.
Neither light, porous ceramic “stones” of
the same size nor soft potstones should
be used in the heater, because they may
cause the resistance temperature to rise
too high as a result of which the resistance
may be broken.
Stone dust should be washed off before
piling the stones. The stones should be
piled into the stone compartment over the
grating, between the heating elements
(resistances) so that the stones support
each other. The weight of the stones
should not lie on the heating elements.
The stones should not be piled too tightly,
so that air can ow through the heater.
See gure 1. The stones should be tted
loosely, and not wedged between the
heating elements, very small stones
should not be put into the heater at all.
The stones should completely cover the
heating elements. However, they should
not form a high pile on the elements.
Figure 1. Piling of the Sauna Stones

5
HEATING OFTHE SAUNA
Before switching the heater on always
check that there isn’t anything on top
of the heater or inside the given safety
distance. See item 1.6 “Warnings”.
When the heater is switched on for the
rst time, both the heater and the stones
emit smell.To remove the smell, the sauna
room needs to be efciently ventilated.
The purpose of the heater is to raise the
temperature of the sauna room and the
sauna stones to the required bathing
temperature. If the heater output is
suitable for the sauna room, it will take
about an hour for a properly insulated
sauna to reach that temperature. See item
2. “Sauna Room Construction - General
Information”. A suitable temperature for
the sauna room is about 149 - 176°F (65
- 80°C).
The sauna stones normally reach the
required bathing temperature at the
same time as the sauna room. If the
heater capacity is too big, the air in the
sauna will heat very quickly, whereas the
temperature of the stones may remain
insufcient; consequently, the water
thrown on the stones will run through.
On the other hand, if the heater capacity
is too low for the sauna room, the room
will heat slowly and, by throwing water
on the stones, and bather may try to raise
the temperature of the sauna. However,
the water will only cool down the stones
quickly, and after a while the sauna will
not be warm enough and the heater will
not be able to provide enough heat.
In order to make bathing enjoyable,
the heater capacity should be carefully
chosen to suit the size of the sauna room.
CONTROL UNIT OF HEATER
The ClubHeat / KG model heaters require
a separate control unit to operate the
heater.The control unit should be located
outside the sauna room in a dry place,
at a height of approximately 5’. The
temperature sensor, by means of which
the set temperature is maintained in the
sauna room, should be connected to the
control unit. The temperature sensor and
overheating limiter are located in the
sensor box installed above the heater.
The sensor box should be installed
in accordance with the installation
instructions of the control unit model in
question.
The ClubHeat / KG model heaters are
controlled with the HeatPad control unit.
HeatPad Precision Sauna Environment
Control
Control Panel:
• Temperature adjustment range 104 -
194°F (40 - 90°C).
• Pre-setting time adjustment range 0 -
24 h.
• Lighting control, max. power 100W,
120V, 1Ph.
• Fan control, max. power 100W, 120V,
1Ph.
• Dimensions: 3.4” x 1” x 4.4”
• 50’ Control cable length.
Power Unit:
• Supply voltage
• 240V 1Ph or 208V 3Ph
• Dimensions: 14.3” x 2.9” x 10.5”
Sensor:
• Temperature Sensor NTC thermistor
22kΩ/T=77°F (25°C)
• Resettable overheat protector
• Dimensions: 2.0” x 2.9” x 1.1”
• 50’ sensor cable length

6
THROWING WATER ON HEATED
STONES
The air in the sauna room becomes
dry when warmed up. Therefore, it is
necessary to pour water on the heated
stones to reach a suitable level of humidity
in the sauna.
The humidity of the air in the sauna room
is controlled by the amount of water
poured on the stones. A correct level of
humidity makes the bather’s skin sweat
and makes breathing easy. By throwing
water on the stones with a small ladle,
the bather should feel the effect of air
humidity on his skin. Both too high a
temperature and air humidity will give an
unpleasant feeling.
Staying in the hot sauna for long periods
of time makes the body temperature rise,
which may be dangerous.
The maximum volume of the ladle is 7
ounces. The amount of water poured on
the stones at a time should not exceed 7
ounces, because if an excessive amount
of water is poured on the stones, only
part of it will evaporate and the rest
may splash as boiling hot water on the
bathers.
Never pour water on the stones when
there are people near the heater, because
hot steam may burn their skin.
SAUNA WATER
The water to be poured on the heated
stones should meet the requirements
of clean household water. the factors
essentially affecting the quality of water
include the following:
• Humuos content (color, taste,
precipitates); recommended content
less than 12 mg/l.
• Iron content (color, smell, taste,
precipitates); recommended content
less than 0.2 mg/l.
• Hardness - the most important
substances are manganese (Mn) and
calcium (Ca);
• Recommended content of manganese
0.05 mg/l, calcium less than 100 mg/l.
Calcareous water leaves a white, sticky
layer on the stones and metal surfaces
of the heater. Calcication of the stones
deteriorates the heating properties.
Ferrous water leaves a rusty layer on the
surface of the heater and elements, and
causes corrosion.
The use of humous, chlorinated water
and seawater is forbidden.
Only special aromas designed for
sauna water may be used. Follow the
instructions given on the package.
TEMPERATURE AND HUMIDITY
OFTHE SAUNA ROOM
Both thermometers and hygrometers
suitable for use in a sauna are available.
As the effect of steam on people varies, it
is impossible to give an exact, universally
applicable bathing temperature or
percentage of moisture.The bather’s own
comfort is the best guide.
The sauna room should be equipped
with proper ventilation to guarantee
that the air is rich in oxygen and easy to
breathe.
Bathing in a sauna is considered a
refreshing experience and good for the
health. Bathing cleans and warms your
body, relaxes the muscles, soothes and
alleviates oppression. As a quiet place, the
sauna offers the opportunity to meditate.

7
INSTRUCTIONS FOR BATHING
• Begin by washing yourself.
• Stay in the sauna for as long as you
feel comfortable.
• According to established sauna
conventions, you must not disturb
other bathers by speaking in a loud
voice.
• Do not force other bathers from the
sauna by pouring excessive amounts
of water on the stones.
• Forget all your troubles and relax.
• Cool your skin down as necessary.
• If you are in good health, you can have
a swim if a swimming place or pool is
available.
• Wash yourself properly after bathing.
Have a drink of fresh water or a soft
drink to bring your uid balance back
to normal.
• Rest for a while and let your pulse go
back to normal before dressing.
WARNINGS
• Do not smoke, use alcohol, or exercise
in the sauna!
• Sea air and a humid climate may
corrode the metal surfaces of the
heater.
• Keep away from the heater when it is
hot. The stones and outer surface of
the heater may burn your skin.
• Do not pour too much water on the
stones. The evaporating water is
boiling hot.
• Do not let young, handicapped or ill
people bathe in the sauna on their
own.
• Consult your doctor about health-
related limitations of bathing.
• Parents should keep children away
from the hot heater.
• Consult your child welfare clinic about
taking little babies to the sauna.
- Age?
-Temperature of the sauna?
-Time spent in the warm sauna?
• Be very careful when moving in the
sauna, as the platform and oors may
be slippery.
• Do not exceed 30-minutes in the
sauna at one time, as excessive
exposure can be harmful to health.
The sauna should not be used as an
endurance test!
• Persons with poor health should
consult their physicians before using
the sauna!
• Avoid re, do not place any
combustible material over the sauna
Heater (towels, bathing suits, wooden
bucket or dipper)!
• Use only clean tap water on the stones
- do not use pool or spa water, as
chlorine gas can be produced and the
heating elements can be damaged!
• Hyperthermia occurs when the
internal temperature of the body
reaches a level several degrees above
the normal body temperature of
98.6°F.The symptoms of hyperthermia
include an increase in the internal
temperature of the body, dizziness,
lethargy, drowsiness, and fainting.
The effects of hyperthermia include:
A. Failure to perceive heat
B. Failure to recognize the need to exit
the room
C. Unawareness of impending hazard
D. Fetal damage in pregnant women
E. Physical inability to exit the room
F. Unconsciousness
WARNING - the use of alcohol,
drugs, or medication is capable of
greatly increasing the risk of fatal
hyperthermia.
TROUBLESHOOTING
If the heater does not heat, check the
following points:
• The current from the control unit to
the heater has been switched on.
• The desired temperature programmed
in the control panel is higher than the
temperature of the sauna.
• The breaker is switched on. Also,
breaker should be correct size.

8
ROOM CONSTRUCTION -
GENERAL INFORMATION
A. FRAMING
2” x 4” any suitable wood material,
16” o.c.
B. CEILING LIGHT
No higher than 7’0”.
C. INSULATION
R11 Fiberglass with foil back in walls
and ceiling, foil facing into room.
D. DRYWALL
See local codes. Is not required in
most residences. See local codes
commercial. If drywall is used, apply
1” x 2” nailers so that wall and ceiling
boards can be attached to solid wood.
E. PANELING
Use kiln-dried, clear, T&G softwood
such as California Redwood, Western
Red Cedar, Alaska Yellow Cedar, pine,
spruce or other suitable wood material
(with moisture content not exceeding
11%).
F. BENCHES
Use matching wood of vertical grain.
Fasten from bottom to prevent
burning of bathers.
G. HEATER FENCE
Is necessary for safety and should
be constructed of 1” x 4” or 2” x 4”
softwood to match sauna interior. See
gures 3 - 6 clearances from sauna
heater. Fence should attach to wall
and should not be placed higher than
top of heater below rock line.
H. DOOR
Must open out and should not have a
lock.
I. FLOORING
Concrete, ceramic tile, or heavyduty
vinyl.
J. VENTILATION
Shouldbeprovidedbylowerventclose
to heater, 4” from oor, and upper
vent on opposite wall (if possible) 6”
from ceiling or as low as 24” from
oor. Vents should be adjustable and
should allow air to change 5 times per
hour. Sauna shall be provided with
intended ventilations as required per
the local code authorities.
K. LIGHT
Should be wall-mounted, vapor proof
type, with rough-in box mounted
ush with inside paneling. It should
mount 6’ 6” from the oor, not directly
over sauna heater, and not over upper
benches; light bulb should not exceed
75 watts.
L. ACCESSORIES
Bucket, dipper and thermometer
are essential. Thermometer should
be placed over the Sauna heater, 6”
from ceiling, for correct temperature
reading. Other accessories such as
hygrometer, sand timer, brushes, etc.
are available.
M. MAINTENANCE INSTRUCTIONS
Are included at the end of this manual.
N. WARNING SIGNS
Are furnished with Sauna heater. The
metal “CAUTION” sign should be
fastened to wall, close to heater, in a
visible place. The metal “Warning”
sign should be fastened outside, to
the Sauna room door.
WARNINGS!
*Do not smoke, use alcohol, or exercise in
the sauna!
* Do not exceed 30-minutes in the sauna
at one time, as excessive exposure can be
harmful to health. The sauna should not
be used as an endurance test!
* Persons with poor health should consult
their physicians before using the sauna!
* Avoid re, do not place any combustible
material over the sauna heater (towels,
bathing suits, wooden bucket or dipper)!
* Use only clean water on the stones -
do not use pool or spa water, as chlorine
gas can be produced and the heating
elements can be damaged!
* Hyperthermia occurs when the internal
temperature of the body reaches a
level several degrees above the normal
body temperatures of 98.6°F (37°C). The
symptoms of hyperthermia include an
increase in the internal temperature of
the body, dizziness, lethargy, drowsiness,
and fainting.
*The effects of hyperthermia include:
A) Failure to perceive heat
B) Failure to recognize the need to exit
the room
C) Unawareness of impending hazard
D) Fetal damage in pregnant women
E) Physical inability to exit the room
F) Unconsciousness
* Warning - the use of alcohol, drugs
or medication is capable of greatly
increasing the risk of fatal hyperthermia!

9
INSTRUCTIONS FOR
INSTALLATION
PRIORTO INSTALLATION
Prior to installing the heater, study the
instructions for installation, as well as
checking the following points:
• Is the output and type of the heater
suitable for the sauna room?
The cubic volumes given in table 1 should
be followed.
• Are there a sufcient number of high
quality sauna stones?
• Is the supply voltage suitable for the
heater?
• The location of the heater fullls the
minimum requirements concerning
safety distances given in gures 2 - 6
and table 1.
It is absolutely necessary to ensure that
the installation is carried out according to
these values. Neglecting them can cause
a risk of re.
• Only one electrical heater may be
installed in the sauna room. Multiple
heaters can be installed and used in
the sauna room only if they share the
same control unit.
• The heater should be installed so that
the warning texts on the cover of the
junction box can also be read without
difculty after the installation.
• ClubHeat / KG heaters have not been
approved to be installed in a recess in
the wall or oor.

10
Note: Control panel and power unit must be
installed in a dry place; away from spa, pool or
shower; not outdoors. A receptacle shall not be
installed inside the sauna room.
Load center shall be supplied
by electrical contractor during
eld wiring, and shall be 2 pole
2 breaker subpanel model. Load
center can be located in other
serviceable places, as well as
location shown on this diagram.
2 POLE 2
BREAKER
SUBPANEL CONTROL
PANEL
POWER
UNIT
TYPICAL SAUNA HEATER / CONTROL INSTALLATION
MODEL CONNECTOR
C1000/K10G-U1 3/4”
C1250/K12.5G-U1 3/4”
C1500/K15G-U1 1”
C1000-3/K10G-U3 3/4”
C1250-3/K12.5G-U3 1”
C1500/K15G-U3 1”
SEAL
TIGHT FLEX
CONDUIT
FENCE
ROOM
LIGHT
WIRETO ROOM LIGHT
#14 AWG 90°C
SENSOR
6”
4”
1”
2-1/2”
1 - 2”
26” 52”
6’ 5” MIN. HEIGHT 7’ 0” NORMAL HEIGHT 8’ 0” MAX. HEIGHT
TO CONNECT
USE 90°
CONNECTOR

11

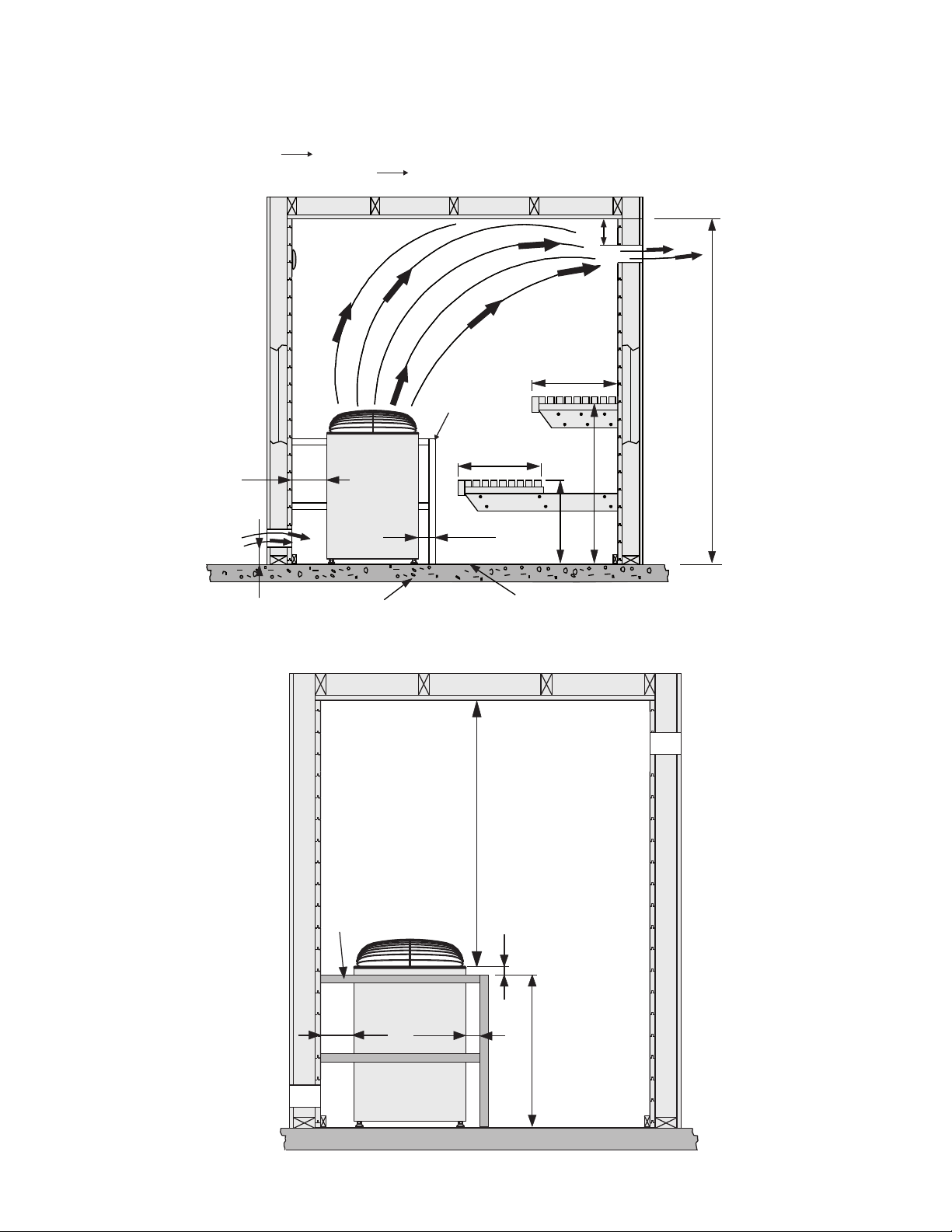

Figure 4.
1”
52”
26”
6”
MIN.
2-1/2”
MIN.
FENCE
THE SAUNA ROOM SHALL BE PROVIDED WITH PROPER
VENTILATION. HEATERS-MINIMUM CLEARANCES, MIN-MAX SPACE,
AND ADEQUATE VENTILATION DESCRIBED BELOW.
Figure 3.
6’ 5” MIN. HEIGHT 6’ 0” NORMAL HEIGHT 8’ 0” MAX. HEIGHT
6”
4”
2-1/2”
20”
CONCRETE TILE
19”
38”
20”
AIR OUT
AIR IN
6”
VENTILATION, MIN. SQ. IN. INLET AND OUTLET
10 kW
12.5 kW and 15 kW
80 sq. in.
45 sq. in.

12
Figure 7.
C1000 / K10G-U1
C1250 / K12.5-U1
C1500 / K15G-1
C1000-3 / K10G-U3
C1250-3 / K12.5-U3
C1500-3 / K15G-3
Figure 6.
HEATER MIN. CLEARANCE FROM BENCHES
5” MIN. (10 kW)
6” MIN. (12.5 - 15 kW)
BENCH
Figure 5.
HEATER MIN. CLEARANCE FROM WALL AND FENCE
5” MIN. (10 kW)
6” MIN. (12.5 - 15 kW)
2-1/2”
2-1/2”
WOOD FENCE

13
INSTALLATION OF CONTROL
PANEL AND SENSOR
Detailed instructions for the installation
of both the control panel and the sensor
are delivered with the control panel.
INSTALLATION OF HEATER
The heater may only be connected to
the electrical network in accordance with
the current regulations by an authorized,
professional electrician.
The wiring diagrams are included in the
control unit’s installation instruction.
Further instructions concerning
exceptional installations can be obtained
from local electrical authorities.
1. Remove heater from carton and place
in proper location in sauna room.
Observe proper clearances as per
gures 2 - 6 and table 1. After nal
hookup, electrical contractor should
secure heater to oor with at least two
screws or bolts.
2. See applicable wiring diagram for
heater model (gures 8 - 9, see control
unit manual for detailed instructions
how to connect the heater and
the control unit). Heater must be
permanently installed (no pigtails or
plugs allowed) and wiring must be
done by a licensed electrician, who
must follow wiring diagram provided
and adhere to local codes. Use proper
A.W.G rated wire size and use copper
wire suitable for 194°F (91°C) within
sauna walls. Use grounding terminals
provided in sauna heater and control
unit to properly ground the equipment
as per NEC and local codes.
3. Inside the heater box there are
two signs. Please place the metal
“CAUTION” sign on the interior wall
of the sauna room directly above
the heater in a visible place. Place
the metal “WARNING” sign outside,
on the door of the sauna room.
“MAINTENANCE INSTRUCTIONS”
are at the end of this manual.
SINGLE PHASE HEATER WIRING
AND HOOKUP (C1000/K10G-U1,
C1250/K12.5G-U1, C1500/
K15G-U1)
Refer to table 2 for proper wire size and
amperage. See gures 2 - 6 for required
clearances. Use copper wire from breaker
to wall-mounted power unit. Supply cable
must have 5 wires including insulated
neutral and separate ground.
Model C1000/K10G-U1 requires a
HeatPad10/CX30-U1-U3 sauna heater
control. Follow 240V 1Ph (dual circuit)
wiring on ClubHeat series wiring
schematic (page 15 of HeatPad installation
and operation manual).
Models C1250/K12.5G-U1 and C1500/
K15G-U1 require a HeatPad15/CX-45-
U1-U3 sauna heater control, follow 240V
1Ph (dual circuit) wiring on ClubHeat series
wiring schematic (page 15 of HeatPad
installation and operation manual).
Use 194°F (90°C) copper wire from power
unit to room light. Also use 194°F (90°C)
copper wire from power unit to sauna
heater (within seal tight ex conduit), and
connect to junction box under heater at
back, with 194°F (90°C) connector.
Cutler-Hammer model CH4F load center
shall be supplied by electrical contractor.
If connection to heater will be made at a
later time, bring ex into sauna room 4 - 6”
from oor, and leave 3’ of ex for hookup
(can be cut to right length later). Before
testing heater, ll rock cavity with igneous
stones provided with heater and fasten
metal protective grill on top of heater.
(See general information info concerning
washing and placing of stones.)

14
AFTER INSTALLATION
TESTING OF SAUNA HEATER
1. After sauna heater has been properly
wired, according to appropriate wiring
diagram and local codes, turn sauna
breaker on in the main breaker panel.
(Note! Electrician must label “Sauna”
breaker.)
2. Turn thermostatic (heat) control to
on position (this is located either on
your heater or on your remote wall
control. If you have a wall control, the
indicator light will come on to show
that the sauna is heating). Set timer to
10- to 15-minutes.
3. Within 5-minutes, you should be able
to feel heat from heater elements
when holding hand over heater.
4. If the sauna does not heater, refer to
troubleshooting information.
5. It is normal for smoke to appear
during the rst heating, as protective
element coating needs to burn off.
Turn sauna on for 1-hour before using
for rst time, to eliminate smoke.
3-PHASE HEATER WIRING AND
HOOKUP (C1000-3/K10G-U3,
C1250-3/K12.5G-U3, C1500-3/
K15G-U3)
Refer to table 2 for proper wire size and
amperage. See gures 2 - 6 for required
clearances. Use copper wire from breaker
to wall-mounted power unit. Supply cable
must have 4 wires including insulated
neutral and separate ground.
Models C1000-3/K10G-U3 requires a
HeatPad10/CX30-U1-U3 sauna heater
control. Follow 208V 3Ph wiring on
ClubHeat series wiring schematic (page
15 of HeatPad installation and operation
manual).
Models C1250-3/K12.5G-U3 and C1500-
3/K15G-U3 require a HeatPad15/CX45-
U1-U3 sauna heater control. Follow 208V
3Ph wiring on ClubHeat series wiring
schematic (page 15 of HeatPad installation
and operation manual).
Use 194°F (90°C) copper wire from power
unit to room light. Also use 194°F (90°C)
copper wire from power unit to sauna
heater (within seal tight ex conduit), and
connect to junction box under heater at
back, with 194°F (90°C) connector.
If connection to heater will be made at a
later time, bring ex into sauna room 4 - 6”
from oor, and leave 3’ of ex for hookup
(can be cut to right length later). Before
testing heater, ll rock cavity with igneous
stones provided with heater and fasten
metal protective grill on top of heater.
(See general information info concerning
washing and placing of stones.)

15
Table 2.
MODEL KW AMPS VOLT PH CONTROL
UNIT
WIRE SIZE
breaker
to load
center
load
center to
power
unit
power
unit to
heater
C1000/
K10G-U1
10.0 41.7 240 1HeatPad10 #6 copper (4) #8
copper
(4) #8
copper
C1250/
K12.5G-U1
12.5 52.7 240 1HeatPad15 #6 copper (4) #8
copper
(4) #8
copper
C1500/
K15G-U1
15.0 61.7 240 1HeatPad15 #4 copper (4) #8
copper
(4) #8
copper
breaker to power
unit
power unit to
heater
C1000-3/
K10G-U3
10.0 27.3 208 3HeatPad10 #8 copper #8 copper
C1250-3/
K12.5G-U3
12.5 34.1 208 3HeatPad15 #8 copper #8 copper
C1500/
K15G-U1
15.0 40.0 208 3HeatPad15 #8 copper #8 copper
MODEL INPUT
KW
MIN
HEIGHT
F T.
FLOOR AREA SAUNA
ROOM
MIN.
SPACING
FROM
ADJACENT
SURFACES
(INCHES)
Min.
Sq. Ft
Max.
Sq. Ft
Min.
Cu. Ft
Max.
Cu. Ft
C1000/K10G-U1
C1000-3/K10G-U3
10.0 6’ 5” 60 94 390 600 5
C1250/K12.5G-U1
C1250-3/K12.5G-U3
12.5 6’ 5” 78 114 500 750 6
C1500/K15G-U1
C1500-3/K15G-U3
15.0 6’ 5” 97 146 630 1000 6
Table 1.

165432
165432
165432
165432
16
Figure 8. Electrical connections of 240V 1-phase
heaters without contactors (C1000/K10G-U1, C1250/
K12.5G-U1, C1500/KG15-U1)
GND L1 L1 L2 L2 A1 A2
Overheating limiter
Sensor
Overheating limiter
Sensor
Figure 9. Electrical connections of 208V 3-phase
heaters without contactors (C1000-3/K10G-U3,
C1250-3/K12.5G-U3, C1500-3/KG15-U3)
GND L1 L2 L3 A1 A2
Overheating limiter
Sensor
Overheating limiter
Sensor

17
TROUBLESHOOTING
A. If the sauna heater does not operate
after initial installation and wiring:
1. Check circuit breaker in contactor to be
sure that it has not been shorted out.
2. Make sure that the current from the
control unit to the heater has been
switched on.
3. Check that the desired temperature
programmed in the control panel is
higher than the temperature of the
sauna.
B. If the sauna has been in operation, but
the heater ceases to operate:
1. Check breaker to make sure it is on.
2. Check that there is no time left in the
control panel.
3. Check overheat limiter reset button in
heater (reset is under the heater) to
see if it has been released.
4. Call your electrician or service person
for further help.)
NOTE! A GROUND FAULT INTERRUPTER
(GFI) should not be installed in, and does
not belong in a sauna. If used, the breaker
will trip, and damage could result.
C. If the sauna heater operates, but the
sauna room does not come up to
sauna temperature 160 - 185°F (70 -
85°C)
1. You must allow at least 30-minutes for
sauna heat-up time.
2. Is sauna thermometer located 6” from
ceiling, and is it above or close to
sauna heater? (This is proper location
for sauna temperature reading.)
Thermometer readings vary with room
heights and location. Eg. 180°F (82°C)
above sauna heater = 165°F (74°C) on
opposite wall = 140°F (60°C) on upper
bench = 120°F (49°C) on lower bench =
100°F (38°C) at oor level.
3. Check for proper wire size, amp
size, and proper wiring (according
to diagrams and information) also
necessary copper wiring.
4. Check the placement of stones to
make sure they are loosely spaced
around elements, to ensure good air
ow. Stones packed too tightly will
restrict air ow and reduce heating
capacity.
5. Check for heat loss (around or under
door, around ceiling light or fan - we
do not recommend ceiling light and a
fan does not belong in the sauna.
6. Is the room properly insulated?
7. Is the ceiling higher than 7’?
8. After checking all above, remove rocks
and check the heating elements for
holes or burned areas. (Only if heater
has been in use for some time.)
CAUTION! ELECTRICIAN OR
SERVICE PERSON!
1. BEFORE SERVICING HEATER,
CONTROL, OR CONTRACTOR, TURN
POWER OFF AT BREAKER!
2. Open junction box to make sure wires
are tightly secured with no loose
connections. Heater wire and all
connecting wires should be copper.
3. Check for burned spots or short in
wiring of timer or thermostat.
Sauna Heater’s warranty on parts is
void if installer/electrician fails to follow
necessary wiring information provided or
fails to follow code for proper wire size,
amperage, etc.
OVERHEATING LIMITER
Each heater is equipped with an
overheating limiter which is a safety
device. If an abnormal heating condition
should occur, the heater will automatically
shut off, and it will not come on again until
it cools.
To reset the overheating limiter, locate the
reset button (bottom front on wall models,
behind junction box at back bottom of
oor-mounted heaters) and push upward
until contactor kicks in. If the reset button
continues to trip, contact a qualied
service person. Be sure that a GFI has not
been installed.

18
MAINTENANCE INSTRUCTIONS
1. Use only clean water on sauna stones.
Do not use spa or pool water as it will
destroy your heater.
2. Clean water should always be used
in sauna buckets and water should
be dumped out after every use. Scour
buckets and dippers occasionally
when lm collects from usage. Use
plastic bucket liner in bucket to prevent
water leakage.
3. Scrub benches with a soft brush, using
soap and water or a mild disinfectant,
when needed - about once a week in
commercial saunas, or depending
upon sauna usage. For sanitation,
each bather should sit or lie on a towel
(this will prolong bench life).
4. Remove possible removable ooring
and wash waterproof oor with
disinfectant (e.g. Pine-Sol) about once
a week or as often as needed. Hose off
removable ooring to clean.
5. To maintain beautiful appearance of
sauna heater, remove water stains by
wiping with a damp cloth occasionally.
6. Our heaters require no special
maintenance when properly installed
by a qualied electrical contractor.
After 1 - 2 years of usage, the rocks
may need replacing if they have
crumbled or powdered (depending
upon sauna usage).
7. We strongly recommend a oor
that can be easily cleaned (concrete,
ceramic tile, or a poured type of
ooring). When this is provided, the
sauna can be easily cleaned and kept
in a sanitary condition with little effort.
A carpet is NOT recommended for a
sauna! A carpet becomes a perfect
breeding ground for bacteria in the
moist conditions of a sauna; and a
carpet promotes the spread of foot
diseases such as athlete’s foot.
8. In new construction, a oor drain
should also be provided, especially
in commercial saunas for sanitary
cleaning and maintenance. Seal wood
around glass in door - inside and
outside - withThompson’s Water Seal
to prevent warpage.
9. When sauna wood becomes stained
from perspiration, the wood may be
lightly sanded with ne sandpaper
to restore beautiful appearance. We
do not recommend stains or sealers
as toxic vapors may appear when
heated.
10. The sauna room will heat faster if the
higher vent is kept in a closed position
when heating. The lower vent may
always be kept in an open position.
11. Required warning signs should be
posted according to the instructions.
SPARE PARTS
SAUNA HEATERS
C1000/K10G-U1, C1250/K12.5G-U1,
C1500/K15G-U1
C1000-3/K10G-U3, C1250-3/K12.5G-U3,
C1500-3/K15G-U3
GUARANTEE
This HOTASSSAUNAheater isguaranteed
for one-year from date of purchase, and
includes all heater parts such as heating
elements, controls, contactors, etc.
This guarantee covers faults in
manufacture and material only, and

1
2
3
4
56
7
8
9
10
12
13A
13B
14
15
16
19
20
22
23
24
25
26
27
123456
11 18
17 30 31
28
19
includes the exchange of new parts supplied by the
manufacturer or importer, after the faulty part has been
returned to same. The replacement of parts under warranty
does not extend the warranty period beyond the original

1
2
3
4
56
7
8
9
10
12
13A
13B
14
15
16
19
20
22
23
24
25
26
27
1
23456
11 18
17 30 31
28
20
1Stone compartment
2Stone holder
3Base plate
4Top part
5Casing side L/R
6Casing FRONT / REAR
7Electrical casing
8Electrical casing R
9Electrical casing L
10 Radiation shield
11 Terminal block bracket
12 Electrical casing cover
13A Wireset 240V 1-phase heaters
13B Wireset 208V 3-phase heaters
14 Wiring diagram
15 Rating plate sticker
16 Adjusting leg
17 Connection cable holder
18 Terminal block
19 Heating element set
20 Terminal block sticker
21 Lead-in plastic grommet
22 Floor mounting plate
23 Protective grille
24 Overheating limiter / sensor bracket
25 Overheating limiter / switch
26 Contactor bracket
27 4-pole contactor
28 Grounding terminal
C1000/K10G-U1
C1000-3/K10G-U3
C1250/K12.5G-U1
C1250-3/K12.5G-U3
C1500/K15-U1
C1500-3/K15G-U3
C1000/K10G-U1
C1250/K12.5G-U1
C1000-3/K10G-U3
C1000/K10G-U1
C1000-3/K10G-U3
C1250/K12.5G-U1
C1250-3/K12.5G-U3
C1500/K15-U1
C1500-3/K15G-U3
C1000/K10G-U1
1, 2, 3, 4, 5, 6
10 kW
1640W / 240V HAZSSS-110
C1250/
K12.5G-U1
1, 2, 3,
4, 5, 6
12.5 kW
1640W / 240V
2350W / 240V
HAZSSS-110
HAZSPS-240
C1500/
K15G-U1
1, 2, 3, 4, 5, 6
15 kW
2350W / 240V HAZSPS-240
C1000-3/
K10G-U3
1, 2, 3, 4, 5, 6
10 kW
1640W / 208V HAZSSS-120
C1250-3/
K12.5G-U3
1, 2, 3, 4, 5, 6
12.5 kW
2050W / 208V HAZSPS-250
C1500-3/
K15G-U3
1, 2, 3, 4, 5, 6
15 kW
2460W / 208V HAZSPS-255
We recommend to use only the manufacturer’s spare
parts.
