Hotpoint CH60DHKF Technical manual

This appliance must be installed in accordance with the regulations in force and
only used in a well ventilated space.
Read these instructions before installing or using the appliance and retain
them for future reference.
Use and Installation Instructions
Please phone us on
08448 24 24 24
to activate your
guarantee
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
CH60DHKF
CH60DHSF
CH60DHWF

2
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
CONTENTS
PAGE
Introduction 3
For Your Safety 4
Installation Instructions 6
Oven Timer Operation 12
Hotplate 18
Grill 20
Ovens 21
Oven Cooking Charts 22
The Slow Cook Setting 24
Care and Cleaning 25
Something wrong with your Cooker? 27
Disposal of the appliance 28
Guarantee information 29
Service Information 30

3
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
INTRODUCTION
To help you make the best use of your cooker, PLEASE READ THIS BOOKLET CAREFULLY.
Your new cooker is guaranteed and will give lasting service. The guarantee is only applicable if the cooker has
been installed in accordance with the Installation Instructions.
The cooker is designed specifically for domestic use and responsibility will not be accepted for use in any other
installation.
When first using the cooker ensure that the room is well ventilated (e.g. open a window or use an extractor fan)
and that persons who may be sensitive to the odour avoid any fumes. It is suggested that any pets be removed
from the room until the smell has ceased. This odour is due to any temporary finish and also any moisture
absorbed by the insulation.
Our policy is one of continual improvement in design and development, therefore strict accuracy of illustrations
and descriptions cannot be guaranteed.
This appliance conforms with the following European Economic Community directives:This appliance conforms with the following European Economic Community directives:
This appliance conforms with the following European Economic Community directives:This appliance conforms with the following European Economic Community directives:
This appliance conforms with the following European Economic Community directives:
- 2006/95/ECEC
ECEC
EC of 12/12/06 (Low Voltage) and subsequent modifications;
- 2004/108/ECEC
ECEC
EC of 15/12/04 (Electromagnetic Compatibility) and subsequent modifications;
- 90/396/EECEEC
EECEEC
EEC of 29/06/90 (Gas) and subsequent modifications (only for models which use gas);
- 93/68/EECEEC
EECEEC
EEC of 22/07/93 and subsequent modifications.
- 2002/96/ECEC
ECEC
EC

4
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
FOR YOUR SAFETY
Please read the precautions below before using your cooker.
ALWAYS . . .
ALWAYS make sure you understand the controls before using the cooker.
ALWAYS check that all controls on the cooker are turned off after use.
ALWAYS stand back when opening an oven door to allow heat to disperse.
ALWAYS use dry, good quality oven gloves when removing items from the ovens.
ALWAYS take care when removing items from the top oven/grill when the main oven is on, as the contents may
be hot.
ALWAYS keep the oven and grill doors closed when the cooker is not in use.
ALWAYS place pans centrally over the hotplate burners and position them so that the handles cannot acciden-
tally be caught or knocked or become heated by other burners.
ALWAYS keep the cooker clean, as a build up of grease or fat from cooking can cause a fire.
ALWAYS allow the cooker to cool before cleaning.
ALWAYS follow the basic principles of food handling and hygiene to prevent the possibility of bacterial growth.
ALWAYS keep ventilation slots clear of obstructions.
ALWAYS turn off the electricity supply before cleaning or replacing an oven lamp.
ALWAYS refer servicing to CORGI registered appliance service engineers.
The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by
inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be
supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the
operation of the appliance.
 The appliance must be used by adults only for the preparation of food, in accordance with the instructions
outlined in this booklet. Any other use of the appliance (e.g. for heating the room) constitutes improper use and is
dangerous. The manufacturer may not be held liable for any damage resulting from improper, incorrect and
unreasonable use of the appliance.

5
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
FOR YOUR SAFETY
NEVER . . .
NEVER leave children unsupervised where the cooker is installed as all surfaces will get hot during and after
use.
NEVER allow anyone to sit or stand on any part of the cooker.
NEVER store items that children may attempt to reach above the cooker.
NEVER heat up unopened food containers as pressure can build up causing the container to burst.
NEVER store chemicals, food stuffs, pressurised containers in or on the cooker, or in cabinets immediately
above or next to the cooker.
NEVER fill a deep fat frying pan more than 1/3 full of oil, and never use a lid. DO NOT LEAVE UNATTENDED
WHILE COOKING.
NEVER place flammable or plastic items on or near the hotplate.
NEVER use proprietary spillage collectors on the hotplate.
NEVER use the cooker as a room heater.
NEVER dry clothes or place other times over or near to the hotplate or oven/gril doors.
NEVER wear garments with long flowing sleeves whilst cooking.
NOTE:NOTE:
NOTE:NOTE:
NOTE: The use of a gas cooking appliance results in the production of heat and moisture in the room in which it
is installed. Always ensure that the kitchen is well ventilated; keep natural ventilation holes open or install a
mechanical ventilation device (mechanical extractor hood).
In particular when using the grill or more than one hotplate burner, open a window if a mechanical ventilation
device is not operating.
!The appliance should not be operated by people (including children) with reduced physical, sensory or mental
capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals
should, at the very least, be supervised by someone who assumes responsibility for their safety or receive
preliminary instructions relating to the operation of the appliance.

6
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
Prior to installation, ensure that the local distribution conditions (nature of the gas and gas pressure) and the
adjustment conditions are compatible. The adjustment conditions for this appliance are stated on the data
badge which is fitted on the back panel.
This appliance is not designed to be connected to a combustion products evacuation device. It must be
installed and connected in accordance with current installation regulations. particular attention should be given
to the relevant requirements regarding ventilation.
MODEL NUMBERS:
Category II2H3+ (GB)
These models are set to burn NATURAL GAS (G20) at 20 mbar but can be converted for use on BUTANE (G30)
at 28-30mbar or PROPANE (G31) at 37mbar with the use of the LPG conversion kit that can be obtained free of
charge, if you contact our Genuine Parts and Accessories department (see Key Contacts, back page).
GAS SAFETY (INSTALLATION & USE) REGULATIONS
It is the law that all gas appliances are installed by competent persons in accordance with the current edition of
the above regulations. It is in your interest and that of safety to ensure compliance with the law. In the UK,
CORGI registered installers work to safe standards of practice. The cooker must also be installed in accordance
with BS 6172. Failure to install the cooker correctly could invalidate the warranty liability claims and could lead
to prosecution.
LOCATION
The cooker may be located in a kitchen, kitchen/diner or a bed-sitting room, but not in a room containing a bath
or shower. The cooker must not be installed in a bed-sitting room of less than 20m3.
When adjusted for use on Butane (G30) or Propane (G31), the cooker must not be installed in a room or internal
space below ground level, e.g. in a basement.
PROVISION FOR VENTILATION
The room containing the cooker should have an air supply in accordance with BS 5440: Part 2.
The room must have an opening window or equivalent; some rooms may also require a permanent vent. If the
room has a volume between 5 and 10m3, it will require an air vent of 50cm2effective area unless it has a door
which opens directly to outside. If the room has a volume of less than 5m3, it will require an air vent of 100cm2
effective area. If there are other fuel burning appliances in the same room, BS 5440: Part 2 should be consulted
to determine air vent requirements.
INSTALLATION INSTRUCTIONS
CH60DHKF CH60DHSF CH60DHWF

7
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
TECHNICAL DATA
Gas connection Rp ½ (½" BSP female)
Pressure test point Front left hotplate injector
Gas rate adjustment None
Aeration adjustment None
Electrical connection 4mm2twin and earth
230/240V a.c. 50Hz.
20 A fuse.
INSTALLATION INSTRUCTIONS
 

 HEAT INPUT INJECTOR HEAT INPUT INJECTOR
HOTPLATE
Front Left and Rear Right 3.05 kW 116 3.0 kW (220g/h) 86
HOTPLATE
Front Right and Rear Left 2.0 kW 103 2.0 kW (145g/h) 70
GRILL 2.2 / 2.4 kW
MAIN OVEN 1.8 / 2.0 kW
TOP OVEN 1.7 / 1.9 kW

8
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
INSTALLATION INSTRUCTIONS
SPACE FOR FIXING
The cooker can be close fitted below hotplate level. This requires a minimum distance of 600mm between cupboard
units of hotplate height.
When installing next to a tall cupboard, partition or wall, for a minimum distance of 400mm above hotplate level,
allow a side clearance of at least 65mm.

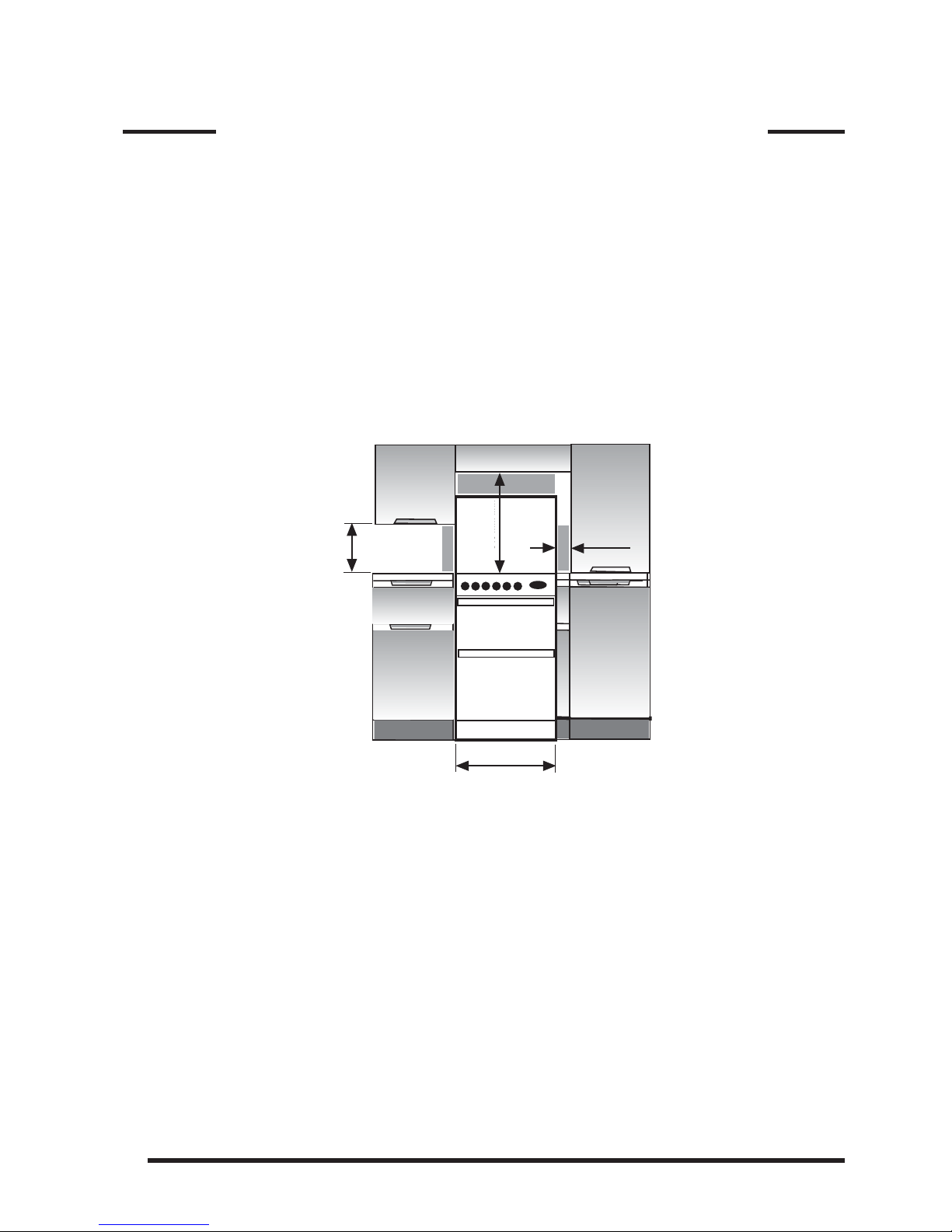

The diagram below illustrates the minimum clearance between the cooker and adjacent walls, cupboards etc.
The wall behind the cooker, 50mm below and 450mm above, and the width of the cooker, must be a non-
combustible material such as ceramic wall tiles.
If the cooker is to be fitted close to a corner on the left hand side, ensure that there is a clearance of at least 50mm
to allow the main oven door to open fully for when removing oven shelves.
65 mm Min
840 mm Min
400 mm Min
600 mm Min
750mm Min
COOKER HOODS
If a cooker hood is to be installed, refer to the cooker hood manufacturers' instructions regarding fixing height.

9
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
INSTALLATION INSTRUCTIONS
UNPACKING THE COOKER
Unpack the components from inside the grill and oven. Check that the following parts are present:
Grill pan and grid Main oven shelves (2)
Top oven/grill shelf (1) Pan supports
Baking dish Enamelled burner caps (4)
Aluminium burner bodies (4) Literature
LEVELLING
Four skid feet are fitted which can be adjusted up or down to level the cooker.
CONVERSION FOR USE ON BUTANE (G30) OR PROPANE (G31)
Each burner requires the injector to be replaced and bypass screws adjusted or replaced as follows:

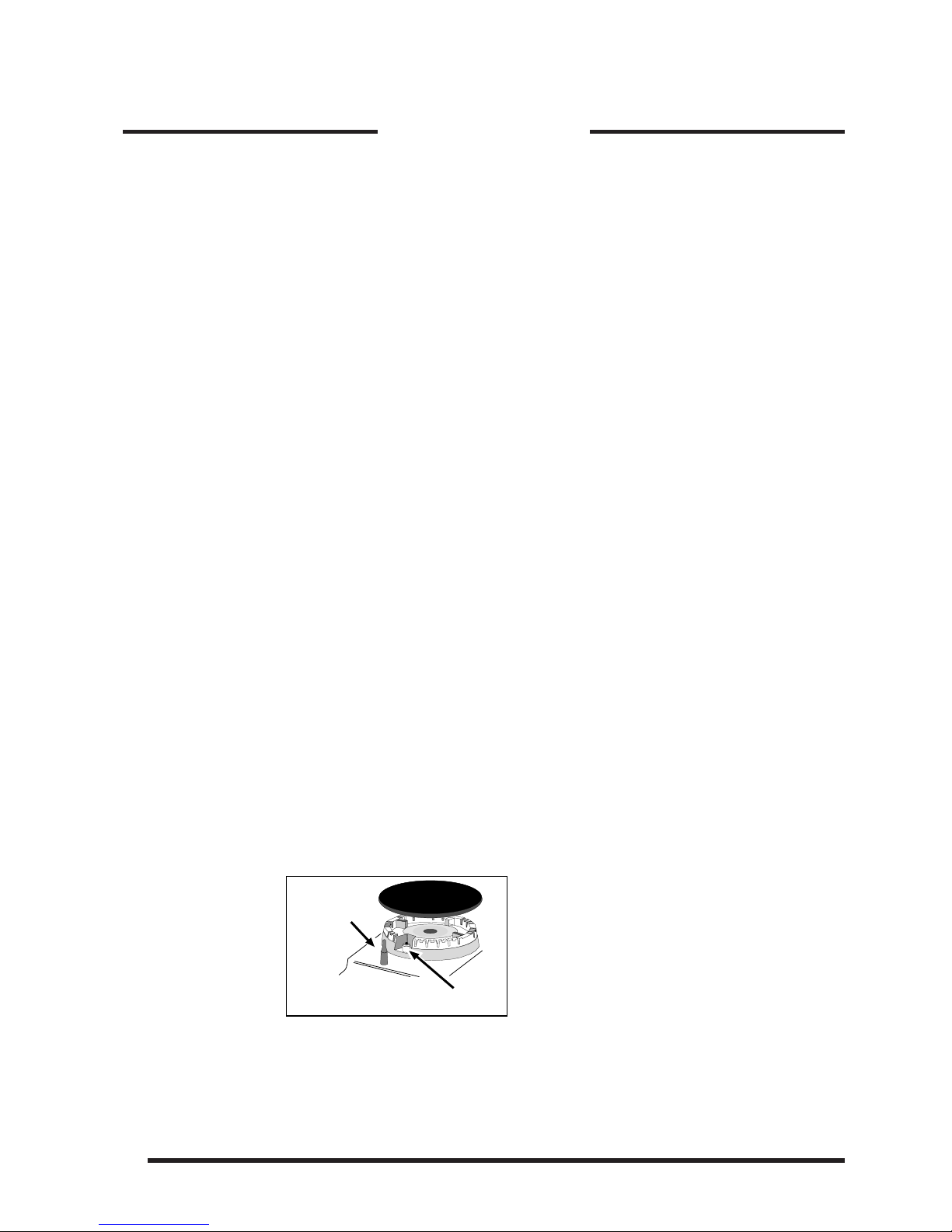

1. Remove the loose hotplate burner parts.
2. Using a 7mm socket, replace the hotplate injectors as appropriate (see table on previous page).
3. Re-position the loose burner parts.
4. Carefully pull off the hotplate control knobs.
5. Using a narrow flat bladed screwdriver rotate the bypass screws fully clockwise. The hotplate tap bypass
screws are located down the centre of the spindle.
6. Re-assemble the control panel parts.
7. Secure the self-adhesive LPG conversion label over the gas details on the data badge.

10
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
INSTALLATION INSTRUCTIONS
STABILITY CHAIN
A hole in the gas inlet valve bracket can be used to engage a stability chain.
CONNECTING TO GAS SUPPLY
300
670
Connection to the cooker should be made with an approved appliance flexible connection to BS 669. A length of
0.9 to 1.25m is recommended. The length of hose chosen should be such that when the cooker is in situ, the
hose does not touch the floor.
Those cookers converted to use on LPG should be connected with a hose suitable for LPG and capable of
withstanding a pressure of 50 mbar.
An adaptor backplate should be fitted within the shaded area shown, to allow the cooker to be pushed fully to
the wall and to ensure that the flexible hose is only likely to come into contact with areas at the rear of the
cooker that do not exceed a temperature rise of 70°C.

11
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
WARNING - THIS APPLIANCE MUST BE EARTHED.
The cooker must be connected by a qualified electrician to a suitable double - pole control unit with a minimum
rating of 32A and a minimum contact clearance of 3mm, which should be fitted adjacent to (but not above) the
cooker, in accordance with IEE regulations.
The power supply cable should conform to BS6004 with a conductor size of 4mm2.
The control unit should be easily accessible in the event of an emergency.
This appliance conforms to EN55014 regarding suppression of radio and television interference.
The cooker terminals are behind the cover at the rear The mains cable must pass through the cable clamp and
the screws must be fully tightened. Sufficient cable should be used to allow the cooker to be pulled out for
servicing. Ensure that the cover is fully closed and secure afterwards.
Take care not to trap the mains cable when pushing the cooker into its final position.
ELECTRICAL CONNECTION
INSTALLATION AND OPERATIONAL CHECKS
After installation, check for gas soundness. The supply pressure can be checked at one of the hotplate burner
injectors.
Check that the hotplate burners ignite correctly and burn with a steady flame. Check for a steady flame at the
low setting.
Instruct the user on the operation of the cooker.
INSTALLATION INSTRUCTIONS

12
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
OVEN TIMER OPERATION
The oven timer offers you the following features:
1. Time of Day
2. Automatic Cooking
3. Minute Minder
AUTOMATIC COOKING
The main oven can be controlled automatically.
GUIDANCE ON AUTOMATIC COOKING
1. Select foods which will take the same time to cook.
2. Set the oven timer so that the food has just finished or is just about to finish cooking on your return to the oven.
This will ensure the food has not cooled down and does not require reheating before serving.
3. Food should be as cold as possible when it goes into the oven, ideally straight from the refrigerator. Frozen
meat and poultry should be thawed thoroughly before it is put in the oven.
4. Warm food should never be placed in the oven if there is to be a delay period. Stews prepared by frying the
meat and vegetables should be cooked as soon as possible.
5. Dishes containing left-over cooked poultry or meat, for example Shepherds Pie, should not be cooked automati-
cally if there is to be a delay period.
6. Stews and joints should be cooked by the long slow method, so that the delay period is kept to a minimum.
7. On warm days, to prevent harmful bacterial growth in certain foods (ie poultry, joints, etc) the delayed start
should be kept to a minimum.
8. Wine or beer may ferment and cream may curdle during the delay period, so it is best to add these ingredients
just before serving.
9. Foods which discolour should be protected by coating in fat or tossing in water to which lemon juice has been
added, prior to placing food in the oven.
10.Dishes containing liquid should not be filled too full to prevent boiling over.
11.Food should be well sealed (but not airtight) in a container to prevent the loss of liquid during cooking. Alu-
minium foil gives a good seal.
12.Ensure food is cooked thoroughly before serving.

13
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
OVEN TIMER OPERATION
A
U
T
O
000
.
CLOCKFACE
The timer incorporates a 24 hour clock.
Ensure the correct time of day is always set, before using your cooker.
SYMBOLS
A 'bell' symbol will light up when you select a Minute Minder Period and will remain lit for the
period set.
At the end of the Minute Minder Period, the timer will emit an audible tone and the 'bell'
symbol will disappear.
The 'cookpot' symbol will light up either:-
- When the timer is in manual mode, or
- During the actual Cook Period.
'AUTO' will light up:-
- When the timer is first turned on it will flash. It will go out when a time of day is set or
when the timer is set to manual.
The 'AUTO' symbol will flash at the end of an Auto Cooking programme to indicate that the
programme has finished.
(When the 'AUTO' symbol is flashing, to return the oven to Manual operation, turn the oven controls offs,
and press the "Manual" button - The 'AUTO' symbol will go out).
TIMER FUNCTION BUTTONS
Minute Minder Button
Here you can set a time period of up to 23 hours 59 minutes, that will count down. When it reaches zero, the
timer will emit an audible tone.
For Example: If you set 20 minutes, the audible tone will occur 20 minutes later.
AUTO COOKING PROGRAMME
Cook Period Button
Cook Period is the actual length of time for which, the timer will switch the oven(s) on as part of an "Auto
Cooking" programme. (e.g. If you set 2 hours, the food will be cooked for 2 hours).
End Time Button
The time of day at which you want an "Auto Cooking" programme to end.
For Example: If you set a "Cook Period" for 2 hours, and "End Time" of 11:00. The timer will switch the oven(s)
on at 9:00 and turn the oven(s) off at 11:00. You will hear a audible tone at 11:00, to indicate that the Auto
Cooking Programme has finished.
Notes:
- When setting an Auto Cooking programme you will need to set the oven control(s) to the required temperature(s)
when you set the timer.
- If an Auto Cooking programme has been set the oven(s) will only operate during the pre-programmed time.
Manual Button
Needs to be pressed to cancel an Auto Cooking programme and return the oven(s) to Manual operation.
"+" and "-" Buttons
Used to adjust the various timer function settings.
000
.
000
.
000
.
A
U
T
O

14
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
SETTING THE TIME OF DAY
Step 1 Make sure all oven controls are turned Off.
Step 2 Check the electricity supply to the cooker is turned on.
Step 3 When switched on the display will show 0.00 and the Auto symbol, flashing
intermittently.
Step 4 Press & hold in both the Cook Period & End Time buttons together.
Step 5 With the Cook Period & End Time buttons still held in, press either the "+" or "-"
buttons to set the correct time of day.
Step 6 Release all the buttons simultaneously. THE TIME OF DAY IS NOW SET.
To change the time of day repeat Steps 4, 5 & 6 above.
Note: You cannot adjust the time of day if the timer has been set for an Auto Cooking Programme.
SETTING THE MINUTE MINDER
Step 1 Ensure the time of day is set correctly.
Step 2 Press and hold the Minute Minder button.
Step 3 With the Minute Minder button held in, set the required Minute Minder period using
the "+" and "-" buttons. A 'bell' symbol will light up.
Release all buttons and the timer display will revert back to the time of day. The 'bell' symbol
will remain lit to signify that a Minute Minder period has been set.
At the end of the set time an audible tone will be heard, and the 'bell' symbol will disappear.
Step 4 To cancel the audible tone press the Minute Minder button.
Note 1 When the Minute Minder has been set, the time remaining can be checked at any time by simply pressing
the Minute Minder button.
Note 2 If necessary the Minute Minder can be cancelled before the tone sounds by pressing and holding the
Minute Minder button and then at the same time pressing the "-" button until 0.00 appears in the display
window.
A
U
T
O000
.
.
A
U
T
O
000
.
000
.
000
.
A
U
T
O
OVEN TIMER OPERATION

15
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
AUTO COOKING PROGRAMMES
There are two Auto Cooking programmes that can be selected using your timer:-
(a) To set the timer to switch the oven(s) On and Off Automatically
(b) To set timer to switch on immediately and OFF automatically after a set cook period.
a) TO SET THE TIMER TO SWITCH THE OVEN(S) ON AND OFF AUTOMATICALLY
This allows you to cook at a specified time for a chosen period before the oven switches off
Automatically.
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Press and hold in the Cook Period button. The display will read 0.00 with the
'cookpot' symbol lit.
Step 4 With the Cook Period button still held in, set the required Cook Period using the "+"
and "-" buttons.
Release the buttons and the timer display will revert to the time of day with the 'Auto'
symbol and 'cookpot' symbol lit.
Step 5 Press and hold in the End Time button. The display will read the earliest possible
end time for the Cook Period that you have set above. The 'Auto' symbol and 'cookpot'
symbol will be lit.
Step 6 With the End Time button still held in, use the "+" and "-" buttons to set the 'End
Time' (i.e. The time you require the oven to switch off ).
Release all the buttons and the timer will revert back to the time of day.
The 'Auto' symbol will remain lit to signify that an Auto Cooking Programme has been set.
The 'cookpot' symbol will go out.
Step 7 Turn the oven control(s) to the required temperature, and if necessary select the
appropriate oven function.
At the end of the Automatic Cook Period the Auto Symbol will flash and an intermittent
bleeping sound will be heard.
The audible tone will continue unless cancelled.
The 'Auto' symbol will continue to flash until the timer is returned to Manual operation (see
below).
Step 8 Press the Manual button, the audible tone will be cancelled and the oven(s) will be
returned to Manual.
Step 9 Turn the oven control(s) to the OFF position.
000
.
A
U
T
O
4120
.
A
U
T
O6120
.
A
U
T
O
4120
.
A
U
T
O6120
.
6120
.
OVEN TIMER OPERATION

16
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing the
Cook Period button.
Note 2 When cooking automatically the End Time can be checked at any time by simply pressing the
End Time button.
b) TO SET TIMER TO SWITCH ON IMMEDIATELY AND OFF AUTOMATICALLY AFTER A SET
COOK PERIOD
Step 1 Check that the correct time of day is set, if not follow instructions for setting the time of day.
Step 2 Place food onto the correct shelf position in the oven and close the oven door(s).
Step 3 Turn the oven control(s) to the required temperature, and if necessary select the appropriate oven
function.
Step 4 Press & hold in the Cook Period button, the display will read 0.00 and the 'cookpot'
symbol will light up.
With the Cook Period button still held in set the required Cook Period using the "+" and "-"
buttons. Example: 1hr 30 minutes (as shown).
Step 5 Release all buttons.
The timer display will revert to the time of day with the 'Auto' symbol lit & 'cookpot' symbol
remaining lit.
At the end of the Cook Period the 'Auto' symbol will flash and an intermittent audible tone
will be heard. The audible tone will continue until cancelled. The 'Auto' symbol will continue
to flash until the timer is returned to Manual operation (see below).
Step 6 Press the Manual button. The audible tone will be cancelled and the oven(s) will be
returned to Manual.
Step 7 Turn the oven control(s) to the OFF position.
130
.
A
U
T
O4120
.
A
U
T
O
6120
.
NOTE: The Cookpot symbol disappears
6120
.
OVEN TIMER OPERATION

17
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
TO CANCEL AN AUTO COOKING PROGRAMME BEFORE THE COOK
PERIOD HAS FINISHED.
Step 1 Turn the oven control to the OFF position.
Step 2 Press the Manual button to return the oven to "Manual" operation. The 'Auto' sym-
bol will go out.
Note 1 When cooking automatically the Cook Period can be checked at any time by simply pressing
the Cook Period button.
OTHER NOTES ON TIMER OPERATION
1. When cooking Automatically the Cook Period can be checked at any time simply by pressing the Cook Period
button.
2. When cooking Automatically the End Time can be checked at any time by simply pressing the End Time button.
3. Having set a Cook Period and End Time an electronic device stores the information. The device within the timer
will switch the oven(s) on and off at the required times.
4. When setting an Auto Cooking Programme and a mistake is made, to clear:-
(a) Press & release the Manual button.
(b) Start the sequence again.
5. If at any time the display shows three flashing zero's 0.00 and 'Auto', it is likely that the electricity supply to the
oven has been interrupted. Reset the timer to the correct time of day.
Food in the oven may, therefore, not
have been cooked, before serving check food is thoroughly heated and completely cooked.
6. To set each function always press and hold the required function button and at the same time press "+" or "-"
buttons.
5100
.
OVEN TIMER OPERATION

18
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
HOTPLATE
The hotplate lid is fitted with a safety device which cuts off the gas supply to the hotplate burners unless the lid
is fully open. Do not use the safety device as a means of controlling the hotplate burners.
The hotplate has two high speed burners and two simmering burners which will accommodate pans between
100mm (4") and 240mm (9 ½”) diameter. All pans should be positioned centrally over the burners.
TO USE THE HOTPLATE
1. Remove any items or spillage from the top of the lid and then raise it to its fully open position.
2. Press the ignition button and then push in and turn the control knob of the chosen burner anti-clockwise to the
large flame symbol. Continue to press the ignition button until the sparks light the gas.
3. Turn the control knob anti-clockwise to reduce the heat input. Only turn the control knob between the large flame
symbol and the small flame symbol when adjusting the setting.
4. To turn off, turn the control knob fully clockwise to the symbol O.
DO NOT use the hotplate unless all pan supports are in position.
DO NOT use mis-shapen pans which may be unstable.
DO NOT use round base woks directly on the pan supports.
DO NOT use the glass lid as a working surface.
Each burner is fitted with a spark ignitor for lighting the gas. To ensure rapid lighting of the burners every time
they are used, the ignitors must be kept clean and dry. Remove any food spillage or cleaning materials from
the ignitor using a small nylon brush such as a tooth brush. Access to the ignitor can be achieved by lifting off
the loose burner parts carefully when the burners are cool.
When the hotplate burner bodies and caps are removed for cleaning, be careful not to drop any food particles
or cleaning materials into the burner bases, to avoid the possibility of blocking the gas jets.
If aluminium based pans are used, a silvery deposit may appear on the top edge of the pan support fingers.
See 'Care and Cleaning' section for cleaning information.
Models with Hob Gas Burner Safety Devices to Prevent Leaks *
These models can be identified by the presence of the device itself.
!Since the hob burners are equipped with a safety device, you must hold the control knob in for about 3-7
seconds after the burner has been lighted to allow the gas to pass until the safety thermocouple has heated.
HOB GAS BURNER
SAFETY DEVICE
ELECTRONIC
LIGHTING DEVICE

19
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
SAFETY REQUIREMENTS FOR DEEP FAT FRYING
1. Never fill chip pans more than one third full with oil or fat.
2. Never leave oil or fat unattended during the heating or cooling period.
3. Never heat fat or fry with a lid on the pan.
4. Always dry food thoroughly before frying, and lower it slowly into the hot oil or fat. Frozen foods in particular will
cause frothing and spitting if added too quickly.
5. Always keep the outside of the pan clean and free from streaks of oil or fat.
HOW TO DEAL WITH A FAT FIRE
1. Do not move the pan.
2. Turn off the hotplate burners.
3. Smother the flames with a fire blanket or damp cloth to extinguish the fire. Do not use water or a fire extinguisher
as the force of it may spread the burning fat or oil over the edge of the pan.
4. Leave the pan for at least 60 minutes before moving it.
HOTPLATE

20
PLEASE PHONE US TO REGISTER YOUR APPLIANCE AND ACTIVATE YOUR PARTS GUARANTEE ON 08448 24 24 24
GRILL
CAUTION - ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS USED.
YOUNG CHILDREN SHOULD BE KEPT AWAY.
GRILLING SHOULD NEVER BE UNDERTAKEN WITH THE GRILL DOOR CLOSED
The grill control is designed to provide variable heat control of either the full width of the grill or just the left half.
Turning the control knob clockwise will switch on the full width and turning anti-clockwise will switch on just the
left half.
A gentle flow of air will be blown from underneath the control panel when the grill is in use.
GRILL PAN AND HANDLE
The grill pan handle is detachable from the pan to facilitate cleaning and storage. Fix the pan handle securely
before use:
1. Fit the handle to the grill pan so that the external ‘hooks’ embrace the edge of the pan (fig. 1)
2. Make sure that the middle part of the handle fits exactly the protruding support of the pan (fig .2) and holds
the pan from the bottom.
The food must be placed on the rack in the grill pan.
Position the grill pan on top of the oven rack. The best results are achieved by placing the oven rack on the
uppermost shelves. Pouring a little water into the grill pan will make the collection of grease particles more
efficient and prevent the formation of smoke.
TO USE THE GRILL
1. Open the grill/top oven door and place the shelf in the required position.
2. Turn the grill control knob clockwise to 4(or Max) for full width grilling or anticlockwise for the half grill.
3. Slide the grill pan toward the back of the grill compartment until it stops.
4. Leave the control at 4(or Max) for toast and for sealing and fast cooking of foods. For thicker foods requiring longer
cooking, turn the control to a lower setting after sealing on both sides at 4(or Max).
NOTE: The grill will not operate unless the top oven control is in the OFF position.
Grilling can be started from cold but for best results preheat for approximately 2 minutes.
The grill elements are covered by a wire mesh to prevent access to live parts. Under no circumstances should
pointed objects be inserted through the mesh.
During use, the mesh may become soiled. Do not attempt to clean it while the grill is on. Turn the cooker off at
the control unit and wait until it has cooled down before cleaning.
DO NOT cover the grill pan or grid with aluminium foil as this can hold fat, intensify the heat and cause a fire
hazard.
12
