Hotpoint EG52 User manual

Use and Installation Instructions
The cooker must be installed in accordance with the regulations in force
and only used in a well ventilated space.
Read these instructions prior to using the cooker and retain them for
future reference.
Instructions for Installation and Use
EG52

PAGE
Introduction 3
For Your Safety 4
Timer Operation 6
Hotplate 8
Grill 10
Oven 11
Oven Cooking Chart 12
The Slow Cook “S” Setting 13
Care and Cleaning 14
Something Wrong with your cooker? 17
Installation Instructions 19
Key Contacts Back Cover
2
CONTENTS

To help you make the best use of your cooker, PLEASE READ THIS BOOKLET
CAREFULLY.
Your new cooker is guaranteed and will give lasting service.The guarantee is only
applicable if the cooker has been installed in accordance with the Installation
Instructions.
The cooker is designed specifically for domestic use and responsibility will not be
accepted for use in any other installation.
When first using the cooker ensure that the room is well ventilated (e.g. open a
window or use an extractor fan) and that persons who may be sensitive to the odour
avoid any fumes. It is suggested that any pets be removed from the room until the
smell has ceased. This odour is due to any temporary finish and also any moisture
absorbed by the insulation.
3
INTRODUCTION
Our policy is one of continual improvement in design and development,
therefore strict accuracy of illustrations and descriptions cannot be
guaranteed.
This appliance conforms to the following EEC Directives:
Gas Appliances
90/396/EEC
Low Voltage Equipment
73/23/EEC
93/68/EEC
Electromagnetic Compatibility
89/336/EEC
92/31/EEC
93/68/EEC

Please read the precautions below before using your cooker.
ALWAYS . . .
ALWAYS make sure you understand the controls before using the cooker.
ALWAYS check that all controls on the cooker are turned off after use.
ALWAYS stand back when opening an oven door to allow heat to disperse.
ALWAYS use dry, good quality oven gloves when removing items from the ovens.
ALWAYS take care when removing items from the top oven/grill when the main
oven is on, as the contents may be hot.
ALWAYS keep the oven and grill doors closed when the cooker is not in use.
ALWAYS place pans centrally over the hotplate burners and position them so
that the handles cannot accidentally be caught or knocked or become
heated by other burners.
ALWAYS keep the cooker clean, as a build up of grease or fat from cooking can
cause a fire.
ALWAYS allow the cooker to cool before cleaning.
ALWAYS follow the basic principles of food handling and hygiene to prevent the
possibility of bacterial growth.
ALWAYS keep ventilation slots clear of obstructions.
ALWAYS turn off the electricity supply before cleaning or replacing the oven
lamp.
ALWAYS refer servicing to CORGI registered appliance service engineers.
4
FOR YOUR SAFETY

NEVER . . .
NEVER leave children unsupervised where the cooker is installed as all surfaces
will get hot during and after use.
NEVER allow anyone to sit or stand on any part of the cooker.
NEVER store items that children may attempt to reach above the cooker.
NEVER heat up unopened food containers as pressure can build up causing
the container to burst.
NEVER store chemicals, food stuffs, pressurised containers in or on the cooker,
or in cabinets immediately above or next to the cooker.
NEVER fill a deep fat frying pan more than 1/3 full of oil, and never use a lid.
DO NOT LEAVE UNATTENDED WHILE COOKING.
NEVER place flammable or plastic items on or near the hotplate.
NEVER use proprietary spillage collectors on the hotplate.
NEVER use the cooker as a room heater.
NEVER dry clothes or place other times over or near to the hotplate or oven/
grill doors.
NEVER wear garments with long flowing sleeves whilst cooking.
NOTE: The use of a gas cooking appliance results in the production of heat and
moisture in the room in which it is installed. Always ensure that the kitchen is well
ventilated; keep natural ventilation holes open or install a mechanical ventilation
device (mechanical extractor hood).
In particular when using more than one hotplate burner, open a window if a
mechanical ventilation device is not operating.
5
FOR YOUR SAFETY

6

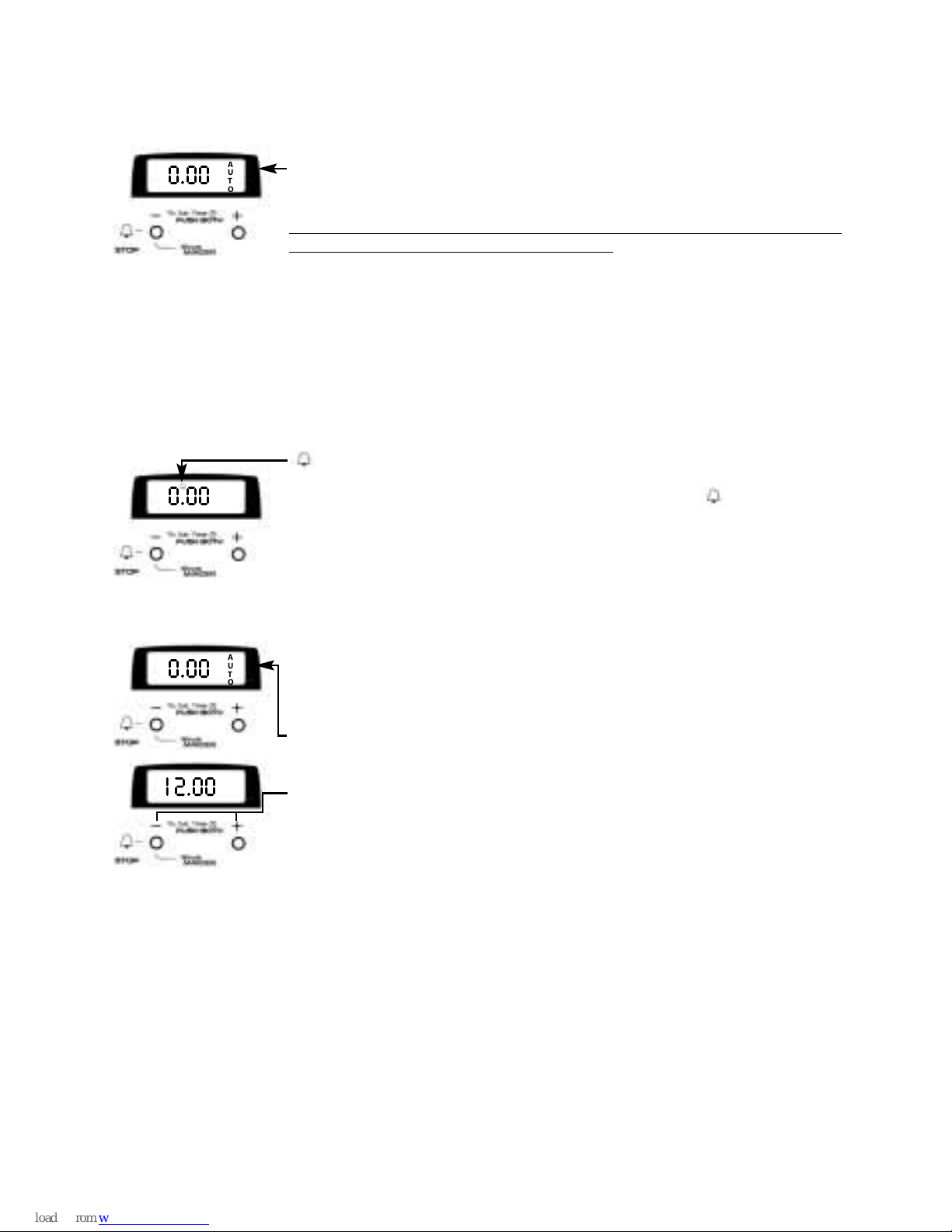

CLOCK/MINUTE MINDER OPERATION
CLOCKFACE
The timer incorporates a 24 hour clock.
Ensure the correct time of day is always set before using your
cooker.
PLEASE NOTE THAT THE DISPLAY WILL DIM BETWEEN 22.00 HOURS
AND 06.00 HOURS TO PREVENT GLARE.
However, should you operate the timer during these hours the
display will return to normal brightness for a few seconds and then
dim again.
SYMBOLS
will light up when you select a Minute Minder Period and will
remain lit for the period set. At the end of the Minute Minder Period,
the timer will emit an audible tone for 2 minutes, the symbol will
start to flash and will continue to flash until the Minute Minder function
is cancelled.
NB.
If at any time the display shows a ‘KEY’ symbol, the operation of the
timer is unaffected.
The ‘KEY’ symbol can be deleted by pressing both buttons for a period
of approximately 8 seconds, followed by a single press of the ‘+’ button.
SETTING THE TIME OF DAY
Step 1 Make sure all oven controls are turned off.
Step 2 Check the electricity supply to the cooker is turned on.
Step 3 When switched on, the display will show 0.00 / AUTO.
THIS NEXT STEP SHOULD BE COMPLETED WITHIN 4 SECONDS...
Step 4 Press and release both the ‘+’ and ‘-’ buttons together.
Press the ‘+’ button and the display will show 12.00
Then press the ‘+’ or ‘-’ button to set the correct time of day.
THE TIME OF DAY IS NOW SET.
To change the time of day repeat Step 4 above.
0.00
A
U
T
O
0.00
A
U
T
O
0.00
A
U
T
O
12.00

7
CLOCK/MINUTE MINDER OPERATION
TIMER FUNCTION BUTTONS
Minute Minder
Here you can set a time period of up to 23 hours 59 minutes, that will
count down. When it reaches zero, the timer will emit an audible tone.
For Example: If you set 20 minutes, the audible tone will occur 20
minutes later.
SETTING THE MINUTE MINDER
Step 1 Ensure the time of day is set correctly.
Step 2 Press and release the ‘-’ button, a symbol will light up.
Step 3 Within 4 seconds press the ‘+’ button to set the correct
period of time required.
Release the ‘+’ button.
The time is set and will continue to count down and the symbol will
be lit.
At the end of the set time a bleeping sound will be heard and the
symbol will flash for approximately 2 minutes.
After approximately 2 minutes the bleeping sound will stop.
To cancel the symbol flashing, press the ‘-’ button once.
Step 4 To cancel the bleeping sound and the symbol, within the
2 minutes, press the ‘-’ button.
To cancel the minute minder period press the ‘-’ button.
Press the ‘-’ button again until the display shows 0.00
After 5 seconds the display will return to the time of day.
If at any time the display shows flashing zero’s / AUTO, it is likely that
the electricity supply has been interrupted.
Reset the timer to the correct time of day.
NOTE: WHEN THE MINUTE MINDER HAS BEEN SET,THE DISPLAY
WILL REVERT TO SHOW THE TIME OF DAY.
ANY REMAINING TIMED PERIOD CAN BE VIEWED BY
PRESSING THE ‘-’ BUTTON.
13.23
0.20
Bell Symbol

The hotplate lid is fitted with a safety device which cuts off the gas supply to the
hotplate burners unless the lid is fully open. Do not use the safety device as a means of
controlling the hotplate burners.
The hotplate has two high speed burners and two simmering burners which will
accommodate pans between 100mm (4”) and 230mm (9”) diameter. All pans should be
positioned centrally over the burners.
TO USE THE HOTPLATE
1. Remove any items or spillage from the top of the lid and then raise it to its
fully open position.
2. Press the ignition button and then push in and turn the control knob of the
chosen burner anti-clockwise to the large flame symbol. Continue to press
the ignition button until the sparks light the gas.
3. Turn the control knob anti-clockwise to the desired setting.
Only turn the control knob between the large flame symbol and the small
flame symbol for adjusting the setting.
4. To turn off, turn the control knob fully clockwise to the symbol O.
DO NOT use the hotplate unless all pan supports are in position.
DO NOT use mis-shapen pans which may be unstable.
DO NOT use round base woks directly on the pan supports.
DO NOT use the glass lid as a working surface.
Each burner is fitted with a spark ignitor for lighting the gas.To ensure rapid lighting of
the burners every time they are used, the ignitors must be kept clean and dry. Remove
any food spillage or cleaning materials from the ignitor using a small nylon brush such
as a tooth brush. Access to the ignitor can be achieved by lifting off the loose burner
parts carefully when the burners are cool.
When the hotplate burner bodies and caps are removed for cleaning, be careful not to
drop any food particles or cleaning materials into the burner bases, to avoid the
possibility of blocking the gas jets.
If aluminium based pans are used, a silvery deposit may appear on the top edge of the
pan support fingers. See ‘Care and Cleaning’ section for cleaning information.
When the hotplate burners are turned down, a slight ‘popping’ noise may be heard.This
is perfectly normal.
8
HOTPLATE

9
SAFETY REQUIREMENTS FOR DEEP FAT FRYING
1. Never fill chip pans more than one third full with oil or fat.
2. Never leave oil or fat unattended during the heating or cooling period.
3. Never heat fat or fry with a lid on the pan.
4. Always dry food thoroughly before frying, and lower it slowly into the
hot oil or fat. Frozen foods in particular will cause frothing and spitting if
added too quickly.
5. Always keep the outside of the pan clean and free from streaks of oil or
fat.
HOW TO DEAL WITH A FAT FIRE
1. Do not move the pan.
2. Turn off the hotplate burners.
3. Smother the flames with a fire blanket or damp cloth to extinguish the
fire. Do not use water or a fire extinguisher as the force of it may
spread the burning fat or oil over the edge of the pan.
4. Leave the pan for at least 60 minutes before moving it.
HOTPLATE

10
GRILL
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS USED.
YOUNG CHILDREN SHOULD BE KEPT AWAY.
TO USE THE GRILL
1. Open the grill door and remove the grill pan.
2. Push in and turn the control knob anti-clockwise to the large flame symbol.
Press the ignition button until the spark lights the gas.
3. Turn the control knob anti-clockwise to the desired setting. Only turn the control
knob between the large flame symbol and the small flame symbol when
adjusting the setting.
4. To turn off, turn the control knob fully clockwise to the symbol O.
Slide the grill pan along the chosen runner towards the rear of the grill compartment
until it stops.
An odour may be noticed when first using the grill.This should cease after a short
period of use.
DO NOT use the grill with the door closed.
DO NOT cover the grill pan or grid with aluminium foil as this can hold fat, intensify
the heat and create a fire hazard.
Grilling can be started from cold but for best results preheat for approximately two
minutes. Most cooking is done with the heat on full, but it may be necessary after
sealing the food to reduce the heat as required.
For au gratin dishes eg. Macaroni Cheese and meringue toppings eg. Baked Alaska,
place the dish on the floor of the grill compartment.
The base of the grill pan can be used for warming fruit garnishes on the reduced
setting.
NOTE: Strong detergents used in dishwashers may damage the grill pan grid finish;
clean in soapy water as described in CARE AND CLEANING section.
Always ensure that the grill pan handle is securely fastened to the grill pan. If
necessary tighten any loose screws with a screwdriver
RELIGHTING THE BURNER
In the event of the burner flames being accidentally extinguished, turn off the
burner control and do not attempt to re-ignite the burner for at least one minute.

11
OVEN
The oven thermostat light will illuminate until the oven has reached the set
temperature. It will then switch off and on during cooking as the thermostat maintains
the temperature.
Each shelf has a safety stop to prevent it from being pulled out too far when attending
to food.Shelves are removed by pulling them out to the stop and then lifting at the front
to withdraw.Never withdraw loaded shelves beyond their safety stop position. The oven
cooking charts are a guide only,giving approximate cooking temperatures and times.To
suit personal taste and requirements it may be necessary to increase or decrease
temperatures by 10˚C.
Food should be placed in the centre of the shelf with a gap of at least 25mm (1 inch)
between it and the grill element to avoid burning and ensuring an even cooking.
Do not place food or dishes on the floor of the oven.
OVEN - FAN COOKING
Fan cooking is ideal for large poultry or joints of meat, reducing cooking times and
often eliminating the need for preheating the oven. It is also ideal for batch cooking
where food is cooked on more than one level, because the forced circulation of hot air
gives an even temperature from the top to the bottom of the oven.
When cooking recipes that are not designed for a fan oven, it is recommended that the
temperature is reduced by about 25˚C and the time reduced by about 10 minutes for
each hour. If a large quantity of food is being cooked, it will be necessary to increase
the cooking time to compensate for the extra oven load.
TO USE THE OVEN
1. Place oven shelves in chosen position (refer to cooking chart).
2. Turn the main oven control knob clockwise to the required setting. Pre-heating is
not normally necessary, but some foods such as bread, scones and Yorkshire
pudding do benefit from being placed in a hot oven.
Food should be placed in the centre of each shelf to allow for even air circulation
around the food.

12
OVEN COOKING CHART
Fan Oven Cooking
Food Beef Lamb Pork Veal Chicken/Turkey up to 4kg (8lb) Turkey up to 5.5kg (12lb) Turkey over 5.5kg (12lb) Casserole Stews
Meat
Temperature
oC
Time
(approx.)
Pre-
heat
No 160/180 20-25 mins per 450g (1lb)
+ 20 mins extra
25 mins per 450g (1lb)
+ 25 mins extra
25 mins per 450g (1lb)
+ 25 mins extra
25-30 mins per 450g (1lb)
+ 25 mins extra
18-20 mins per 450g (1lb)
+ 20 mins extra
13-15 mins per 450g (1lb) e.g. 5kg
(11lb) = 143-165 mins
12 mins per 450g (1lb) e.g.
10kg (22lb) = 264 mins
11⁄2- 2 hours
160/180 160/180 160/170 160/180 150/160
150
140/150
No No No No No No No
The most accurate method of testing the readiness of joints of meat or whole poultry is to insert a meat thermometer into the thickest part of a joint of meat, or the thickest part of poultry thighs, during the cooking period.The meat thermometer will indicate when the required internal temperature has been reached. Beef - Rare: 60oC Lamb: 80oC Poultry: 90oC
Medium: 70oC Pork: 90oC Well Done: 75oC Veal: 75oC
Fan Oven Cooking
Food Scones Small Cakes Victoria Sandwich Sponge Sandwich (Fatless)
Swiss Roll Semi-rich Cakes Rich Fruit Cakes Shortcrust Pastry Puff Pastry Yorkshire Pudding Individual Yorkshire Puddings Milk Pudding Baked Custard Bread Meringues Baking
Temperature
oC
Time
Pre-
heat
Yes 210/220 8-10 mins
15-20 mins 20-25 mins 15-20 mins 12-15 mins
11⁄4-11⁄4hours
Time depending on use
approx. 45-50 mins.
Time depending on use
40-45 mins
approx. 20-25 mins
11⁄4-21⁄4hours
40-50 mins 45-50 mins
3-4 hours
160/170 160/170 160/170 170/180 140/150 130/140 180/190 190/200 170/180 180/190 130/140 140/150 200/210
70/80
No No
Yes Yes
No No No No
Yes Yes
No No
Yes
No
If using aluminium foil, never: 1. Never allow foil to touch sides of oven. 2. Never cover interior with foil. 3. Never cover shelves with foil.

The ‘S’ setting on the main oven thermostat can be used for slow cooking.
PREPARING FOOD FOR SLOW COOKING
1. All dishes cooked by the‘S’ setting should be cooked for a minimum 6 hours.They
will ‘hold’ at this setting for a further hour but marked deterioration in appearance
will be noticed in some cases.
2. Joints of meat and poultry should be cooked at 170˚ for 30 minutes before
turning to the ‘S’setting and never be cooked lower than the middle shelf position.
3. Joints of meat over 6 lbs (2.7kg) and poultry over 4 lbs 8oz (2 kg) should not be
cooked using the ‘S’setting.
4. Always stand covered joints on a rack over the meat tin to allow good air
circulation.
5. A meat thermometer should be used when cooking pork joints and poultry.
The internal temperature of the food should reach at least 88oC.
6. This method is unsuitable for stuffed meat and stuffed poultry.
7. Always bring soups, casseroles and liquids to the boil before putting in the
oven.
8. Cover casseroles with foil and then the lid to prevent loss of moisture.
9. Always thaw frozen food completely before cooking.
10. Root vegetables will cook better if cut into small pieces.
11. Adjust seasonings and thickenings at the end of the cooking time.
12. Use the zones of heat in the oven, e.g.meringues and milk puddings can be
cooked lower in the oven whilst other dishes requiring greater heat can be
cooked above them.
13. Egg and fish dishes need only 1-5 hours cooking and should be included in
day cooking sessions, when they can be observed from time to time.
14. Dried red kidney beans must be boiled for a minimum of ten minutes after
soaking, before inclusion in any dish.
13
THE SLOW COOKING ‘S’ SETTING

Switch off the electricity supply and allow to cool before cleaning the cooker.
Clean the cooker regularly and wipe up spills soon after they occur to prevent
them from becoming burnt on. Never use biological washing powder, caustic
cleaners, harsh abrasives, scouring pads, steam cleaners, aerosol cleaners or oven
chemical cleaners of any kind.
Before moving your cooker ensure that it is cool and note that it is heavy
(approximately 70 kg 155 lbs), so you may require assistance. To move the cooker
forward, open the top oven/grill door and with both hands positioned under the roof
of the compartment, lift and pull forward. Replace by pushing the cooker backwards.
Check that the cooker is level.Take care to ensure that any floor covering is not
damaged.
OVEN HEAT CLEAN LININGS
The oven side linings are coated with a special enamel which has a continuous
cleaning action.The higher the oven temperature the more effective the action. In
most cases this cleaning operation will proceed during normal cooking. However, if
roasting is done frequently, or high temperatures are not used regularly, it may be
necessary to run the oven empty at maximum setting for about two hours.
It should not normally be necessary to clean the linings with water, but if desired, wipe
them over with a soapy cloth, followed by a wipe with a damp clean cloth.
REPLACEMENT OF OVEN LIGHT BULB
CAUTION: DISCONNECT THE APPLIANCE FROM THE ELECTRICITY SUPPLY BEFORE
REPLACING THE LAMP TO AVOID THE POSSIBILITY OF AN ELECTRIC SHOCK
Light bulbs are not covered by the manufacturer’s guarantee.
A new 15W, 300oC rated SES bulb can be obtained from your cooker supplier or any
major electrical retailer.
1. Remove the shelves from the oven.
2. Unscrew the lens using a thick cloth to protect your fingers in the unlikely
event of a lens fracture.
3. Unscrew bulb.
4. Fit new bulb and refit lens.
CARE AND CLEANING
14

15
CARE AND CLEANING
COOKER FINISH CLEANING METHOD
Vitreous Enamel
Hotplate, pan supports,
hotplate front trim,
burner caps, roasting dish,
grill pan, main oven base,
inside of grill compartment,
inside of doors.
Cloth wrung out in warm soapy water. Stubborn
stains can be removed with a cream paste,
liquid cleaner or by rubbing with fine steel wool
soap pads.
Check that the cleaning agent is approved by the
Vitreous Enamel Association.
Paint
Side trims, plinth, fascia
bottom trim, fascia end
caps, side panels,
door handles
Wash with a cloth wrung out in warm soapy water
only.
DO NOT USE ABRASIVES.
Aluminium
Hotplate side trims, hotplate
burner bodies, lid rear trim,
rear flue grille.
Similar to paint cleaning above. Use a nylon brush to
remove any cleaning materials, water or dirt from the
hotplate burner bodies.
Glass As for enamel cleaning. Polish with a clean dry cloth
or kitchen roll.
Chromium Plating
Oven shelves, grill pan grid,
grill pan handle support
Wipe with a cloth wrung out in warm soapy water.
A fine steel wool soap pad e.g. Brillo, Ajax, or a
chrome or stainless steel cleaner may be used.
Plastic
Grill pan handle, control
knobs
Wipe with a cloth wrung out in warm soapy water.
Stubborn stains can be removed with a cream
cleaner.

16
CARE AND CLEANING
Take particular care not to damage the inner surface of the door inner glass that
is coated with a heat reflective layer. Do not use scouring pads, or abrasive
powder, which will scratch the glass. Ensure that the glass panel is not subjected
to any sharp mechanical blows.
Stubborn stains can be removed by using a fine steel wool soap pad. For slight soiling
the inner glass panel may be cleaned, while still warm, without removing it from the
door. After cleaning, rinse and dry with a soft cloth.
CLEANING THE DOORS
SIDE OPENING DOORS
Cleaning the door glass is the same as the drop down doors, except take care to
support the weight of the inner glass when removing and refitting.
DROP DOWN DOORS
Remove the door inner glass as follows.
1. Open the door fully and unscrew the two screws securing the glass panel so that
the securing brackets can be turned.There is no need to remove the screws
completely.
2. Turn the brackets so that the glass can be
removed and cleaned at the sink (Fig. 1.)
3. The inside of the outer door glass can now be cleaned while still fitted to the
cooker.
NEVER OPERATE THE COOKER WITHOUT THE INNER DOOR GLASS IN
POSITION.
Refit the door inner glass as follows.
1. NOTE: The inner door glass has a special reflective coating on one side. Replace the
door inner glass so that the statement: “IMPORTANT THIS FACE TOWARDS THE
OVEN” can be read from the inner side of the door.
2.Turn the two securing brackets back to their
original position to retain the glass and tighten
the screws. (Fig. 2.)
Glass
Fig. 1.
Fig. 2.
Glass

PROBLEM CHECK
Ignition does not work.
17
SOMETHING WRONG WITH YOUR COOKER
Before contacting your Service Centre or Installer, check the problem guide
below, there may be nothing wrong with your cooker.
Burner ports Ignitor
Hotplate burner.
If all burners fail to ignite:
Check that sparks appear at the burners; a clicking
noise should be heard.
If not
Check that the electricity supply is turned on.
If the electricity supply has failed, the hotplate
burners can be lit by a match.
If only one burner fails to ignite:
Check that the burner is dry and that spillage of food
or cleaning fluid remains are not affecting the ignitor
or burner ports.
Clean away any debris with a dry nylon brush such as
an old toothbrush. If a wire wool pad has been used
for cleaning around the burner ensure the ignitor is
free from any stray strands. Any water on the burner
should be dried with a cloth or kitchen towel.
Make sure that all the burner parts are correctly
seated.

DISPOSAL OF YOUR PRODUCT:
To minimise the risk to injury to children please dispose of your product carefully and safely.
Remove all doors and lids (where fitted). Remove the mains cable (where fitted) by cutting off
flush with the appliance and always ensure that no plug is left in a condition where it could be
connected to the electricity supply.
To help the environment, Local Authority instructions should be followed for the disposal of
your product.
Oven lamp does not work The oven lamp is not covered by the guarantee.The part
is easily changed (see the section on oven lamp
replacement) A new lamp may be obtained from our
Spare Parts department by calling: 0541 530530
18
SOMETHING WRONG WITH YOUR COOKER
PROBLEM CHECK
Slight odour or small
amount of smoke when
grill / oven used first
time
This is normal and should cease after a short period.
Oven cooks too fast or too
slow Check that the temperature and shelf positions are as
recommended in the Oven Cooking Charts. However, it
may be necessary to increase or decrease the
recommended setting slightly to suit your taste.

Prior to installation, ensure that the local distribution conditions (nature of the gas and
gas pressure) and the adjustment conditions are compatible.The adjustment
conditions for this appliance are stated on the rating label which is fitted on the back
panel.
This appliance is not designed to be connected to a combustion products
evacuation device. It must be installed and connected in accordance with current
installation regulations. particular attention should be given to the relevant
requirements regarding ventilation.
MODEL NUMBER EG52
Category I2H (GB. IE)
These models are set to burn NATURAL GAS (G20) at 20mbar only and cannot be used
on any other gas.
GAS SAFETY (INSTALLATION & USE) REGULATIONS
It is the law that all gas appliances are installed by competent persons in
accordance with the current edition of the above regulations. It is in your interest and
that of safety to ensure compliance with the law.
In the UK, CORGI registered installers work to safe standards of practice.
The cooker must also be installed in accordance with BS 6172.
Failure to install the cooker correctly could invalidate the warranty liability claims and
could lead to prosecution.
LOCATION
The cooker may be located in a kitchen, kitchen/diner or a bed-sitting room, but not in
a room containing a bath or shower.The cooker must not be installed in a bed-sitting
room of less than 20m3.
PROVISION FOR VENTILATION
The room containing the cooker should have an air supply in accordance with
BS 5440: Part 2.
The room must have an opening window or equivalent; some rooms may also require
a permanent vent. If the room has a volume between 5 and 10m3, it will require an air
vent of 50cm2effective area unless it has a door which opens directly to outside. If the
room has a volume of less than 5m3, it will require an air vent of 100cm2effective area.
If there are other fuel burning appliances in the same room, BS 5440: Part 2 should be
consulted to determine air vent requirements.
19
INSTALLATION INSTRUCTIONS

TECHNICAL DATA
DIMENSIONS
Height 900 - 915mm
Width 600mm
Depth 595mm (excluding door handles)
GENERAL
Gas connection Rp 1/2(1/2”BSP female)
Gas Supply G20 at 20 mbar
Pressure test point Grill injector
Gas rate adjustment None
Aeration adjustment None
Electrical connection Flexible cord fitted with a 3 pin 13 amp plug
230/240V a.c. 50Hz. 13A fuse.
Oven Heat Input 2.5kW
20
INSTALLATION INSTRUCTIONS
HEAT INPUT
BURNER
3.8 kWGRILL
3.0 kWHOTPLATE
Front left and rear right
1.8 kWHOTPLATE
Front right and rear left
INJECTOR
150
134
109
