Hover H Hybrid Manual User manual

Model H Hybrid Manual and Power Chair in One
Hover Model H Manual V.1.2

Table of contents
Introduction
3
Disclaimer
3
Product Specifications
4
Safety, Operation & Setup
5
Introduction
5
Safety
5
Notice to Caretakers
5
Weight Limit
5
Tie Down System
6
Maintenance
6
Operation
6
Controller Settings
6
Power down when not in use
6
Reaching or Lean
6
Cornering Information
7
Obstacles
7
Curbs, Ramps, Slopes & Sidehills
7
Environment & Everyday Use
8
Controller
8
Braking System
9
Armrests
9
Setting up your Model H/X
9
JDY Imports
323-522-5817 Page 2

Unboxing the Model H/X
9
Installing the Controller
1
4
Batteries & Charging
1
6
Charging
1
6
Charging Tips & Notes
1
8
Operation and Installation
1
9
Controller
1
9
Controller & Driving Tips
1
9
Batteries
2
1
Anti Tippers
2
3
Seat Design & Materials
2
4
Fasteners
2
4
Change & Adjustments
2
5
Electromagnetic Interference (EMI)
2
5
Limited Warranty
2
5
JDY Imports
323-522-5817 Page 3

Introduction
Congratulations on your purchase of the Model H Hybrid Manual and Power Chair in One.
It is important that you read through this manual entirely before operating your chair.
You will find instructions and recommendations for easy operation of your Model H Hybrid
Manual and Power Chair in One.
Disclaimer
JYD Imports, HOVER, 1800 Wheelchair or Model H, its affiliates, and partners, cannot be held
responsible for personal injury or property damage that results from the unsafe or improper
operation or maintenance of the Model H Hybrid Manual and Power Chair in One, and/or other
JYD Imports, HOVER, 1800 Wheelchair products purchased.
From time to time, our product development and engineering team will make design
recommendations for this product. So we reserve the right to make such changes when deemed
necessary to improve on the design or to add value. As a result, there could be minor
differences between the product that you have purchased and the photos, illustrations and
instructions in this manual.
JDY Imports
323-522-5817 Page 4

Product Specifications
Product Weight (With Battery)
39 lbs.
Product Weight (Without Battery)
35 lbs.
Maximum Weight Capacity
260 lbs.
Unfolded Size (L x W x H)
30” x 27.5” x 35” W/ Footrest on Length is 42.5’’
Folded Size w/ cushion removed (L x W x H)
35” x 17” x 28” W/ Footrest on Length is 42.5’’
Frame Material
Aluminum
Travel Distance
8 Miles Standard, 13 Miles (with HD battery)
Maximum Speed (Adjustable)
5 MPH
Seat Size (W x L)
18" x 16"
Seat to Floor Height w/ cushion
19.5"
Seat to Floor Height w/o cushion
18’’
Armrest Height
27.5"
Turn Radius
31.5"
Ground clearance to foot rest
2.5"
Model H Front wheel size
6"
Model H Rear wheel size
22’’
Wheel Material - Model H
Solid, Polyurethane
Incline/Slope Capability
8 Degrees
Motor
(2) 250W Brushless Motors
Brakes
Electromagnetic
Battery
(1) Lithium Ion/24V 6ah /10ah /HD
Battery Weight
3.5 lbs
JDY Imports
323-522-5817 Page 5

Safety, Operation & Setup
Introduction
Please take the time and read through all the documentation below. It is important that the
primary user and his/her caregiver understand all the safety instructions before operating this
product.
Safety
● The Model H should be adjusted to fit your needs.
● Make sure to take your time to learn how the Model H works before you begin operating.
● Practice bending, reaching and transferring in and out of the Model H.
● Always be aware of your surroundings when in operations.
● Take it easy. If you’re not sure the Model H and surpass an obstacle, try to find another
way around.
● The Model H is designed for a single user. More than one users may result in personal
injury to you and others.
Notice to Caretakers
Make sure that you pay careful attention to all warnings and follow all instructions in each
section of this manual. (Be aware that warnings that apply to the rider will also apply to you).
It is important that you pay close attention to all warnings in this section. If you fail to do
so, you may fall, tip-over or lose control resulting in severe injury to you or others.
Weight Limit
● Never exceed a total weight of 260 lbs for rider plus items carried
● You should not attempt to perform weight training on your Model H if the total weight
(rider plus additional weights) exceeds 260 lbs.
● Exceeding the weight limit is likely to damage the seat, frame, or fasteners and may
cause severe injury to you or others
● Exceeding the weight limit will void the warranty
JDY Imports
323-522-5817 Page 6

Tie Down System
The Model H is not approved to be used with any tie down system, generally used to transport a
seated user and power chair in a motor vehicle.
● Never sit in the Model H while in a moving vehicle. In an accident or sudden stop you
may be forced out of the Power Chair from the impact.
● Never transport the Model H to the front seat of a vehicle. It may shift and interfere with
the driver.
● Always secure the Model H so that it cannot roll or shift.
Maintenance
To maintain performance, we recommend you check the Model H two to three times per year.
Check the following areas.
● Frame: Loose screws and tighten as necessary
● Wheels: make sure they rotate easily. Significant resistance may require new bearings.
● Armrests: look for excessive wear
● Work: Replacement parts and more major maintenance issues should be done by a
professional. We recommend you do not do this work on your own.
Operation
Controller Settings
Make sure to get familiar with the controller settings (see below Page 19) and touch sensitivity
of the joystick. The joystick controls speed, braking, and direction while you are travelling.
Power down when not in use
Always power-down your Model H when you are parked - even for a short moment. This will
prevent:
● Accidental movement from contact with the joystick
● Unintended brake release or movement from EMI sources
● Save the battery life
Make sure that people around your area are aware of the joystick, unintended contact can
cause movement and injury to unsuspecting bystanders.
JDY Imports
323-522-5817 Page 7

Reaching or Lean
Be cautious when reaching or leaning out from the Model H. Reaching or leaning can affect
your center of balance, and if done improperly can cause a fall or tip-over.
When in doubt, ask for help or use a device to extend your reach. To reduce the risk of
injury and/or damage to the Model H:
● Never reach or lean if you are required to shift your weight sideways or rise up off the
seat
● Never reach or lean if you must move forward in your seat to do so
● Never reach with both hands (you may not be able to catch yourself to prevent a fall if
you lose your balance)
● Never try to pick up an object from the floor by reaching down between your knees or
from the side of the chair.
Reaching Tips:
● Move yourself as close as you can to the object you wish to reach
● Turn off all power to the Model H before reaching
● Firmly grasp an armrest with one hand. This will help to prevent a fall if the Model H/X
tips
Cornering Information
Always slow down while moving through a corner. Tipping over is a major concern while turning
through a corner.
Turning Tips:
● Take the turn slowly. High speed will increase the possibility of tipping
● Keep your eyes open for objects that may be obstructed by the turn
● Move around the corner a gentle radius as opposed to making a sharp turn
Obstacles
Obstacles come in many shapes and sizes, they include: door thresholds, ramps, potholes,
curbs, glass, broken pavement and more. It’s important to take care and avoid these obstacles
as you can damage your Model H. Further, these obstacles could cause you a fall, tip-over or
loss of control.
JDY Imports
323-522-5817 Page 8

Curbs, Ramps, Slopes & Side Hills
The terrain has an effect on you and your power chair. Any sort of slope will change your center
of balance. Always use your best judgement and if ever in doubt, have someone help you.
● Steep slopes pose a danger The ADA suggests ramps should offer 12 inches of length
for every 1 inch in rise
● Wet or slippery surfaces - such as when ice, snow, water or oil - can cause a loss of
traction may which could result in a fall or tip-over
● A change in grade on a slope (or a lip, bump or depression). These may cause a fall or
tip-over
● A drop-off at the bottom of a slope of as little as 3/4 inch can stop a front caster and
cause the Model H to tip forward
● Be mindful of any side hills as tipping may be an issue
● Your Model H is not designed to drive up or down a curb or step more than 1/2 inch high
○ To prevent a fall or tip-over, use ramps or have someone help you
○ If you must climb or descend a curb/step alone, please do so with extreme care.
Go as straight up or straight down as you can. Never turn or climb or descend at
an angle as a fall or tip-over is likely. Proceed slowly, at a steady speed.
● Stairs: Never use your Model H to go up or down stairs, even with an attendant. Doing
so is likely to cause a fall or tip-over as well as damage to the Power Chair.
● Escalators: Never take your Model H on an escalator, even with an attendant. Doing so
is likely to cause a fall or tip-over as well as damage to the Power Chair.
Environment & Everyday Use
Your Model H is not designed for use in rain, snow, or icy conditions.
● Contact with water or excessive moisture can cause an electrical malfunction. The
frame, motors and other Model H parts are not waterproof and can rust or corrode from
the inside. To avoid issues, we suggest:
○ Minimize exposure to a rain or wet conditions
○ Never take your Model H into a shower, tub, pool or sauna.
○ Do not use your Model H in fresh or saltwater (such as at the edge of a stream,
lake, or ocean)
○ Make sure shroud cover and deck lid are secure
○ Make sure all electrical connections are secure. Dry the Model H as soon as you
can if it gets wet, or if you use water to clean it
○ Make sure the battery area is kept dry
● Proceed slowly and use extra care if you must operate your Model H on a wet or slick
surface
○ Do so only if you are sure it is safe
JDY Imports
323-522-5817 Page 9

○ Stop if one or both main wheels lose traction
○ Never operate your Model H on a slope or ramp if there is snow, ice, water or oil
film present.·When in doubt, have someone help
○ When not in use, keep your Model H in a clean, dry place
Controller
The controller includes: (see more detail on page 19) speed control buttons, speed indicator
lights, and joystick. The controller receives a signal from the joystick and transfers those signals
to the motor and brakes. Please make sure to limit any exposure to moisture, as this may cause
damage.
Braking System
The Model H is equipped with electromagnetic regenerative brakes. This means that the Model
H will stop when the joystick is back at the default position (center/stop position).

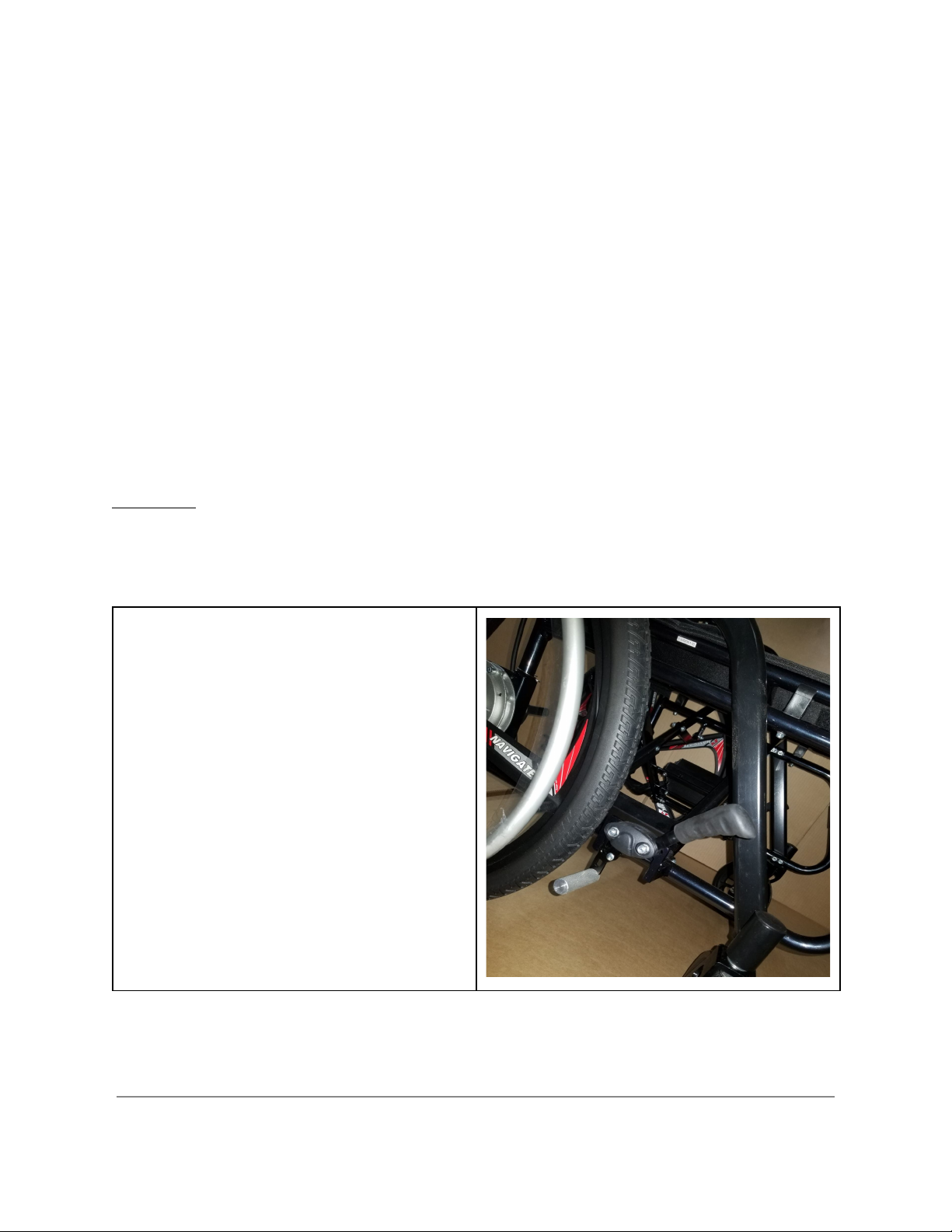

WARNING: Before standing up or sitting down from the Model H chair you must manually
engage both breaks. The breaks can be found above and to the side of the rear tires (See
image below) Not engaging the breaks may cause the Model H roll from under you.
Model H Hybrid Manual and Power Chair in
One
The hand breaks can be found on the side of
the rear tires (at the 3 o’clock mark)
JDY Imports
323-522-5817 Page 10

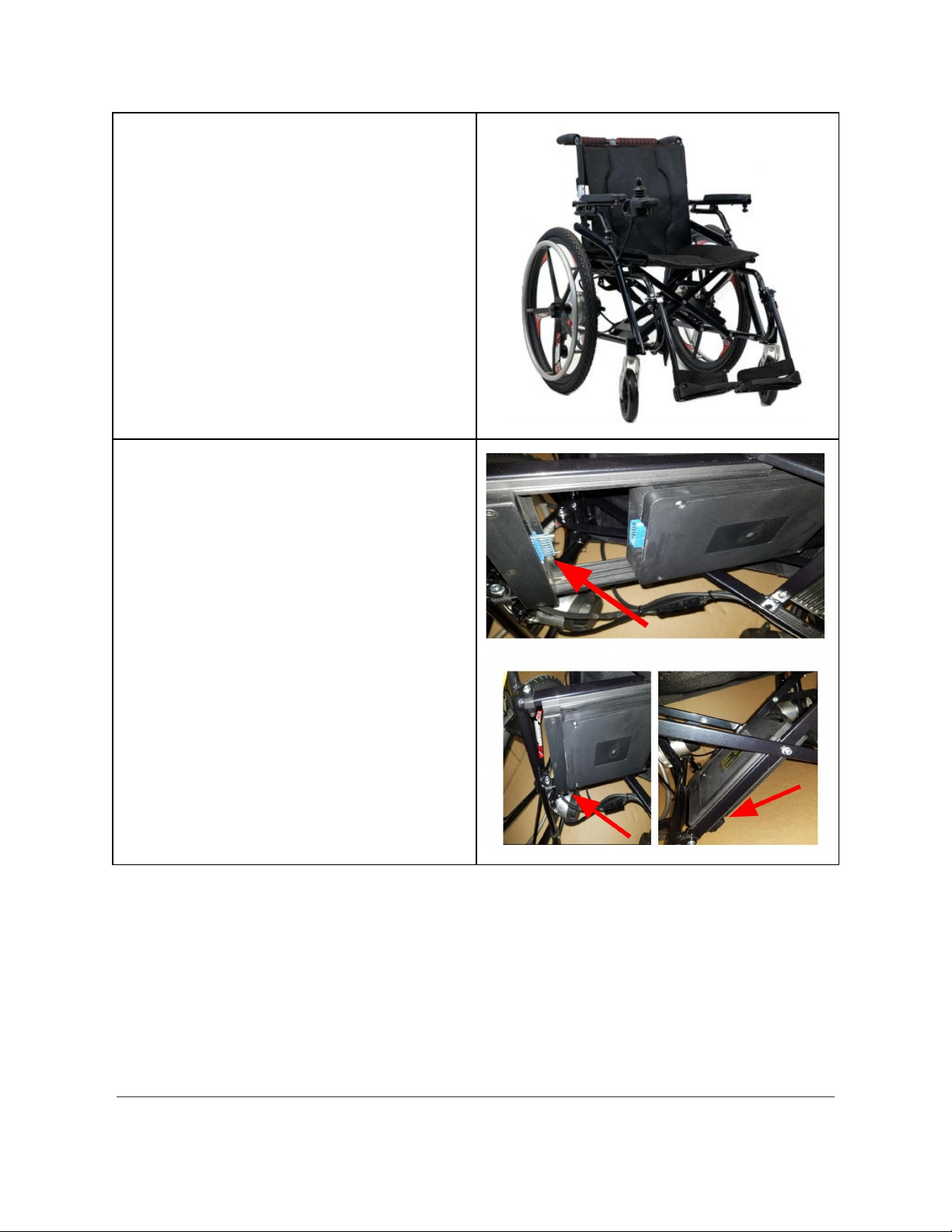

Armrests
The Model H armrests are designed to flip up. Never lift the Model H by its armrests.
Flip Back arms Feature
Setting up your Model H Hybrid Manual and Power Chair in One
Unboxing the Model H
Given the size and weight of the box, we recommend two people work on unboxing this item.
JDY Imports
323-522-5817 Page 11

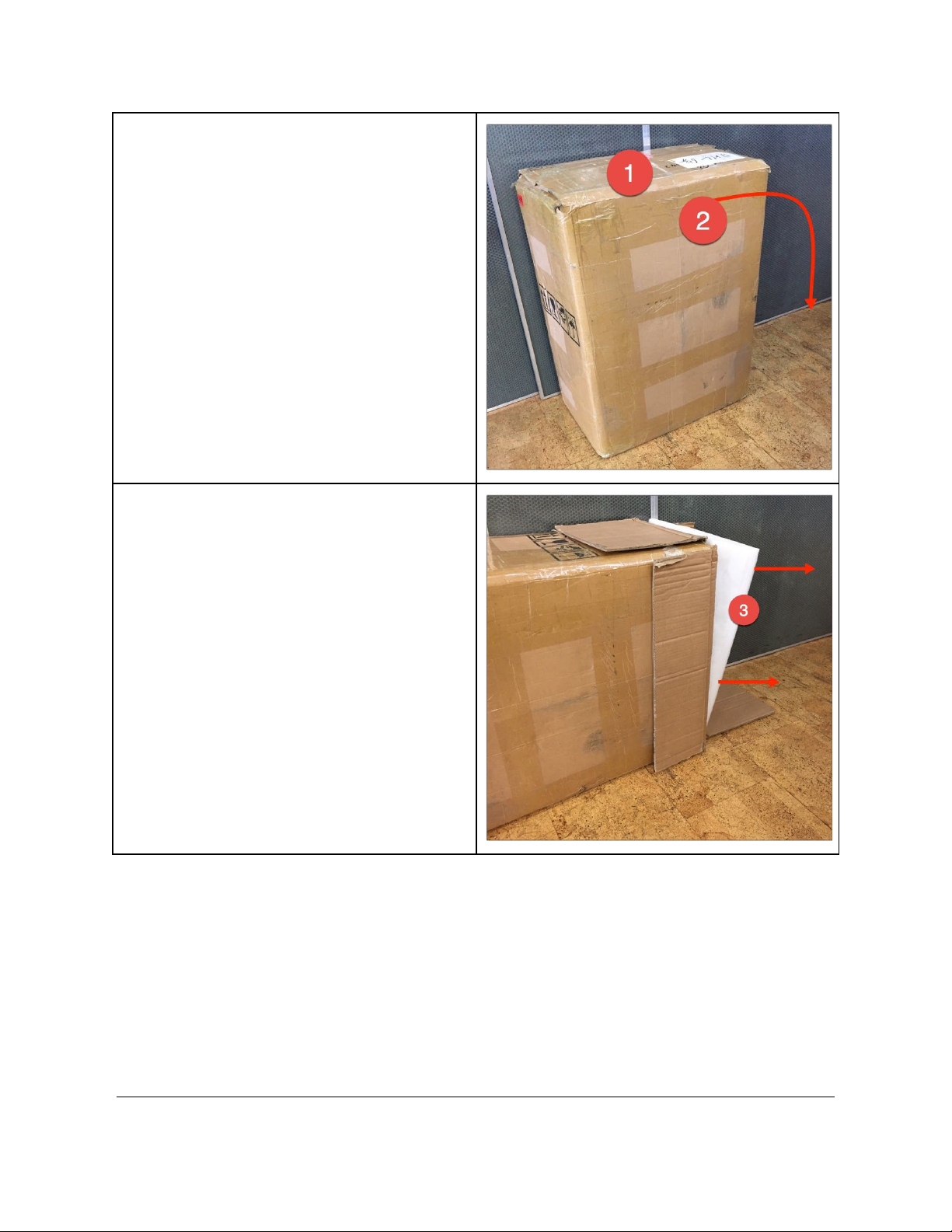

Step #1. Open the top of the box.
Step #2. Carefully tip the box over on it’s
side.
Step #3. Carefully remove the protective
packing material and remove all the contents
of the box.
JDY Imports
323-522-5817 Page 12

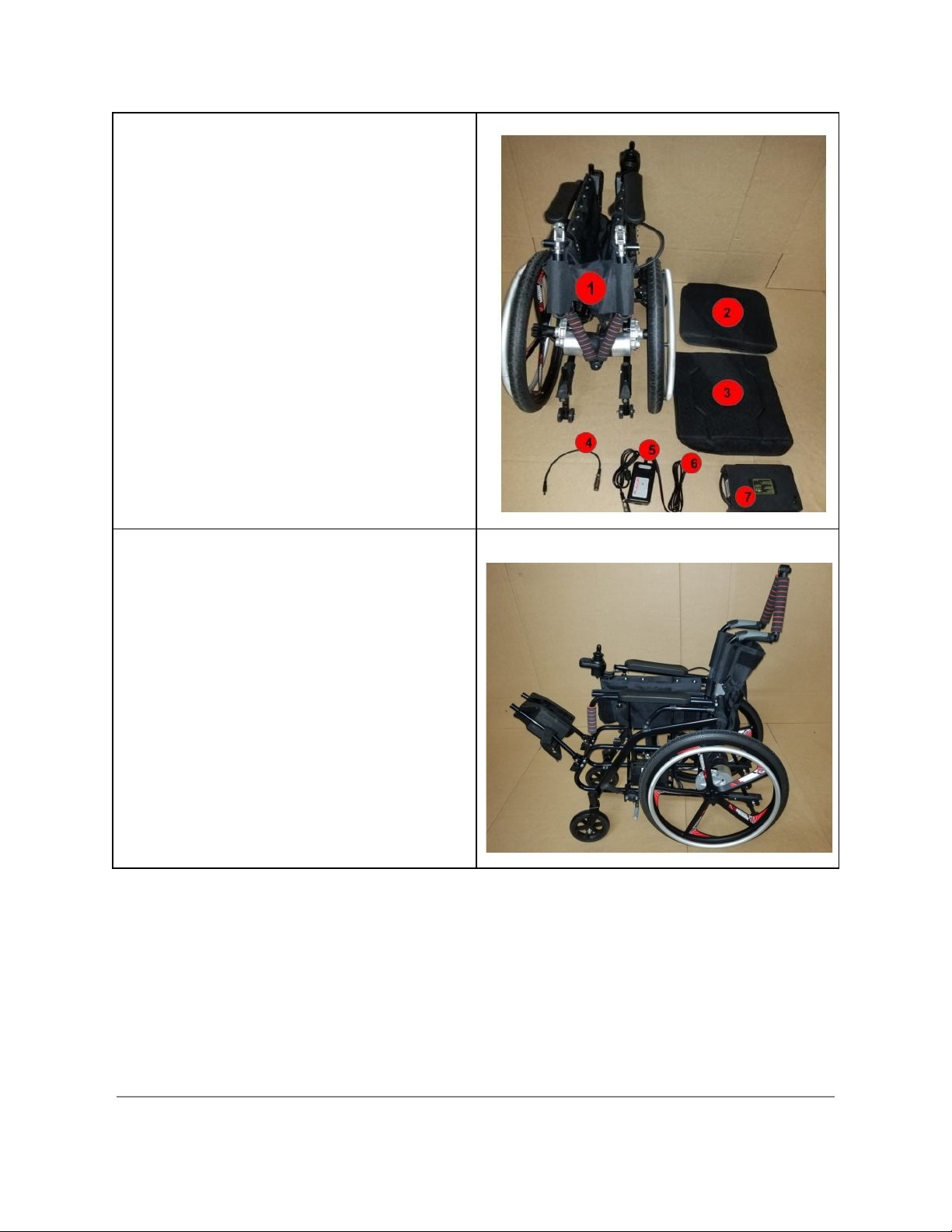

With the box open, you should have the
following items.
#4. Main unit which includes the seat and
motor assembly
#5. Seat and back cushions
#6. Batteries
#7 Charger
#8 Anti Tippers (recommended upgrade)
*Note: Most Model H ship with the batteries
installed. However, some Model H will ship in
two boxes: main unit/ cushions/ charger and
batteries .
#9.
1. Lift up the back handles Before
Unfolding the chair.
2. Pull down the footrest.
3. Unfold your chair by pressing down on
the outside seat rails. Flip up the seat
back
JDY Imports
323-522-5817 Page 13

#10. your chair should be fully open
#11. Slip on the seat and back and secure it
with the velcro underneath the cushions
Slip in the battery underneath the seat
Make sure to Firmly press down the battery
all the way.
JDY Imports
323-522-5817 Page 14

Make Sure The wires under the seat are
connected properly.
1. 2 wires attaches to the wheel motors,
make sure the Arrows are aligned
2. The 3rd wire attaches to the battery
The Levers located near motors towards the
back of the chair work as follows.
When the Levers are positioned towards the
inside of the chair, the chair is ready to be
powered.
When the Levers are positioned towards the
outside of the chair, the chair is ready for
manual self propelling.
When you are ready to switch gears, please
make sure that the Joystick controller is
turned off completely.
*Please do not engage levers from Powered to
Manual without the chair being shut off.
JDY Imports
323-522-5817 Page 15

The Controller
The main unit controller comes ready for a right-handed user. With a little rearranging, the
Model H can be setup for a left-handed user as well.
#1. From the factory, Joystick is arranged for
right-handed users.
#2. Available option for left-handed setup.
#3. Seat Belt is attached to the chair.
#4. Untighten he knob that secures the
joystick
JDY Imports
323-522-5817 Page 16

#5. Then slip it on to the left armrest
Attach the Cord into the Clips running to the
back of the chair
JDY Imports
323-522-5817 Page 17

Before folding the chair make sure to release
the back handleBar
You can also remove the handleBar with a
simple screw driver.
Batteries & Charging
Charging
The cord to charge the batteries comes in
three parts.
#1. Wire which connects the electric outlet
into the power supply brick
#2. Power supply brick/Plug adapter
JDY Imports
323-522-5817 Page 18

Charging method
Charging the battery directly:
Make sure you remove the battery from the
chair while charging.
Attached the first two parts of the cord (#1
and #2), then insert into the battery.
Charging Tips & Notes
● The Model H comes with one (1) 24V 6Ah / 10Ah lithium ion batteries. They are partially
charged.
● Initial charge: close to home, ride the Model H until it loses complete charge. Then
charge the batteries for 8 hours straight. Using this method will maximize the overall
life-cycle of the batteries.
● Turn the main unit’s (Controller) power off while charging.
● Do not leave children unsupervised near the Model H while it is charging
● Do not attempt to open the battery housing
● Red means the power is on and the unit is charging. Green means the unit is fully
charged.
● When the battery is fully charged, remove the cable. Then take out the DC charging
connector and AC input power socket.
● The average time taken to recharge workable batteries will vary from 2 to 8 hours
depending on the level of usage.
● Do not charge more than 6 hours to 8 hours at any given time.
● If you do not operate the Model H for two months, we recommend that you charge the
battery for 6-8 hours before use.
JDY Imports
323-522-5817 Page 19

● If the chair is not being used on a monthly basis, we recommend still charging the
battery once a month to prevent the battery from becoming stall.
● Overcurrent Protection: this will shut off the current thus shutting the motor down to
ensure that the motor and battery do not experience any damage.
● The lifecycle of a lithium battery is measured in “Charge Cycles”, and will charge for
around 500 charge cycles.
● If you use the Model H daily, check the battery light indicator to see how much charge
you have left. The Model H is equipped with one (1) lithium batteries and will go up to ~7
miles per battery, for a total of ~15 mile.
● Do not attempt to charge your battery if the Model H and battery have been frozen
● Do not use any third-party battery chargers unless certified by our company.
● Do a periodic check of the battery casing for damage and corrosion to the Red (Positive)
and Black (Negative) battery connectors.
● If for some unexpected reason if the battery gets damaged, make sure you do not touch
it without the proper gloves.
● If the battery needs to be disposed of, locate the nearest “Hazardous Materials” disposal
facility, and call them for instructions. In many cases the local city or municipality will
have a program for “Hazardous Materials” disposal.
● Maximize operating time per charge is affected by:
○ Terrain: avoid hills and uneven or soft surfaces
○ Limit total weight
○ Fully charge your battery prior to your trip
○ Try to maintain a constant speed when possible
○ Avoid intermittent driving when possible
● Storing your Model H Battery
○ Fully charged before storing the unit
○ Remove the battery
○ Store the battery in a dry and warm place
○ Avoid temperature variation
● Do not attempt to charge your battery if it is frozen from extreme weather conditions
Operation and Installation
Your Model H/X comes with one battery.
Several things to note:
● Battery may be installed upon delivery or they may arrive in a separate box.
● Replacement batteries are available. Please call for more details.
JDY Imports
323-522-5817 Page 20
