Howmet Aerospace 2057 Series User manual

February 09, 2023
HK1227
Pneudraulic Installation Tool
Instruction Manual
2057 Series
Table of Contents
EC and UKCA Declarations of Conformity 2
Safety Instructions 3-4
Description 4
Principle of Operation 5
Specifications 5
Preparation for Use 6
Nose Assembly Installation and Removal 6
Operating Instructions 7
Maintenance 7
Disassembly Procedure 8
Assembly Procedure 9

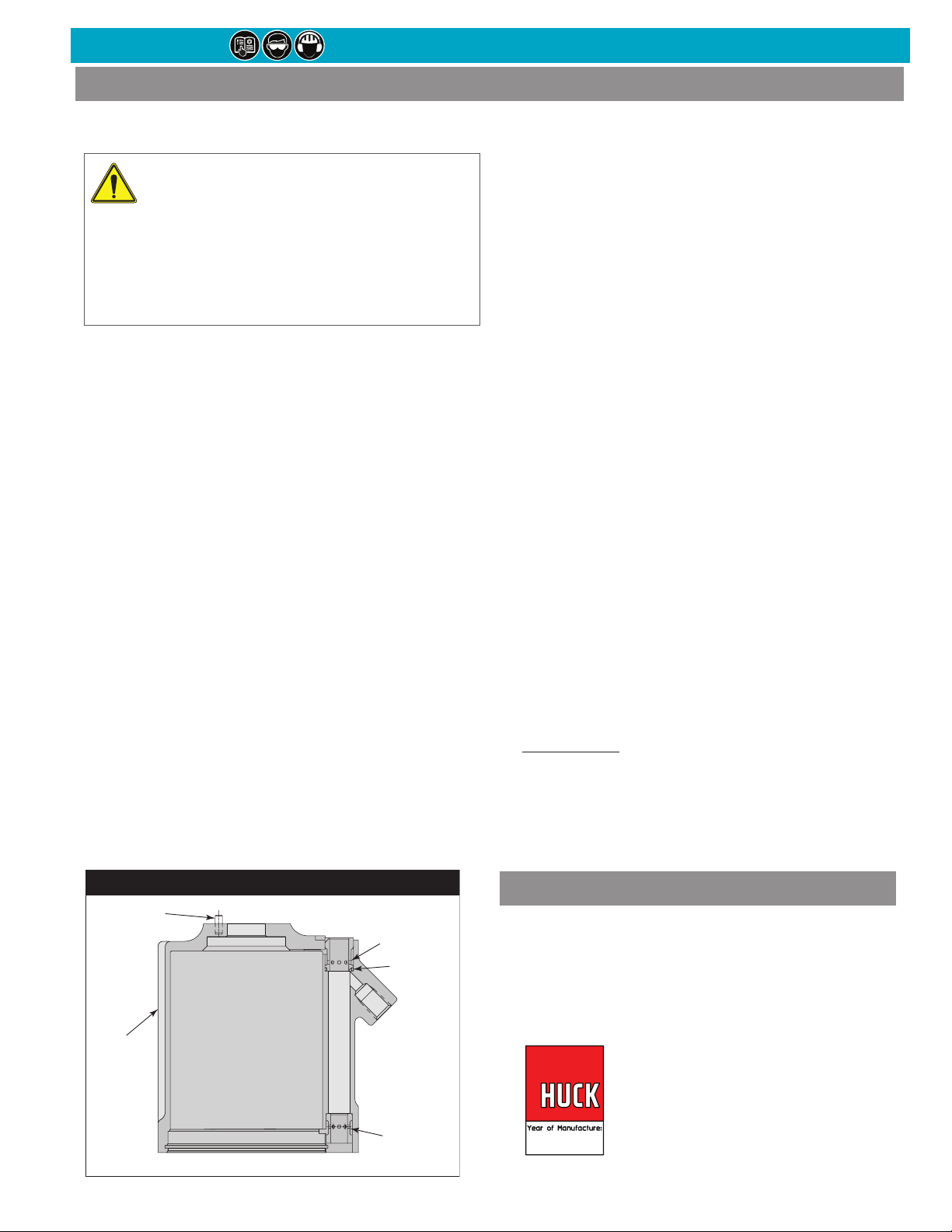

Sticker Location 9

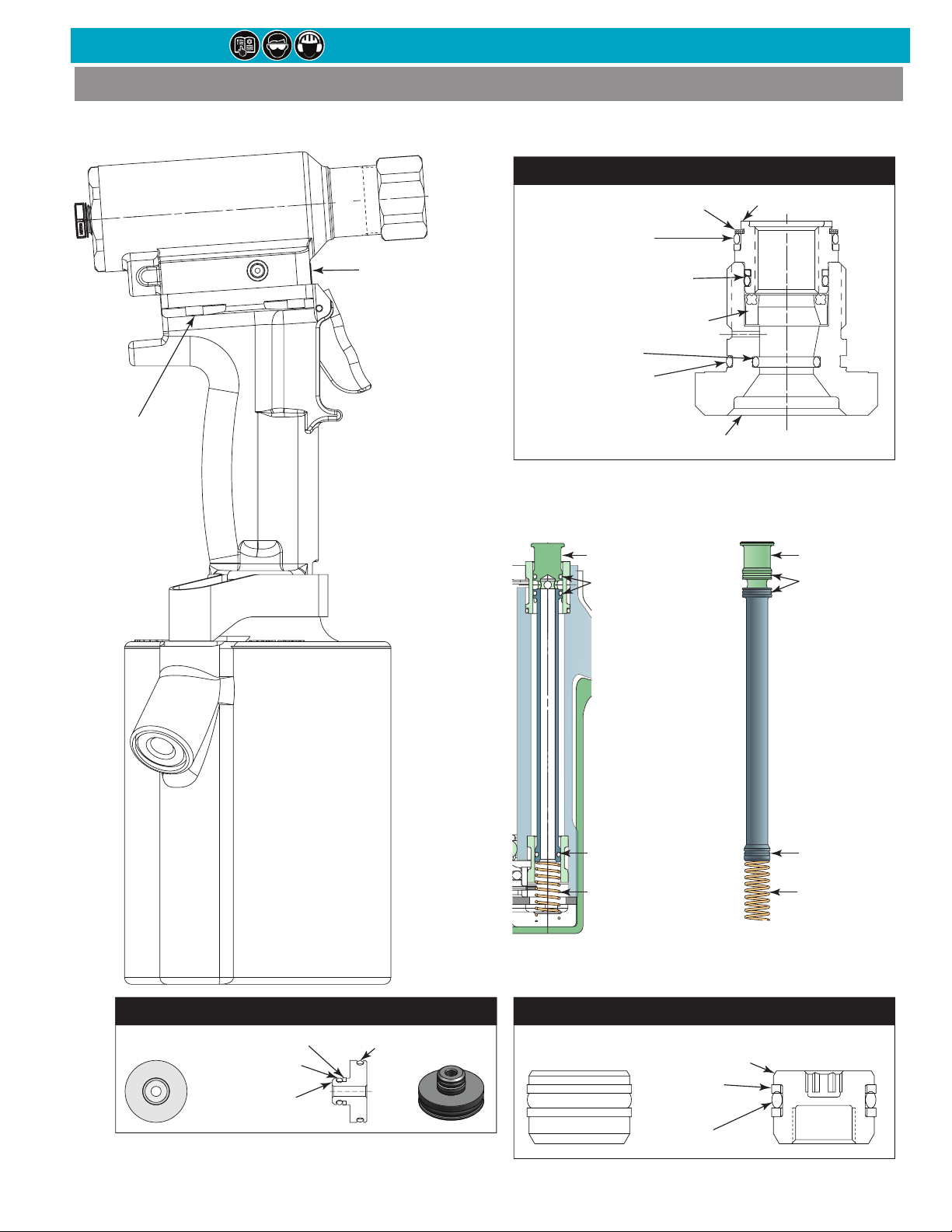

Component Drawings 9-11
Fill and Bleed Procedure 12
Troubleshooting 13
Warranties 14

2
2057 Pneudraulic Installation Tool (HK1227)
EC Declaration of Conformity
Manufacturer:
Huck International, LLC, Industrial Products Group,
1 Corporate Drive, Kingston, NY, 12401, USA
Description of Machinery:
Models 24#, 25#, 2047, and 2057 pneudraulic installation
tools and specials based on their design (e.g. PR####).
Relevant provisions complied with:
• Council Directive related to Machinery (2006/42/EC)
• British Standard related to hand held, non-electric
power tools (ISO 11148-1:2011)
Representatives:
EU: Lutz Baumann
Hildesheim Operations
Fairchild Fasteners Europe - VSD GmbH
Steven 3
31135 Hildesheim
Germany
Authorized Signature/date:
I, the undersigned, do hereby declare that the equipment
specied above conforms to the above
Directive(s) and Standard(s).
Signature:
Full Name: Nicholas Gougoutris
Position: Engineering Manager
Location: Huck International, LLC d/b/a
Howmet Fastening Systems
Kingston, New York, USA
Date: 2/9/23 February 9, 2023
UKCA Declaration of Conformity
Manufacturer:
Huck International, LLC, Industrial Products Group,
1 Corporate Drive, Kingston, NY, 12401, USA
Description of Machinery:
Models 24#, 25#, 2047, and 2057 pneudraulic installation
tools and specials based on their design (e.g. PR####).
Relevant provisions complied with:
• British Standard related to hand held, non-electric
power tools (ISO 11148-1:2011)
• Supply of Machinery (Safety) Regulations 2008
Representatives:
UK: Paul Carson
Huck International, Ltd.
Unit C
Staord Park 7
Telford, Shropshire
England TF3 3BQ, United Kingdom
Authorized Signature/date:
I, the undersigned, do hereby declare that the equipment
specied above conforms to the above
Directive(s) and Standard(s).
Signature:
Full Name: Nicholas Gougoutris
Position: Engineering Manager
Location: Huck International, LLC d/b/a
Howmet Fastening Systems
Kingston, New York, USA
Date: 2/9/23 February 9, 2023
Test data to support the above information is on file at: Howmet Fastening Systems, Kingston Operations, Kingston, NY, USA.
Declared dual number noise emission values in accordance with ISO 4871
A weighted sound power level, LWA: 91 dB (reference 1 pW) Uncertainty, KWA: 3 dB
A weighted emission sound pressure level at the work station, LpA: 80 dB (reference 20 µPa) Uncertainty, KpA: 3 dB
C-weighted peak emission sound pressure level, LpC, peak: 115 dB (reference 20 µPa) Uncertainty, KpC: 3 dB
Values determined according to noise test code ISO 15744, using as basic standards ISO 3744 and ISO 11203. The sum of a
measured noise emission value and its associated uncertainty represents an upper boundary of the range of values which is likely
to occur in measurements.
Declared vibration emission values in accordance with EN 12096
Measured Vibrations emission value, a: .63 m/s2Uncertainty, K: .72 m/s2
Values measured and determined according to ISO 28662-1, ISO 5349-2, and EN 1033

3
2057 Pneudraulic Installation Tool (HK1227)
I. GENERAL SAFETY RULES:
1. A half hour long hands-on training session with
qualied personnel is recommended before using
Howmet equipment.
2. Howmet equipment must be maintained in a safe
working condition at all times. Tools and hoses should
be inspected at the beginning of each shift/day for
damage or wear. Any repair should be done by a
qualied repairman trained on Howmet procedures.
3. For multiple hazards, read and understand the safety
instructions before installing, operating, repairing,
maintaining, changing accessories on, or working near
the assembly power tool. Failure to do so can result in
serious bodily injury.
4. Only qualied and trained operators should install,
adjust or use the assembly power tool.
5. Do not modify this assembly power tool. This can
reduce eectiveness of safety measures and increase
operator risk.
6. Do not discard safety instructions; give to operator.
7. Do not use assembly power tool if it is damaged.
8. Tools shall be inspected periodically to verify all ratings
and markings required, and listed in the manual, are
legibly marked on the tool. The employer/operator
shall contact the manufacturer to obtain replacement
marking labels when necessary. Refer to assembly
drawing and parts list for replacement.
9. Tool is only to be used as stated in this manual. Any
other use is prohibited.
10. Read MSDS Specications before servicing the tool.
MSDS specications are available from the product
manufacturer or your Howmet representative.
11.Only genuine Howmet parts shall be used for
replacements or spares. Use of any other parts can
result in tooling damage or personal injury.
12. Never remove any safety guards or pintail deectors.
13.Never install a fastener in free air. Personal injury from
fastener ejecting may occur.
14.Where applicable, always clear spent pintail out of
nose assembly before installing the next fastener.
15.Check clearance between trigger and work piece to
ensure there is no pinch point when tool is activated.
Remote triggers are available for hydraulic tooling if
pinch point is unavoidable.
16.Do not abuse tool by dropping or using it as a hammer.
Never use hydraulic or air lines as a handle or to bend
or pry the tool. Reasonable care of installation tools
by operators is an important factor in maintaining tool
eciency, eliminating downtime, and preventing an
accident which may cause severe personal injury.
17.Never place hands between nose assembly and work
piece. Keep hands clear from front of tool.
18.Tools with ejector rods should never be cycled with
out nose assembly installed.
19.When two piece lock bolts are being used always make
sure the collar orientation is correct. See fastener data
sheet for correct positioning.
II. PROJECTILE HAZARDS:
1. Risk of whipping compressed air hose if tool is
pneudraulic or pneumatic.
2. Disconnect the assembly power tool from energy
source when changing inserted tools or accessories.
3. Be aware that failure of the workpiece, accessories,
or the inserted tool itself can generate high velocity
projectiles.
4. Always wear impact resistant eye protection during
tool operation. The grade of protection required
should be assessed for each use.
5. The risk of others should also be assessed at this time.
6. Ensure that the workpiece is securely xed.
7. Check that the means of protection from ejection of
fastener or pintail is in place and operative.
8. There is possibility of forcible ejection of pintails or
spent mandrels from front of tool.
III. OPERATING HAZARDS:
1. Use of tool can expose the operator’s hands to hazards
including: crushing, impacts, cuts, abrasions and heat.
Wear suitable gloves to protect hands.
2. Operators and maintenance personnel shall be
physically able to handle the bulk, weight and power
of the tool.
3. Hold the tool correctly and be ready to counteract
normal or sudden movements with both hands
available.
4. Maintain a balanced body position and secure footing.
5. Release trigger or stop start device in case of
interruption of energy supply.
6. Use only uids and lubricants recommended by the
manufacturer.
7. Avoid unsuitable postures, as it is likely for these not
to allow counteracting of normal or unexpected tool
movement.
8. If the assembly power tool is xed to a suspension
device, make sure that xation is secure.
9. Beware of the risk of crushing or pinching if nose
equipment is not tted.
IV. REPETITIVE MOTION HAZARDS:
1. When using assembly power tool, the operator can
experience discomfort in the hands, arms, shoulders,
neck or other parts of the body.
2. The operator should adopt a comfortable posture,
maintain a secure footing and avoid awkward or o
balanced postures.
3. The operator should change posture during extended
tasks to help avoid discomfort and fatigue.
4. If the operator experiences symptoms such as
persistent or recurring discomfort, pain, throbbing,
aching, tingling, numbness, burning sensations or
stiness, these warnings should not be ignored.
The operator should tell the employer and consult a
qualied health professional.
Safety Instructions

4
2057 Pneudraulic Installation Tool (HK1227)
V. ACCESSORIES HAZARDS:
1. Disconnect tool from energy supply before changing
inserted tool or accessory.
2. Use only sizes and types of accessories and
consumables that are recommended. Do not use
other types or sizes of accessories or consumables.
VI. WORKPLACE HAZARDS:
1. Be aware of slippery surfaces caused by use of the tool
and of trip hazards caused by the air line or hydraulic
hose.
2. Proceed with caution while in unfamiliar surroundings;
there could be hidden hazards such as electricity or
other utility lines.
3. The assembly power tool is not intended for use in
potentially explosive environments.
4. Tool is not insulated against contact with electrical
power.
5. Ensure no electrical cables, gas pipes, etc., can cause a
hazard if damaged by use of the tool.
VII. NOISE HAZARDS:
1. Exposure to high noise levels can cause permanent,
disabling hearing loss and other problems such
as tinnitus, therefore risk assessment and the
implementation of proper controls is essential.
2. Appropriate controls to reduce the risk may include
actions such as damping materials to prevent
workpiece from ‘ringing’.
3. Use hearing protection in accordance with employer’s
instructions and as required by occupational health
and safety regulations.
4. Operate and maintain tool as recommended in the
instruction handbook to prevent an unnecessary
increase in the noise level.
5. Select, maintain and replace the consumable / inserted
tool as recommended to prevent an unnecessary
increase in noise.
6. If the power tool has a silencer, always ensure it is
in place and in good working order when the tool is
being operated.
VIII. VIBRATION HAZARDS:
1. Exposure to vibration can cause disabling damage to
the nerves and blood supply to the hands and arms.
2. Wear warm clothing when working in cold conditions
and keep hands warm and dry.
3. If numbness, tingling, pain or whitening of the skin
in the ngers or hands, stop using the tool, tell your
employer and consult a physician.
4. Support the weight of the tool in a stand, tensioner or
balancer in order to have a lighter grip on the tool.
IX. HYDRAULIC TOOL SAFETY INSTRUCTIONS:
1. Air under pressure can cause severe injury.
2. Always shut o air supply, drain hose of air pressure
and disconnect tool from air supply when not in use,
before changing accessories or when making repairs.
3. Never direct air at yourself or anyone else.
4. Whipping hoses can cause severe injury, always check
for damaged or loose hoses and ttings.
5. Cold air should be directed away from hands.
6. Whenever universal twist couplings (claw couplings)
are used, lock pins shall be installed and whip-check
safety cables shall be used to safeguard against
possible hose to hose or hose to tool connection
failure.
7. Do not exceed maximum air pressure stated on tool.
8. Never carry an air tool by the hose.
Safety Instructions
DEXRON is a registered trademark of General Motors Corporation.
GLYD Ring is a registered trademark of Trelleborg Sealing Solutions
Germany GmbH
Loctite is a registered trademark of Henkel IP & Holding GmbH
LUBRIPLATE is a registered trademark of Fiske Brothers Refining Co.
MERCON is a registered trademark of Ford Motor Corp.
MOLYKOTE is a registered trademark of Dow Corning Corporation
Never-Seez is a registered trademark of Bostik, Inc.
Quintolubric is a registered trademark of Quaker Chemical Corp.
Slic-tite is a registered trademark of LA-CO Industries, Inc.
Spirolox is a registered trademark of Smalley Steel Ring Company
Teflon is a registered trademark of Chemours Company FC.
Threadmate is a registered trademark of Parker Intangibles LLC.
TRUARC is a trademark of TRUARC Co. LLC.
Vibra-Tite is a registered trademark of ND Industries, Inc. USA.
Where the following trade names are used in this manual, please note:
WARNINGS: Do not exceed maximum pull or return settings on tool.
Be sure all hose connections are tight. All tool hoses must be connected.
The 2057 pneudraulic installation tool is a lightweight, high speed pull-in tool designed for use with LGP-style Pull-In
nose assemblies. The air inlet is equipped with 1/4-18 female pipe threads to accept user air hose or quick connect
fitting. A nose assembly is required for each fastener type and size. Nose assemblies must be ordered separately.
Description

5
2057 Pneudraulic Installation Tool (HK1227)
Principle of Operation
Hydraulic Piston
Spring Spring
Exhaust Muffler
Hydraulic Oil
Air Pressure
Exhaust Air
Figure AFigure B
Hydraulic Rod
Throttle Valve
(PULL position)
Throttle Valve
(RETURN position)
Hydraulic Rod
Air Piston
Air Piston
Hydraulic Piston
When the trigger is pressed, the throttle valve moves
downward to the PULL position, and pressurized air is
directed to the bottom of the air piston, causing it to
move upward (Figure A). The air above the air piston
is exhausted and directed through the center of the
throttle valve and out the bottom of the tool.
As the hydraulic rod moves upward, a column of uid
is forced into head, which moves the pull piston back-
ward. The attached nose assembly moves with the pull
piston to start fastener installation.
When fastener installation is completed, the trigger is
released. Air pressure, with the assistance of a spring,
sends the throttle valve to the up (RETURN) position.
Pressurized air is re-directed to the top of the air piston
(Figure B), causing the air piston and hydraulic rod to
move downward.
The air from below the piston is exhausted through
the bottom of the tool, and springs force the pull pis-
ton to return to its home position. The damper valve
(Figure A) impedes oil ow at pinbreak to prevent “tool
kick.”
Diagram shows concept only
and not an accurate depiction
of the tool.
Specications
4.81 inches
(122.17 cm)
1.92 inches
(48.77 cm)
6.32 inches
(160.44 cm)
15.03 inches
(381.81 cm)
2.40 inches
(360.88 cm)
6.19 inches
(157.18 cm)
4
°
DESCRIPTION DETAIL
STROKE .875 inches 2.22cm
MAX INLET PRESSURE 100 psi 6.9 bar
PULL CAPACITY 4839 kbs @ 90 PSI
21.8 kN @ 6.2 bar
WEIGHT (WITHOUT
NOSE ASSEMBLY)
9.3 LBS 4.22 kg
CENTERLINE (TO TOP
OF HEAD)
.960" 2.44 cm
MAX OPERATING TEMP 125 ° F 51.7 ° C
Hydraulic fluid: Hydraulic fluid shall meet DEXRON
III, DEXRON VI, MERCON, Allison C-4 or equivalent ATF
specifications. Fire resistant fluid may be used if it’s an
ester based fluid such as Quintolubric HFD or equivalent.
Water based fluid shall NOT be used as serious damage to
equipment will occur.

6
2057 Pneudraulic Installation Tool (HK1227)
Preparation for Use
Nose Assembly Installation and Removal
99-1830 Nose Assembly
Anvil Assembly
Collet/Spindle Extension Assembly
The tool is shipped with a plug in the air inlet connector.
The connector has 1/4”-18 female pipe threads to accept
an air hose or quick-connect fitting. Huck recommends
quick-disconnect fittings and a 1/4” inside diameter
air hose. The air supply should have a filter-regulator-
lubricator unit and access to a 100-psi (6.9 bar) air supply
capable of a flow rate of 11.5 scfm (500 l/m).
NOTE: Air quick-disconnect fittings and air hoses are not
available from Huck International, Inc. Huck includes an
air hose (P/N 115436) to facilitate immediate tool use.
1. Remove the plastic plug from air inlet connector and

 -
nector.
3. Set the air pressure on the regulator and connect the
air hose to the tool. Do NOT exceed 100 psi (6.9 bar).
Set the Required Pressure per the formula below:
(
Minimum Pneudraulic x .85
)
x 90 psi
4. Press and release the trigger a few times to cycle the
tool.
5. Disconnect the air hose from the tool.
6. The stake hole in the head must be aligned with the
stake hole in the piston rod. If holes are not aligned, a
malfunction could occur. See Fill and Bleed for instruc-
tions on how to align stake holes.
7. Remove the retaining nut and stop.
8. Screw the Collet/Spindle Extension onto the spindle and
tighten with a wrench.
9. Slide the anvil over the collet assembly and into the
counterbore.
10.Slide the stop and retaining nut over the anvil, and screw
the nut onto the head.
11. Connect the air hose to the tool and ensure the pintail
moves freely in the jaws.
CAUTION: Do not use TEFLON® tape on pipe
threads. Tape can shred and break free
into uid lines, resulting in malfunctions.
Threadmate® is available in a 4oz. tube from
Huck (P/N 508517).
WARNINGS: Only use recommended pin/
collar combinations with recommended
pressure settings. Otherwise pulling a pin
without a collar or workpiece in place (and col-
lar/chamfer toward the tool where applicable),
unintentional forcible ejection may occur, pos-
sibly resulting in severe personal injury.
If deectors are removed or damaged, broken
pintails may eject forcibly from rear of tool, and
severe personal injury may result. Be sure there
is adequate clearance for tool and operator’s
hands before proceeding. Severe personal injury
may result if not enough clearance is provided.
Tool Capacity
ATTACHING INSTALLATION NOSE ASSEMBLY:
1. Unscrew tool retaining nut.
2. Screw collet/spindle extension assembly of nose
assembly onto tool piston, until wrench tight.
3. Slide anvil assembly over collet/spindle extension and
into tool nose adapter.
4. Slide rotatable stop over anvil assembly and align
anvil tabs with rotatable stop slot.
5. Thread retaining nut onto tool nose adapter and
wrench tight.
REMOVING INSTALLATION NOSE ASSEMBLY:
1. Loosen retaining nut with a wrench. Unthread
retaining nut and slide it off the anvil.
2. Remove the anvil from collet/spindle.
3. Unthread collet/spindle extension.

7
2057 Pneudraulic Installation Tool (HK1227)
Operating Instructions
Read all of these instructions in order to ensure the safe operation of this equipment.
1. Place a pin in the workpiece and place the collar
over the pin.
2. Hold the pin in the hole and push the nose assem-
bly onto the pin protruding through the structure
until the nose anvil touches the sheet.
3. Press and hold the trigger until the end of the stroke
is met.
4. Release the trigger; the tool will perform its RETURN
stroke. The tool will be released from the fastener
and ready for the next installation cycle.
CAUTION: Remove excess gap from be-
tween the sheets to permit proper fastener
installation and prevent jaw damage. ALL
jaw teeth must engage the pintail to avoid dam-
aging the teeth.
WARNINGS: Wear approved eye and hear-
ing protection. Ensure adequate clearance
for operator’s hands before installing
fasteners. Be sure that the pintail deector is
properly attached to the tool and directed away
from all personnel.
NOTES: Recycle steel, aluminum, and plastic parts
in accordance with local lawful and safe practices.
GENERAL
 
proper maintenance. Regular inspection and cor-
rection of minor problems will keep tool operating

serviced by personnel who are thoroughly familiar
with how it operates.
2. A clean, well lit area should be available for servicing
the tool. Special care must be taken to prevent con-
tamination of pneumatic system.
3. Proper hand tools, both standard and special, must
be available.
4. All parts must be handled carefully and examined for
damage or wear. Always replace Seals, when tool is
disassembled for any reason. Components should be
disassembled and assembled in a straight line with-
out bending, cocking, or undue force. Disassembly
and assembly procedures outlined in this manual
should be followed.
5. Service Parts Kit 2047KIT or 2057KIT includes consum-
able parts and should be available at all times. Other
components, as experience dictates, should also be
available.
DAILY
1. If a Filter-Regulator-Lubricator unit is not being used,
uncouple air disconnects and put a few drops of
Automatic Transmission Fluid or light oil into the air
inlet of the tool. If the tool is in continuous use, put a
few drops of oil in every two to three hours.
2. Bleed the air line to clear it of accumulated dirt or
water before connecting air hose to the tool.
3. Check all hoses and couplings for damage or air leaks,
tighten or replace if necessary.
4. Check the tool for damage or air leaks, tighten or
replace if necessary.
5. Check the nose assembly for tightness or damage,
tighten or replace if necessary.
WEEKLY
1. Disassemble and clean nose assemblies and
reassemble.
2. Check the tool and all connecting parts for damage
or oil/air leaks, tighten or replace if necessary.
CAUTIONS: Separated parts must be kept
away from dirty work surfaces.
Always replace seals, wipers, and back-up
rings when tool is disassembled for any reason.
Do not use TEFLON® tape on pipe threads. Pipe
threads may cause tape to shred resulting in tool
malfunction. (Threadmate™ is available from
Huck in a 4oz. tube as part number 508517.)
Maintenance

8
2057 Pneudraulic Installation Tool (HK1227)
Disassembly Procedure
This procedure is for complete disassembly of the
tool. Disassemble only those components necessary to
replace damaged O-rings, Back-up rings, and worn or

see Components Drawings on the following pages.
1. Disconnect the air hose from the tool.
 
carefully separate the head from the handle. Remove
the pull gland from the separated assemblies.
3. Use a 1-¾” open-end wrench to unscrew the cylinder
end cap.
4. Thread the Polyseal Assembly Tool onto the spindle
end of piston. Push the piston out the back of the
head.
 
throttle arm cover away from the handle.
 
7. Remove the trigger roll pin. Pull dowel pin from ears
of the trigger.
8. Pull the ball end of cable assembly from the trigger.
9. Remove the screw from the throttle arm, and then
remove the throttle arm.
10. Remove the ball cable end from the throttle arm.
11. Pull the cable from the handle.
12. Secure the tool upside-down in a soft-jaw vise and
drain fluid from handle. Unscrew three button-head
screws from the muffler end cap with a 1/8” hex key.
13. Remove the muffler end cap, return spring, bottom
exhaust gasket, muffler, and O-ring.
14. Remove the retaining ring from the cylinder.
15. Screw the button-head screws into the cylinder head,
and carefully pry on them to remove the cylinder
head.
16. Use ⅝
T-Handle Hex Key, loosen intensifier piston through
top of handle.
17. Screw ¼-20 UNC screws into the piston.
18. Pull evenly on ¼” screws in piston to remove piston
assembly from cylinder. Remove ¼” screws.
19. Hold hex of piston rod with a wrench. Unscrew
locknut and pull the rod from the piston.
 
Disassemble the gland and remove the seals.
21. Push the intensifier piston out of the handle, from the
top, with a soft rod.
22. The lower and upper bushings may be pressed out of
cylinder if damaged. Use flat end brass rods at least
6 inches long. Press out the lower bushing first with
rod having diameter between .38” and .43” (0.96 and
1.10 cm). Press out upper bushing with rod having
diameter between .48” and .55” (1.22 and 1.39 cm).
Discard the hydraulic fluid that was drained from
the head and the handle. The tool has been properly
disassembled. Store all re-usable parts (screws and
disassembled components) in a clean, dry area.
WARNING: Disconnect the air hose from
the tool before performing any mainte-
nance. Serious personal injury could result
if the air hose is connected.
CAUTIONS: Always use a soft-jaw vise to
avoid damaging the tool.
DO NOT scratch the piston rod or cylinder
when removing.
Do NOT re-use seals, wipers, or rings; irrepa-
rable tool damage could occur. Discard these
parts and use replacements.

9
2057 Pneudraulic Installation Tool (HK1227)

Drawings on the following pages.
Before re-assembling tool:
• Clean components with mineral spirits or a similar

as necessary. Replace all seals of disassembled
components.
• Use the O-rings and Back-up rings from Huck Spare

not to damage the rings. Smear LUBRIPLATE®130-AA
or SUPER-O-LUBE®on rings and mating parts to ease
assembly.
1. Apply Loctite®Grade 609 to bushings prior to pressing
into cylinder. Use an arbor press when replacing the
upper and lower bushings. Place the chamfered end
of the upper bushing into the top of the cylinder.
Carefully press bushing squarely into cylinder. Repeat
procedure for lower bushing.
2. Install intensifier piston into handle through bottom
only.
3. Push Air piston and Rod assembly into Air cylinder.
Hold nut with ⅝" socket while tightening intensifier
 175-195 lbs.
4. Apply Loctite®243 Threadlocker (P/N 508567) to gland
threads and cylinder cap threads. Place the cylinder on
handle with pin positioned in matching hole. Assemble
the gland and seals. Screw in the lower gland and

5. Push piston rod through the piston from flat side, and
screw the self-locking nut onto rod. Hold hex of rod
with wrench, and torque nut to 28–32 ft.-Ibs.
6. To ease installation of hydraulic piston, use optional
Piston Assembly Tool 120792 to compress the O-ring
and Back-up rings. Push the piston into the back of the
®

screw in and torque to 50-60 foot pounds.
7. Screw in the vent plug.

9. Slide throttle arm onto ball end of throttle cable (small

screwdriver.
10.Assemble the trigger cable and trigger pin, and slide
cable into handle. Align hole in trigger with the hole
in handle and install roll pin with a hammer and
punch.
11.Secure handle upside-down in a soft-jaw vise. Position
O-ring and muffler on center of cylinder head, gasket
on cylinder, and spring in lower bushing.
12.Carefully position muffler end cap on cylinder. Be
certain that muffler is properly positioned in recess of
muffler end cap.
13.Hold down the end cap and insert three button-head
󰁭

cylinder and handle with cap screws.
15.Push button plug into cover.
16.Filling tool manually and at assembly: Also see
. With handle and head separated,
push hydraulic piston down. Fill pull hole in handle.
Allow air to circulate out of fluid in handle before

with handle and press head into place. Push cap
screws through handle and screw into head. Tighten
to 40 in.-Ibs. torque.
Assembly Procedure
CAUTIONS: DO NOT scratch the piston rod or
cylinder when removing.
Install the seat assembly through the FRONT of
the tool head to avoid damaging the O-ring.
When pressing in seats, use extreme care to avoid
damaging the sealing surfaces.

damage could occur. Discard these parts and use
replacements.
NOTE: HUCK Trademark Sticker must be in place
and readable at all times. If the sticker becomes
damaged or worn, or if it has been removed from the
tool, it must be ordered and placed in the location
shown on Tool Component Drawings, page 10.
590517
HUCK/Year of Manufacture
Sticker
Sticker Location
501352
Dowel Pin
116499
Cylinder
(Only
available
as part of
upper
Assembly:
115556 -
Air Cylinder
Assembly)
115504
Upper Bushing
115503
Lower Bushing
500782
O-Ring
115556 - Air Cylinder Assembly

10
2057 Pneudraulic Installation Tool (HK1227)
Component Drawings
500777
O-Ring
115554
Muffler
116585
Muffler End Cap
504127
Screw But #10-32
x .62 ZPLW 37
112434
Assy, Head,
Cylinder
126941-2
Gasket
116585
Muffler End Cap
505025
Retaining Ring
121241
Self Locking Nu
t
104402
Air Piston
Assembly
500905
O-Ring
115556
Air Cylinder
Assembly
130305
Piston Rod
127326
Gland Assembly
130936
Intensifier Piston Assembly
131405
2057 Main Handle Assembly
(includes: 130938)
130938
Handle Sleeve
Sub-Assembly
(includes
Machined Handle: 130937)
131055
Pull Gland
Assembly
508525
Return
Spring
117824
Retaining Nut
130244
Trigger
125643
Cable Assembly
Lever
500621
Slotted Pin, .125 x .75
131430
Dowel Pin, .188 x .75
127188
Throttle Arm
Guard
110670
Rotatable Stop
590517
Huck Trademark and
Year of Manufacture Sticker130290
Cylinder Head
100309
Bleed Plug
(available as
part of 131406
Hydraulic Head Assembly)
100309
Bleed Plug
(available as
part of 104293
Bleed Plug Assembly)
104293
Bleed Plug Assembly
505438
O-Ring
505438
O-Ring
508526
¼ NPT,
Vented
Plug
130286
End Cap
131406
Hydraulic Head
Assembly
130300
Pull Piston
Assembly
126082
Front Gland Assembly
115436
Air Hose
Assy
129710-1
Cover, Cyl, 247SR
127188
Throttle Arm Guard
127889
Throttle Arm
502053
Set Screw,
#10-32 x .5
0
127029
Bushing and
Screw
Assembly
502482
Guard Screw
(2)

11
2057 Pneudraulic Installation Tool (HK1227)
Component Drawings
500101
Screw Soc Cap
10-32 x .50
Patent sticker: 590543
available in 131405
Handle Asselmbly
127324 Gland
501082 Back-Up Ring
500776 O-Ring
131025
Gland
127325 Gland Housing
500786 O-Ring
500779 O-Ring
127329
Polyseal
500781
O-Ring127328
BU-Ring
500784
O-Ring127327
BU-Ring
502821 Retaining Ring
115558
Throttle Valve Assembly
116272
Spring
116272
Spring
504408
O-Ring
(2)
504408
O-Ring
(2)
504407
O-Ring
504407
O-Ring
127888
Throttle Valve
127888
Throttle Valve
127326 - Gland Assembly
131055 - Pull Gland Assembly
501086
Back-Up Ring (2)
503770 O-Ring
130304
Intensifier Piston
130936 - Intensifier Piston Assembly
508518
O-Ring

12
2057 Pneudraulic Installation Tool (HK1227)
Fill and Bleed
This section documents the “bleed-&-fill” procedure. For
component identification, see Figures 1, 2, & 3.
REQUIRED EQUIPMENT
• Automatic Transmission Fluid (ATF) DEXRON III,
or equivalent (Refer to Specifications for more
information.)
• Shop air-line with 90–100 psi (6.2–6.9 bar) max.
• Air regulator
• Fill Bottle Assembly (P/N 120337, supplied with tool)
• Large flat-blade screwdriver
• Stall Nut (P/N 124090
or 125340, optional)
• Nose assembly
• Fasteners (optional)
PREPARATION
• Install air regulator in
the air-line and set the
pressure to 20–40 psi
(1.4–2.8 bar).
• Add an approved hydrau-

the Fill Bottle.
TO BLEED AND FILL THE TOOL:
0. Lay the tool on its side with the fill port facing up, and
remove the bleed plug from the fill port.
0. Connect the tool to shop air-line. If fluid is present,
hold the tool over a suitable container with fill port
facing into container. Cycle the tool several times to
drain old fluid, air, and foam. (Figure 2)
0. Screw the fill bottle into the fill port.
0. Stand the tool upright on a bench. Trigger the tool
slowly (20–30 cycles), and bend the fill bottle at a
right-angle to the tool. (Figure 3) When air bubbles
stop accumulating at top of the bottle, stop cycling
the tool. When the trigger is released, the pull piston
returns to the idle position (full-forward).
0. Disconnect the tool from the air-line.
0. Lay the tool on its side and remove the fill bottle. Top
off the fluid in the fill port, and install and tighten the
bleed plug.
0. Connect the air-line to the tool and measure the
stroke. If the stroke is less than .900 inches, remove
the bleed plug and add fluid. Re-insert the bleed plug
and recheck the stroke.
To measure stroke:
0. Cycle the piston all the way forward and measure
distance between front of cylinder head and front
of hydraulic piston (X).
0. Cycle and hold the trigger until hydraulic piston
is in the back position. Measure distance between
front of cylinder head and front of hydraulic
piston (Y).
Stroke = Y-X
0. Increase the air pressure to specifications. Install
two fasteners to check the function and installation
in a single stroke, or cycle the tool with a stall nut
fully threaded onto the piston to load up the tool.
Measure the stroke again. Remove the plug and
add fluid. Re-insert the plug and cycle and measure
again. Repeat this process until the stroke meets the
minimum requirements.
WARNING: 
-
dance with local regulations. See MSDS for

120336
Fill Bottle
Fill Point
120004
Cap
120337 Fill Bottle Assy
Figure 1
WARNING: Air pressure must be set at 20–40 psi
(1.4–2.8 bar) to prevent possible injury from high-
pressure spray.
If the bleed plug is removed, the Fill Bottle must be in
place before cycling the tool.
Container
(Discard Fluid)
Figure 2
CAUTION: 


-

Figure 3
8

13
2057 Pneudraulic Installation Tool (HK1227)
Troubleshooting
Always check the simplest possible cause (such as a loose or disconnected trigger line) of a malfunction first. Then
proceed logically, eliminating other possible causes until the cause is discovered. Where possible, substitute known
good parts for suspected defective parts. Use this Troubleshooting information to aid in locating and correcting
trouble. NOTE: “Piston drift” is when the air piston is in the down position, but the hydraulic pull piston is not in the
full-forward position. This causes an out-of-sequence condition.
1. Tool fails to operate when trigger is pressed.
a. Air-line not connected.
b. Worn or damaged throttle valve O-rings.
c Broken throttle valve cable.
2. Tool does not complete fastener installation.
a. Air pressure too low.
b. Worn or damaged air piston O-ring.
c. Air in hydraulic system. See the Fill and Bleed
section.
3. Pintail stripped.
a. Check for broken or worn jaws in nose assembly.
See Nose Assembly Data Sheet.
b. Check for loose retaining nut.
  
4. Hydraulic fluid exhausts with air or leaks at base of
handle.
a. Worn or damaged gland assembly. Inspect
Polyseal and rings. Replace if necessary.
5. Hydraulic fluid leaks at front of pull piston.
a. Worn or damaged front gland. Inspect Polyseal.
Replace if necessary.
6. Pull piston will not return.
  
b. Throttle arm, cable, or trigger binding.
7. Air leaks at air cylinder head.
a. Worn or damaged O-ring. Replace if necessary.

14
2057 Pneudraulic Installation Tool (HK1227)
Limited Warranties
Limited Lifetime Warranty on BobTail® Tools:
Huck International, Inc. warrants to the original purchaser
that its BobTail® installation tools manufactured after
12/1/2016 shall be free from defects in materials and
workmanship for its useful lifetime. This warranty does
not cover special order / non-standard products, or part
failure due to normal wear, tool abuse or misapplication,
or user non-compliance with the service requirements and
conditions detailed in the product literature.
Two Year Limited Warranty on Installation Tools:
Huck International, Inc. warrants that its installation
tools and Powerigs®manufactured after 12/1/2016 shall
be free from defects in materials and workmanship for
a period of two years from date of purchase by the end
user. This warranty does not cover special order / non-
standard products, or part failure due to normal wear, tool
abuse or misapplication, or user non-compliance with the
service requirements and conditions detailed in the product
literature.
90 Day Limited Warranty on Nose Assemblies and
Accessories:
Huck International, Inc. warrants that its nose assemblies
and accessories shall be free from defects in materials
and workmanship for a period of 90 days from date of
purchase by the end user. This warranty does not cover
special clearance noses, or special order / non-standard
product, or part failure due to normal wear, abuse or
misapplication, or user non-compliance with the service
requirements and conditions detailed in the product
literature.
Useful lifetime is defined as the period over which the
product is expected to last physically, up to the point when
replacement is required due to either normal in-service
wear, or as part of a complete overhaul. Determination is
made on a case-by case basis upon return of parts to Huck
International, Inc. for evaluation.
ooling, Part(s) and Other Items not manufactured by
Huck:
HUCK makes no warranty with respect to the tooling,
part(s), or other items manufactured by third parties. HUCK
expressly disclaims any warranty expressed or implied,
as to the condition, design, operation, merchantability, or
fitness for use of any tool, part(s), or other items thereof
not manufactured by HUCK. HUCK shall not be liable for
any loss or damage, directly or indirectly, arising from the
use of such tooling, part(s), or other items or breach of
warranty or for any claim for incidental or consequential
damages.
Huck shall not be liable for any loss or damage resulting
from delays or non-fulfillment of orders owing to strikes,
fires, accidents, transportation companies or for any reason
or reasons beyond the control of the Huck or its suppliers.
Huck Installation Equipment:
Huck International, Inc. reserves the right to make changes
in specifications and design and to discontinue models
without notice.
Huck Installation Equipment should be serviced by trained
service technicians only.
Always give the serial number of the equipment when
corresponding or ordering service parts.
Complete repair facilities are maintained by Huck
International, Inc. Please contact one of the offices listed
below.
Eastern
One Corporate Drive Kingston, New York 12401-0250
Telephone [phone] FAX [phone]
Outside USA and Canada
Contact your nearest Huck International location (see
reverse).
In addition to the above repair facilities, there are
Authorized Tool Service Centers (ATSC’s) located
throughout the United States. These service centers offer
repair services, spare parts, Service Parts Kits, Service
Tool Kits and Nose Assemblies. Please contact your Huck
Representative or the nearest Huck International location
(see reverse) for the ATSC in your area.

Huck provides technical assistance in the use
and application of Huck fasteners & tooling.
NOTICE: This publication is only to be used for gen-
eral guidance in properties of the products shown
and/or the means for selecting such products, and
is not intended to create any warranty, express,
      
only in Huck’s written quotations, acknowledgments, and/or purchase
orders. It is recommended the user secure specific, up-to-date data and
information regarding each application and/or use of such products.
©2023 Howmet Aerospace, Inc.
Howmet Fastening Systems
Kingston Operations
1 Corporate Drive, Kingston, NY 12401
Tel: [phone] • Fax: [phone]
www.hfsindustrial.com/us
Industrial North America
Kingston Operations
1 Corporate Drive
Kingston, NY 12401
Tel: [phone]
Fax: [phone]
[email protected]
Tracy Operations
1925 North MacArthur Drive
Tracy, CA 95376
Tel: [phone]
Fax: [phone]
[email protected]
Waco Operations
PO Box 8117
8001 Imperial Drive
Waco, TX 76714-8117
Tel: [phone]
Fax: [phone]
[email protected]
Industrial Global
Tokyo Operations (Japan & Korea)
1013 Hibiya U-1 Bldg.
Uchisaiwai-cho 1-1-7
Chiyoda-ku, Tokyo
100-0011 Japan
Tel: [phone]
Fax: [phone]
Melbourne Operations
1508 Centre Road
Clayton, Victoria
Australia 3168
Tel: [phone]
Fax: [phone]
[email protected]
Telford Operations
Unit C, Stafford Park 7
Telford, Shropshire
England TF3 3BQ
Tel: [phone]
Fax: [phone]
[email protected]
Suzhou Operations
58 Yinsheng Road,
SIP Suzhou, Jiangsu
215126 China
Tel: [phone]-8888
Aerospace North America
Kingston Operations
1 Corporate Drive
Kingston, NY 12401
Tel: [phone]
Fax: [phone]
[email protected]
Simi Valley Operations
3990A Heritage Oak Court
Simi Valley, CA 93063
Tel: [phone]
Fax: [phone]
www.afs-simivalley.com
[email protected]
Aerospace Global
Aichach Operations
Robert-Bosch Str. 4
Aichach 86551
Germany
Tel: [phone]
[email protected]
Cergy Operations
15 Rue du Petit Albi
F-95611 Cergy Pontoise
France
Tel: [phone]
Fax: [phone]
Hong Kong Operations
88 Hing Fat Street, 27th Floor
Causeway Bay
Hong Kong, China
Tel: [phone]
[email protected]
Howmet Fastening Systems Tooling Support Locations
Howmet Inc. (NYSE: ARNC) creates breakthrough products that shape industries. Working in close
partnership with our customers, we solve complex engineering challenges to transform the way we fly,
drive, build and power.
Through the ingenuity of our people and cutting-edge advanced manufacturing, we deliver these
products at a quality and efficiency that ensures customer success and shareholder value.
