HOZAN HS-51-220 User manual

１
HS-51-220
SOLDERING STATION
INSTRUCTION MANUAL

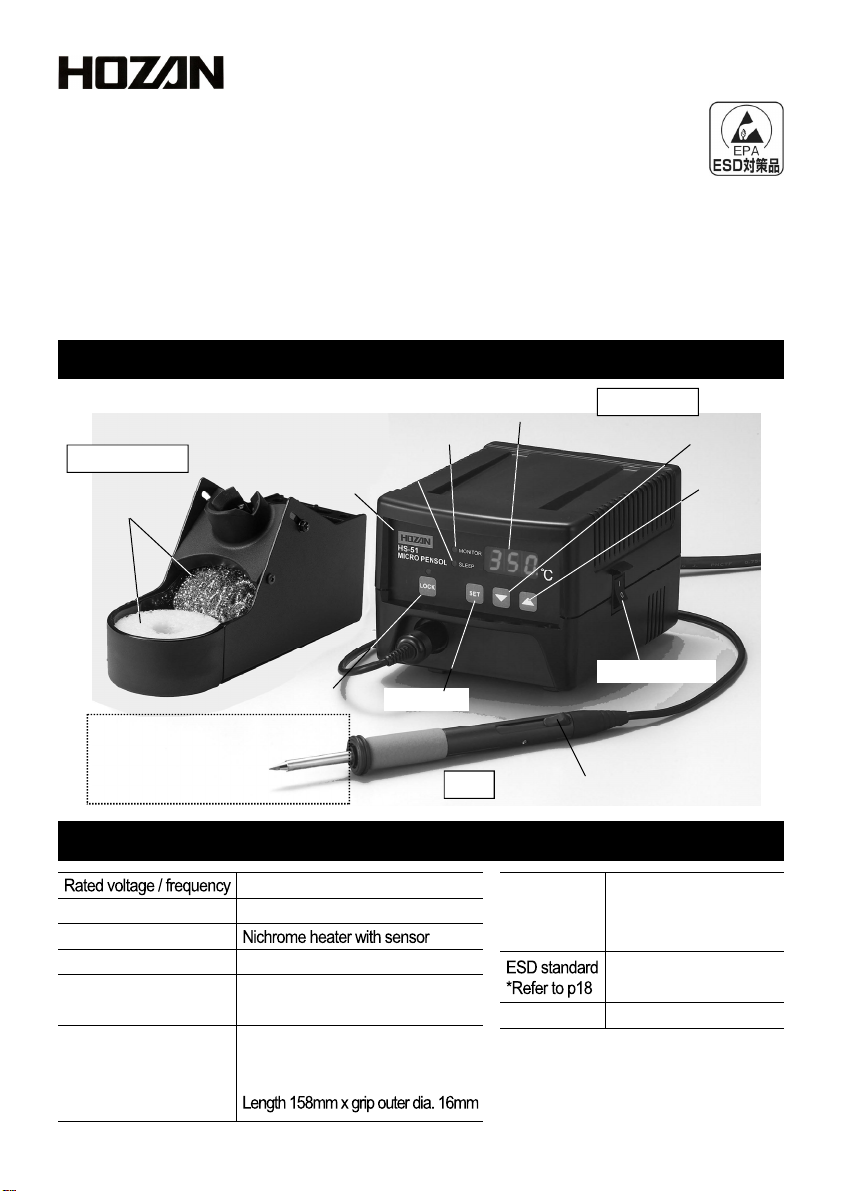

Specifications
Identification of parts and contents
Thank you for purchasing the HOZAN HS-51-220 SOLDERING STATION. With proper
care and handling, this fine instrument will provide years of trouble-free operation. Please
read this entire instruction manual carefully before attempting to place this instrument in
service. Please keep this instruction manual available for reference.
Standard tip
220V AC ±10％, 50/60Hz
50-450℃
Tip (with build-in heater)
is sold separately.
80W (soldering iron 72W)
Heater
External dimensions
Station
115(W)X98(H)X146(D)mm
Soldering iron
Power Consumption
Setting temperature
Station 1.8kg
Soldering iron 28g
(not including the cord)
Ground resistance
Rg<1x1012Ω
Power cord 1.2m
Weight
Station
Iron stand
Iron
Tip
Slide lever
Power monitor lamp
SLEEP lamp
LOCK key
▼key
▲key
Operation panel
Temperature display
Power switch
SET key

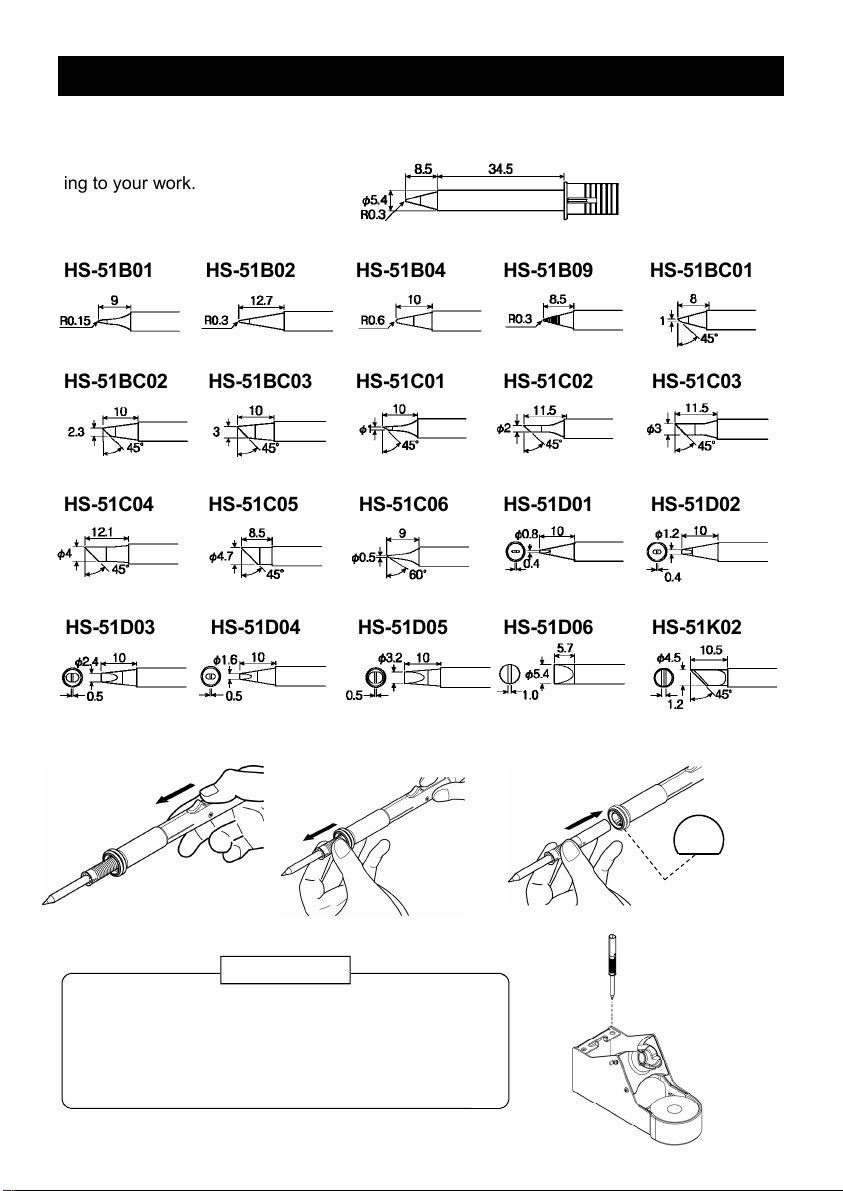

Tips are sold separately.
Purchase appropriate
tips according to your
work.
Tip cleaner

２
Precautions
These symbols are used throughout the instruction manual to alert the user to potential
safety hazards as follows :
Warning …Notice when incorrect handling could cause the user's death or serious
injury.
Caution …Notice when incorrect handling could cause injury to the user or material
damage.
Even if the instructions do not have Caution mark, there are some possibilities for
a
Warning and caution symbols
1. Use with the voltage described in the specifications of this instruction manual.
Otherwise, this could cause a fire or malfunction.
2. Use only under combination of these station and iron.
3. Always connect to grounded line. Otherwise, this could cause not only incomplete
electrostatic discharging measures but also irregular temperature control to the tip.
4. Do not handle energized components. This could cause a shock since the grip of
the iron is made of conductive material.
5. Do not modify this product.
6. The tip becomes extremely hot. Never make the following things come closer to the
hot area.
・Human bodies such as hand, face and so on.
・Highly volatile chemicals, such as alcohol and paint.
 Warning
1. Place the station and iron stand on a level and stable surface without vibration.
2. Store in dry surroundings after use.
3. Do not stretch or tightly fold the internal cord or the power cord so as to avoid
damaging these cords. This could cause a short circuit and a fire.
4. Scrub the oxides of the solder, flux on the tip with the sponge of the iron stand. If you
remove the solder by swinging the iron around or by striking it on the edge of a desk
or something, the heater breaks and your body get injured.
Always water the sponge of the iron stand during use.
 Caution

３
１ Put the tip cleaners, the wrapping of which
must be removed, into the pit of the iron
stand.
Sponge
２
Engage the waned
parts of the circles.
The station must be revised according to the tip to be used. See page 5.
Use the exclusive iron stand provided. Other than this could melt the iron.
●
●
 Caution
Attach a tip to the iron.
Put the iron on the
iron stand.
Water the sponge.
Explanation for the operating panel
Identification of the parts on the operating panel and functions are follows.
①Power monitor lamp
Illuminates when the power is supplied.
②Sleep lamp
Blinks when set sleep.
Blinks frequently 30 seconds before enter-
ing in sleep mode, and illuminates when in
sleep mode.
③Display
Displays temperature, various letters when
setting something.
④Alarm lamp
Blinks when out of upper and lower limit
temperature.
Illuminates when auto-power-off function.
⑤Lock lamp
Illuminates when key locked.
Blinks when operating key lock setting.
⑥Lock key
Use when setting and releasing key lock.
⑦Set key
Use when setting all kinds of function.
⑧▲key, ⑨▲key
Use when setting for up and down the val-
ue.
Preparation
Tip cleaners

４
Power switch
５ Prior to using a new tip, perform tinning
(applying solder to the tip). Put solder to the
tip and wait until solder melts.
Tinning is finished by that the surface is well
covered.
Preparation
If solder balls up and does not stick to the tip, this is too hot or an oxidation film has
soiled the surface. Clean the tip, allow to cool, and begin again.
The tip surface is apt to be oxidized if the iron is heated without load. Set less than
300℃. Previously put solder against the area to be soldered and wait until melts.
●
●
 Caution
４ Be sure that the power switch is turned off, then
connect the power plug to the wall outlet.
３ Connect the plug of the iron to the receptacle of the
station.
The contact pins are fixed as the illustration. Engage
the projection at the zenith with the zenith of the
receptacle.
Always ground when use. This is important to prevent operator’s electric shock and to
protect the temperature control circuit from outer noises.
 Caution

２ When finishing work, return the iron back to the iron stand.
Store in a safety place after turning the power switch off and pull the power plug
from the outlet.
５
Operation
Temperature can not be properly managed if the tip surface is
covered with carbide or oxide film. Periodical inspection and
cleaning are recommended. Polish with such as the K-142
Polishing pad. Do not use a coarse file or coarse paper.
Periodical inspection for the tip

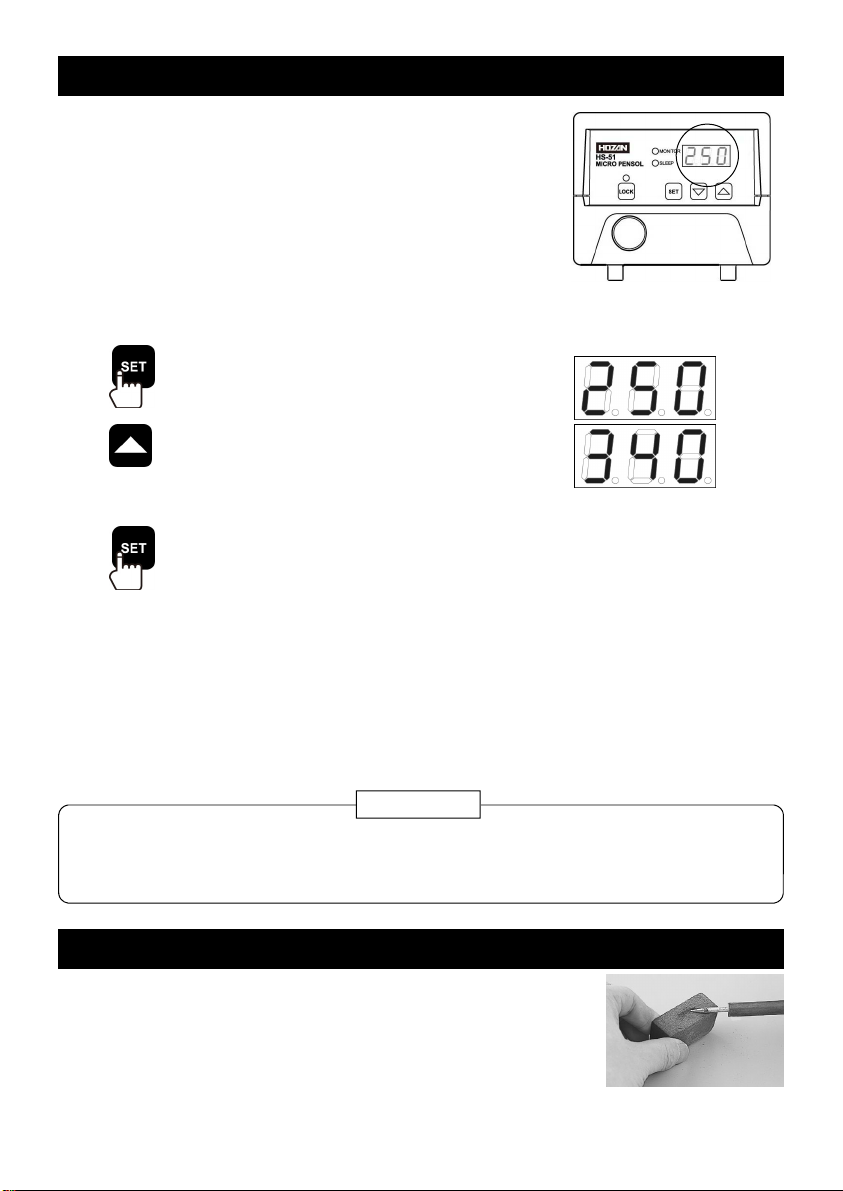

Changing the set of using temperature
[Example] Changing the using temperature from 250 ℃ to 340℃.
Press the ▲key to display 340.
When hold pressing, the display changes
quickly. If pass the aim number, collect by
clicks of the ▲key and the ▼key.
Press the SET key. Displayed
Press the SET key. Setting is completed.
If nothing is pressed for 30 seconds, the temperature automatically
returns to the temperature setting before it was changed. The tip
temperature will remain unchanged.
Setting the temperature over 50℃higher than the sleep temperature, which is
explained on page 6, is necessary.
●
１ Turn the power switch on.
The temperature display will rise to 250 in an
instant.
The station is set in 250℃when shipping. Can be
set from 50℃to 450℃, but does not drop under
the surrounding temperature.
The tip has a precise temperature sensor which reacts to methodically soldering load
and keeps temperature near the setting in close cooperation with the station. Therefore,
never set to unnecessary high temperature foreseeing temperature dropping. Please
set to temperature minimum to melt solder. This avoids damaging electro components.
 Caution

Setting the sleep temperature
[Example] Changing the sleep temperature
from 200℃to 150℃. Displayed
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
Press the SET key to display “SSt”.
Press the ▲key until the display
changes to 150.
Press and hold the SET key until the set using temperature is displayed.
Setting is completed. The tip will keeps 150℃when the unit becomes in sleep
function.
６
Sleep function
The sleep start timer function automatically
lowers the temperature of the tip after a preset
period of inactivity. This function reduces power
consumption and helps extending soldering tip
life. This sleep function can be used with the
auto power off function (see page 8) together.
Explanation for sleep function
Soldering tip temperature
Sensitivity
Sensitivity Set temperature
Sleep
start time Sleep start
Sleep setting temperature
Power ON Time
Operation
Setting the sleep start time
Press and hold the SET key until the set using temperature is displayed.
Setting is completed. The unit will sleep if there is no work over 10 minutes.
Press the ▲key until the display
changes from 5 to 10.
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
Displayed
Press the SET key to display “ct”.
While setting the sleep function, the SLEEP lamp
will blink.
The blinking of the SLEEP lamp will
increase 30 seconds before entering sleep mode.
When the soldering station has entered sleep mode,
the SLEEP lamp will change from blinking to contin-
uously lit, and the display will alternate between
“SLP” and the temperature.
●
●
Sleep temperature must be set over 50℃lower than using temperature setting.
●
[Example] Changing the sleep start time from 5 minutes to 10 minutes.
The dot under and right of the temperature display will illuminate when the tip tem-
perature is in the sleep sensitivity and turn off when out of the sleep sensitivity.
●

７
Sleep function
Setting the sleep sensitivity
Press and hold the SET key until the set using temperature is displayed.
Setting is completed. The unit will be in the sleep mode if the condition that
the tip temperature does not rise or drop over 5℃continues over the set
sleep start time.
Sleep sensitivity value can be set anywhere between 0℃and 100℃.
If it is set too high, there is a possibility that the sleep function will be activated
even during soldering. If this happens, reduce the sleep sensitivity value.
●
Press the SET key to display “dIF”.
Press the ▼key until the display
changes to 3.0.
[Example] Changing the sleep sensitivity from 5℃to 3℃
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
Displayed
The set sleep sensitivity, as the standard for considering that there is no work, is
changeable. The unit is set to 5℃when sipping, and will be in the sleep mode if the
condition that the tip temperature does not rise or drop over 5℃continues over the set
sleep start time.
Canceling the sleep function
If set the sleep start time to 0.00, the sleep function will be turned off and the sleep lamp
will go out.
Returning from the sleep function
To return from the sleep function, do one of the procedures below.
1. Press any key on the control panel.
2. Let the tip contact to the watered sponge.
If setting the sleep temperature to less than 100℃, only the procedure 1. is effective.
To use sleep function manually during the operation, press and hold the ▼key
for one second continuously. This function is very useful for such as leaving the
work booth temporarily.
●
Only for the first time after power on, the longer value of twice of the set time or
10 minutes is applied.
●
Information

８
Auto power off function
[Example] Changing the auto power off start time from 60 minutes to 30 minutes.
Setting the auto power off start time
Press the SET key to display “SUt”.
Press the ▲key until the display
changes to 30.
Press and hold the SET key until the set temperature is displayed.
Setting is completed. Power will be turned off if there is no work for 30 minutes.
When auto power off time value is set to 0, the auto power off function is off.
“Sdn” and the temperature are displayed alternately while the unit is in the auto pow-
er off mode and the LED under the one digit on the temperature window alone lights
when the temperature becomes lower than 50℃.
To use the unit again after auto power off, turn the power off and then on again.
●
●
●
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
Displayed
When the unit is not operated during the preset time, the unit is automatically turned pow-
er off. Even if the use forgets to turn off the unit, this auto power off function works to
keep the unit inactive, and prevent accidents such as fire.
Explanation for auto power off
Soldering tip temperature
Sensitivity
Sensitivity Set temperature
Power off
Power ON Time
Operation
Auto power
off time
Soldering tip temperature
Sensitivity
Sensitivity Set temperature
Power off
Power ON Time
Operation
Sleep setting
temp.
Auto power
off time
Sleep
start time
This is the function that informs the temperature
condition detecting the difference of set tempera-
ture and the actual tip’s temperature.
When the tip’s temperature becomes out of set
temperature, the buzzer will sound continuously
and the alarm lamp will blink.
Setting the temperature range for the alarm
Explanation for alarm function
Set temp. Lower limit temp. Upper limit temp.
Each limit of upper and lower temperature is able to set to 3℃to 100℃. If set to a small
value than 3, the alarm is canceled and [ - - - ] is displayed.
The upper and lower limits are set to 50℃initially by the manufacturer.

Displayed
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
９

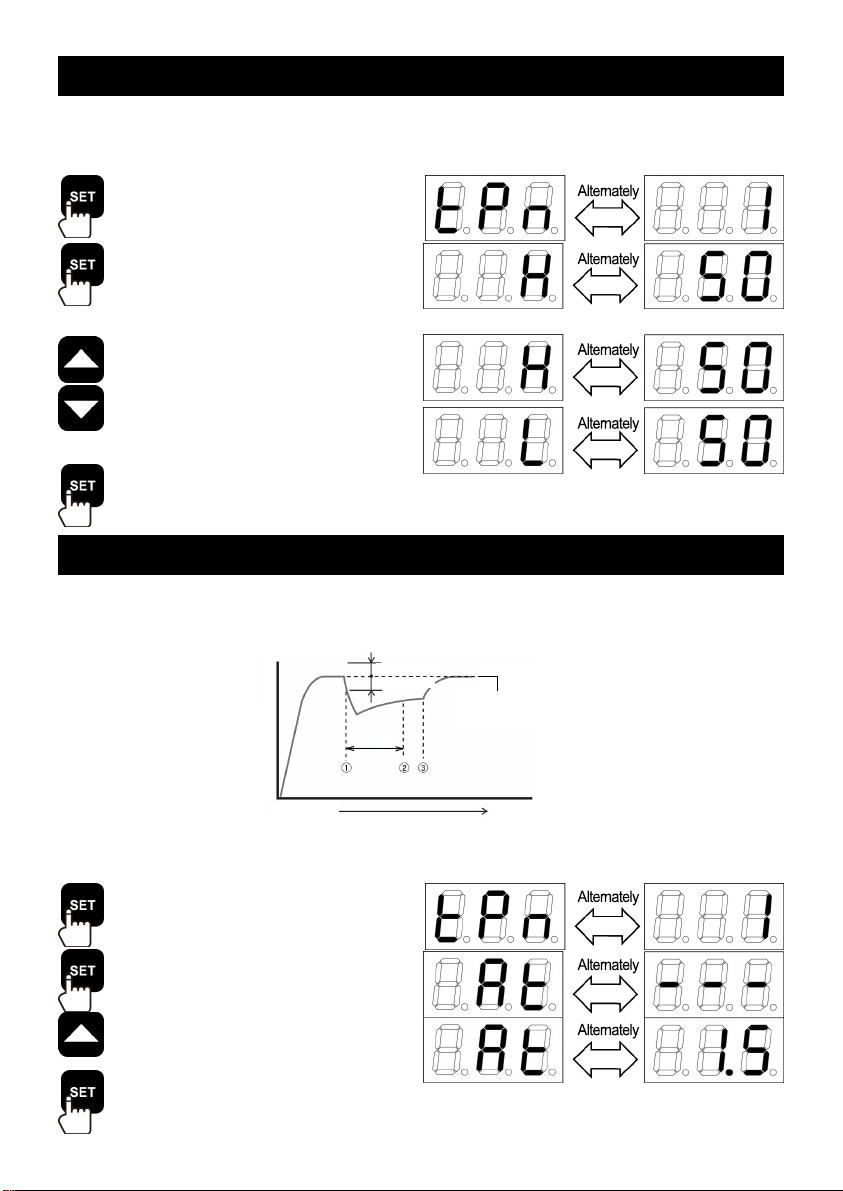

Setting the temperature range for the alarm
Setting the range of alarm temperature
The upper and lower limit values are set to 50℃when shipping.
Press the SET key to display “H” or
“L”.
“H” means upper temperature limit.
“L” means lower temperature limit.
Change the setting using the▲and
▼keys.
Displayed
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
Setting the soldering time for the alarm
This is the function that informs when the tip is applied to the object beyond the set time
sounding the buzzer to prevent breaking objectives.
The alarm range can
be set to 0.3 to 30
seconds. If set to a
small value than 0.3,
the alarm is can-
celed and [ - - - ] is
displayed.
Explanation for soldering time
①The tip temperature becomes to
out of the sensitivity and starts
the soldering temperature (At).
②The soldering time passes and
the buzzer sounds (the display
flushes two times.
③The operator separates the
soldering iron from the object.
Setting the range of soldering time
Press and hold the SET key until the set temperature is displayed.
Setting is completed.
Press the ▲key to change [ - - - ]
to 1.5.
Press the SET key to display “At”.
Press and hold the SET key until the set temperature is displayed.
Setting is completed.
Sensitivity
Sensitivity
At
Time Power ON
Soldering tip temperature
Set
temperature
[Example] Setting the soldering time for alarm to 1.5 seconds.

１０
Displayed

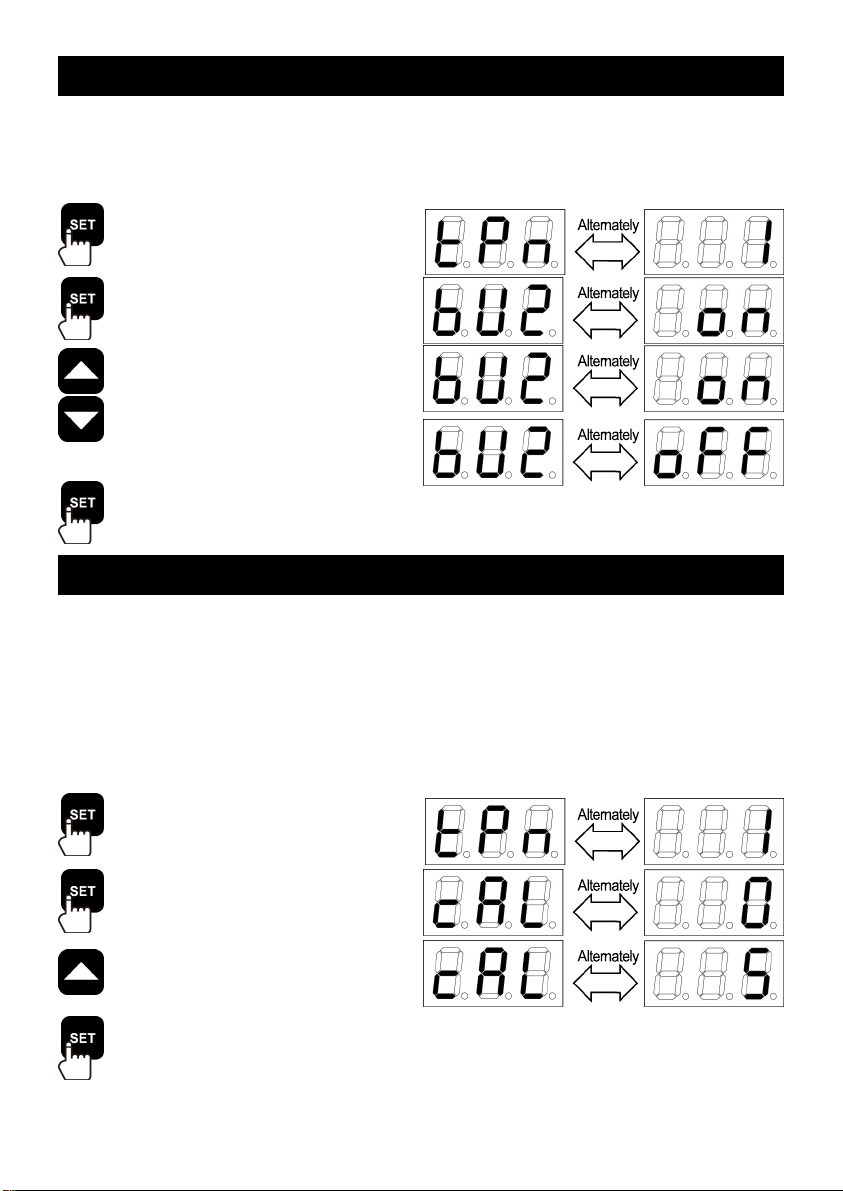

Setting the buzzer sound
Setting the buzzer sound ON/OFF
Press the SET key to display “bUZ”.
Press and hold the SET key until the set using temperature is
displayed. Setting is completed.
Press the ▲key to change to on.
Press the ▼key to change to off.
This setting switches the buzzer on and off. The initial setting is on (the buzzer sounds).
Set to off for mute (no sound).
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
Calibration function
The unit displays certain temperature since the iron has a precise inner temperature
sensor. However, in some cases it is slightly different than values actually measured by a
thermometer.
If you give priority to the results measured by a thermometer over this unit’s display,
please calibrate the unit as follows.
How to calibrate the temperature
Press the SET key to display “cAL”.
[Example] When the set temperature is 300℃, thermometer value is 295℃, and the
calibration value to be input is 5.
This calibration should be carried out while being revised according to tip type
explained on page 5.
●
Press and hold the SET key until the set using temperature is displayed.
Setting is completed. The thermometer will display 300℃when this unit displays
300℃.
Displayed
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
Press the ▲key to change from 0 to
5.

Parameters
１１
Changing the scale
Setting the scale to Fahrenheit scale
Press the SET key to display
“c - F” “ c”.
Press and hold the SET key until the set using temperature is displayed. The scale
was changed to Fahrenheit scale. Hide the “℃” stamped on the panel.
Press the ▲key to change to
“c - F” “ F”.
If change to Celsius scale from
Fahrenheit scale, use the ▼key.
Temperature is displayed by Celsius scale. This can be changed to Fahrenheit scale if
desired.
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
Displayed
Range
- - - ,
3—100
0—999
- - - ,
0.3—30
(SSt+50)
—450
0—4
-50—50
0—(Pt-50)
0.00—999
0—20.0
- - - ,
3—100
on/off
c/F
Shipping default setting
50
60
- - -
250
1
0
200
5
2.0
c
50
on
Term (display panel letters)
Set using temperature
Revise No. (tPn)
Temperature
calibration (cAL)
Sleep temperature (SSt)
Sleep start time (ct)
Sleep sensitivity (dIF)
Auto power off start time
(SUt)
Upper limit (H)
Lower limit (L)
Buzzer (bUZ)
Changing the scale
Soldering time (At)
Display panel Unit
℃
minute
second
℃
ー
℃
℃
minute
℃
℃
ー

Options
１２
 Caution
・Insert the tip securely until snug. Otherwise, the tip
does not function properly.
・Before replacing the tip, disconnect the power plug
from the wall outlet and allow the soldering iron to
cool to room temperature.
●
●
Tips
Purchase appropriate tips accord-
ing to your work.
How to change the tip
Store the removed
tips on the iron
stand.
１
Drag the slide
lever of the grip in
the direction of
Hold the
black plas-
tic part and
pull the tip
out.
２
Plug the new
tip until snug.
Engage the
waned parts of the
circles.
３
HS-51B03
HS-51B01 HS-51B02 HS-51BC01
HS-51C01 HS-51C02 HS-51C03
HS-51D01 HS-51D02
HS-51K02
HS-51B04 HS-51B09
HS-51BC02 HS-51BC03
HS-51C04 HS-51C05 HS-51C06
HS-51D03 HS-51D04 HS-51D05 HS-51D06

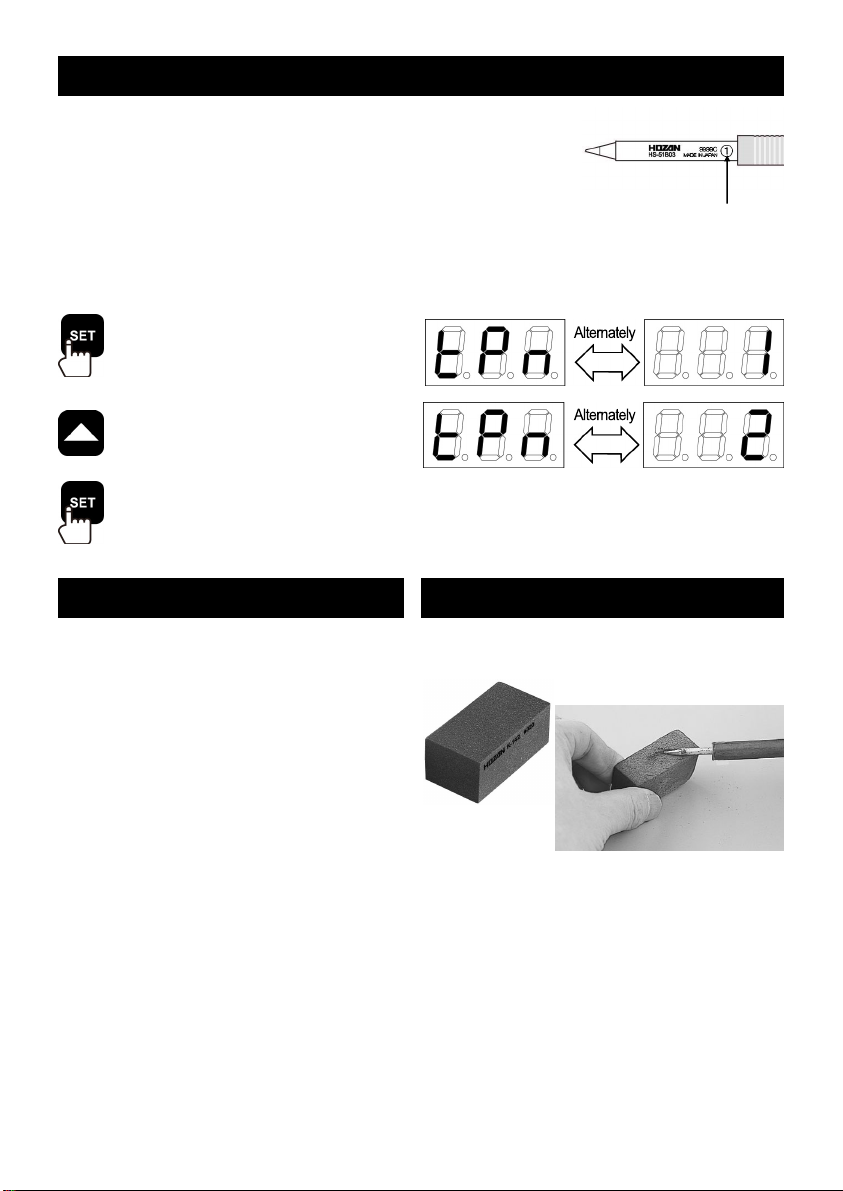

Temperature revision when changing the tip
[Example] Set revise No. from ①to ②.
Revision according to the tip type
Press the ▲key to display “2”.
Press and hold the SET key until the set using temperature is
displayed.
When changing the tip to different type of tip, revision of the tip
temperature is required before starting soldering work.
Please reset as follows according to the number with a circle
stamped near the root on the tip.
If change to a tip which has the same revise number, revision is
unnecessary.
Displayed
Press and hold the SET key until
the display turns to “tPn” after
temperature blinks.
１３
Relational product
K-142 Polishing pad
Polishing the oxidized tip
HS-51-1 Tip cleaner (sponge)
Replacement parts
HS-51-2 Iron stand
HS-51-3 Iron, complete
HS-51-4 Tip cleaner (wire)

１４

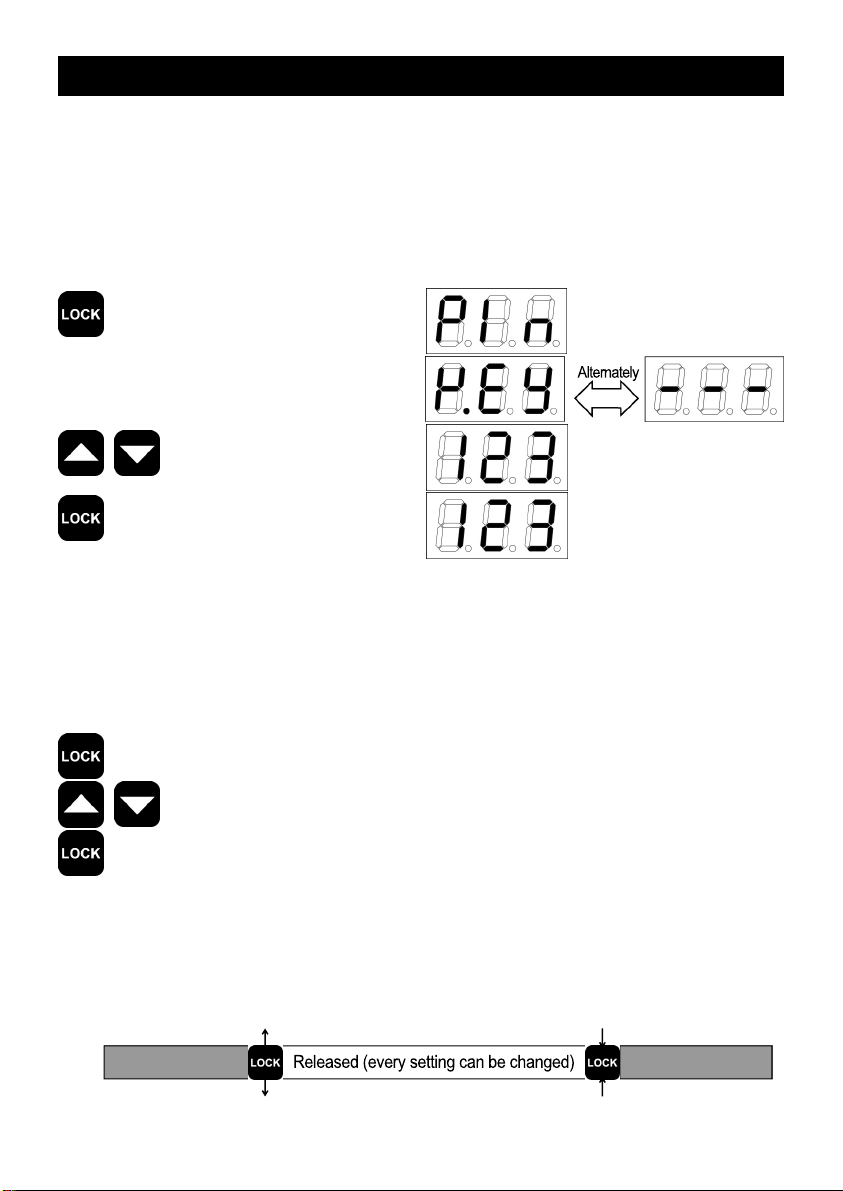

Key lock function
The key lock function locks the temperature and parameter settings. Therefore, the
temperature and parameters cannot be changed by any unauthorized personnel.
Authorized personnel may use a code number to set, or release the key lock function.
The unit is not locked when shipping.
Setting the cord number
[Example] Setting the cord number 123.
Press the LOCK key.
Displayed
Press the ▲and ▼key to
display 123.
Press the LOCK key.
Number 123 blinks 5 times.
The unit is locked.
Each setting can be changed when locking is released.
It is locked when this operation is done under the lock released state.
It is release when this operation is done under the locked state.
Only one cord number can be registered.
●
Press the LOCK key.
How to release/lock
Press the LOCK key.
Number 123 blinks 5 times.
The unit is released (locked.)
locked locked
Press the ▲and ▼key to display the registered cord number.
Each settings explained on pages 4-10 when the unit is locked.
If leave under lock released state, everyone can change every setting.
If an incorrect code number is input, the display will show “nG”, and return to the
initial display.
●
●
●

１５
Key lock function
Changing the cord number
[Example] Changing the cord number from 123 to 234.
Press the LOCK key.
Displayed
Press and hold the LOCK key
until the display turns to display
as bottom of the right illustration,
after turned to “cod”.
using the ▲and▼
keys, display the usual
cord number 123.
Press the LOCK key.
using the ▲and▼
keys, display the new
cord number 234.
Press the LOCK key.
Number 234 blinks 5 times.
The cord number is changed to
234.

Key lock function

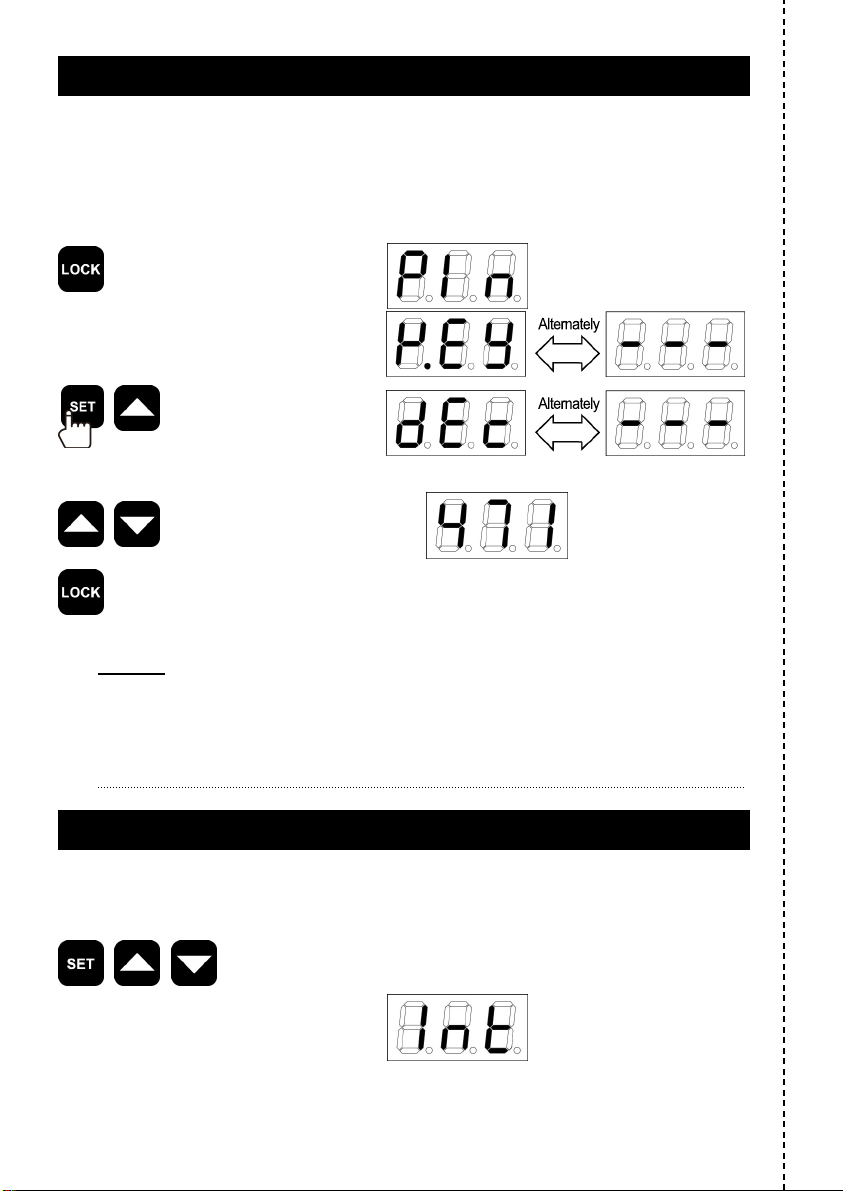

Resetting the personal identification number
This procedure releases the key lock function which means that unauthorized
personnel can change temperature and/or parameter settings. Please tear and keep
this page separately with authorized personnel.
Press the LOCK key.
Displayed
Press the LOCK key.
Number 471 blinks 5 times.
The personal identification number is reset.
１６
Press and hold the
LOCK key and the
▲key simultaneously
until the display turns
to “dEc”.
Memo
Recording the registered number is recommended.
using the ▲and▼
keys, display 471.
The whole initialization
Initializing all the setting
Treating this procedure makes all the settings except the personal identification num-
ber are reset to the initial state from the manufacturer.
Press and hold the ▲ and ▼keys while
the setting temperature is displayed.
After “Int” blinks 5 times,
The temperature is displayed.
All the settings are initialized.

The password and/or parameter are in the initial
condition. Setting again will provide trouble-free
operation. If occurs frequently, ask to repair.
The sensor in the tip and/or the heater may be
damaged. Replace the tip with a new one. Turn
the unit OFF and turn it ON again.
Check the tip setting. If set loosely, insert it
Securely.
Replace the tip or the iron with a new one.
This message is also displayed when changing the
tip. Please press any keys on the panel to reset.
The sensor or
circuit in the tip
is down.
The tip is set
loosely.
Error message Cause Countermeasure
Memory error.
Sensor error,
heater error.
Sensor error. There is a problem with the sensor. Replace the
tip. Turn OFF the unit, and then turn the power
switch ON again after changing the tip.
Trouble shooting
１７
Following cases are not serious conditions. Check carefully with guide and take suitable
steps.

Antistatic standards
HOZAN’s ESD-safe products are controlled with reference to the Japanese standard (RCJS-5
-1*) which is based on the international standard (IEC61340-5-1).
Products which bear the “ “ mark are products to which the standard values (see table
below) apply. The “ESD Standard” listed on each of the product pages denote the HOZAN
standard for the product.
１８
ESD-safe item requirements (Excerpted from RCJS-5-1:2014)
【Item-specific requirements】
EPA ground resistance or
resistance Rg (Ω) of
groundable point
Charge decay
*2
Tool Rg＜1×1012
*1
There is no prescribed “minimum resistance” value for protecting an ESDS device.
However, such a minimum resistance is required in some cases to ensure safety.
For details, refer to the following standards:IEC61010-1, IEC60536, IEC60364.
【System requirements】
Tool system Less than 2 secs. ｆrom initial
value (Max. 1,000 V) to 10 %
*1. . .
*2. . . A charge decay is required in case where the surface resistance, point to point
resistance, or the groundable point resistance exceeds 1 X 1000 Ω and in case
where the material is not homogeneous, and/or has insulated portion.
* Reliability Center for Electronic Components of Japan (RCJ).
“Protection of Electronic Devices from Electrostatic Phenomena-General Requirements” (RCJS-5-1)

19.11
２０
1-2-12 Saiwaicho, Naniwa-ku, Osaka 556-0021, Japan
Tel : [phone] F ax : [phone]
